Exterior Lights Schematics. Chevrolet Astro - 4WD 2000

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2000 🢒 Astro - 4WD 🢒 Body and Accessories 🢒 Lighting Systems 🢒 Exterior Lights Schematics

Exterior Lights Schematics Domestic

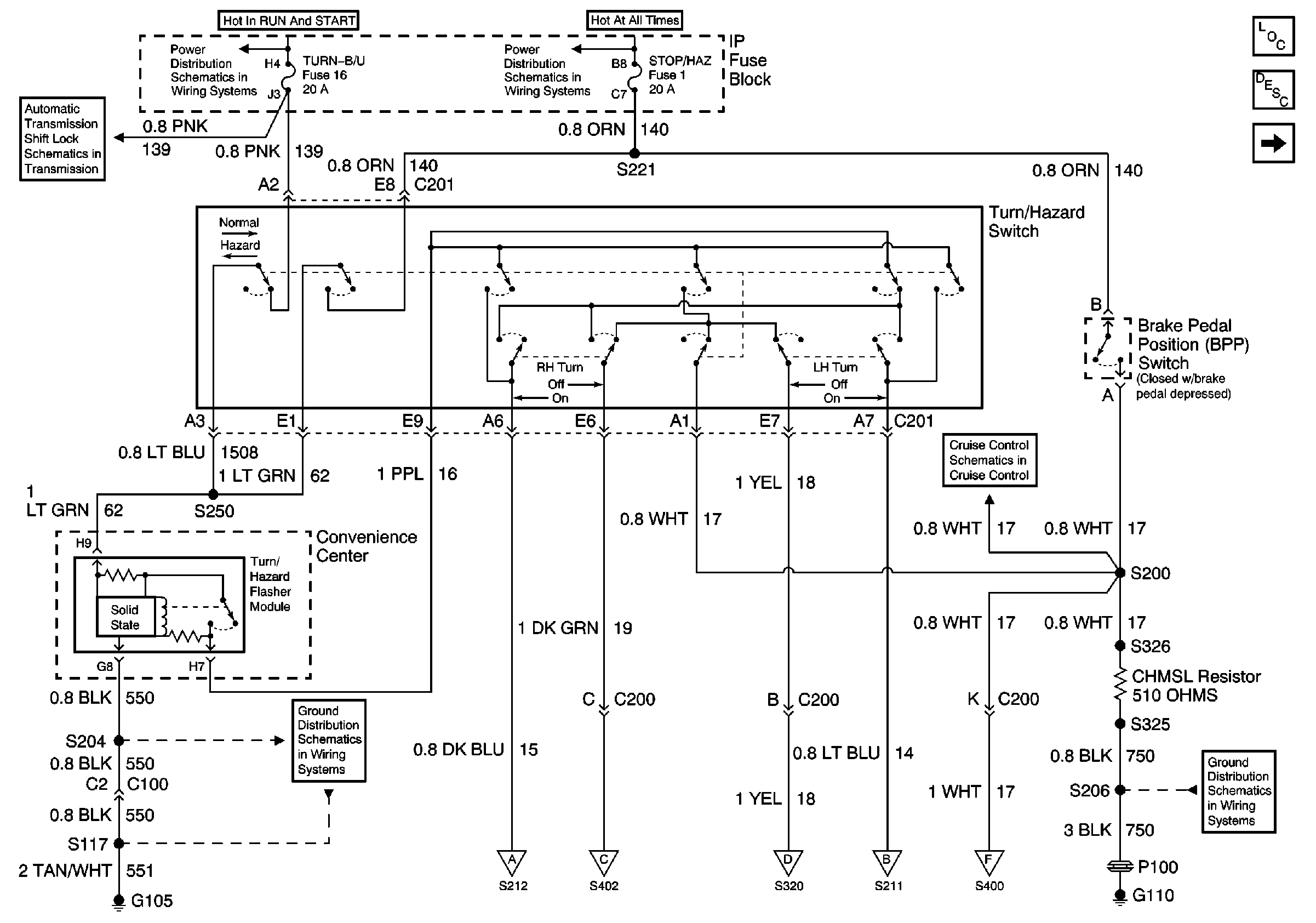

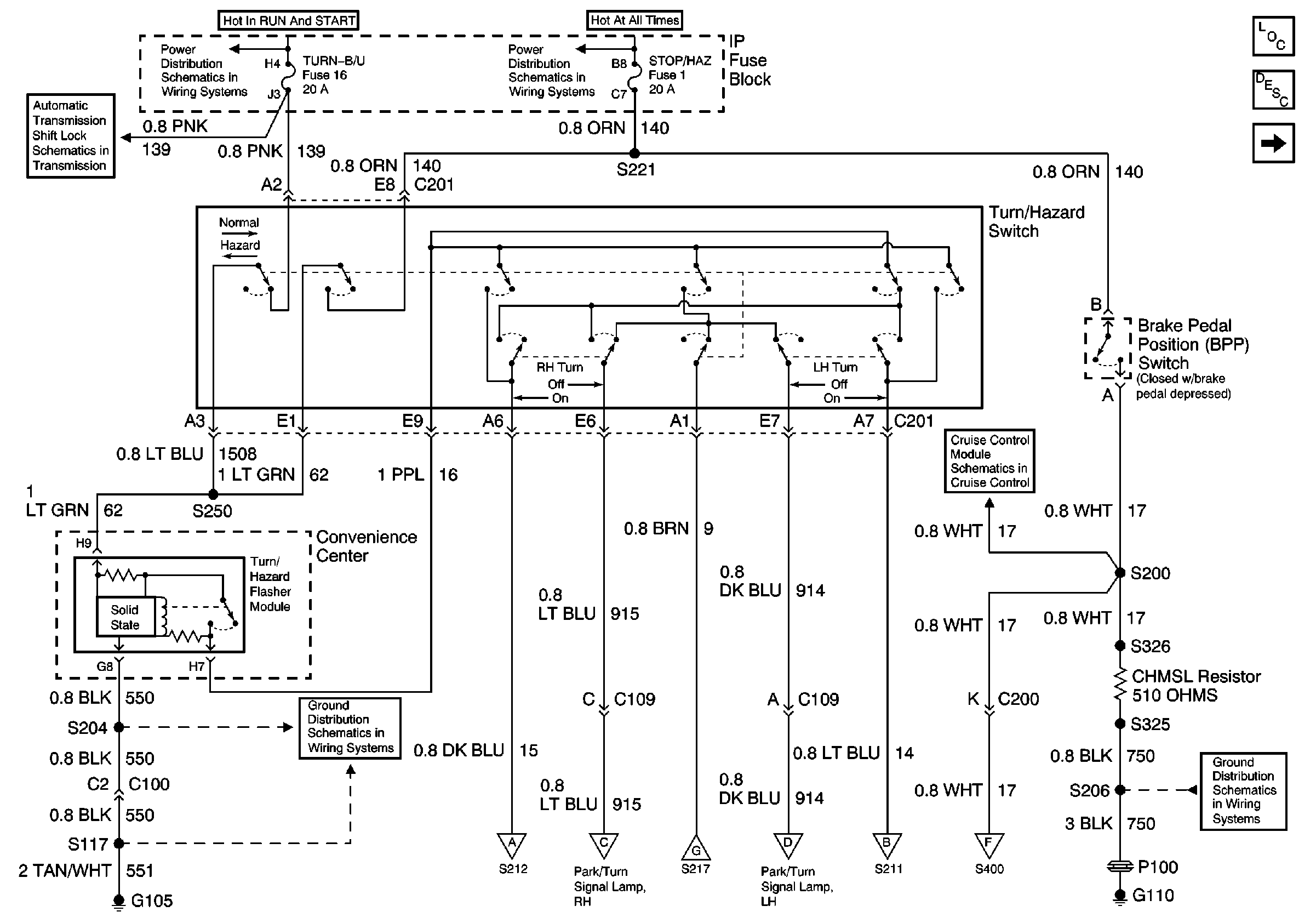

Figure 1:	Turn/Hazard Switch and Flasher Module Lighting Systems Components Exterior Lights Circuit Description Domestic Turn Indicators, Park/Turn Signal Lamps, Front Side Marker Lamps Auto Trans Shift Lock Control Schematic IGN-A Fuse and Ignition Switch BATT and LIGHTING Fuse Cruise Control Schematics G105 and G107 G110 (1 of 2) Turn Indicators, Park/Turn Signal Lamps, Front Side Marker Lamps CHMSL, Tail/Stop/Turn Lamps, Rear Side Marker Lamps, License Lamp CHMSL, Tail/Stop/Turn Lamps, Rear Side Marker Lamps, License Lamp Turn Indicators, Park/Turn Signal Lamps, Front Side Marker Lamps CHMSL, Tail/Stop/Turn Lamps, Rear Side Marker Lamps, License Lamp

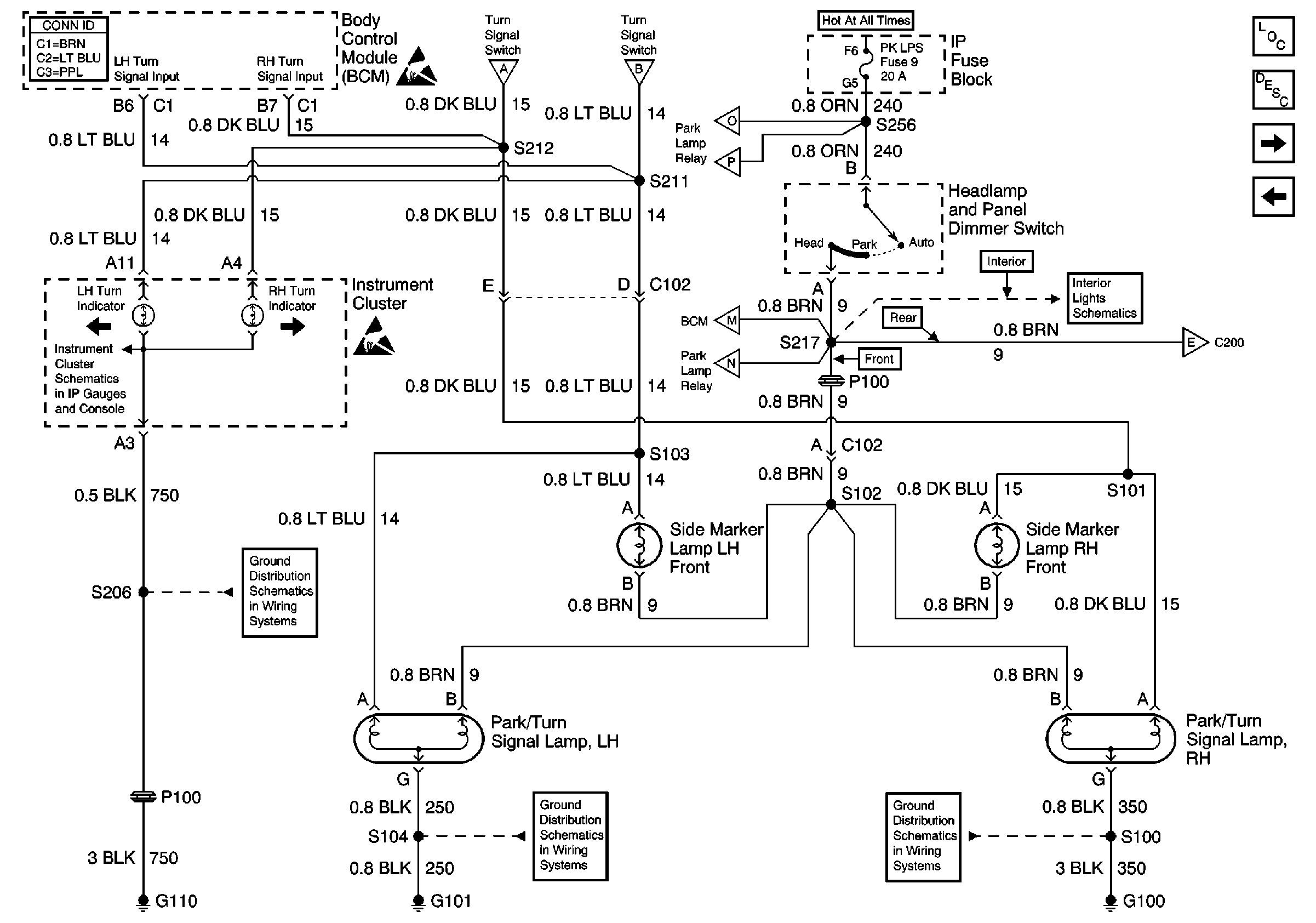

Figure 2:	Turn Indicators, Park/Turn Signal Lamps, Front Side Marker Lamps Lighting Systems Components Exterior Lights Circuit Description Domestic CHMSL, Tail/Stop/Turn Lamps, Rear Side Marker Lamps, License Lamp Turn/Hazard Switch and Flasher Module Turn/Hazard Switch and Flasher Module Turn/Hazard Switch and Flasher Module Park Lamp Relay Park Lamp Relay Park Lamp Relay Park Lamp Relay CHMSL, Tail/Stop/Turn Lamps, Rear Side Marker Lamps, License Lamp Courtesy Lamp Relay ILLUM, TRANS, and GAUGES Fuse, and Grounds G110 (1 of 2) G101, G106 and G302 G100, G102 and G103 Lighting Systems Schematic Icons Lighting Systems Schematic Icons

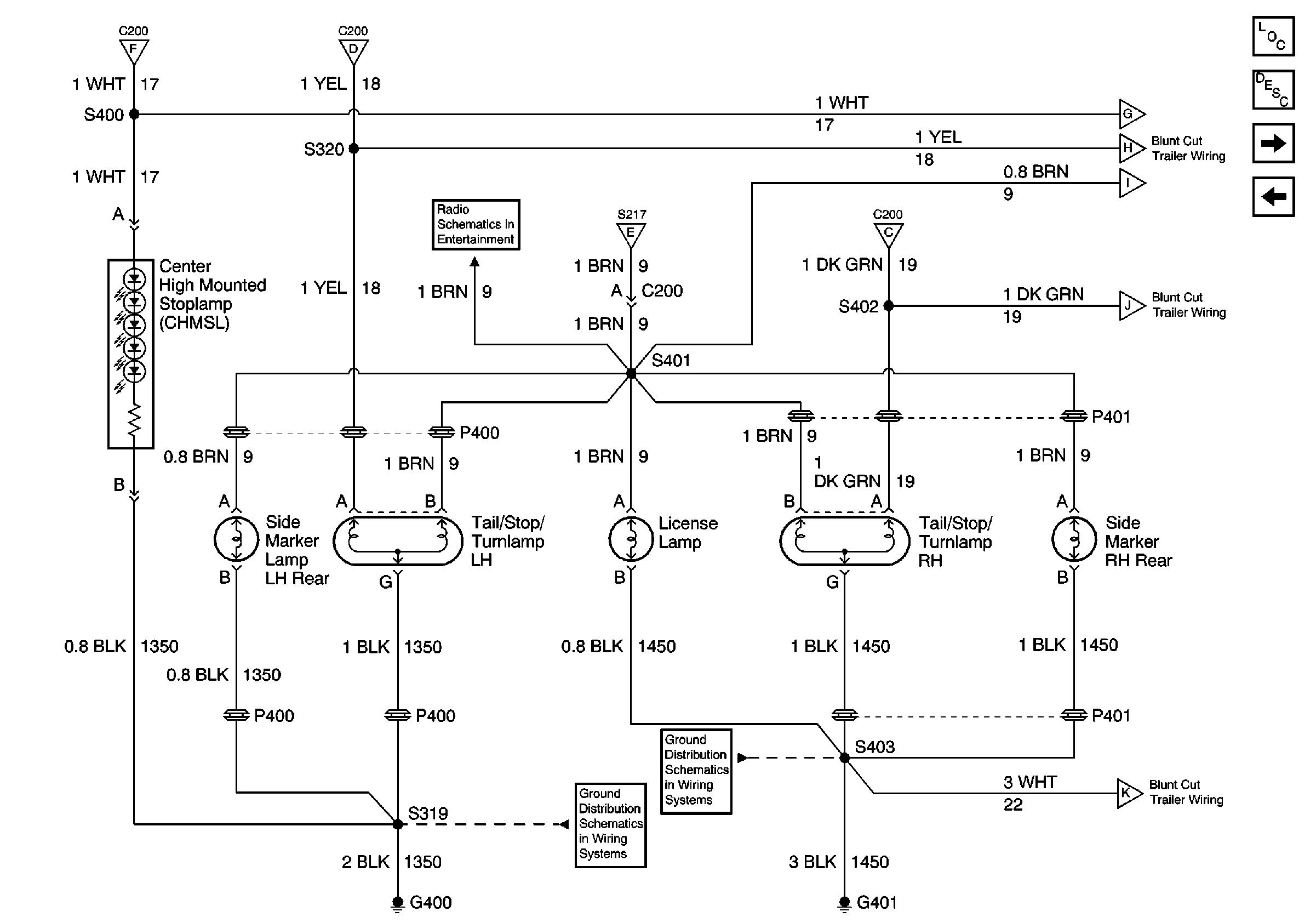

Figure 3:	CHMSL, Tail/Stop/Turn Lamps, Rear Side Marker Lamps, License Lamp Lighting Systems Components Exterior Lights Circuit Description Domestic Trailer Wiring Harness Connections Turn Indicators, Park/Turn Signal Lamps, Front Side Marker Lamps Turn/Hazard Switch and Flasher Module Turn/Hazard Switch and Flasher Module Trailer Wiring Harness Connections Trailer Wiring Harness Connections Trailer Wiring Harness Connections Trailer Wiring Harness Connections Trailer Wiring Harness Connections Turn Indicators, Park/Turn Signal Lamps, Front Side Marker Lamps Turn/Hazard Switch and Flasher Module Rear Radio Control Module (Premium Radio w/ Rear Radio Control) G301, G303, G400 and G404 G200 (2 of 2) and G401

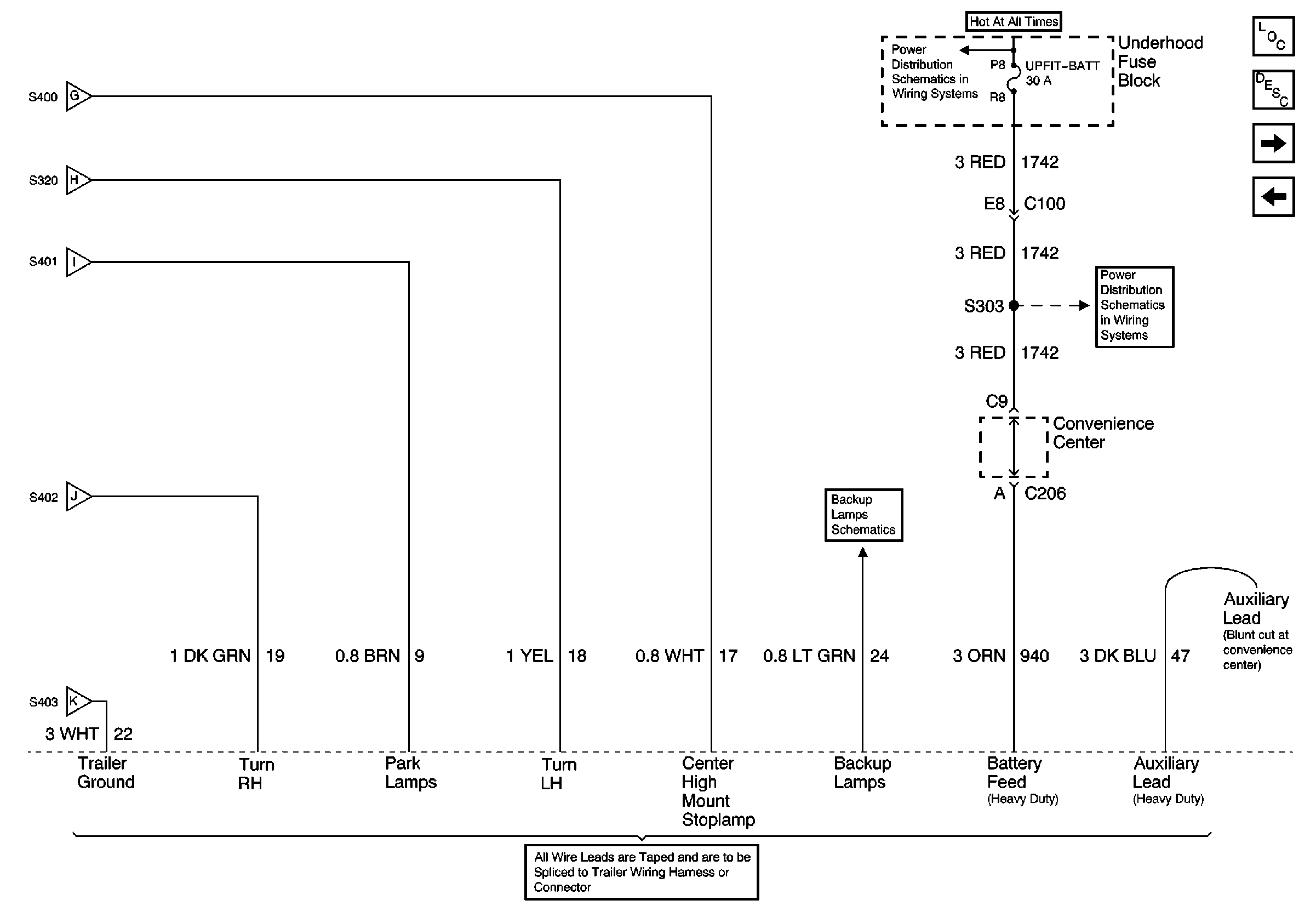

Figure 4:	Trailer Wiring Harness Connections Lighting Systems Components Exterior Lights Circuit Description Domestic Park Lamp Relay CHMSL, Tail/Stop/Turn Lamps, Rear Side Marker Lamps, License Lamp CHMSL, Tail/Stop/Turn Lamps, Rear Side Marker Lamps, License Lamp CHMSL, Tail/Stop/Turn Lamps, Rear Side Marker Lamps, License Lamp CHMSL, Tail/Stop/Turn Lamps, Rear Side Marker Lamps, License Lamp CHMSL, Tail/Stop/Turn Lamps, Rear Side Marker Lamps, License Lamp CHMSL, Tail/Stop/Turn Lamps, Rear Side Marker Lamps, License Lamp Back Up Lights Schematic (Domestic Non VE1) Battery, Generator, Starter Solenoid, and Underhood Fuse BLock UPFITTER-BATT and UPFITTER-ACCY Fuse

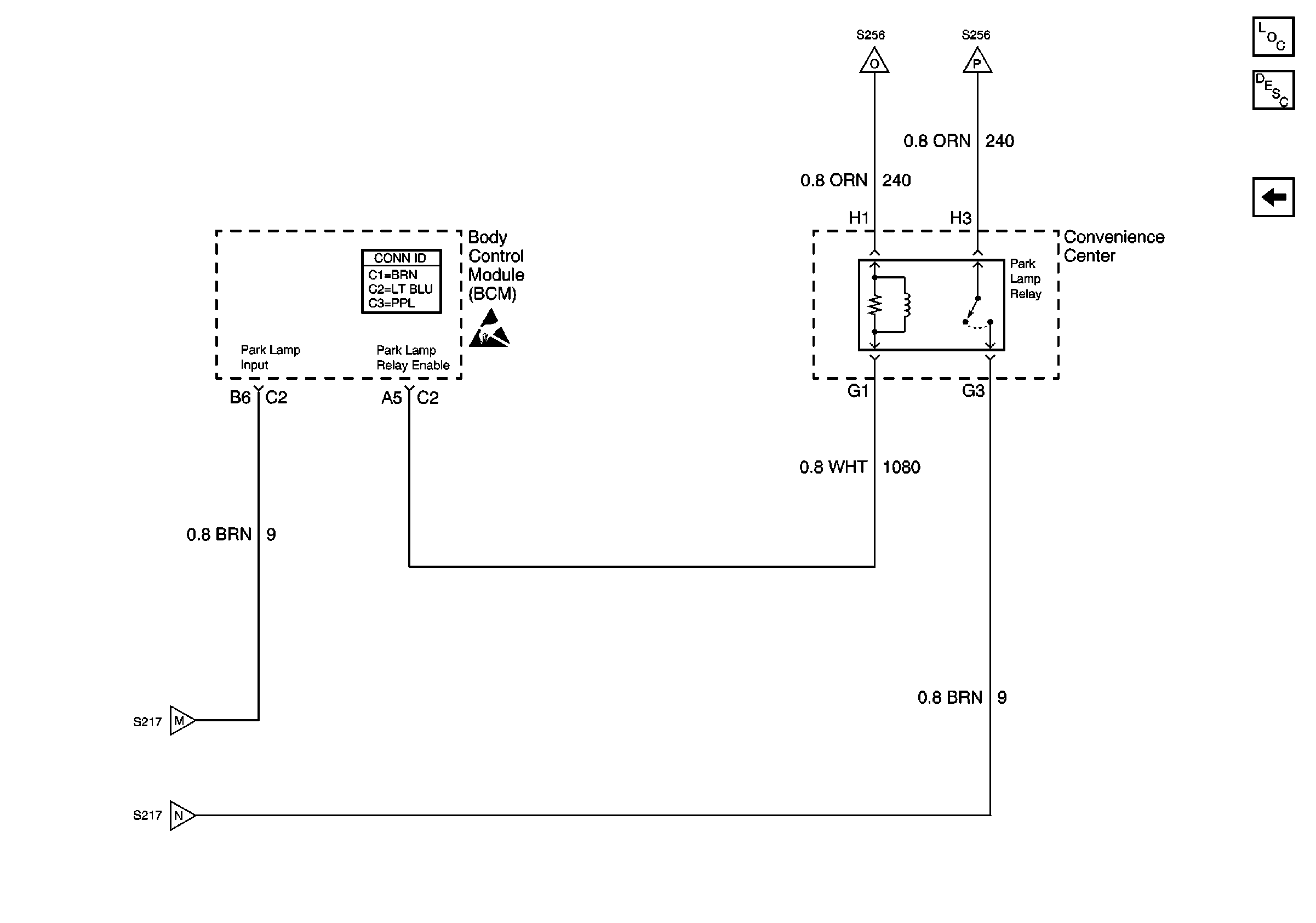

Figure 5:	Park Lamp Relay Lighting Systems Components Exterior Lights Circuit Description Domestic Trailer Wiring Harness Connections Turn Indicators, Park/Turn Signal Lamps, Front Side Marker Lamps Turn Indicators, Park/Turn Signal Lamps, Front Side Marker Lamps Turn Indicators, Park/Turn Signal Lamps, Front Side Marker Lamps Turn Indicators, Park/Turn Signal Lamps, Front Side Marker Lamps Lighting Systems Schematic Icons

Exterior Lights Schematics WX7 - VE1

Figure 1:	Turn/Hazard Switch and Flasher Module Lighting Systems Components Exterior Lights Circuit Description VE1 Turn Indicators, Park/Turn Signal Lamps, Aux T/Sig Lamps, Side Marker Lamps Auto Trans Shift Lock Control Schematic IGN-A Fuse and Ignition Switch BATT and LIGHTING Fuse Cruise Control Schematics G105 and G107 G110 (1 of 2) Turn Indicators, Park/Turn Signal Lamps, Aux T/Sig Lamps, Side Marker Lamps Turn Indicators, Park/Turn Signal Lamps, Aux T/Sig Lamps, Side Marker Lamps Turn Indicators, Park/Turn Signal Lamps, Aux T/Sig Lamps, Side Marker Lamps Turn Indicators, Park/Turn Signal Lamps, Aux T/Sig Lamps, Side Marker Lamps Turn Indicators, Park/Turn Signal Lamps, Aux T/Sig Lamps, Side Marker Lamps CHMSL, Tail/Stop Lamps, Rear Turn Signals, License Lamp

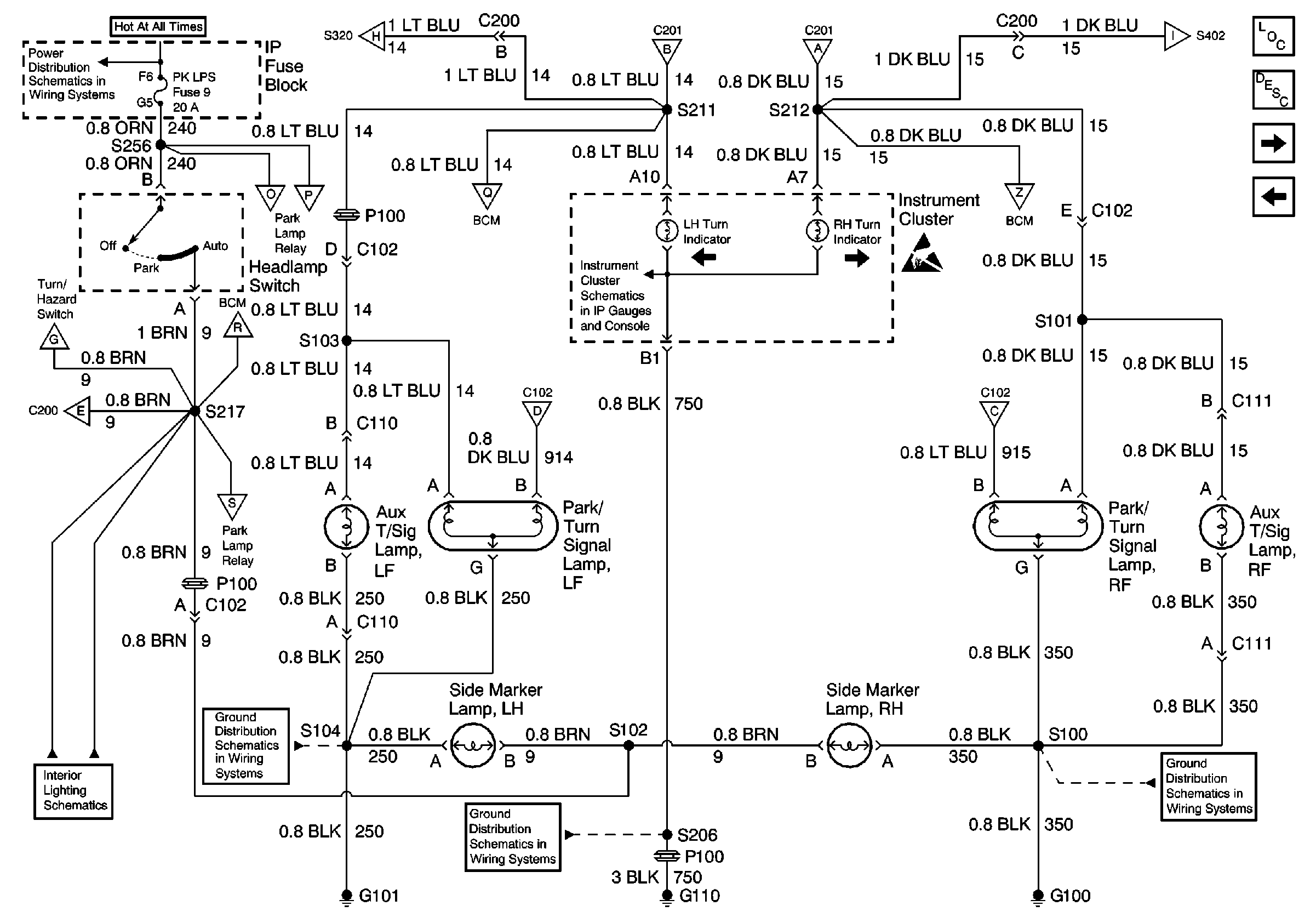

Figure 2:	Turn Indicators, Park/Turn Signal Lamps, Aux T/Sig Lamps, Side Marker Lamps Lighting Systems Components Exterior Lights Circuit Description VE1 CHMSL, Tail/Stop Lamps, Rear Turn Signals, License Lamp Turn/Hazard Switch and Flasher Module BATT and LIGHTING Fuse CHMSL, Tail/Stop Lamps, Rear Turn Signals, License Lamp Turn/Hazard Switch and Flasher Module Turn/Hazard Switch and Flasher Module CHMSL, Tail/Stop Lamps, Rear Turn Signals, License Lamp ILLUM, TRANS, and GAUGES Fuse, and Grounds Park Lamp Relay Park Lamp Relay Turn/Hazard Switch and Flasher Module CHMSL, Tail/Stop Lamps, Rear Turn Signals, License Lamp Courtesy Lamp Relay Turn/Hazard Switch and Flasher Module Turn/Hazard Switch and Flasher Module G101, G106 and G302 G110 (1 of 2) G100, G102 and G103 Window and Door Lock Switches Park Lamp Relay Park Lamp Relay Lighting Systems Schematic Icons Park Lamp Relay Park Lamp Relay

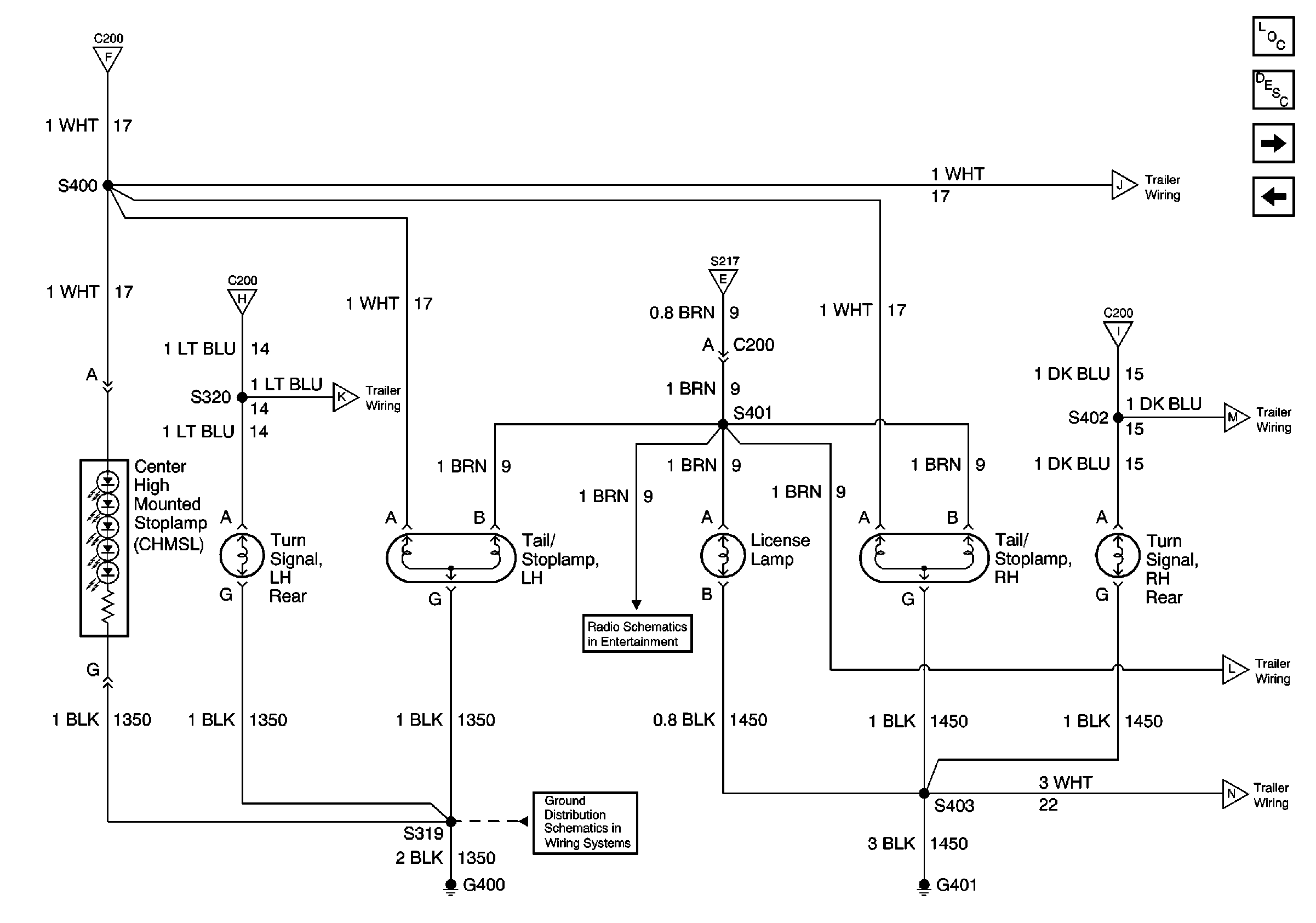

Figure 3:	CHMSL, Tail/Stop Lamps, Rear Turn Signals, License Lamp Lighting Systems Components Exterior Lights Circuit Description VE1 Trailer Wiring Harness Connections Turn Indicators, Park/Turn Signal Lamps, Aux T/Sig Lamps, Side Marker Lamps Turn/Hazard Switch and Flasher Module Trailer Wiring Harness Connections Turn Indicators, Park/Turn Signal Lamps, Aux T/Sig Lamps, Side Marker Lamps Trailer Wiring Harness Connections Turn Indicators, Park/Turn Signal Lamps, Aux T/Sig Lamps, Side Marker Lamps Turn Indicators, Park/Turn Signal Lamps, Aux T/Sig Lamps, Side Marker Lamps Trailer Wiring Harness Connections Trailer Wiring Harness Connections Trailer Wiring Harness Connections Rear Radio Control Module (Premium Radio w/ Rear Radio Control) G301, G303, G400 and G404

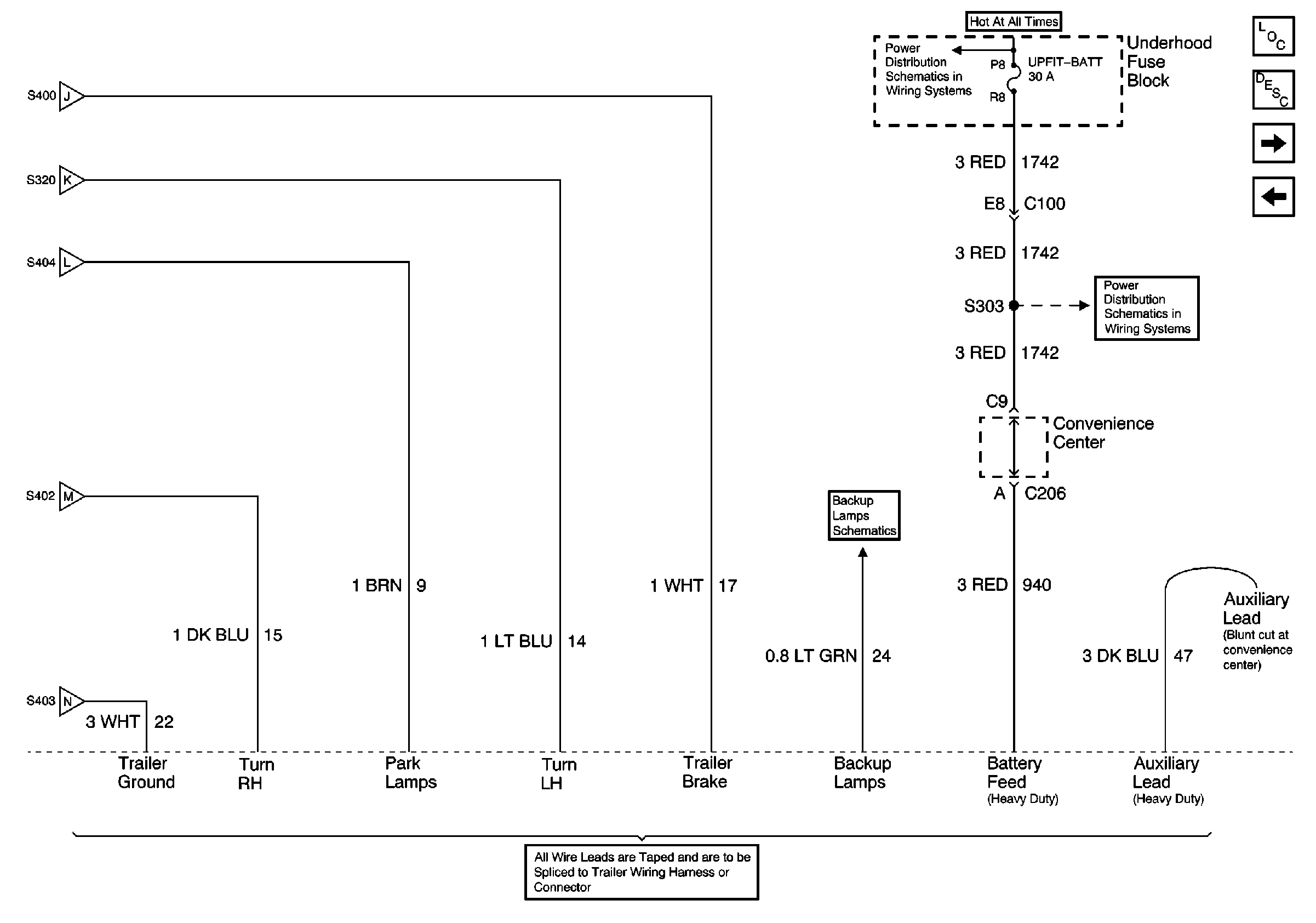

Figure 4:	Trailer Wiring Harness Connections Lighting Systems Components Exterior Lights Circuit Description VE1 Park Lamp Relay CHMSL, Tail/Stop Lamps, Rear Turn Signals, License Lamp Battery, Generator, Starter Solenoid, and Underhood Fuse BLock UPFITTER-BATT and UPFITTER-ACCY Fuse Back Up Lights Schematic (VE1) CHMSL, Tail/Stop Lamps, Rear Turn Signals, License Lamp CHMSL, Tail/Stop Lamps, Rear Turn Signals, License Lamp CHMSL, Tail/Stop Lamps, Rear Turn Signals, License Lamp CHMSL, Tail/Stop Lamps, Rear Turn Signals, License Lamp CHMSL, Tail/Stop Lamps, Rear Turn Signals, License Lamp

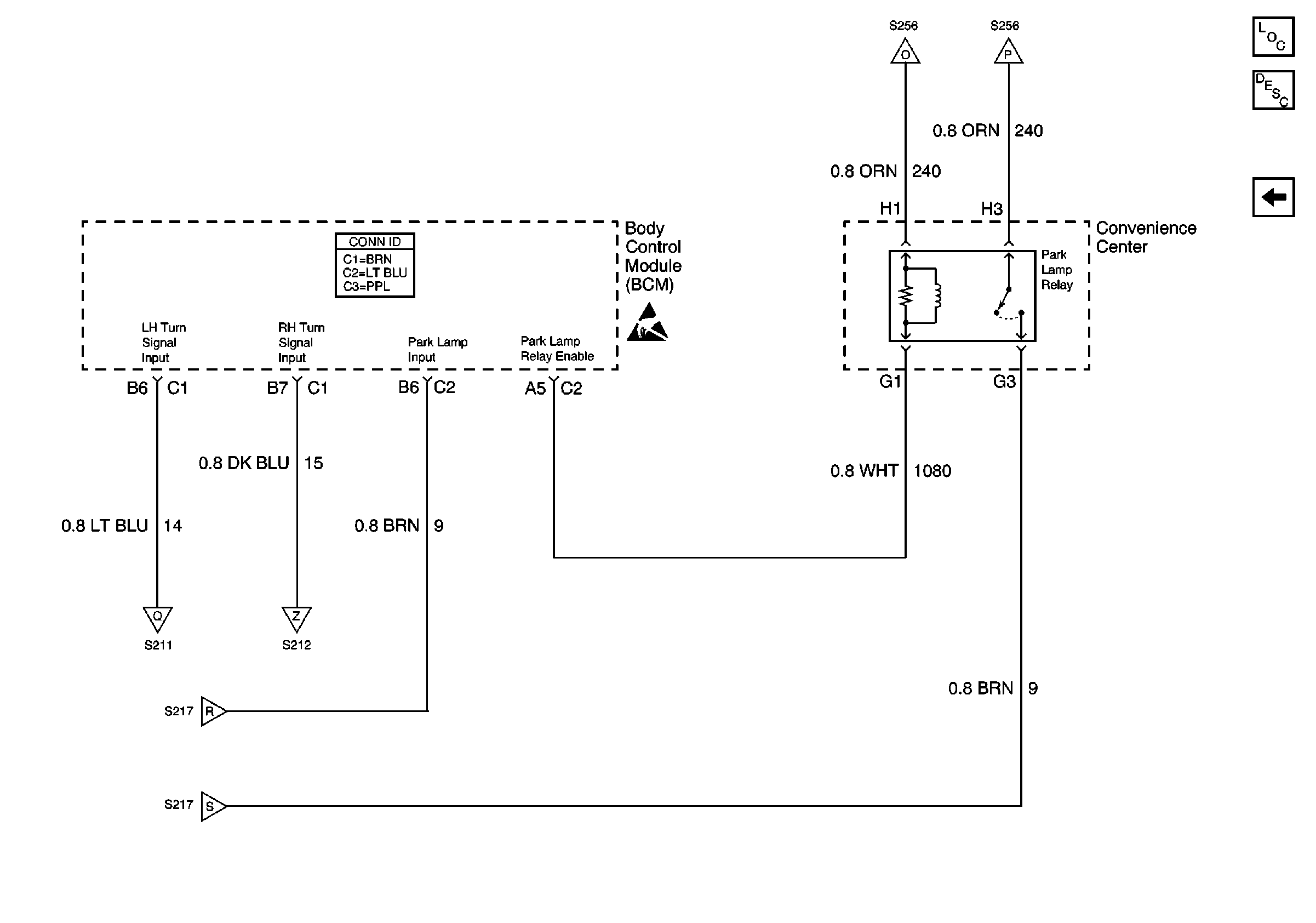

Figure 5:	Park Lamp Relay Lighting Systems Components Exterior Lights Circuit Description VE1 Trailer Wiring Harness Connections Turn Indicators, Park/Turn Signal Lamps, Aux T/Sig Lamps, Side Marker Lamps Turn Indicators, Park/Turn Signal Lamps, Aux T/Sig Lamps, Side Marker Lamps Turn Indicators, Park/Turn Signal Lamps, Aux T/Sig Lamps, Side Marker Lamps Turn Indicators, Park/Turn Signal Lamps, Aux T/Sig Lamps, Side Marker Lamps Lighting Systems Schematic Icons Turn Indicators, Park/Turn Signal Lamps, Aux T/Sig Lamps, Side Marker Lamps Turn Indicators, Park/Turn Signal Lamps, Aux T/Sig Lamps, Side Marker Lamps
