Interior Lights Schematics. Chevrolet Astro - 4WD 2000

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2000 🢒 Astro - 4WD 🢒 Body and Accessories 🢒 Lighting Systems 🢒 Interior Lights Schematics

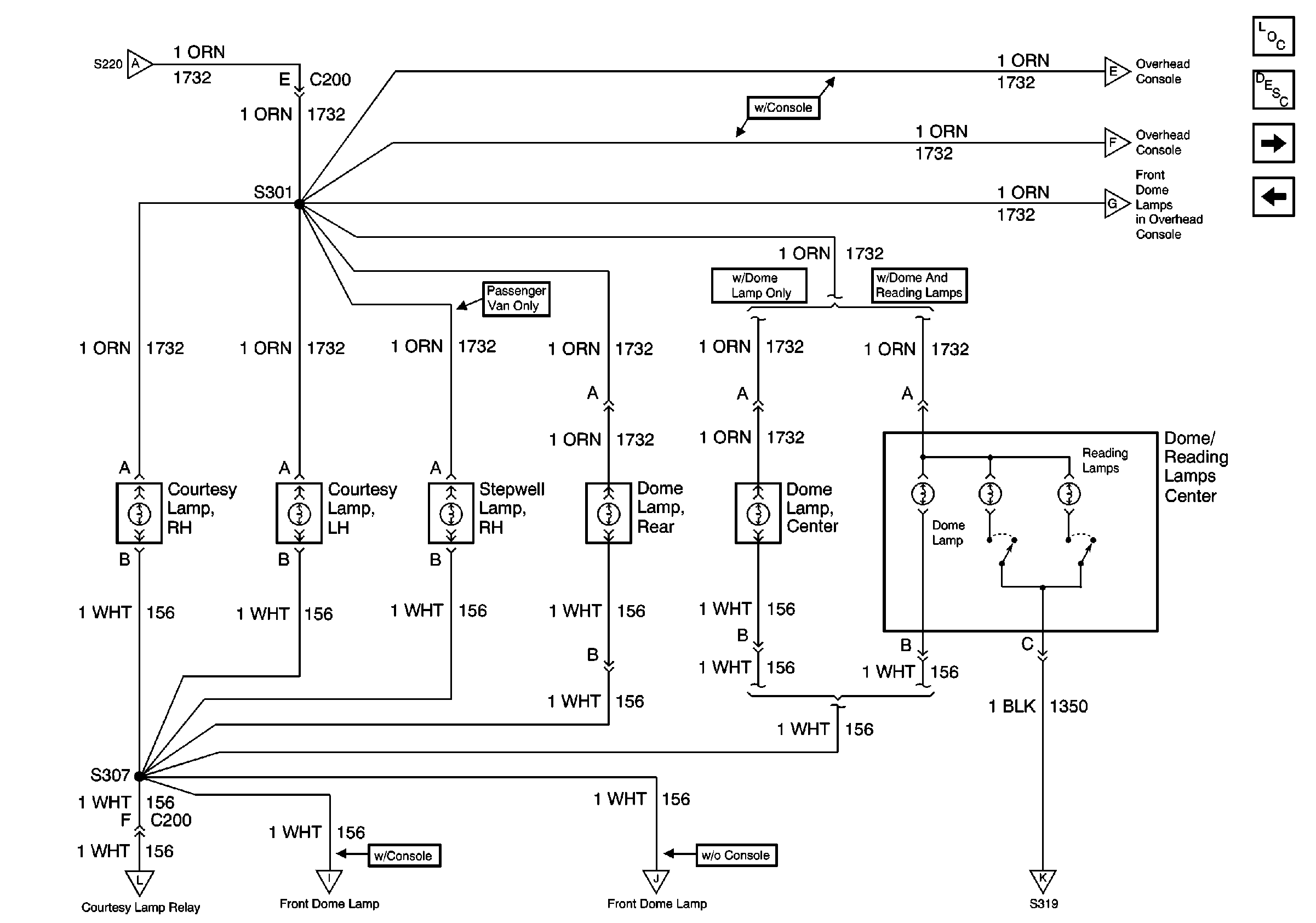

Figure 1:	Courtesy Lamp Relay Lighting Systems Components Interior Lights Circuit Description Door Jamb Switches, Liftgate Strut Switch Turn Indicators, Park/Turn Signal Lamps, Front Side Marker Lamps Inadvertent Power Relay, Vanity Lamps G105 and G107 Courtesy Lamps, Stepwell Lamp, Dome Lamps Inadvertent Power Relay, Vanity Lamps Courtesy Lamps, Stepwell Lamp, Dome Lamps G200 (2 of 2) and G401 G200 (1 of 2) Lighting Systems Schematic Icons Headlamp and Panel Dimmer Switch, Ambient Light Sensor, Headlamp Relay

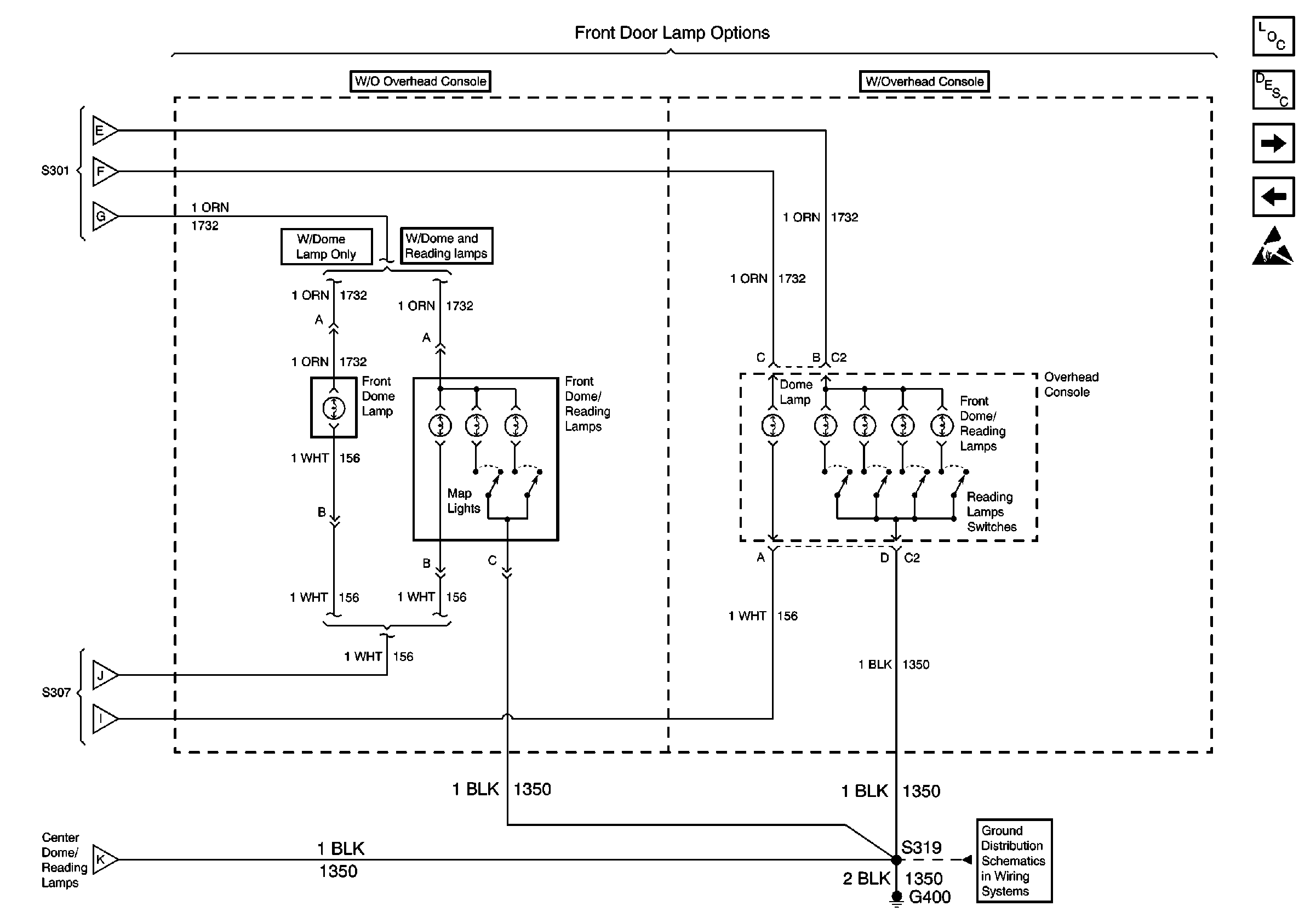

Figure 2:	Door Jamb Switches, Liftgate Strut Switch Lighting Systems Components Interior Lights Circuit Description Courtesy Lamps, Stepwell Lamp, Dome Lamps Courtesy Lamp Relay Lighting Systems Schematic Icons G301, G303, G400 and G404

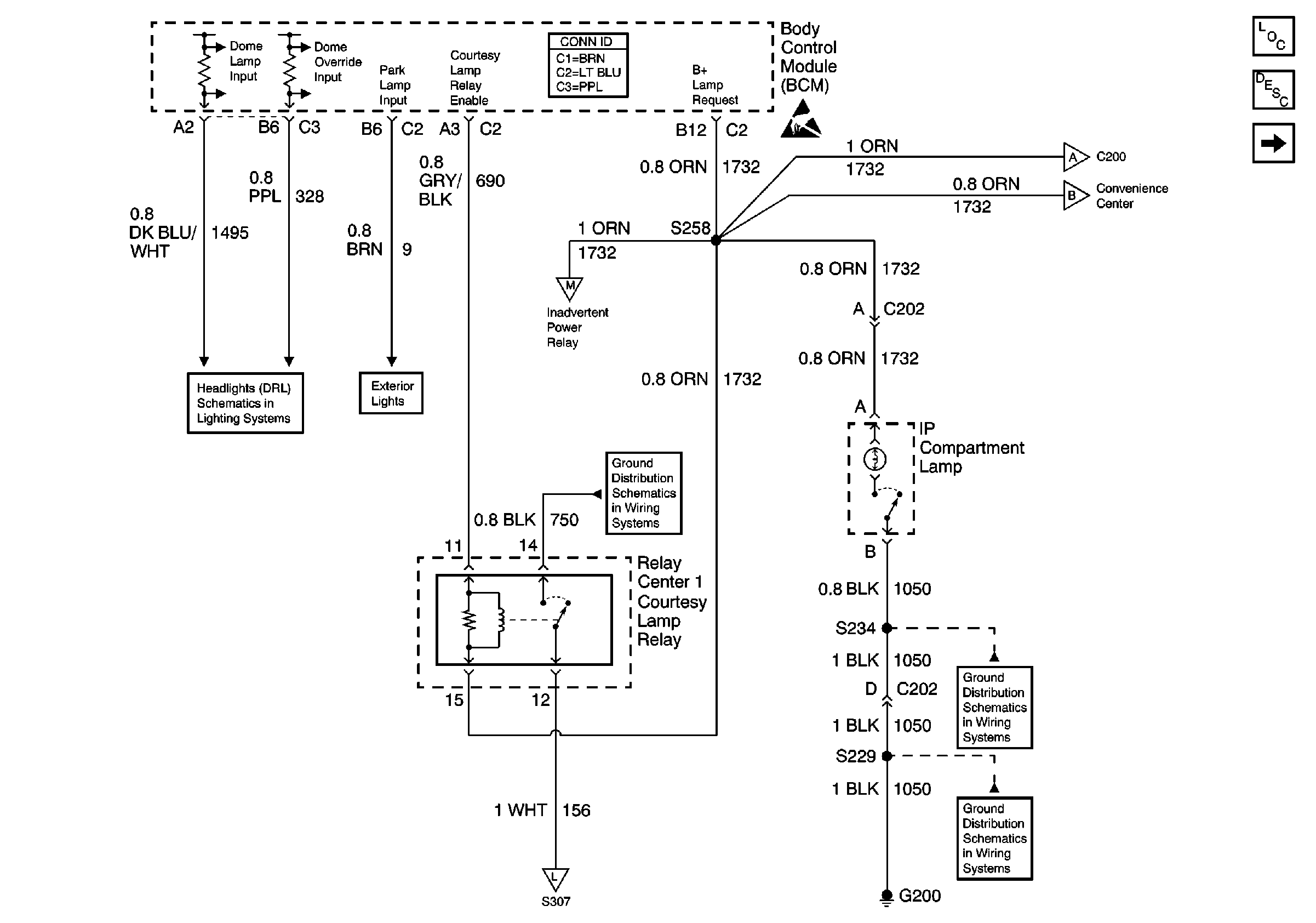

Figure 3:	Courtesy Lamps, Stepwell Lamp, Dome Lamps Lighting Systems Components Interior Lights Circuit Description Front Dome/Reading Lamps Door Jamb Switches, Liftgate Strut Switch Inadvertent Power Relay, Vanity Lamps Front Dome/Reading Lamps Front Dome/Reading Lamps Front Dome/Reading Lamps Courtesy Lamp Relay Front Dome/Reading Lamps Front Dome/Reading Lamps Front Dome/Reading Lamps

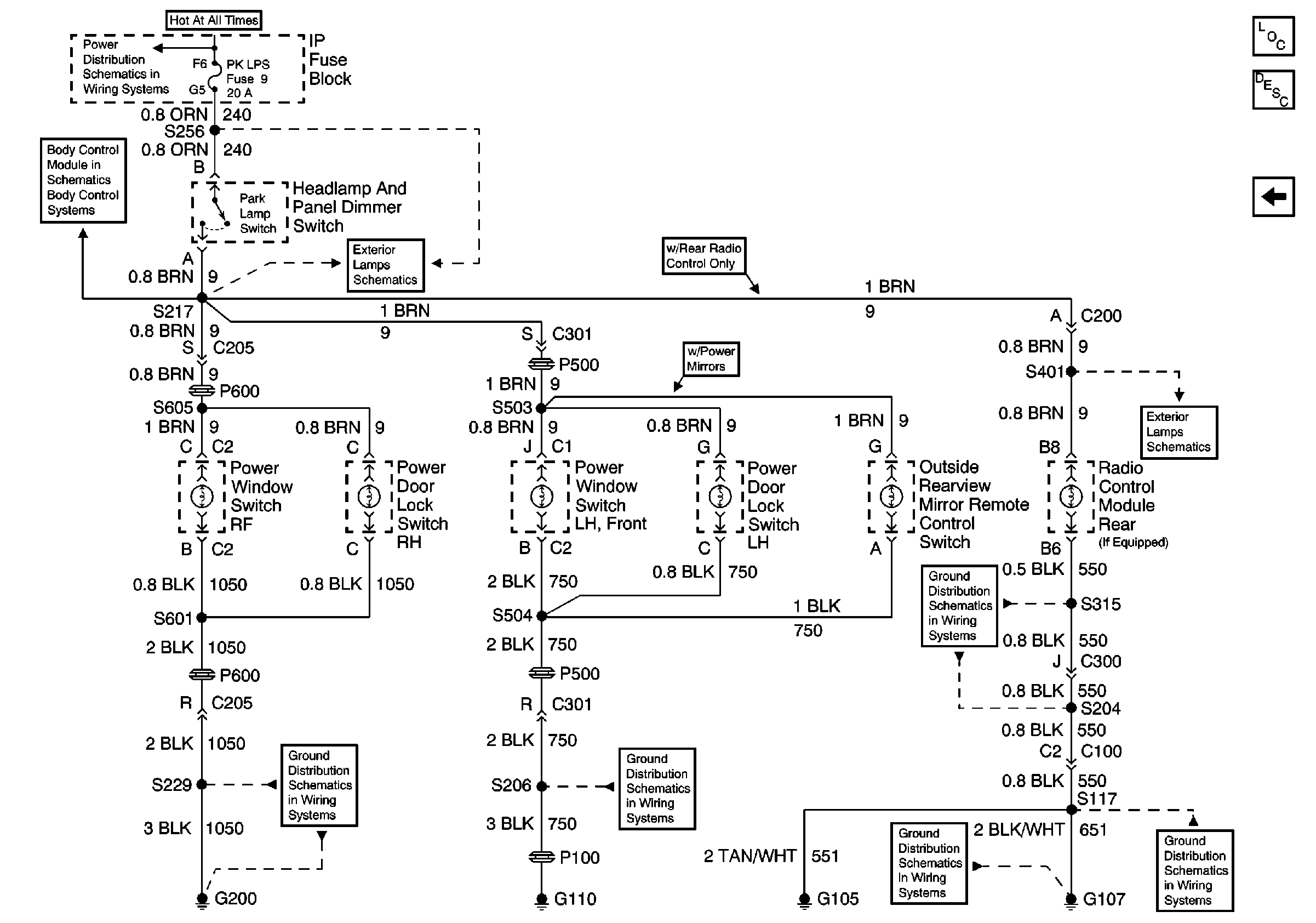

Figure 4:	Front Dome/Reading Lamps Lighting Systems Components Interior Lights Circuit Description Inadvertent Power Relay, Vanity Lamps Courtesy Lamps, Stepwell Lamp, Dome Lamps Lighting Systems Schematic Icons G301, G303, G400 and G404 Courtesy Lamps, Stepwell Lamp, Dome Lamps Courtesy Lamps, Stepwell Lamp, Dome Lamps Courtesy Lamps, Stepwell Lamp, Dome Lamps Courtesy Lamps, Stepwell Lamp, Dome Lamps Courtesy Lamps, Stepwell Lamp, Dome Lamps Courtesy Lamps, Stepwell Lamp, Dome Lamps Lighting Systems Schematic Icons
Figure 5:	Inadvertent Power Relay, Vanity Lamps Lighting Systems Components Interior Lights Circuit Description Auxiliary Power Outlets, Cigar Lighter Front Dome/Reading Lamps Courtesy Lamp Relay BATT and LIGHTING Fuse Courtesy Lamp Relay G110 (1 of 2) Lighting Systems Schematic Icons
Figure 6:	Auxiliary Power Outlets, Cigar Lighter Lighting Systems Components Interior Lights Circuit Description Window and Door Lock Switches Inadvertent Power Relay, Vanity Lamps BATT and LIGHTING Fuse CIG LTR Fuse 13, RADIO BATT Fuse 19 and CRANK Fuse 8 Lighting Systems Schematic Icons G200 (1 of 2) G200 (2 of 2) and G401 G301, G303, G400 and G404 G301, G303, G400 and G404 Lighting Systems Schematic Icons
Figure 7:	Window and Door Lock Switches Lighting Systems Components Interior Lights Circuit Description Auxiliary Power Outlets, Cigar Lighter BATT and LIGHTING Fuse Horns, Interior Lights, Exterior Lights, RKE, and Instrument Cluster Turn Indicators, Park/Turn Signal Lamps, Front Side Marker Lamps CHMSL, Tail/Stop/Turn Lamps, Rear Side Marker Lamps, License Lamp G105 and G107 G200 (1 of 2) G110 (1 of 2) G105 and G107 G105 and G107
