Interior Lights Schematics. Chevrolet Astro - 4WD 2002

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2002 🢒 Astro - 4WD 🢒 Body and Accessories 🢒 Wiring Systems 🢒 Interior Lights Schematics

Figure 1:	Power Window/Door Lock Switches Master Electrical Component List Interior Lighting Systems Description and Operation Door Jamb Switches Battery and Lighting Fuse Courtesy, Park Lamps, TBC, and Power Mirror Fuses Turn Indicators, Front Marker Lamps, Front Park/Turn SignalLamps Turn Indicators, Front Park/Turn Signal Lamps, Repeater Lamps (VE1) Horns, Interior/Exterior Lights, RKE, Instrument Cluster G200 G110 (1 of 2) G105, and G107 G105, and G107 Rear Marker Lamps, Tail/Stop and Turn Signal Lamps, CHMSL, and License Lamp Tail/Stop and Turn Signal Lamps, License Lamp, CHMSL, and Backup Lamps(VE1) G105, and G107
Figure 2:	Door Jamb Switches Master Electrical Component List Interior Lighting Systems Description and Operation Vanity Mirror Lamps, Inadvertent Power Relay Power Window/Door Lock Switches G301, G303, G400, and G404 G110 (1 of 2)

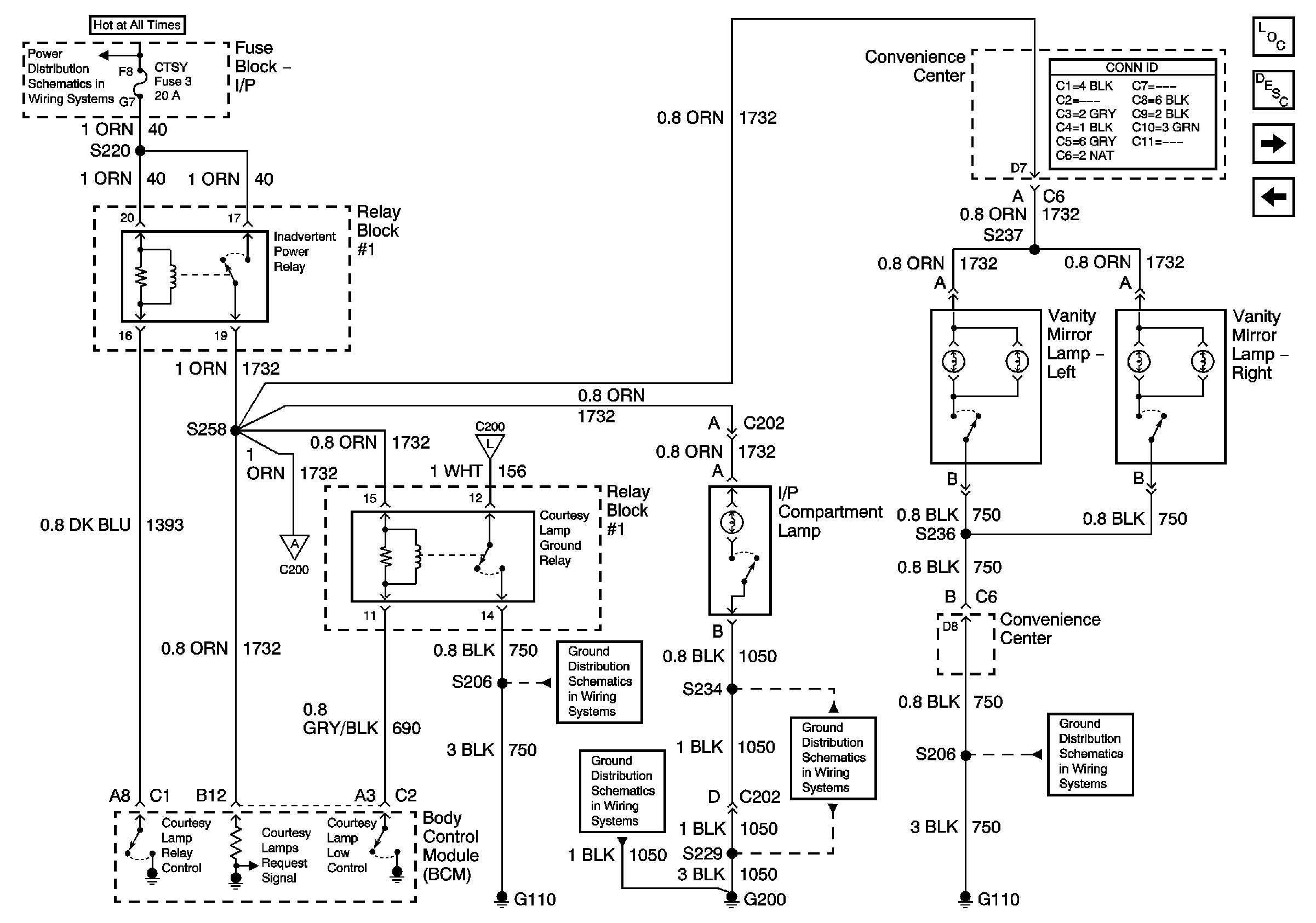

Figure 3:	Vanity Mirror Lamps, Inadvertent Power Relay Master Electrical Component List Interior Lighting Systems Description and Operation Power Window/Door Lock Switches Front Door Lamp Options Battery and Lighting Fuse Courtesy Lamp Relay, and I/P Compartment Lamp Courtesy Lamp Relay, and I/P Compartment Lamp G110 (1 of 2)
Figure 4:	Courtesy Lamp Relay, and I/P Compartement Lamp Master Electrical Component List Interior Lighting Systems Description and Operation Courtesy/Stepwell/Dome Lamps Courtesy/Stepwell/Dome Lamps Vanity Mirror Lamps, Inadvertent Power Relay Vanity Mirror Lamps, Inadvertent Power Relay G110 (1 of 2) Courtesy/Stepwell/Dome Lamps G200 G200
Figure 5:	Front Door Lamp Options Master Electrical Component List Interior Lighting Systems Description and Operation Courtesy Lamp Relay, and I/P Compartment Lamp Courtesy Lamp Relay, and I/P Compartment Lamp Garage Door Opener G301, G303, G400, and G404
