Exterior Lights Schematics Domestic
| Figure 1: |

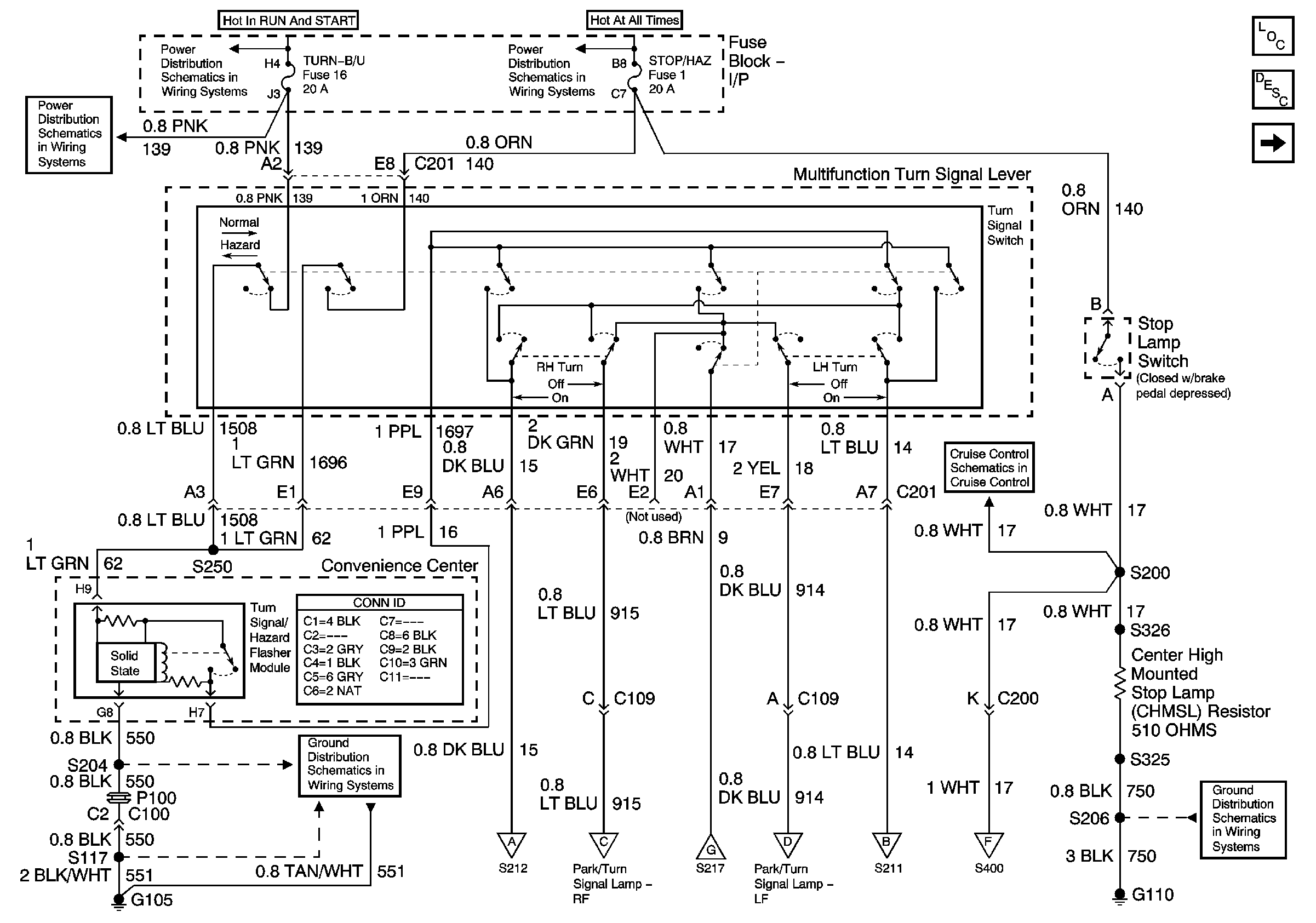

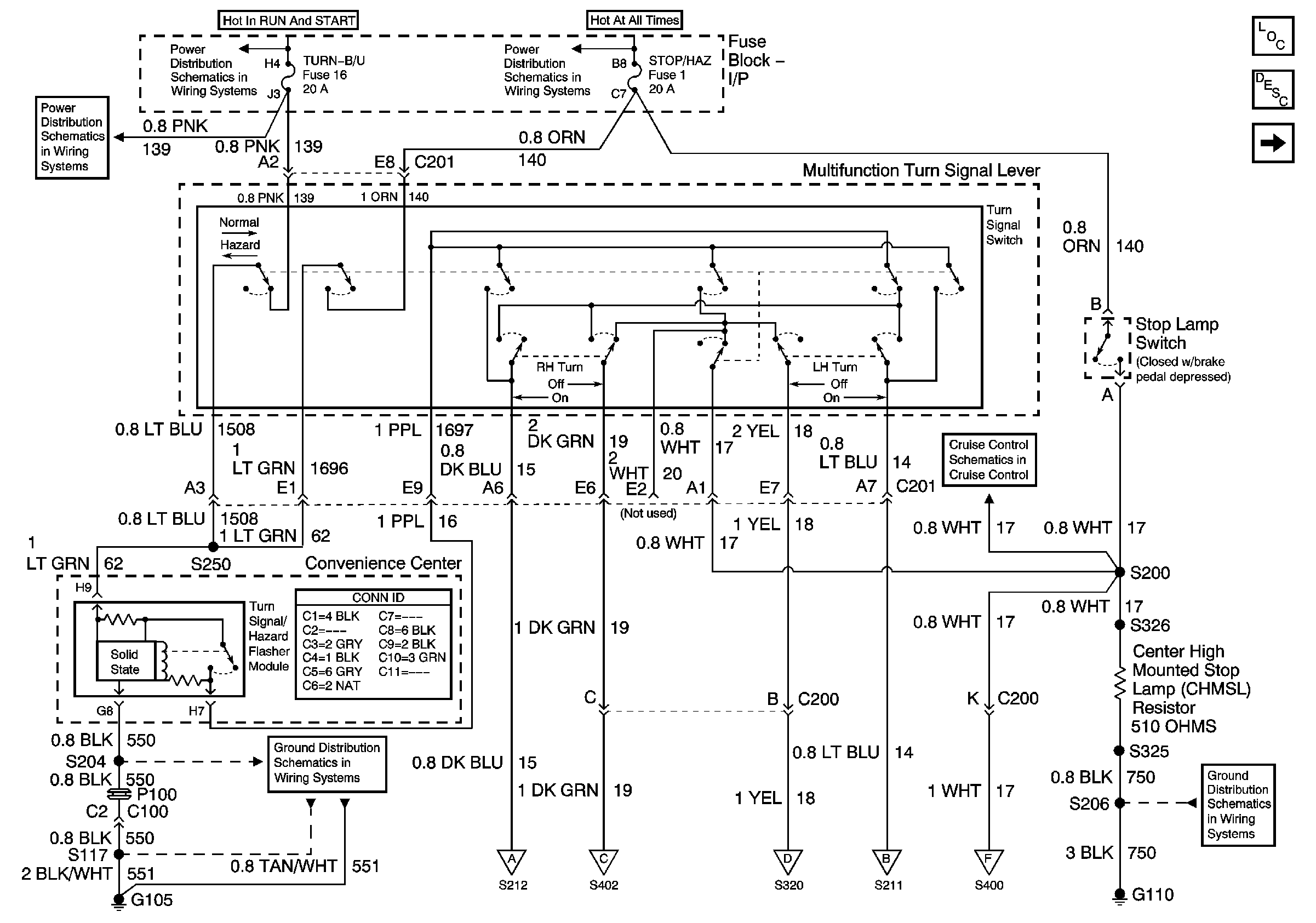

Turn Signal Switch, and Turn Signal/Hazard Flasher Module
|
| Figure 2: |

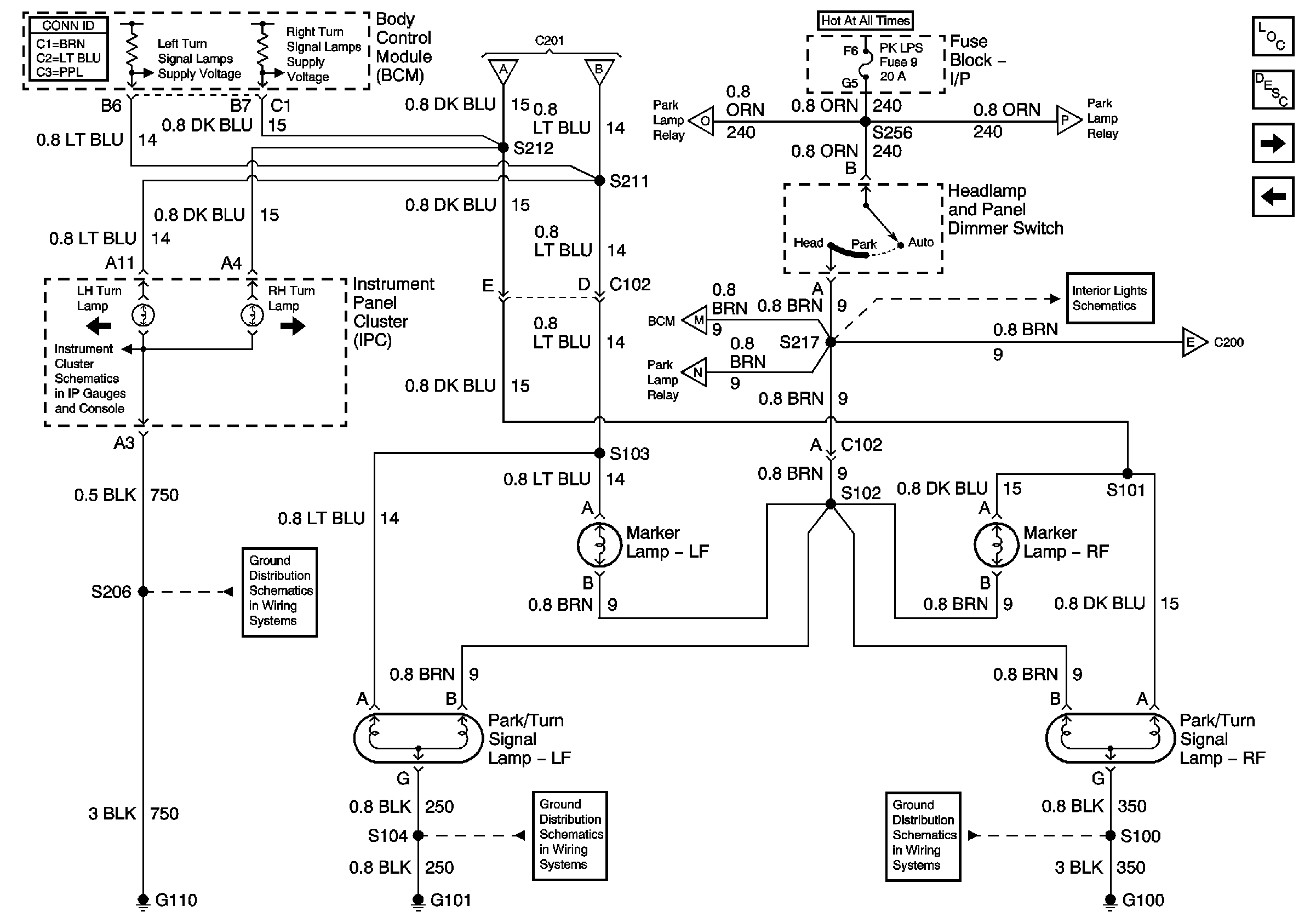

Turn Indicators, Front Marker Lamps, Front Park/Turn Signal Lamps
|
| Figure 3: |

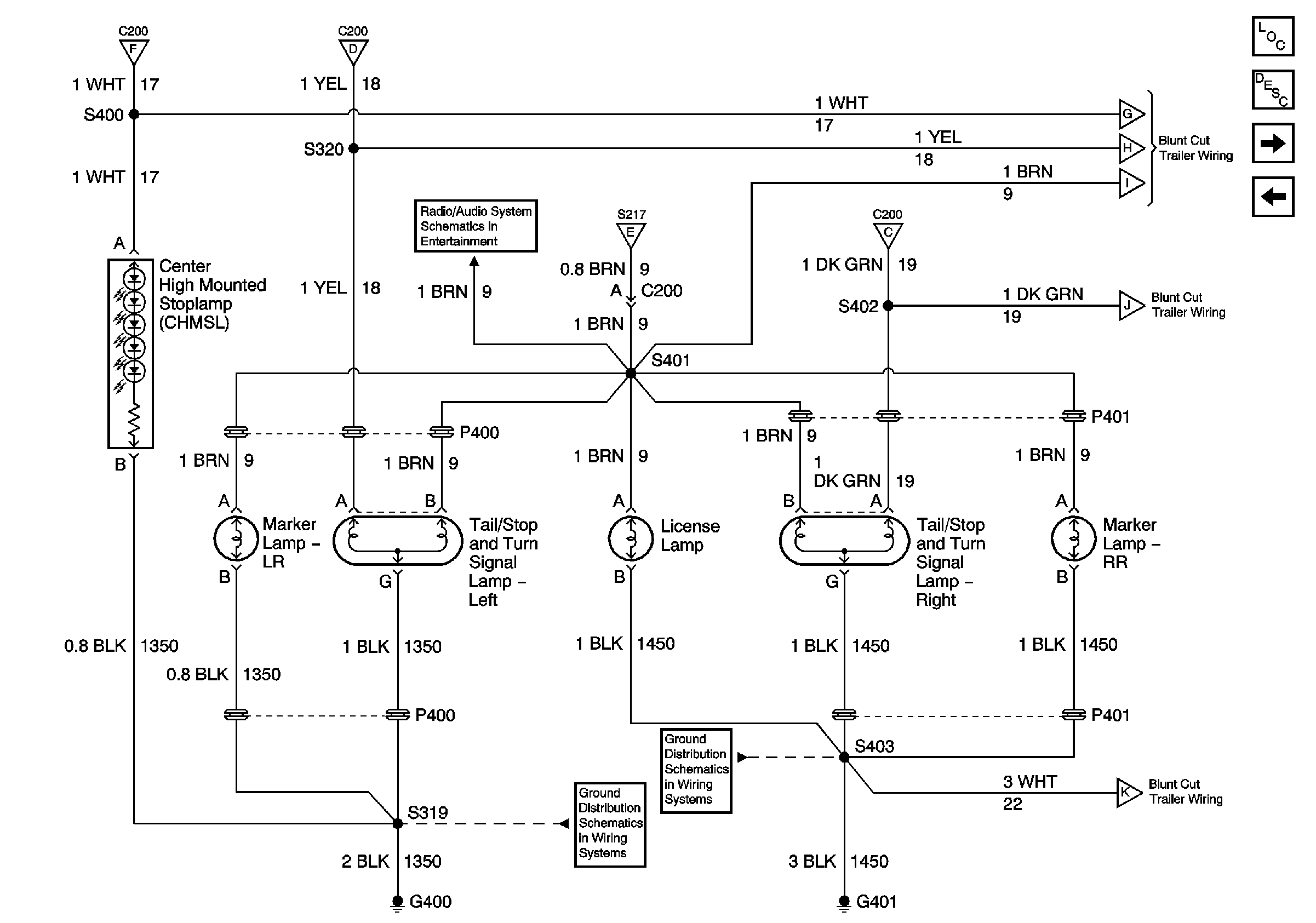

Rear Marker Lamps, Tail/Stop and Turn Signal Lamps, CHMSL, and License Lamp
|
| Figure 4: |

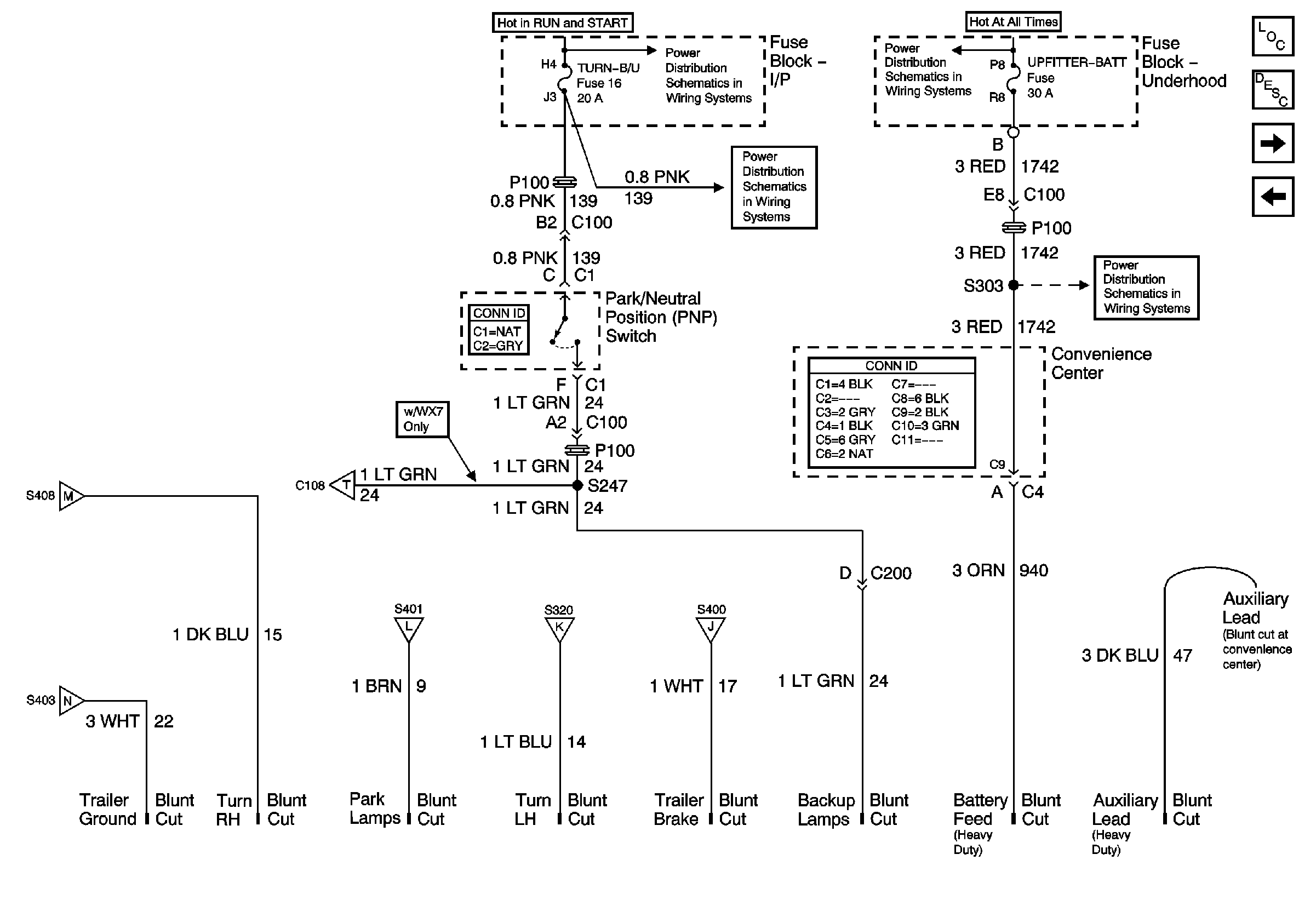

Trailer Wiring Harness Connections
|
| Figure 5: |

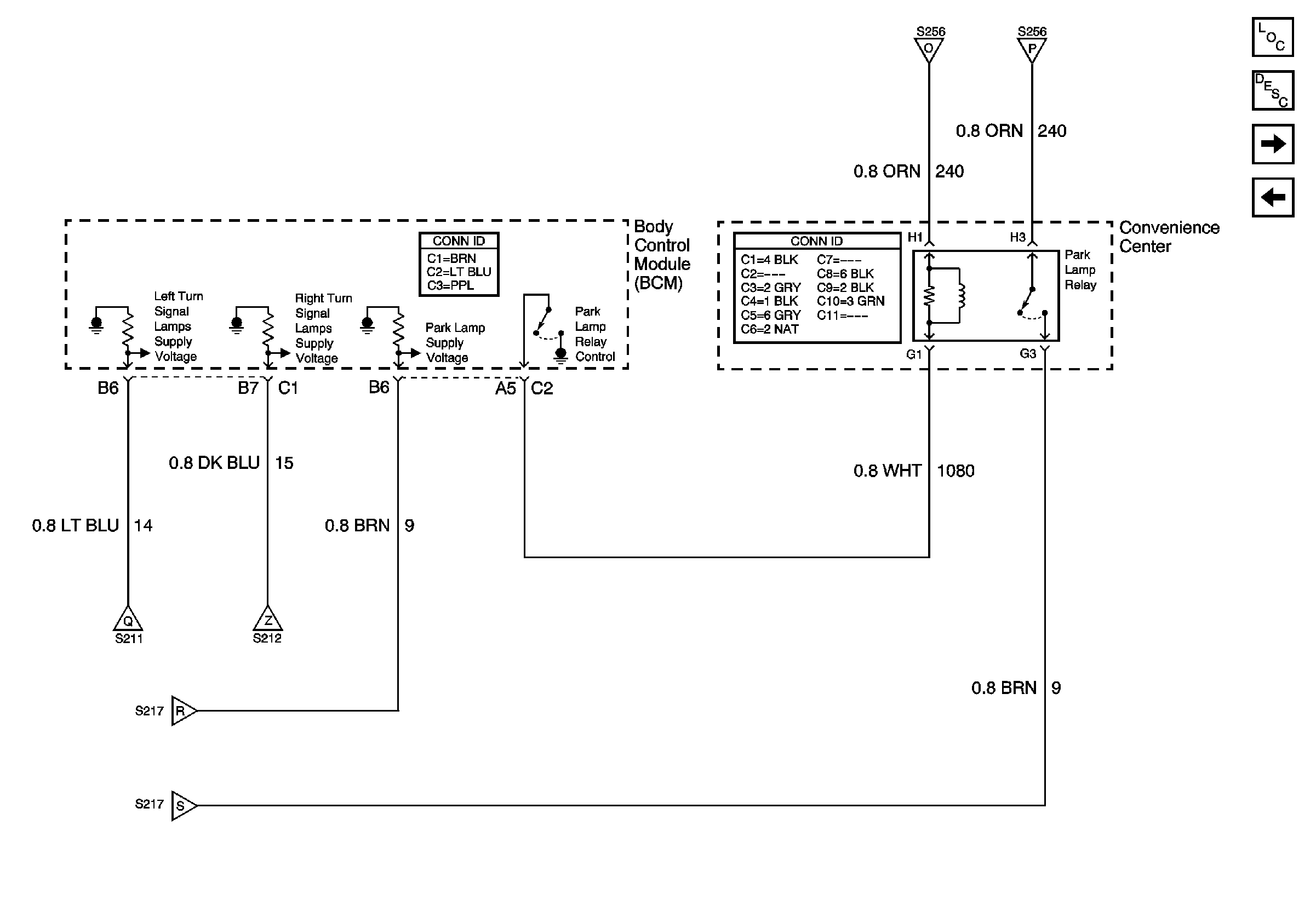

Park Lamp Relay
|
| Figure 6: |

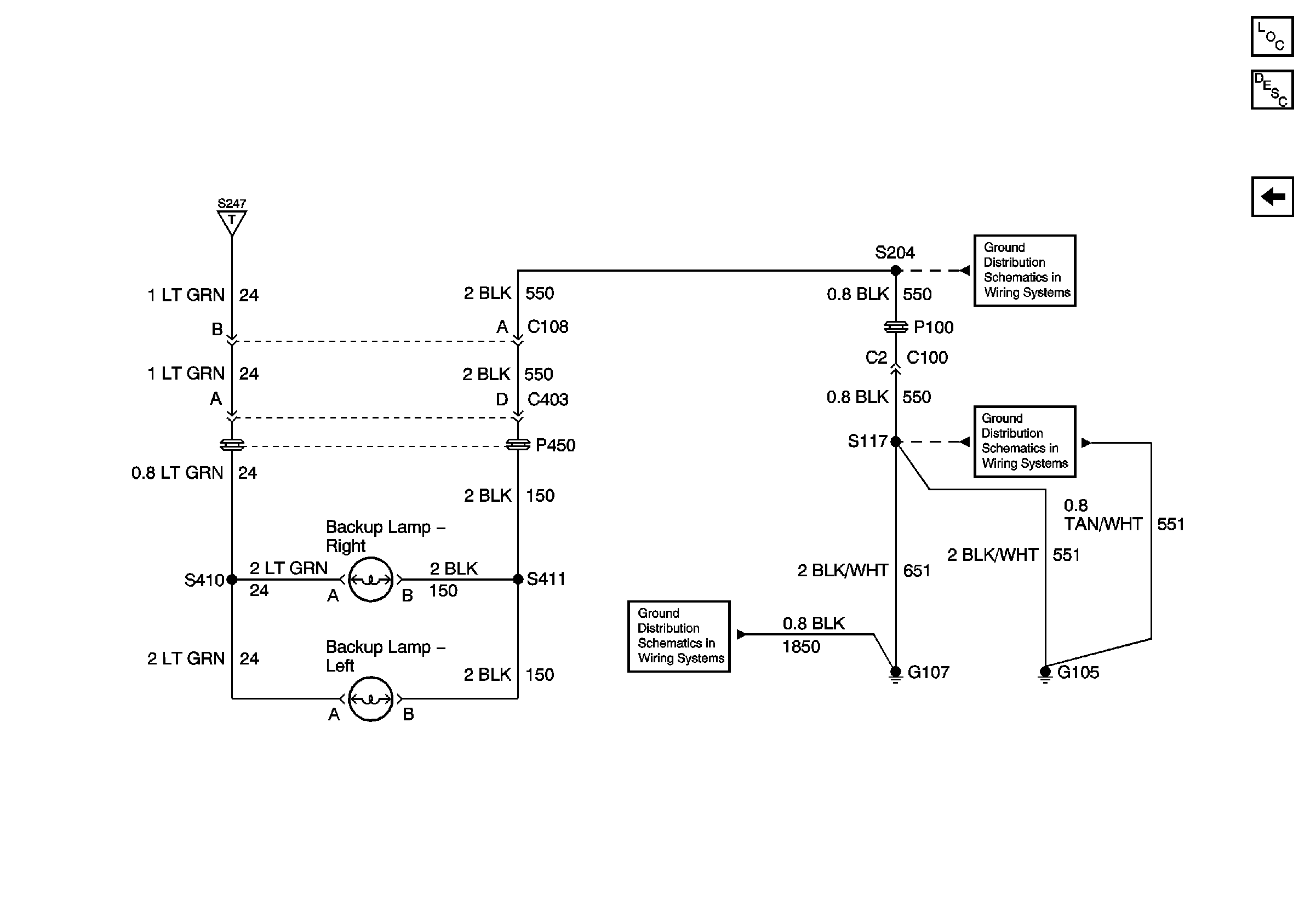

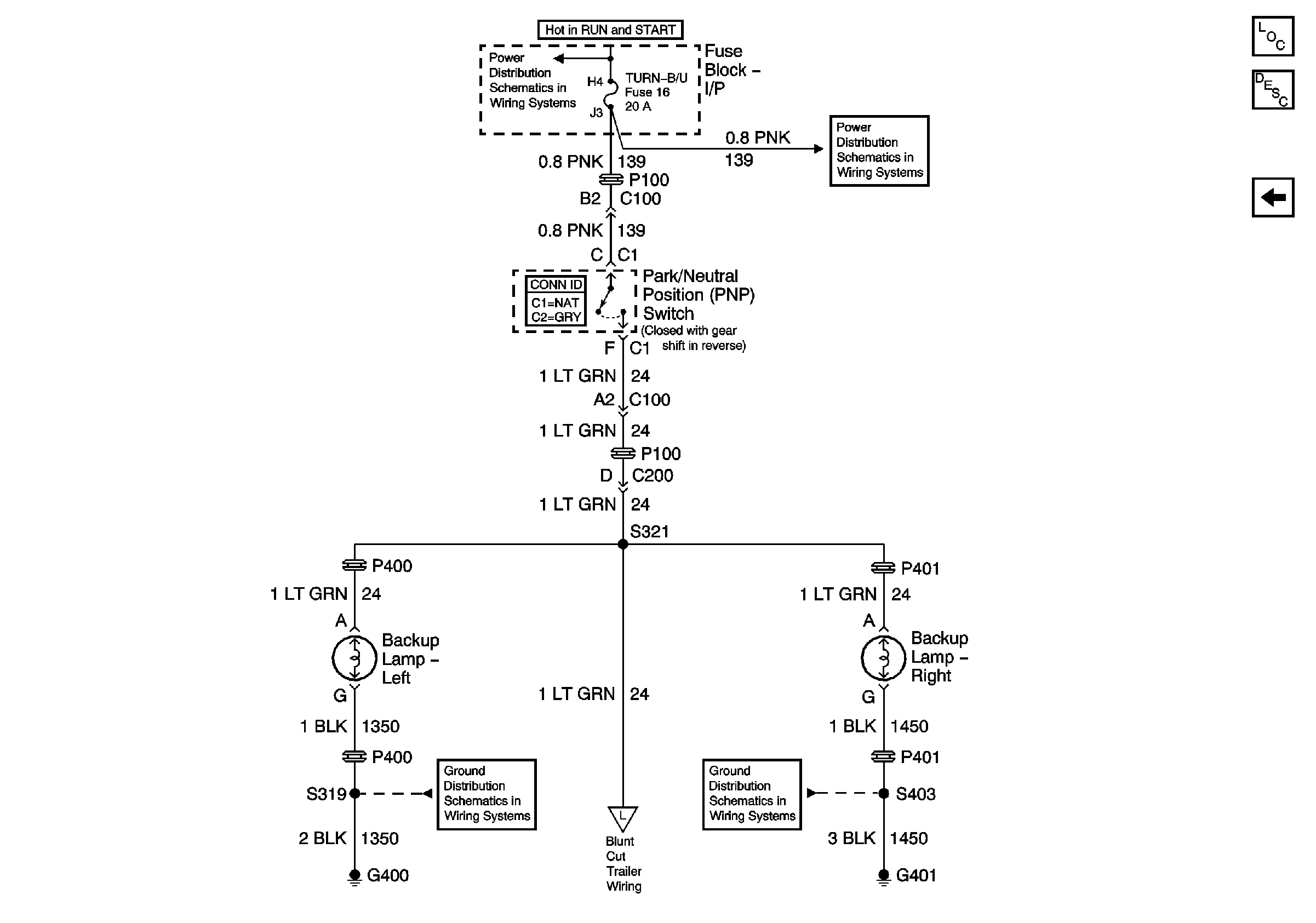

Backup Lamps
|
Exterior Lights Schematics Export
| Figure 1: |
Turn Signal Switch, and Turn Signal/Hazard Flasher Module
|
| Figure 2: |

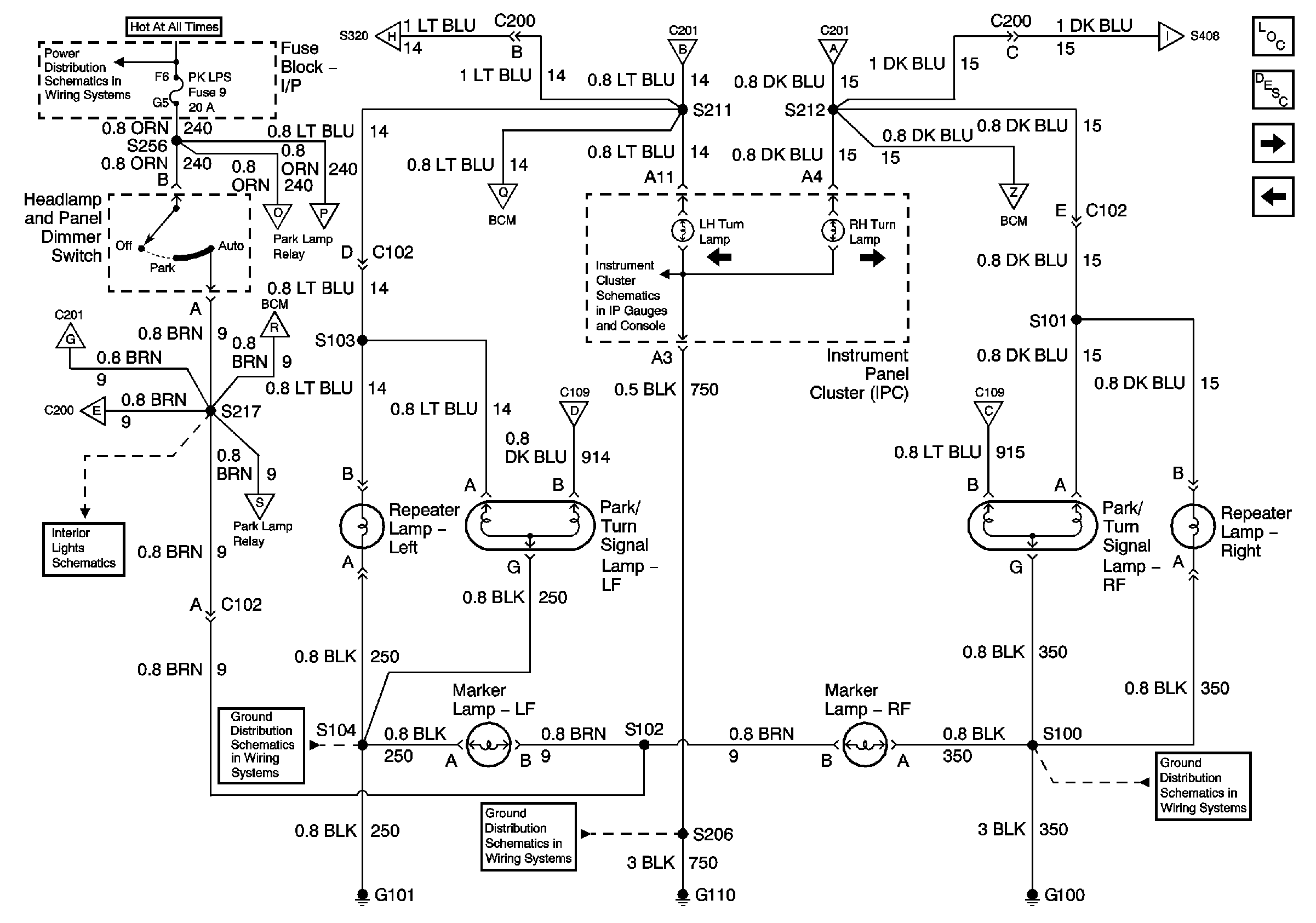

Turn Indicators, Front Park/Turn Signal Lamps, Repeater Lamps
|
| Figure 3: |

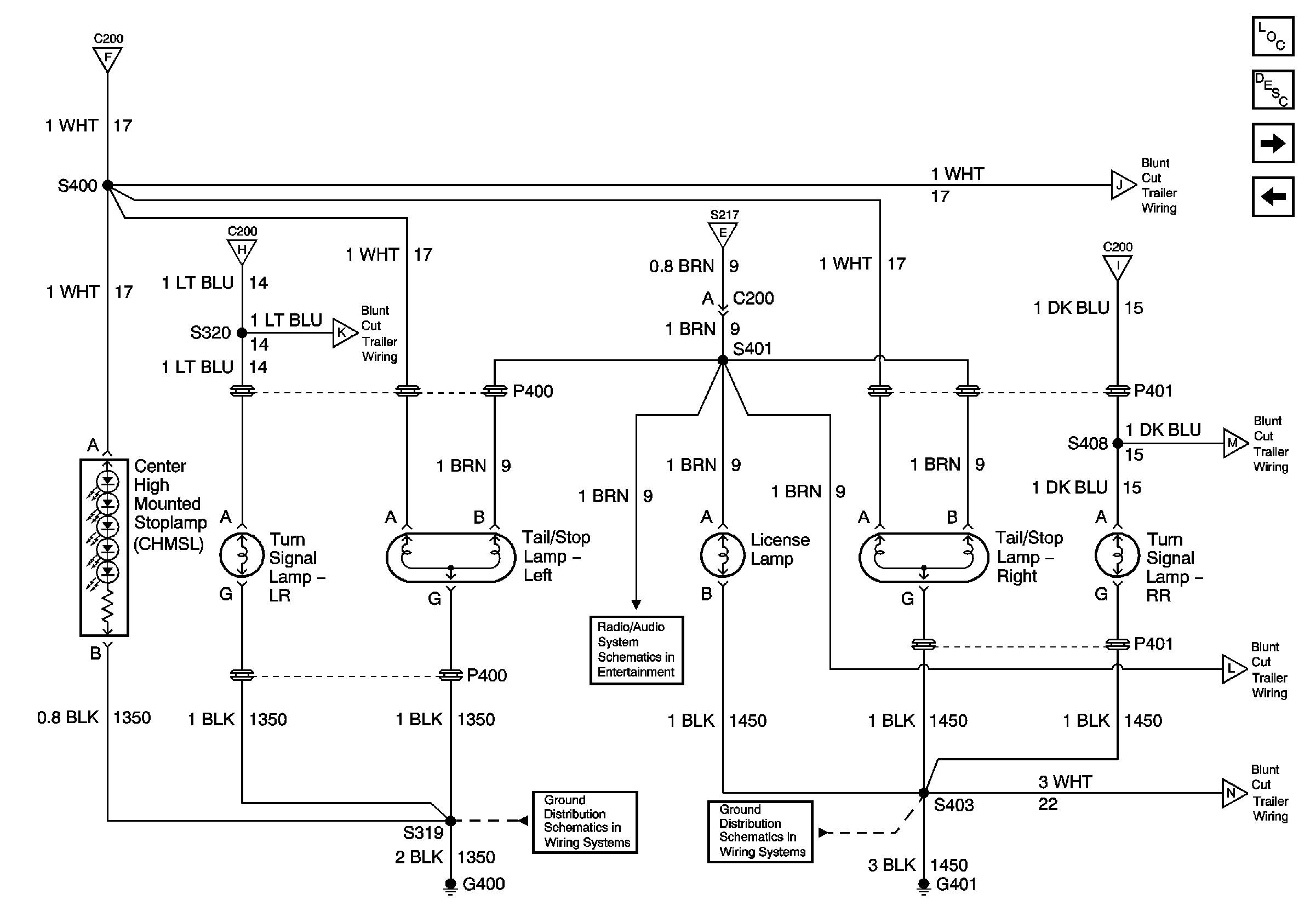

Tail/Stop Lamps, Turn Signal Lamps, License Lamp, and CHMSL
|
| Figure 4: |

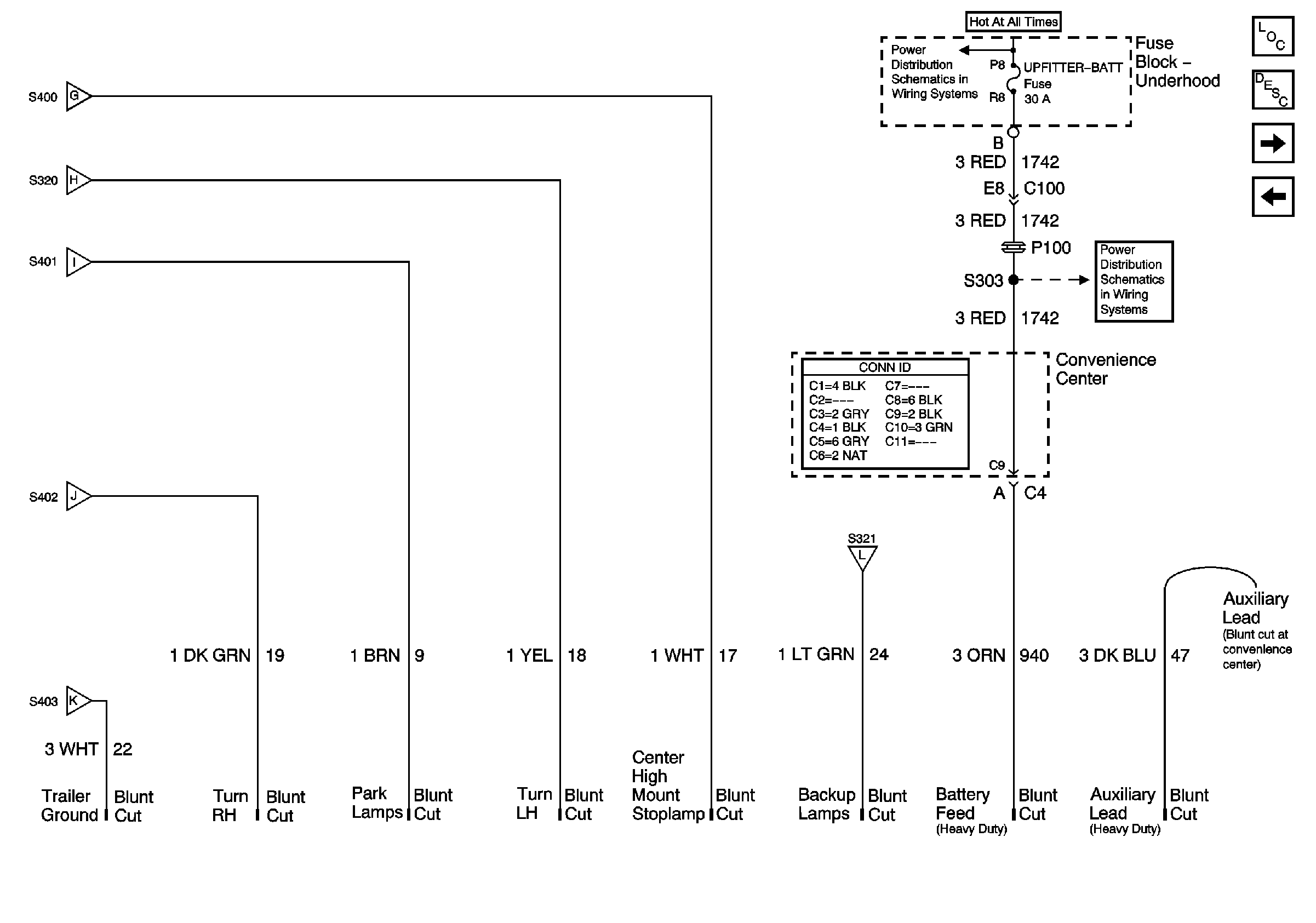

Trailer Wiring Harness Connections
|
| Figure 5: |

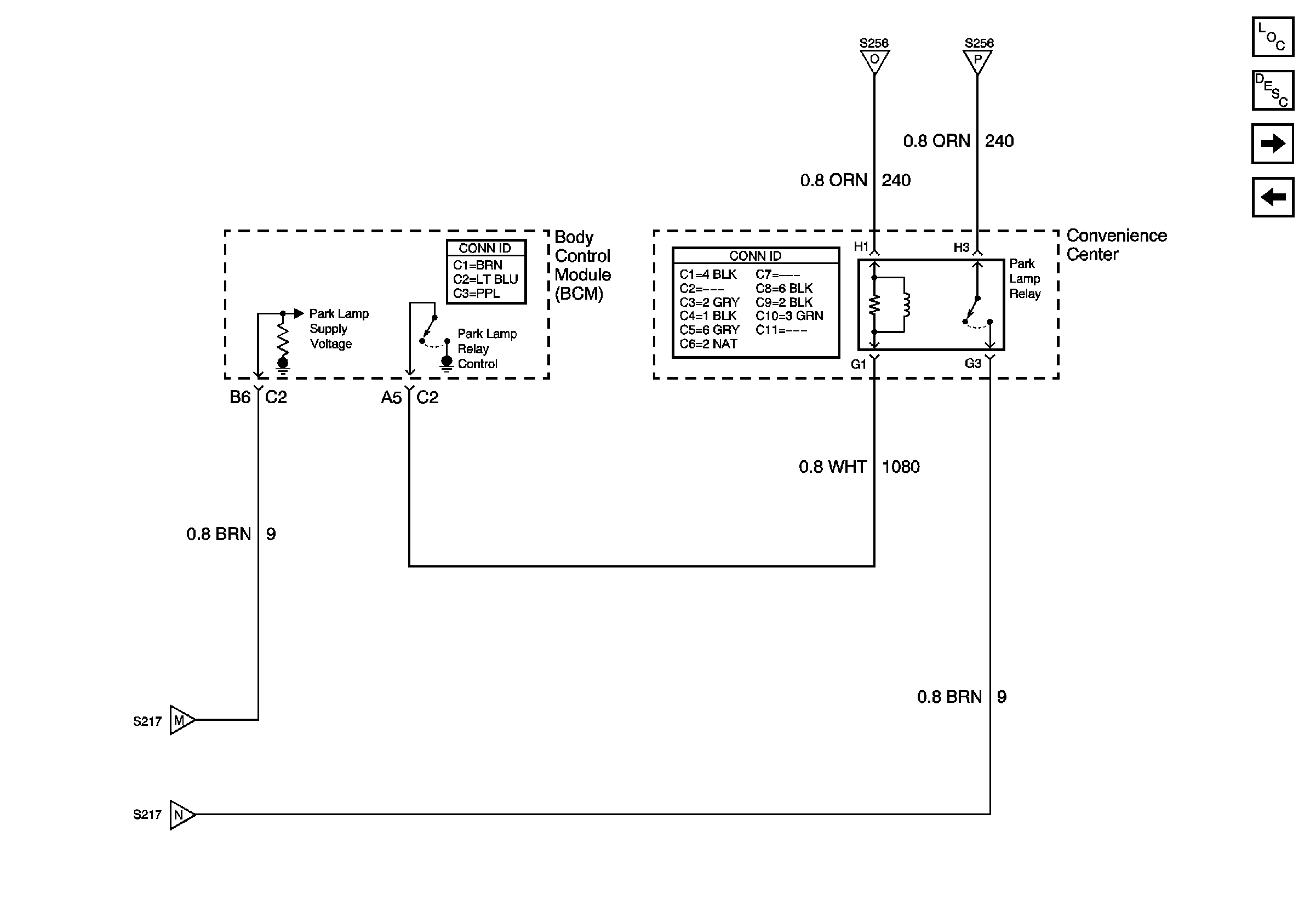

Park Lamp Relay
|
| Figure 6: |
Backup Lamps
|
