Engine Coolant Fan Motor Replacement Non-HP2

Removal Procedure

    Object Number: 1505517 Size: SH
  1. Remove the cooling blade(s). Refer to Engine Cooling Fan Replacement .
  2. Remove the cooling fan motor bolts.
  3. Remove the cooling fan motor(s).

Installation Procedure

    Notice: Refer to Fastener Notice in the Preface section.


    Object Number: 1505517 Size: SH
  1. Install the cooling fan motor(s).
  2. Install the cooling fan motor bolts.

    3. Tighten
    Tighten the bolts to 10 N·m (89 lb in).

  3. Install the cooling fan blades. Refer to Engine Cooling Fan Replacement .

Engine Coolant Fan Motor Replacement HP2

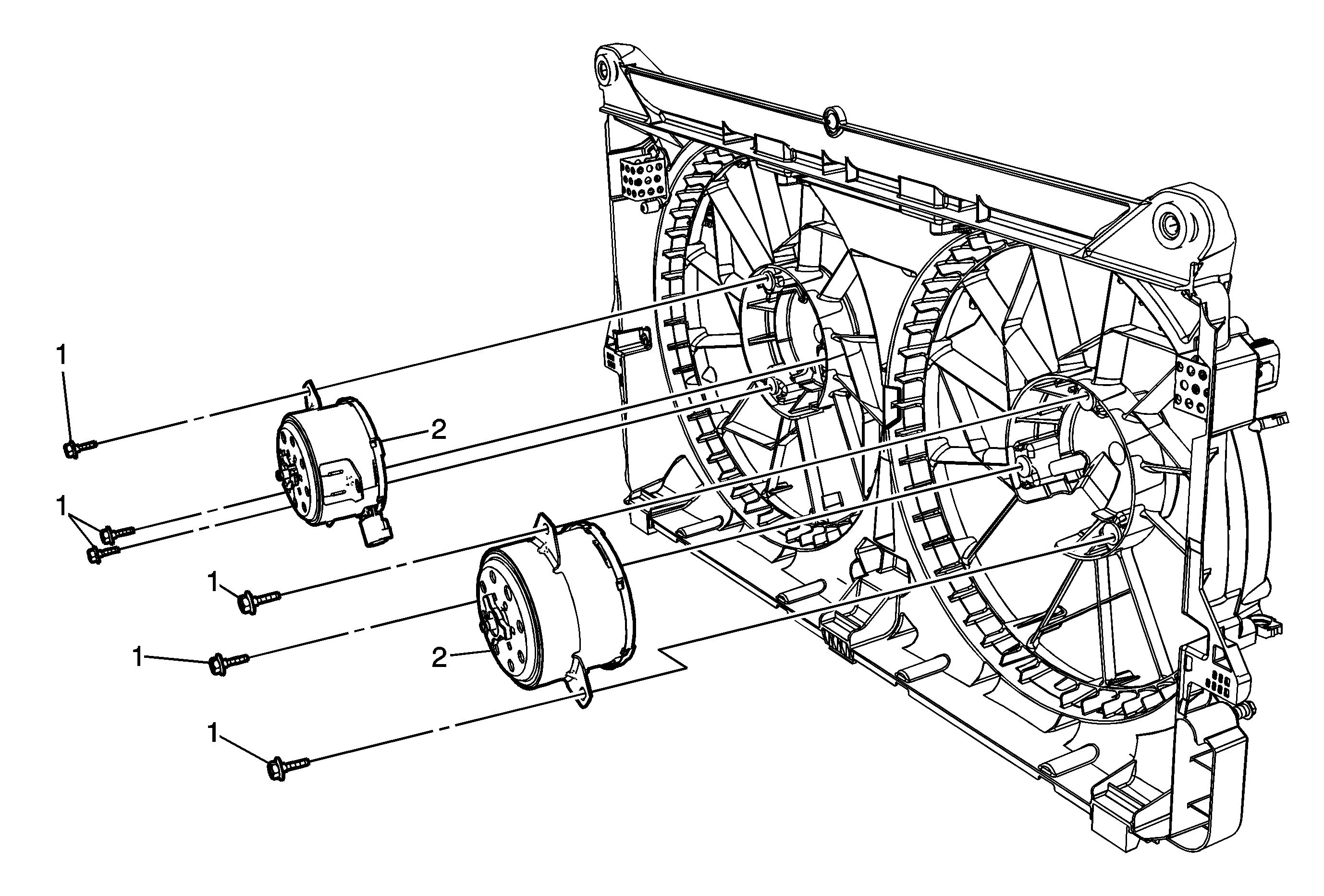

Object Number: 1966867 Size: MF

Callout

Component Name

Preliminary Procedures

  1. Remove the cooling blade(s). Refer to Engine Cooling Fan Replacement
  2. Disconnect the electrical connectors from the cooling fans.

1

Cooling fan motor bolts (Qty: 6)

Notice: Refer to Fastener Notice in the Preface section.

Tighten
10 N·m (89 lb in)

2

Cooling fan motor(s).
