Engine Controls Schematics. Chevrolet Aveo 2005

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2005 🢒 Aveo 🢒 Engine 🢒 Engine Controls - 1.2L 🢒 Engine Controls Schematics

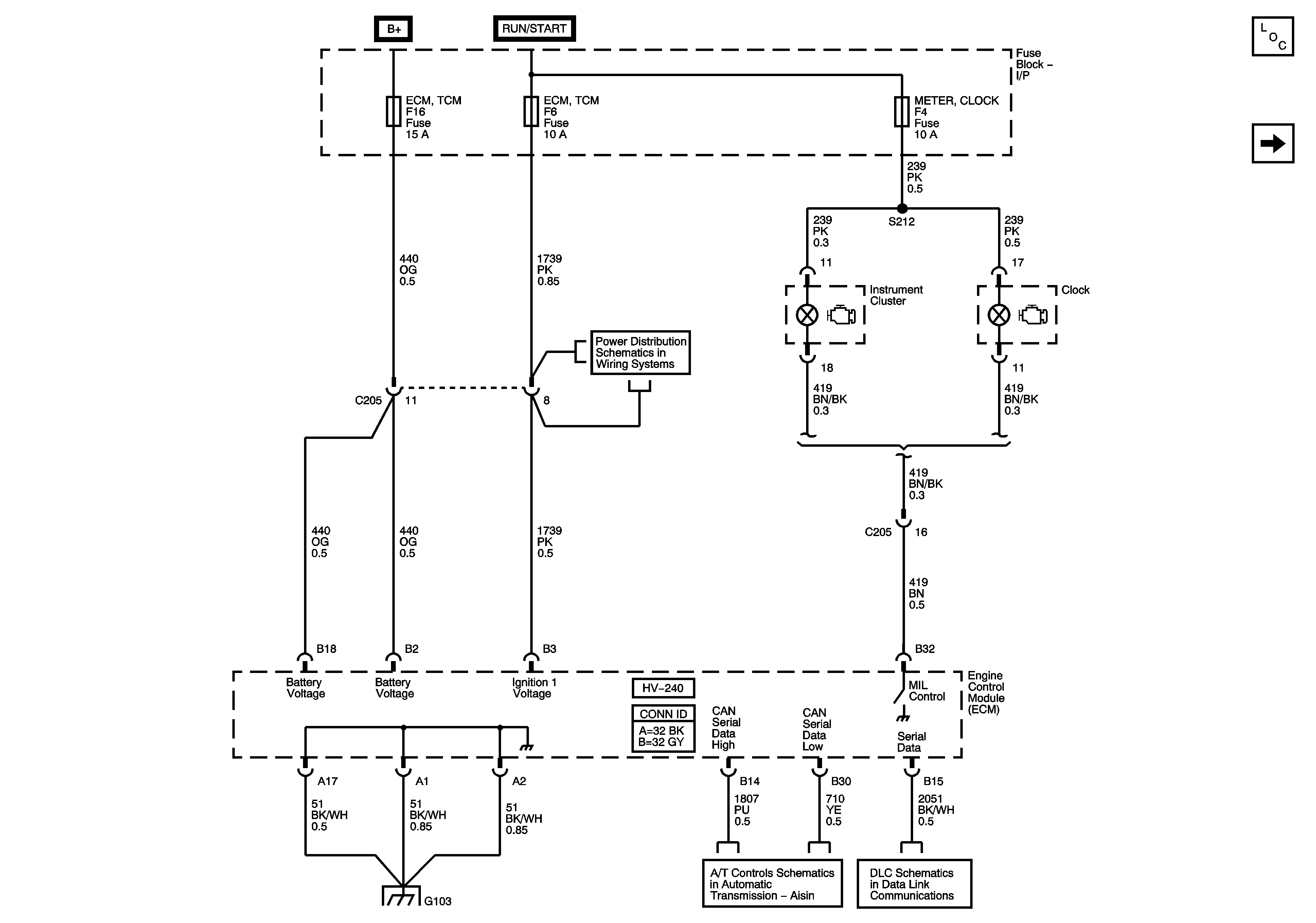

Figure 1:	Module Power, Ground, Serial Data, MIL Master Electrical Component List Engine Data Sensors - Pressure and Temperature Underhood Fuse Block - IGN 2 Fuse, Ignition Switch, I/P Fuse Block - DIS INJECTOR, ECM TCM, WIPER WASHER, and HVAC BLOWER Fuses G103 - HV 240 Module Power, Ground, Malfunction Indicator Lamp (MIF), Hold Lamp and Serial Data DLC - 1.4L, 1.5L, 1l6L

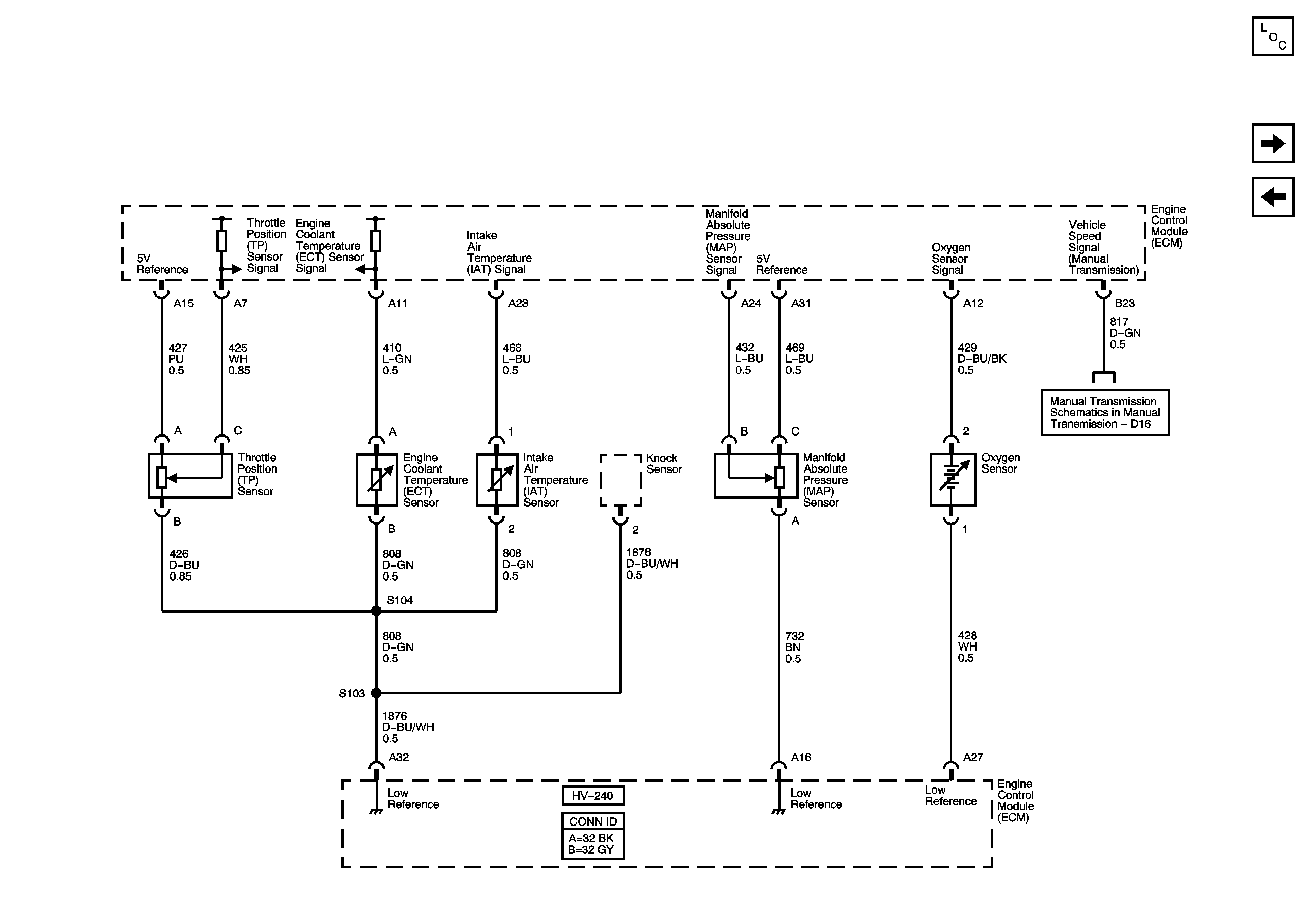

Figure 2:	Engine Data Sensors - Pressure and Temperature Master Electrical Component List Ignition Controls - Ignition System odule Power, Ground, Serial Data, and MIL Manual Transmission

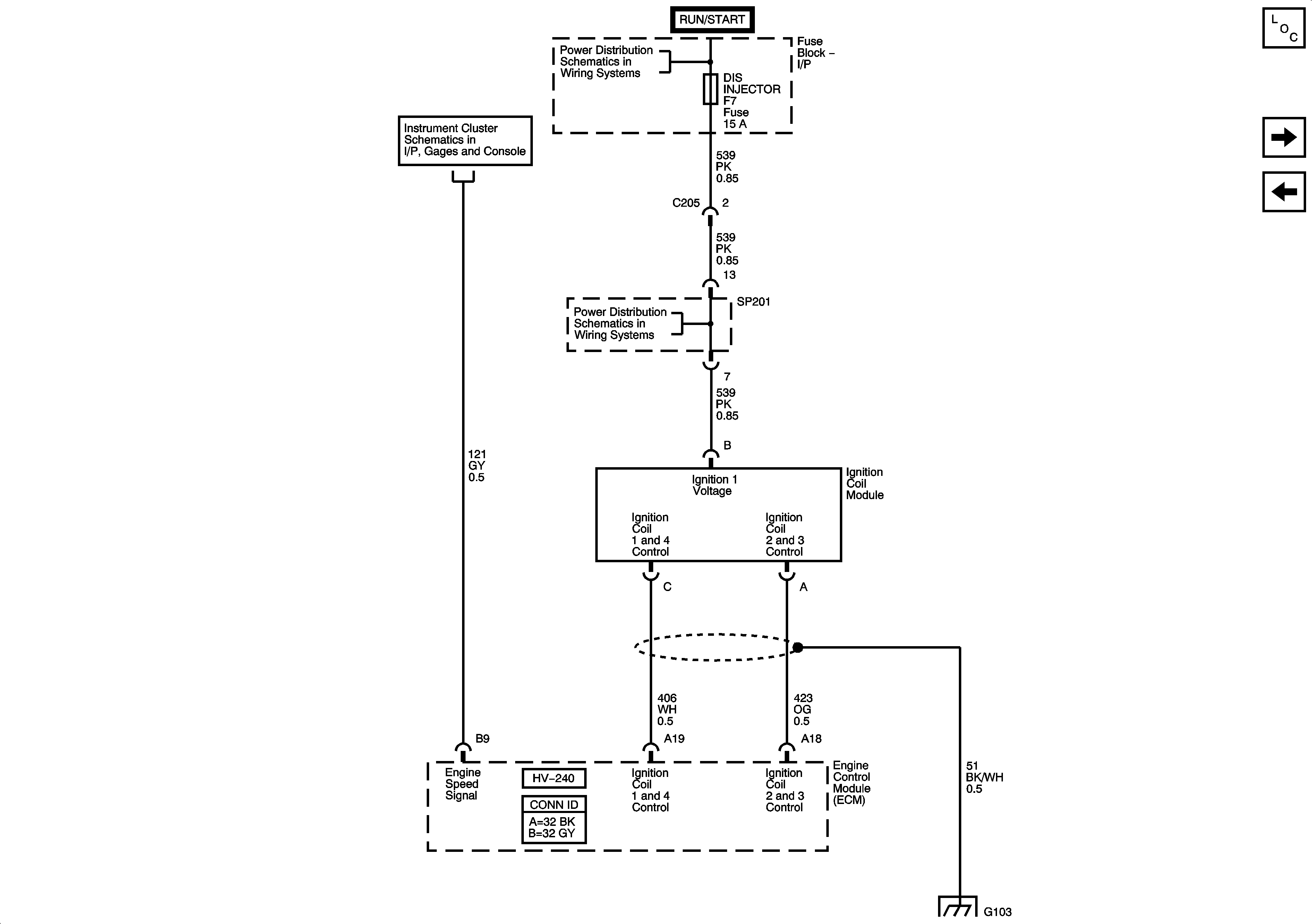

Figure 3:	Ignition System Master Electrical Component List Ignition Controls - Sensors Engine Data Sensors - Pressure and Temperature Underhood Fuse Block - IGN 2 Fuse, Ignition Switch, I/P Fuse Block - DIS INJECTOR, ECM TCM, WIPER WASHER, and HVAC BLOWER Fuses Instrument Panel Gages (1.4L/1.6L) Underhood Fuse Block - IGN 2 Fuse, Ignition Switch, I/P Fuse Block - DIS INJECTOR, ECM TCM, WIPER WASHER, and HVAC BLOWER Fuses G103 - MR 140

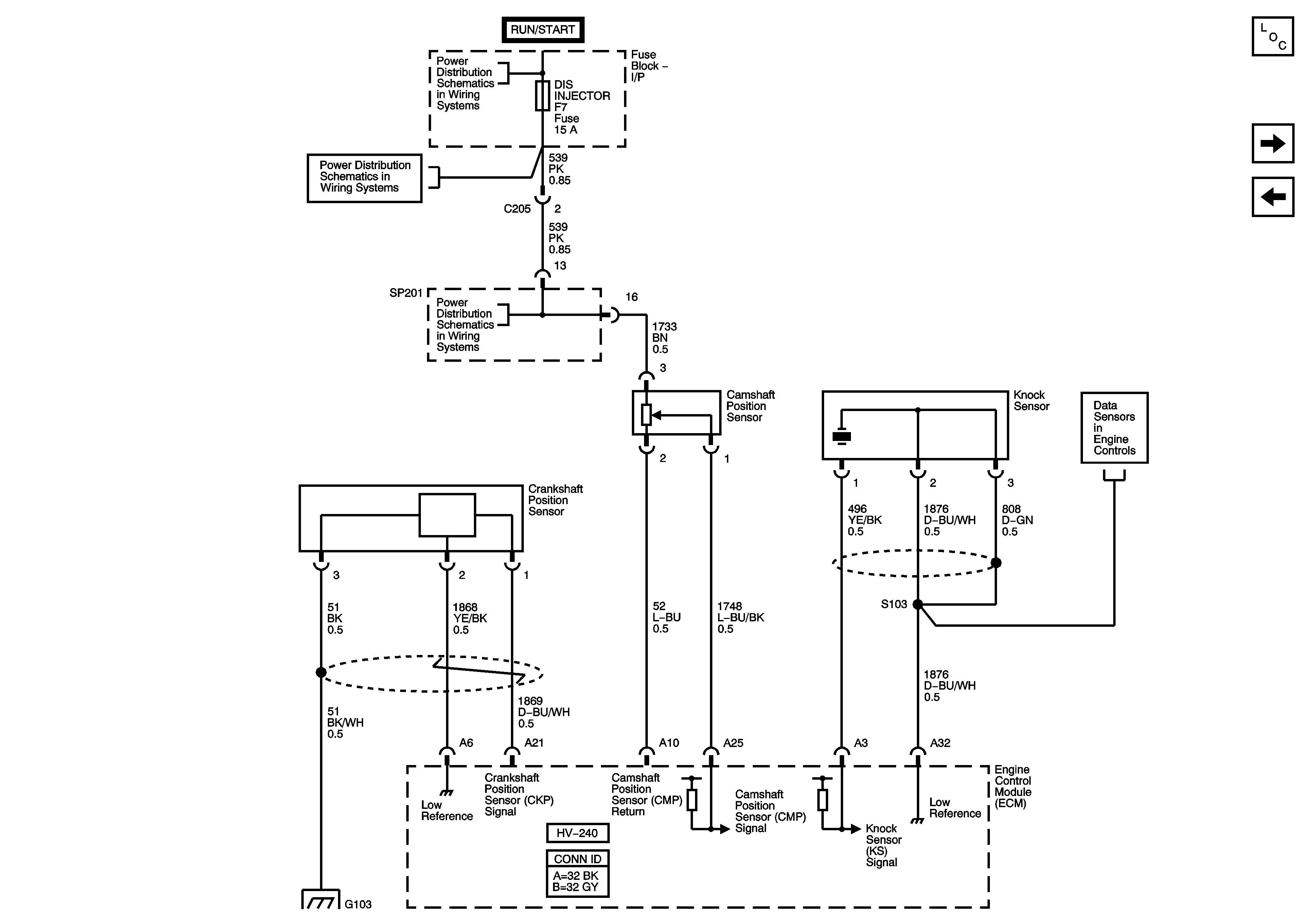

Figure 4:	CKP, CMP, and Knock Sensors Master Electrical Component List Fuel Controls - Fuel Pump Controls and Fuel Injectors Ignition Controls - Ignition System Underhood Fuse Block - IGN 2 Fuse, Ignition Switch, I/P Fuse Block - DIS INJECTOR, ECM TCM, WIPER WASHER, and HVAC BLOWER Fuses Underhood Fuse Block - IGN 2 Fuse, Ignition Switch, I/P Fuse Block - DIS INJECTOR, ECM TCM, WIPER WASHER, and HVAC BLOWER Fuses Underhood Fuse Block - IGN 2 Fuse, Ignition Switch, I/P Fuse Block - DIS INJECTOR, ECM TCM, WIPER WASHER, and HVAC BLOWER Fuses Engine Data Sensors - Pressure and Temperature G103 - MR 140

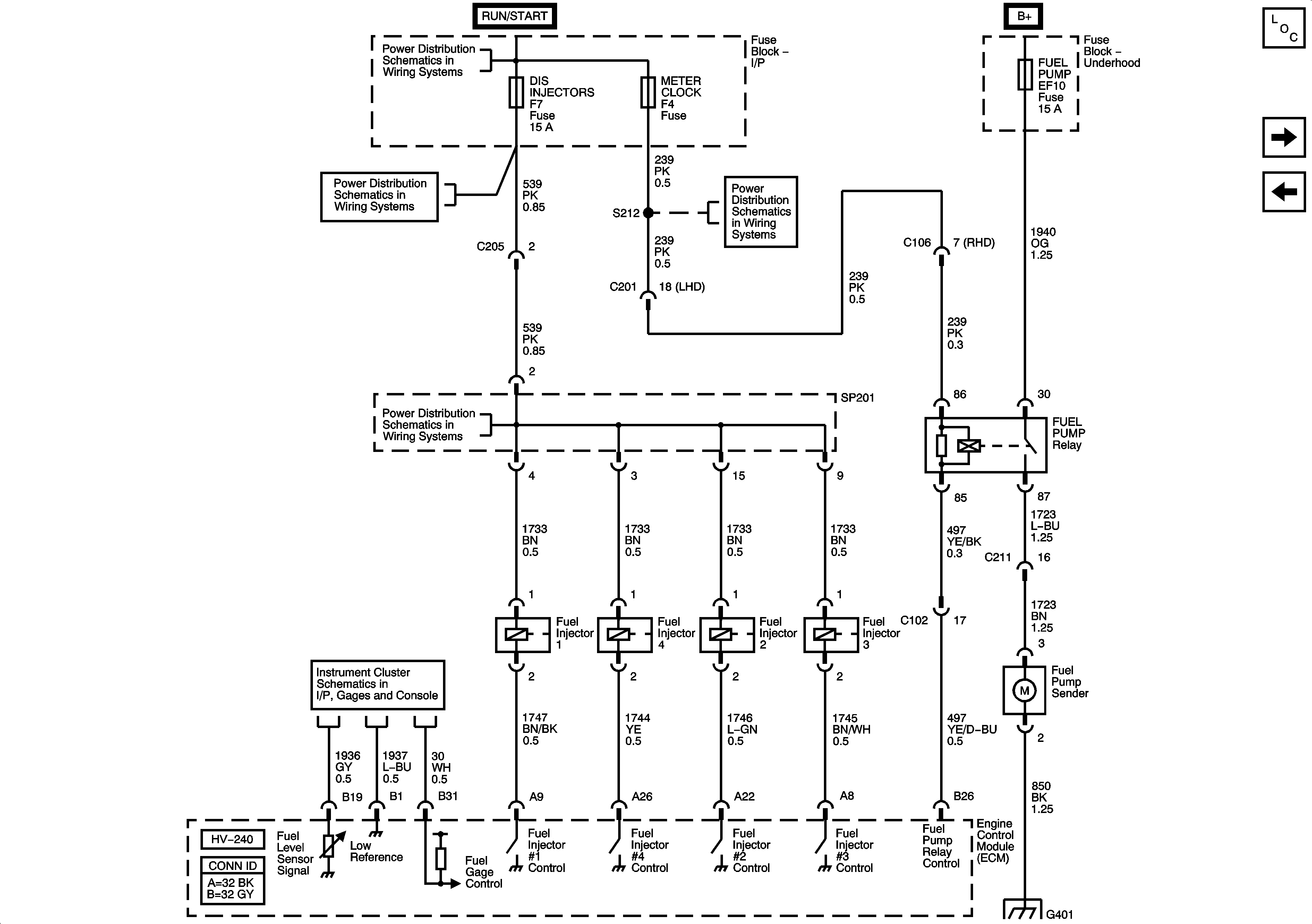

Figure 5:	Fuel Pump and Fuel Injectors Master Electrical Component List EVAP and Device Controls Ignition Controls - Sensors Underhood Fuse Block - IGN 2 Fuse, Ignition Switch, I/P Fuse Block - DIS INJECTOR, ECM TCM, WIPER WASHER, and HVAC BLOWER Fuses Underhood Fuse Block - IGN 2 Fuse, Ignition Switch, I/P Fuse Block - DIS INJECTOR, ECM TCM, WIPER WASHER, and HVAC BLOWER Fuses Underhood Fuse Block - IGN 1 Fuse, Ignition Switch, I/P Fuse Block - CIGAR JACK, AUDIO CLOCK, METER CLOCK, TSIG, BACKUP LAMP, and AIR BAG Fuses Underhood Fuse Block - IGN 2 Fuse, Ignition Switch, I/P Fuse Block - DIS INJECTOR, ECM TCM, WIPER WASHER, and HVAC BLOWER Fuses Instrument Panel Gages (1.4L/1.6L) G401 - Notchback

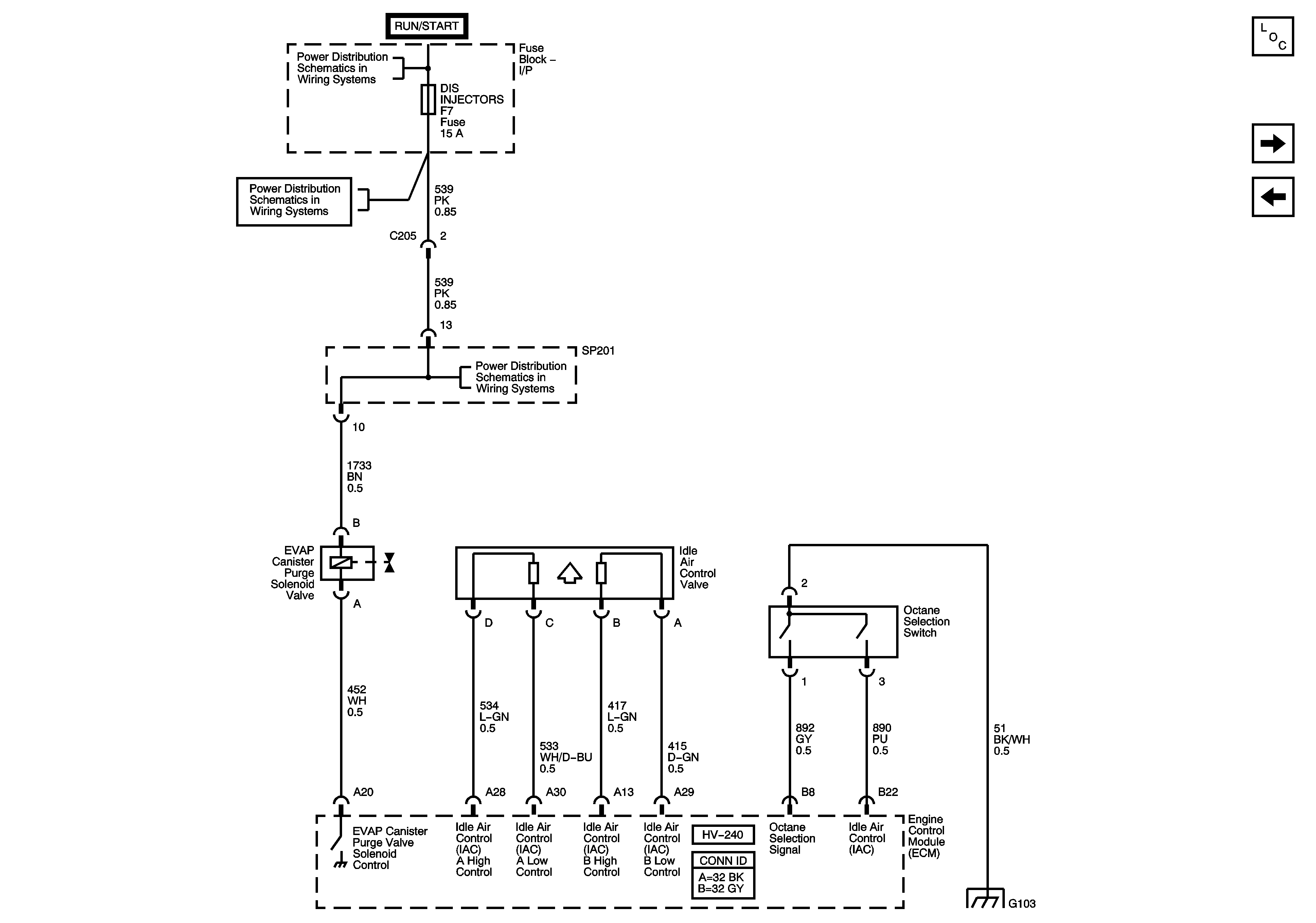

Figure 6:	EVAP, IAC, and Octane Selection Switch Master Electrical Component List Controlled/Monitored Subsystem References Fuel Controls - Fuel Pump Controls and Fuel Injectors Underhood Fuse Block - IGN 2 Fuse, Ignition Switch, I/P Fuse Block - DIS INJECTOR, ECM TCM, WIPER WASHER, and HVAC BLOWER Fuses Underhood Fuse Block - IGN 2 Fuse, Ignition Switch, I/P Fuse Block - DIS INJECTOR, ECM TCM, WIPER WASHER, and HVAC BLOWER Fuses Underhood Fuse Block - IGN 2 Fuse, Ignition Switch, I/P Fuse Block - DIS INJECTOR, ECM TCM, WIPER WASHER, and HVAC BLOWER Fuses G103 - MR 140

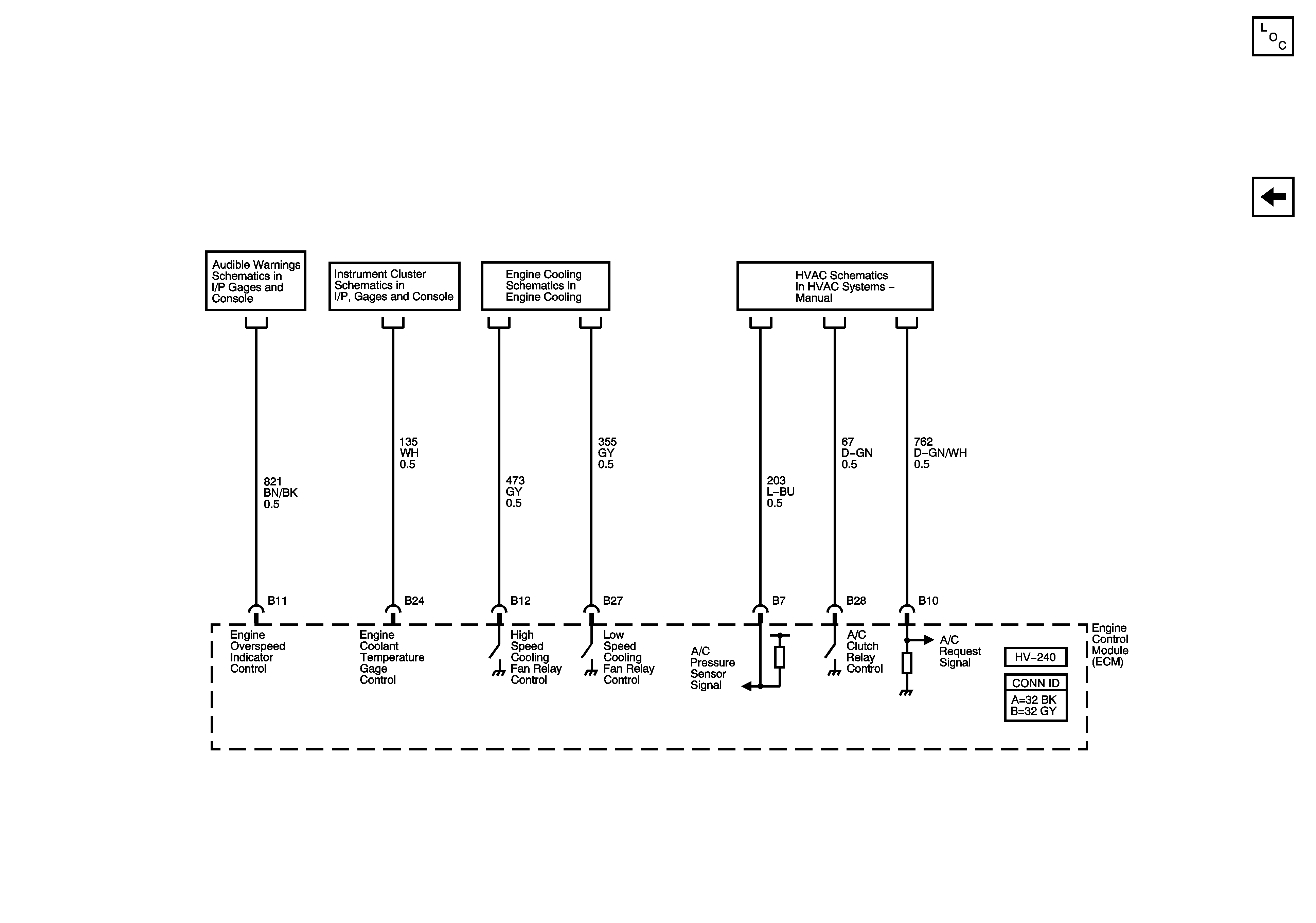

Figure 7:	Controlled/Monitored Subsystem References Master Electrical Component List EVAP and Device Controls Audible Warnings Instrument Panel Gages (1.4L/1.6L) Single Cooling Fan (1.2L) Blower Controls
