Notice: Refer to Fastener Notice in the Preface section.

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Remove the left insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side .

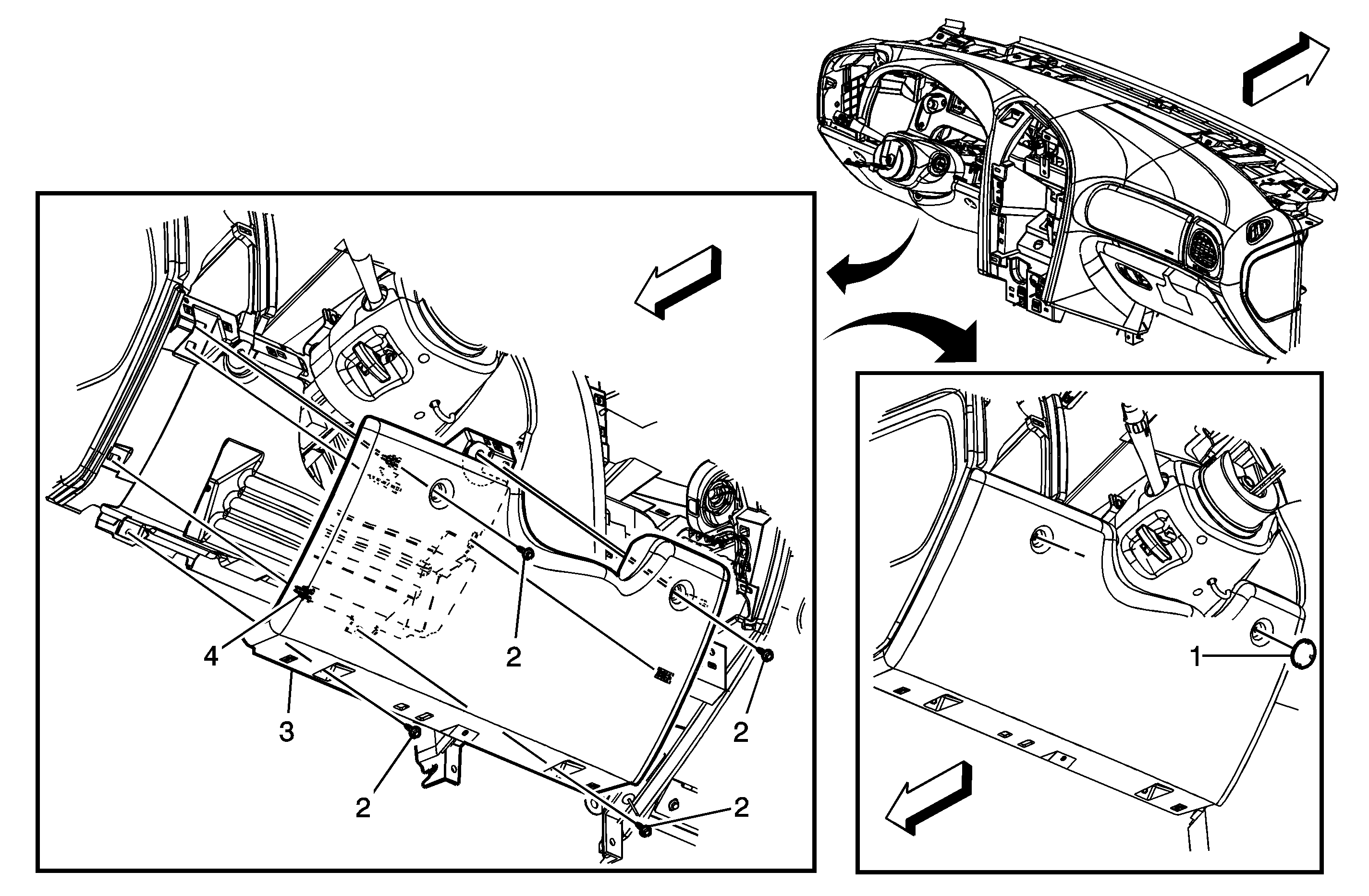

1

Knee Bolster Trim Panel Screw Cover (Qty: 2)

2

Knee Bolster Trim Panel Screw (Qty: 4)

Tighten
9 N·m (80 lb in)

3

Knee Bolster Trim Panel

4

Knee Bolster Retainer Clip (Qty: 3)
