Transfer Case Control Schematics. Chevrolet Blazer - 4WD 2000

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2000 🢒 Blazer - 4WD 🢒 Driveline/Axle 🢒 Transfer Case - NVG 236 (Two Speed Automatic) 🢒 Transfer Case Control Schematics

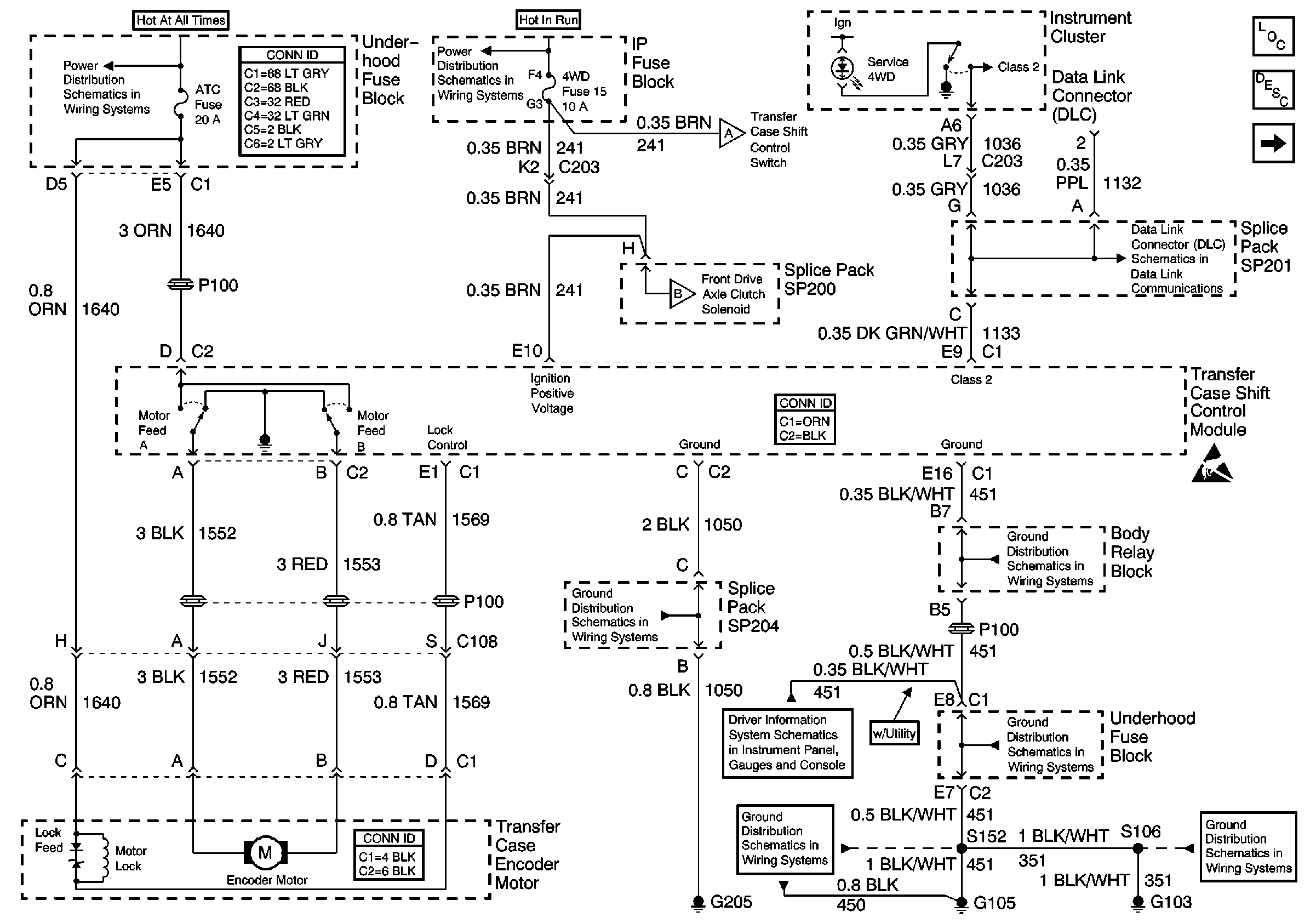

Figure 1:	Power, Ground and Transfer Case Transfer Case Control Components Transfer Case Circuit Description CRANK Fuse, 4WD Indicator Switch and Axle Clutch Solenoid B+ Bus Bar Power and Grounding Connector End Views Ign ACC, RUN and RAP Bus Bar ILLUM and 4WD Fuses, Shift Control Switch and Body Control Module (BCM) CRANK Fuse, 4WD Indicator Switch and Axle Clutch Solenoid SP201 (2.2L) Transfer Case Control Connector End Views Handling ESD Sensitive Parts Notice Transfer Case Control Connector End Views G205 and G206 (Utility) G103 and G105 (4.3L) w/o Trip Computer G103 and G105 (4.3L) G103 and G105 (4.3L) G103 and G105 (4.3L)

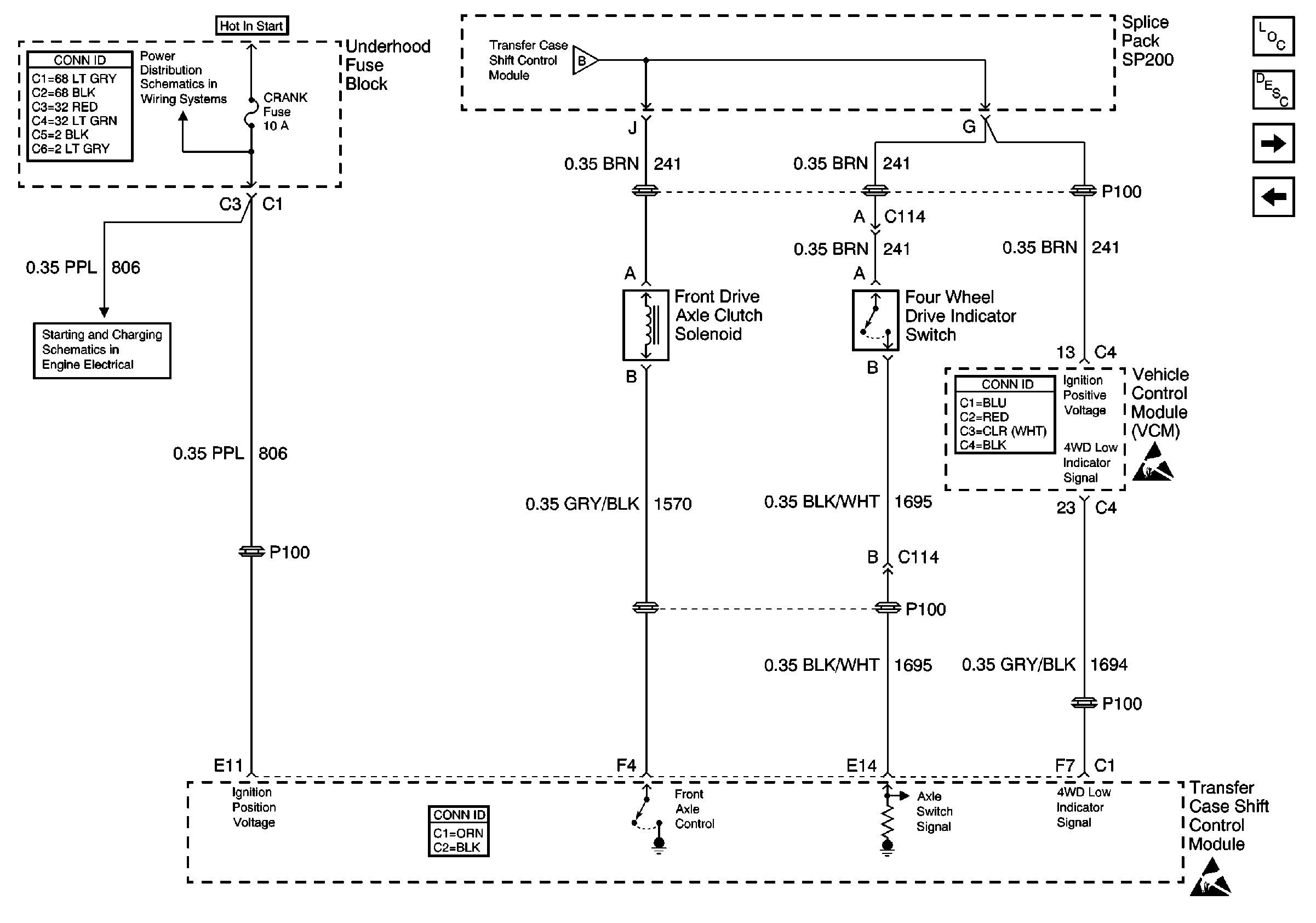

Figure 2:	CRANK Fuse, 4WD Indicator Switch and Axle Clutch Solenoid Transfer Case Control Components Transfer Case Circuit Description ILLUM and 4WD Fuses, Shift Control Switch and Body Control Module (BCM) Power, Ground and Transfer Case Power and Grounding Connector End Views CRANK and CLSTR Fuses Manual Transmission Starting Power, Ground and Transfer Case Transfer Case Control Connector End Views VCM Connector End Views Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

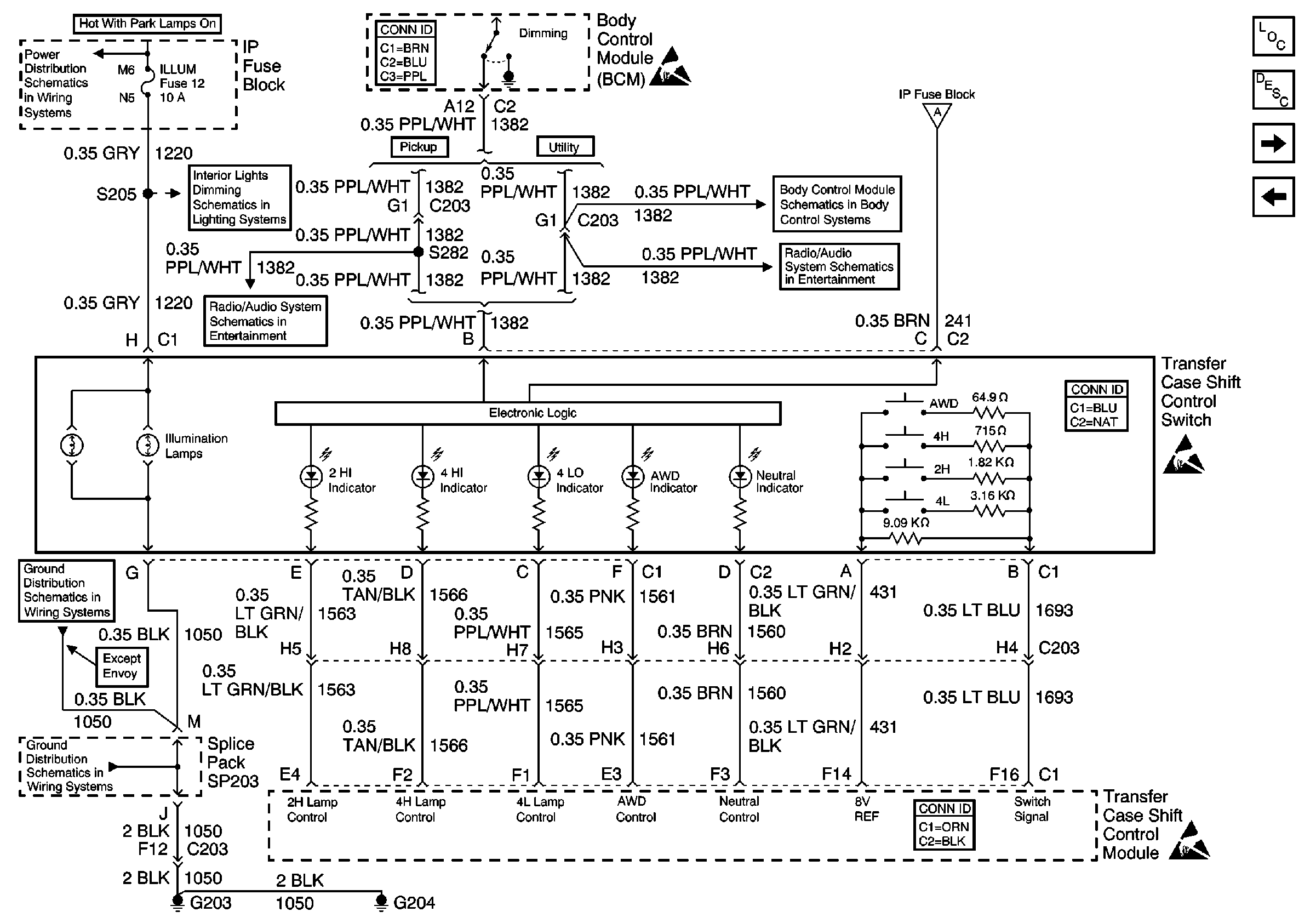

Figure 3:	ILLUM and 4WD Fuses, Shift Control Switch and Body Control Module (BCM) Transfer Case Control Components Transfer Case Circuit Description Transfer Module and Transfer Case CRANK Fuse, 4WD Indicator Switch and Axle Clutch Solenoid ILLUM and PARK LP Fuses Body Control System Connector End Views Handling ESD Sensitive Parts Notice Power, Ground and Transfer Case ILLUM Fuse 12 BCM (Chevy/GMC) PCM/VCM, Data Link Connector (DLC) and Dimming Signal BCM (Chevy/GMC) Power, Ground and Transfer Case Transfer Case Control Connector End Views Handling ESD Sensitive Parts Notice G203 and G204 (Utility w/ Manual A/C) G203 and G204 (Utility w/ Manual A/C) Transfer Case Control Connector End Views Handling ESD Sensitive Parts Notice

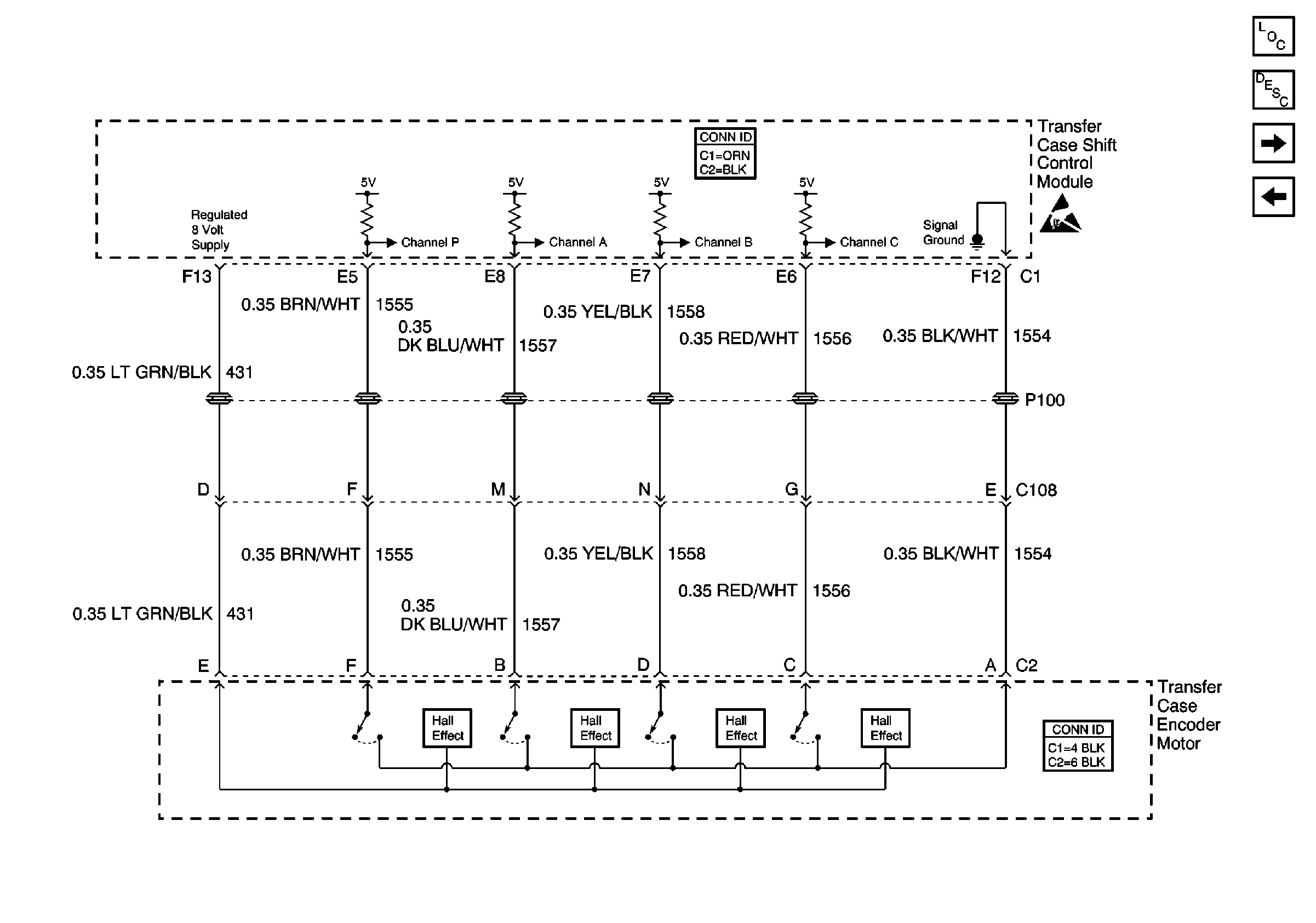

Figure 4:	Transfer Module and Transfer Case Transfer Case Control Components Transfer Case Circuit Description Speed Sensors ILLUM and 4WD Fuses, Shift Control Switch and Body Control Module (BCM) Transfer Case Control Connector End Views Handling ESD Sensitive Parts Notice Transfer Case Control Connector End Views

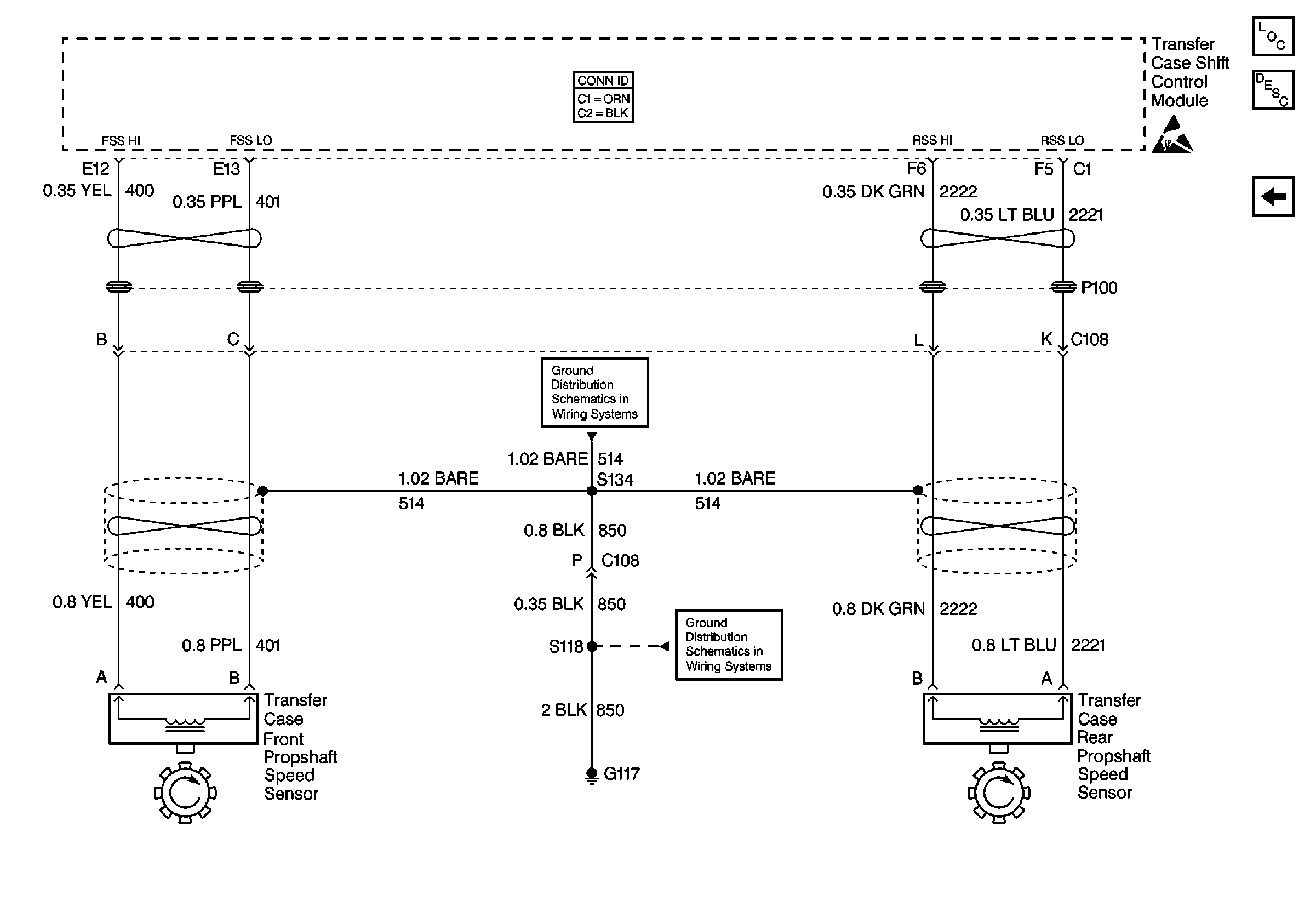

Figure 5:	Speed Sensors Transfer Case Control Components Transfer Case Circuit Description Transfer Module and Transfer Case Transfer Case Control Connector End Views Handling ESD Sensitive Parts Notice G104 and G117 G104 and G117
