Antilock Brake System Schematics 310 ABS

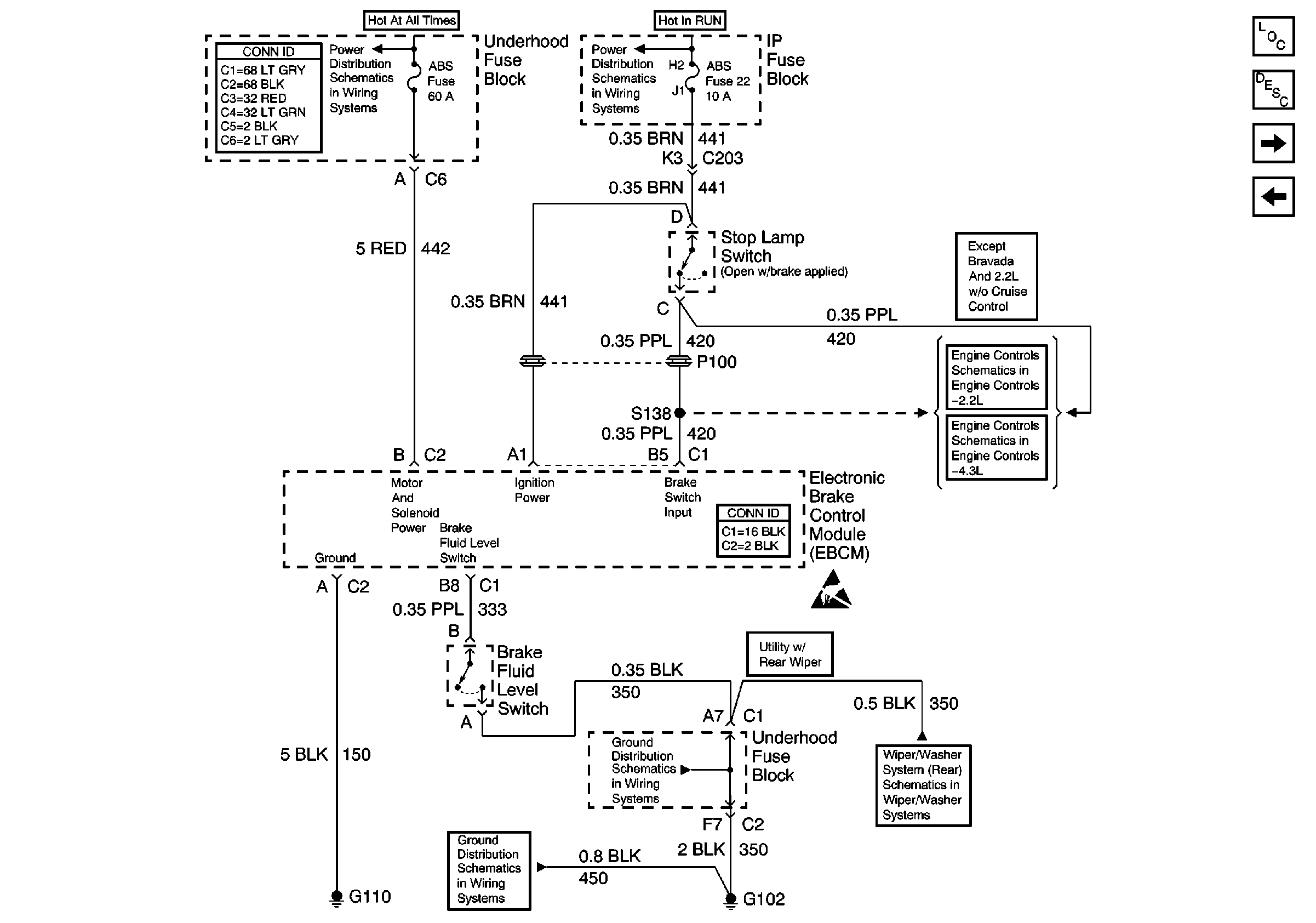

Figure 1:	Power and Ground (310 ABS) ABS Components ABS Operation Class 2 Communication (310 ABS) Power and Grounding Connector End Views STUD 2, ABS, TBC and RR W/W Fuses Ign ACC, RUN and RAP Bus Bar Brake Switch Input G103 and G105 (2.2L) Antilock Brake System Connector End Views Handling ESD Sensitive Parts Notice G102 (Except Export) G102 (Except Export) Wiper/Washer System (Rear) G103 and G105 (2.2L)

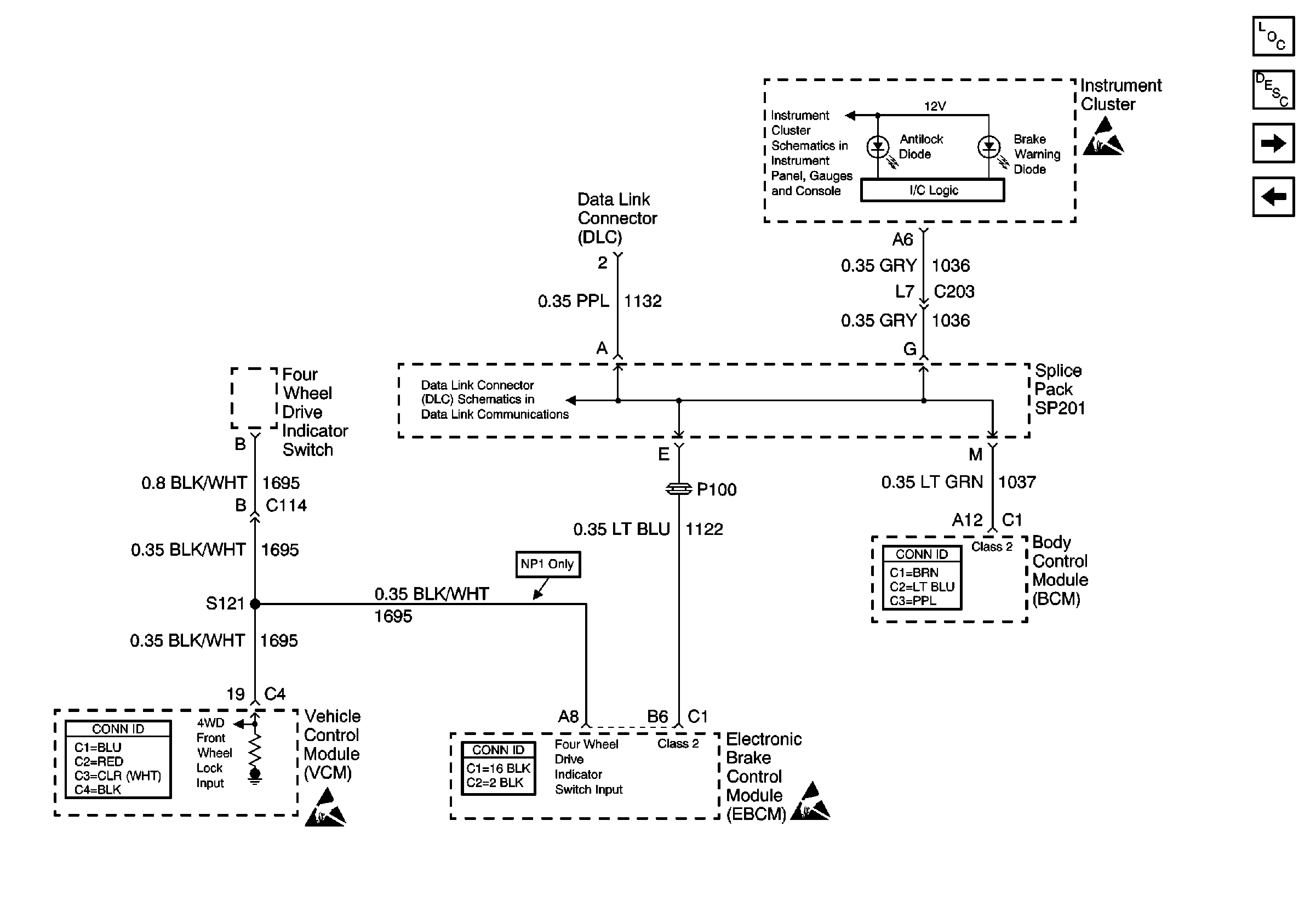

Figure 2:	Class 2 Communication (310 ABS) ABS Components ABS Operation Speed Sensor Signals (310 ABS) Power and Ground (310 ABS) PCM/VCM, Data Link Connector (DLC), Engine Oil Pressure Gauge Sensor Handling ESD Sensitive Parts Notice SP201 (4.3L) Antilock Brake System Connector End Views Body Control System Connector End Views VCM Connector End Views Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

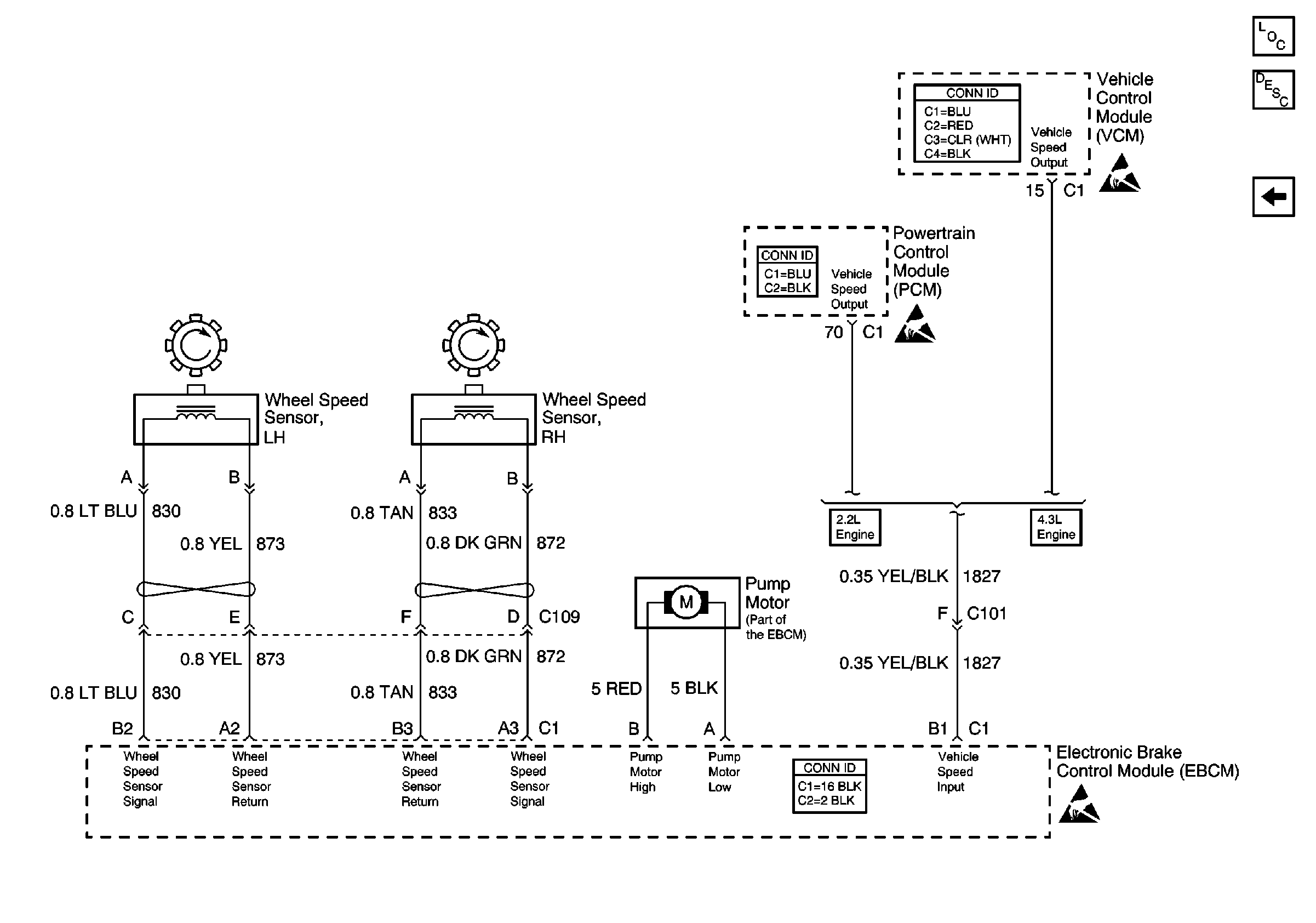

Figure 3:	Speed Sensor Signals (310 ABS) ABS Components ABS Operation Power and Ground (325 ABS) Class 2 Communication (310 ABS) VCM Connector End Views Handling ESD Sensitive Parts Notice Antilock Brake System Connector End Views Handling ESD Sensitive Parts Notice

Antilock Brake System Schematics 325 ABS

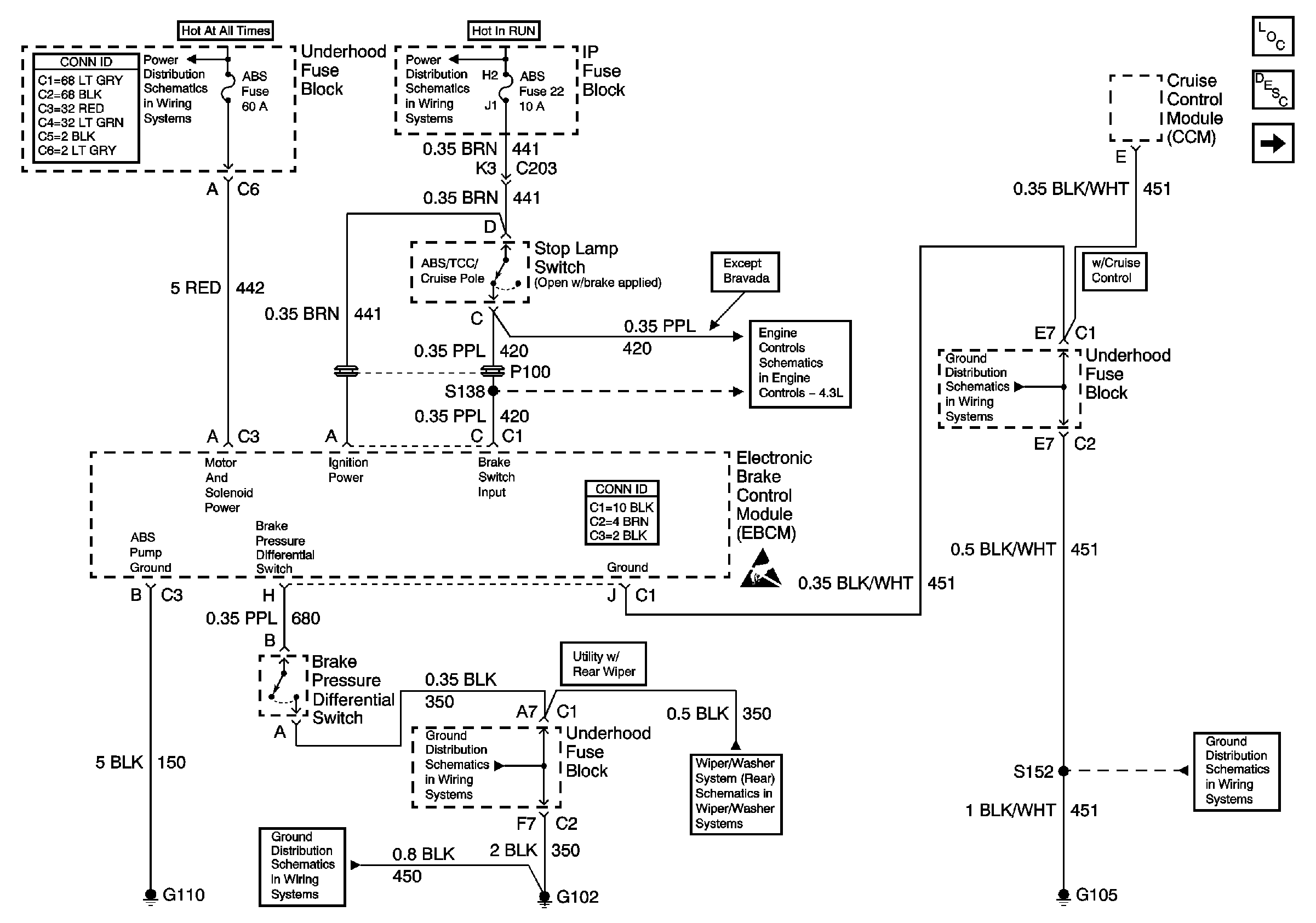

Figure 1:	Power and Ground (325 ABS) ABS Components ABS Operation Class 2 Communication (325 ABS) Speed Sensor Signals (310 ABS) Power and Grounding Connector End Views STUD 2, ABS, TBC and RR W/W Fuses Ign ACC, RUN and RAP Bus Bar IAC, EVAP Valve Controls, and Brake Switch Input w/ A/T Brake Switch Input Antilock Brake System Connector End Views Handling ESD Sensitive Parts Notice G102 (Except Export) G102 (Except Export) Wiper/Washer System (Rear)

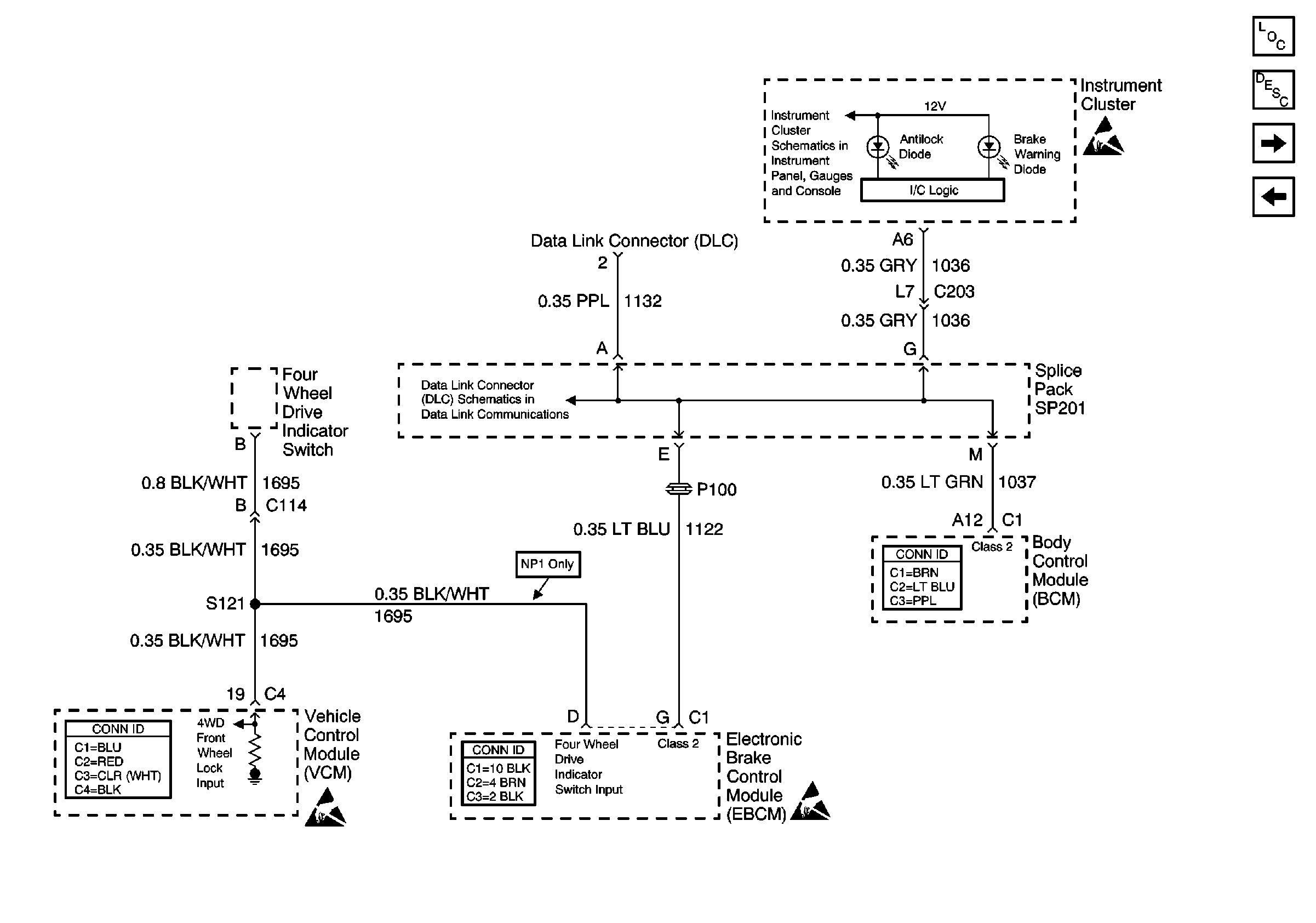

Figure 2:	Class 2 Communication (325 ABS) ABS Components ABS Operation Speed Sensor Signals (325 ABS) Power and Ground (325 ABS) PCM/VCM, Data Link Connector (DLC), Engine Oil Pressure Gauge Sensor Handling ESD Sensitive Parts Notice SP201 (4.3L) Antilock Brake System Connector End Views Body Control System Connector End Views VCM Connector End Views Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

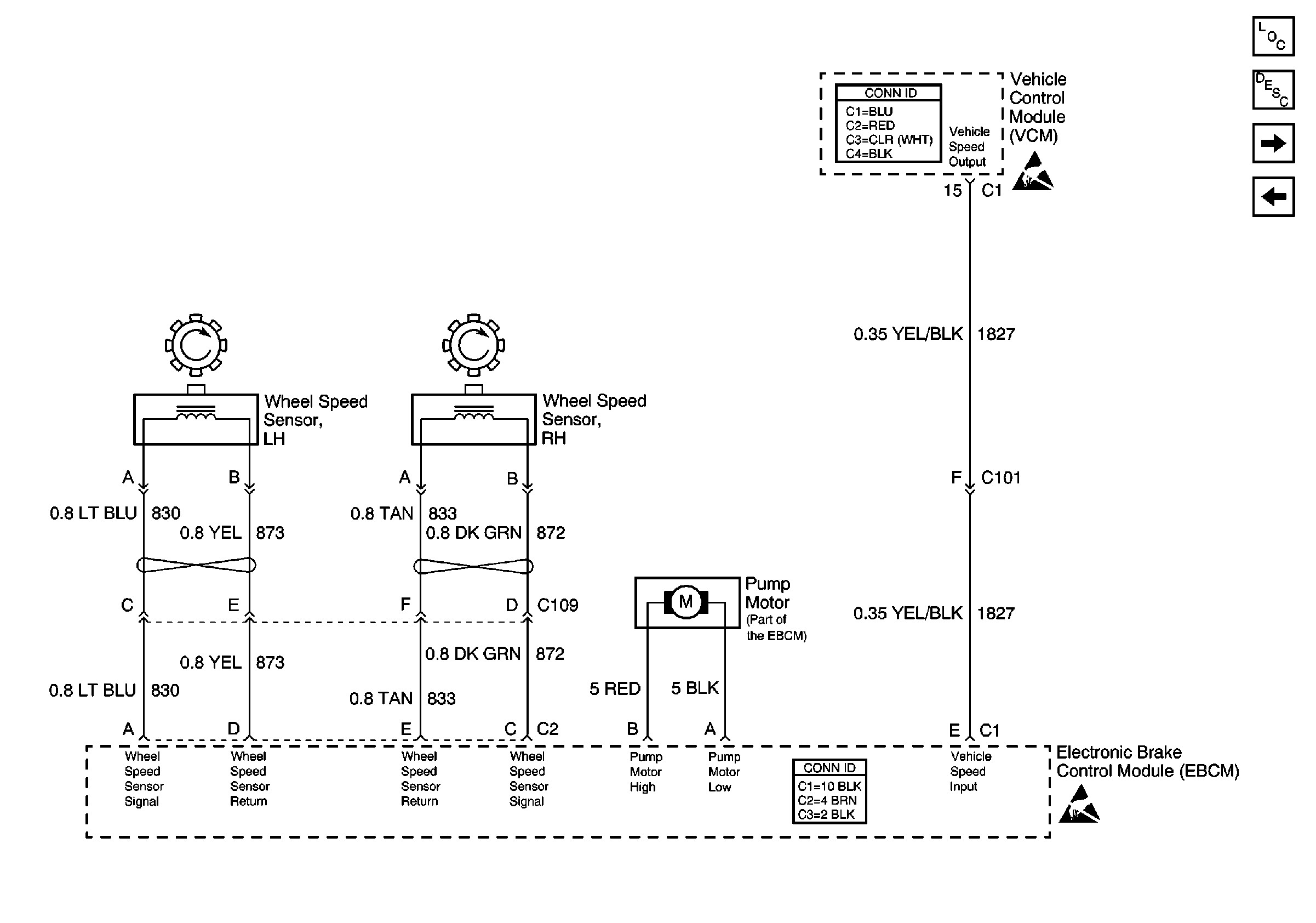

Figure 3:	Speed Sensor Signals (325 ABS) ABS Components ABS Operation Class 2 Communication (325 ABS) VCM Connector End Views Handling ESD Sensitive Parts Notice Powertrain Control Module Connector End Views Handling ESD Sensitive Parts Notice Antilock Brake System Connector End Views Handling ESD Sensitive Parts Notice
