Removal Procedure
  1. Remove the grille. Refer to Grille Replacement in Exterior Trim.

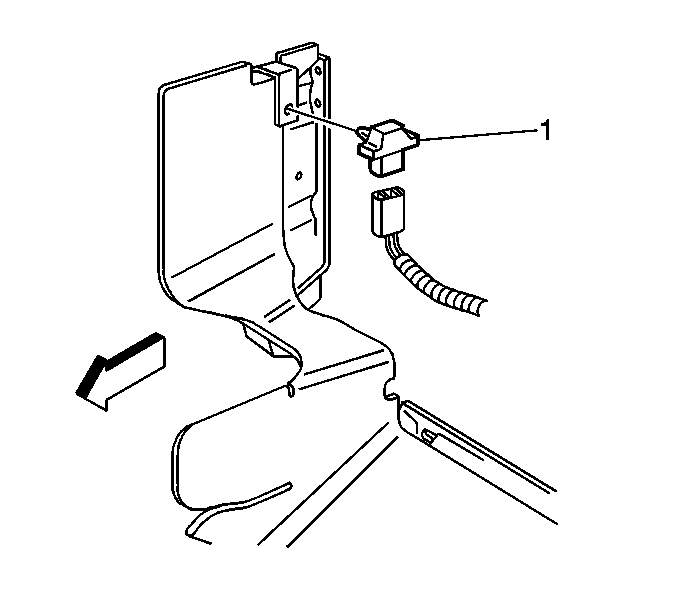

    2. Object Number: 596402 Size: SH
  2. Disconnect the electrical connector from the outside air temperature sensor (1).
  3. Remove the outside air temperature sensor (1) from the right hand side of the radiator support baffle.

Installation Procedure

    Object Number: 596402 Size: SH
  1. Install the outside air temperature sensor (1) to the right hand side of the radiator support baffle.
  2. Connect the electrical connector to the outside air temperature sensor (1).
  3. Install the grille. Refer to Grille Replacement in Exterior Trim.
