Ground Distribution Schematics. Chevrolet Blazer - 4WD

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 1999 🢒 Blazer - 4WD - RHD 🢒 Body and Accessories 🢒 Wiring Systems 🢒 Ground Distribution Schematics

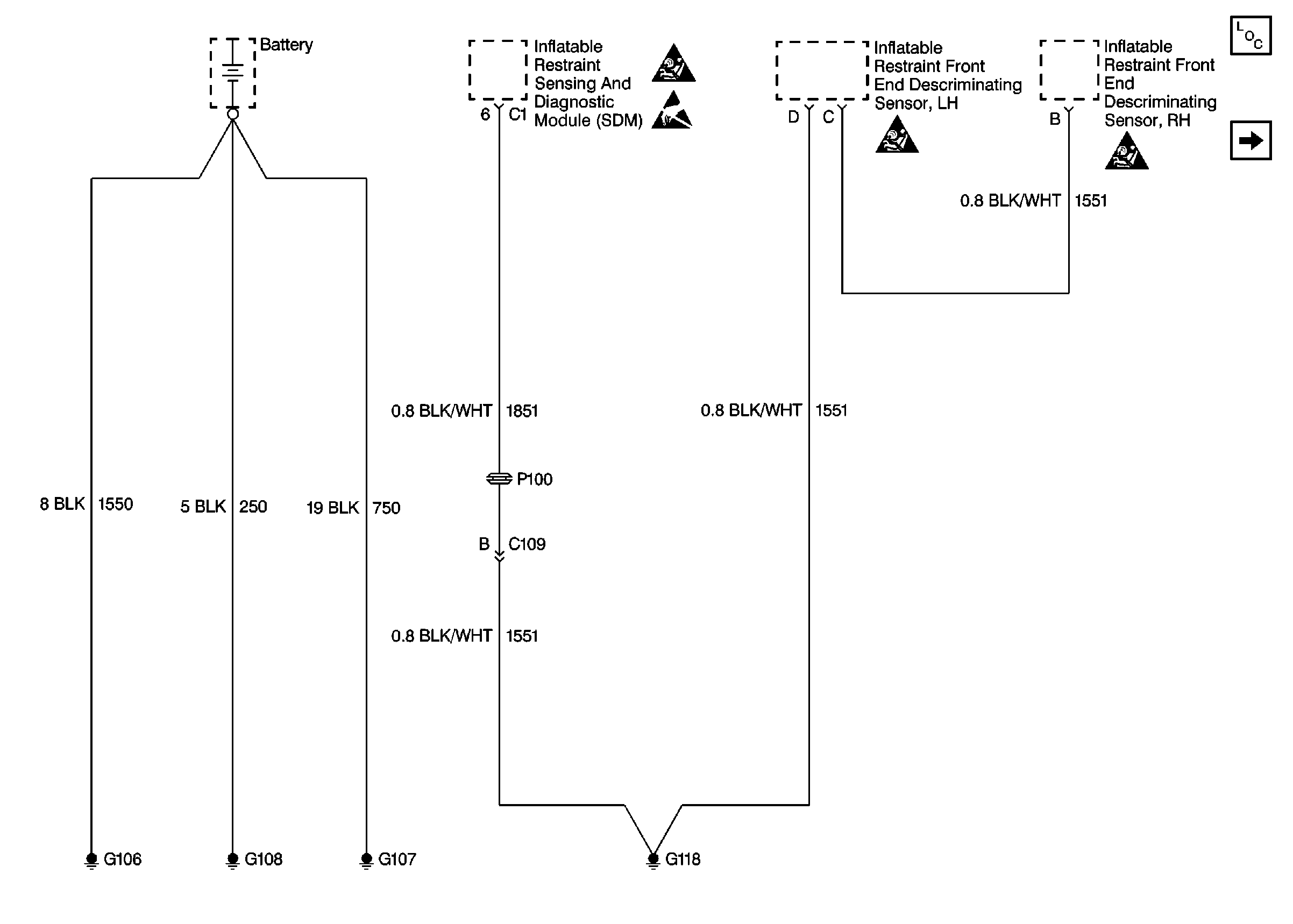

Figure 1:	Cell 14: G106, G107, G108, and G118

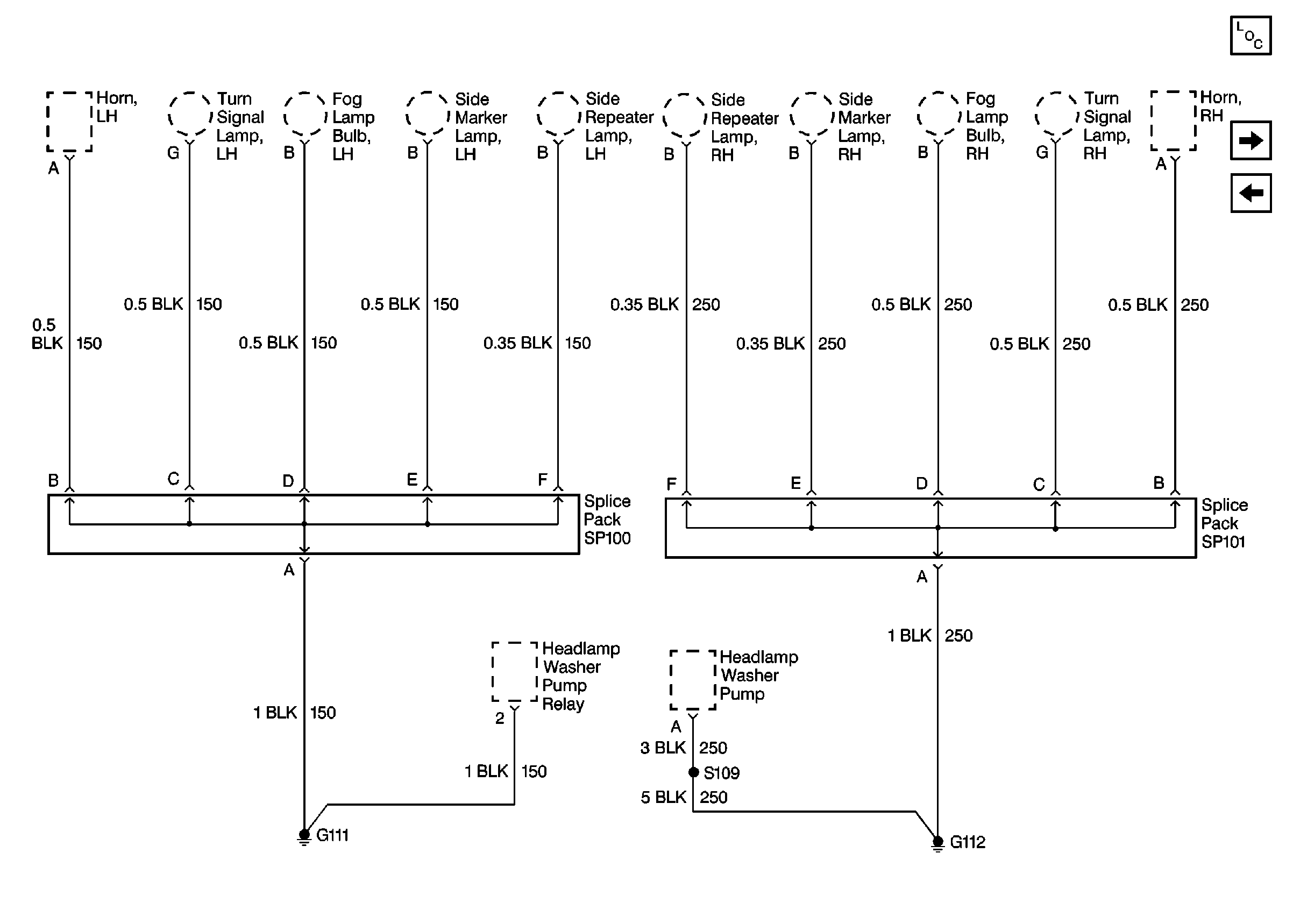

Figure 2:	Cell 14: G111 and G112

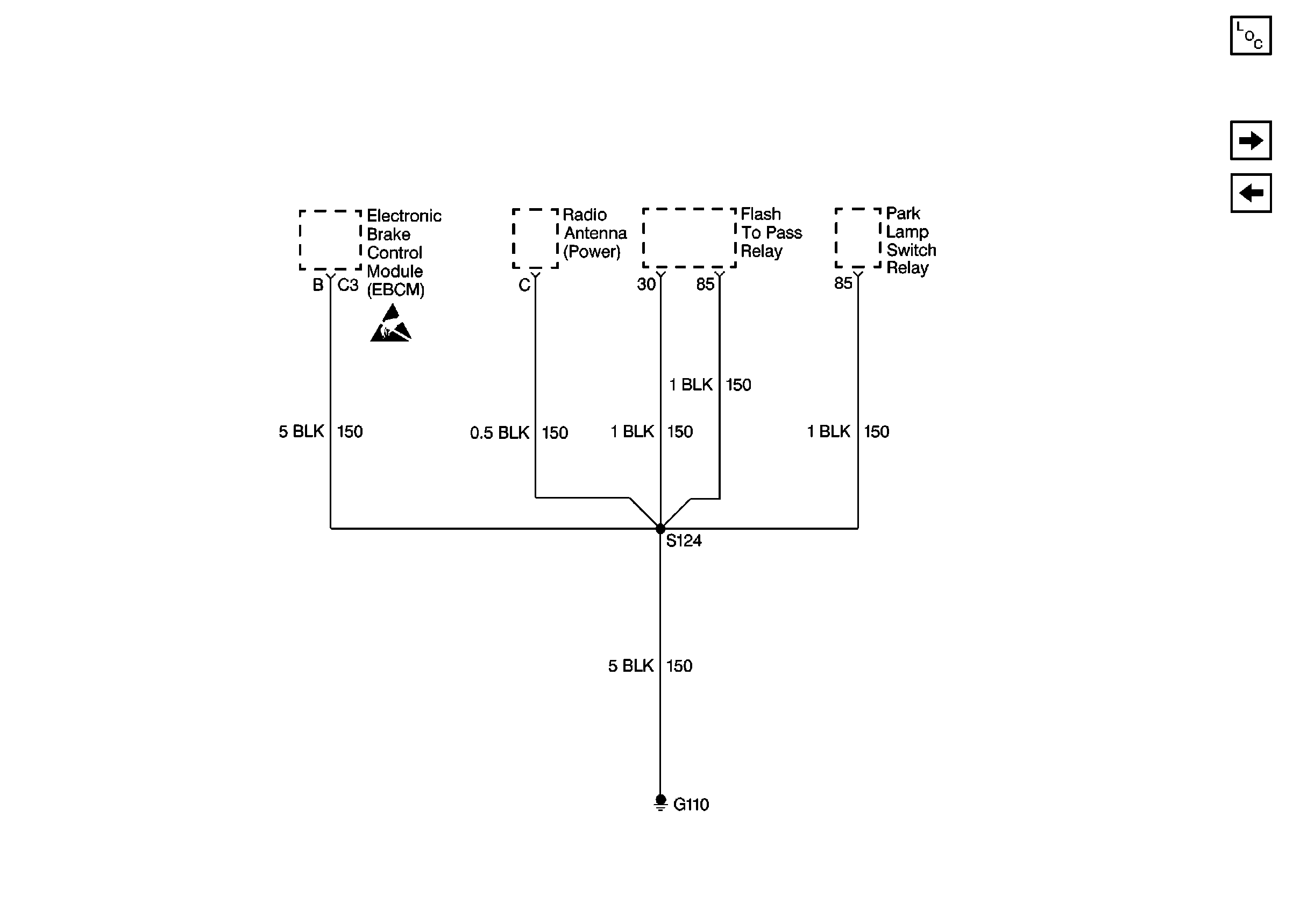

Figure 3:	Cell 14: Electronic Brake Control Module and G110

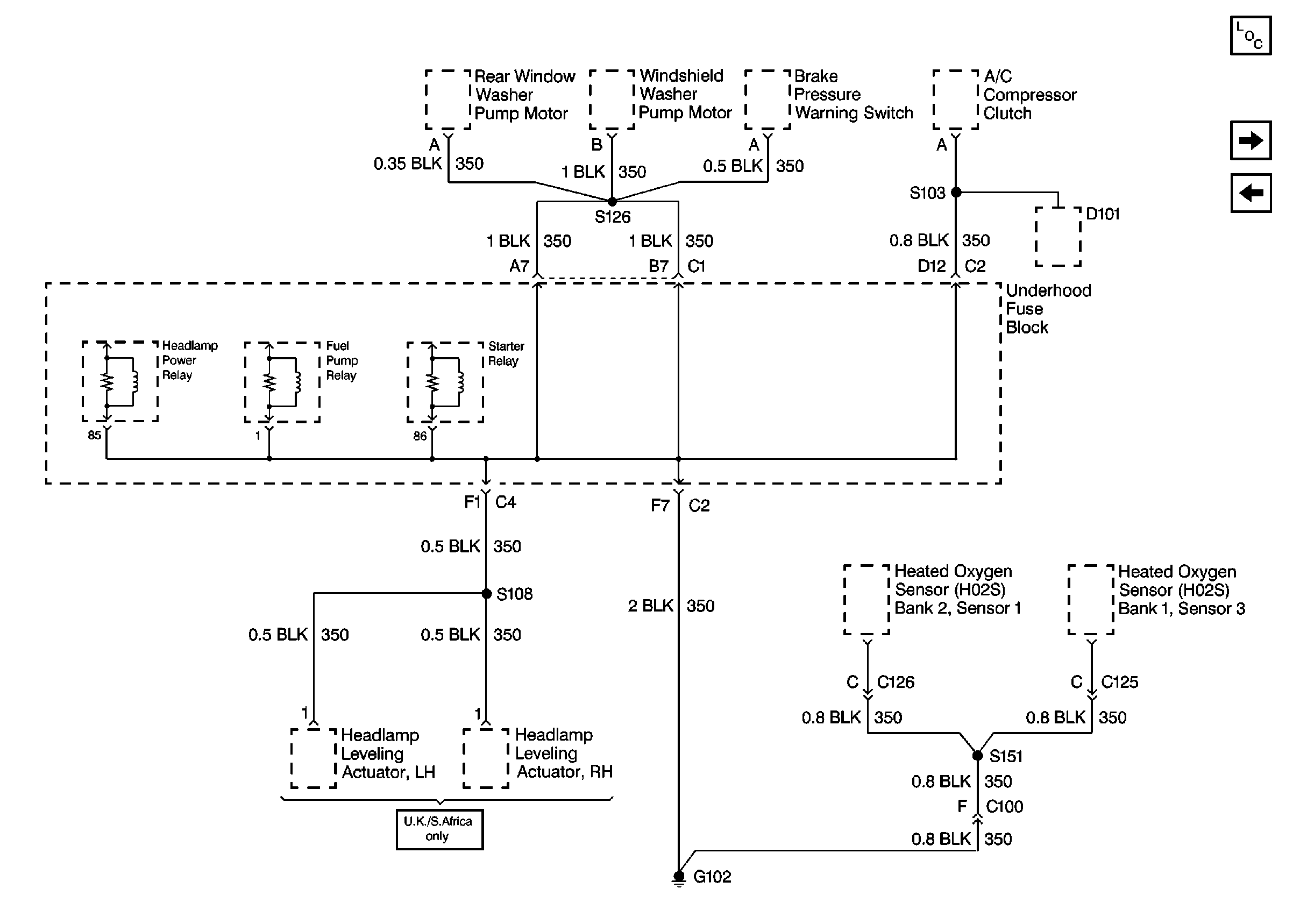

Figure 4:	Cell 14: Underhood Fuse Block and G102

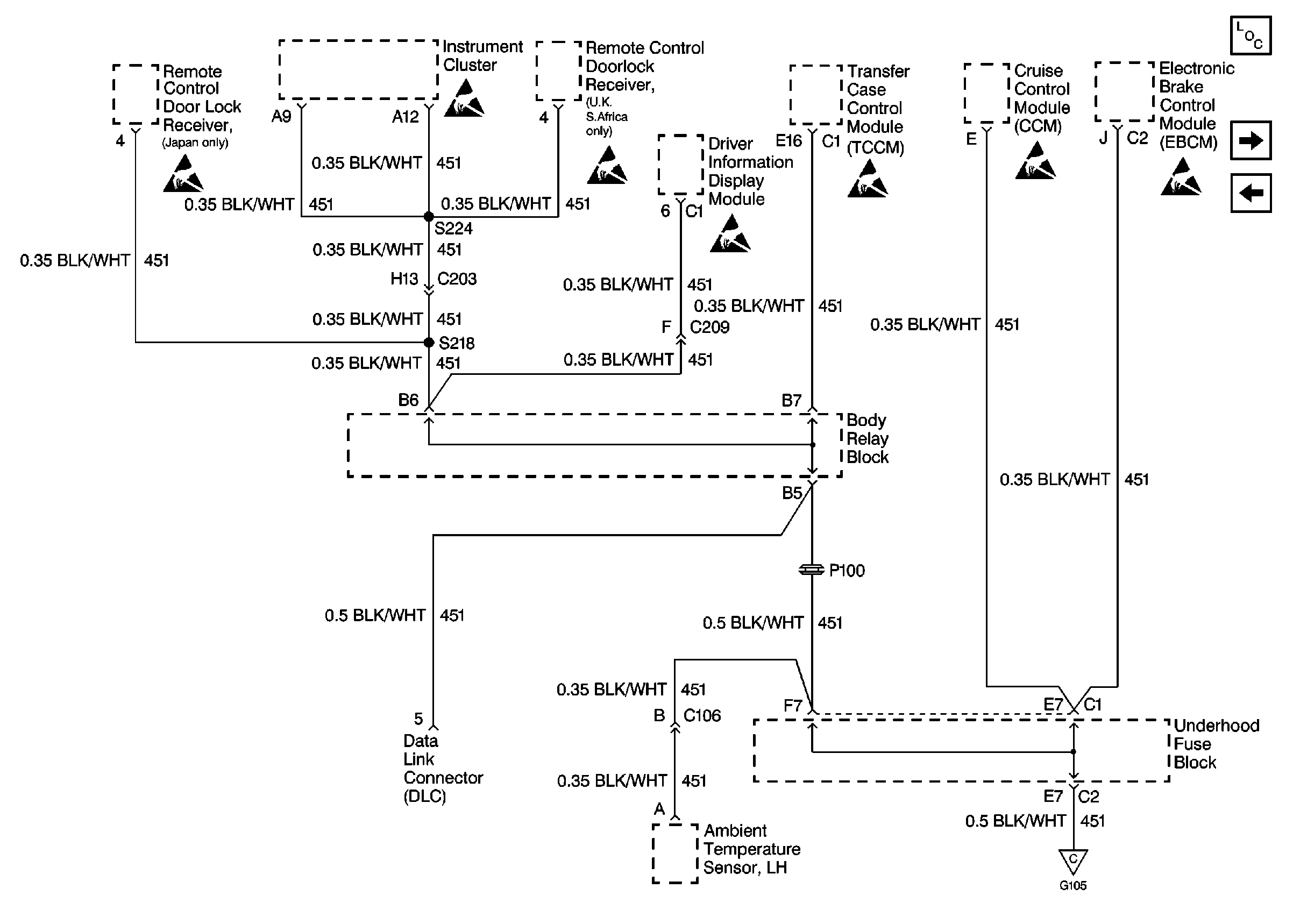

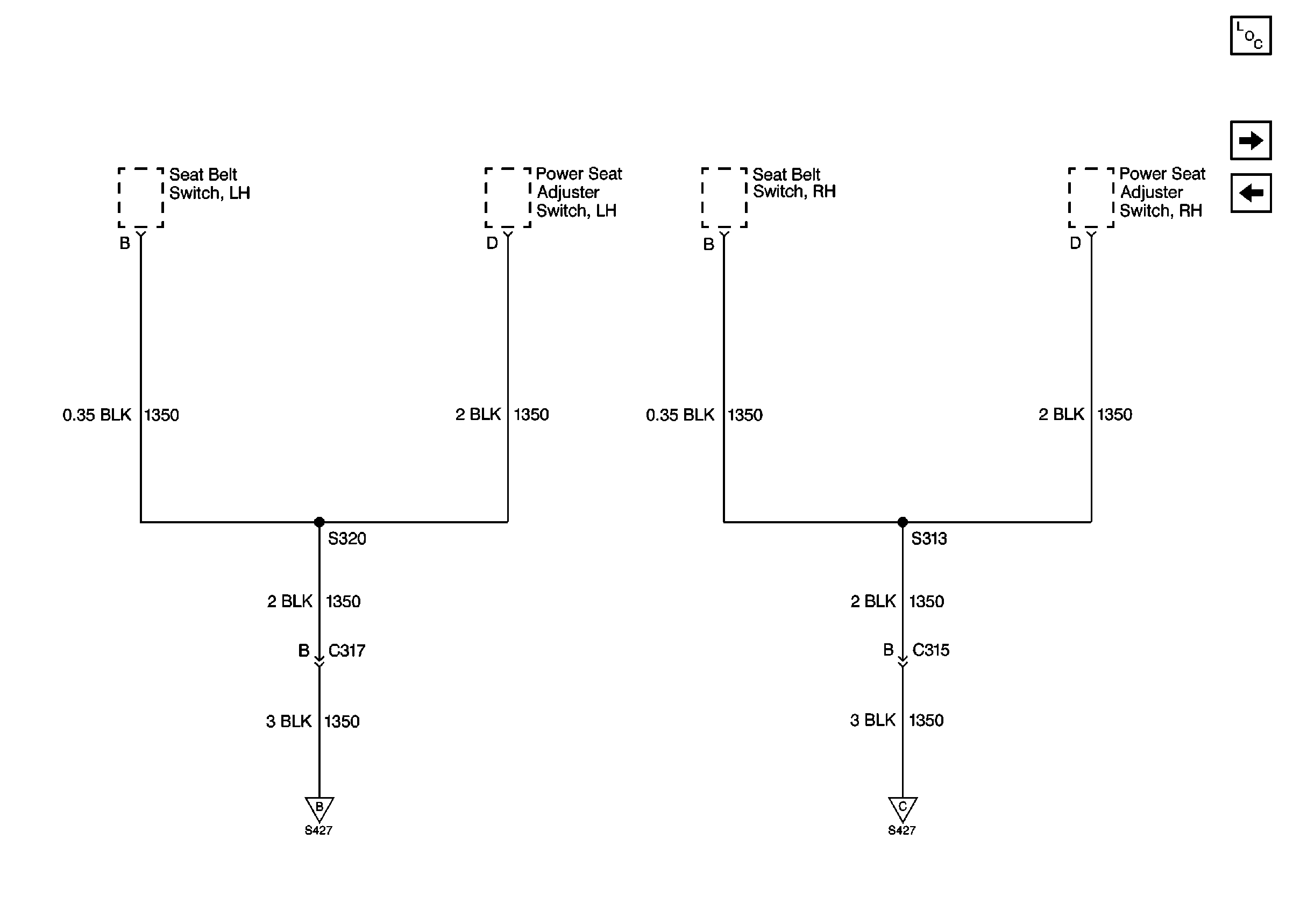

Figure 5:	Cell 14: Data Link Connector and Underhood Fuse Block

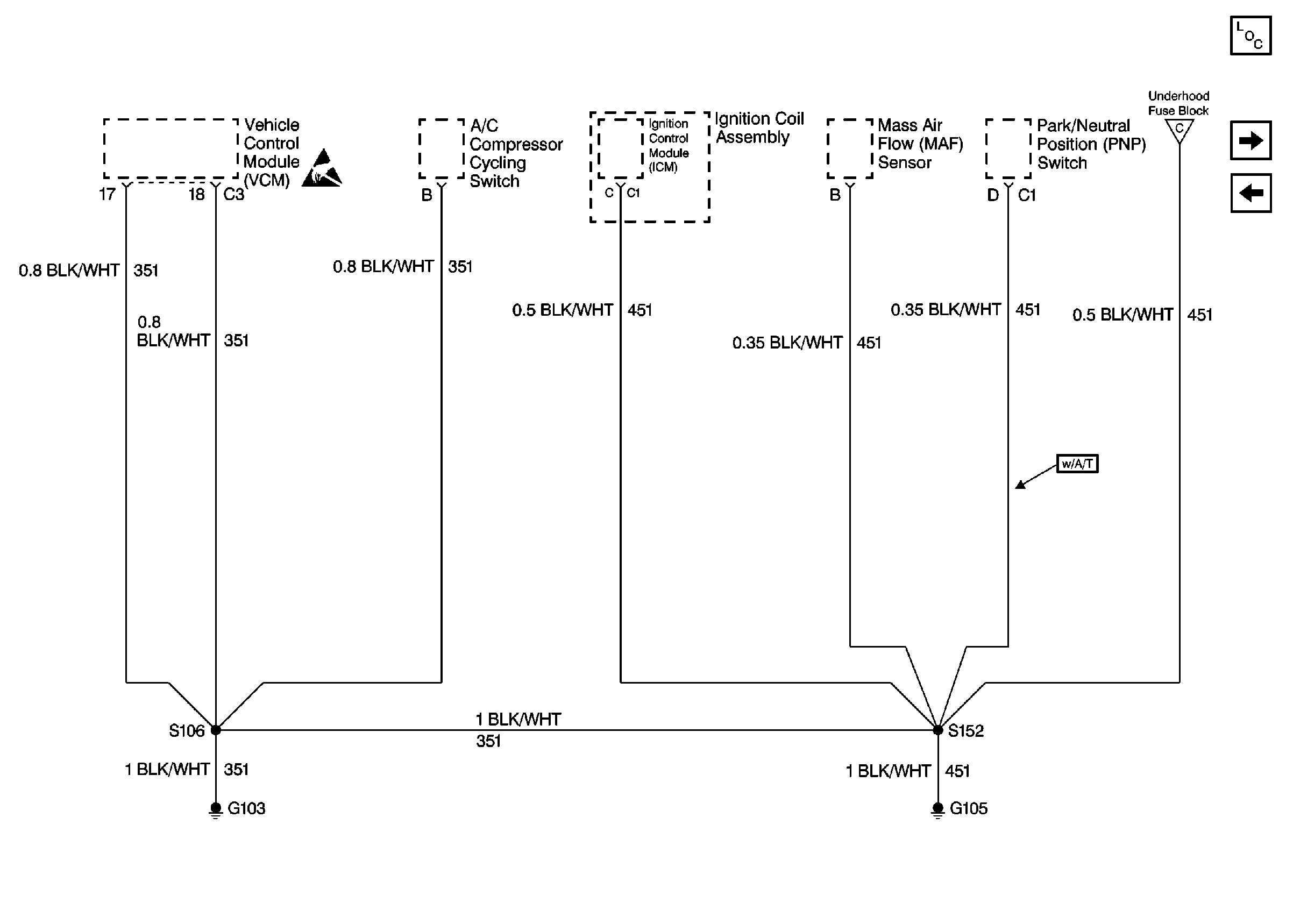

Figure 6:	Cell 14: G103 and G105

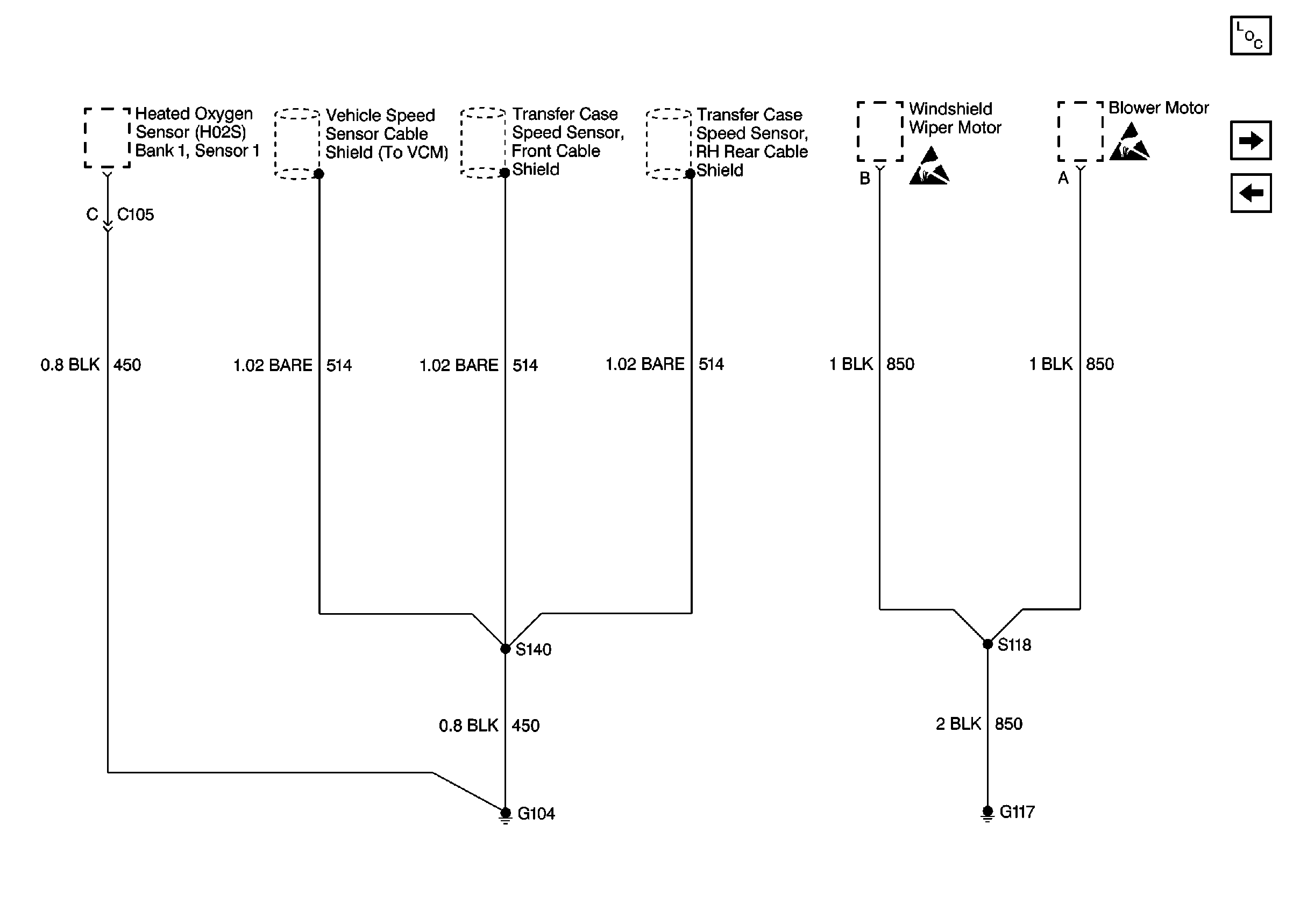

Figure 7:	Cell 14: G104 and G117
Figure 8:	Cell 14: G203, G204, and G205

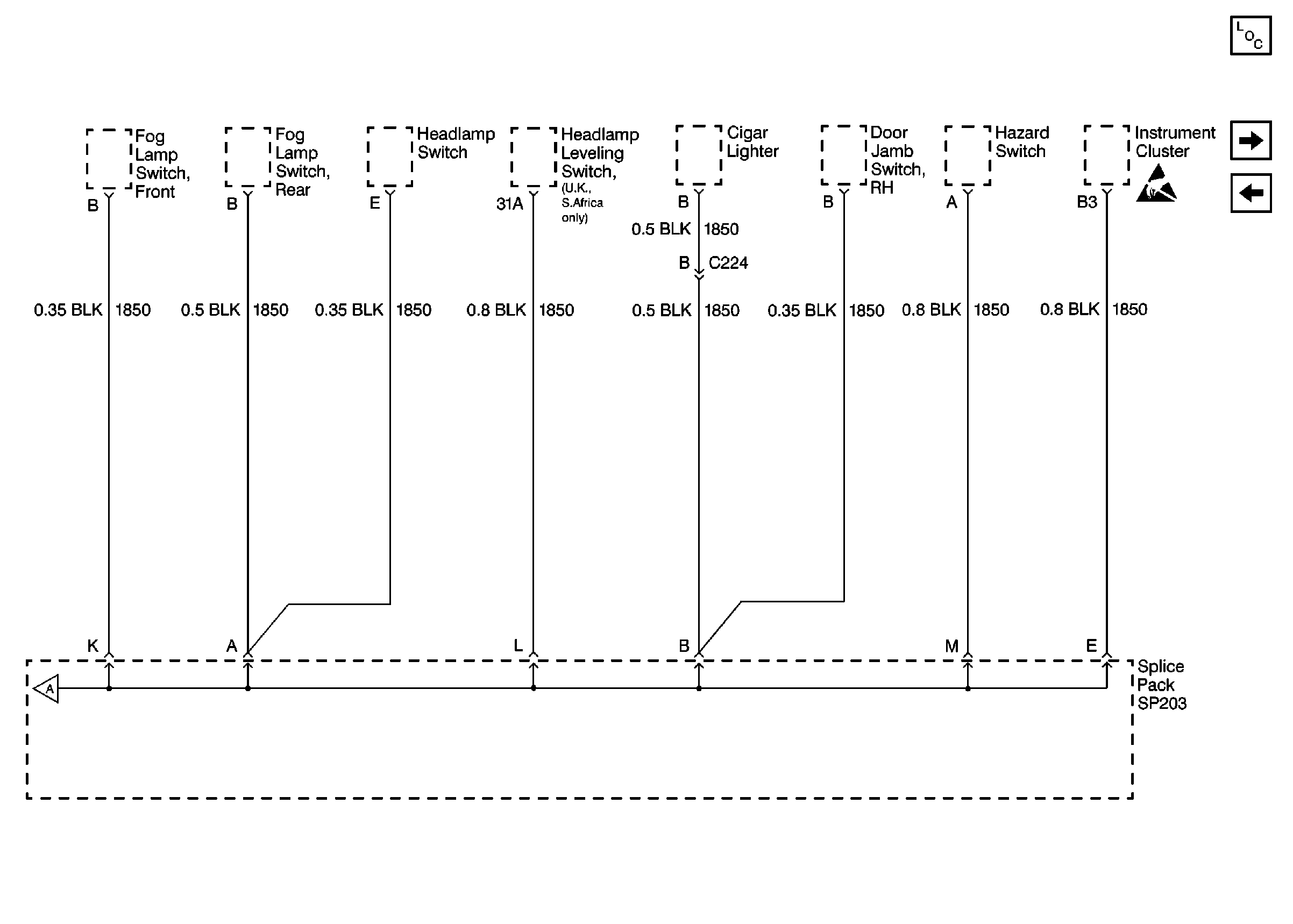

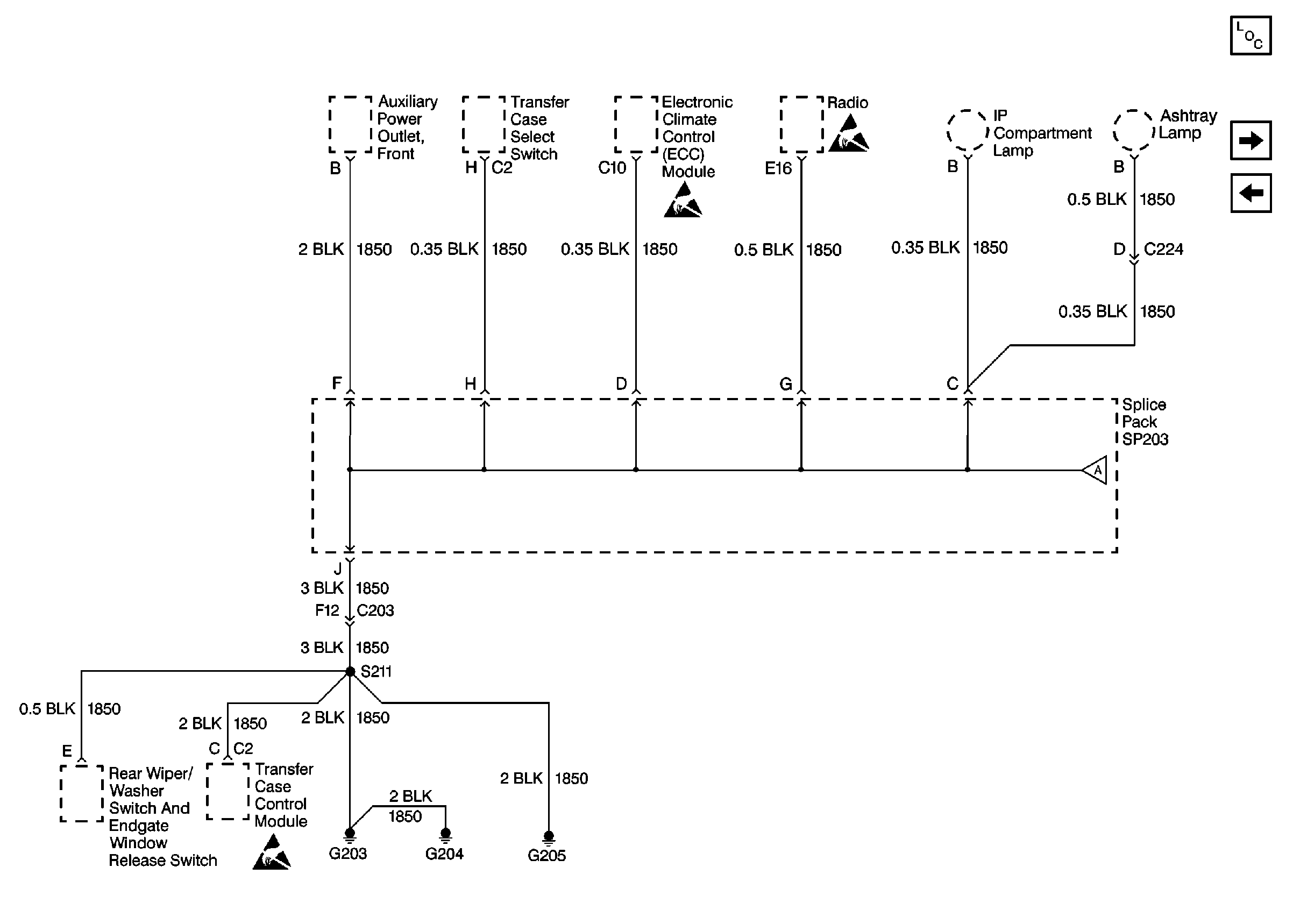

Figure 9:	Cell 14: Splice Pack SP203

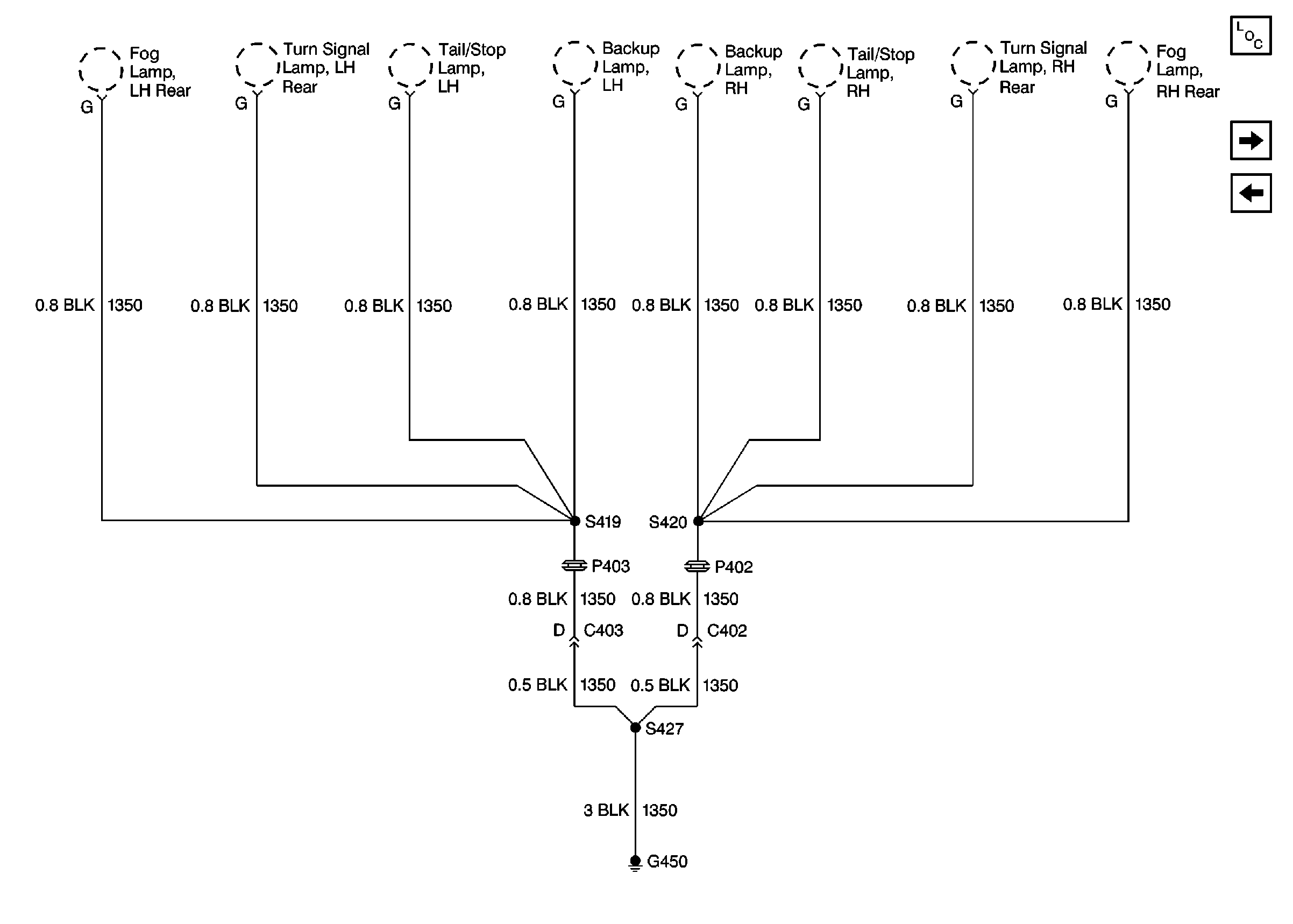

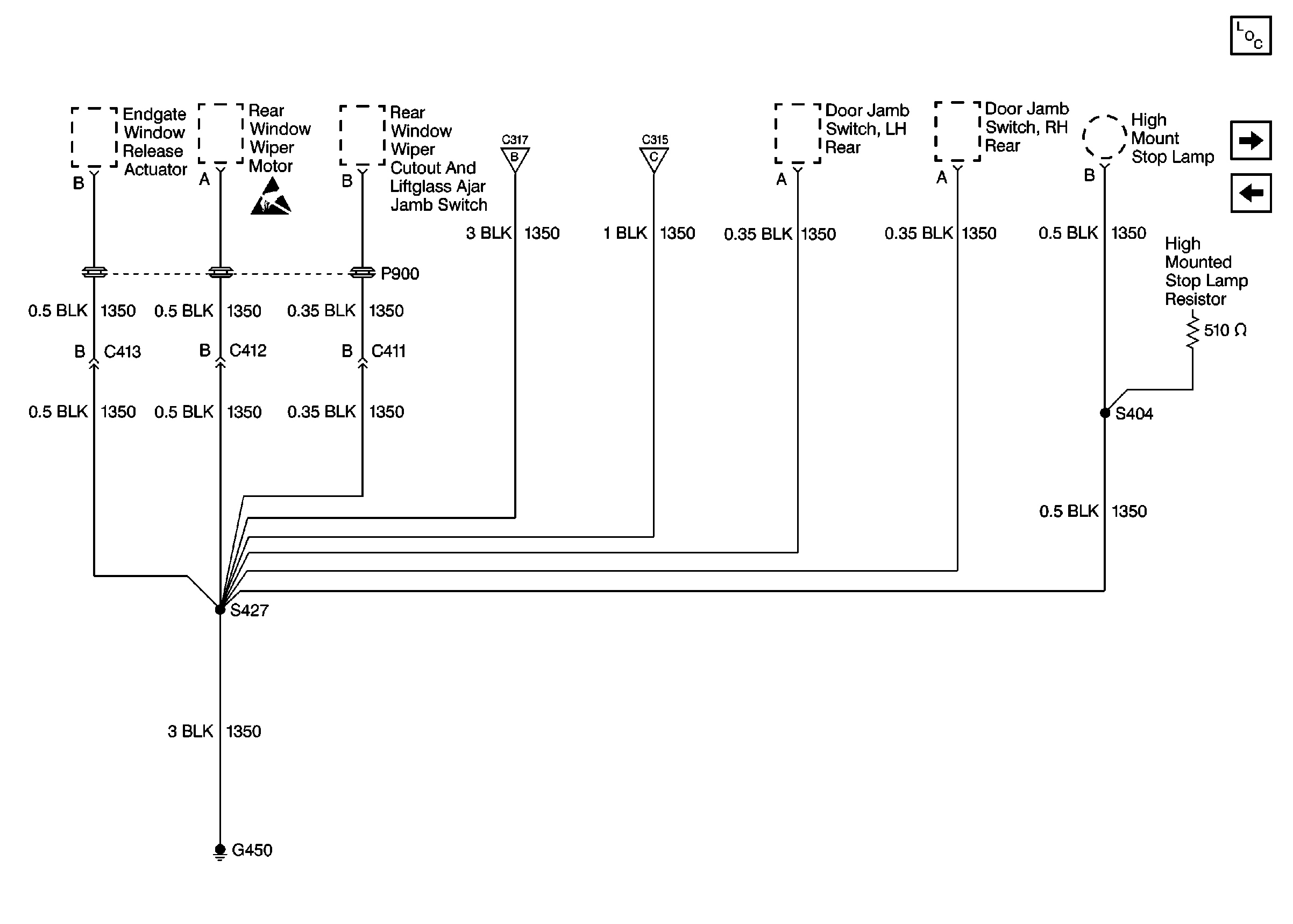

Figure 10:	Cell 14: G450
Figure 11:	Cell 14: 6-Way Power Seats

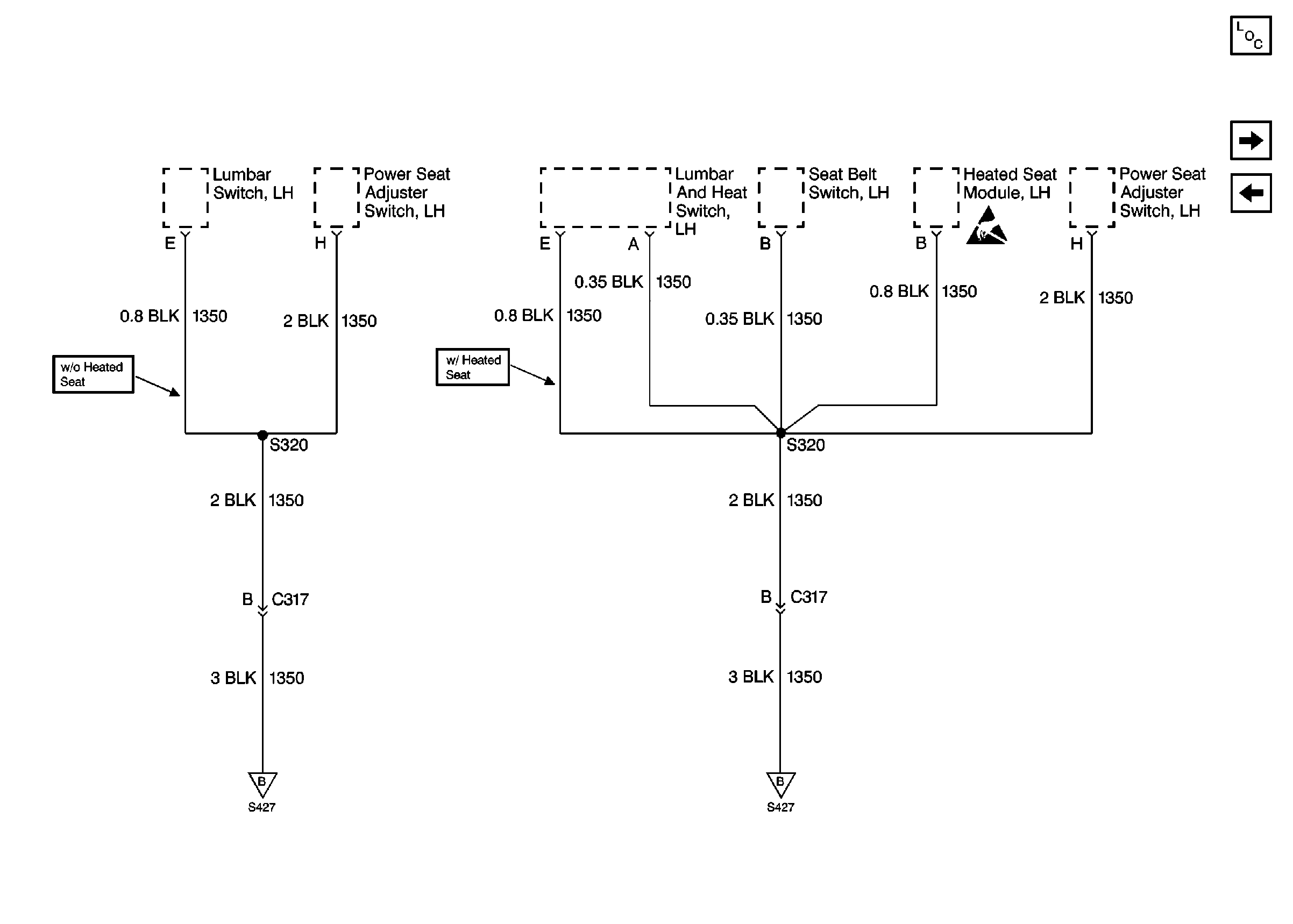

Figure 12:	Cell 14: 8-Way Power Seats, LH

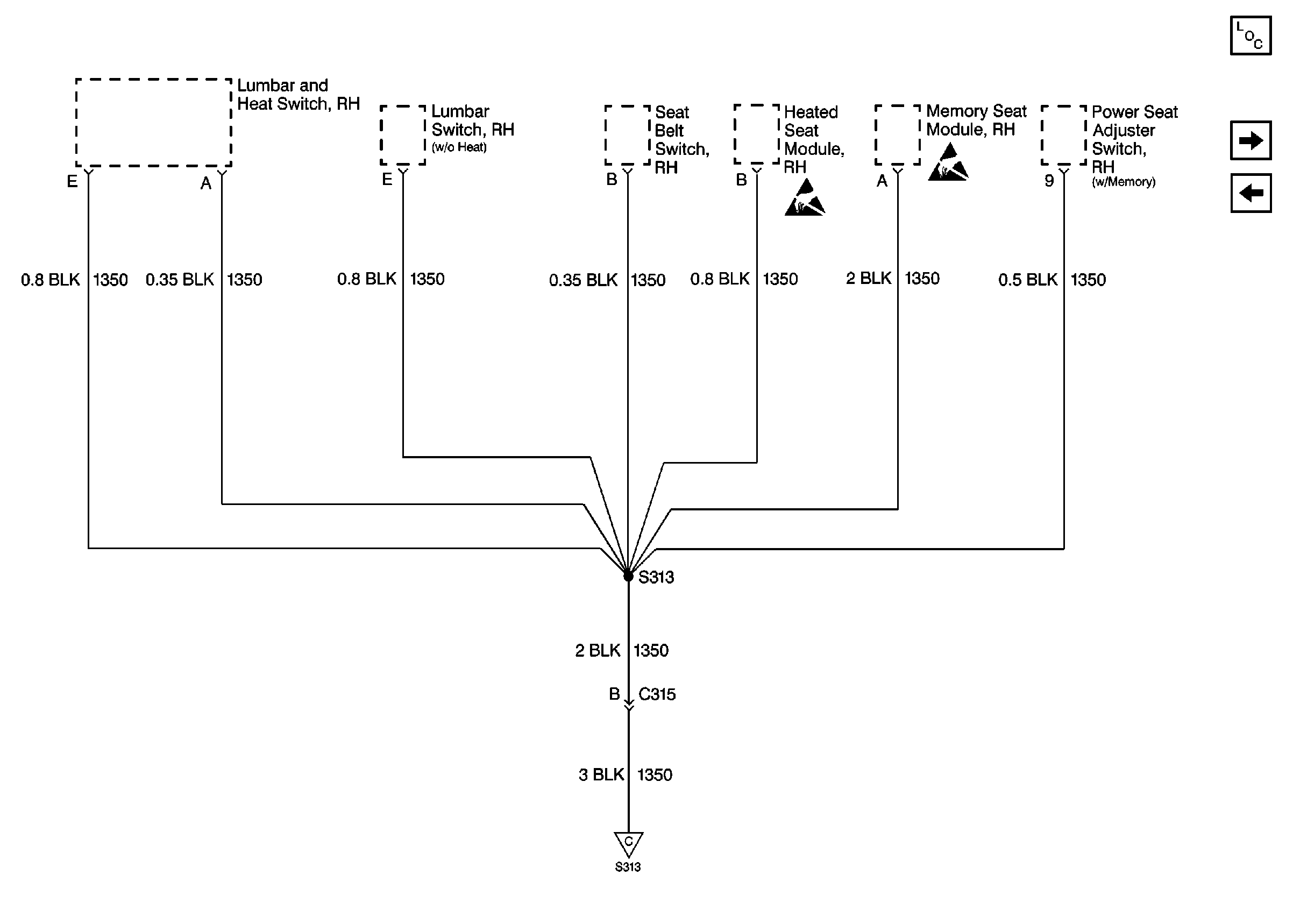

Figure 13:	Cell 14: 8-Way Power Seats, RH
Figure 14:	Cell 14: High Mount Stop Lamp and G450

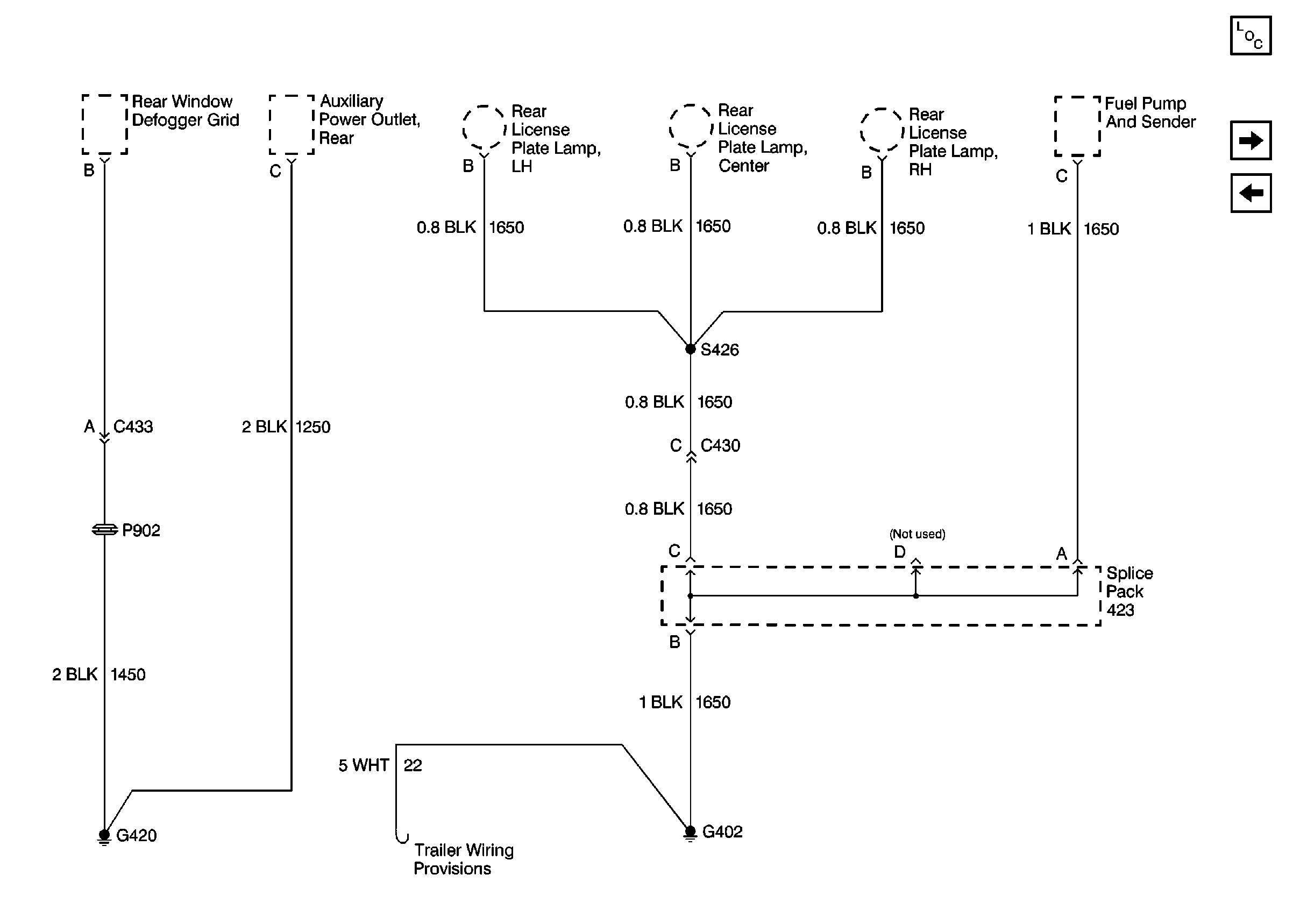

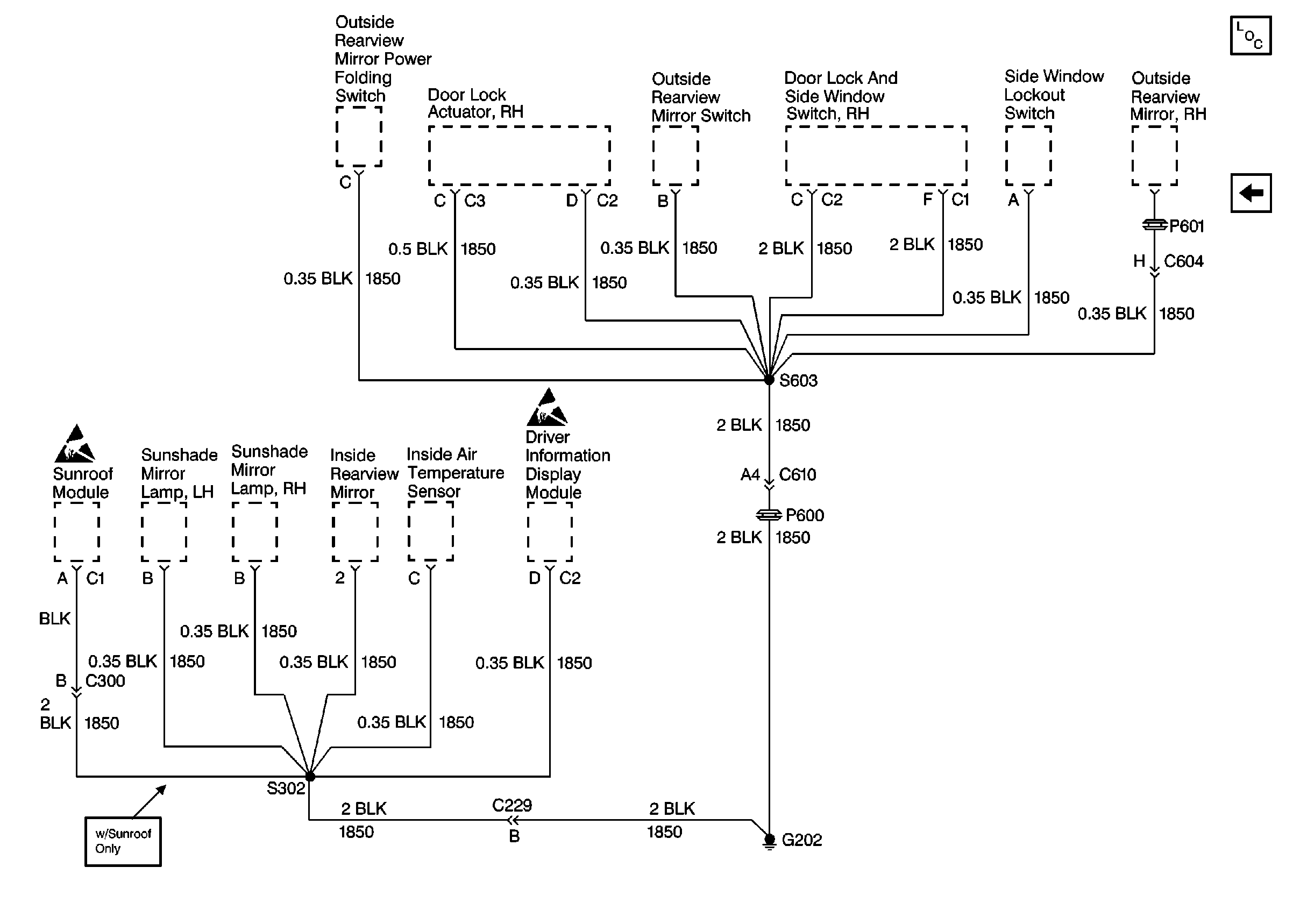

Figure 15:	Cell 14: G402 and G420
