Body Control System Schematics. Chevrolet Blazer - 4WD

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 1999 🢒 Blazer - 4WD - RHD 🢒 Body and Accessories 🢒 Body Control System 🢒 Body Control System Schematics

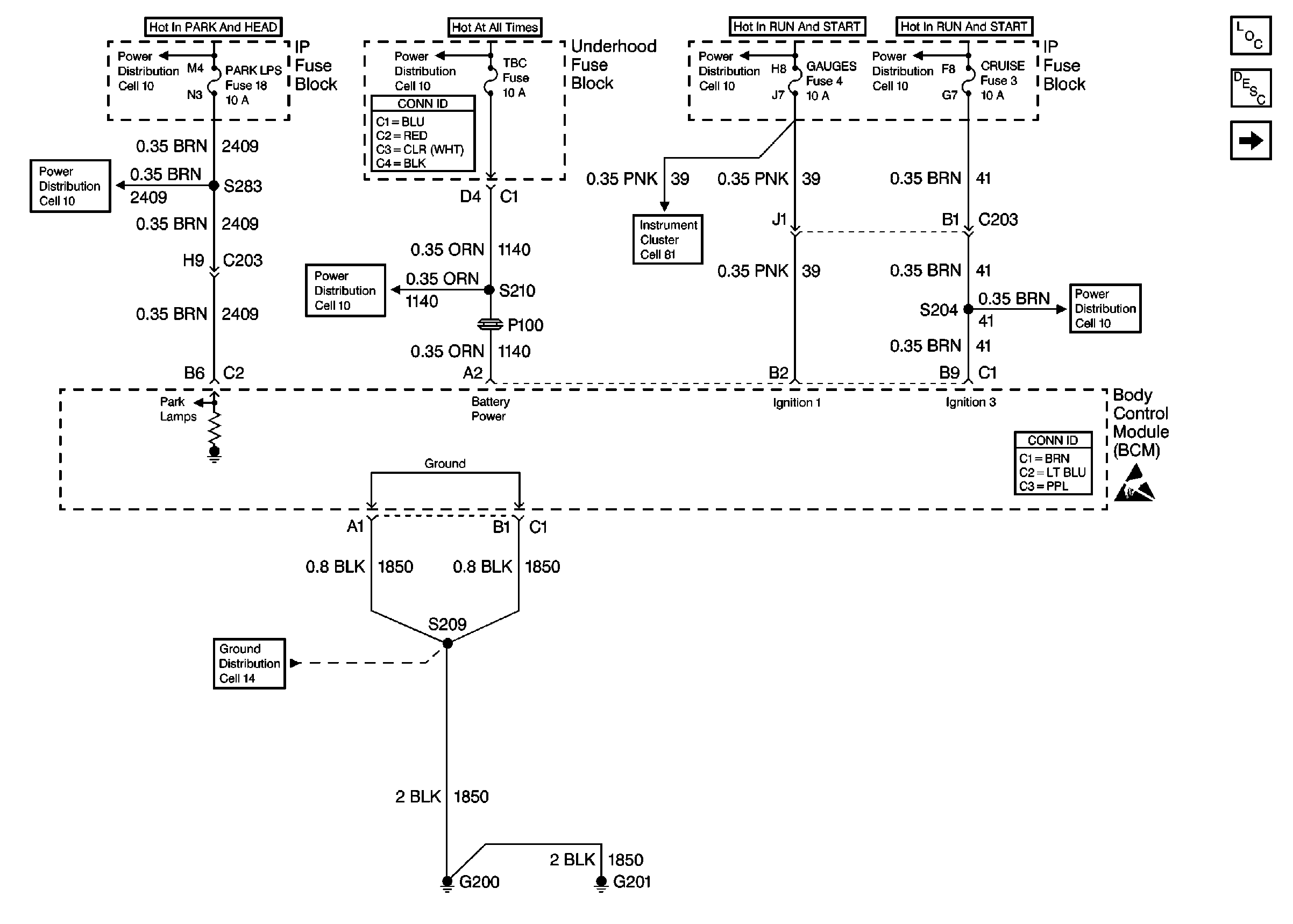

Figure 1:	Cell 51: Power and Ground

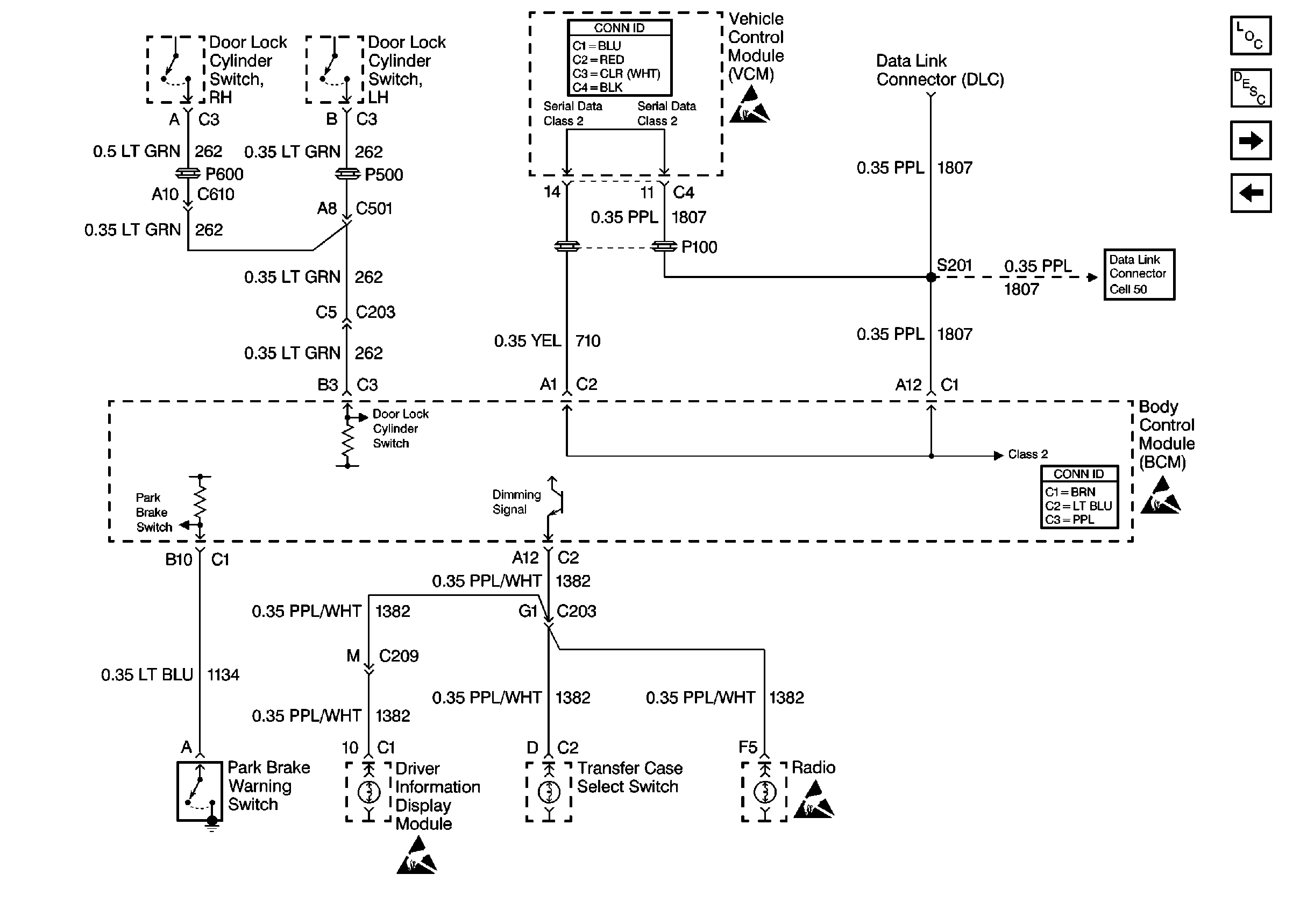

Figure 2:	Cell 51: DLC and VCM
Figure 3:	Cell 51: Headlamp Power and Flash To Pass Relays
Figure 4:	Cell 51: Hazard and Turn Signal Switch

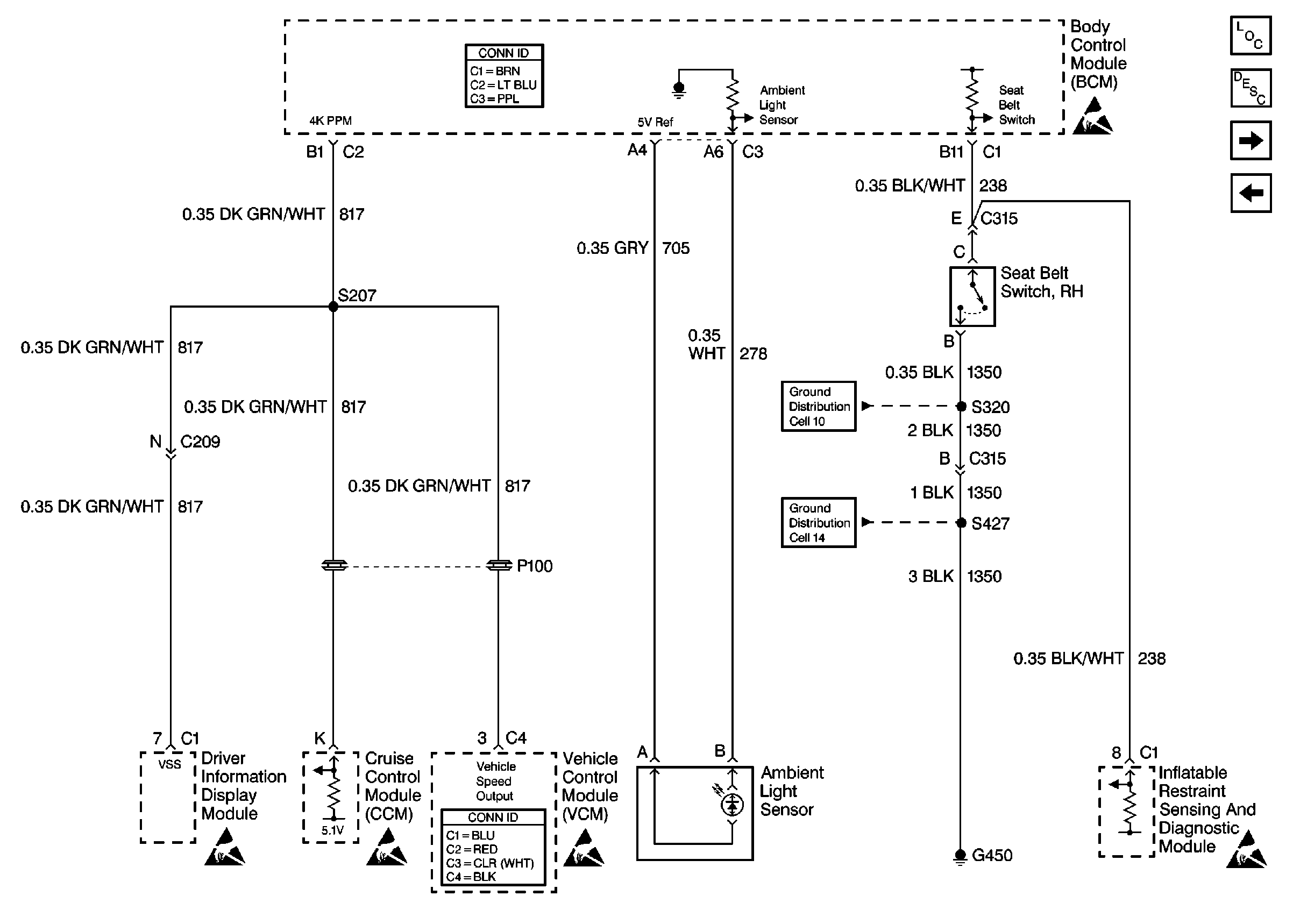

Figure 5:	Cell 51: Inputs

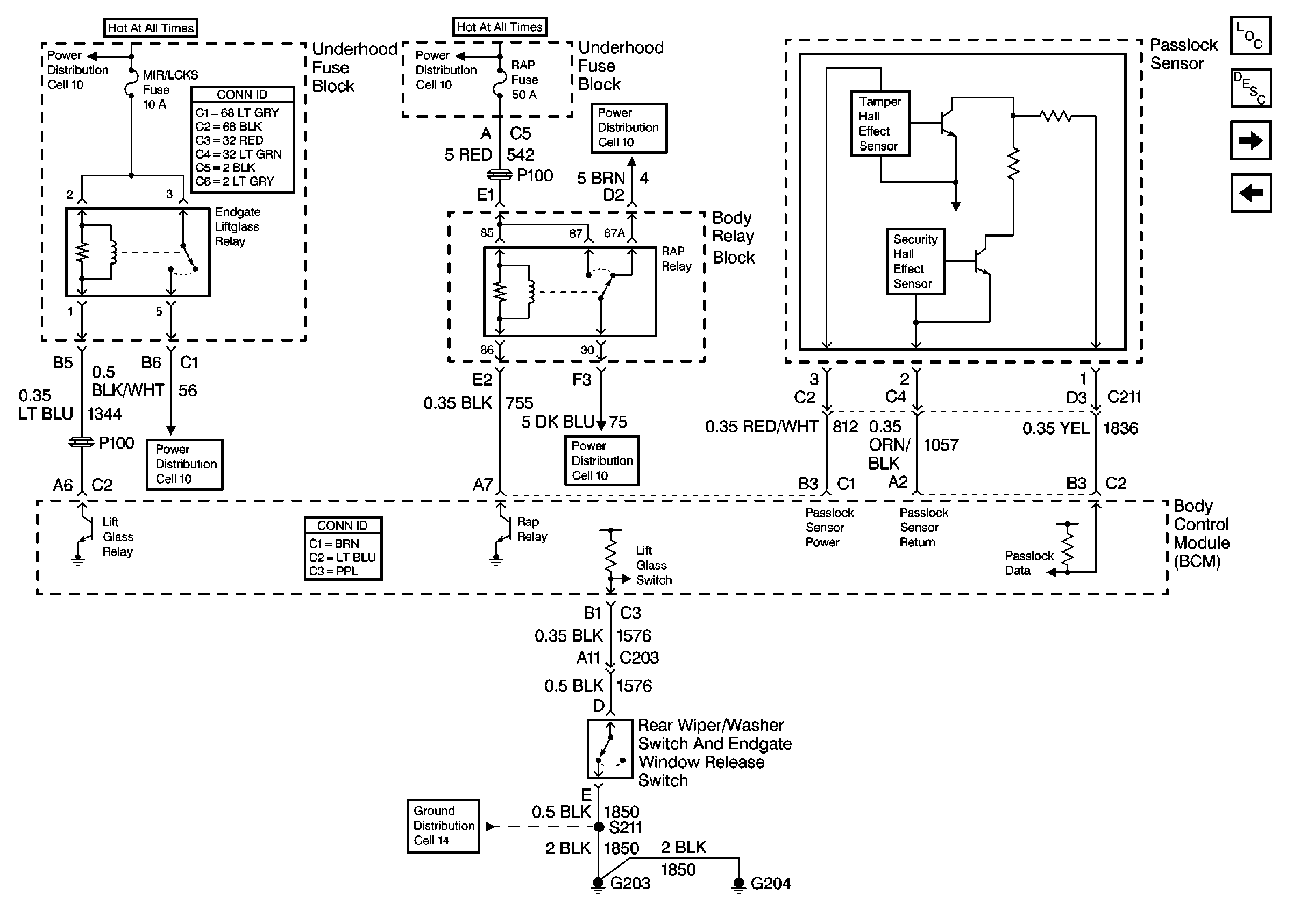

Figure 6:	Cell 51: Inputs
Figure 7:	Cell 51: Inputs
Figure 8:	Cell 51: Inputs
Figure 9:	Cell 51: Horns
Figure 10:	Cell 51: IP Dimmer Switch
Figure 11:	Cell 51: Exterior Lights

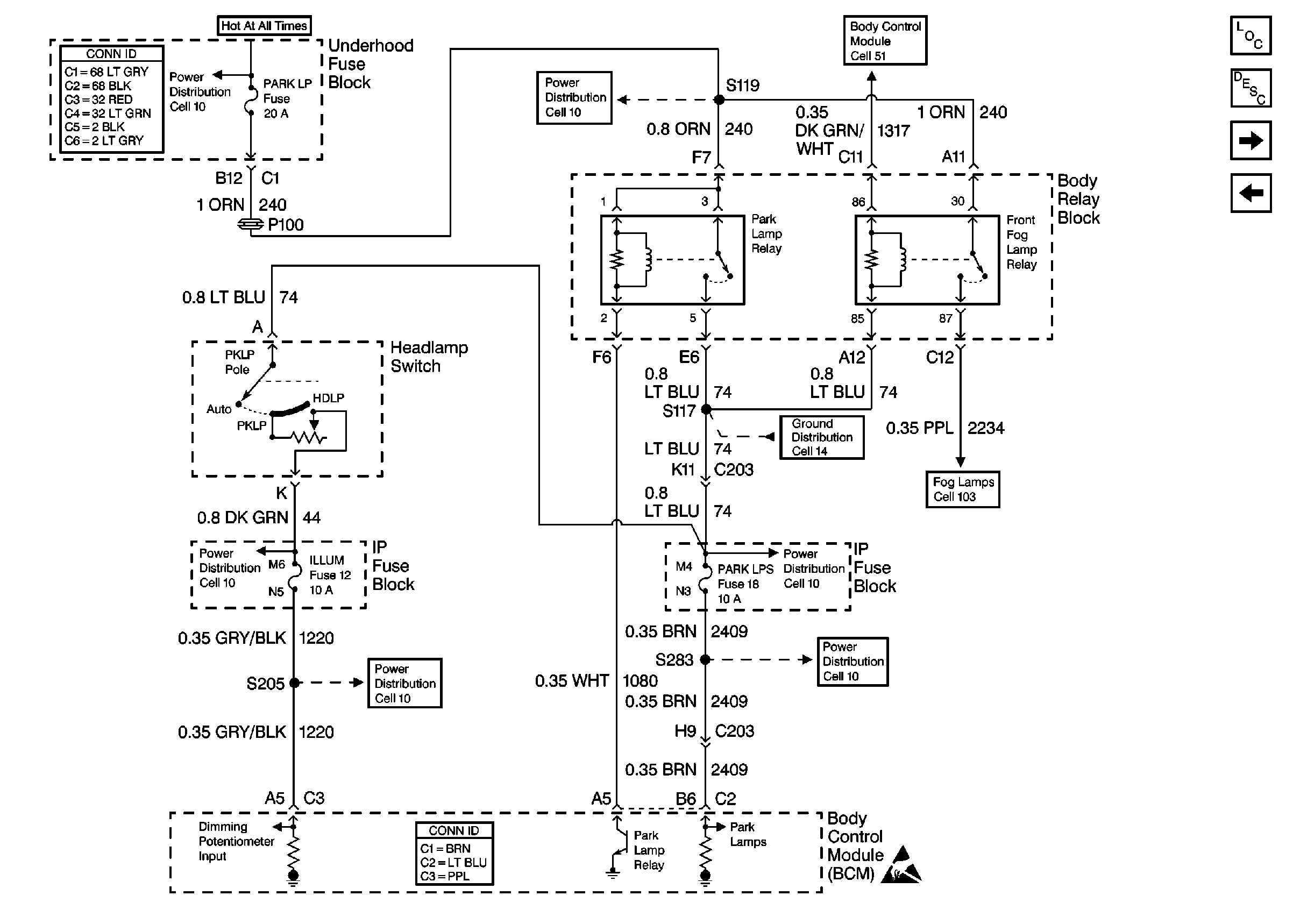

Figure 12:	Cell 51: HeadLights
Figure 13:	Cell 51: Power Locks

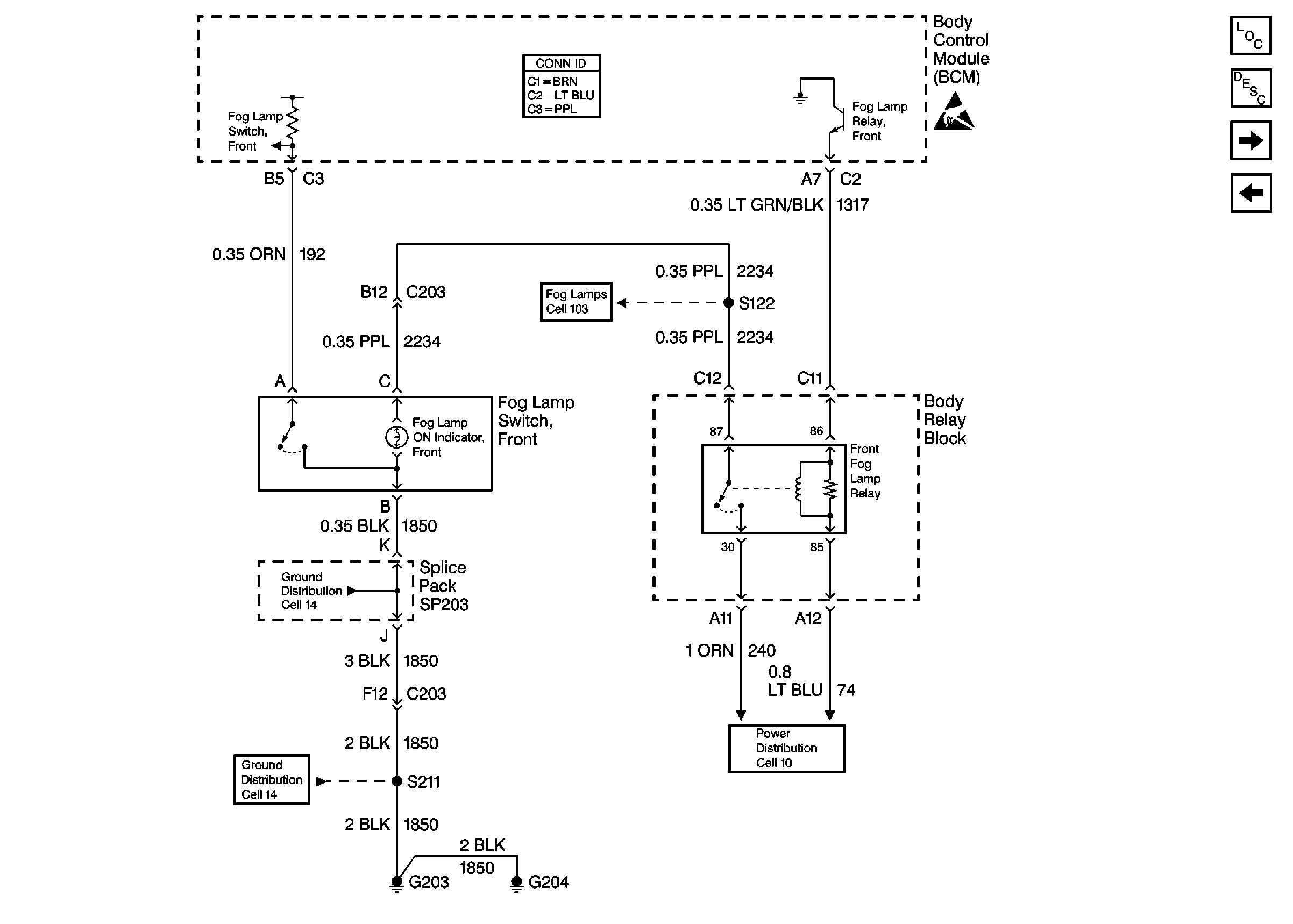

Figure 14:	Cell 51: Front Fog Lights

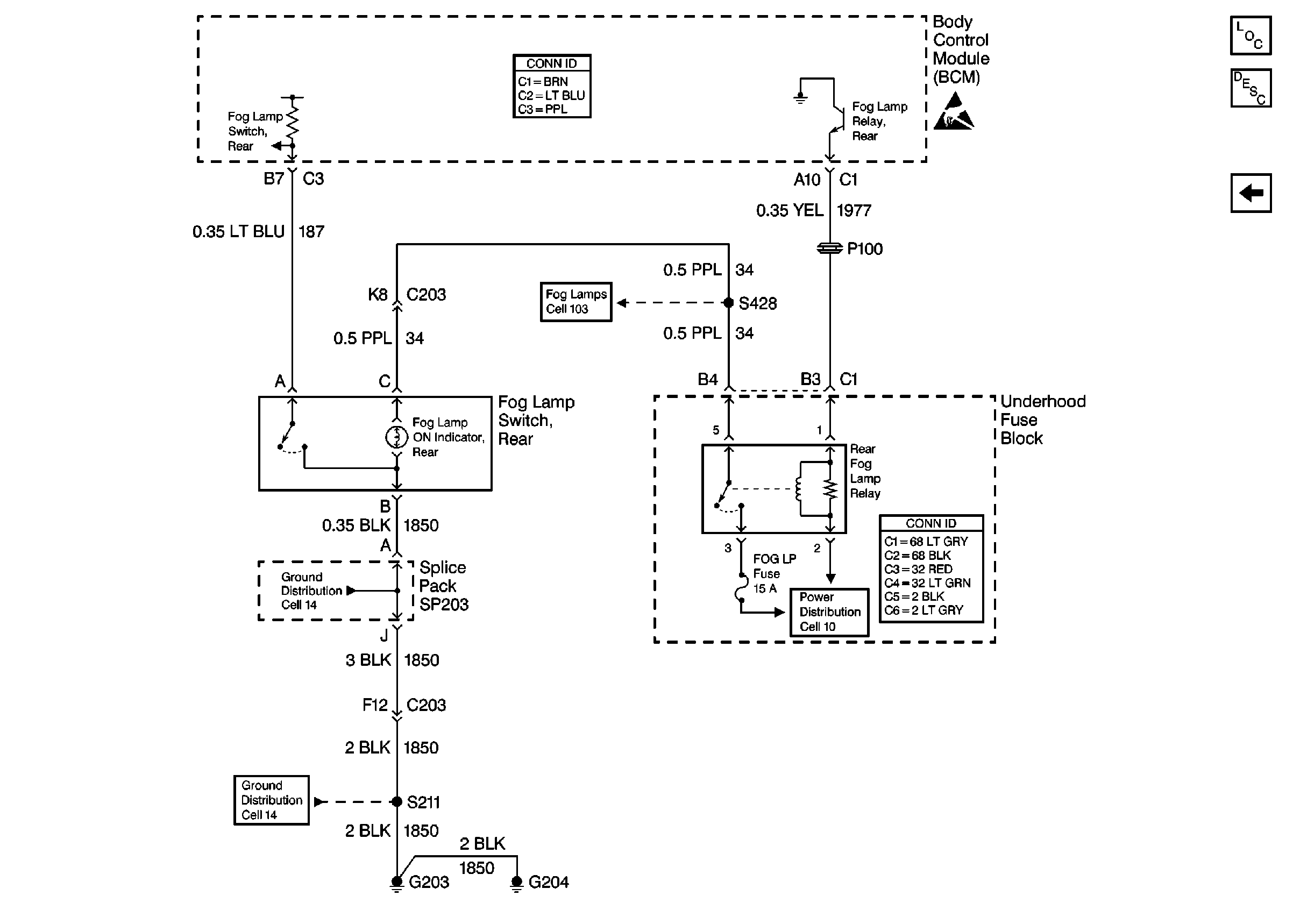

Figure 15:	Cell 51: Rear Fog Lights
Figure 16:	Cell 51: Power Door Locks

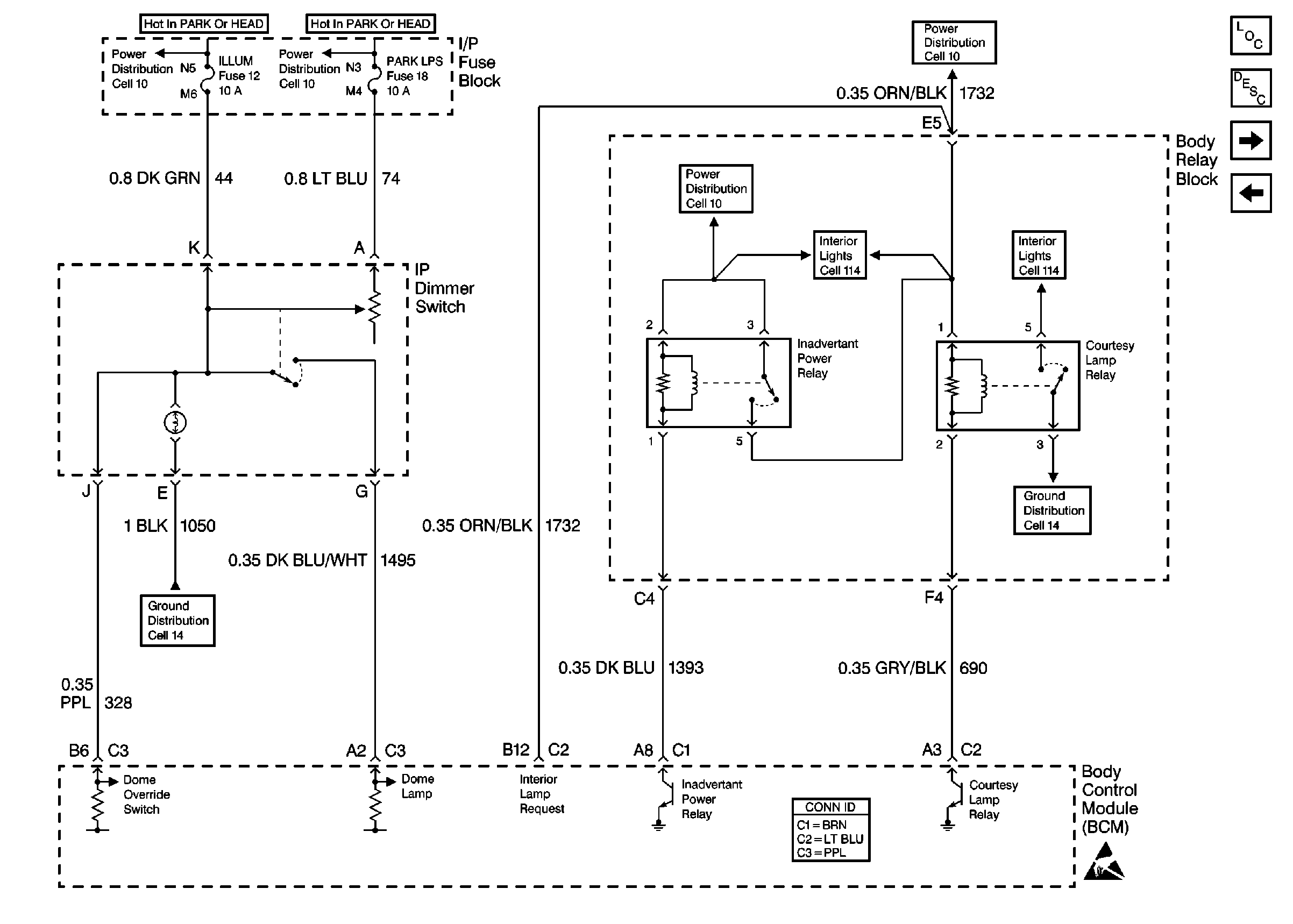

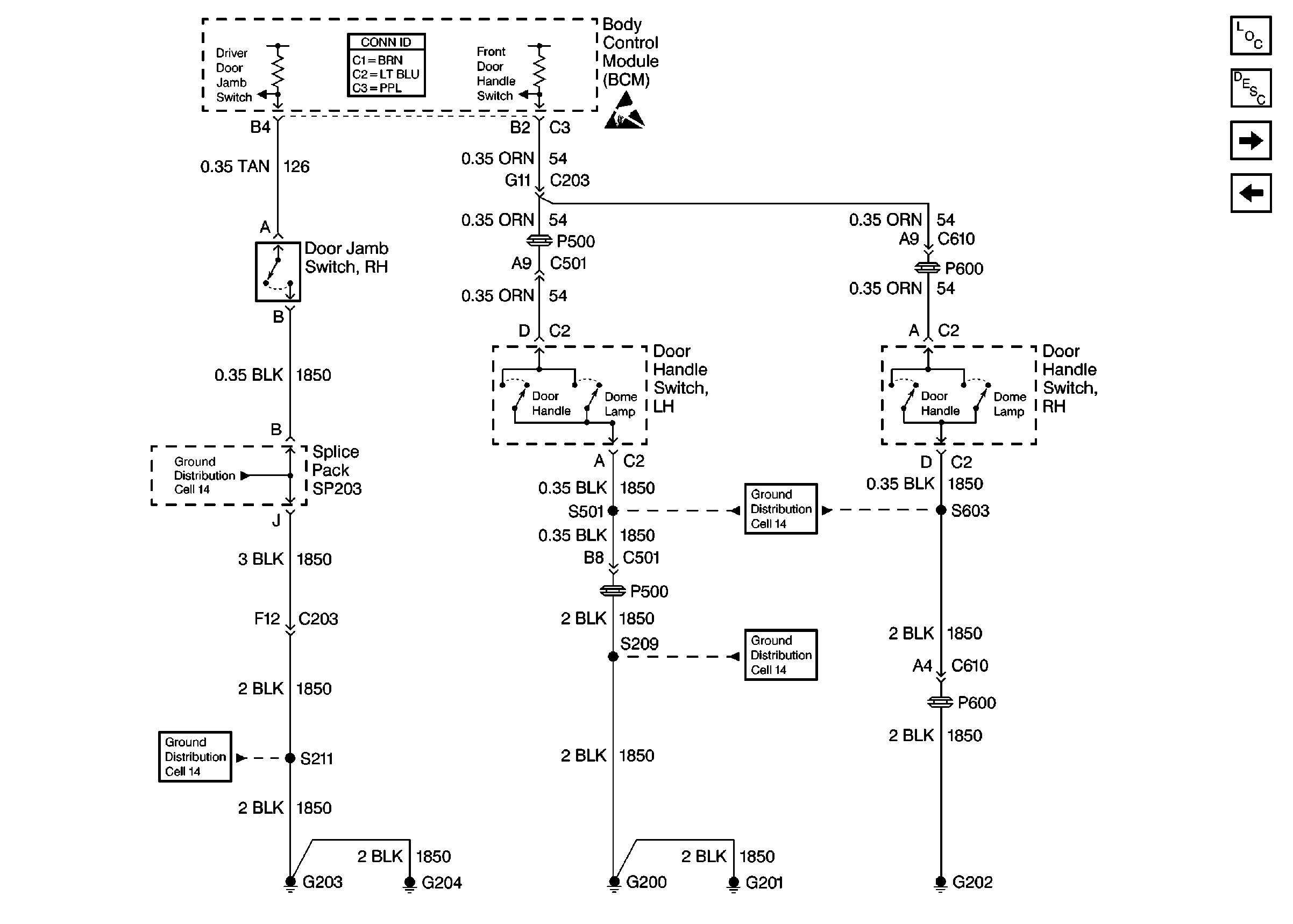

Figure 17:	Cell 51: Courtesy Lamp Circuit
