Exterior Lights Schematics. Chevrolet Blazer - 4WD - RHD 2000

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2000 🢒 Blazer - 4WD - RHD 🢒 Body and Accessories 🢒 Lighting Systems 🢒 Exterior Lights Schematics

Figure 1:	Power and Headlamp Switch Lighting Systems Component Views Exterior Lights Circuit Description FR PRK LPS, LR PRK LP, RR PRK LP, and TRL PRK LP Fuses PARK LP, FR PRK, LR PRK, RR PRK, and TRL PRK Fuses B+ Bus Bar Power and Grounding Connector End Views ILLUM and PARK LP Fuses PARK LP, FR PRK, LR PRK, RR PRK, and TRL PRK Fuses Power, Headlamp Switch, and Multifunction Switch G117 PARK LP, FR PRK, LR PRK, RR PRK, and TRL PRK Fuses FR PRK LPS, LR PRK LP, RR PRK LP, and TRL PRK LP Fuses Handling ESD Sensitive Parts Notice

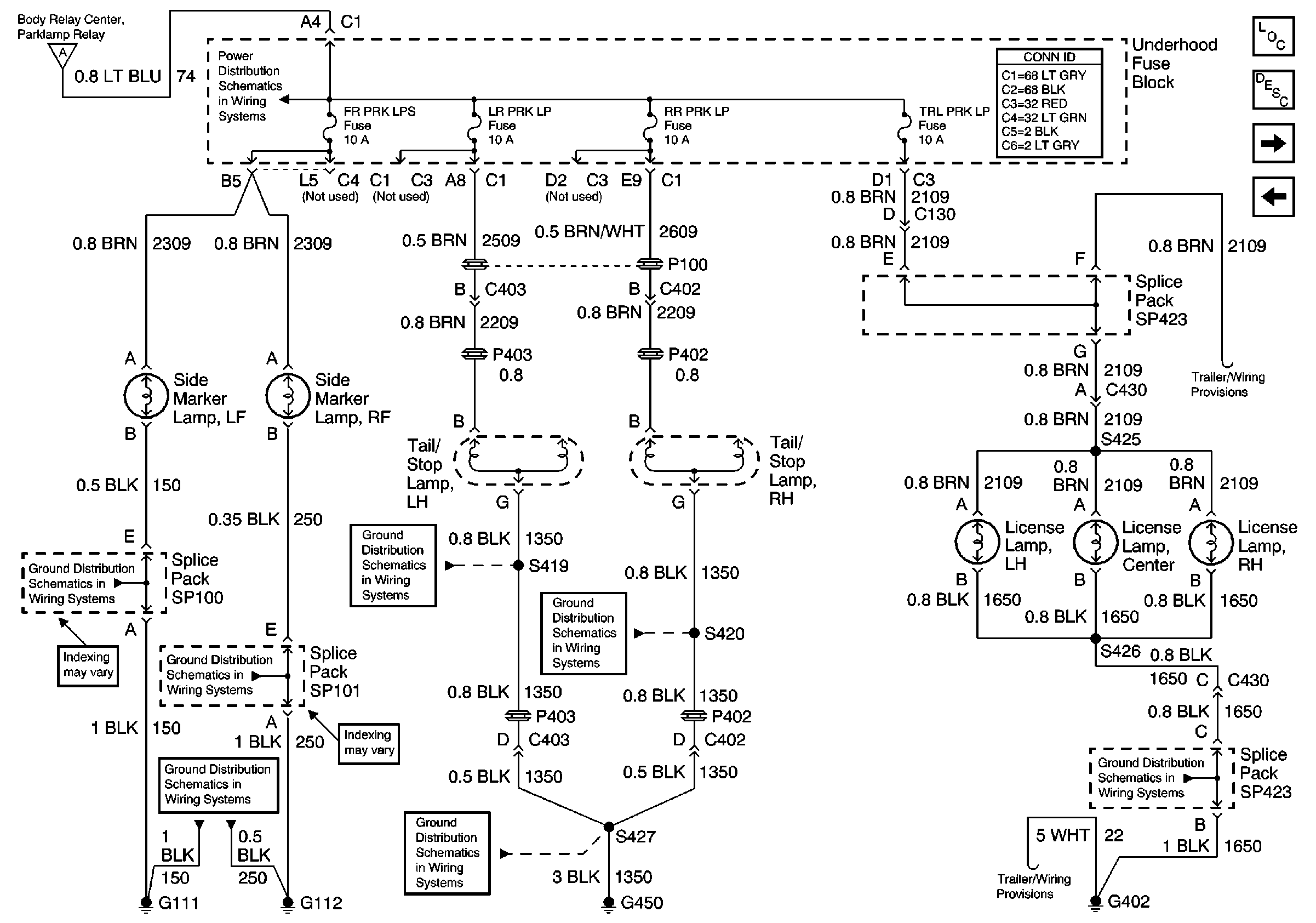

Figure 2:	FR PRK LPS, LR PRK LP, RR PRK LP, and TRL PRK LP Fuses Lighting Systems Component Views Exterior Lights Circuit Description Turn Signal Switch, RH TURN, RH REAR TURN, and TRL TURN Fuses Power and Headlamp Switch Power and Headlamp Switch PARK LP, FR PRK, LR PRK, RR PRK, and TRL PRK Fuses Power and Grounding Connector End Views G111 and G112 G111 and G112 G111 and G112 S313 and S419 G450 S320 and S420 G402 and G420

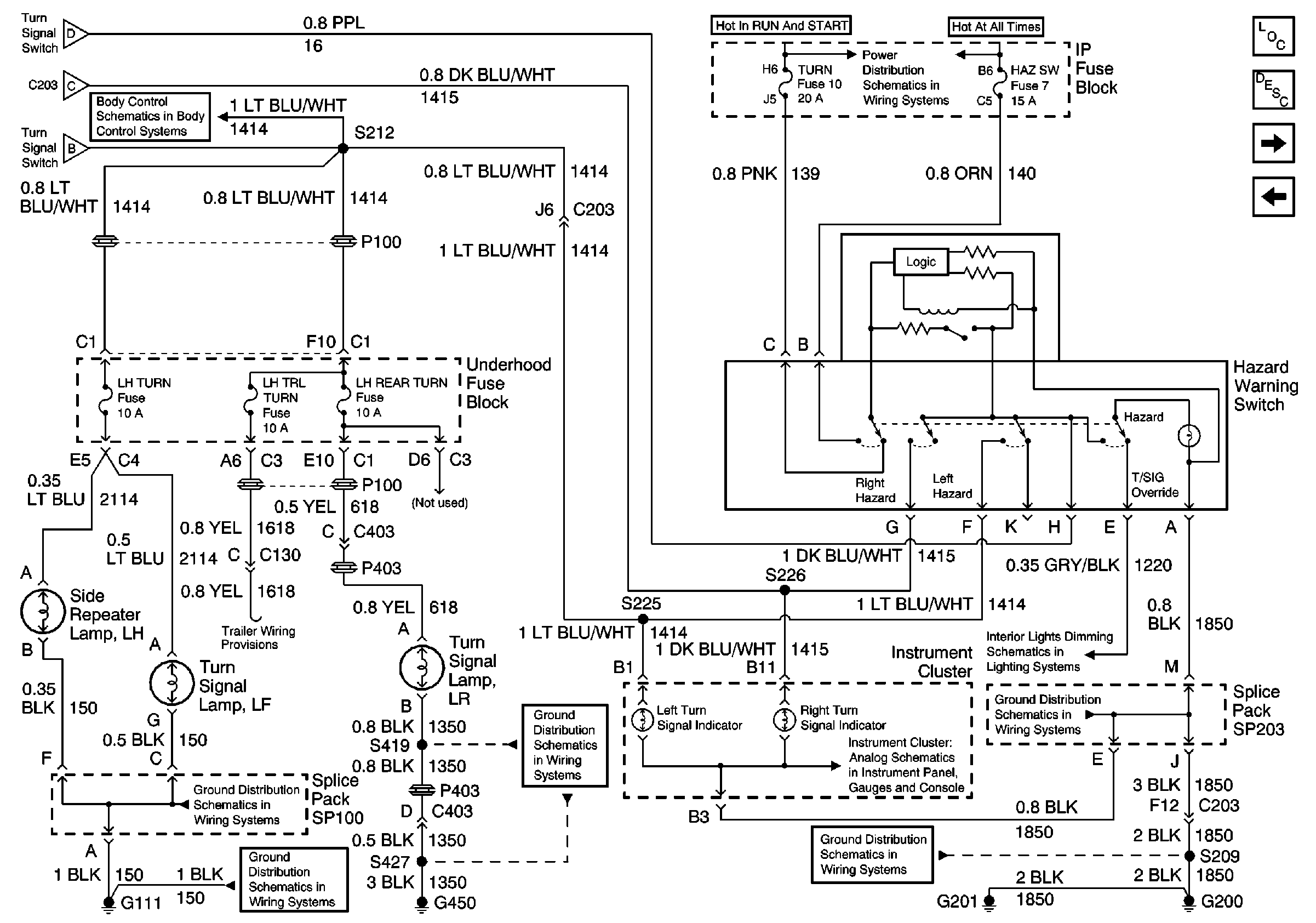

Figure 3:	Turn Signal Switch, RH TURN, RH REAR TURN, and TRL TURN Fuses Lighting Systems Component Views Exterior Lights Circuit Description Hazard Switch, TURN, and HAZ LP Fuses FR PRK LPS, LR PRK LP, RR PRK LP, and TRL PRK LP Fuses Hazard Switch, TURN, and HAZ LP Fuses Instrument Cluster, LT TURN and RT TURN Fuses Power and Grounding Connector End Views G450 G111 and G112 G111 and G112
Figure 4:	Hazard Switch, TURN, and HAZ LP Fuses Lighting Systems Component Views Exterior Lights Circuit Description STOP LP, VEH HMSL, and TRL HMSL Fuses Turn Signal Switch, RH TURN, RH REAR TURN, and TRL TURN Fuses Turn Signal Switch, RH TURN, RH REAR TURN, and TRL TURN Fuses Instrument Cluster, LT TURN and RT TURN Fuses Ign START, RUN and ACC Bus Bar Power and Grounding Connector End Views G111 and G112 G111 and G112 G450 Power G200 and G201 Hazard Switch, Radio, Instrument Cluster and Ground SP203

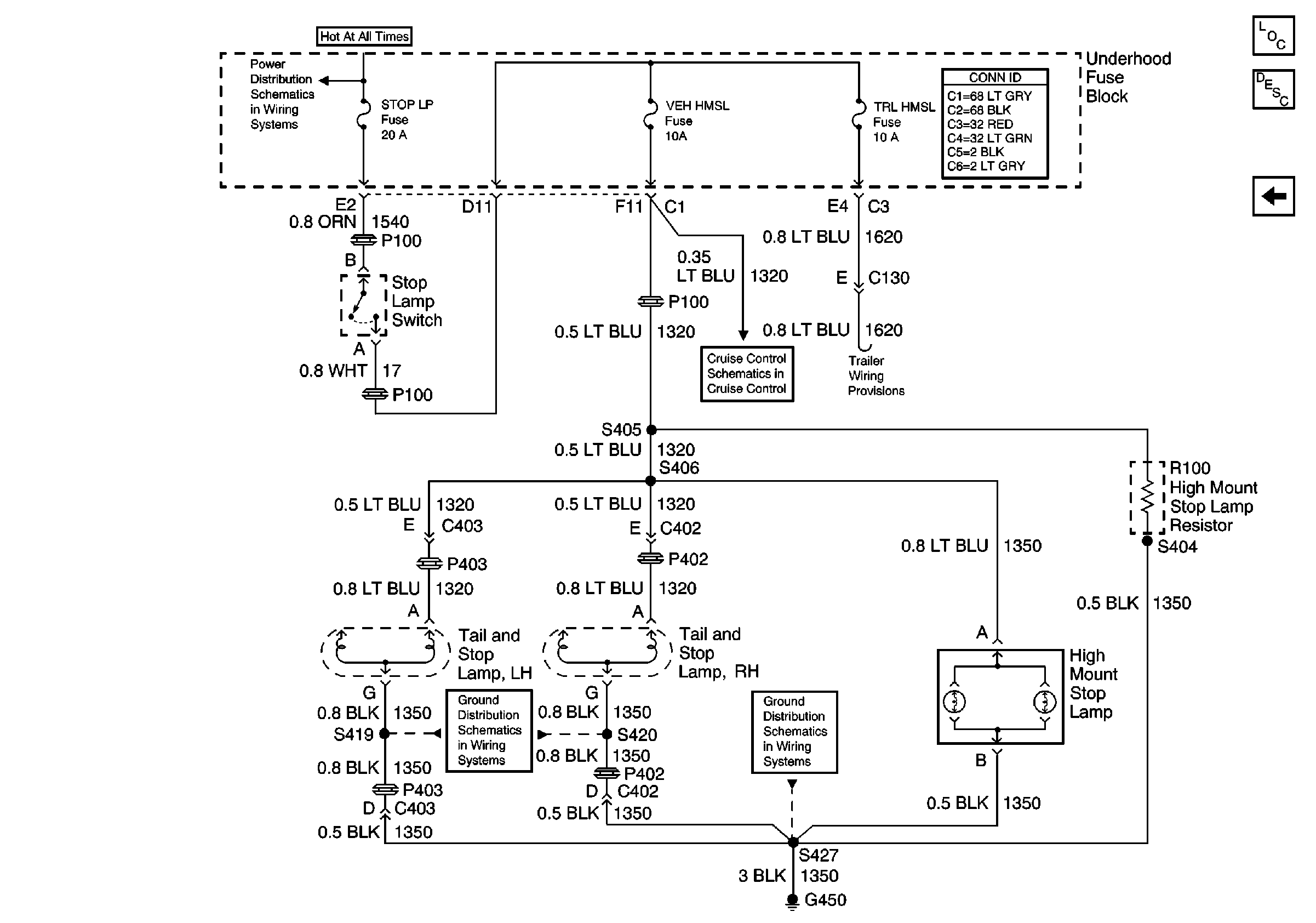

Figure 5:	STOP LP, VEH HMSL, and TRL HMSL Fuses Lighting Systems Component Views Exterior Lights Circuit Description Hazard Switch, TURN, and HAZ LP Fuses B+ Bus Bar Power and Grounding Connector End Views Cruise Control Schematic G450 G450
