Ground Distribution Schematics. Chevrolet Blazer - 4WD - RHD 2000

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2000 🢒 Blazer - 4WD - RHD 🢒 Body and Accessories 🢒 Wiring Systems 🢒 Ground Distribution Schematics

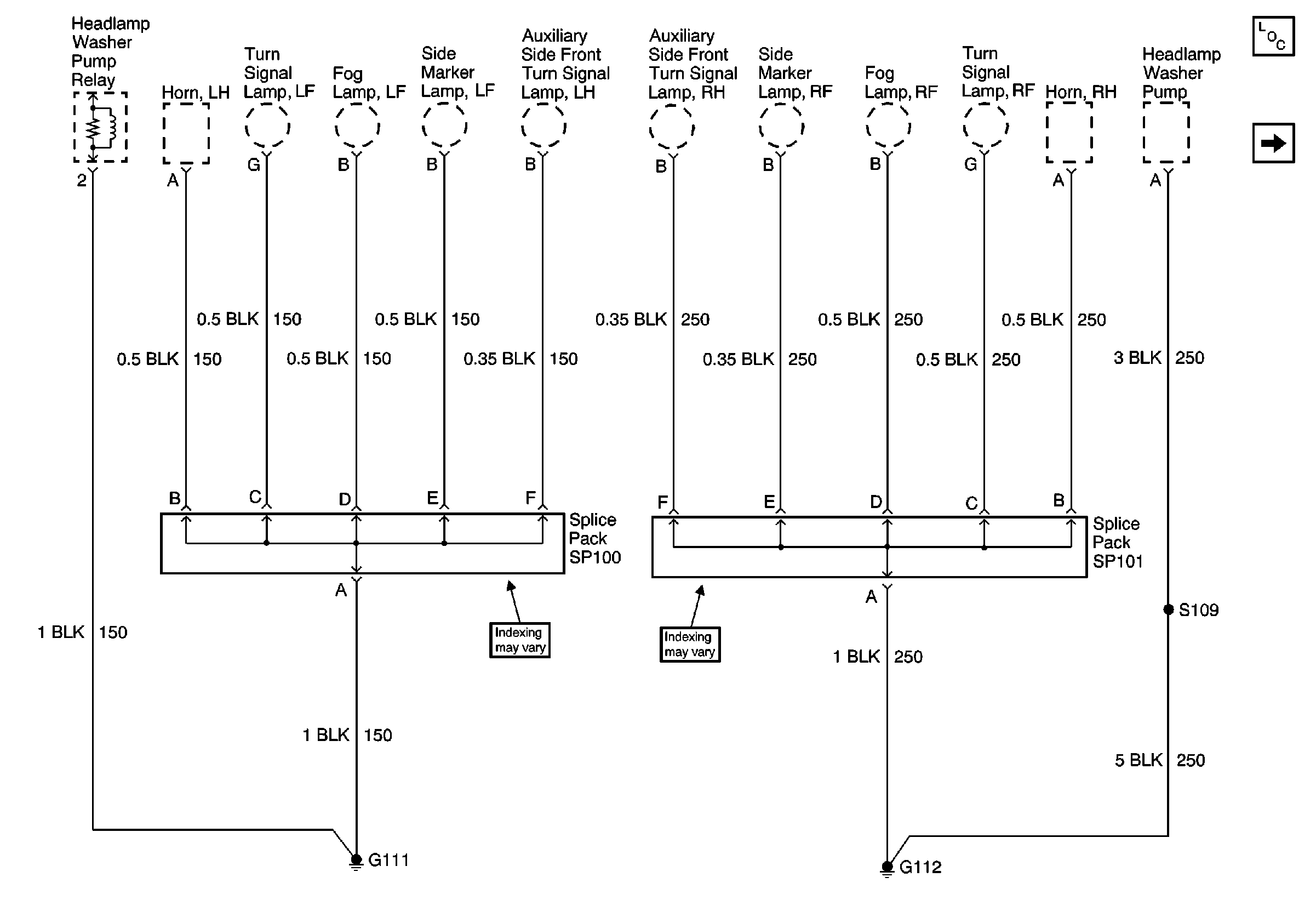

Figure 1:	G111 and G112 Power and Grounding Components G104, G106, G107, G108 and G118

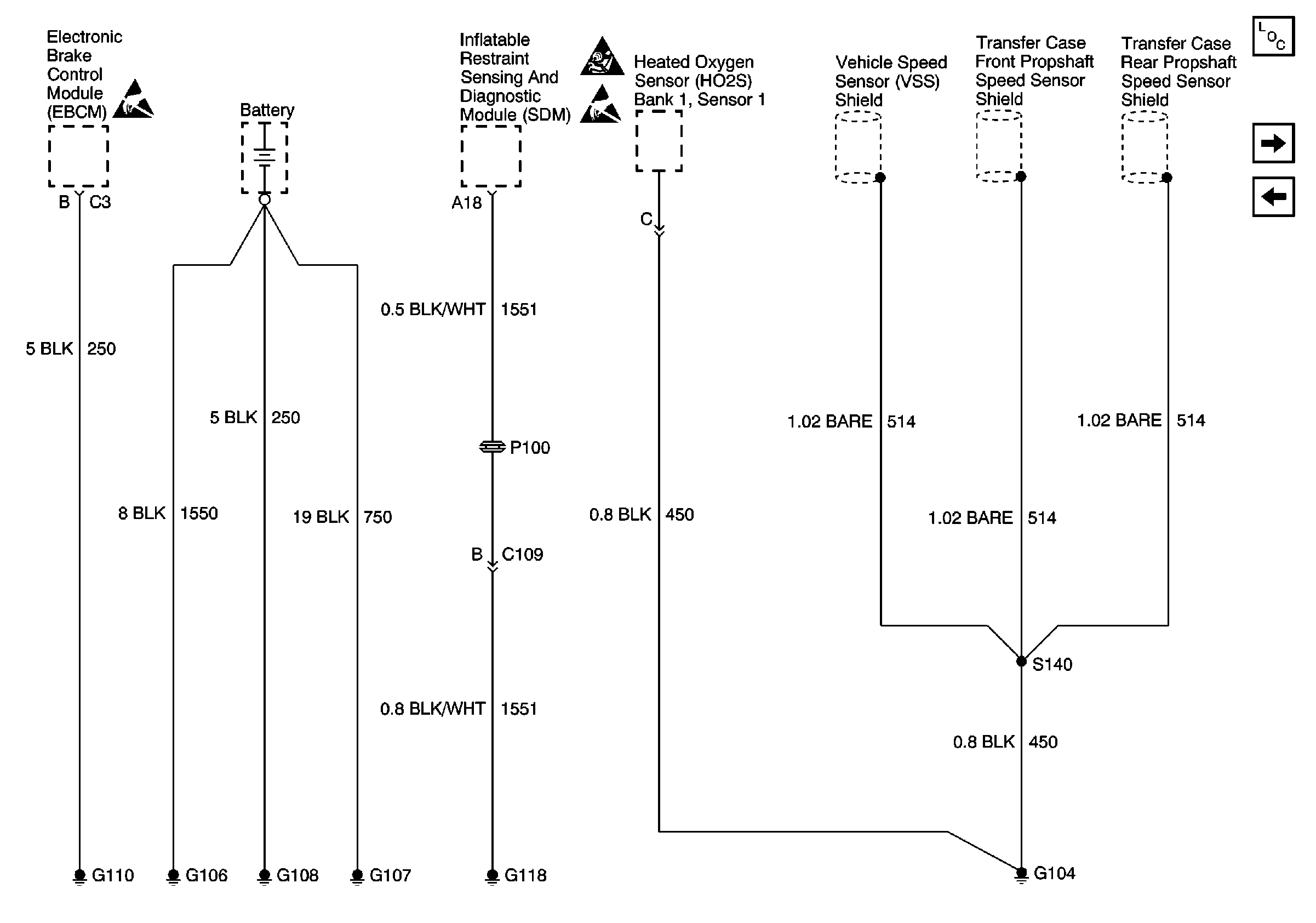

Figure 2:	G104, G106, G107, G108 and G118 Power and Grounding Components G117 G111 and G112 Handling ESD Sensitive Parts Notice SIR Handling Caution Handling ESD Sensitive Parts Notice

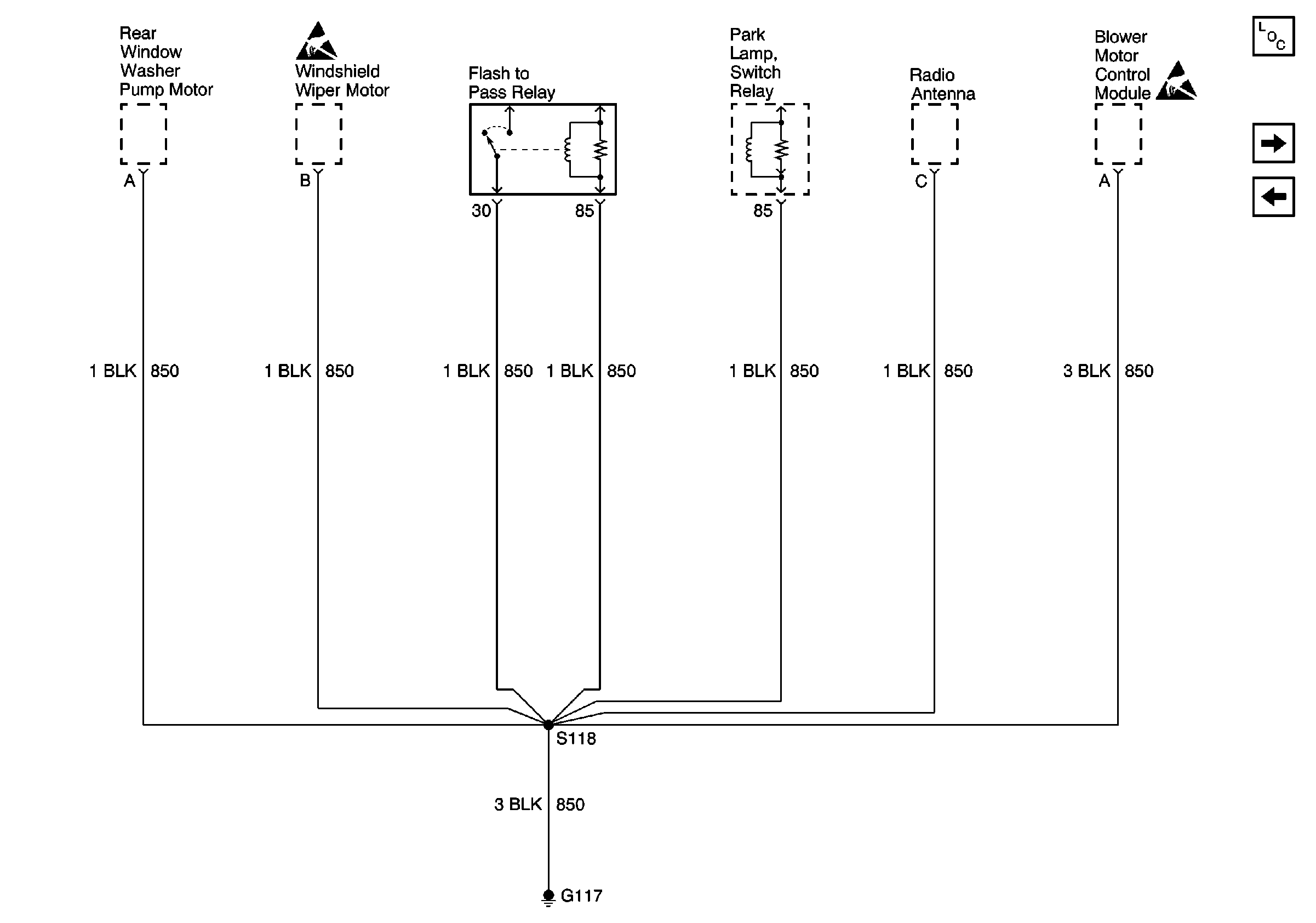

Figure 3:	G117 Power and Grounding Components G102 G104, G106, G107, G108 and G118 Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 4:	G102 Power and Grounding Components G103 and G105 G117 Power and Grounding Connector End Views

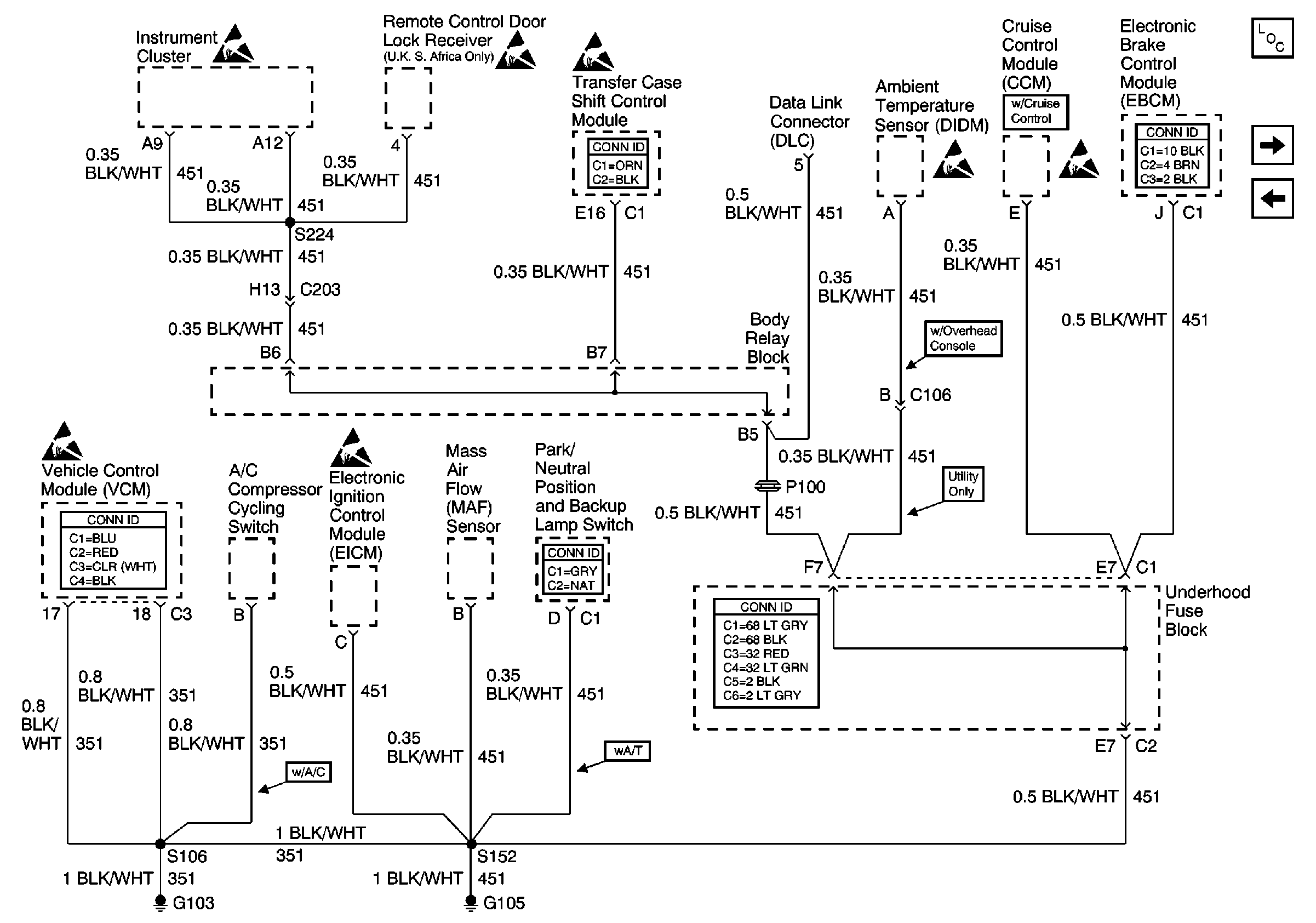

Figure 5:	G103 and G105 Power and Grounding Components SP203 G102 Handling ESD Sensitive Parts Notice VCM Connector End Views Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Transfer Case Control Connector End Views Shift Lock Control Connector End Views Power and Grounding Connector End Views Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Antilock Brake System Connector End Views

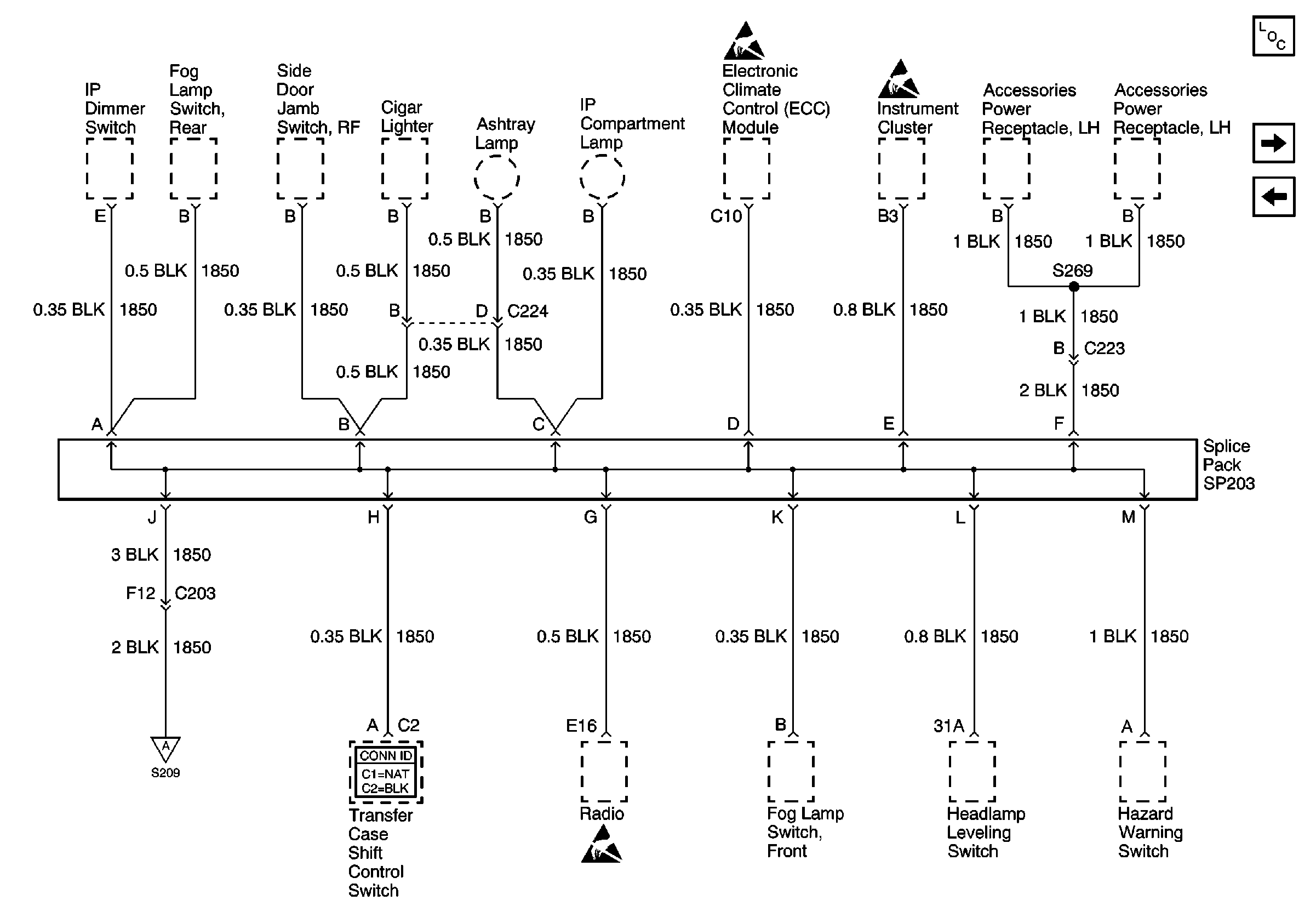

Figure 6:	SP203 Power and Grounding Components G200 and G201 G103 and G105 G200 and G201 Transfer Case Control Connector End Views Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

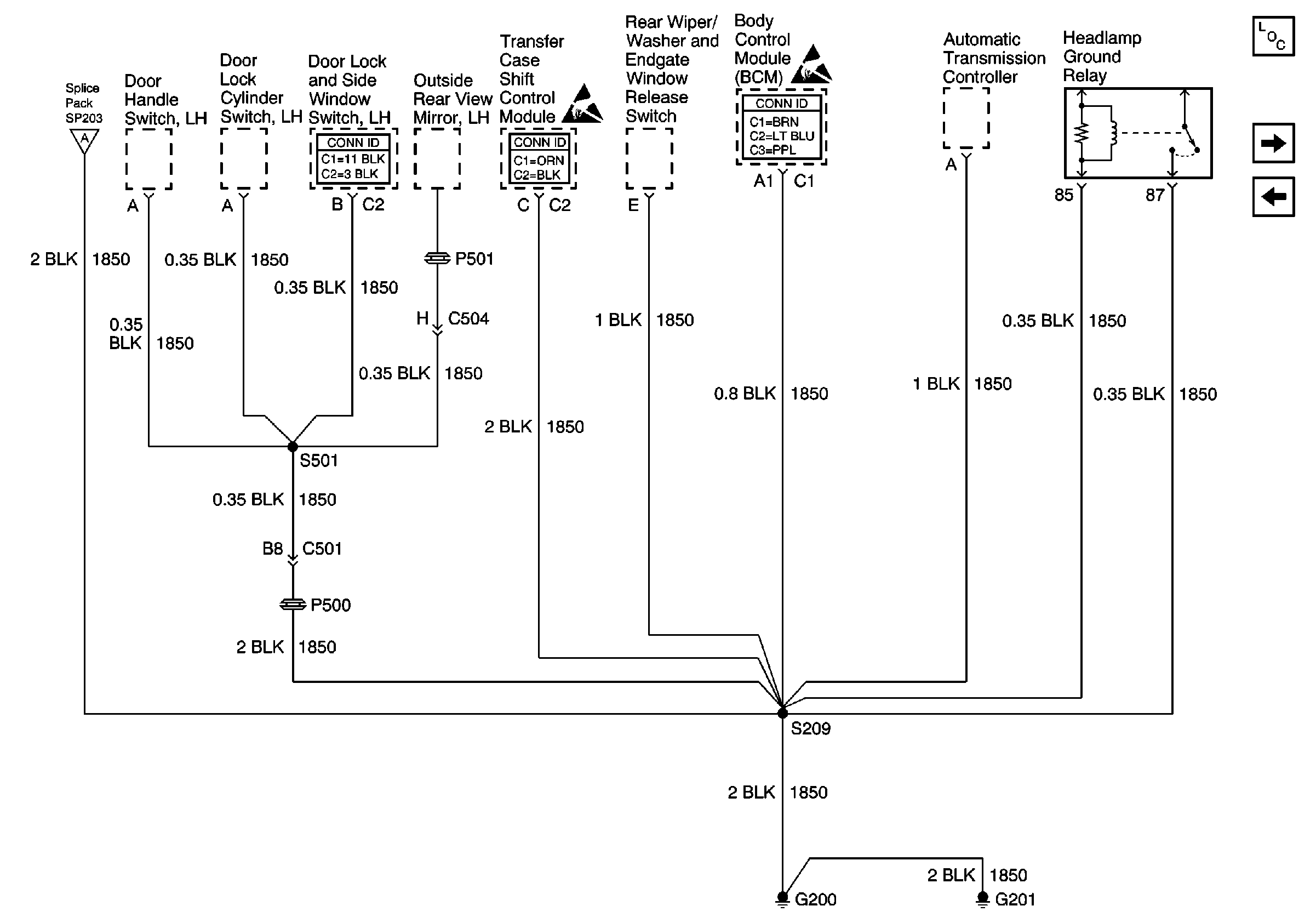

Figure 7:	G200 and G201 Power and Grounding Components SP203 G202 and G204 SP203 Power Door Systems Connector End Views Transfer Case Control Connector End Views Handling ESD Sensitive Parts Notice Body Control System Connector End Views Handling ESD Sensitive Parts Notice

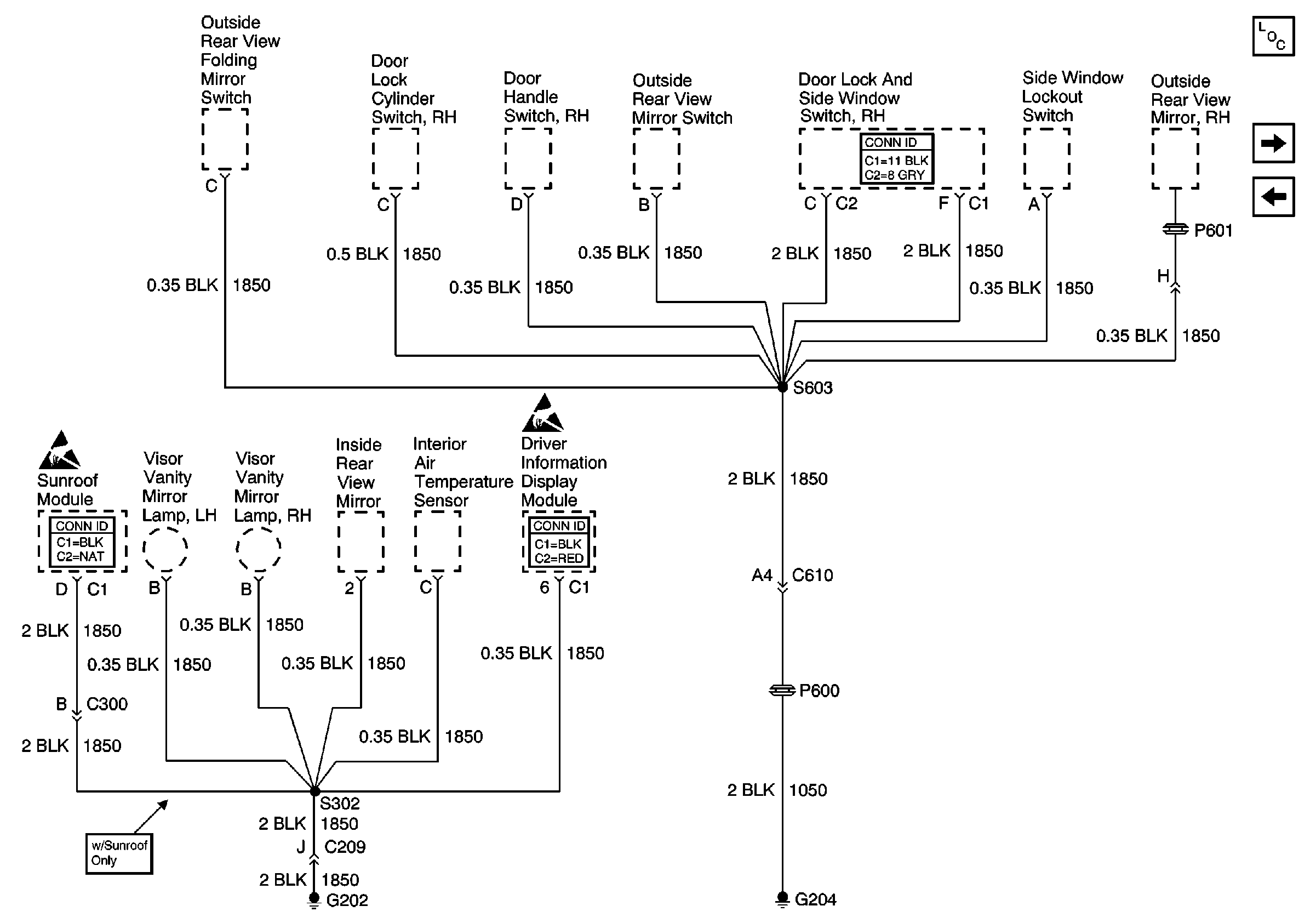

Figure 8:	G202 and G204 Power and Grounding Components G200 and G201 G203 and G205 Handling ESD Sensitive Parts Notice Power Roof Systems Connector End Views Handling ESD Sensitive Parts Notice Driver Information Systems Connector End Views Power Door Systems Connector End Views

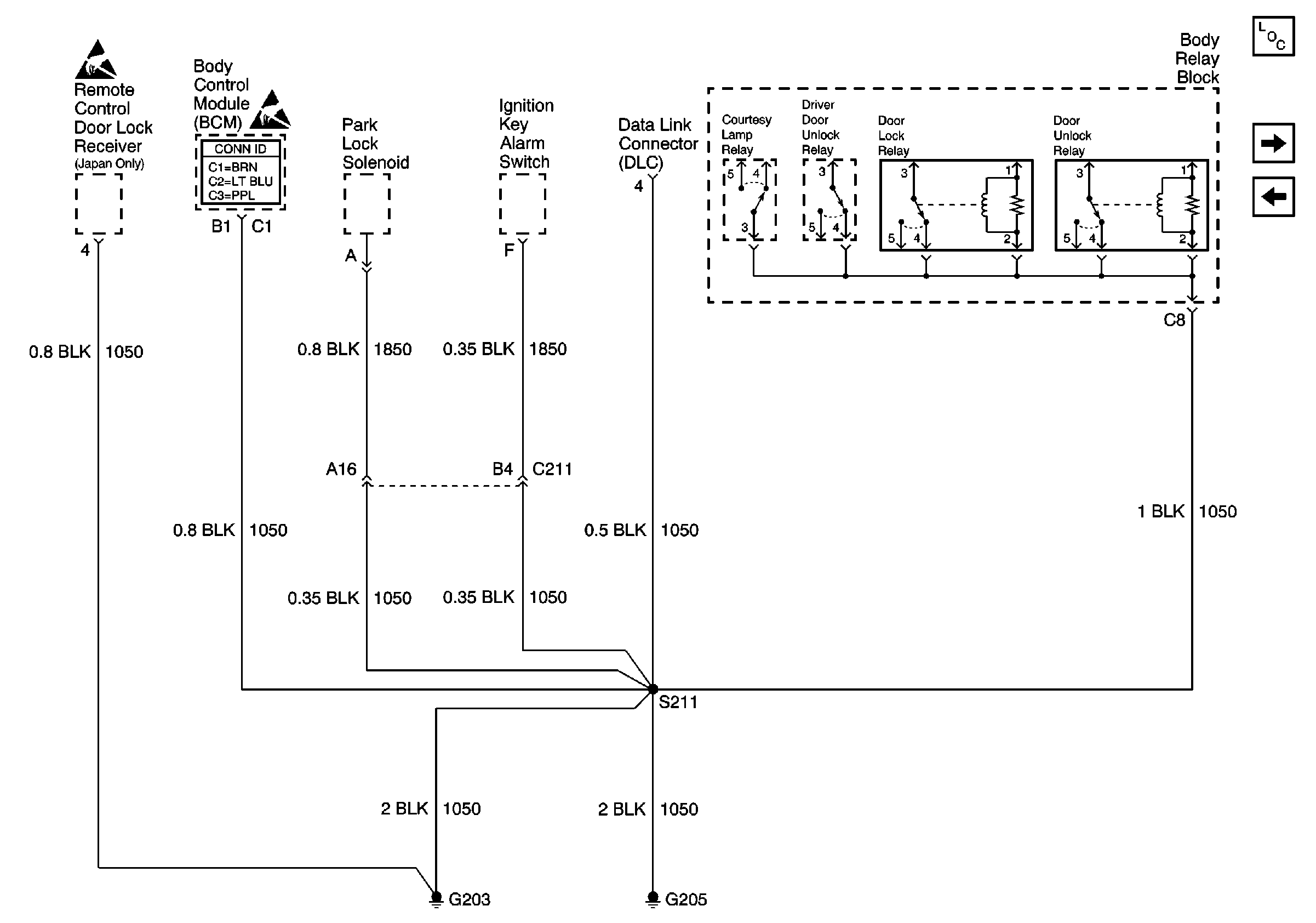

Figure 9:	G203 and G205 Power and Grounding Components G402 and G420 G202 and G204 Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Body Control System Connector End Views

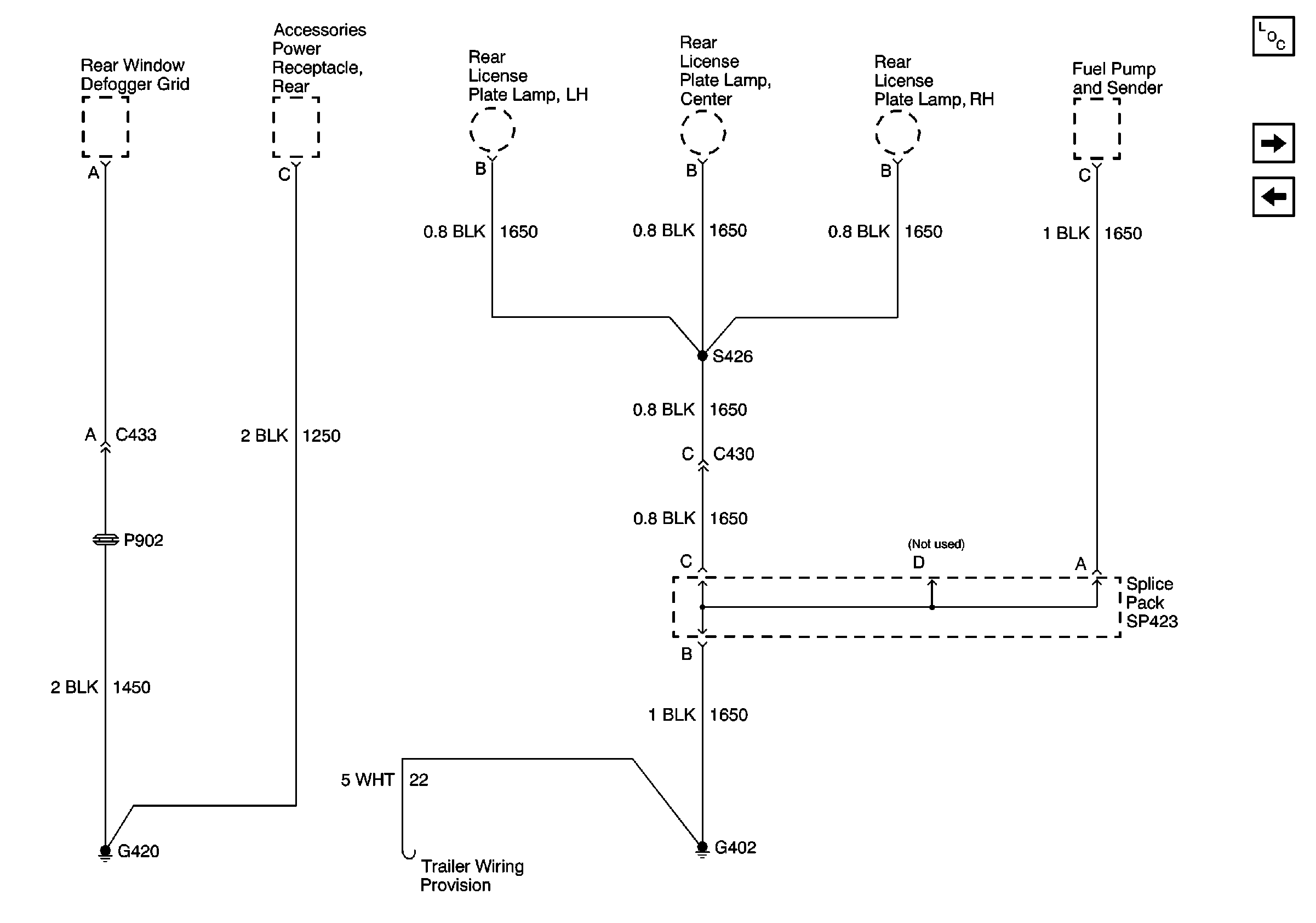

Figure 10:	G402 and G420 Power and Grounding Components G203 and G205 S320 and S420

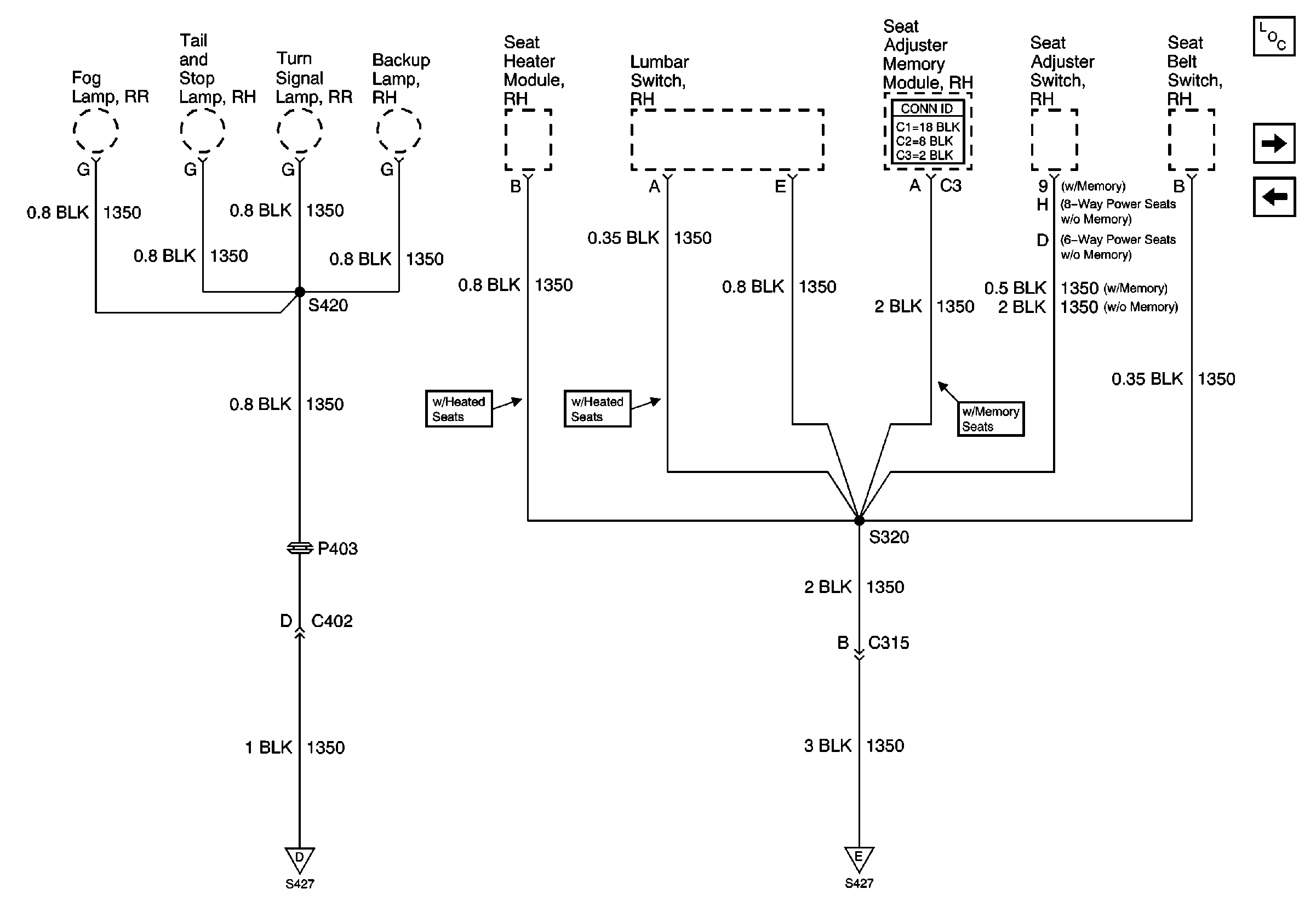

Figure 11:	S320 and S420 Power and Grounding Components S313 and S419 G402 and G420 G450 G450 Power Seat Connector End Views

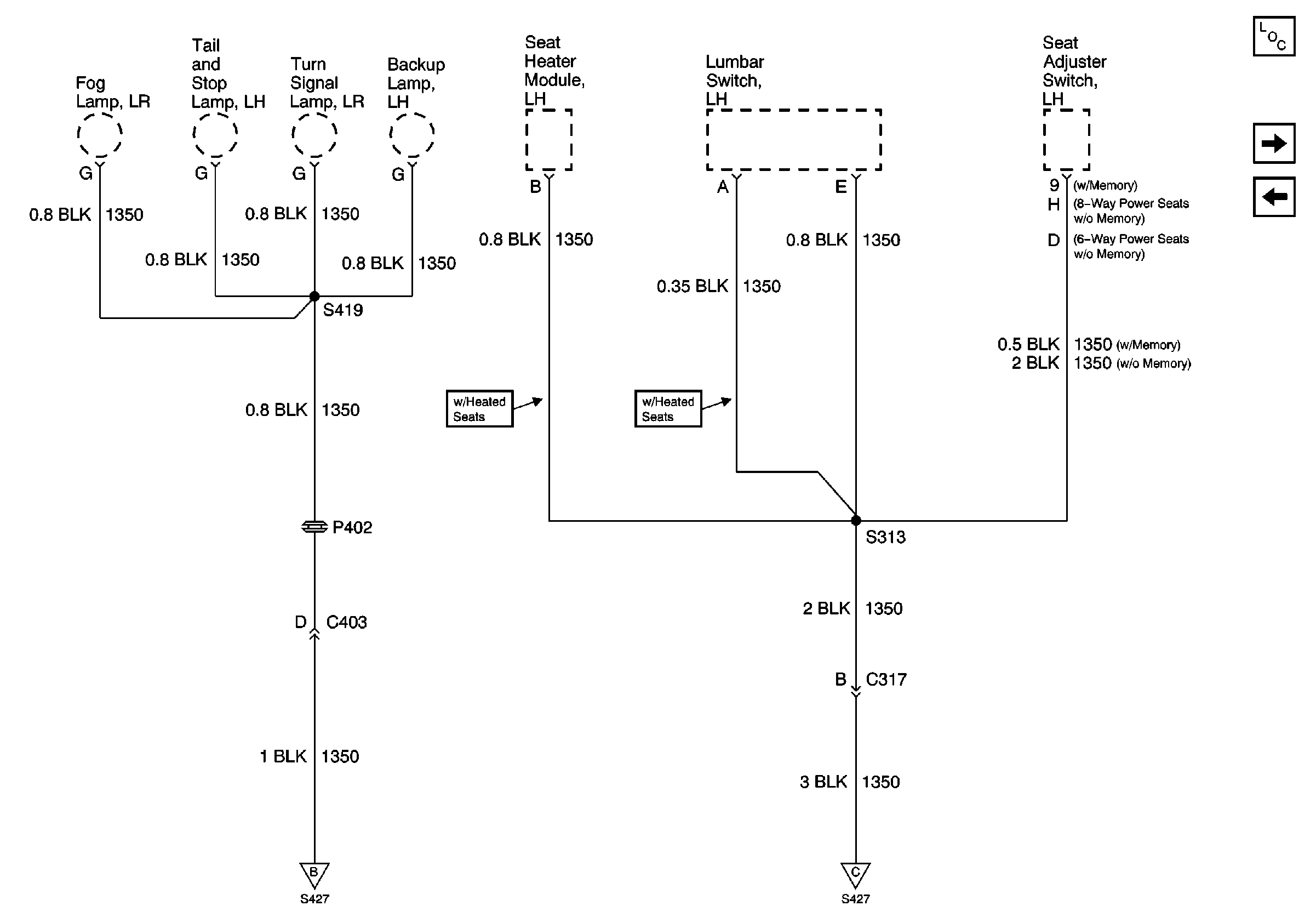

Figure 12:	S313 and S419 Power and Grounding Components G450 S320 and S420 G450 G450

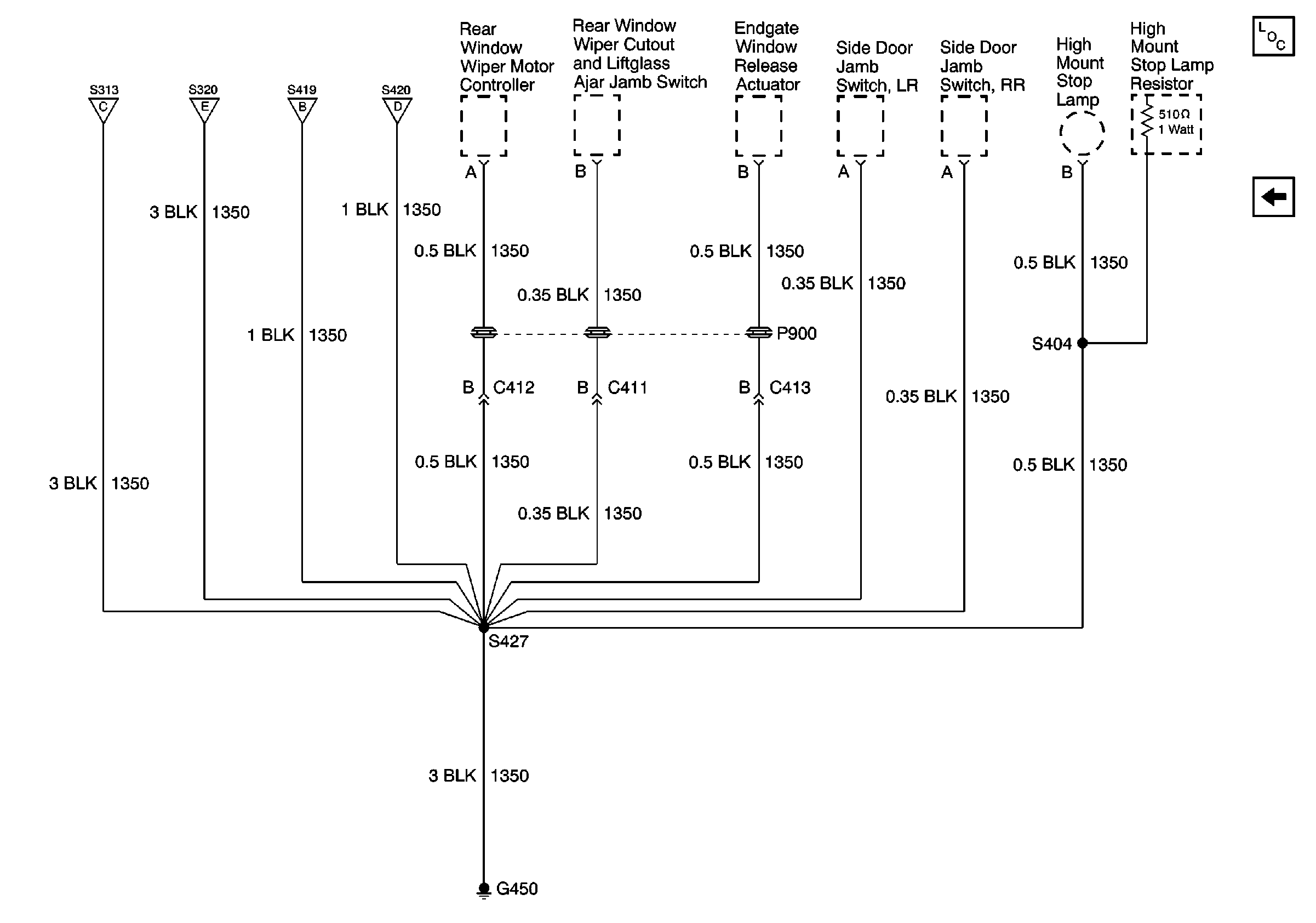

Figure 13:	G450 Power and Grounding Components S313 and S419 S313 and S419 S320 and S420 S313 and S419 S320 and S420
