Body Control System Schematics. Chevrolet Blazer - 4WD

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2000 🢒 Blazer - 4WD - RHD 🢒 Body and Accessories 🢒 Body Control System 🢒 Body Control System Schematics

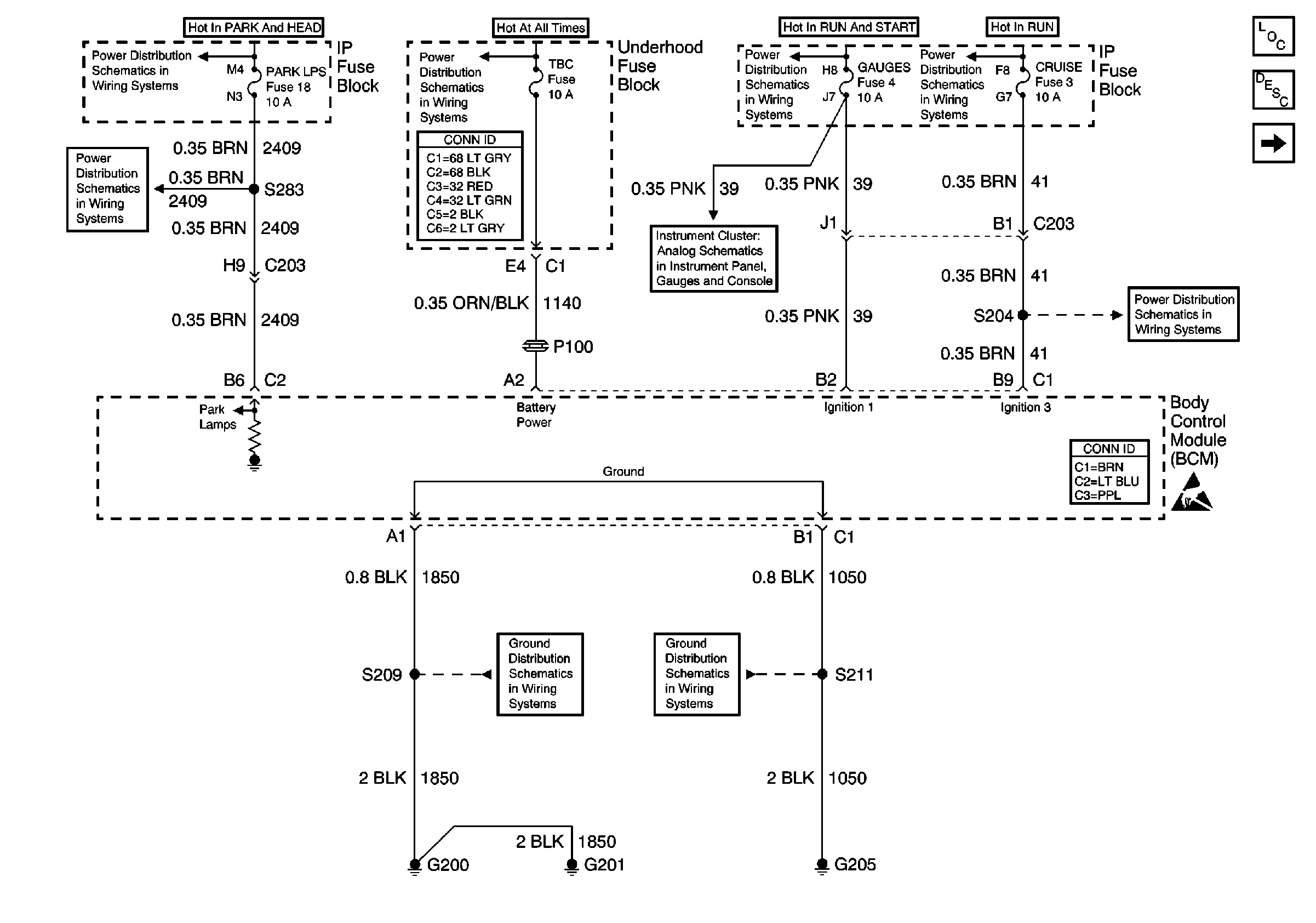

Figure 1:	Power and Ground Body Control Module Components Body Control System Circuit Description VCM and Data Link Connector (DLC) ILLUM and PARK LP Fuses B+ Bus Bar Ign START, RUN and ACC Bus Bar Ign RUN and START Bus Bar ILLUM and PARK LP Fuses Power and Grounding Connector End Views Power RDO IGN, FRT WPR, RR WIPER, ABS, CRUISE, and W/W PUMP Fuses Body Control System Connector End Views Handling ESD Sensitive Parts Notice G200 and G201 G203 and G205

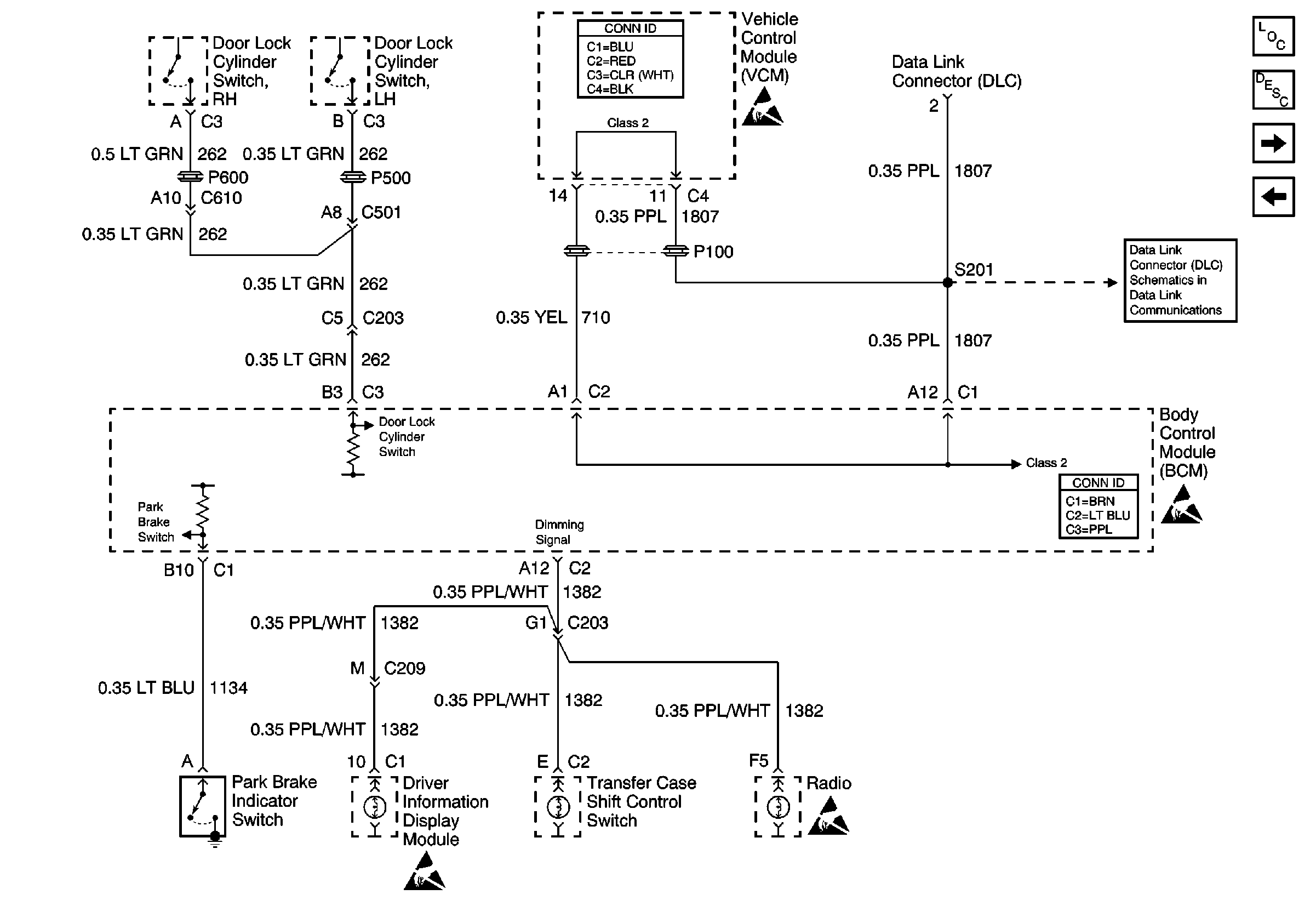

Figure 2:	VCM and Data Link Connector (DLC) Body Control Module Components Body Control System Circuit Description Headlamp Power and Flash-to-Pass Relays Power and Ground VCM Connector End Views Handling ESD Sensitive Parts Notice S201 Body Control System Connector End Views Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

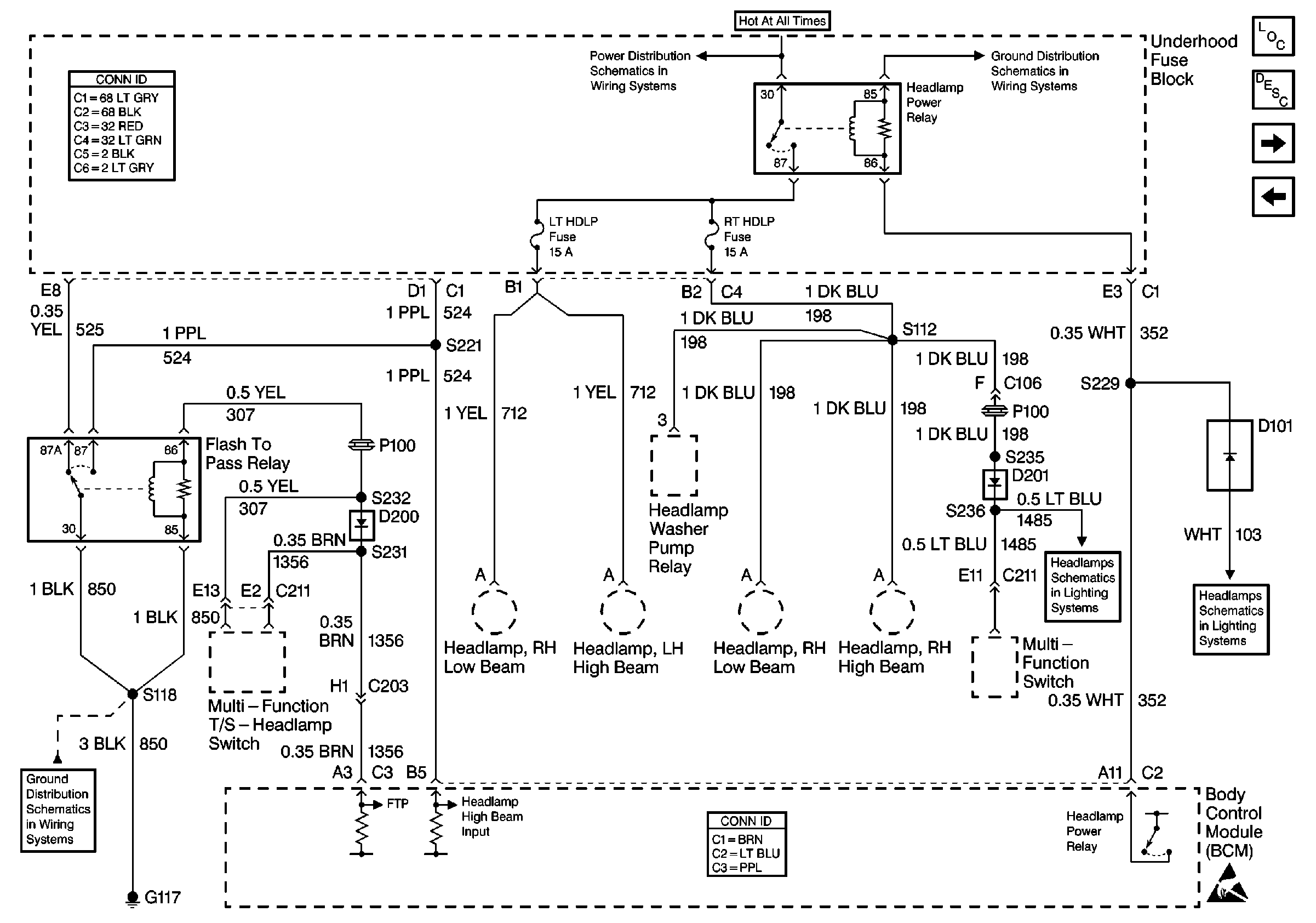

Figure 3:	Headlamp Power and Flash-to-Pass Relays Body Control Module Components Body Control System Circuit Description Instrument Cluster, LT TURN and RT TURN Fuses VCM and Data Link Connector (DLC) Power and Grounding Connector End Views MIR/LKS, LH HDLP and RH HDLP Fuses G102 G117 Body Control System Connector End Views Power, Headlamp Switch, and Multifunction Switch Power, Flash To Pass, and BCM Handling ESD Sensitive Parts Notice

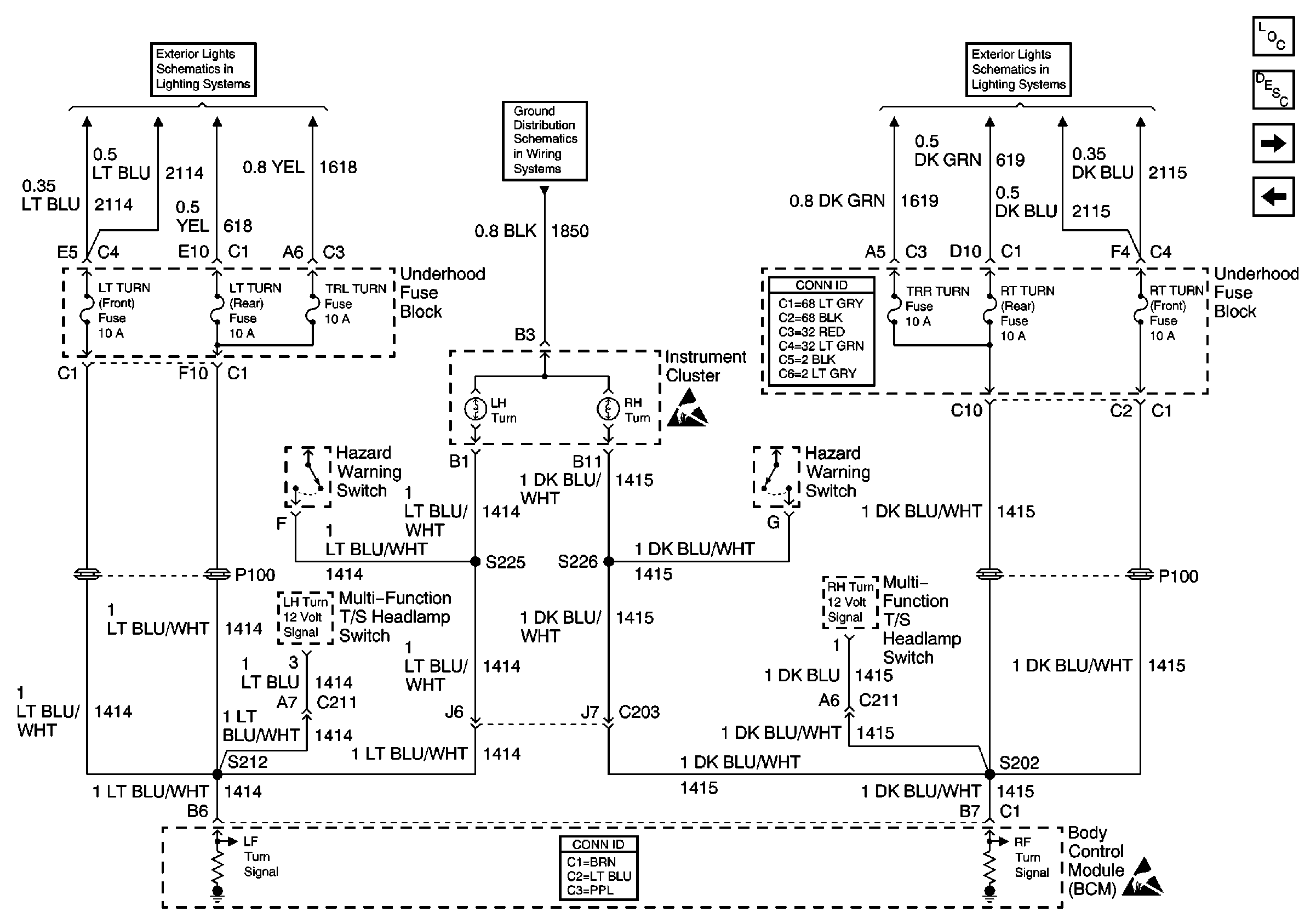

Figure 4:	Instrument Cluster, LT TURN and RT TURN Fuses Body Control Module Components Body Control System Circuit Description Rear Jamb Switches, Door Handle Switch and Ignition Key Alarm Switch Headlamp Power and Flash-to-Pass Relays Hazard Switch, TURN, and HAZ LP Fuses SP203 Turn Signal Switch, RH TURN, RH REAR TURN, and TRL TURN Fuses Handling ESD Sensitive Parts Notice Power and Grounding Connector End Views Body Control System Connector End Views Handling ESD Sensitive Parts Notice

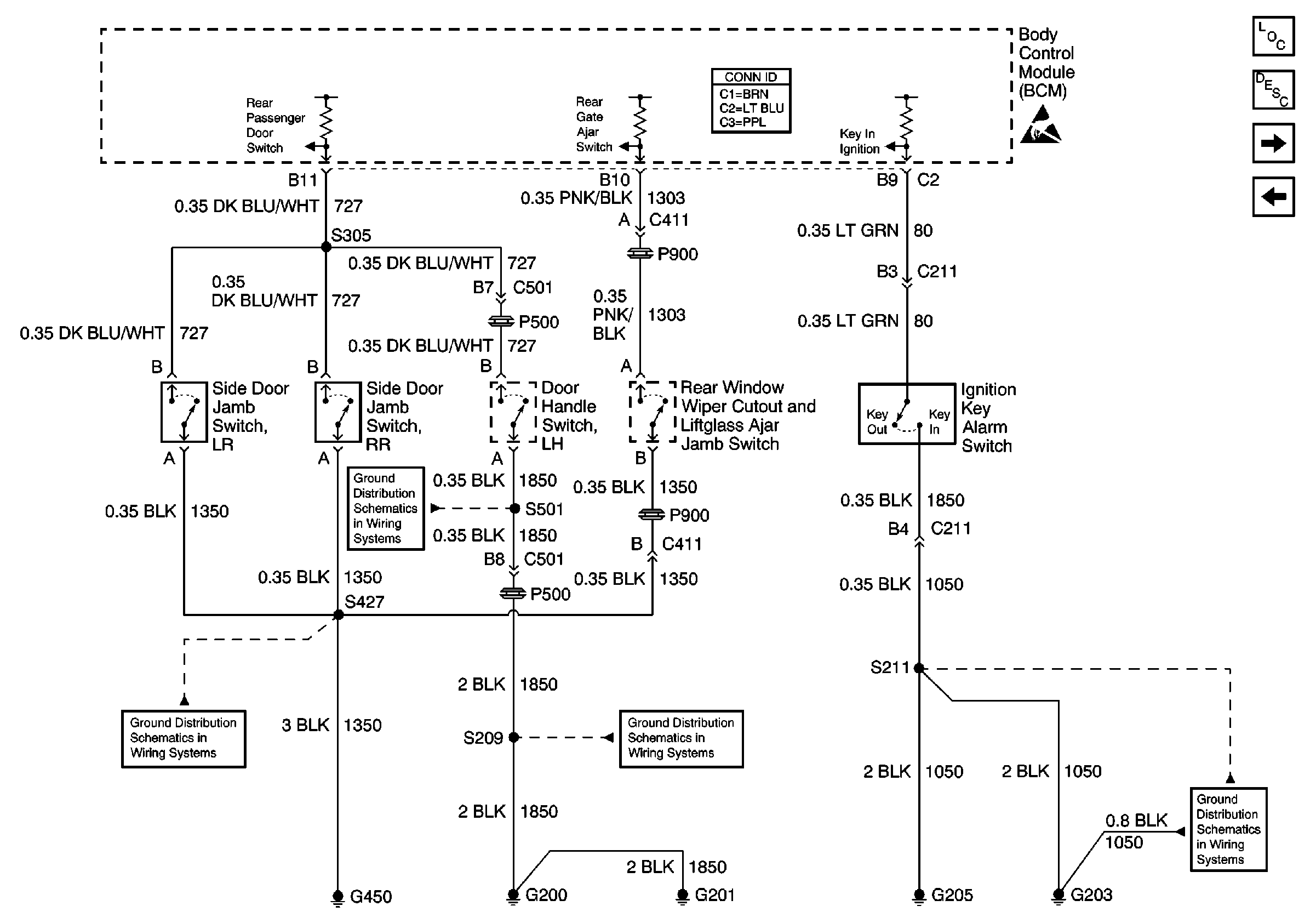

Figure 5:	Rear Jamb Switches, Door Handle Switch and Ignition Key Alarm Switch Body Control Module Components Body Control System Circuit Description Front Jamb Switch and Door Handle Switches Instrument Cluster, LT TURN and RT TURN Fuses Body Control System Connector End Views Handling ESD Sensitive Parts Notice G450 G200 and G201 G200 and G201 G203 and G205

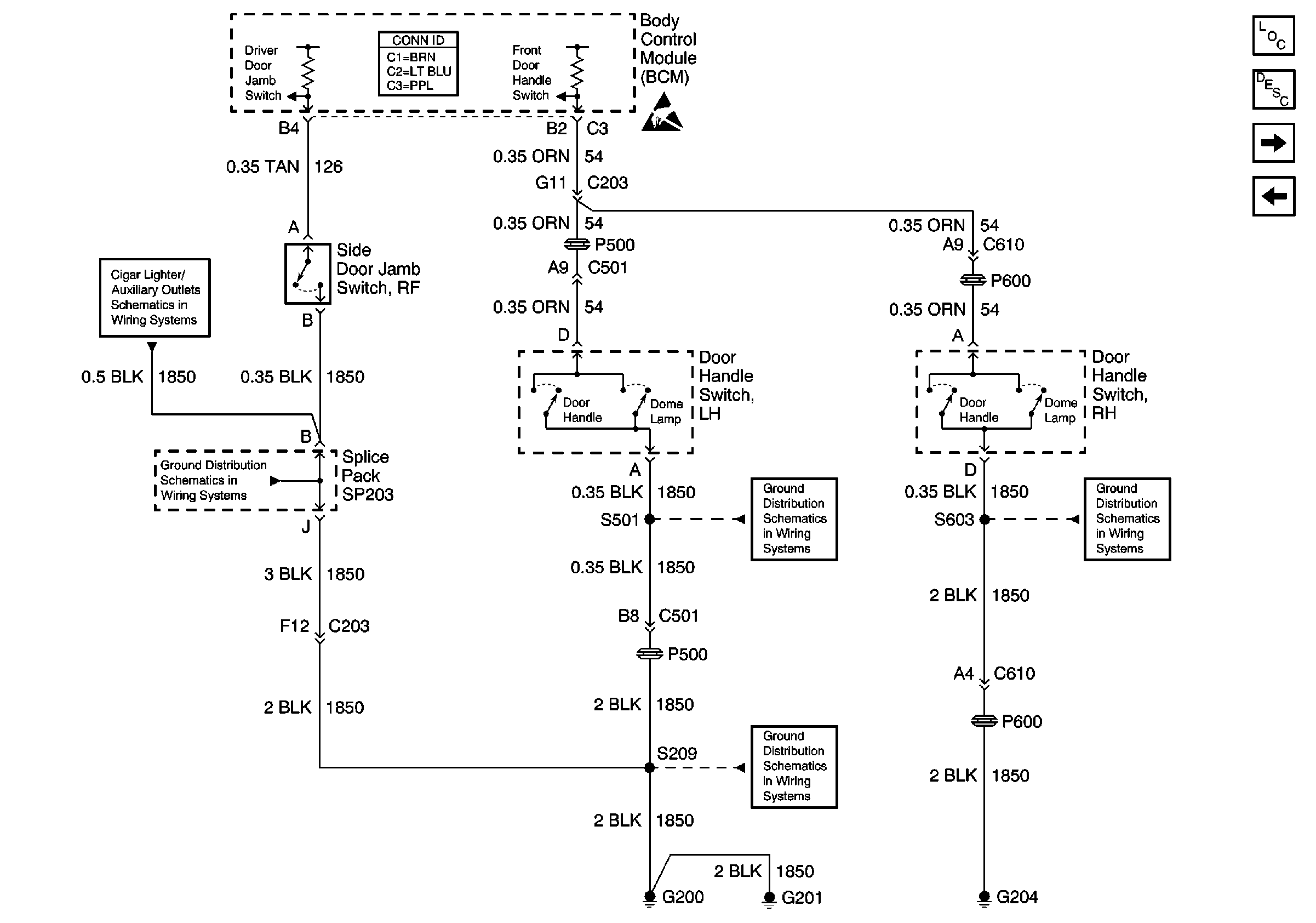

Figure 6:	Front Jamb Switch and Door Handle Switches Body Control Module Components Body Control System Circuit Description PCM/VCM, Ambient Light Sensor and Seat Belt Switch Rear Jamb Switches, Door Handle Switch and Ignition Key Alarm Switch Body Control System Connector End Views Handling ESD Sensitive Parts Notice Cigar Lighter/Auxiliary Outlets Schematics SP203 G200 and G201 G202 and G204 G200 and G201

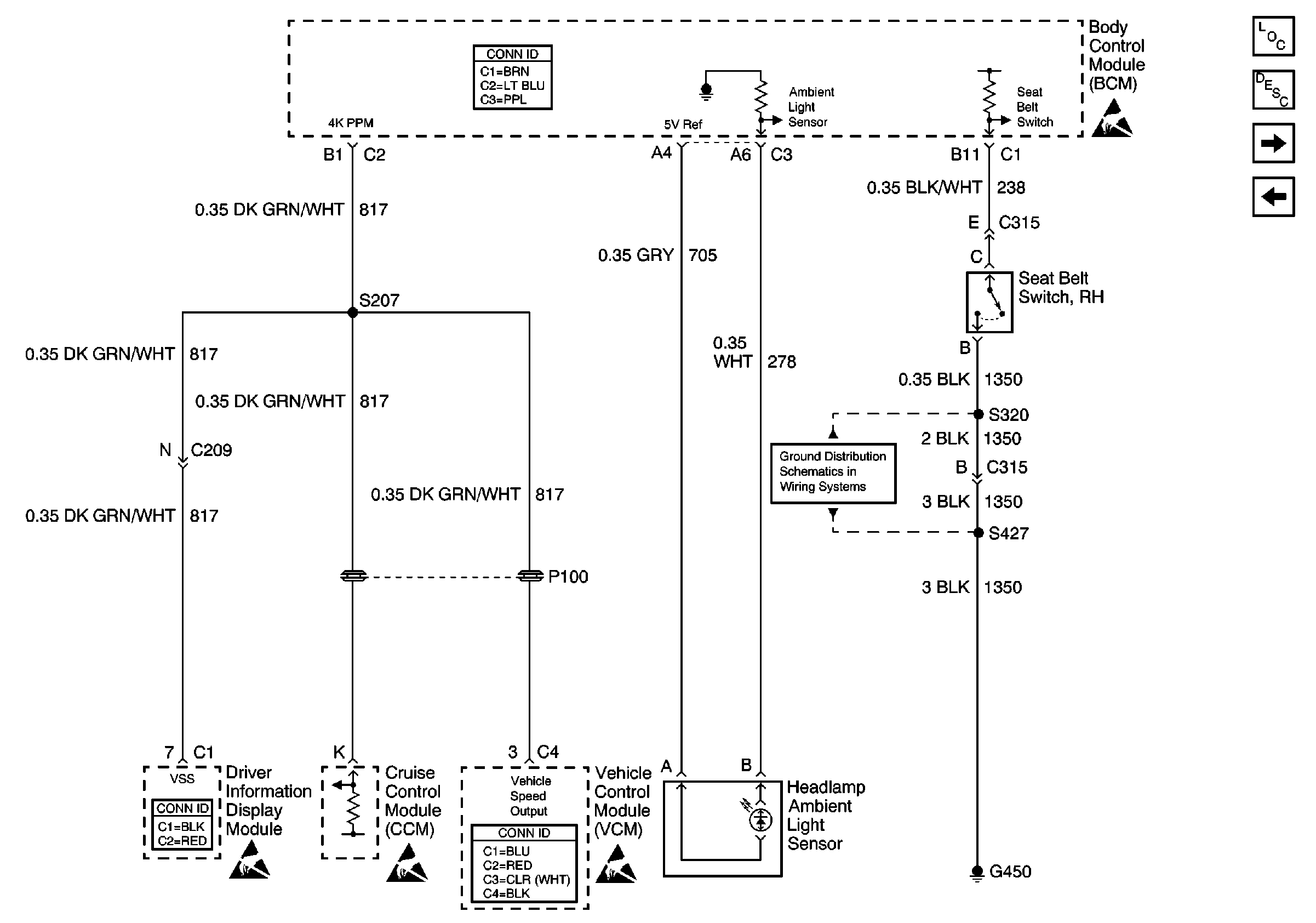

Figure 7:	PCM/VCM, Ambient Light Sensor and Seat Belt Switch Body Control Module Components Body Control System Circuit Description Passlock ™ Sensor, Liftglass Relay and RAP Relay Front Jamb Switch and Door Handle Switches Body Control System Connector End Views Handling ESD Sensitive Parts Notice G450 Driver Information Systems Connector End Views Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice VCM Connector End Views Handling ESD Sensitive Parts Notice

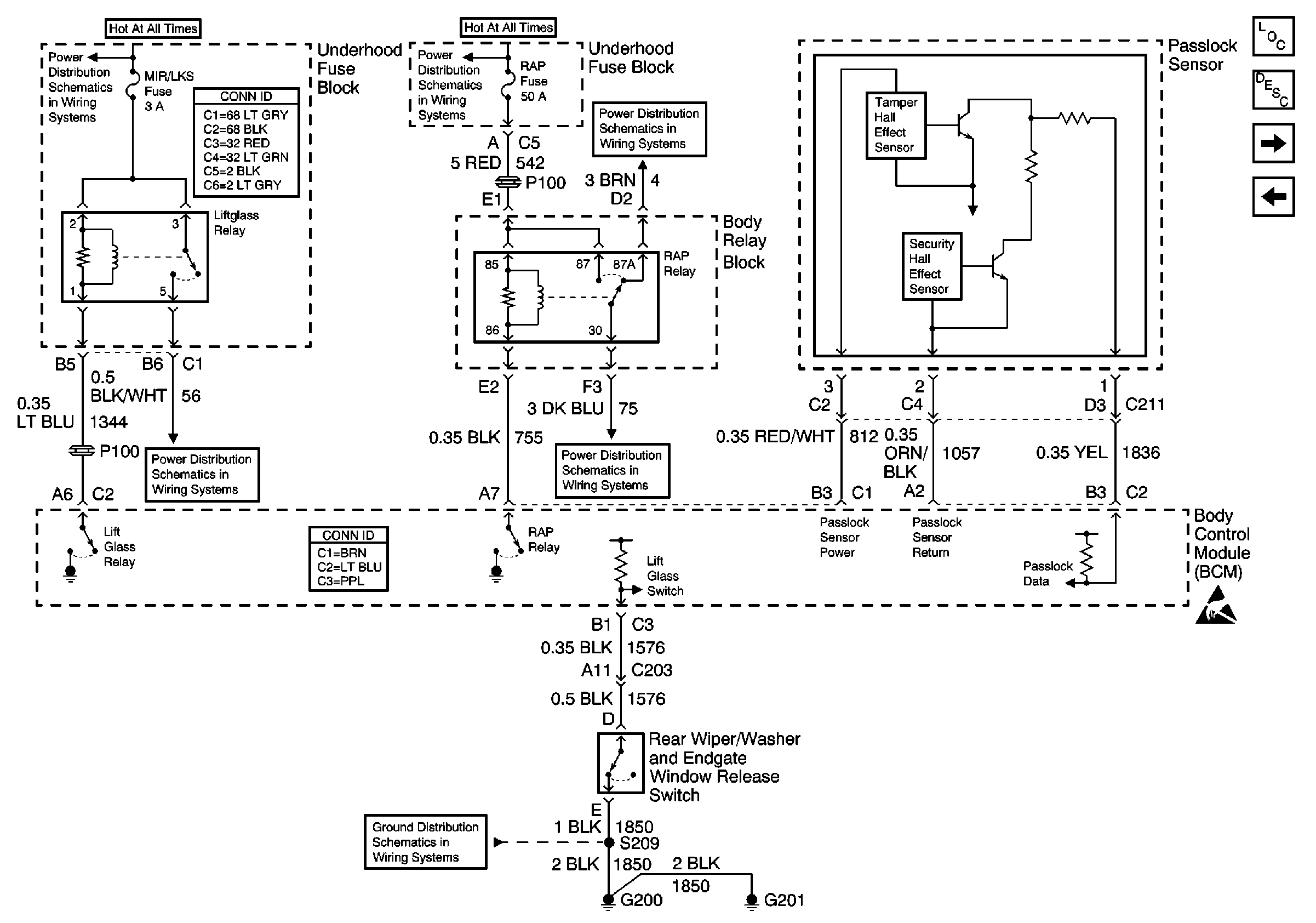

Figure 8:	Passlock™ Sensor, Liftglass Relay and RAP Relay Body Control Module Components Body Control System Circuit Description Horns PCM/VCM, Ambient Light Sensor and Seat Belt Switch B+ Bus Bar Power and Grounding Connector End Views Ign START, RUN and ACC Bus Bar Ign START, RUN and ACC Bus Bar MIR/LKS, LH HDLP and RH HDLP Fuses Body Control System Connector End Views Ign START, RUN and ACC Bus Bar Handling ESD Sensitive Parts Notice G200 and G201

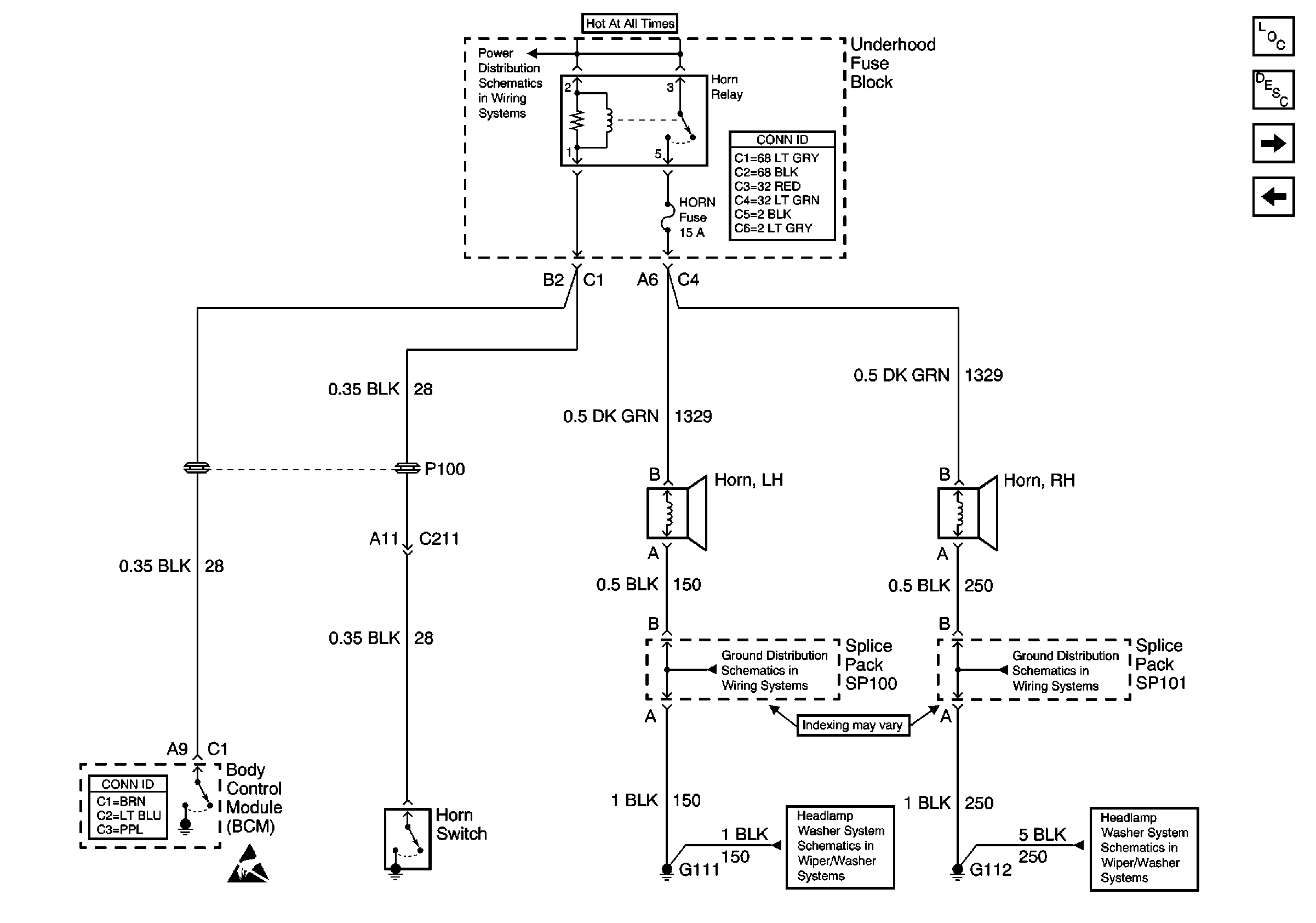

Figure 9:	Horns Body Control Module Components Body Control System Circuit Description Interior Lamps Passlock ™ Sensor, Liftglass Relay and RAP Relay HDLP W/W, IGN C, TBC, LDLEV, and HORN Fuses Power and Grounding Connector End Views Body Control System Connector End Views Handling ESD Sensitive Parts Notice G111 and G112 G111 and G112 Headlamp Washer System Schematics Headlamp Washer System Schematics

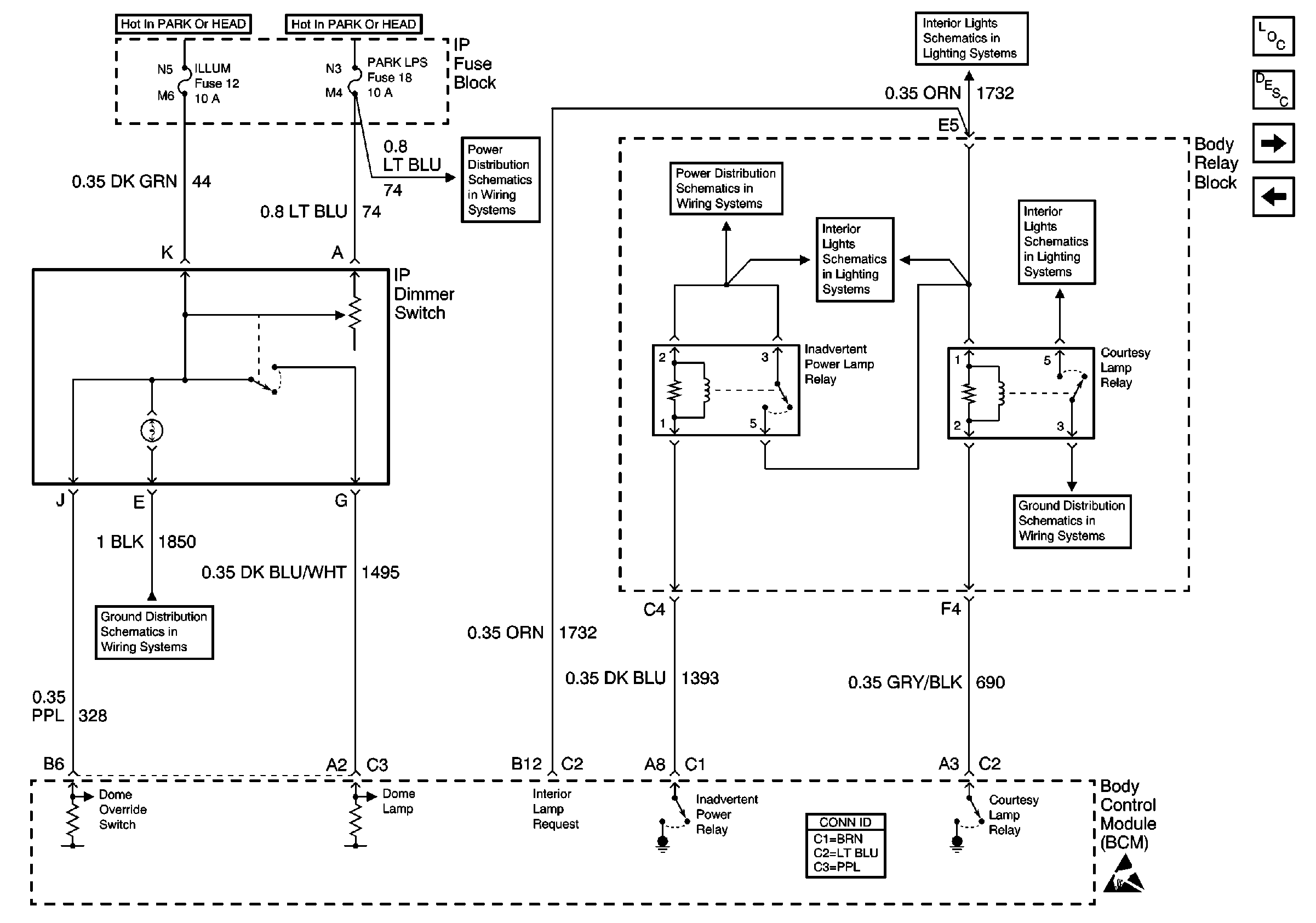

Figure 10:	Interior Lamps Body Control Module Components Body Control System Circuit Description Exterior Lights Horns ILLUM and PARK LP Fuses SP203 STUD 2, INT BAT, CIGAR LTR, CTSY LP and PWR LKS Fuses CTSY LP Fuse and Body Control Module (BCM) CTSY LP Fuse and Body Control Module (BCM) G203 and G205 Body Control System Connector End Views Handling ESD Sensitive Parts Notice

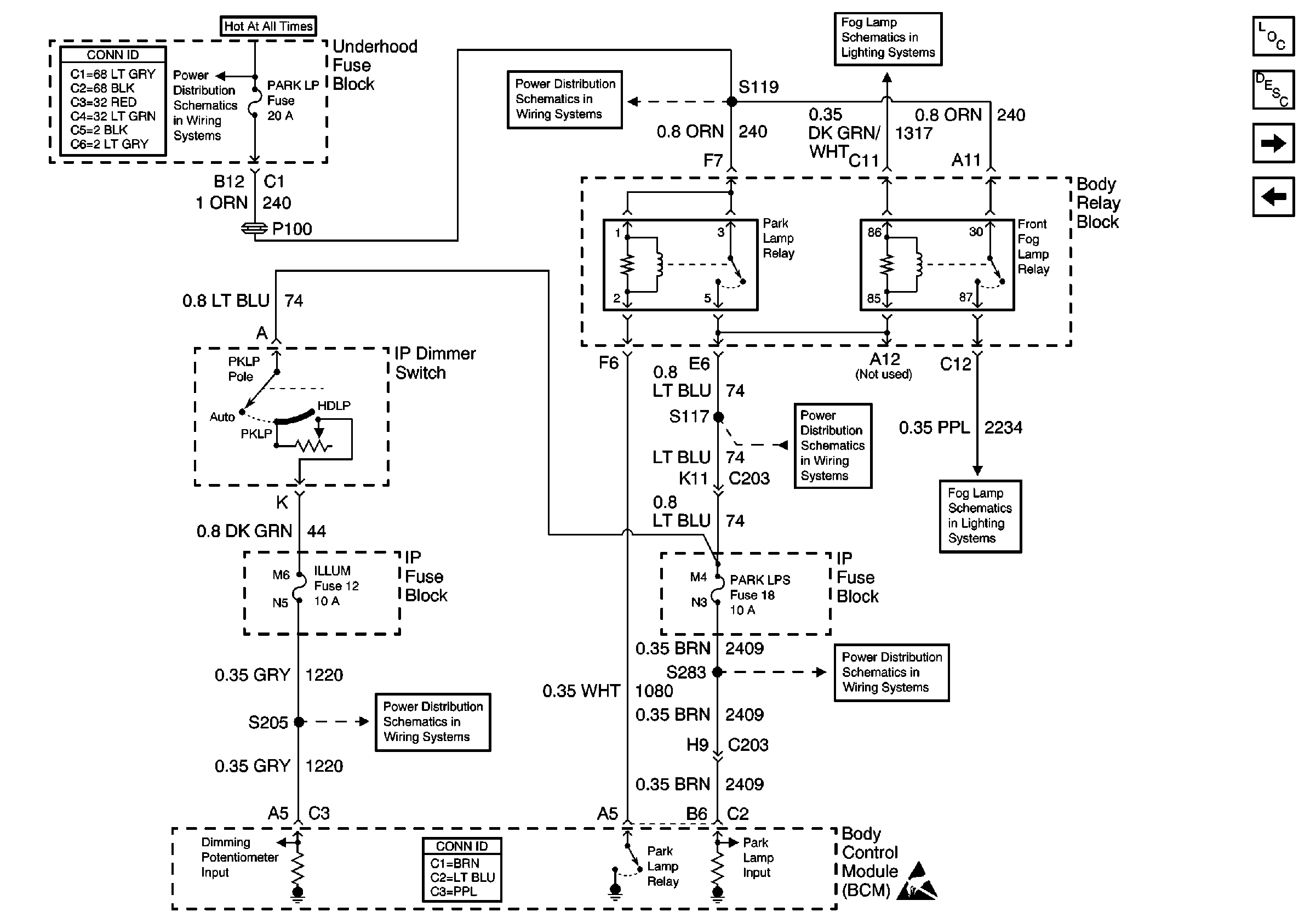

Figure 11:	Exterior Lights Body Control Module Components Body Control System Circuit Description Headlights Interior Lamps Power and Grounding Connector End Views B+ Bus Bar PARK LP, FR PRK, LR PRK, RR PRK, and TRL PRK Fuses Fog Lamp Relay, Front ILLUM and PARK LP Fuses Body Control System Connector End Views PARK LP, FR PRK, LR PRK, RR PRK, and TRL PRK Fuses Front Fog Lamps, LH/RH, and Fog Lamp Switch, Front ILLUM and PARK LP Fuses Handling ESD Sensitive Parts Notice

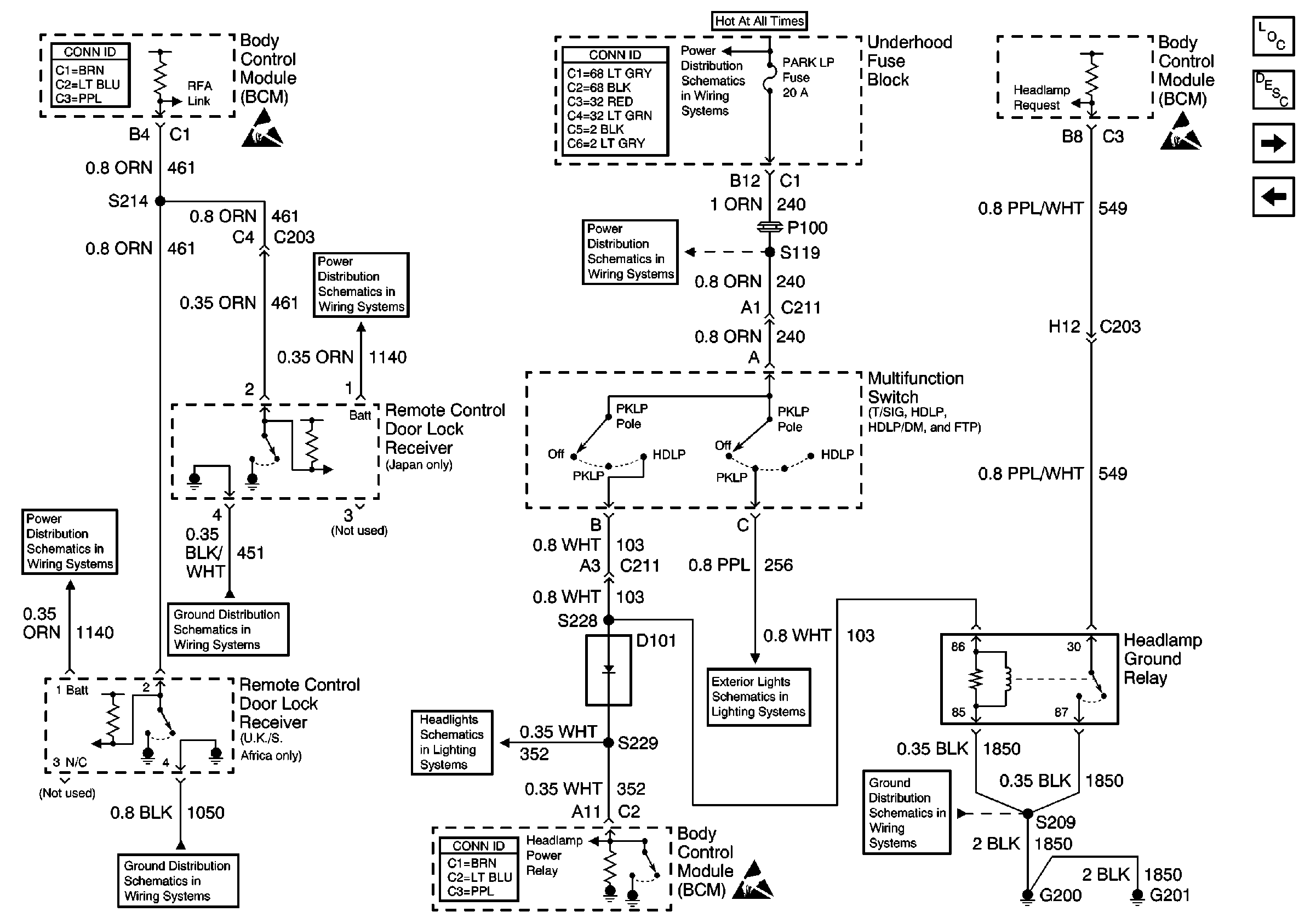

Figure 12:	Headlights Body Control Module Components Body Control System Circuit Description Power Locks Exterior Lights Body Control System Connector End Views Handling ESD Sensitive Parts Notice HDLP W/W, IGN C, TBC, LDLEV, and HORN Fuses HDLP W/W, IGN C, TBC, LDLEV, and HORN Fuses G203 and G205 G103 and G105 Power, Flash To Pass, and BCM Body Control System Connector End Views Power and Grounding Connector End Views B+ Bus Bar PARK LP, FR PRK, LR PRK, RR PRK, and TRL PRK Fuses Power and Headlamp Switch Handling ESD Sensitive Parts Notice G200 and G201 Handling ESD Sensitive Parts Notice

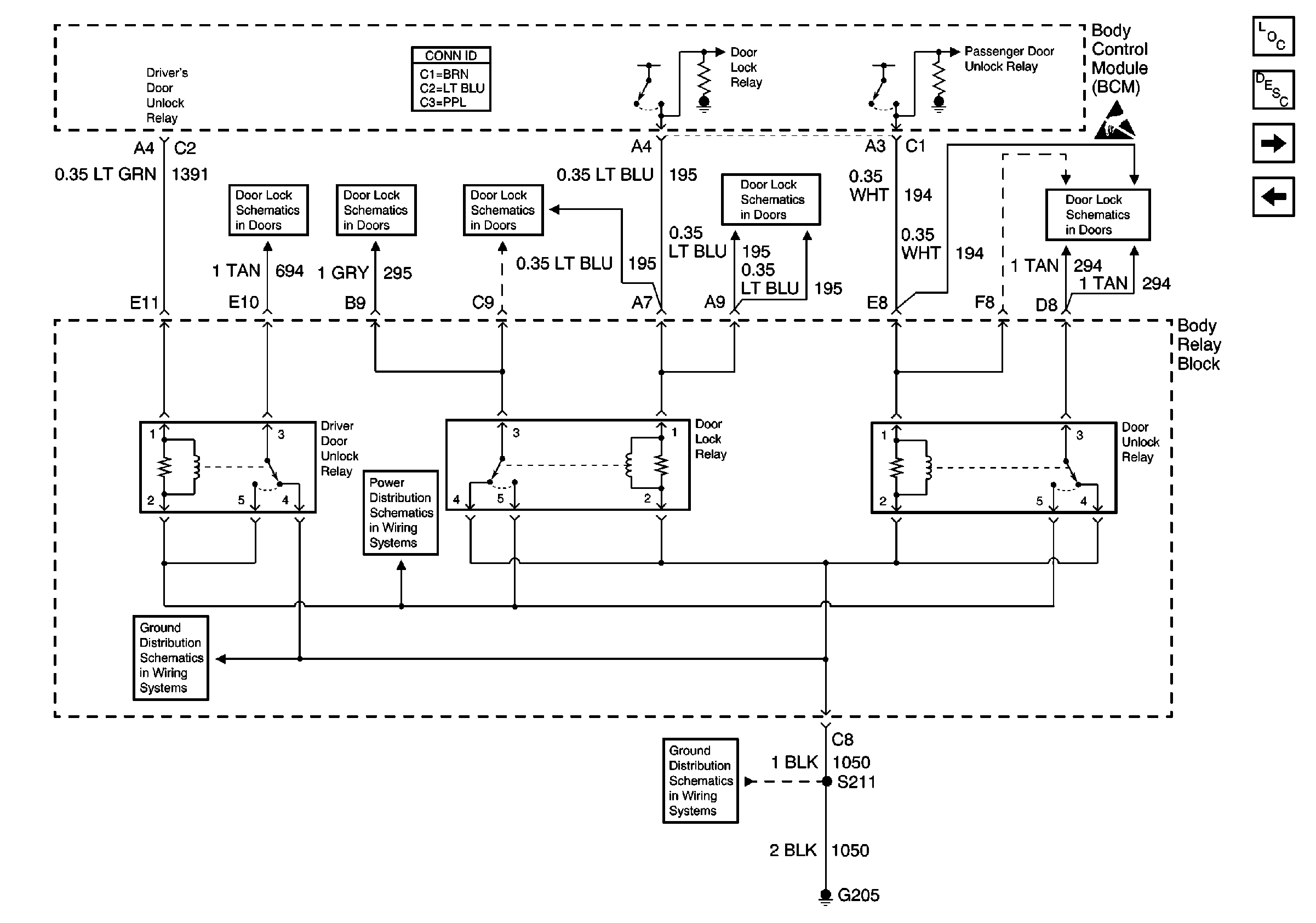

Figure 13:	Power Locks Body Control Module Components Body Control System Circuit Description Front Fog Lights Headlights Body Control System Connector End Views Handling ESD Sensitive Parts Notice IP Fuse Block, Body Relay Block and BCM IP Fuse Block, Body Relay Block and BCM IP Fuse Block, Body Relay Block and BCM IP Fuse Block, Body Relay Block and BCM IP Fuse Block, Body Relay Block and BCM G203 and G205 STUD 2, INT BAT, CIGAR LTR, CTSY LP and PWR LKS Fuses G203 and G205

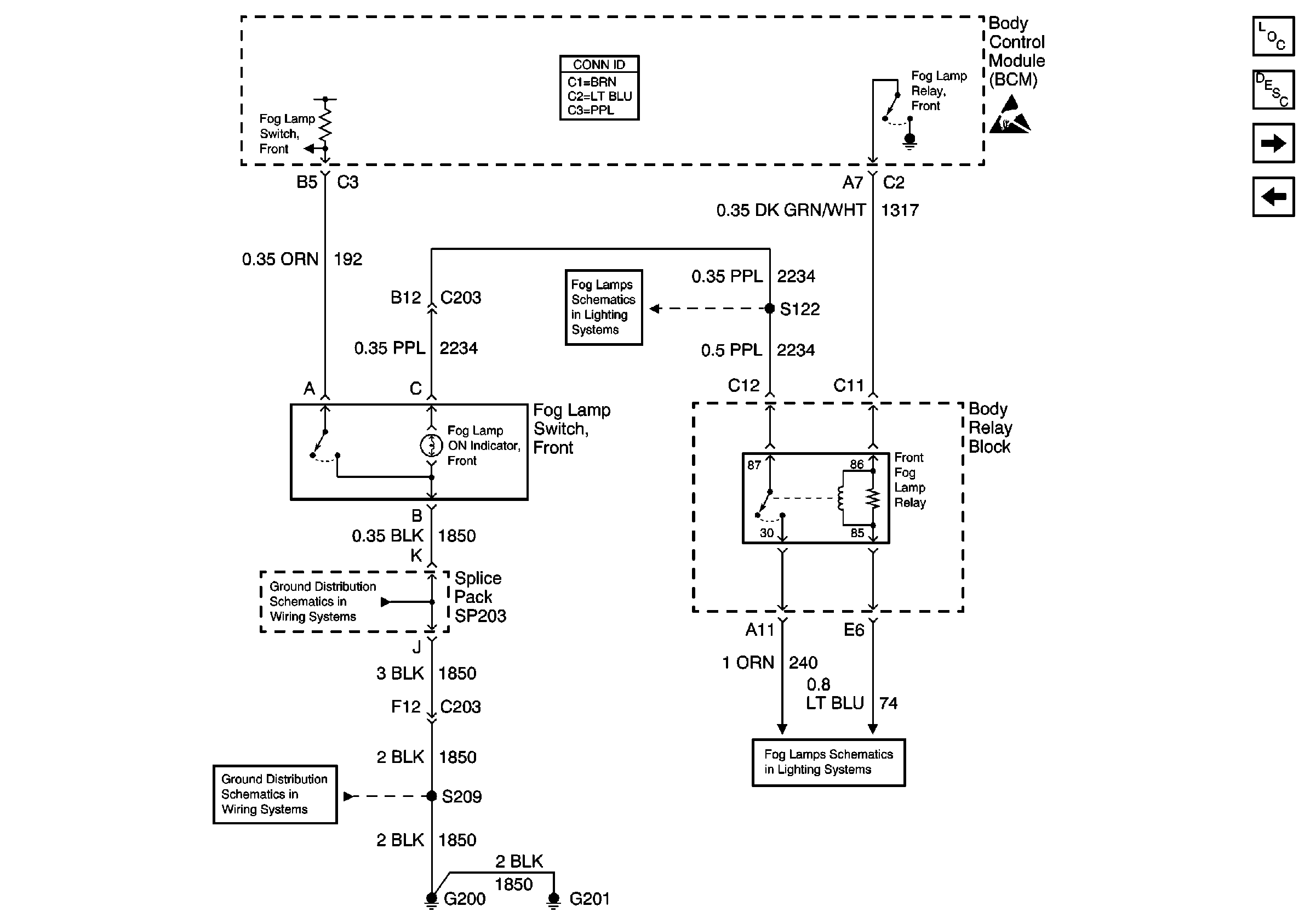

Figure 14:	Front Fog Lights Body Control Module Components Body Control System Circuit Description Rear Fog Lights Power Locks Body Control System Connector End Views Handling ESD Sensitive Parts Notice Fog Lamp Relay, Front SP203 G200 and G201 Fog Lamp Relay, Front

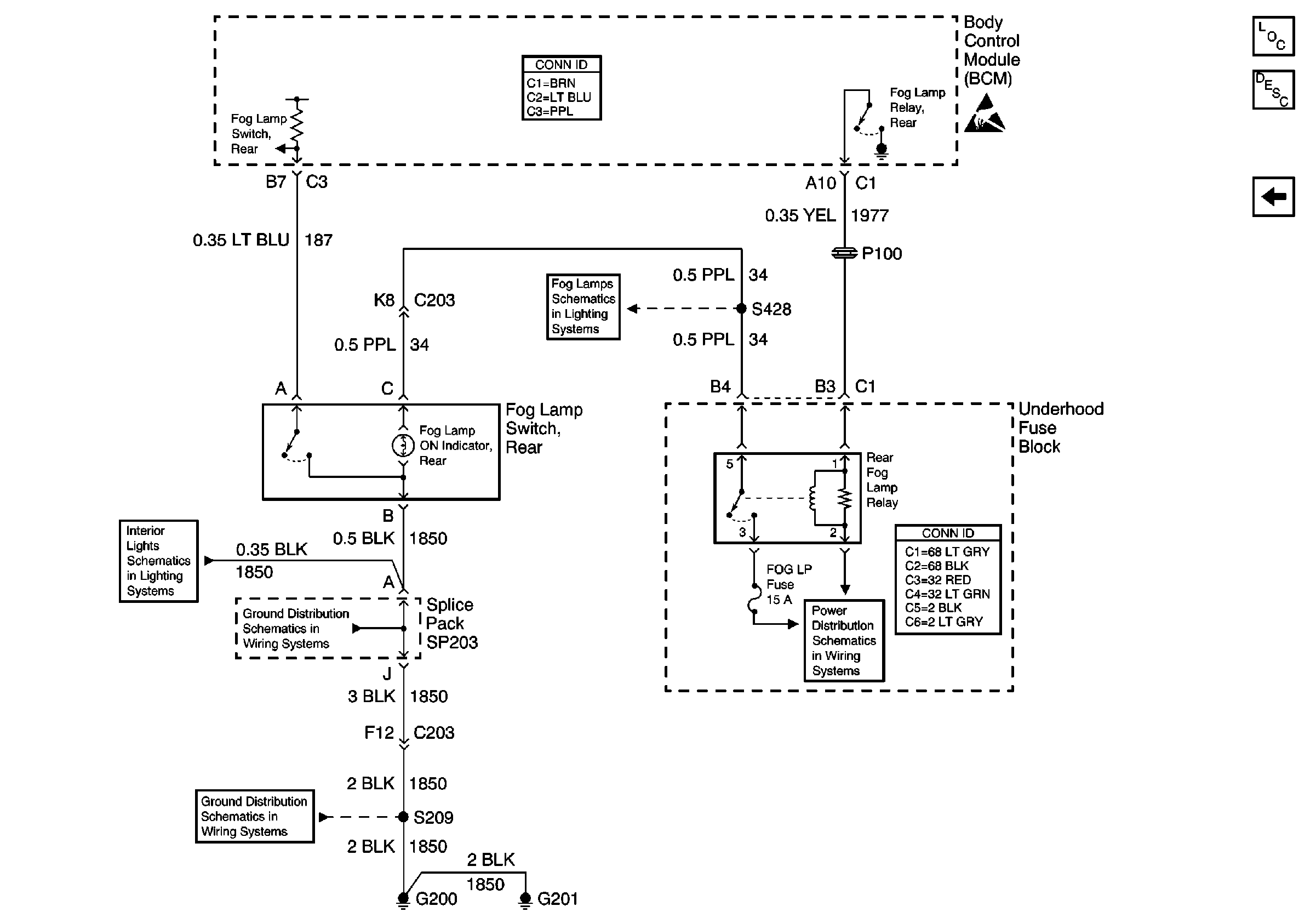

Figure 15:	Rear Fog Lights Body Control Module Components Body Control System Circuit Description Front Fog Lights Body Control System Connector End Views Handling ESD Sensitive Parts Notice Rear Fog Lamps, LH/RH, and Fog Lamp Switch, Rear Body Control Module (BCM) and IP Dimmer Switch SP203 G200 and G201 Power and Grounding Connector End Views B+ Bus Bar
