Exterior Lights Schematics. Chevrolet Blazer - 4WD - RHD 2001

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2001 🢒 Blazer - 4WD - RHD 🢒 Body and Accessories 🢒 Wiring Systems 🢒 Exterior Lights Schematics

Figure 1:	Power and Headlamp Switch Master Electrical Component List Exterior Lighting Systems Description and Operation FR PRK LPS, LR PRK LP, RR PRK LP, and TRL PRK LP Fuses PARK LP, FR PRK, LR PRK, RR PRK, and TRL PRK Fuses B+ Bus Bar ILLUM and PARK LP Fuses Power, Ground and BCM Power, Headlamp Switch, and Multifunction Switch G117 ILLUM and PARK LP Fuses FR PRK LPS, LR PRK LP, RR PRK LP, and TRL PRK LP Fuses
Figure 2:	FR PRK LPS, LR PRK LP, RR PRK LP, and TRL PRK LP Fuses Master Electrical Component List Exterior Lighting Systems Description and Operation Turn Signal Switch, RH TURN, RH REAR TURN, and TRL TURN Fuses Power and Headlamp Switch Power and Headlamp Switch PARK LP, FR PRK, LR PRK, RR PRK, and TRL PRK Fuses G111 and G112 G111 and G112 G111 and G112 S313 and S419 G450 S320 and S420 G402 and G420
Figure 3:	Turn Signal Switch, RH TURN, RH REAR TURN, and TRL TURN Fuses Master Electrical Component List Exterior Lighting Systems Description and Operation Hazard Switch, TURN, and HAZ LP Fuses FR PRK LPS, LR PRK LP, RR PRK LP, and TRL PRK LP Fuses Instrument Panel Cluster (IPC), LT TURN and RT TURN Fuses Hazard Switch, TURN, and HAZ LP Fuses G450 G111 and G112 G111 and G112
Figure 4:	Hazard Switch, TURN, and HAZ LP Fuses Master Electrical Component List Exterior Lighting Systems Description and Operation STOP LP, VEH HMSL, and TRL HMSL Fuses Turn Signal Switch, RH TURN, RH REAR TURN, and TRL TURN Fuses Turn Signal Switch, RH TURN, RH REAR TURN, and TRL TURN Fuses Instrument Panel Cluster (IPC), LT TURN and RT TURN Fuses Ign START, RUN and ACC Bus Bar G111 and G112 G111 and G112 G450 G200 and G201 Power Hazard Switch, Radio, Instrument Panel Cluster (IPC) And Ground SP203
Figure 5:	STOP LP, VEH HMSL, and TRL HMSL Fuses Master Electrical Component List Exterior Lighting Systems Description and Operation Backup Lights Hazard Switch, TURN, and HAZ LP Fuses B+ Bus Bar Cruise Control Schematics S320 and S420 G450

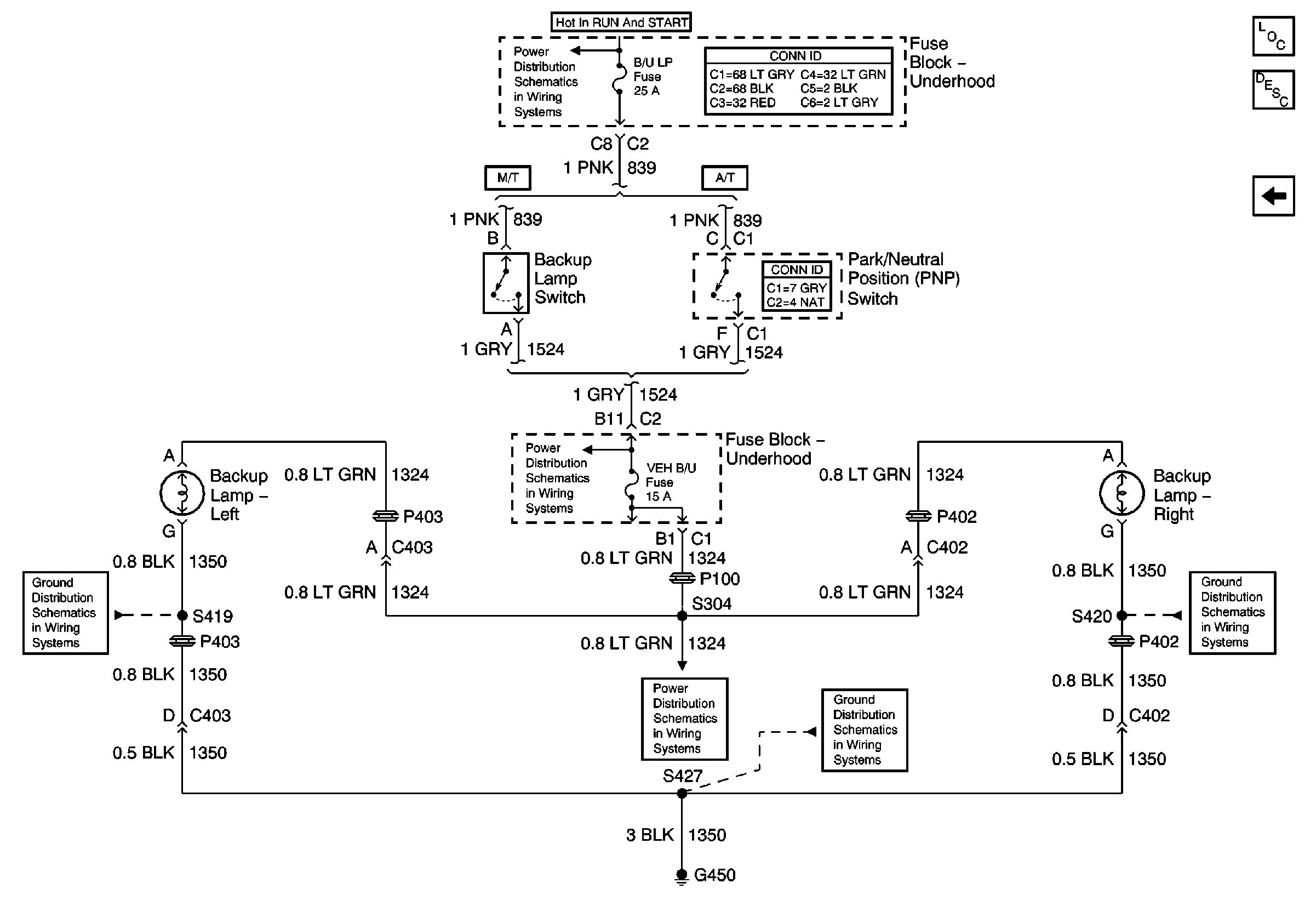

Figure 6:	Backup Lights Master Electrical Component List Exterior Lighting Systems Description and Operation STOP LP, VEH HMSL, and TRL HMSL Fuses Ign START, RUN and ACC Bus Bar S313 and S419 B/U LP, OXYSEN, ENG I, TRL B/U, VEH B/U and BTSI Fuses B/U LP, OXYSEN, ENG I, TRL B/U, VEH B/U and BTSI Fuses G450 S320 and S420
