| Table 1: | Accessory Power Outlet - Rear |
| Table 2: | Accessory Power Outlet - Right/Left |
| Table 3: | Cigar Lighter |
| Table 4: | Fuse Block - I/P |
| Table 5: | Fuse Block - Underhood, C1 |
| Table 6: | Fuse Block - Underhood, C2 |
| Table 7: | Fuse Block - Underhood, C3 |
| Table 8: | Fuse Block - Underhood, C4 |
| Table 9: | Fuse Block - Underhood, C5 |
| Table 10: | Fuse Block - Underhood, C6 |
| Table 11: | Relay Block - Body |
| Table 12: | Ignition Switch, C1 |
| Table 13: | Ignition Switch, C2 |
| |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information |
| ||||||
Pin | Wire Color | Circuit No. | Function | ||||
A | ORN | 1040 | Battery Positive Voltage | ||||
B | -- | -- | Not Used | ||||
C | BLK | 1450 | Ground | ||||
| |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information |
| ||||||
Pin | Wire Color | Circuit No. | Function | ||||
A | ORN | 1040 | Battery Positive Voltage | ||||
B | BLK | 1050 | Ground | ||||
| |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information |
| ||||||
Pin | Wire Color | Circuit No. | Function | ||||
A | ORN | 640 | Battery Positive Voltage | ||||
B | -- | -- | Not Used | ||||
C | BLK | 1850 | Ground | ||||
| |||||||
|---|---|---|---|---|---|---|---|

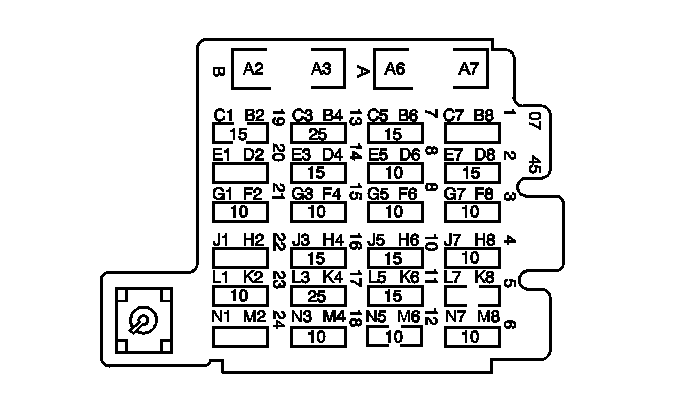

Connector Part Information |
| ||||||
Pin | Wire Color | Circuit No. | Function | ||||
A2-B6 | -- | -- | Not Used | ||||
B8 | RED | 642 | Battery Positive Voltage | ||||
C1 | ORN | 340 | Battery Positive Voltage | ||||
C3 | ORN | 1040 | Battery Positive Voltage | ||||
C5 | ORN | 140 | Battery Positive Voltage | ||||
C7-D6 | -- | -- | Not Used | ||||
D8 | RED | 642 | Battery Positive Voltage | ||||
E1 | -- | -- | Not Used | ||||
E3 | ORN | 1740 | Battery Positive Voltage | ||||
E5 | ORN | 40 | Battery Positive Voltage | ||||
E7 | ORN | 640 | Battery Positive Voltage | ||||
ORN | 640 | Battery Positive Voltage | |||||
F2-F6 | -- | -- | Not Used | ||||
F8 | ORN | 300 | Ignition 3 Voltage | ||||
G1 | BRN | 341 | Ignition 3 Voltage | ||||
BRN | 341 | Ignition 3 Voltage | |||||
G3 | BRN | 241 | Ignition 3 Voltage | ||||
BRN | 241 | Ignition 3 Voltage | |||||
G5 | BRN | 441 | Ignition 3 Voltage | ||||
G7 | BRN | 41 | Ignition 3 Voltage | ||||
H2-H6 | -- | -- | Not Used | ||||
H8 | PNK | 3 | Ignition 1 Voltage | ||||
J1 | -- | -- | Not Used | ||||
J3 | YEL | 1139 | Ignition 1 Voltage | ||||
J5 | PNK | 139 | Ignition 1 Voltage | ||||
J7 | PNK | 39 | Ignition 1 Voltage | ||||
PNK | 39 | Ignition 1 Voltage | |||||
K2 | WHT | 1390 | Off/Run/Crank Voltage | ||||
K4 | BRN | 4 | Accessory Voltage | ||||
K6-K8 | -- | -- | Not Used | ||||
L1 | PNK | 1020 | Off/Run/Crank Voltage | ||||
L3 | YEL | 143 | Accessory Voltage | ||||
L5 | YEL | 43 | Accessory Voltage | ||||
L7 | -- | -- | Not Used | ||||
M2 | -- | -- | Not Used | ||||
M4 | LT BLU | 74 | Park Lamp Switch Signal | ||||
LT BLU | 74 | Park Lamp Switch Signal | |||||
M6 | DK GRN | 44 | Instrument Panel Lamps Dimmer Switch Signal | ||||
M8 | DK BLU | 75 | RAP Relay Switch Supply Voltage | ||||
N1 | -- | -- | Not Used | ||||
N3 | BRN | 2409 | Interior Park Lamps Supply Voltage | ||||
N5 | GRY | 1220 | Instrument Panel Lamp Fuse Supply Voltage - 2 | ||||
N7 | DK GRN | 1301 | RAP Fuse Supply Voltage | ||||
DK GRN | 1301 | RAP Fuse Supply Voltage | |||||
| |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information |
| ||||||
Pin | Wire Color | Circuit No. | Function | ||||
A1 | ORN | 2240 | Battery Positive Voltage | ||||
A2 | ORN | 1140 | Battery Positive Voltage | ||||
A3 | -- | -- | Not Used | ||||
A4 | LT BLU | 74 | Park Lamp Switch Signal | ||||
A5 | ORN | 840 | Battery Positive Voltage | ||||
A6 | -- | -- | Not Used | ||||
A7 | BLK | 350 | Ground | ||||
A8 | BRN | 2509 | Left Rear Park Lamps Supply Voltage | ||||
A9 | PNK | 3 | Ignition 1 Voltage | ||||
A10 | -- | -- | Not Used | ||||
A11 | PPL/WHT | 1035 | Starter Relay Coil Supply Voltage (Manual Trans Only) | ||||
A12 | -- | -- | Not Used | ||||
B1 | LT GRN | 1324 | Backup Lamps Supply Voltage | ||||
B2 | BLK | 28 | Horn Relay Control | ||||
BLK | 28 | Horn Relay Control | |||||
B3 | YEL | 1977 | Rear Fog Lamps Relay Control | ||||
B4 | PPL | 34 | Front Fog Lamps Supply Voltage | ||||
B5 | LT BLU | 1344 | Trunk Release Relay Control | ||||
B6 | BLK/WHT | 56 | Trunk Release Motor Supply Voltage | ||||
B7 | BLK | 350 | Ground | ||||
B8 | PPL | 1093 | Rear Defog Element Supply Voltage | ||||
B9-B10 | -- | -- | Not Used | ||||
B11 | RED | 242 | Battery Positive Voltage | ||||
B12 | ORN | 240 | Battery Positive Voltage | ||||
C1 | LT BLU /WHT | 1414 | Left Front Turn Signal Switch Signal | ||||
C2 | DK BLU /WHT | 1415 | Right Front Turn Signal Switch Signal | ||||
C3 | PPL | 806 | Crank Voltage (Manual Transmission Only) | ||||
C4-C9 | -- | -- | Not Used | ||||
C10 | DK BLU/WHT | 1415 | Right Front Turn Signal Switch Signal | ||||
C11-C12 | -- | -- | Not Used | ||||
D1 | PPL | 524 | Headlamp Dimmer Switch High Beam Signal | ||||
D2 | RED | 228 | Windshield Washer Pump Control | ||||
RED | 228 | Windshield Washer Pump Control | |||||
D3 | YEL | 5 | Crank Voltage | ||||
D4 | ORN | 1140 | Battery Positive Voltage | ||||
ORN | 1140 | Battery Positive Voltage | |||||
D5 | ORN | 1640 | Battery Positive Voltage | ||||
D8 | -- | -- | Not Used | ||||
D9 | PNK | 639 | Ignition 1 Voltage | ||||
PNK | 639 | Ignition 1 Voltage | |||||
D10 | DK GRN | 619 | Right Rear Turn Signal Lamp Supply Voltage | ||||
D11 | WHT | 17 | Stop Lamp Switch Signal | ||||
D12 | ORN | 540 | Battery Positive Voltage | ||||
E1 | ORN | 1240 | Battery Positive Voltage | ||||
E2 | ORN | 1540 | Battery Positive Voltage | ||||
E3 | WHT | 352 | Headlamp Relay Coil Supply Voltage | ||||
E4 | ORN | 1140 | Battery Positive Voltage | ||||
E5 | ORN | 1640 | Battery Positive Voltage | ||||
E6 | -- | -- | Not Used | ||||
E7 | BLK/WHT | 451 | Ground | ||||
BLK/WHT | 451 | Ground | |||||
E8 | YEL | 525 | Ground | ||||
E9 | BRN/WHT | 2609 | Right Rear Park Lamps Supply Voltage | ||||
E10 | YEL | 618 | Left Rear Turn Signal Lamp Supply Voltage | ||||
E11-E12 | -- | -- | Not Used | ||||
F1-F5 | -- | -- | Not Used | ||||
F6 | ORN | 2267 | Mirror Heating Element Supply Voltage | ||||
F7 | BLK/WHT | 451 | Ground | ||||
BLK/WHT | 451 | Ground | |||||
F8 | WHT | 193 | Rear Defog Relay Control | ||||
F9 | -- | -- | Not Used | ||||
F10 | LT BLU /WHT | 1414 | Left Front Turn Signal Switch Signal | ||||
F11 | LT BLU | 1320 | CHMSL Supply Voltage | ||||
LT BLU | 1320 | CHMSL Supply Voltage | |||||
F12 | -- | -- | Not Used | ||||
| |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information |
| ||||||
Pin | Wire Color | Circuit No. | Function | ||||
A1-A7 | -- | -- | Not Used | ||||
A8 | ORN | 440 | Battery Positive Voltage | ||||
A9 | PNK | 239 | Ignition 1 Voltage | ||||
A10 | PNK | 439 | Ignition 1 Voltage | ||||
A11-A12 | -- | -- | Not Used | ||||
B1-B6 | -- | -- | Not Used | ||||
B7 | DK GRN /WHT | 465 | Fuel Pump Relay Control | ||||
B8 | ORN | 440 | Battery Positive Voltage | ||||
B9 | PNK | 239 | Ignition 1 Voltage | ||||
B10 | PNK | 439 | Ignition 1 Voltage | ||||
PNK | 439 | Ignition 1 Voltage | |||||
B11 | GRY | 1524 | Backup Lamp Supply Voltage | ||||
B12 | LT GRN | 275 | Park Neutral Position Switch Park Signal (Auto Trans Only) | ||||
C1-C7 | -- | -- | Not Used | ||||
C8 | PNK | 839 | Ignition 1 Voltage | ||||
C9 | -- | -- | Not Used | ||||
C10 | PNK | 439 | Ignition 1 Voltage | ||||
PNK | 439 | Ignition 1 Voltage | |||||
C11 | -- | -- | Not Used | ||||
C12 | LT GRN /BLK | 584 | A/T Shift Lock Control Switch Supply Voltage (Auto Trans Only) | ||||
D1-D2 | -- | -- | Not Used | ||||
D3 | DK GRN /WHT | 459 | A/C Compressor Clutch Relay Control | ||||
D4 | DK GRN | 59 | A/C Compressor Clutch Supply Voltage | ||||
D5-D9 | -- | -- | Not Used | ||||
D10 | PNK | 439 | Ignition 1 Voltage | ||||
PNK | 439 | Ignition 1 Voltage | |||||
D11 | PPL | 6 | Starter Solenoid Crank Voltage | ||||
D12 | BLK | 350 | Ground | ||||
E1 | -- | -- | Not Used | ||||
E2 | PPL | 806 | Crank Voltage (Auto Trans Only) | ||||
E3-E6 | -- | -- | Not Used | ||||
E7 | BLK/WHT | 451 | Ground | ||||
E8-E9 | -- | -- | Not Used | ||||
E10 | PNK | 439 | Ignition 1 Voltage | ||||
PNK | 439 | Ignition 1 Voltage | |||||
E11-E12 | -- | -- | Not Used | ||||
F1-F6 | -- | -- | Not Used | ||||
F7 | BLK | 350 | Ground | ||||
F8 | -- | -- | Not Used | ||||
F9 | PNK | 1539 | Ignition 1 Voltage | ||||
F10 | -- | -- | Not Used | ||||
F11 | PPL/WHT | 1035 | Starter Relay Coil Supply Voltage (Auto Trans Only) | ||||
F12 | -- | -- | Not Used | ||||
| |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information |
| ||||||
Pin | Wire Color | Circuit No. | Function | ||||
A1-A3 | -- | -- | Not Used | ||||
A4 | LT GRN | 1624 | Trailer Backup Lamps Supply Voltage | ||||
A5 | DK GRN | 1619 | Trailer Right Rear Turn/Stop Lamp Supply Voltage | ||||
A6 | YEL | 1618 | Trailer Left Rear Turn/Stop Lamp Supply Voltage | ||||
B1-B6 | -- | -- | Not Used | ||||
C1-C6 | -- | -- | Not Used | ||||
D1 | DK BRN | 2109 | Trailer Park Lamps Supply Voltage | ||||
D2-D6 | -- | -- | Not Used | ||||
E1-E3 | -- | -- | Not Used | ||||
E4 | LT BLU | 1620 | Trailer CHMSL Supply Voltage | ||||
E5-E6 | -- | -- | Not Used | ||||
F1 | GRY | 120 | Fuel Pump Supply Voltage | ||||
F2 | -- | -- | Not Used | ||||
F3 | PNK | 239 | Ignition 1 Voltage | ||||
F4-F6 | -- | -- | Not Used | ||||
| |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information |
| ||||||
Pin | Wire Color | Circuit No. | Function | ||||
A1 | -- | -- | Not Used | ||||
A2 | YEL | 525 | Headlamp Dimmer Switch Low Beam Signal | ||||
YEL | 525 | Headlamp Dimmer Switch Low Beam Signal | |||||
A3-A4 | -- | -- | Not Used | ||||
A5 | PNK | 94 | Windshield Washer Switch Signal | ||||
A6 | DK GRN | 1329 | Horn Fuse Supply Voltage | ||||
DK GRN | 1329 | Horn Fuse Supply Voltage | |||||
B1 | YEL | 712 | Left Headlamp Low Beam Supply Voltage | ||||
YEL | 712 | Left Headlamp Low Beam Supply Voltage | |||||
B2 | DK BLU | 198 | -- | ||||
B3 | PNK | 639 | Ignition 1 Voltage (Manual Trans Only) | ||||
PNK | 639 | Ignition 1 Voltage (Manual Trans Only) | |||||
B4 | -- | -- | Not Used | ||||
B5 | BRN | 2309 | Front Park Lamps Supply Voltage | ||||
BRN | 2309 | Front Park Lamps Supply Voltage | |||||
B6 | -- | -- | Not Used | ||||
C1-C6 | -- | -- | Not Used | ||||
D1-D6 | -- | -- | Not Used | ||||
E1-E2 | -- | -- | Not Used | ||||
E3 | PPL | 524 | Headlamp Dimmer Switch High Beam Signal | ||||
PPL | 524 | Headlamp Dimmer Switch High Beam Signal | |||||
E4 | -- | -- | Not Used | ||||
E5 | LT BLU | 2114 | Left Turn Signal Lamps Supply Voltage | ||||
LT BLU | 2114 | Left Turn Signal Lamps Supply Voltage | |||||
E6 | ORN | 2440 | Battery Positive Voltage | ||||
F1 | BLK | 350 | Ground (Manual Trans Only) | ||||
F2-F3 | -- | -- | Not Used | ||||
F4 | DK BLU | 2115 | Right Turn Signal Lamps Supply Voltage | ||||
DK BLU | 2115 | Right Turn Signal Lamps Supply Voltage | |||||
F5-F6 | -- | -- | Not Used | ||||
| |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information |
| ||||||
Pin | Wire Color | Circuit No. | Function | ||||
A | RED | 542 | Battery Positive Voltage | ||||
B | RED | 342 | Battery Positive Voltage | ||||
| |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information |
| ||||||
Pin | Wire Color | Circuit No. | Function | ||||
A | RED | 442 | Battery Positive Voltage | ||||
B | RED | 642 | Battery Positive Voltage | ||||
|
| |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information |
| ||||||
Pin | Wire Color | Circuit No. | Function | ||||
A1-A3 | -- | -- | Not Used | ||||
A4 | ORN | 40 | Battery Positive Voltage | ||||
ORN | 40 | Battery Positive Voltage | |||||
A5 | ORN | 40 | Battery Positive Voltage | ||||
A6 | -- | -- | Not Used | ||||
A7 | LT BLU | 195 | Door Lock Control | ||||
LT BLU | 195 | Door Lock Control | |||||
A8 | -- | -- | Not Used | ||||
A9 | LT BLU | 195 | Door Lock Control | ||||
LT BLU | 195 | Door Lock Control | |||||
A10 | -- | -- | Not Used | ||||
A11 | ORN | 240 | Battery Positive Voltage | ||||
A12 | -- | -- | Not Used | ||||
B1 | ORN | 1440 | Battery Positive Voltage | ||||
B2 | -- | -- | Not Used | ||||
B3 | DK GRN | 1001 | RAP Fuse Supply Voltage | ||||
B4 | -- | -- | Not Used | ||||
B5 | BLK/WHT | 451 | Ground | ||||
BLK/WHT | 451 | Ground | |||||
B6 | BLK/WHT | 451 | Ground | ||||
B7 | BLK/WHT | 451 | Ground | ||||
B8 | -- | -- | Not Used | ||||
B9 | GRY | 295 | Door Lock Actuator Lock Control | ||||
B10-B12 | -- | -- | Not Used | ||||
C1-C2 | -- | -- | Not Used | ||||
C3 | DK GRN | 1001 | RAP Fuse Supply Voltage | ||||
C4 | DK BLU | 1393 | Inadvertent Relay Control | ||||
C5 | ORN | 1732 | Courtesy Lamps Supply Voltage | ||||
ORN | 1732 | Courtesy Lamps Supply Voltage | |||||
C6-C7 | -- | -- | Not Used | ||||
C8 | BLK | 1050 | Ground | ||||
C9 | GRY | 295 | Door Lock Actuator Lock Control | ||||
GRY | 295 | Door Lock Actuator Lock Control | |||||
C10 | -- | -- | Not Used | ||||
C11 | DK GRN /WHT | 1317 | Fog Lamp Relay Control | ||||
C12 | PPL | 2234 | Front Fog Lamp Supply Voltage | ||||
D1 | -- | -- | Not Used | ||||
D2 | BRN | 4 | Accessory Voltage | ||||
D3 | DK GRN | 1001 | RAP Fuse Supply Voltage | ||||
D4 | WHT | 156 | Courtesy Lamp Low Control | ||||
D5 | -- | -- | Not Used | ||||
D6-D7 | -- | -- | Not Used | ||||
D8 | TAN | 294 | Door Lock Actuator Unlock Control | ||||
TAN | 294 | Door Lock Actuator Unlock Control | |||||
D9-D10 | -- | -- | Not Used | ||||
D11 | BLK/WHT | 56 | Trunk Release Switch Signal | ||||
BLK/WHT | 56 | Trunk Release Switch Signal | |||||
D12 | BLK/WHT | 56 | Trunk Release Switch Signal | ||||
E1 | RED | 542 | Battery Positive Voltage | ||||
E2 | BLK | 755 | RAP Relay Coil Control | ||||
E3 | BRN | 4 | Accessory Voltage | ||||
E4 | WHT | 156 | Courtesy Lamp Low Control | ||||
WHT | 156 | Courtesy Lamp Low Control | |||||
E5 | ORN | 1732 | Courtesy Lamps Supply Voltage | ||||
ORN | 1732 | Courtesy Lamps Supply Voltage | |||||
E6 | LT BLU | 74 | Park Lamp Switch Signal | ||||
E7 | -- | -- | Not Used | ||||
E8 | WHT | 194 | Door Unlock Control | ||||
WHT | 194 | Door Unlock Control | |||||
E9 | -- | -- | Not Used | ||||
E10 | TAN | 694 | Driver Door Lock Actuator Unlock Control | ||||
E11 | LT GRN | 1391 | Driver Door Unlock Relay Control | ||||
E12 | ORN | 840 | Battery Positive Voltage | ||||
F1-F2 | -- | -- | Not Used | ||||
F3 | DK BLU | 75 | RAP Relay Switch Supply Voltage | ||||
F4 | GRY/BLK | 690 | Courtesy Lamp Relay Control | ||||
F5 | -- | -- | Not Used | ||||
F6 | WHT | 1080 | Park Lamp Relay Control | ||||
F7 | ORN | 240 | Battery Positive Voltage | ||||
F8 | WHT | 194 | Door Unlock Control | ||||
WHT | 194 | Door Unlock Control | |||||
F9 | ORN | 1740 | Battery Positive Voltage | ||||
F10 | ORN | 840 | Battery Positive Voltage | ||||
F11 | -- | -- | Not Used | ||||
F12 | ORN | 840 | Battery Positive Voltage | ||||
| |||||||
|---|---|---|---|---|---|---|---|

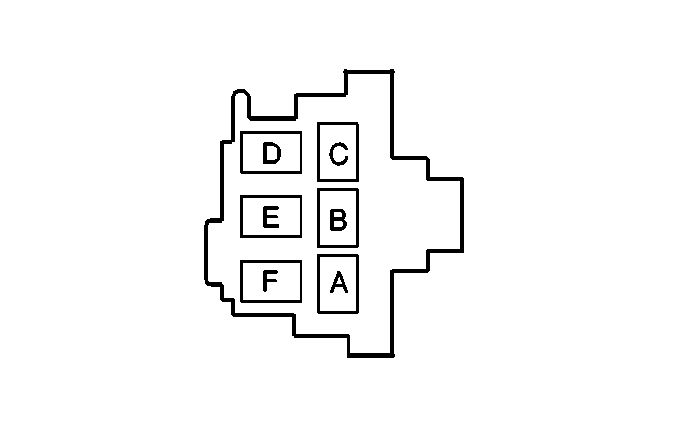

Connector Part Information |
| ||||||
Pin | Wire Color | Circuit No. | Function | ||||
A | RED | 242 | Battery Positive Voltage | ||||
B | BRN | 4 | Accessory Voltage | ||||
C | RED | 342 | Battery Positive Voltage | ||||
D | -- | -- | Not Used | ||||
E | -- | -- | Not Used | ||||
F | LT GRN | 80 | Key In Ignition Switch Signal | ||||
| |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information |
| ||||||
Pin | Wire Color | Circuit No. | Function | ||||
A | PNK | 3 | Ignition 1 Voltage | ||||
B | ORN | 300 | Ignition 3 Voltage | ||||
C | YEL | 5 | Crank Voltage | ||||
D | WHT | 1390 | Off/Run/Crank Voltage | ||||
E | -- | -- | Not Used | ||||
F | BLK | 1850 | Ground | ||||
