Antilock Brake System Schematics. Chevrolet Camaro 2001

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2001 🢒 Camaro 🢒 Brakes 🢒 Antilock Brake System 🢒 Antilock Brake System Schematics

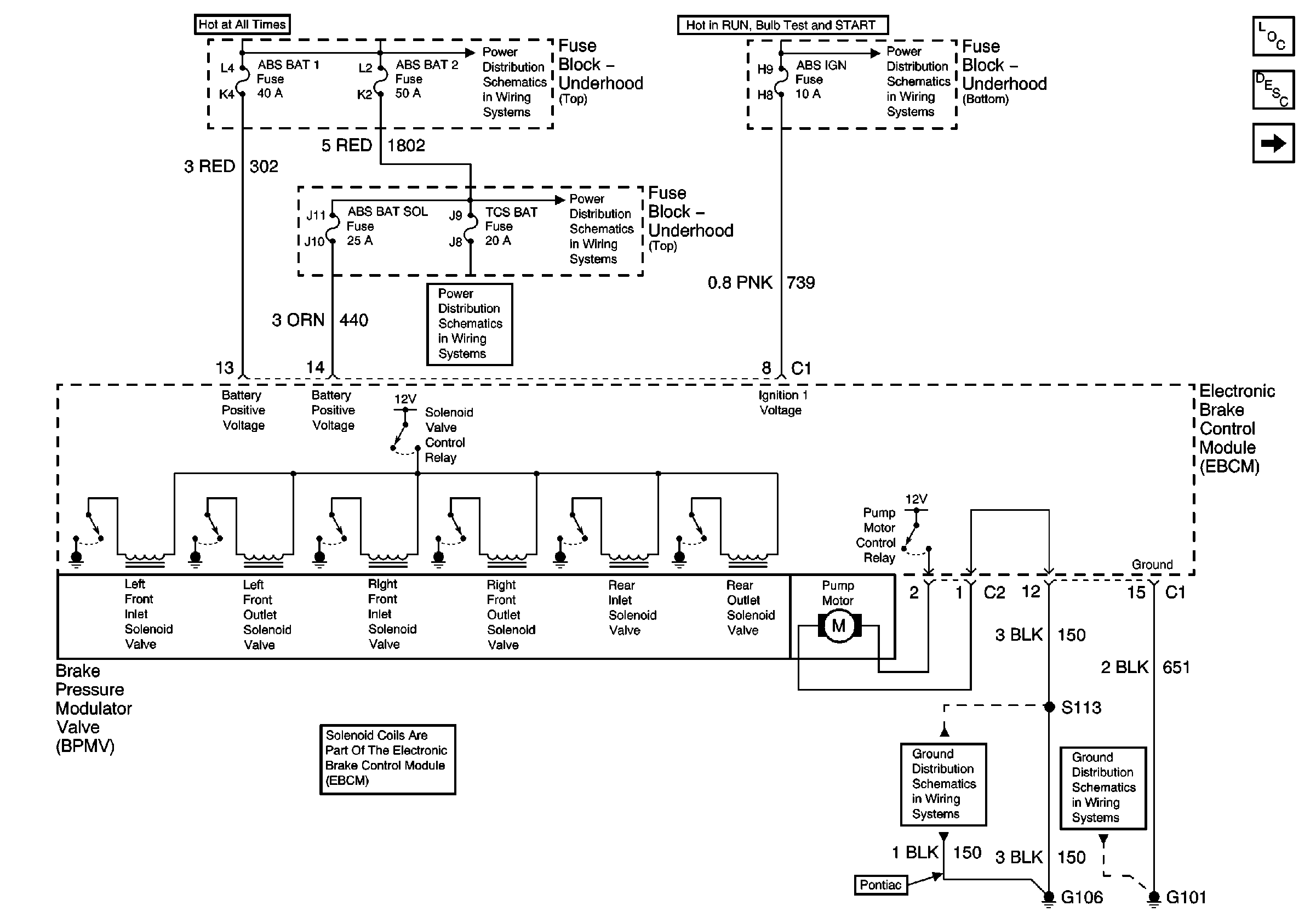

Figure 1:	Without Traction Control (1 of 3) Master Electrical Component List ABS Description and Operation Without Traction Control (2 of 3) ABS BAT SOL, ABS BAT-2, HORN, H/L DOOR-HORN, LH HDLP DR, RH HDLP DR, and TCS BAT Fuses ABS IGN, PCM IGN, and STRTR Fuses ABS BAT SOL, ABS BAT-2, HORN, H/L DOOR-HORN, LH HDLP DR, RH HDLP DR, and TCS BAT Fuses ABS BAT SOL, ABS BAT-2, HORN, H/L DOOR-HORN, LH HDLP DR, RH HDLP DR, and TCS BAT Fuses G106 G100, G101, G102, G109, G111, G202

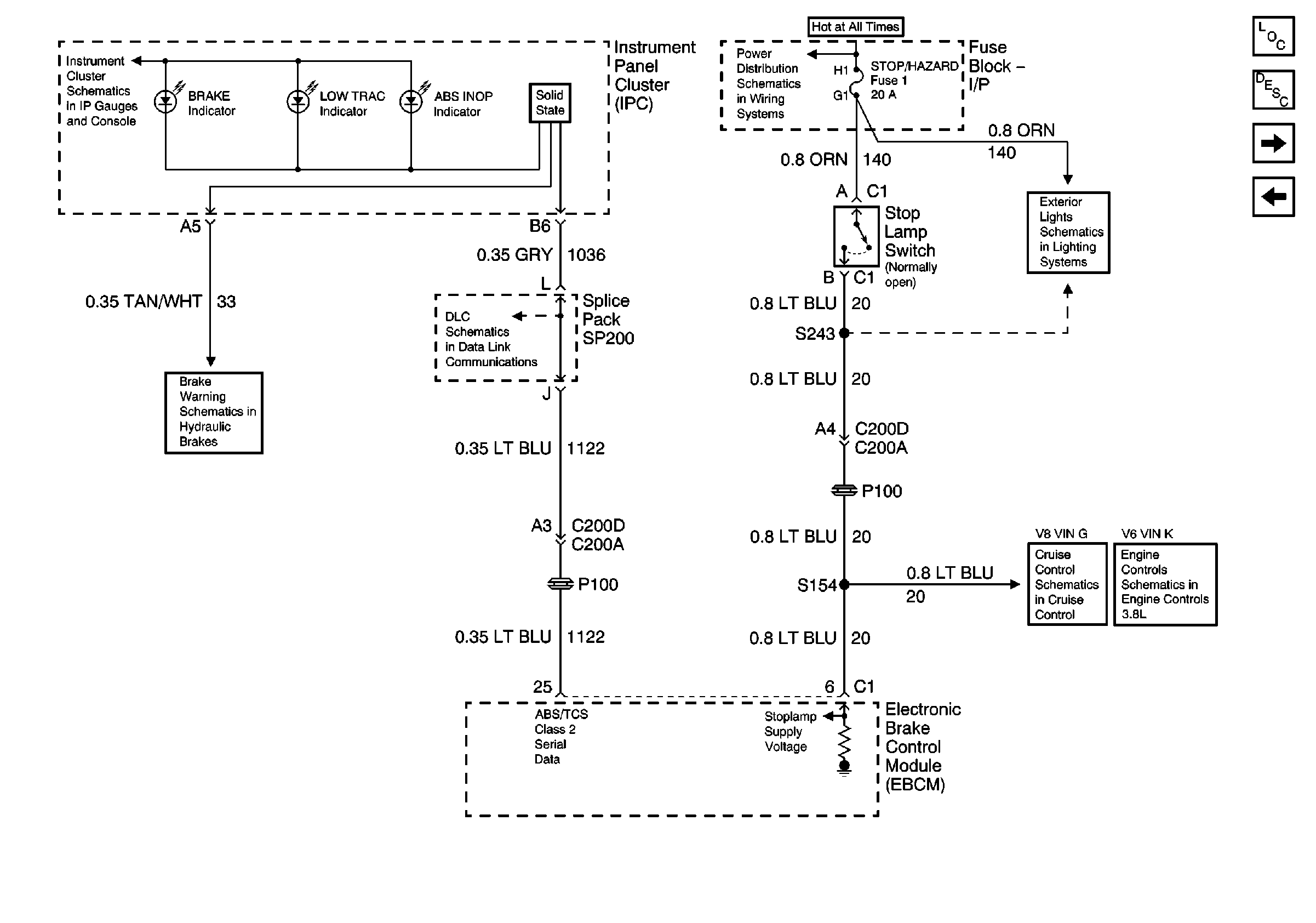

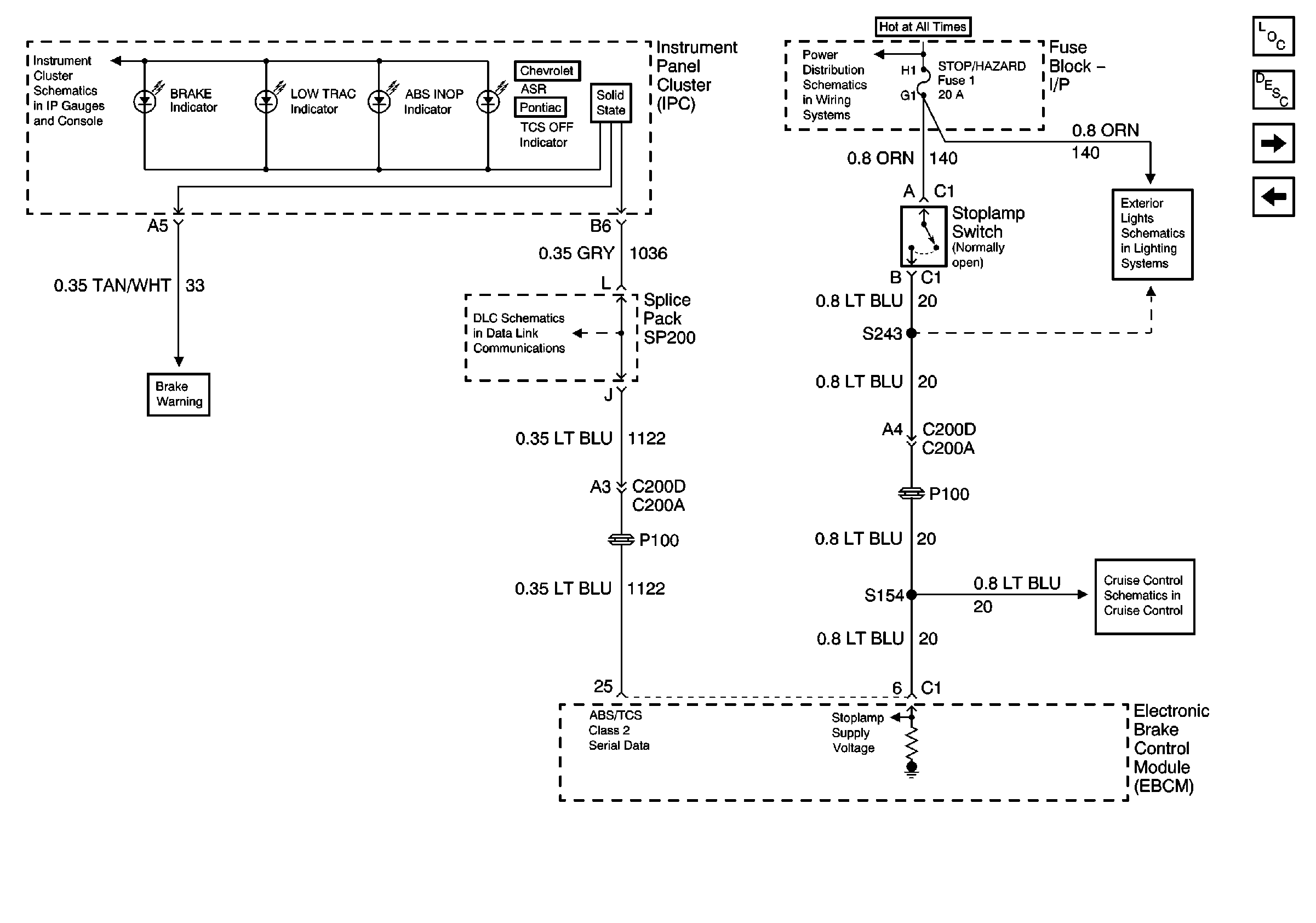

Figure 2:	Without Traction Control (2 of 3) Master Electrical Component List ABS Description and Operation Without Traction Control (3 of 3) Without Traction Control (1 of 3) Instrument Cluster Class 2 Indicators TAIL LPS and STOP/HAZARD Fuses Brake Fluid Level Sensor, Instrument Cluster and Park Brake Switch Class 2 Serial Data Line Center High Mounted Stop Lamp Cruise Control Module and Powertrain Control Module (5.7 LS1) TAC Module, Brake Switch, Cruise

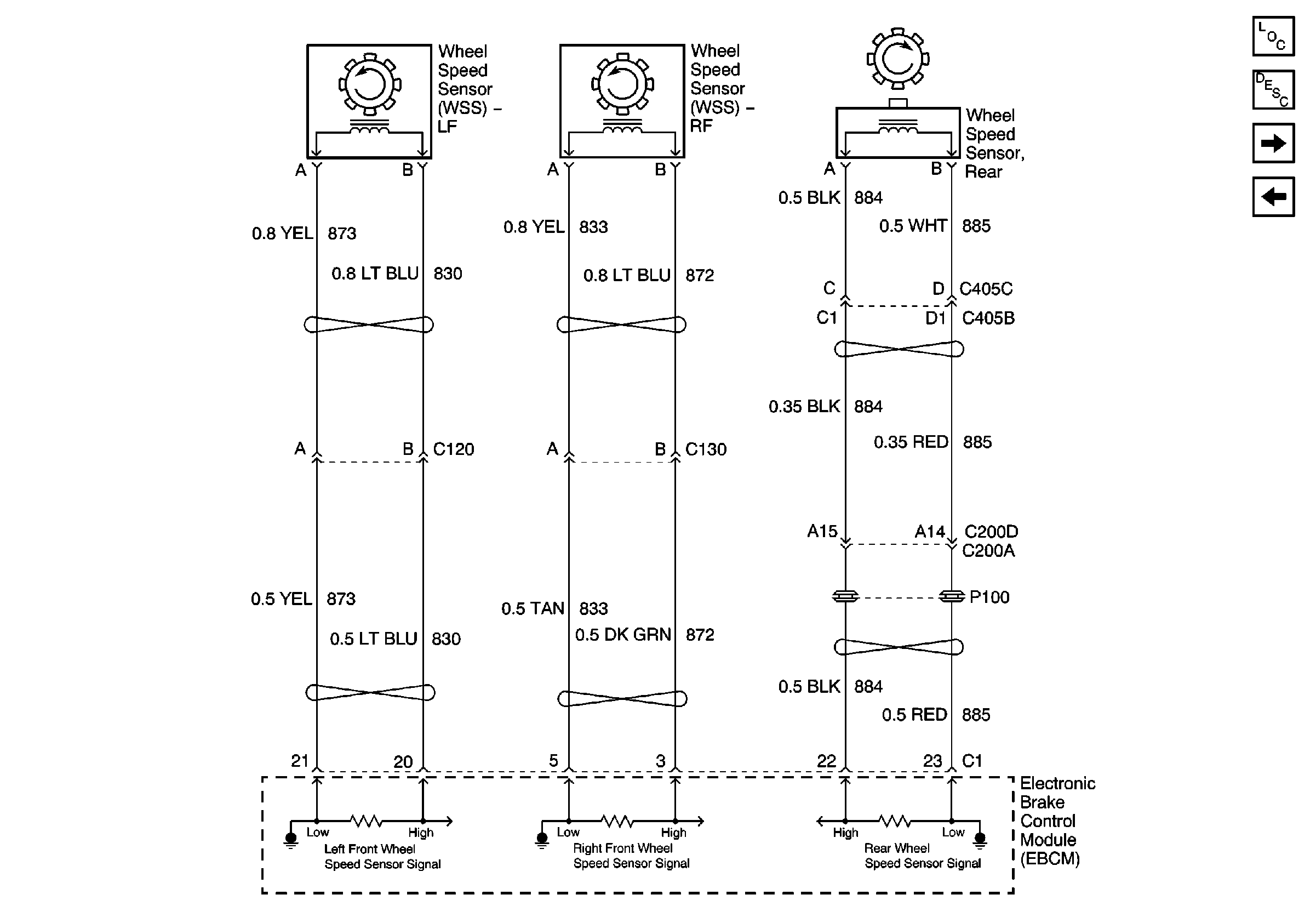

Figure 3:	Without Traction Control (3 of 3) Master Electrical Component List ABS Description and Operation 3.8L With Traction Control (1 of 4) Without Traction Control (2 of 3)

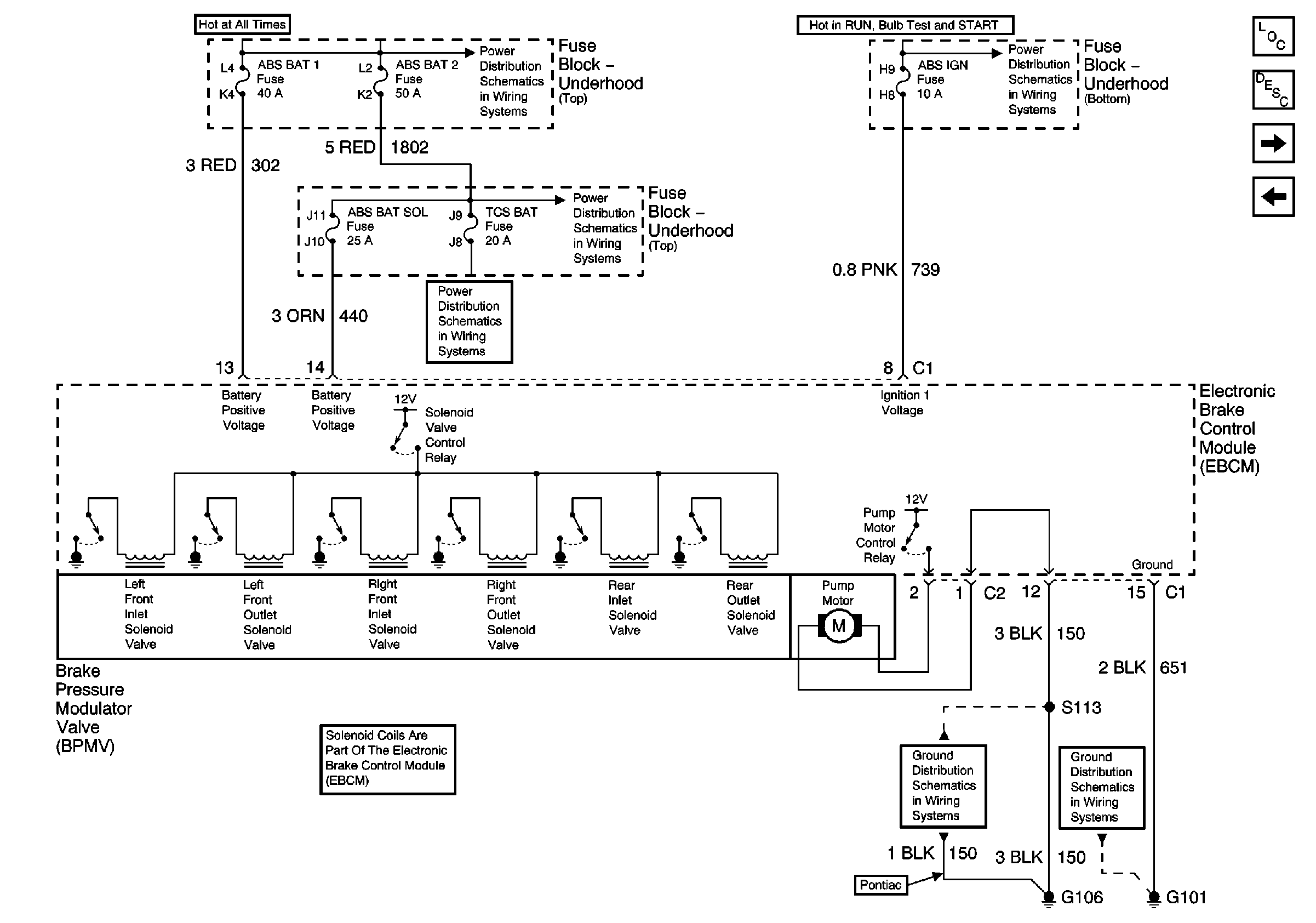

Figure 4:	3.8L With Traction Control (1 of 4) Master Electrical Component List ABS Description and Operation 3.8L With Traction Control (2 of 4) Without Traction Control (3 of 3) ABS BAT SOL, ABS BAT-2, HORN, H/L DOOR-HORN, LH HDLP DR, RH HDLP DR, and TCS BAT Fuses ABS IGN, PCM IGN, and STRTR Fuses ABS BAT SOL, ABS BAT-2, HORN, H/L DOOR-HORN, LH HDLP DR, RH HDLP DR, and TCS BAT Fuses ABS BAT SOL, ABS BAT-2, HORN, H/L DOOR-HORN, LH HDLP DR, RH HDLP DR, and TCS BAT Fuses G106 G100, G101, G102, G109, G111, G202

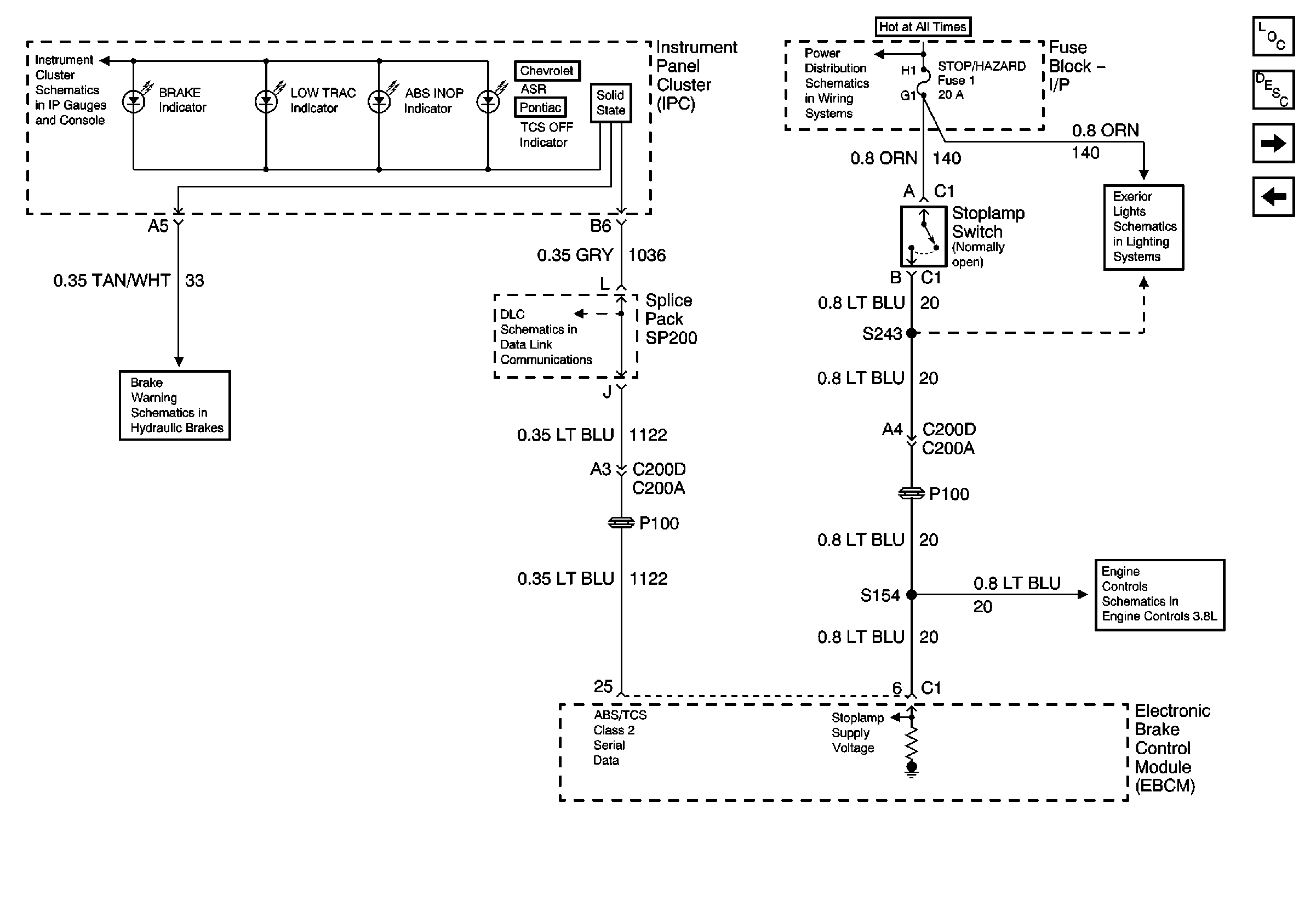

Figure 5:	3.8L With Traction Control (2 of 4) Master Electrical Component List ABS Description and Operation 3.8L With Traction Control (3 of 4) 3.8L With Traction Control (1 of 4) Brake Fluid Level Sensor, Instrument Cluster and Park Brake Switch Class 2 Serial Data Line Center High Mounted Stop Lamp TAC Module, Brake Switch, Cruise Instrument Cluster Class 2 Indicators

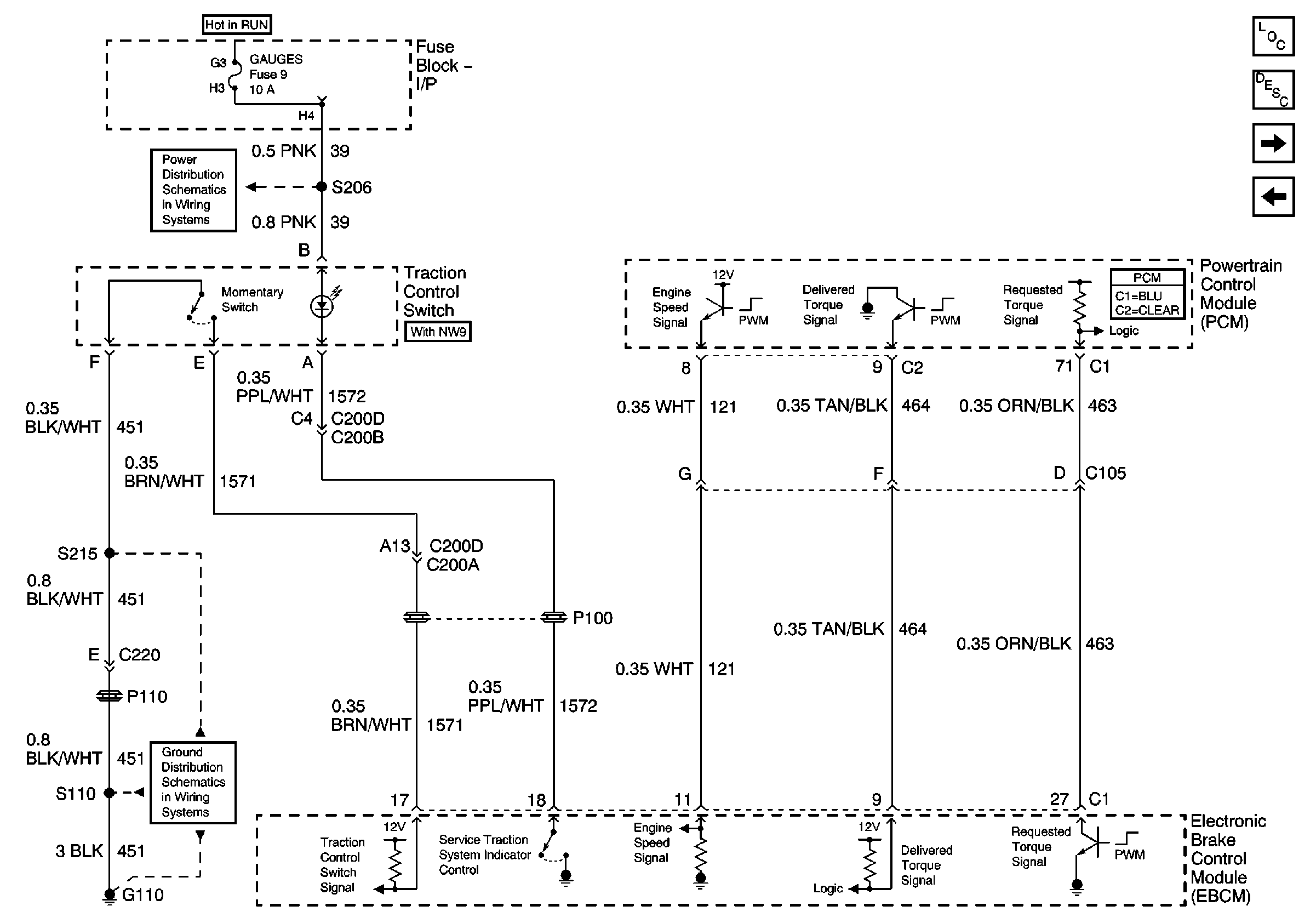

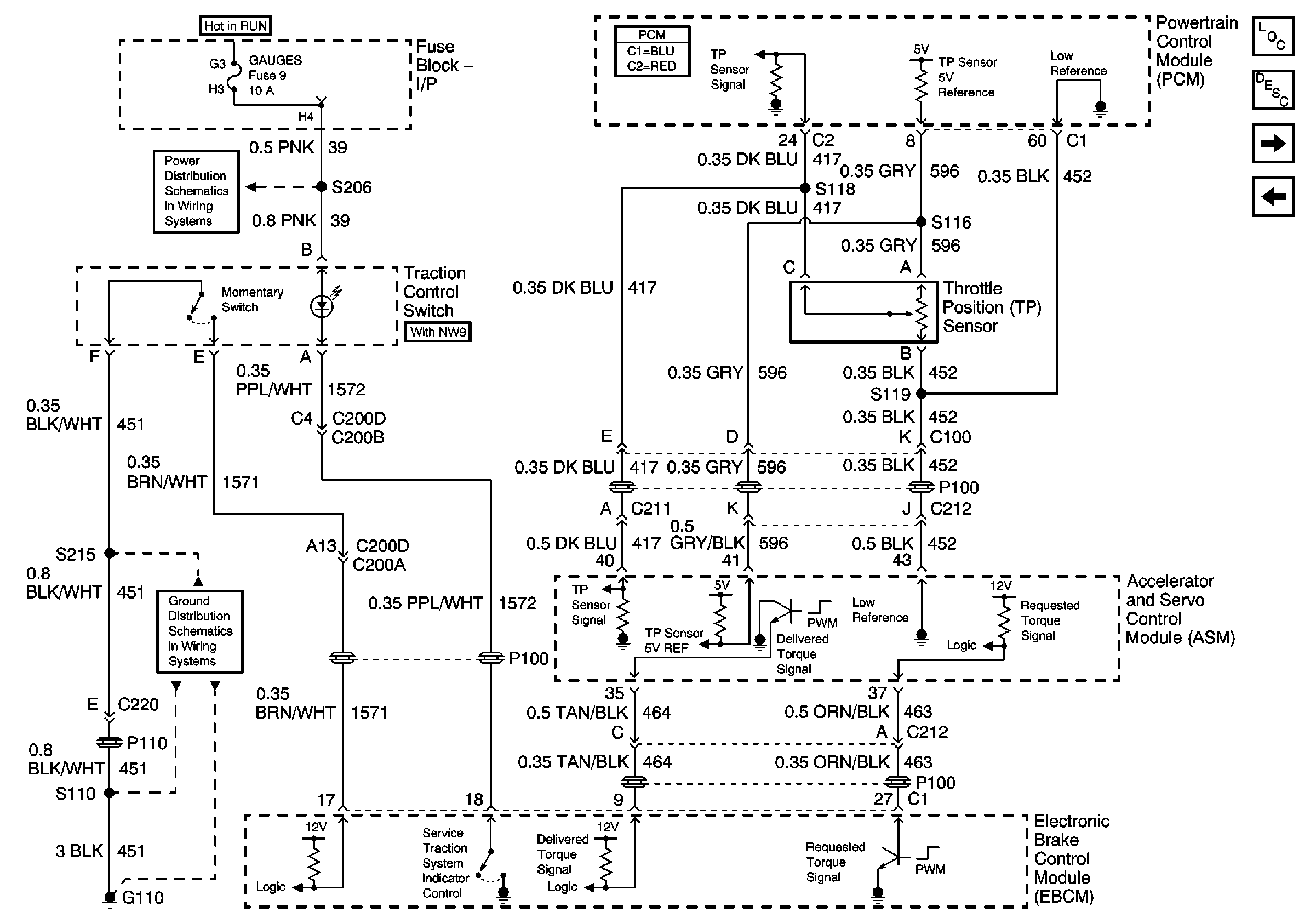

Figure 6:	3.8L With Traction Control (3 of 4) Master Electrical Component List ABS Description and Operation 3.8L With Traction Control (4 of 4) 3.8L With Traction Control (2 of 4) AIR BAG and GAUGES Fuses G110 V6 VIN K
Figure 7:	3.8L With Traction Control (4 of 4) Master Electrical Component List ABS Description and Operation 5.7L With Traction Control (1 of 5) 3.8L With Traction Control (3 of 4)

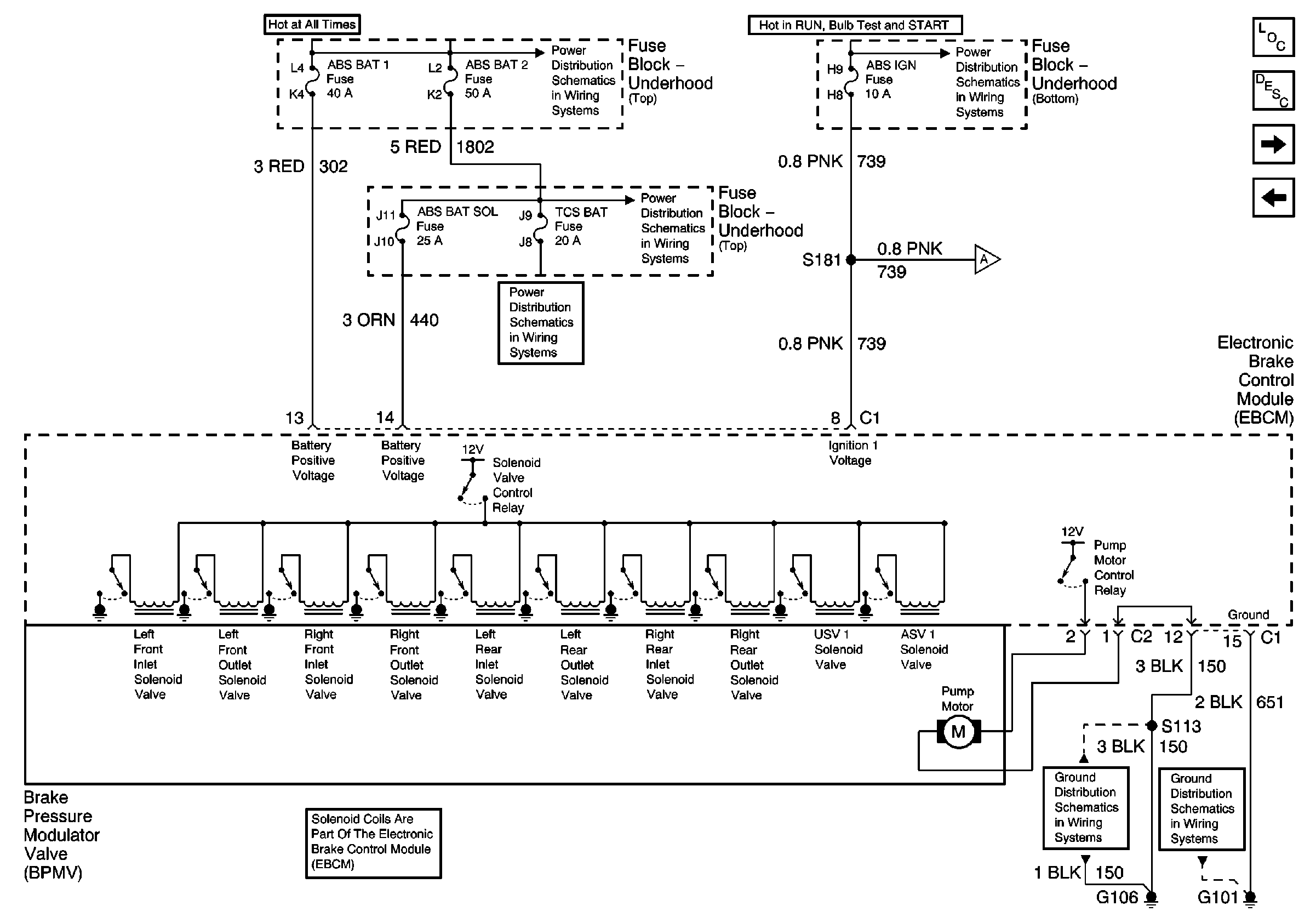

Figure 8:	5.7L With Traction Control (1 of 5) Master Electrical Component List ABS Description and Operation 5.7L With Traction Control (2 of 5) 3.8L With Traction Control (4 of 4) ABS BAT SOL, ABS BAT-2, HORN, H/L DOOR-HORN, LH HDLP DR, RH HDLP DR, and TCS BAT Fuses ABS IGN, PCM IGN, and STRTR Fuses ABS BAT SOL, ABS BAT-2, HORN, H/L DOOR-HORN, LH HDLP DR, RH HDLP DR, and TCS BAT Fuses ABS BAT SOL, ABS BAT-2, HORN, H/L DOOR-HORN, LH HDLP DR, RH HDLP DR, and TCS BAT Fuses 5.7L With Traction Control (3 of 5) G106 G100, G101, G102, G109, G111, G202
Figure 9:	5.7L With Traction Control (2 of 5) Master Electrical Component List ABS Description and Operation 5.7L With Traction Control (3 of 5) 5.7L With Traction Control (1 of 5) Brake Fluid Level Sensor, Instrument Cluster and Park Brake Switch Class 2 Serial Data Line Center High Mounted Stop Lamp Cruise Control Module and Powertrain Control Module (5.7 LS1) Instrument Cluster Class 2 Indicators TAIL LPS and STOP/HAZARD Fuses

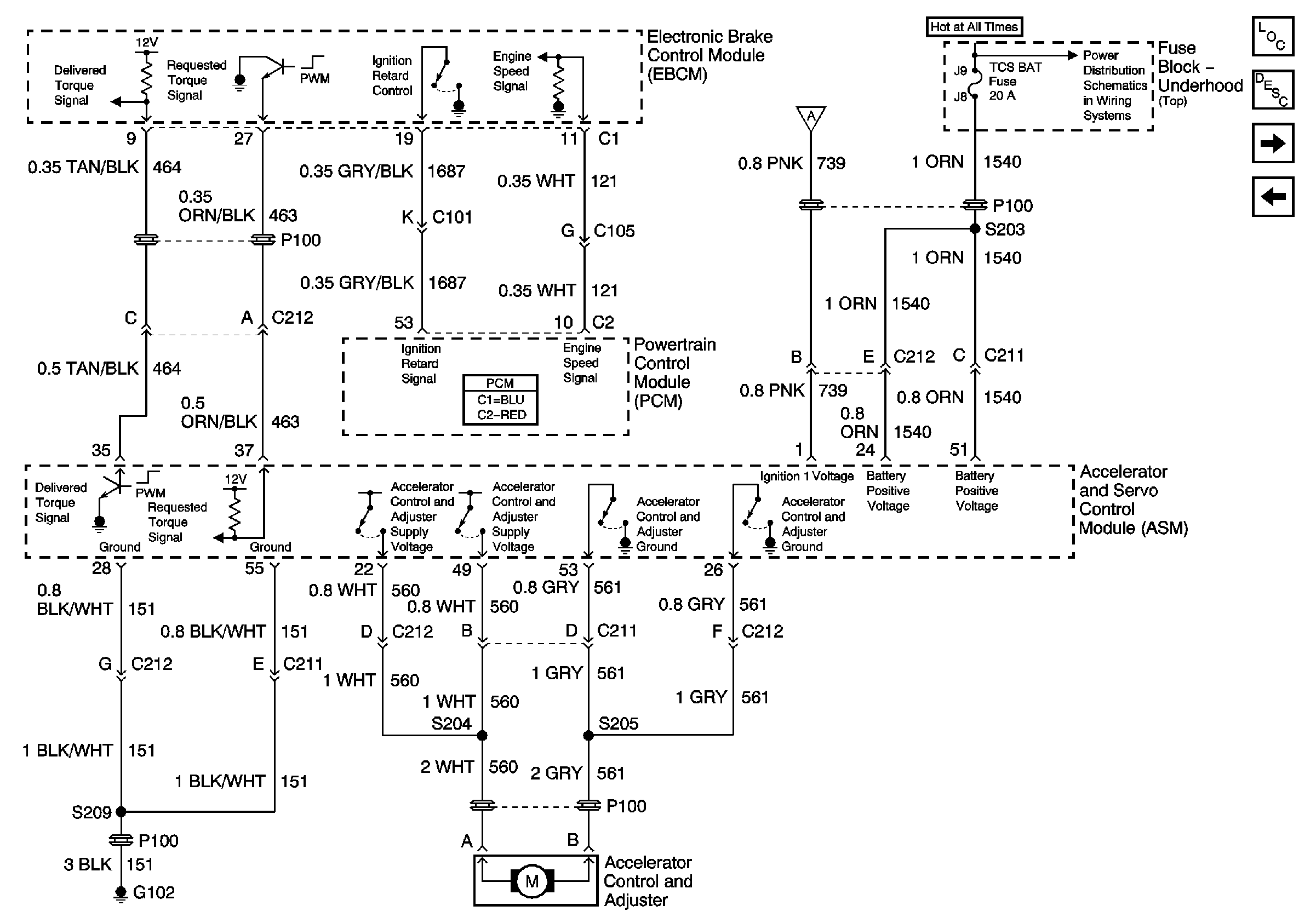

Figure 10:	5.7L With Traction Control (3 of 5) Master Electrical Component List ABS Description and Operation 5.7L With Traction Control (4 of 5) 5.7L With Traction Control (2 of 5) ABS BAT SOL, ABS BAT-2, HORN, H/L DOOR-HORN, LH HDLP DR, RH HDLP DR, and TCS BAT Fuses 5.7L With Traction Control (1 of 5)
Figure 11:	5.7L With Traction Control (4 of 5) Master Electrical Component List ABS Description and Operation 5.7L With Traction Control (3 of 5) 5.7L With Traction Control (5 of 5) AIR BAG and GAUGES Fuses G110 V8 VIN G

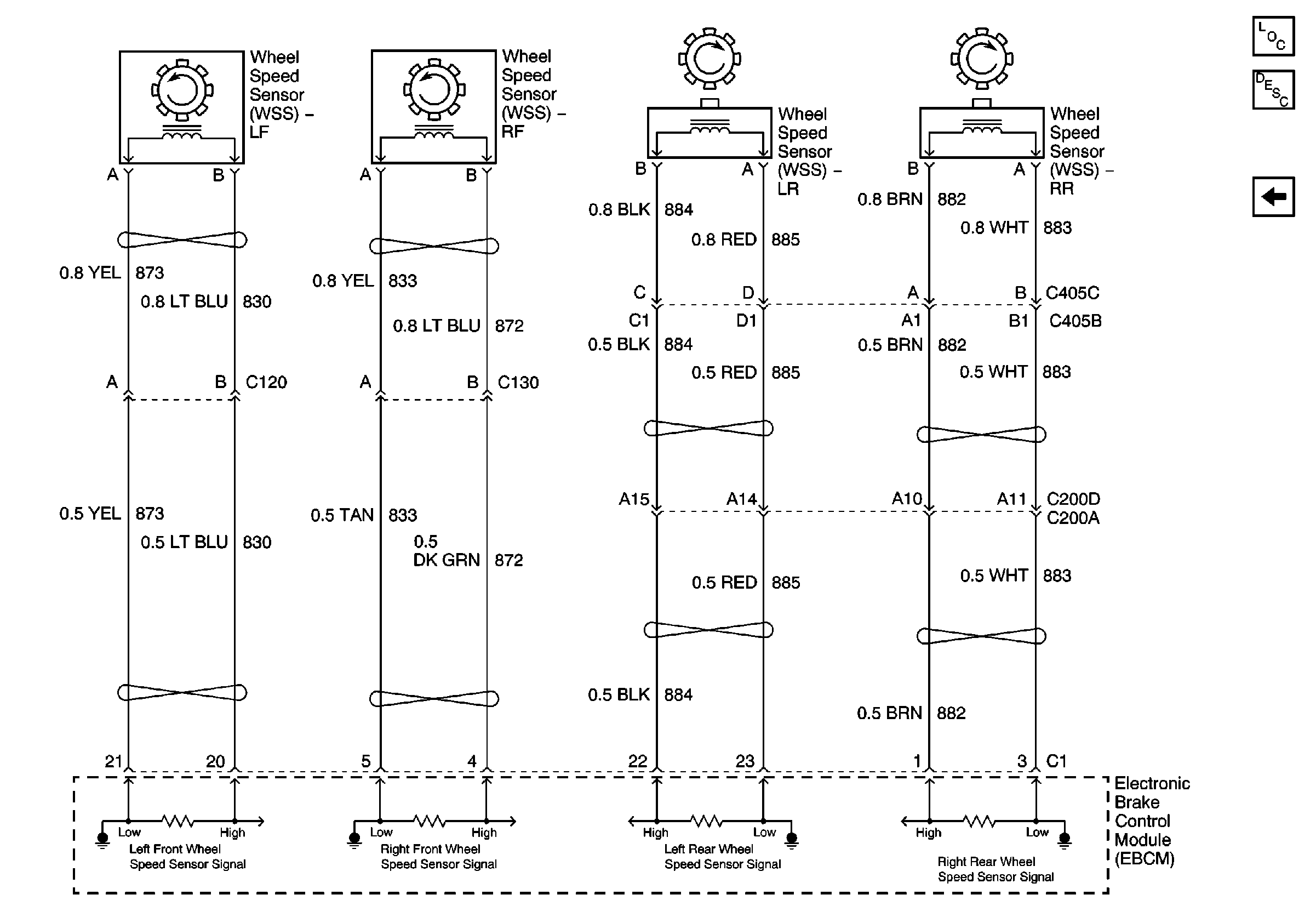

Figure 12:	5.7L With Traction Control (5 of 5) Master Electrical Component List ABS Description and Operation 5.7L With Traction Control (4 of 5)
