Removal Procedure

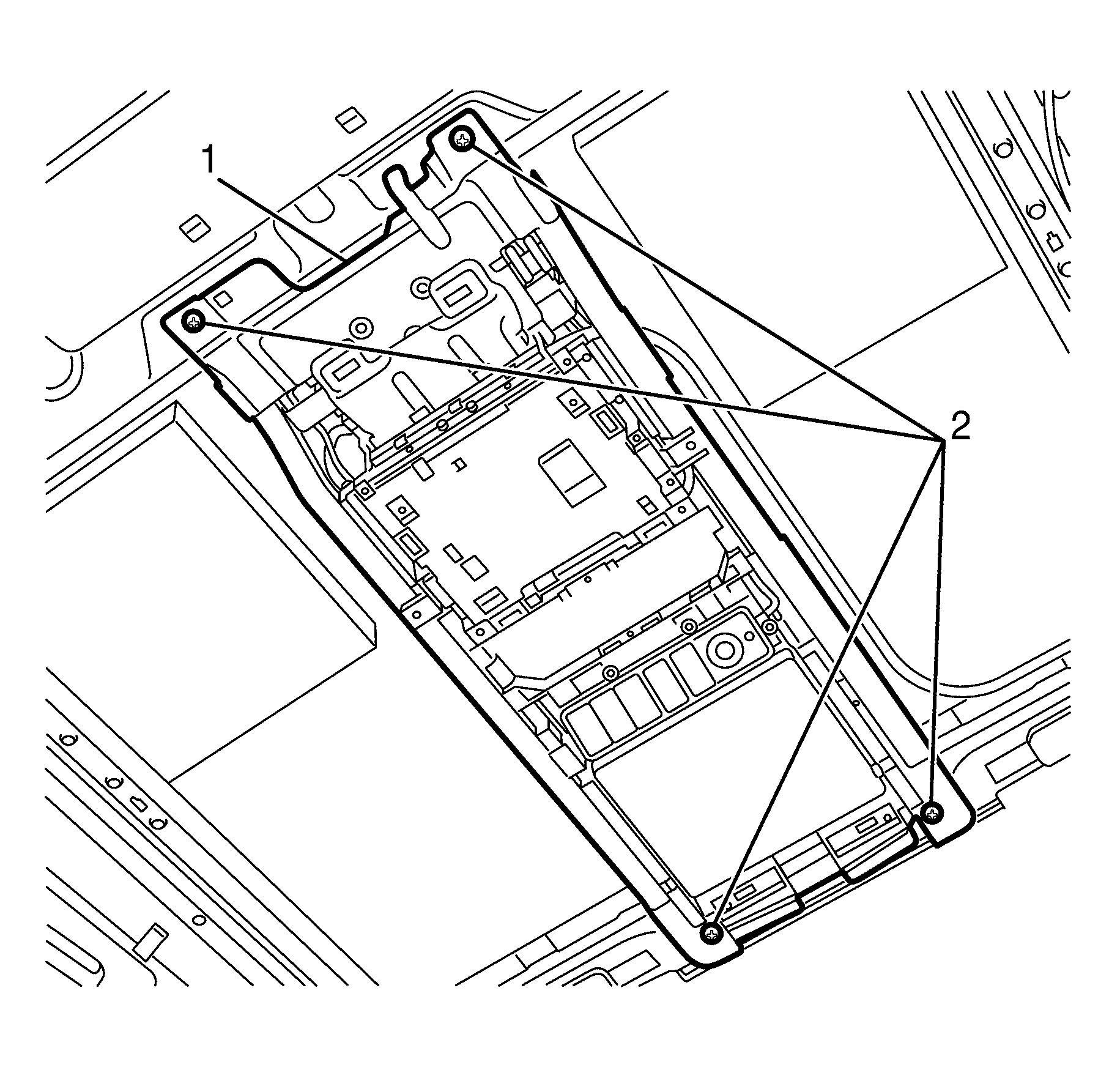

    Object Number: 1957848 Size: SH
  1. Remove the headlining trim assembly. Refer to Headlining Trim Panel Replacement.
  2. Remove the rear seat entertainment assembly to roof panel screws (2).
  3. Carefully lower the front of the rear seat entertainment assembly (1) from the roof panel followed by the rear.
  4. Disconnect the connector from the rear seat entertainment assembly
  5. Remove the rear seat entertainment assembly (1) from the roof panel.

Installation Procedure

    Object Number: 1957848 Size: SH
  1. Connect the rear seat entertainment assembly electrical connector.
  2. Install the rear seat entertainment assembly (1) to the roof panel.

    3. Notice: Refer to Fastener Notice in the Preface section.

  3. Install the rear seat entertainment assembly to roof panel retaining screws (2).

    4. Tighten
    Tighten the screws to 1 N·m (9 lb in).

  4. Install the headlining trim assembly. Refer to Headlining Trim Panel Replacement.
