Driver Seat Schematics. Chevrolet Caprice WM 2007

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2007 🢒 Caprice WM 🢒 Seats 🢒 Power Seats 🢒 Driver Seat Schematics

Driver Seat Schematics LWB

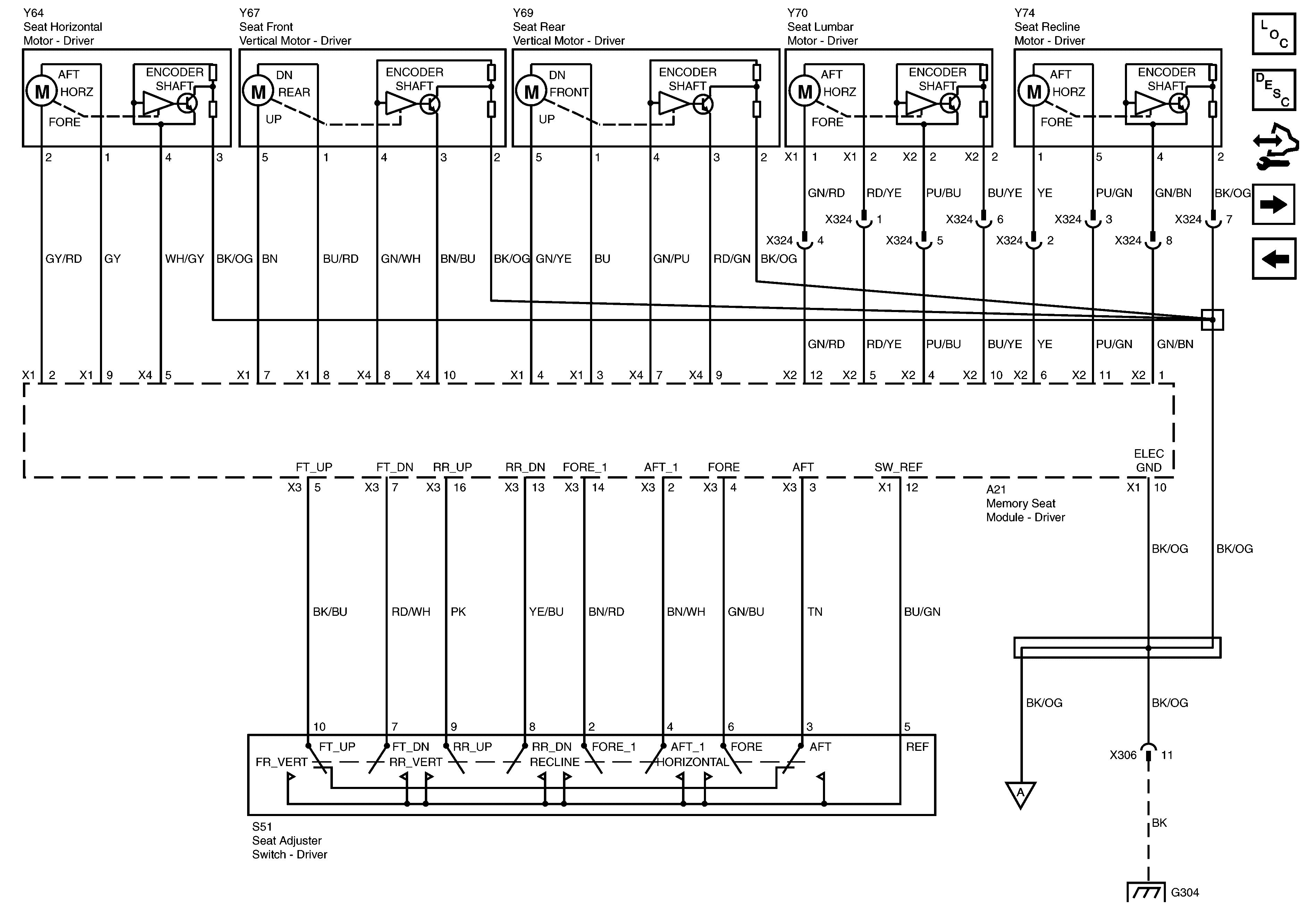

Figure 1:	Memory Seat Module, Seat Interface Module, Lumbar Switch and Memory Seat Adjuster Switch, Inputs and Outputs Master Electrical Component List Power Seats System Description and Operation Control Module References Memory Seat Module, Seat Adjuster Switch and Seat Motors, Inputs and Outputs Memory Seat Module, Seat Adjuster Switch and Seat Motors, Inputs and Outputs G303 and G304 - 1 of 2 Pin Allocation Mirror Switch and Motors

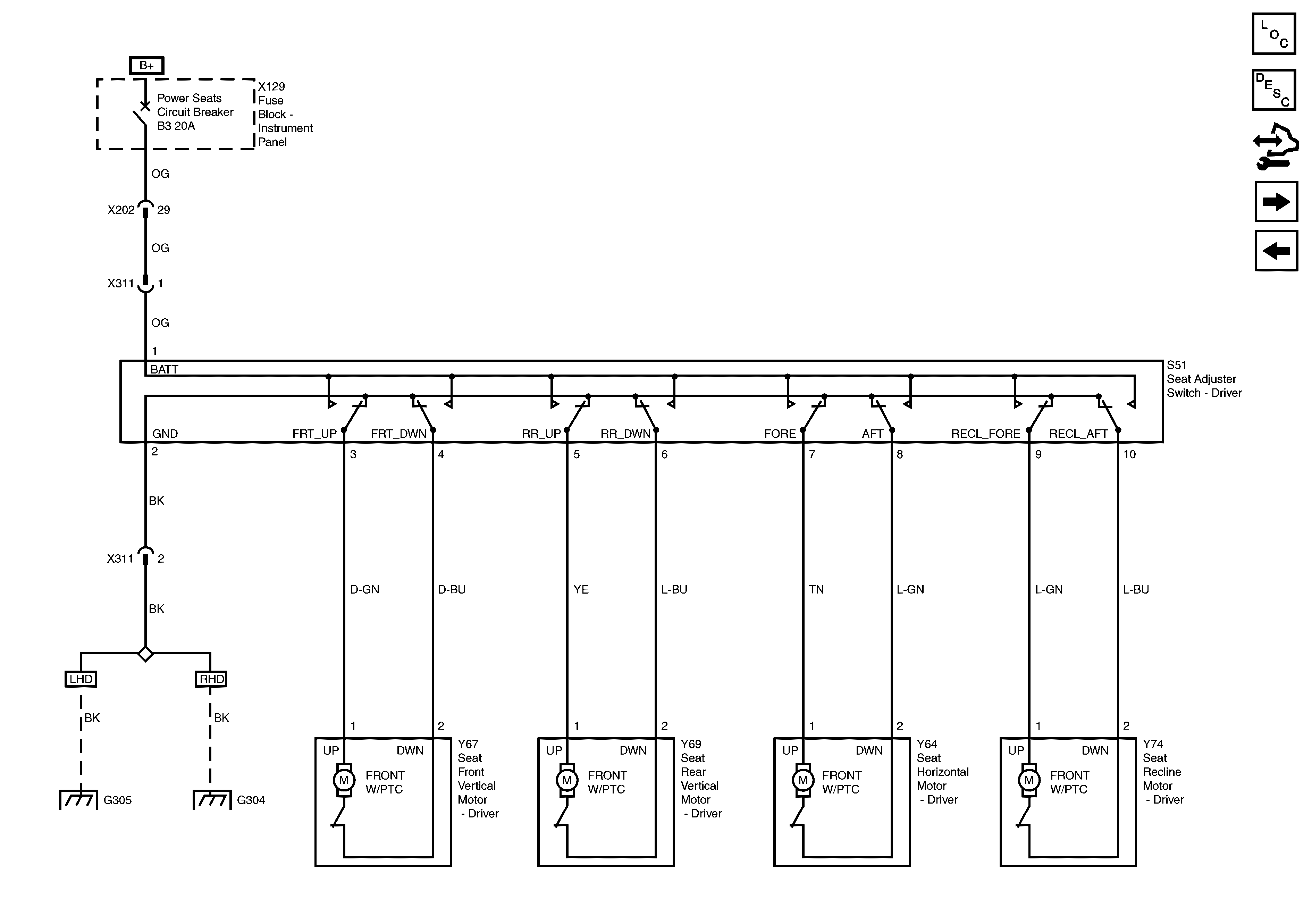

Figure 2:	Memory Seat Module, Seat Adjuster Switch and Seat Motors, Inputs and Outputs Master Electrical Component List Power Seats System Description and Operation Control Module References Memory Seat Module, Seat Interface Module, Lumbar Switch and Memory Seat Adjuster Switch, Inputs and Outputs G303 and G304 - 1 of 2

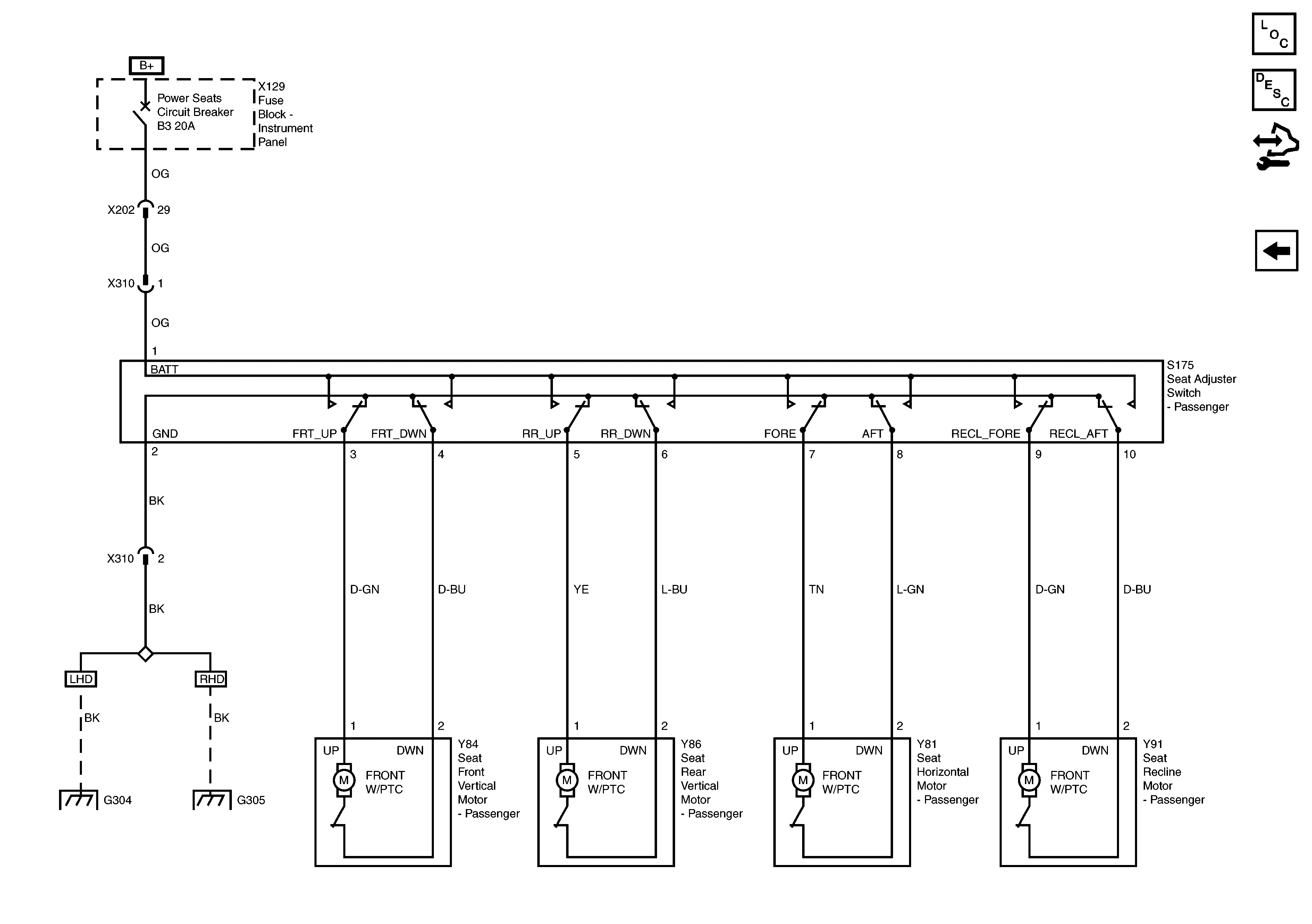

Figure 3:	Seat Adjuster Switch and Seat Motors Inputs and Outputs Master Electrical Component List Power Seats System Description and Operation Control Module References G303 and G304 - 1 of 2 G303 and G304 - 2 of 2 and G305 - 1 of 2
