HVAC Schematics. Chevrolet Caprice WM 2007

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2007 🢒 Caprice WM 🢒 HVAC 🢒 HVAC - Manual 🢒 HVAC Schematics

HVAC Schematics RHD

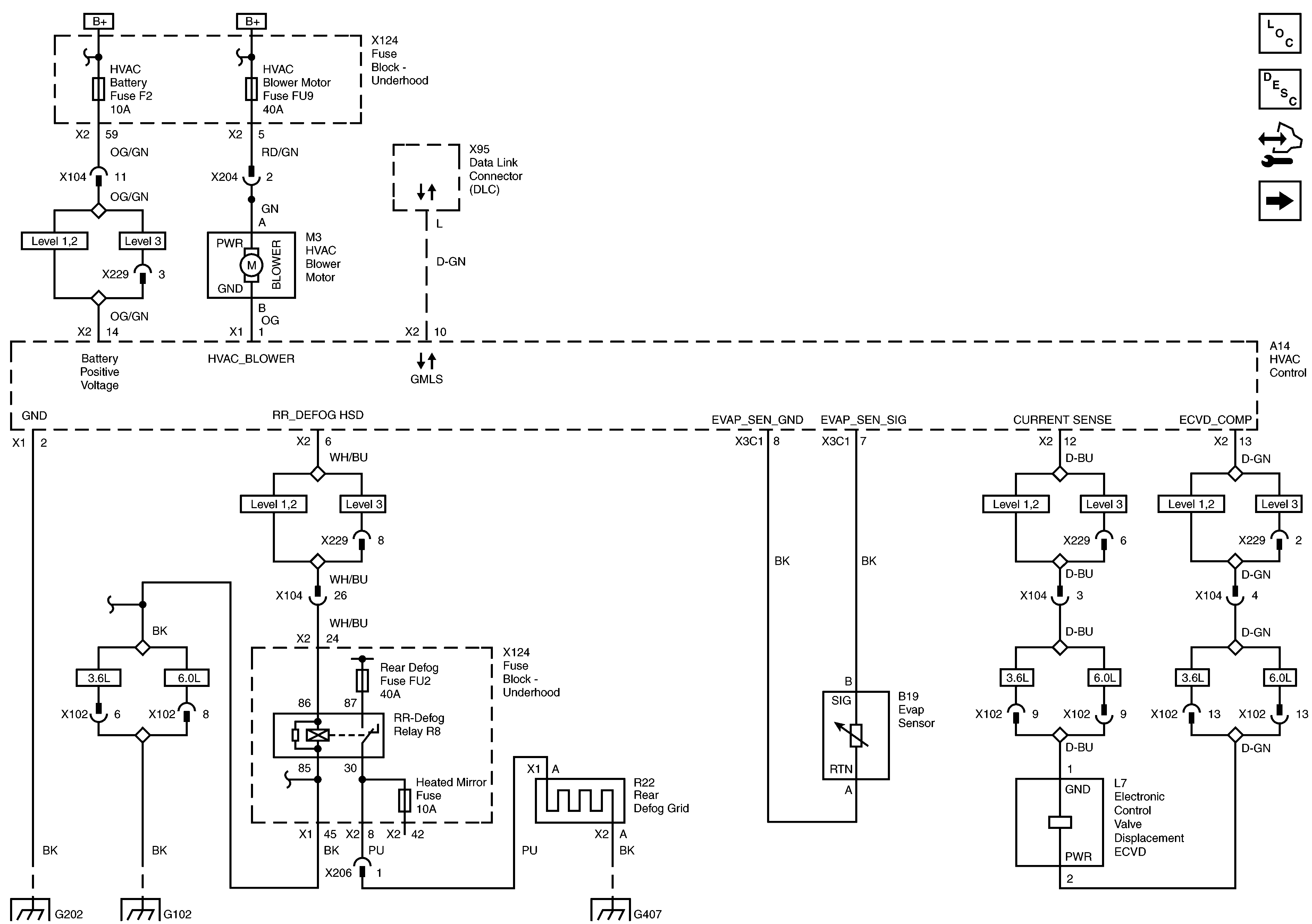

Figure 1:	HVAC Module, Power, Ground, Serial Data, Inputs and Outputs Master Electrical Component List Air Delivery Description and Operation SWB Control Module References HVAC Actuators G101 and G102 G305 - 2 of 2, G308 and G407 G202

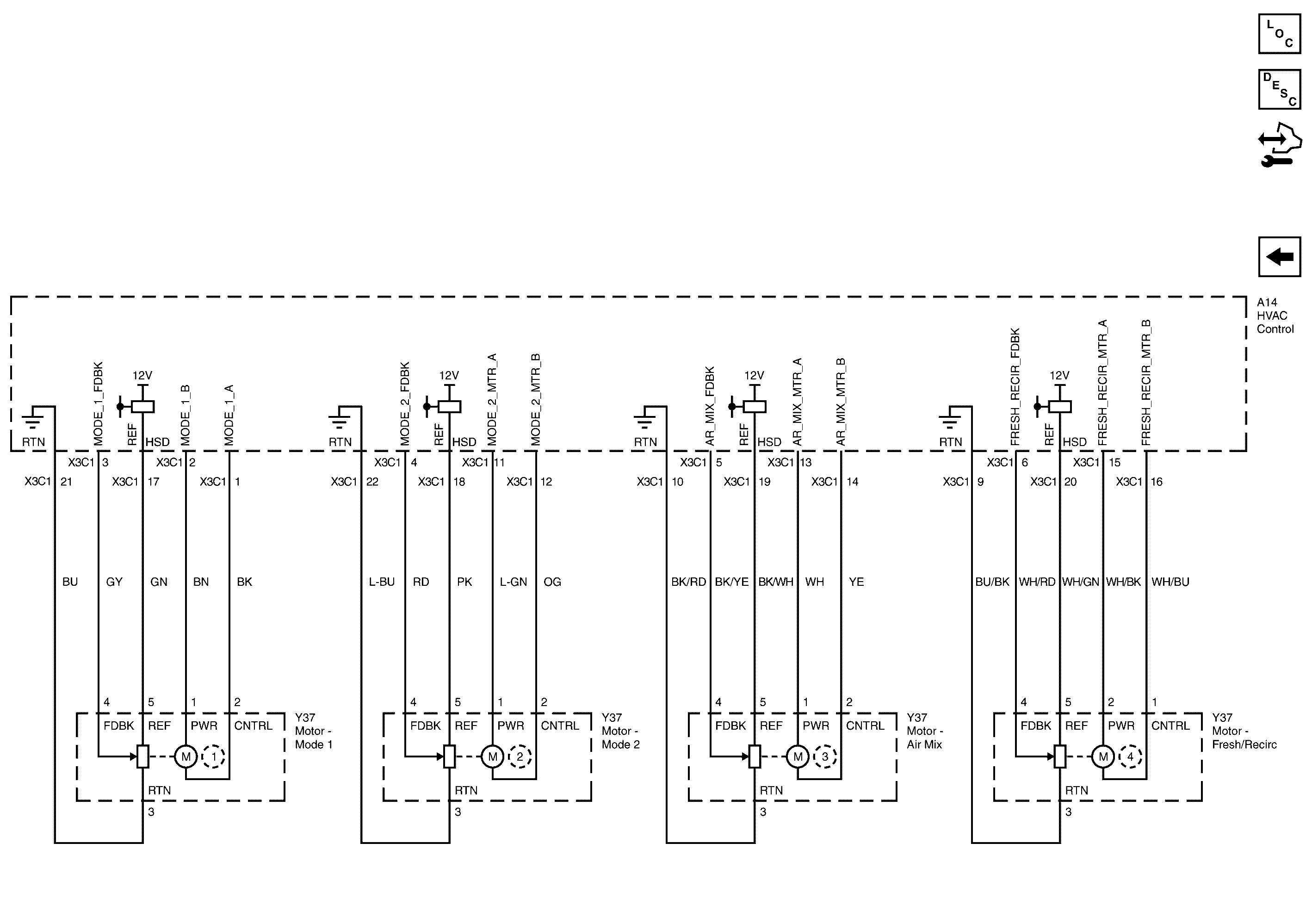

Figure 2:	HVAC Actuators Master Electrical Component List Air Delivery Description and Operation SWB Control Module References HVAC Module, Power, Ground, Serial Data, Inputs and Outputs

HVAC Schematics LHD

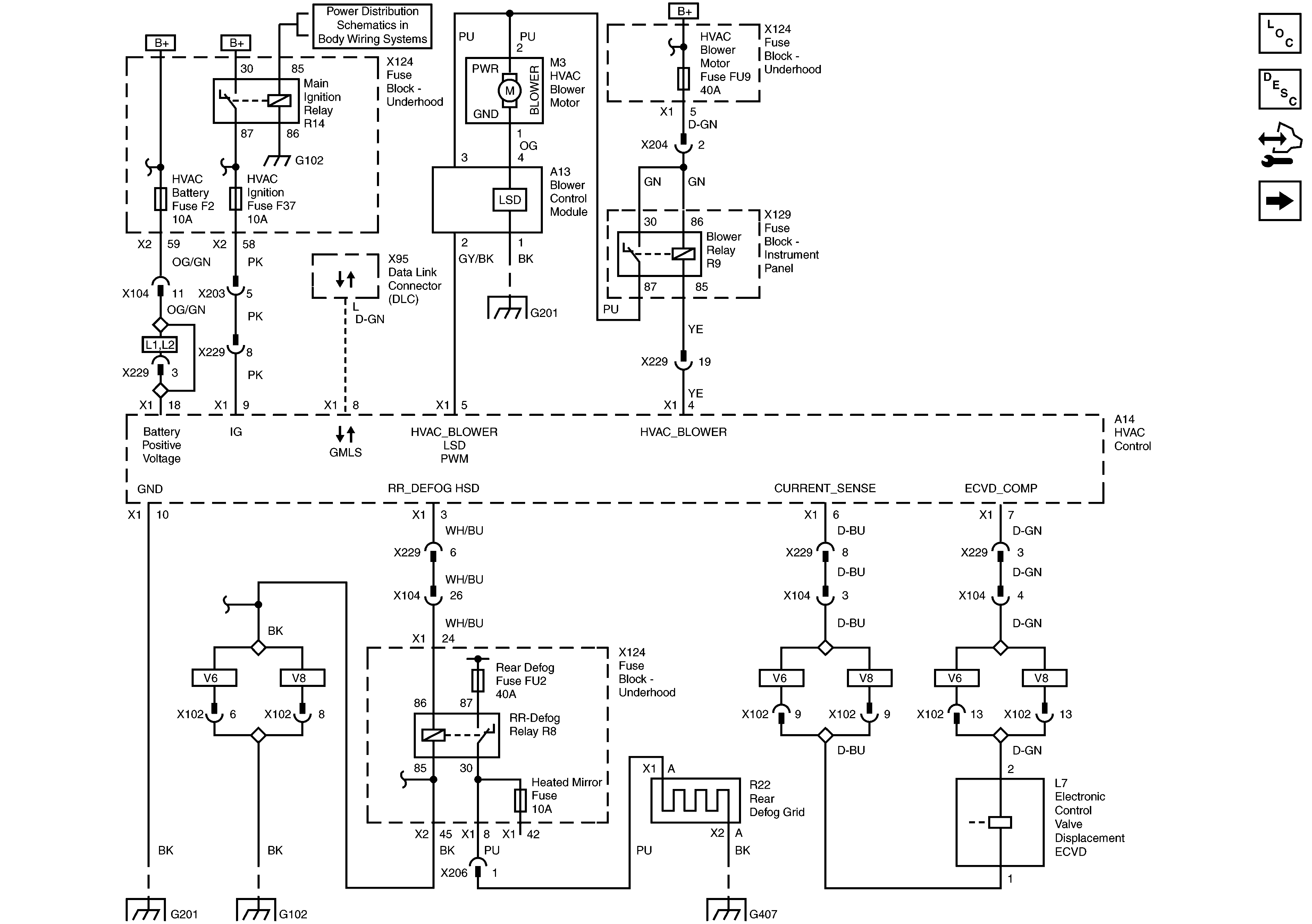

Figure 1:	HVAC Module, Power, Ground, Serial Data, Inputs and Outputs Master Electrical Component List Air Delivery Description and Operation SWB Control Module References Outside Air Temperature Sensor and HVAC Actuators G101 and G102 G305 - 2 of 2, G308 and G407 G202

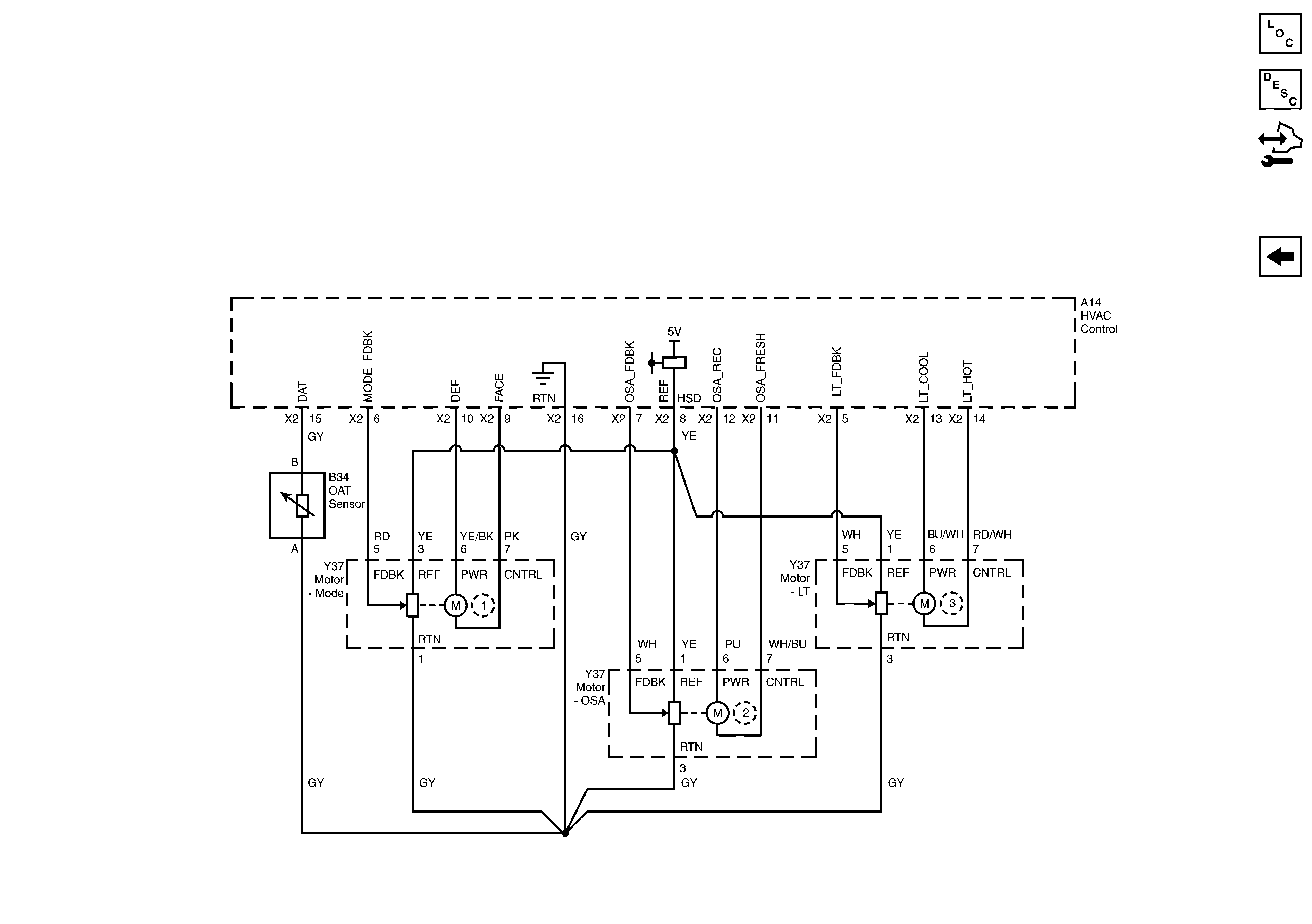

Figure 2:	Outside Air Temperature Sensor and HVAC Actuators Master Electrical Component List Air Delivery Description and Operation SWB Control Module References HVAC Module, Power, Ground, Serial Data, Inputs and Outputs
