Power Seat Component Views. Chevrolet Caprice WM 2008

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2008 🢒 Caprice WM 🢒 Power and Signal Distribution 🢒 Wiring Systems and Power Management 🢒 Power Seat Component Views

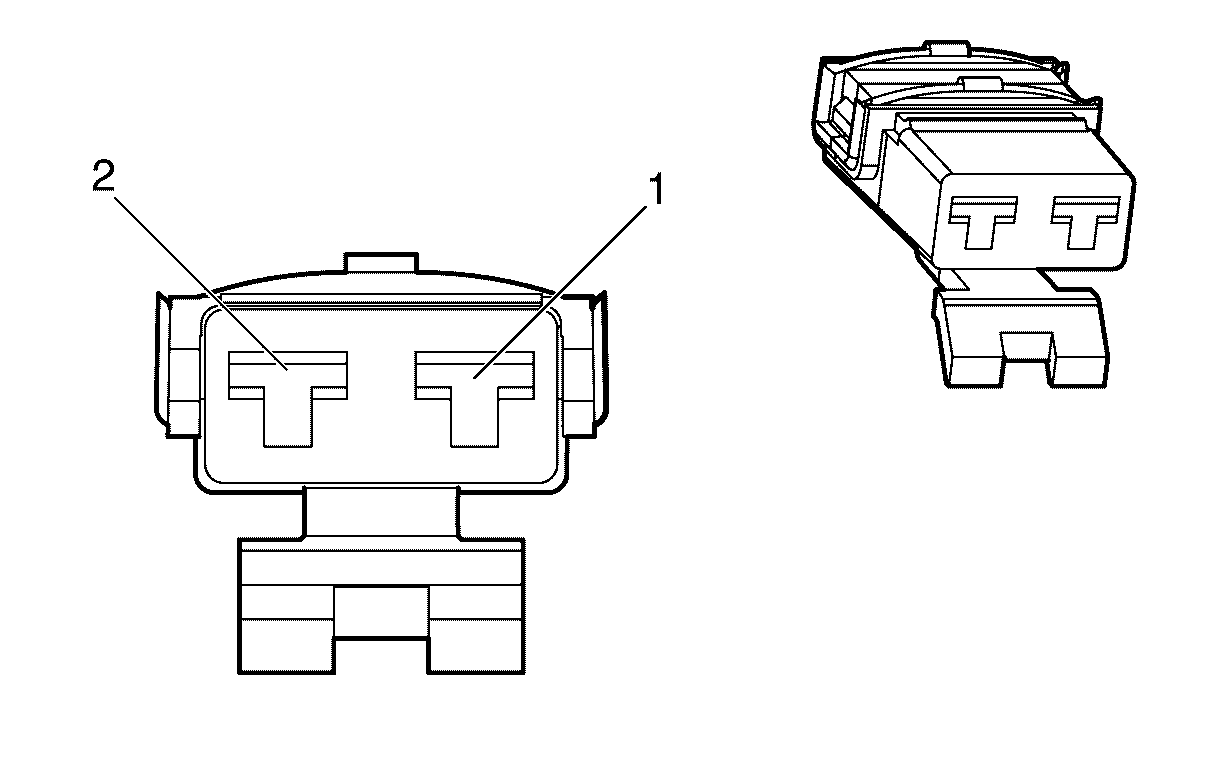

Power Seat Component Views LWBRHD

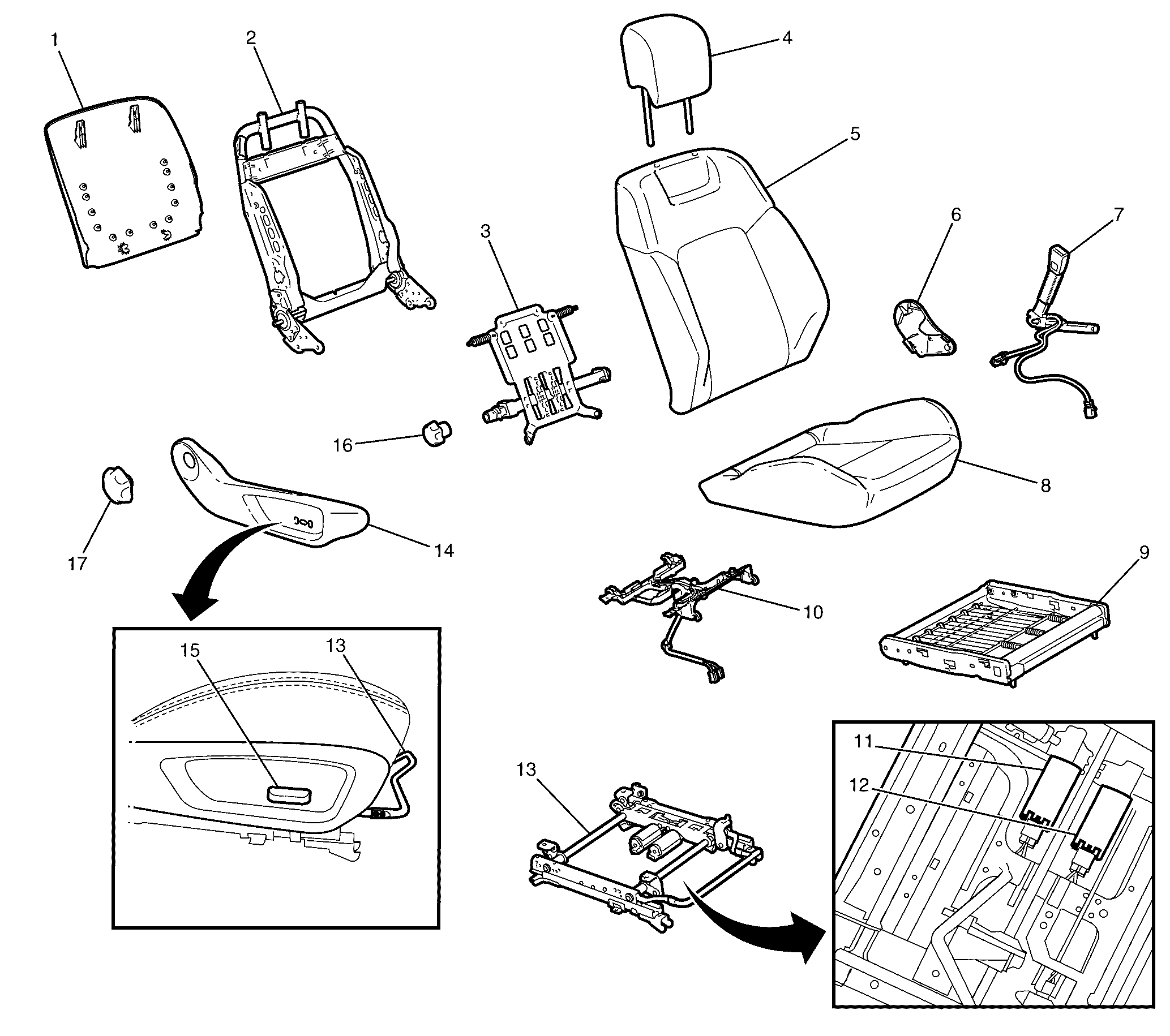

Figure 1:


(1)	Seat Back Trim
(2)	Seat Back Frame
(3)	Lumber Adjuster Support
(4)	Head Restraint
(5)	Front Seat Back Cover and Pad
(6)	Front Seat Cushion Inner Trim Panel
(7)	Seat Buckle and Pretensioner
(8)	Front Seat Cushion Pad
(9)	Front Seat Cushion Pad Frame
(10)	Front Seat Cable Tray
(11)	Seat Adjuster Motor - Front Vertical
(12)	Seat Adjuster Motor - Rear Vertical
(13)	Seat Adjuster Motor - Horizontal
(14)	Front Seat Adjuster
(15)	Seat Cushion Outer Trim Panel
(16)	Front Seat Switch-Up/Down/Horizontal/Tilt Forwards/Tilt Backwards
(17)	Lumbar Support Knob
(18)	Recliner Adjusting Knob

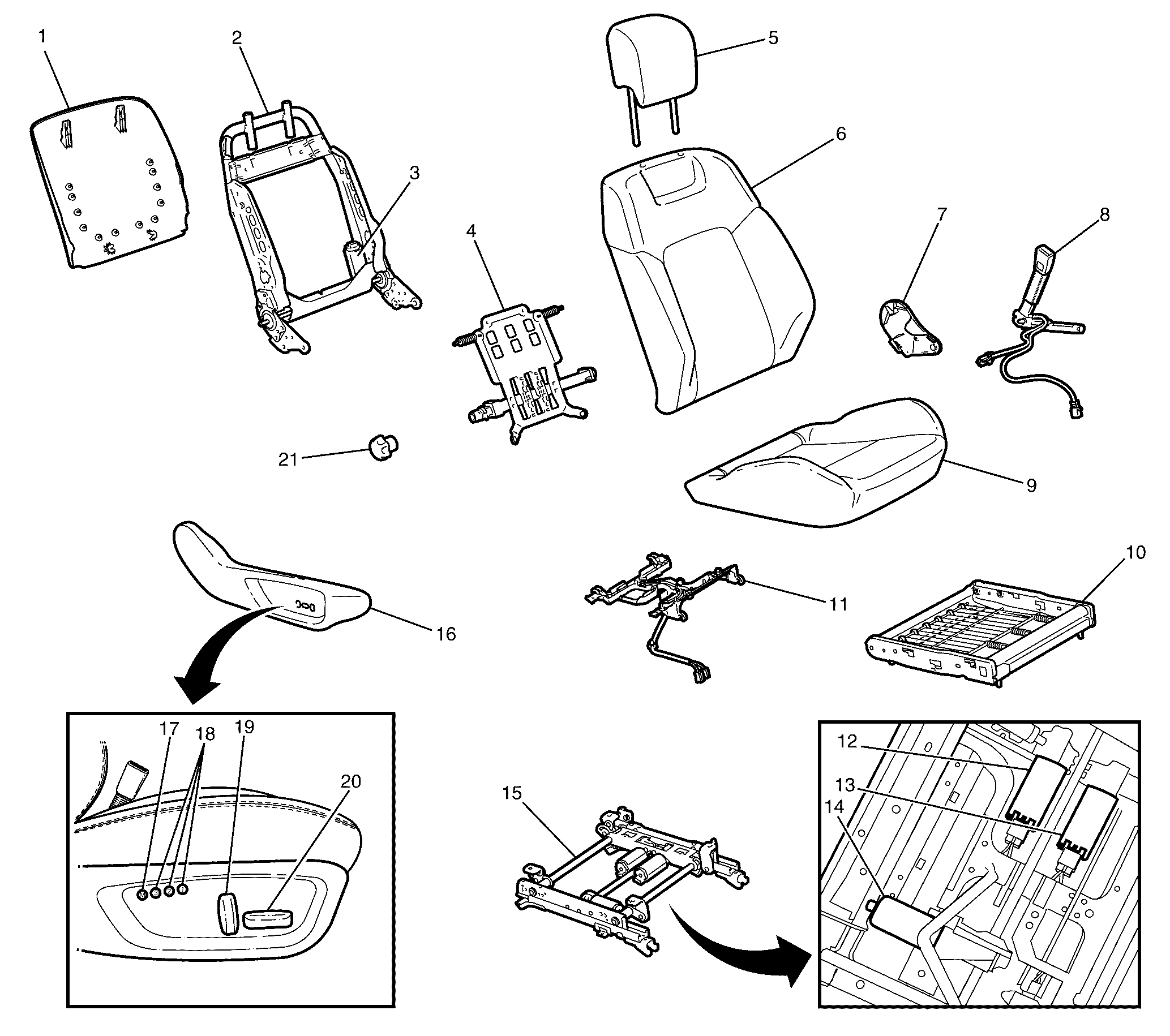

Figure 2:


(1)	Seat Back Trim
(2)	Seat Back Frame
(3)	Seat Adjuster Motor - Recliner
(4)	Lumber Adjuster Support
(5)	Head Restraint
(6)	Front Seat Back Cover and Pad
(7)	Front Seat Cushion Inner Trim Panel
(8)	Seat Buckle and Pretensioner
(9)	Front Seat Cushion Pad
(10)	Front Seat Cushion Pad Frame
(11)	Front Seat Cable Tray
(12)	Seat Adjuster Motor - Front Vertical
(13)	Seat Adjuster Motor - Rear Vertical
(14)	Seat Adjuster Motor - Horizontal
(15)	Front Seat Adjuster
(16)	Seat Cushion Outer Trim Panel
(17)	Front Seat Switch - Recliner
(18)	Front Seat Switch-Up/Down/Horizontal/Tilt Forwards/Tilt Backwards
(19)	Lumbar Support Knob

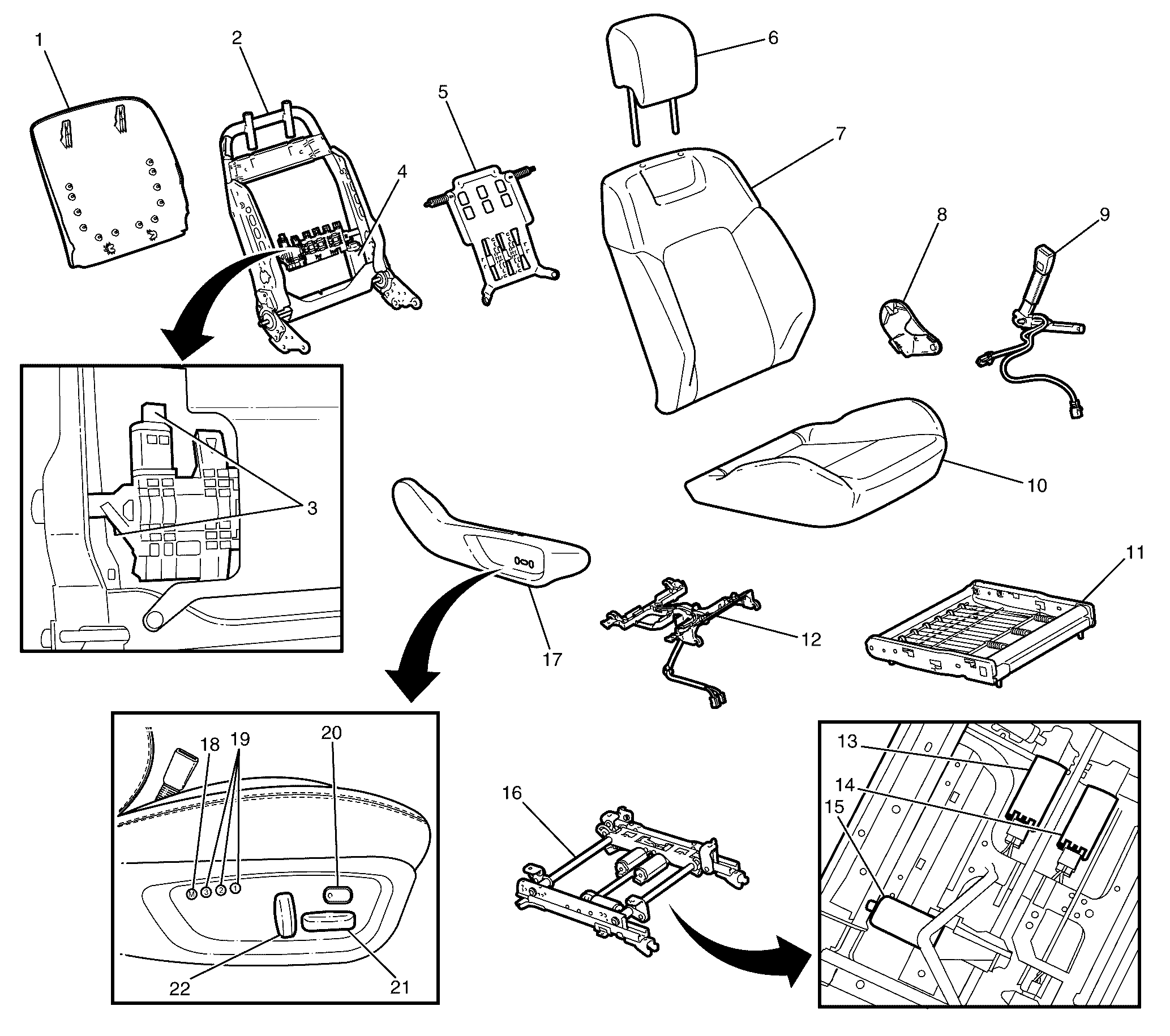

Figure 3:


(1)	Seat Back Trim
(2)	Seat Back Frame
(3)	Lumber Adjuster Motor
(4)	Seat Adjuster Motor - Recliner
(5)	Lumber Adjuster Support
(6)	Head Restraint
(7)	Front Seat Back Cover and Pad
(8)	Front Seat Cushion Inner Trim Panel
(9)	Seat Buckle and Pretensioner
(10)	Front Seat Cushion Pad
(11)	Front Seat Cushion Pad Frame
(12)	Front Seat Cable Tray
(13)	Seat Adjuster Motor - Front Vertical
(14)	Seat Adjuster Motor - Rear Vertical
(15)	Seat Adjuster Motor - Horizontal
(16)	Front Seat Adjuster
(17)	Seat Cushion Outer Trim Panel
(18)	Mirror Dip/Memory Store
(19)	Seat Memory Buttons
(20)	Lumber Adjustment Switch
(21)	Front Seat Switch-Up/Down/Horizontal/Tilt Forwards/Tilt Backwards
(22)	Front Seat Switch - Recliner

Figure 1:


(1)	Seat Buckle and Pretensioner
(2)	Front Seat Cushion Inner Trim Panel
(3)	Front Seat Back Cover Pad
(4)	Front Seat Head Restraint
(5)	Lumber Adjuster Support
(6)	Front Seat Back Frame
(7)	Front Seat Back Trim
(8)	Lumber Adjuster Knob
(9)	Front Seat Cushion Outer Trim Panel
(9a)	Front Seat Switch - Up/Down Forwards/Backwards Tilt
(9b)	Seat Adjuster Motor - Recliner (Only on 8 and 10 way)
(10)	Front Seat Adjuster
(10a)	Seat Adjuster Motor - Horizontal
(10b)	Seat Adjuster Motor - Vertical
(10c)	Seat Adjuster Motor - Recliner (Only on 8 and 10 way)
(11)	Front Seat Cable Tray
(12)	Front Seat Cushion Pad Frame
(13)	Front Seat Cushion Pad

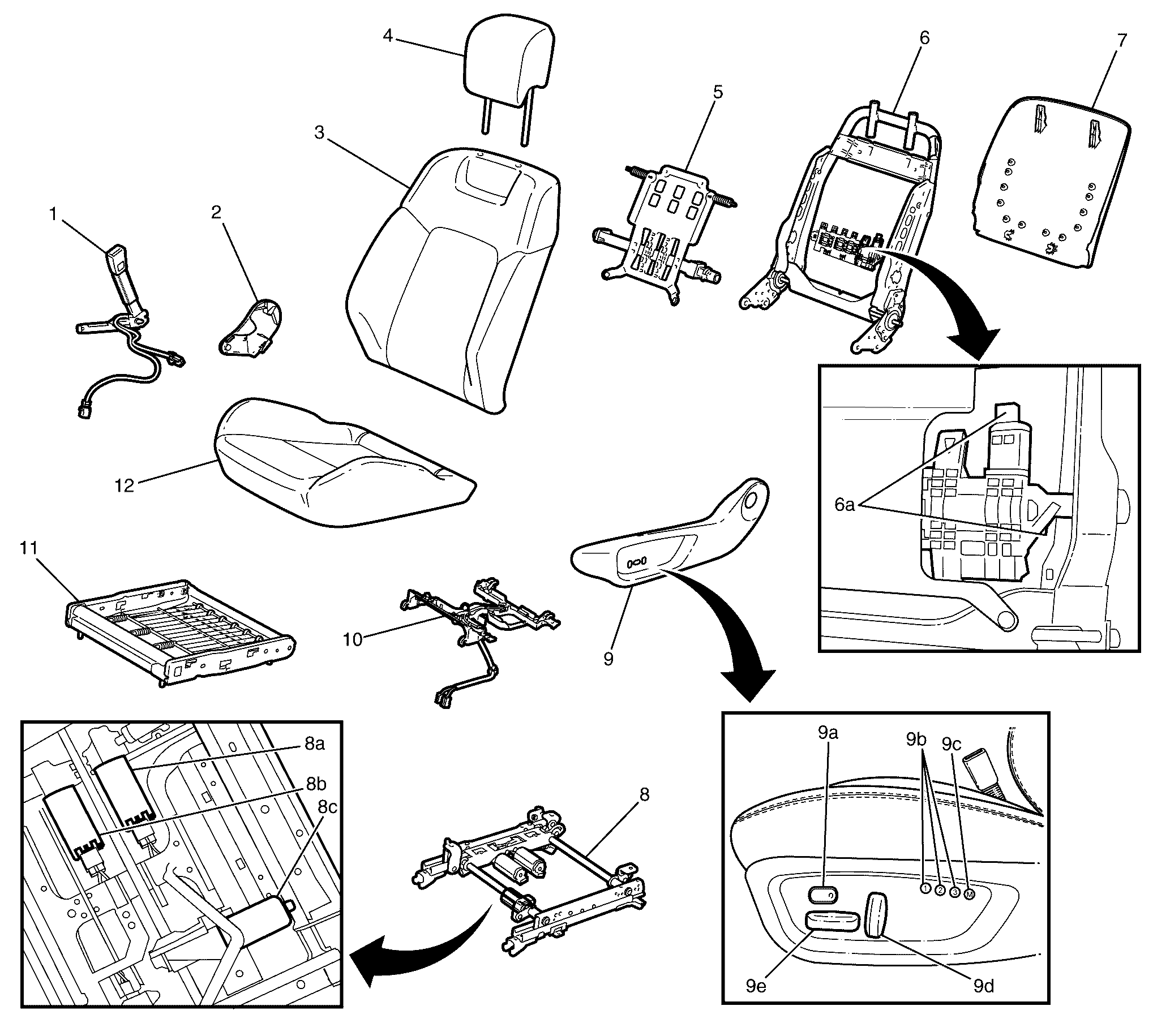

Figure 2:


(1)	Seat Buckle and Pretensioner
(2)	Front Seat Cushion Inner Trim Panel
(3)	Front Seat Back Cover Pad
(4)	Front Seat Head Restraint
(5)	Lumber Adjuster Support
(6)	Front Seat Back Frame
(6a)	Seat Lumbar Motor
(7)	Front Seat Back Trim
(8)	Front Seat Adjuster
(8a)	Seat Horizontal Vehicle Motor
(8b)	Seat Front Verticle Vehicle Motor
(8c)	Seat Recline Motor (Only on 8 and 10 way)
(9)	Front Seat Cushion Outer Trim Panel
(9a)	Seat Lumbar Switch
(9b)	Memory Seat Switch
(9c)	Mirror Dip/Memory Store
(9d)	Front Seat Switch - Recliner
(9e)	Front Seat Switch - Up/Down Forwards/Backwards Tilt
(10)	Front Seat Cable Tray
(11)	Front Seat Cushion Pad Frame
(12)	Front Seat Cushion Pad

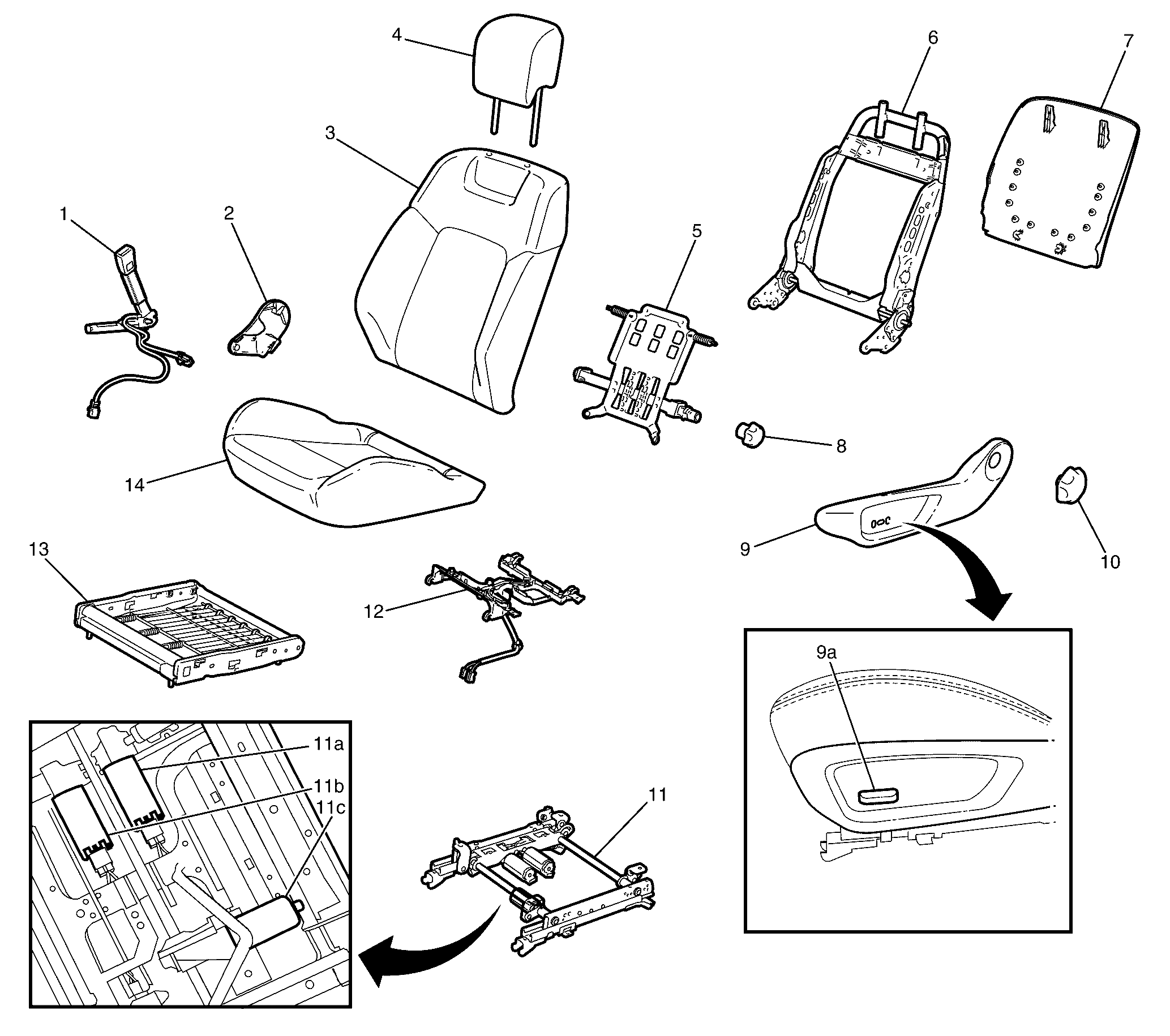

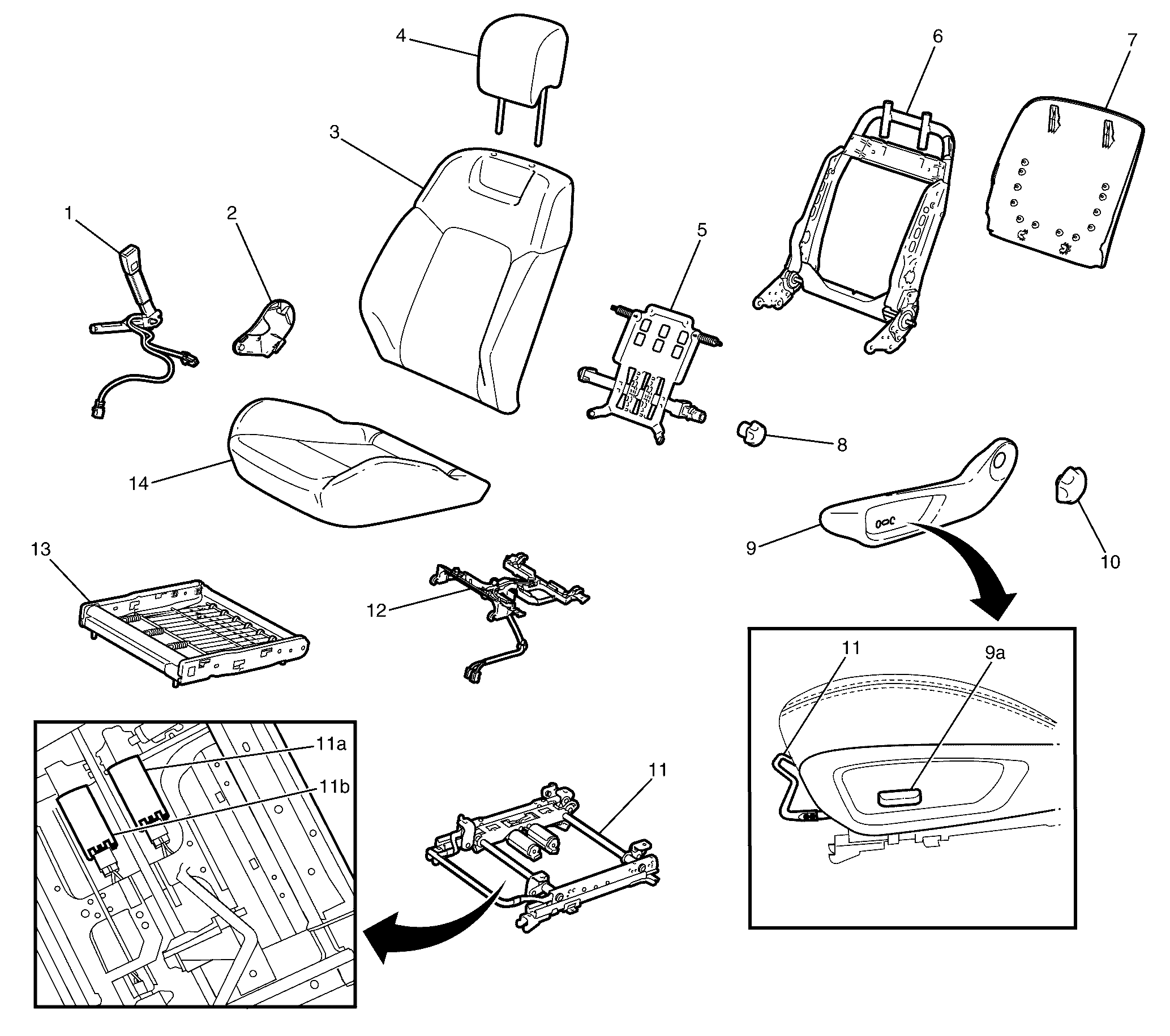

Figure 1:


(1)	Seat Buckle and Pretensioner
(2)	Front Seat Cushion Inner Trim Panel
(3)	Front Seat Back Cover Pad
(4)	Front Seat Head Restraint
(5)	Lumber Adjuster Support
(6)	Front Seat Back Frame
(7)	Front Seat Back Trim
(8)	Lumber Adjuster Knob
(9)	Front Seat Cushion Outer Trim Panel
(9a)	Front Seat Switch-Up/Down Tilt
(10)	Recliner Adjustment Knob
(11)	Front Seat Adjuster
(11a)	Seat Adjuster Motor - Horizontal
(11b)	Seat Adjuster Motor - Vertical
(12)	Front Seat Cable Tray
(13)	Front Seat Cushion Pad Frame
(14)	Front Seat Cushion Pad

Figure 2:


(1)	Seat Buckle and Pretensioner
(2)	Front Seat Cushion Inner Trim Panel
(3)	Front Seat Back Cover Pad
(4)	Front Seat Head Restraint
(5)	Lumber Adjuster Support
(6)	Front Seat Back Frame
(7)	Front Seat Back Trim
(8)	Lumber Adjuster Knob
(9)	Front Seat Cushion Outer Trim Panel
(9a)	Front Seat Switch-Up/Down/Tilt Backwards/Forwards
(10)	Recliner Adjustment Knob
(11)	Front Seat Adjuster
(11a)	Seat Adjuster Motor - Horizontal
(11b)	Seat Adjuster Motor - Vertical
(11c)	Seat Adjuster Motor - Recliner
(12)	Front Seat Cable Tray
(13)	Front Seat Cushion Pad Frame
(14)	Front Seat Cushion Pad

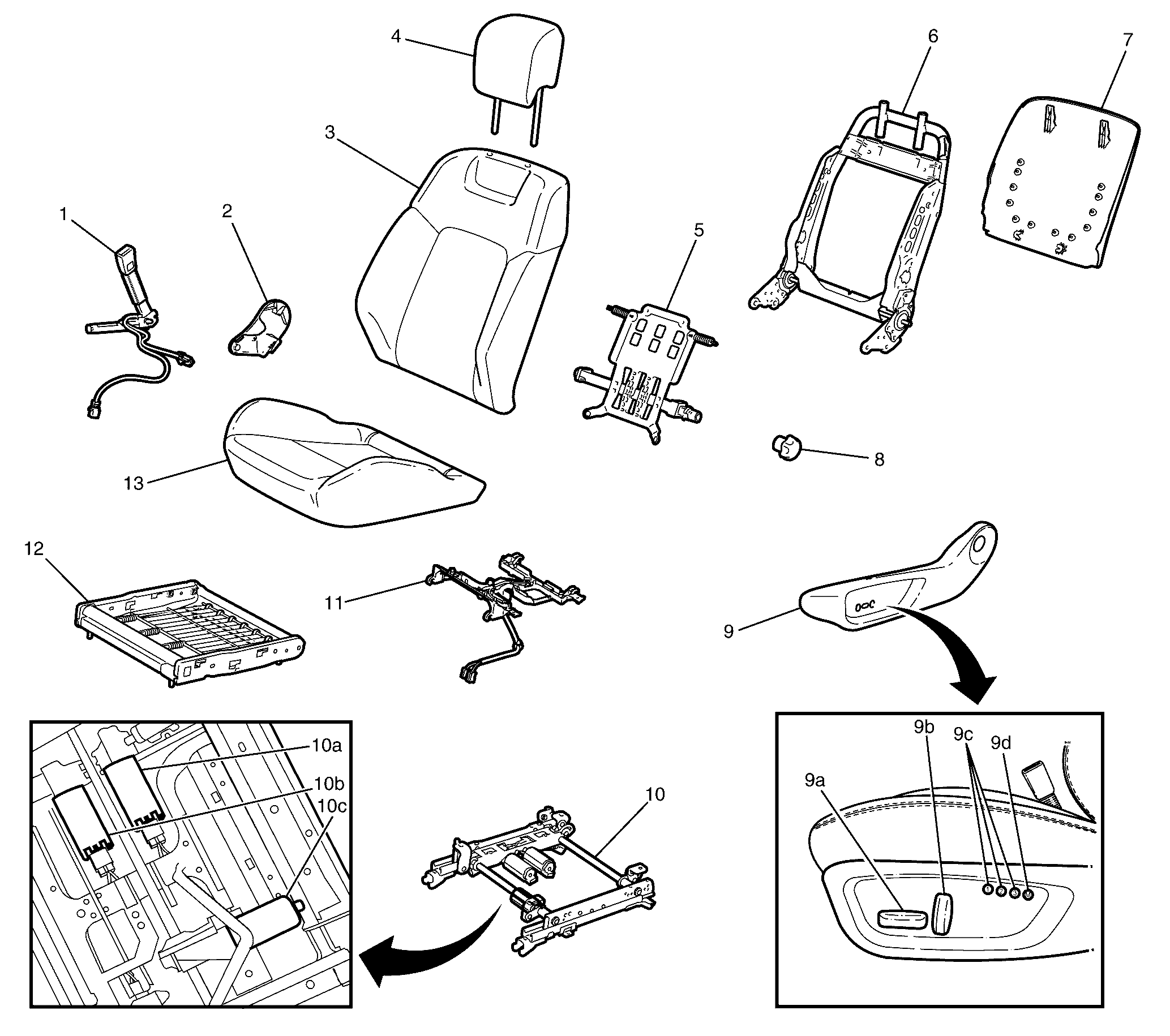

Figure 3:


(1)	Seat Buckle and Pretensioner
(2)	Front Seat Cushion Inner Trim Panel
(3)	Front Seat Back Cover Pad
(4)	Front Seat Head Restraint
(5)	Lumber Adjuster Support
(6)	Front Seat Back Frame
(7)	Front Seat Back Trim
(8)	Lumber Adjuster Knob
(9)	Front Seat Cushion Outer Trim Panel
(9a)	Front Seat Switch-Up/Down/Tilt Backwards/Forwards
(9b)	Seat Adjuster Motor - Recliner
(9c)	Seat Memory Buttons
(9d)	Mirror Dip/Memory Store
(10)	Front Seat Adjuster
(10a)	Seat Adjuster Motor - Horizontal
(10b)	Seat Adjuster Motor - Vertical
(10c)	Seat Adjuster Motor - Recliner
(11)	Front Seat Cable Tray
(12)	Front Seat Cushion Pad Frame
(13)	Front Seat Cushion Pad

Figure 1:


(1)	Seat Back Trim
(2)	Seat Back Frame
(3)	Lumber Adjuster Support
(4)	Head Restraint
(5)	Front Seat Back Cover and Pad
(6)	Front Seat Cushion Inner Trim Panel
(7)	Seat Buckle and Pretensioner
(8)	Front Seat Cushion Pad
(9)	Front Seat Cushion Pad Frame
(10)	Front Seat Cable Tray
(11)	Seat Adjuster Motor - Front Vertical
(12)	Seat Adjuster Motor - Rear Vertical
(13)	Front Seat Adjuster
(14)	Seat Cushion Outer Trim Panel
(15)	Front Seat Switch-Up/Down/Tilt Forwards/Tilt Backwards
(16)	Lumbar Support Knob
(17)	Recliner Adjusting Knob

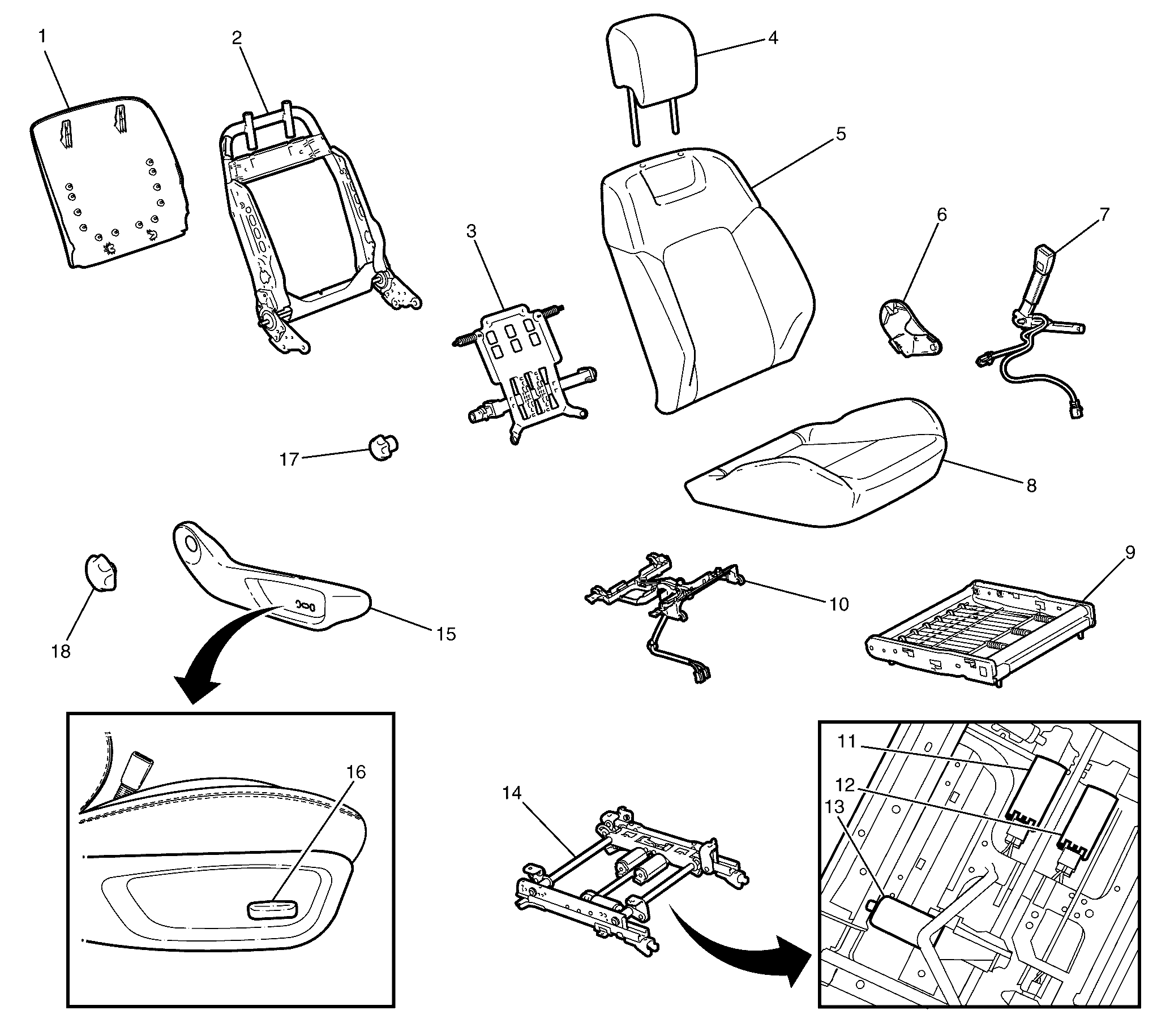

Figure 2:


(1)	Seat Back Trim
(2)	Seat Back Frame
(3)	Lumber Adjuster Support
(4)	Head Restraint
(5)	Front Seat Back Cover Pad
(6)	Front Seat Cushion Inner Trim Panel
(7)	Seat Buckle and Pretensioner
(8)	Front Seat Cushion Pad
(9)	Front Seat Cushion Pad Frame
(10)	Front Seat Cable Tray
(11)	Seat Adjuster Motor - Front Vertical
(12)	Seat Adjuster Motor - Rear Vertical
(13)	Seat Adjuster Motor - Horizontal
(14)	Front Seat Adjuster
(15)	Seat Cushion Outer Trim Panel
(16)	Front Seat Switch-Up/Down/Horizontal/Tilt Forwards/Tilt Backwards
(17)	Lumbar Support Knob
(18)	Recliner Adjusting Knob

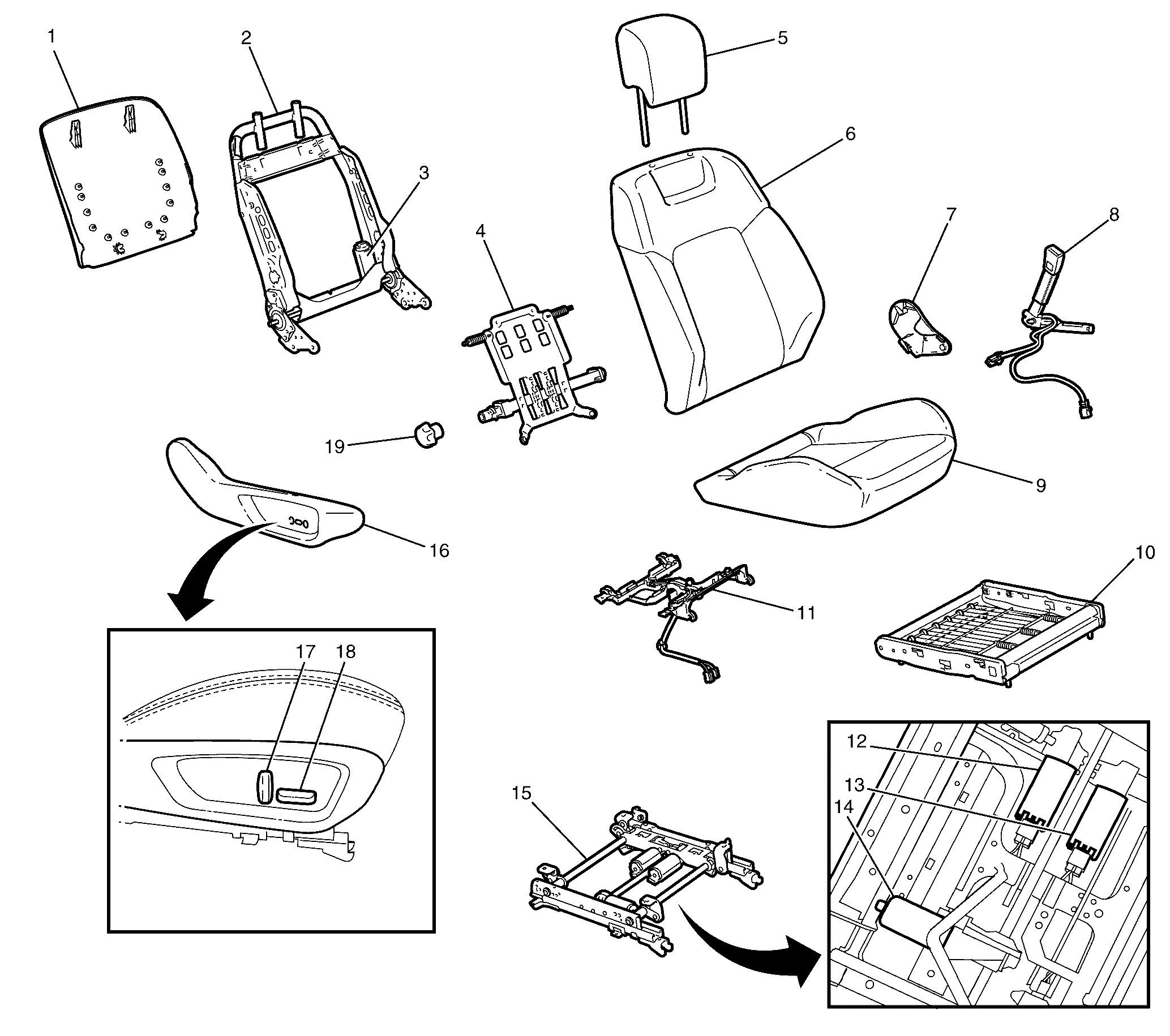

Figure 3:


(1)	Seat Back Trim
(2)	Seat Back Frame
(3)	Seat Adjuster Motor - Recliner
(4)	Lumber Adjuster Support
(5)	Head Restraint
(6)	Front Seat Back Cover and Pad
(7)	Front Seat Cushion Inner Trim Panel
(8)	Seat Buckle and Pretensioner
(9)	Front Seat Cushion Pad
(10)	Front Seat Cushion Pad Frame
(11)	Front Seat Cable Tray
(12)	Seat Adjuster Motor - Front Vertical
(13)	Seat Adjuster Motor - Rear Vertical
(14)	Seat Adjuster Motor - Horizontal
(15)	Front Seat Adjuster
(16)	Seat Cushion Outer Trim Panel
(17)	Mirror Dip/Memory Store
(18)	Seat Memory Buttons
(19)	Front Seat Switch - Recliner
(20)	Front Seat Switch-Up/Down/Horizontal/Tilt Forwards/Tilt Backwards
(21)	Lumbar Support Knob
