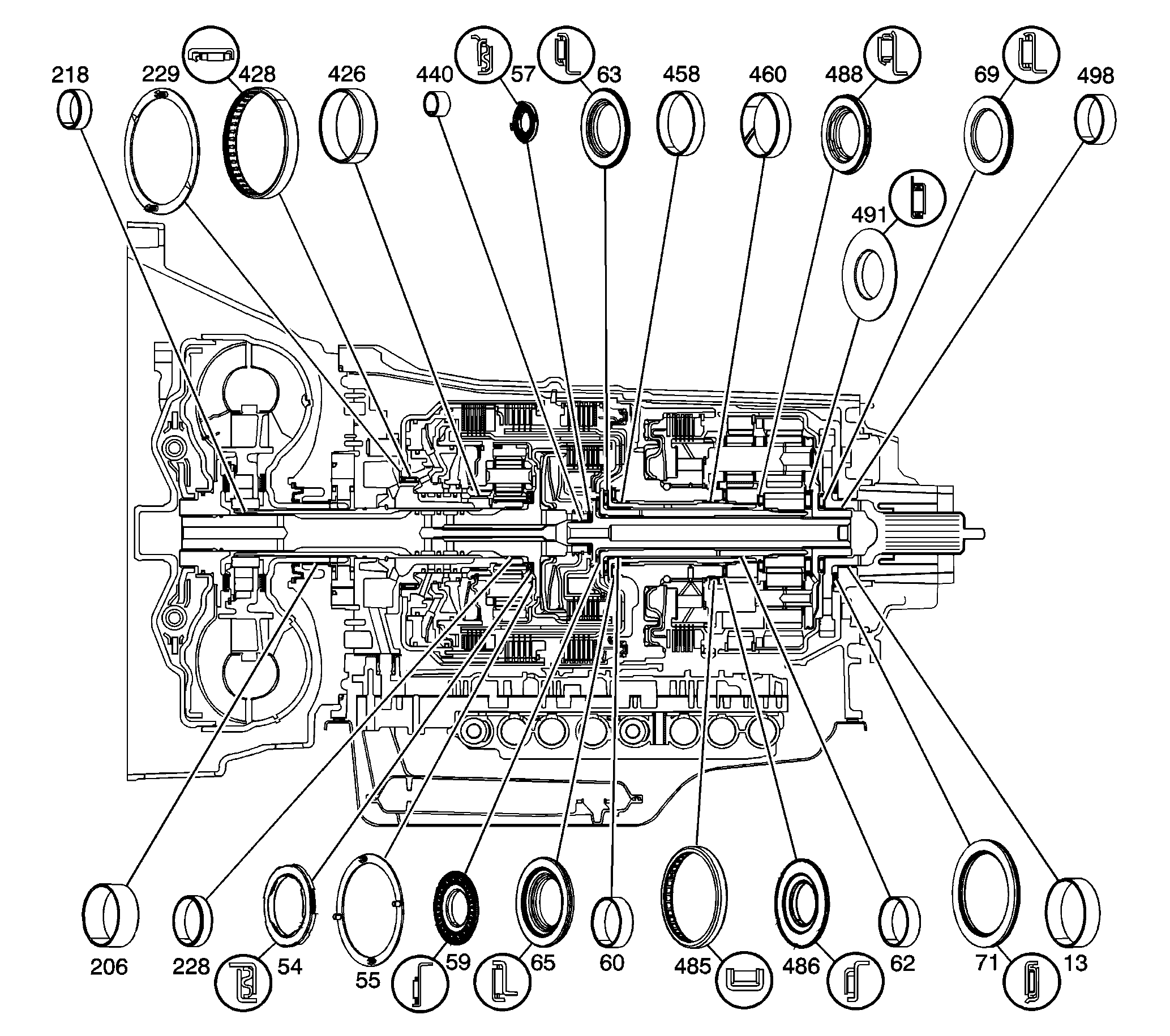

| (13) | Output Shaft Bushing |
| (54) | Input Sun Gear
Thrust Bearing |
| (55) | Input Sun Gear
Thrust Washer |
| (57) | Turbine Shaft
Thrust Bearing Assembly |
| (59) | 4-5-6
Clutch Hub Thrust Bearing Assembly |
| (60) | Output Carrier
Inner Sun Gear Shaft (Front) Bushing |
| (62) | Output Carrier
Inner Sun Gear Shaft Bushing |
| (63) | 1-2-3-4
Clutch Hub Thrust Bearing Assembly |
| (65) | 2-6 and
3-5 Reverse Clutch Hub Thrust Bearing Assembly |
| (69) | Output Carrier
Thrust Bearing Assembly |
| (71) | Output Shaft
Thrust Bearing Assembly |
| (206) | Torque Converter
Bushing |
| (218) | Turbine Shaft
Front Bushing |
| (228) | Turbine Shaft
Rear Bushing |
| (229) | 1-2-3-4
and 3-5 Reverse Clutch Housing Thrust Washer |
| (426) | 1-2-3-4
and 3-5 Reverse Clutch Housing Rear Bushing |
| (428) | 1-2-3-4
and 3-5 Reverse Clutch Bearing Assembly |
| (440) | Output Carrier
Shaft Housing Bushing |
| (458) | Output Carrier
Outer Sun Gear Shaft (Front) Bushing |
| (460) | Output Carrier
Outer Sun Gear Shaft Rear Bushing |
| (485) | Centre Support
Roller Bearing Assembly |
| (486) | Output Carrier
Front Sun Gear Thrust Bearing Assembly |
| (488) | Output Carrier
Front Sun Gear Rear Thrust Bearing Assembly |
| (491) | Output Carrier
Rear Sun Gear Thrust Bearing - Captured |
| (498) | Output Carrier
Bushing |
