Output Carrier to Output Shaft Assemble. Chevrolet Caprice WM 2009

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2009 🢒 Caprice WM 🢒 Transmission 🢒 Automatic Transmission - 6L50/6L80/6L90 🢒 Output Carrier to Output Shaft Assemble

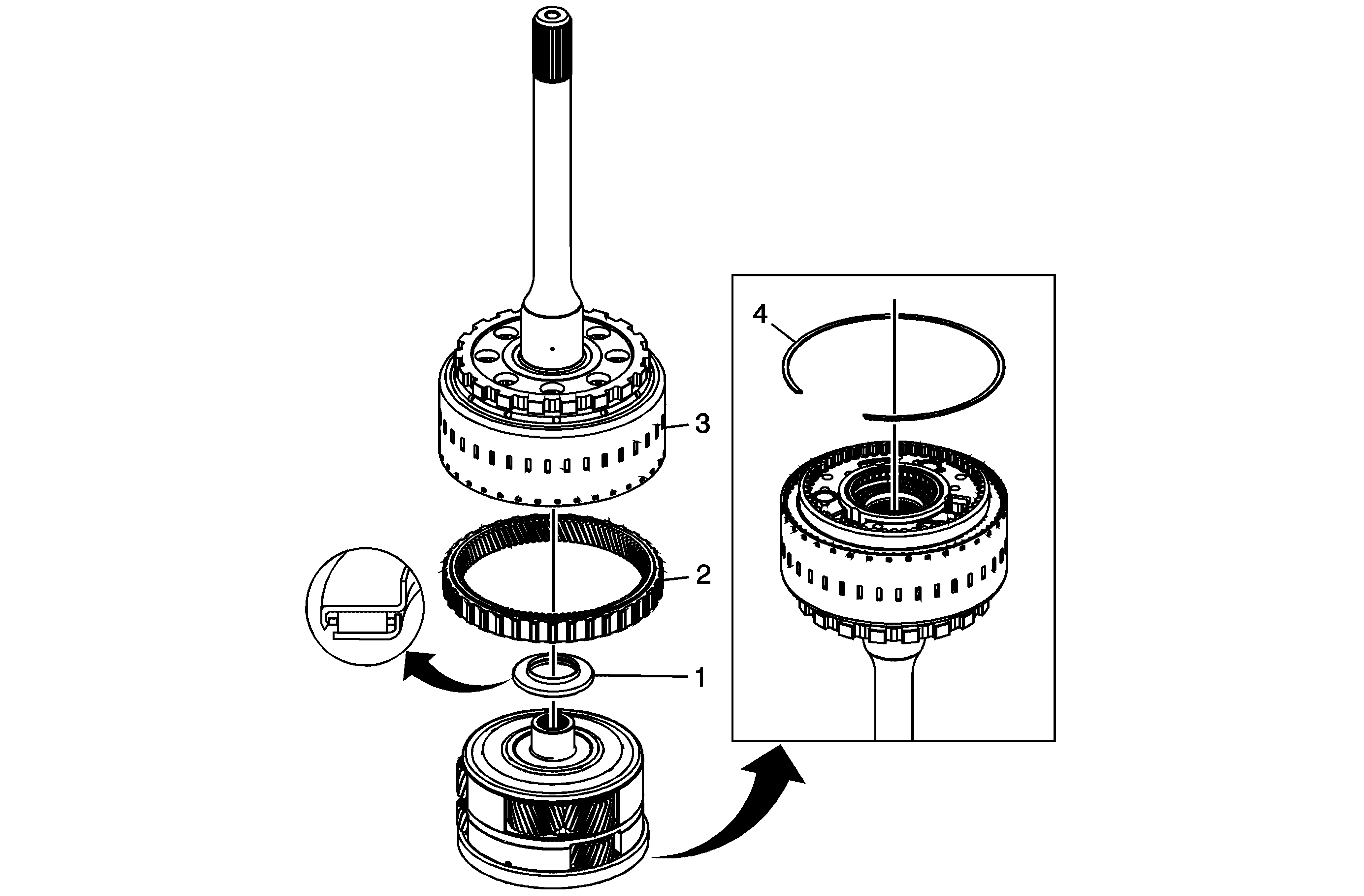

Callout	Component Name
1	Output Carrier Thrust Bearing Assembly
2	Output Carrier Internal Front Gear Notice: Refer to General Repair Instructions in the Preface section.
3	Output Shaft Assembly
4	Output Carrier Internal Gear Retaining Ring Tip Grasp the output shaft and carrier with both hands to turn over.
