Removal Procedure

    Object Number: 1756154 Size: SH
  1. Remove the rear seat from the vehicle. Refer to Rear Seat Replacement .
  2. Remove the rear seat trim. Refer to Rear Seat Cushion Trim Cover Replacement .
  3. Remove the bolts both sides of the rear seat.
  4. Remove the rear seatback.

Installation Procedure

    Notice: Refer to Fastener Notice in the Preface section.


    Object Number: 1756154 Size: SH
  1. Install the rear seatback with the bolts.

    2. Tighten
    Tighten the rear seatback bolts to 12 N·m (9 lb ft).

  2. Install the rear seat trim. Refer to Rear Seat Cushion Trim Cover Replacement .
  3. Install the rear seat in the vehicle. Refer to Rear Seat Replacement .

Removal Procedure
  1. Remove the rear seat from the vehicle. Refer to Rear Seat Replacement.
  2. Remove the rear seat cushion trim. Refer to Rear Seat Cushion Trim Cover Replacement.

    3. Object Number: 2000534 Size: SH

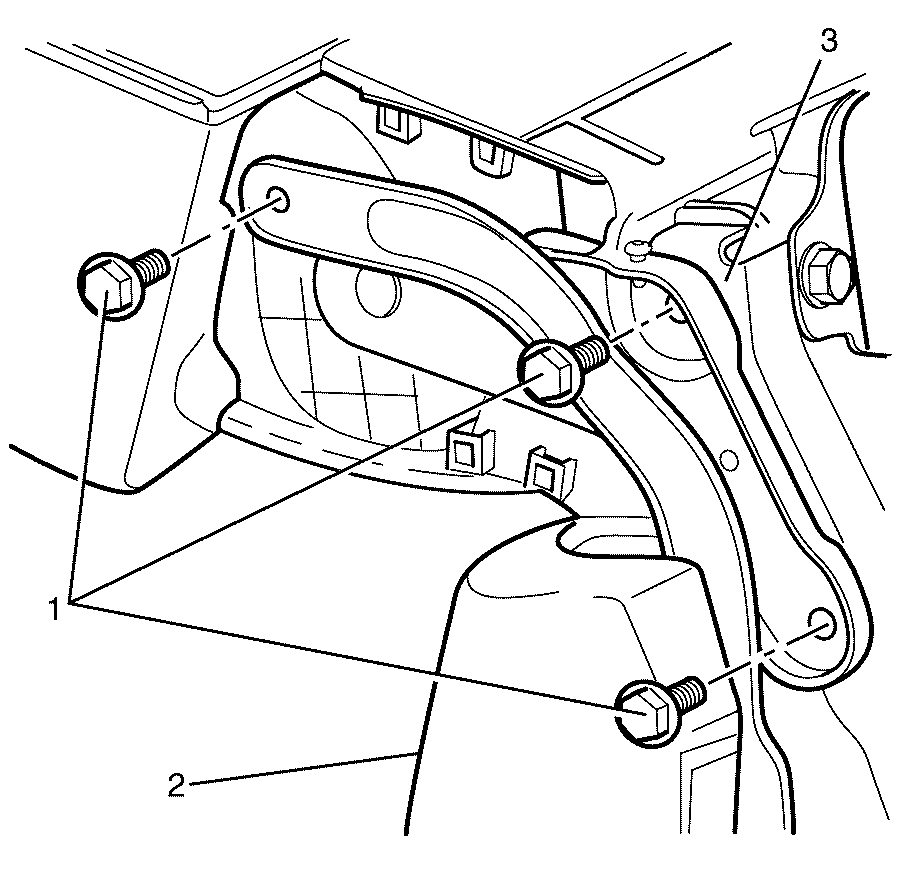

  3. Remove the rear seatback bolts (1) from both sides of the rear seat assembly (2).
  4. Remove the rear seatback (3) from the rear seat assembly (2).

Installation Procedure

    Notice: Refer to Fastener Notice in the Preface section.


    Object Number: 2000534 Size: SH
  1. Install the rear seatback (3) onto the rear seat assembly (2).
  2. Install the rear seatback bolts (1) on both sides of the rear seat assembly (2).

    3. Tighten
    Tighten the rear seatback bolts to 12 N·m (106 lb in).

  3. Install the rear seat cushion trim. Refer to Rear Seat Cushion Trim Cover Replacement.
  4. Install the rear seat in the vehicle. Refer to Rear Seat Replacement.
