Makes 🢒 Chevrolet 🢒 2009 🢒 Captiva Sport 🢒 Brakes 🢒 Disc Brakes 🢒 Front Brake Shield Replacement

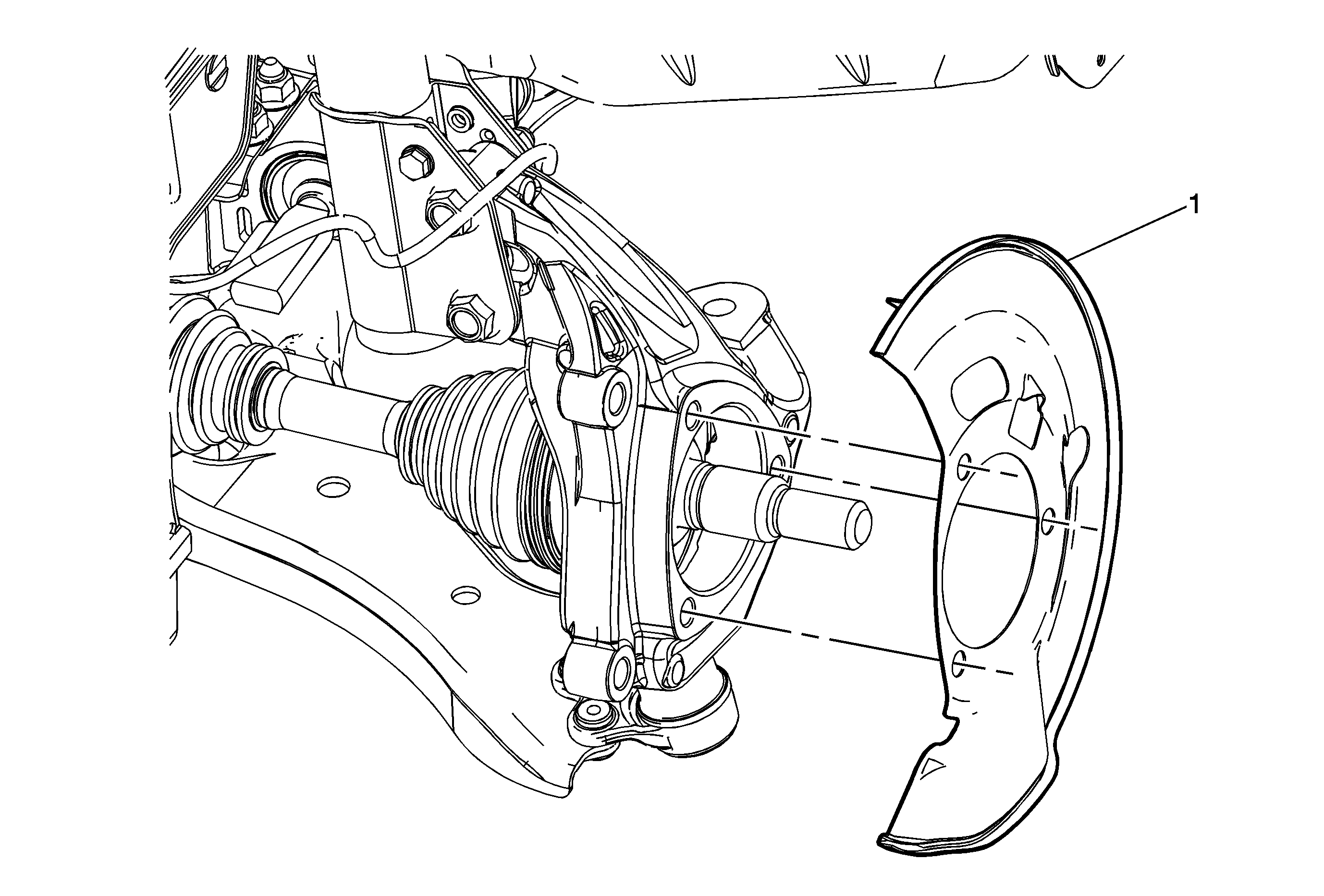

Object Number: 1873961 Size: MH

Callout

Component Name

Caution: Refer to Brake Dust Caution in the Preface section.

Preliminary Procedures

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle.
  2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation.
  3. Remove the brake rotor. Refer to Front Brake Rotor Replacement.
  4. Remove the wheel bearing and hub assembly. Refer to Front Wheel Bearing and Hub Replacement.

1

Front Brake Shield


Object Number: 1873961 Size: MF

Callout

Component Name

Warning: Refer to Brake Dust Warning in the Preface section.

Preliminary Procedures

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle.
  2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation.
  3. Remove the brake rotor. Refer to Front Brake Rotor Replacement.
  4. Remove the wheel bearing and hub assembly. Refer to Front Wheel Bearing and Hub Replacement.

1

Front Brake Shield
