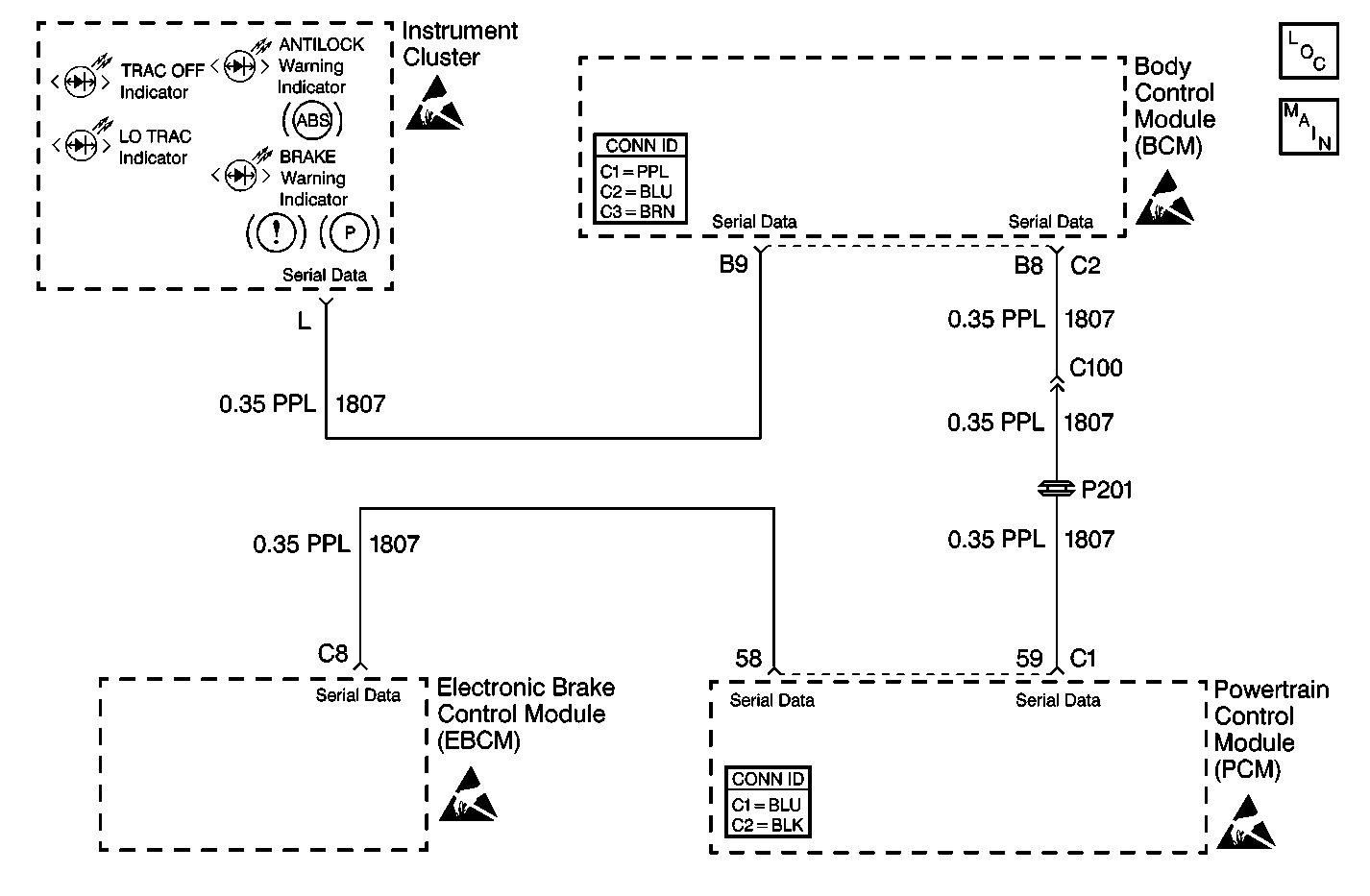

Circuit Description
The Instrument Panel Cluster (IPC) turns the ABS warning indicator ON during the IPC bulb check for approximately 3 seconds when the ignition switch is turned to the ON position. If the EBCM detects a malfunction within the ABS it sends a Class 2 serial data message to the IPC in order to command the ABS warning indicator ON.
Test Description
The number below refers to the step number on the diagnostic table.
Step | Action | Value(s) | Yes | No |
|---|---|---|---|---|
1 | Did you perform the ABS Diagnostic System Check? | -- | Go to Step 2 | |
Does the scan tool command the ABS Warning Indicator ON and OFF? | -- | Go to Step 3 | Go to Step 4 | |
3 | Replace the EBCM. Refer to Electronic Brake Control Module Replacement . Did you complete the replacement? | -- | -- | |
4 | Replace the Instrument Panel Cluster. Refer to Instrument Cluster Replacement in Instrument Panel, Gauges and Console. Did you complete the replacement? | -- | -- |
