Ground Distribution Schematics. Chevrolet Cavalier 2000

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2000 🢒 Cavalier 🢒 Body and Accessories 🢒 Wiring Systems 🢒 Ground Distribution Schematics

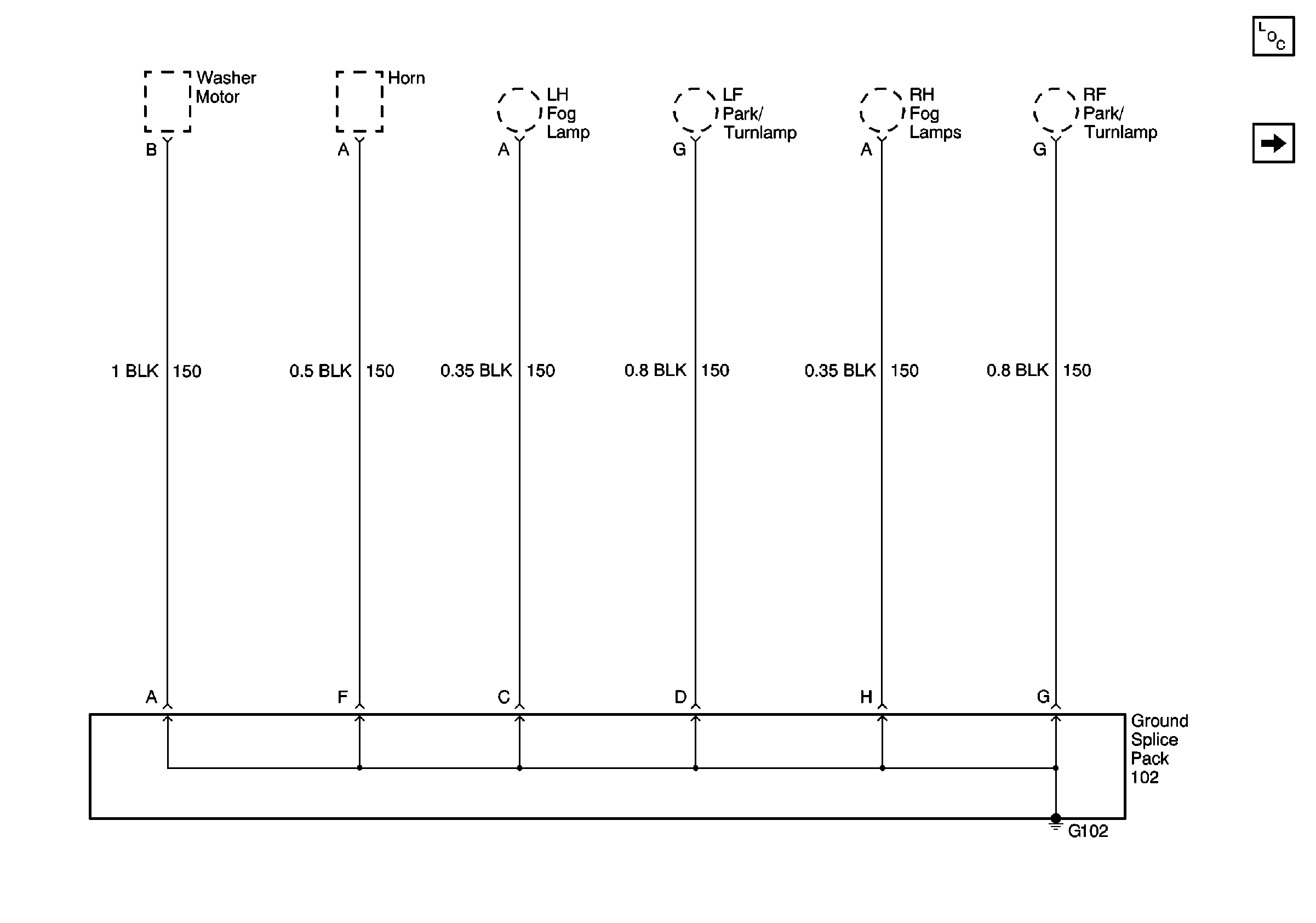

Figure 1:	G102 Power and Grounding Components G103, G201 and G200

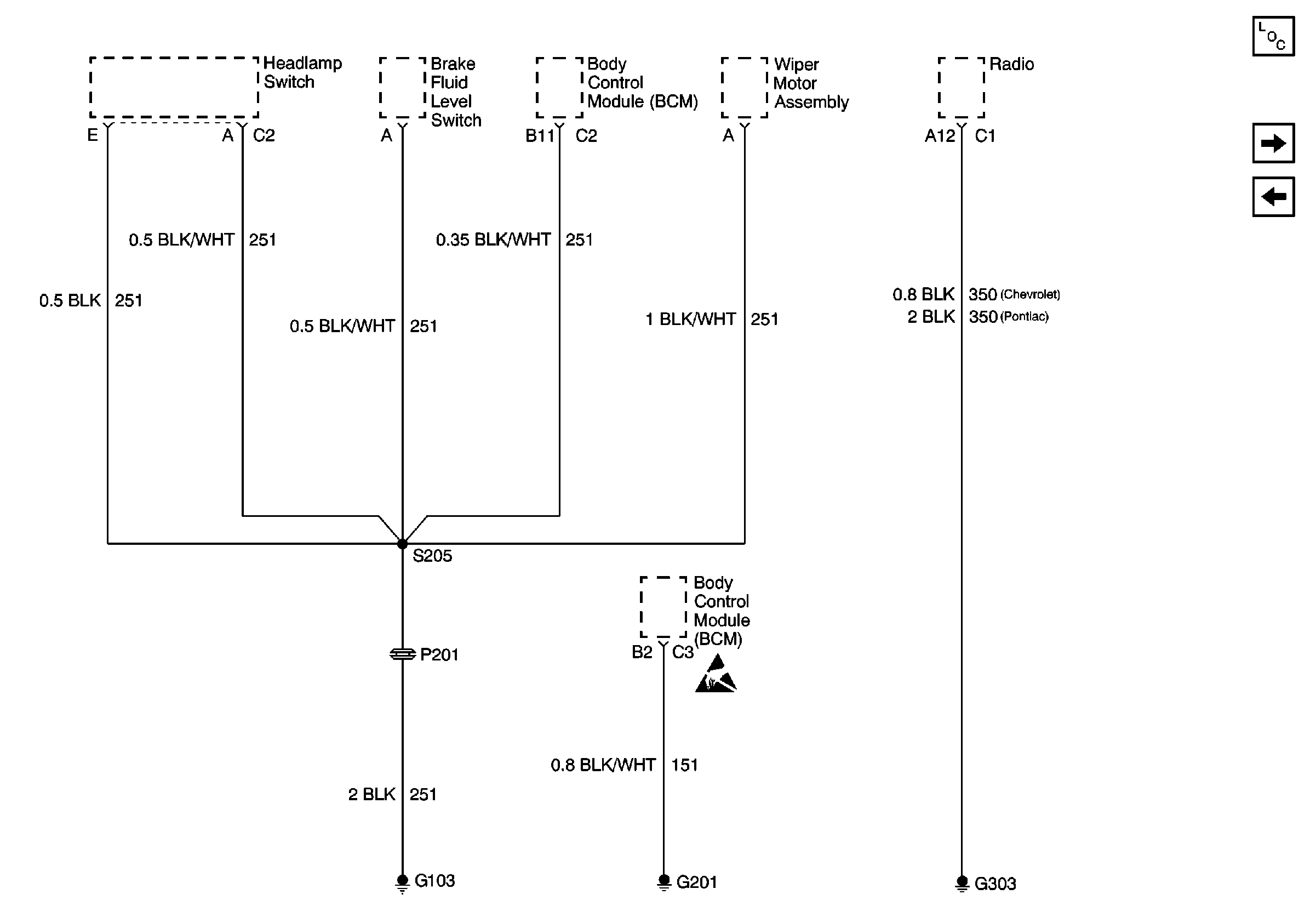

Figure 2:	G103, G201 and G200 G110 G102 Handling ESD Sensitive Parts Notice Power and Grounding Components
Figure 3:	G110 Power and Grounding Components G112 and G106 G103, G201 and G200 Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 4:	G112 and G106 Power and Grounding Components G204 (1 of 2) G110

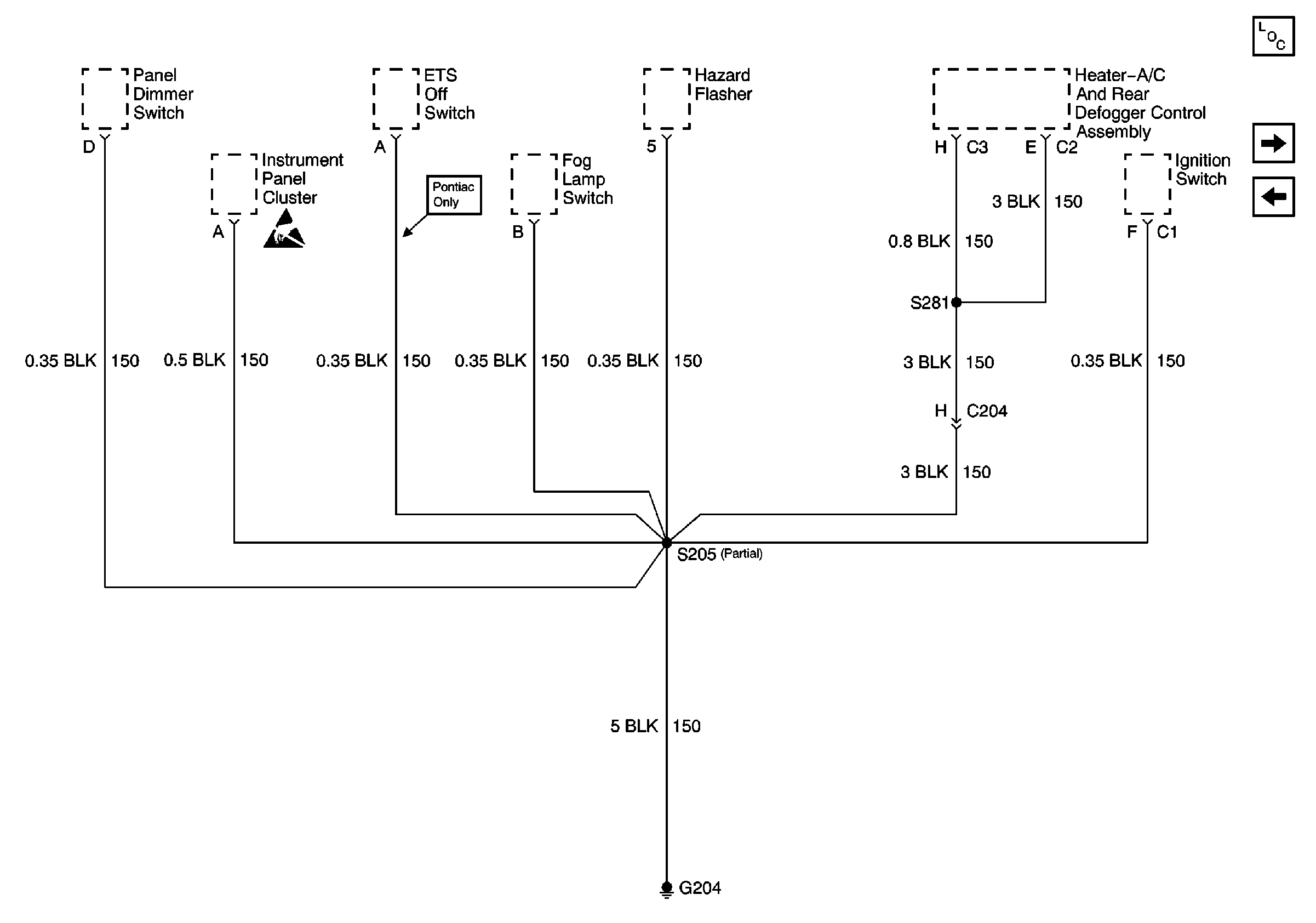

Figure 5:	G204 (1 of 2) Power and Grounding Components G204 (2 of 2) G112 and G106
Figure 6:	G204 (2 of 2) Power and Grounding Components G302 G204 (1 of 2) Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 7:	G302 Power and Grounding Components G304 (1 of 2) G204 (2 of 2)

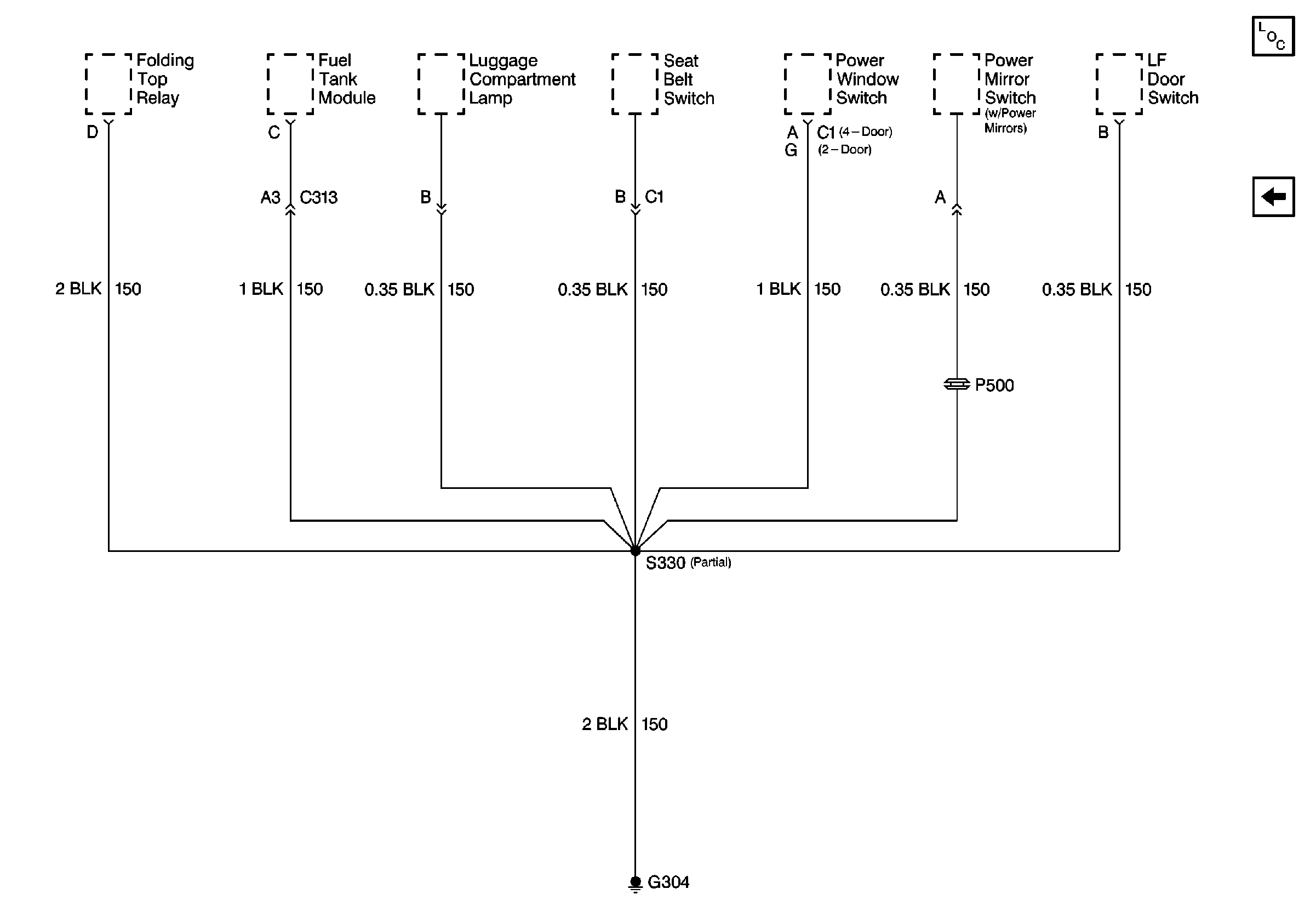

Figure 8:	G304 (1 of 2) Power and Grounding Components G304 (2 of 2) G302
Figure 9:	G304 (2 of 2) Power and Grounding Components G304 (1 of 2)
