Tools Required
| • | J 41103 Torque
Converter Seal Remover |
| • | J 41103-1
Torque Converter Seal Puller Legs |
| • | J 41103-2
Torque Converter Seal Puller Bridge |
| • | J 41103-3
Torque Converter Seal Support Body |

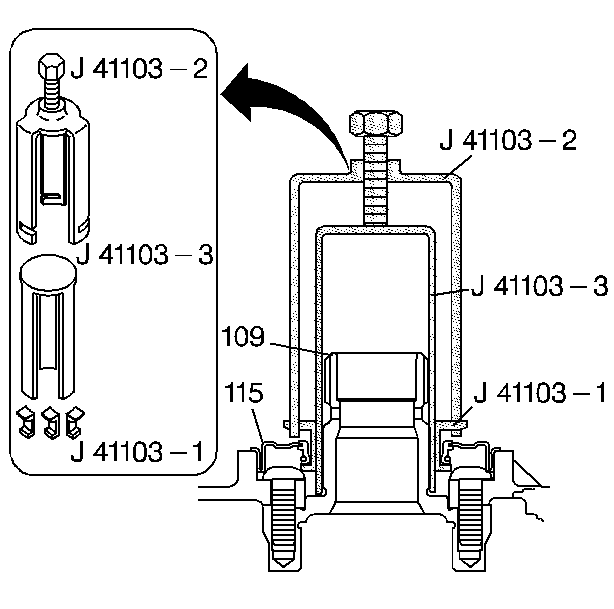

- Insert the three J 41103-1
puller legs under
the Torque Converter Seal (115).
- Insert the J 41103-3
support body over the support drive sprocket (109).
- Insert the J 41103-2
puller bridge over the J 41103-3
support body. Connect the J 41103-1
puller legs into the slots on the J 41103-2
puller bridge.
Important: The puller legs will damage the torque converter seal (115).
Discard the torque converter seal (115) after removal.
- Tighten the forcing screw on the J 41103-2
puller bridge until the J 41103-1
puller legs remove the torque converter seal (115).
