Makes 🢒 Chevrolet 🢒 2005 🢒 Cavalier 🢒 Vehicle Control Systems 🢒 Vehicle DTC Information 🢒 Engine Controls Schematics
Figure 1:

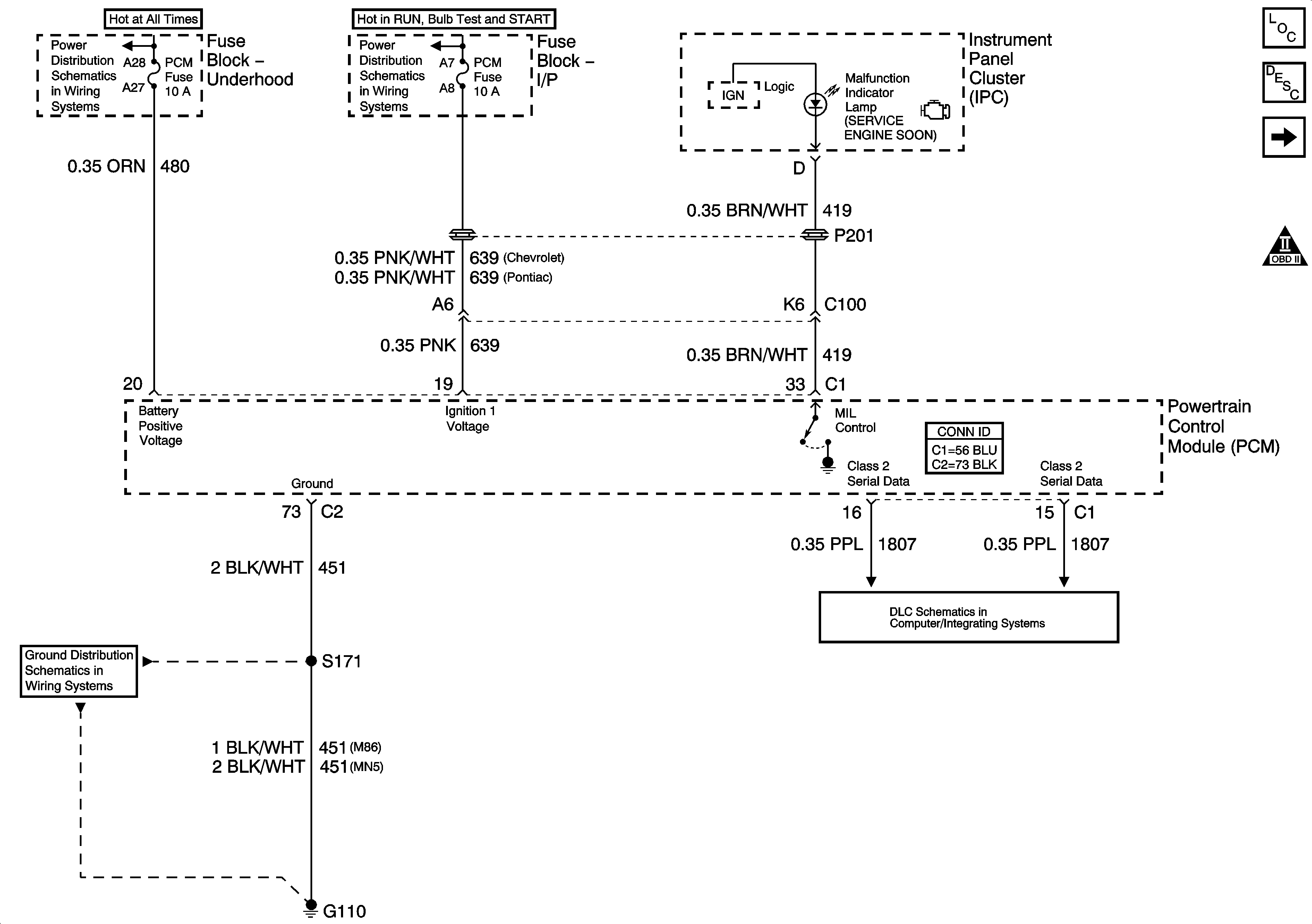

Module Power, Ground, Serial Data and MIL
Object Number: 1400607 Size: FS
Figure 2:

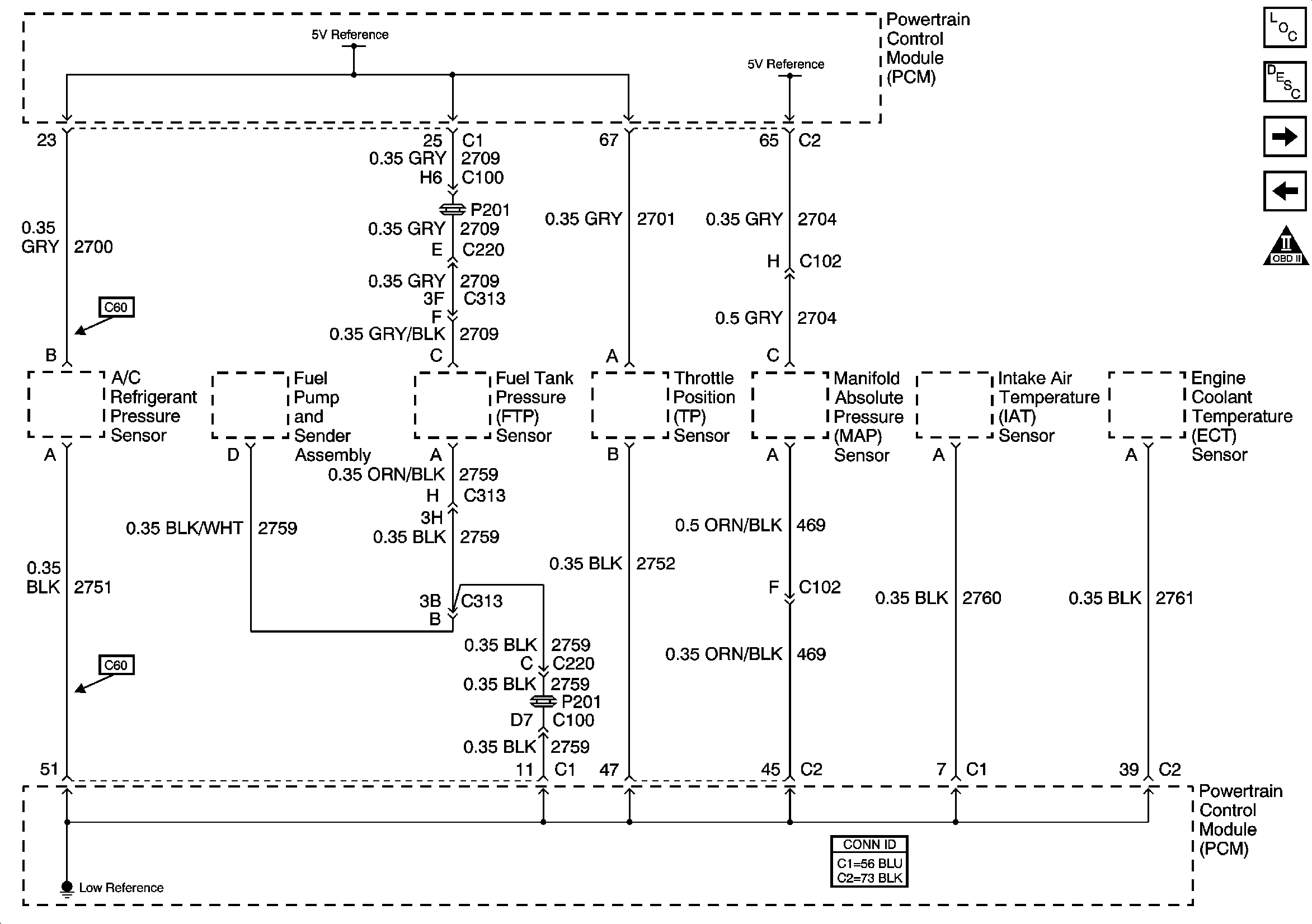

5-Volt and Low Reference Bussing
Object Number: 788898 Size: FS

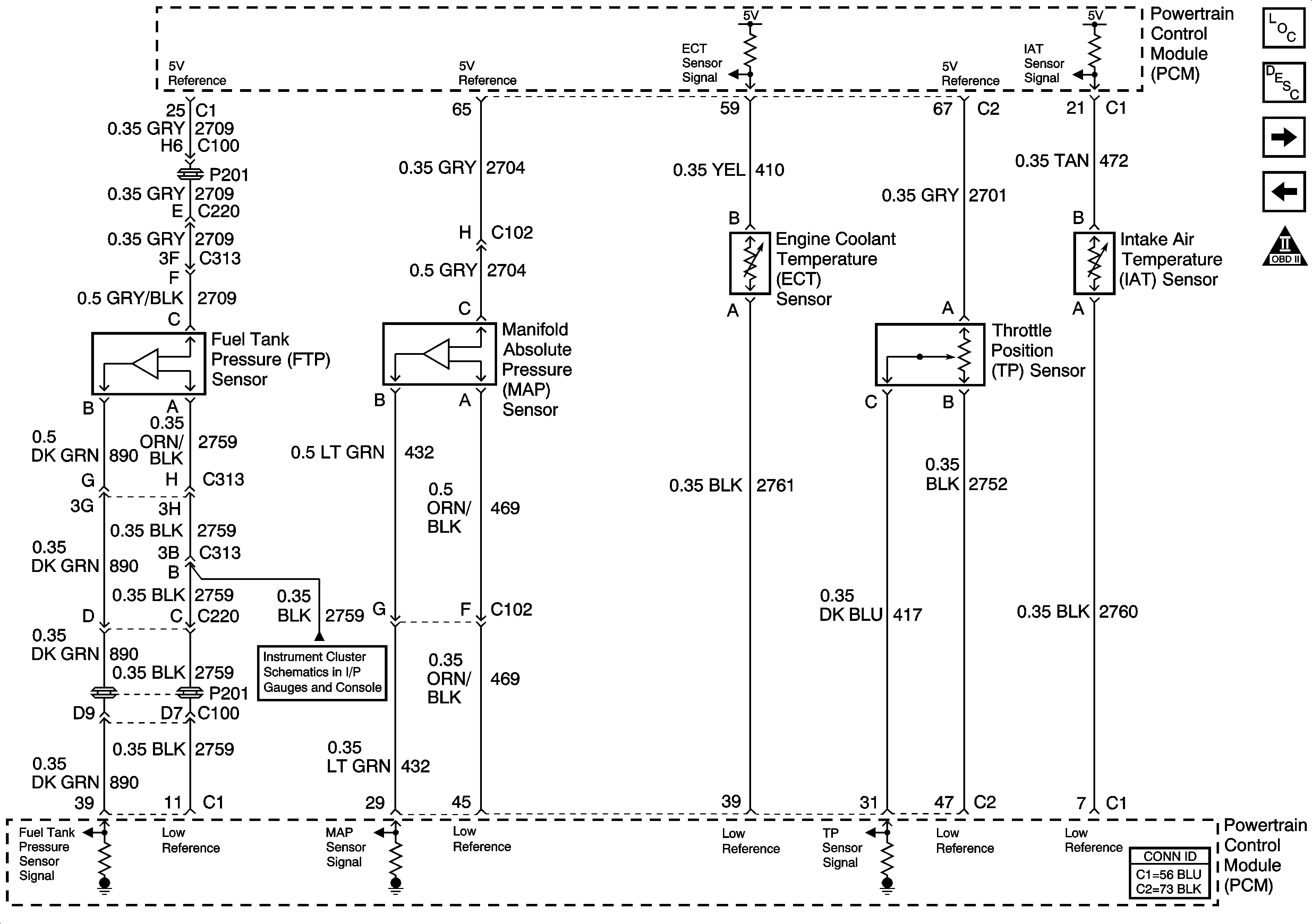

Figure 3:

Engine Data Sensors - Pressure and Temperature
Object Number: 783404 Size: FS
Figure 4:

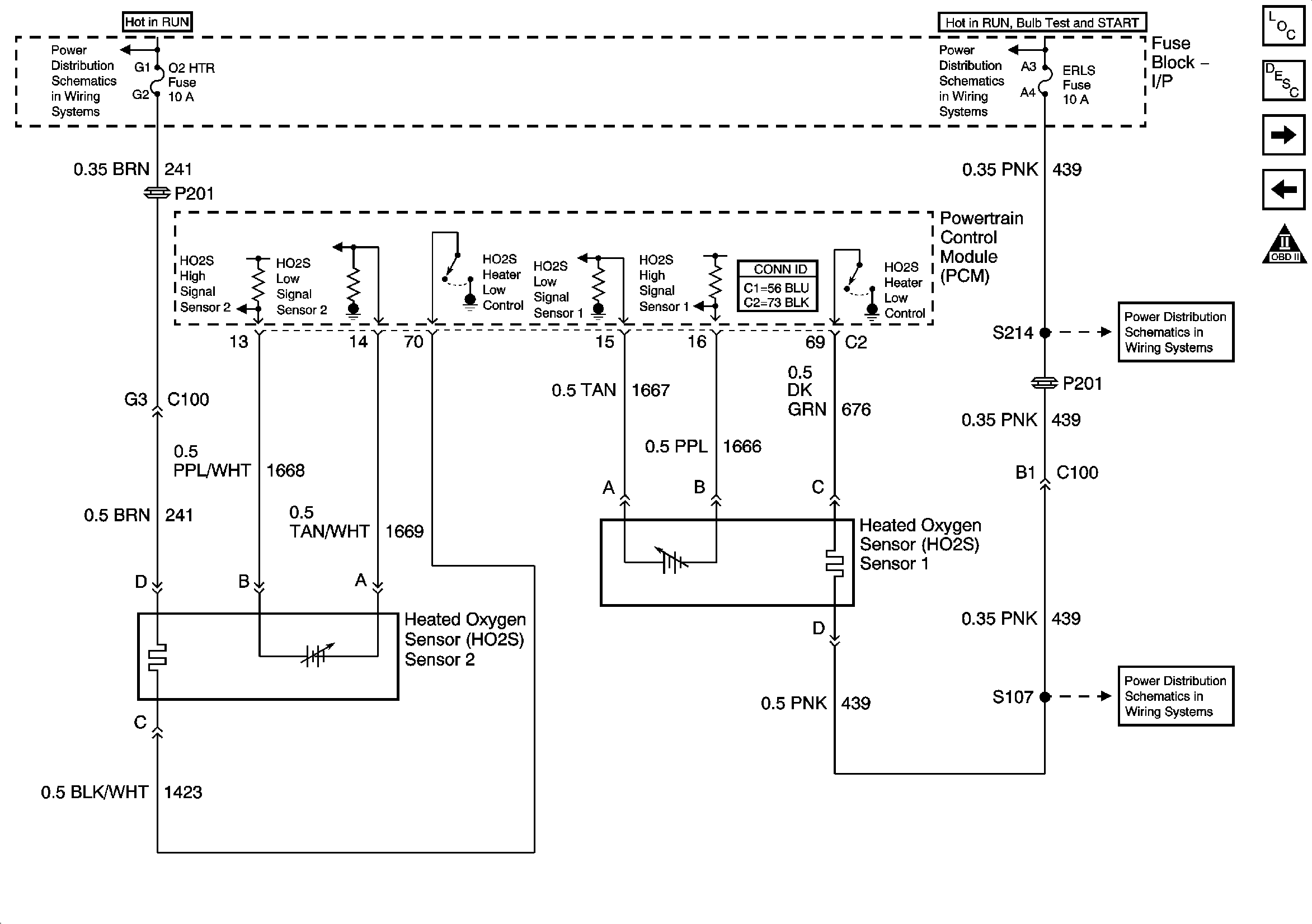

Heated Oxygen Sensors
Object Number: 783405 Size: FS
Figure 5:

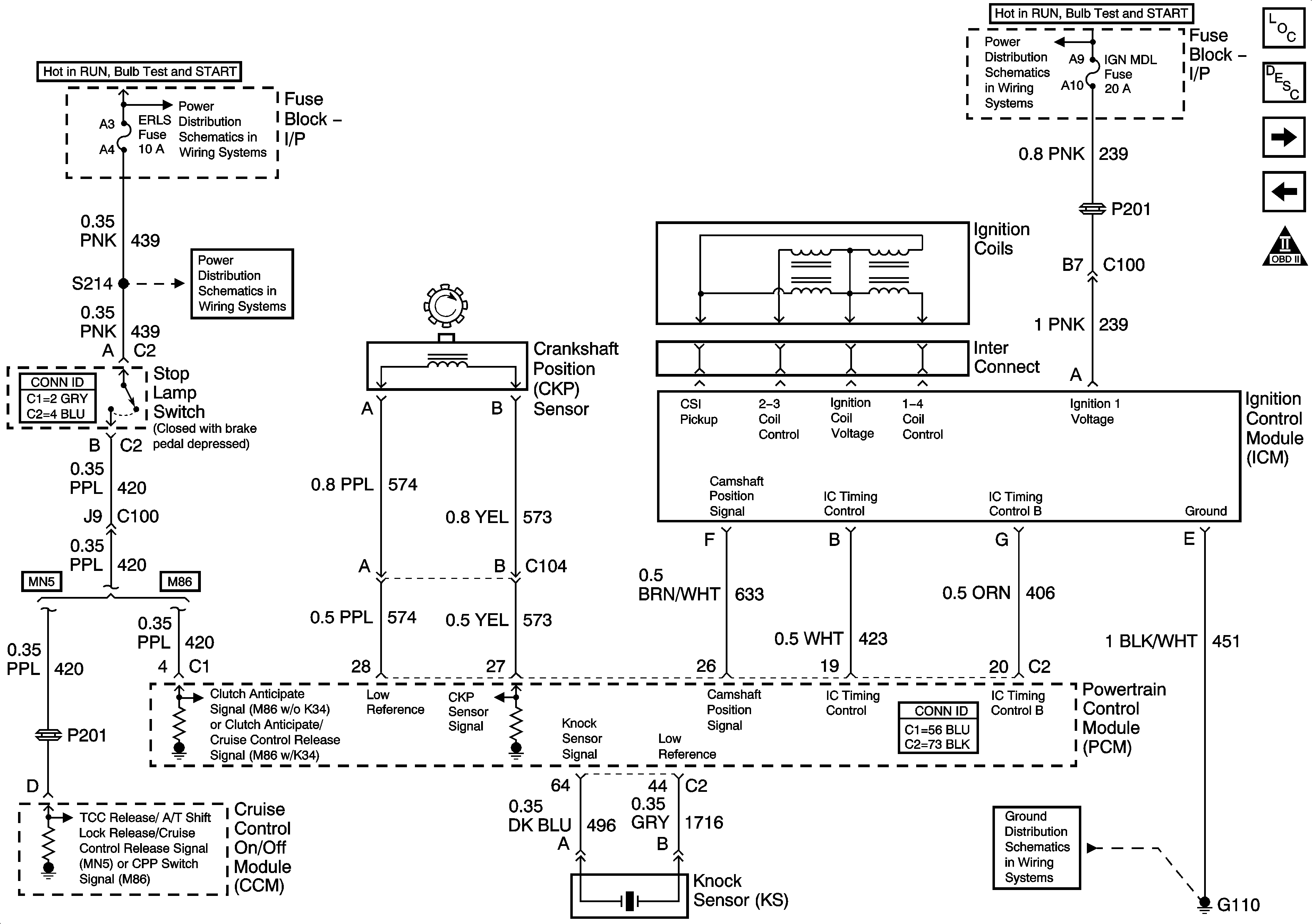

Ignition Controls
Object Number: 1400608 Size: FS
Figure 6:

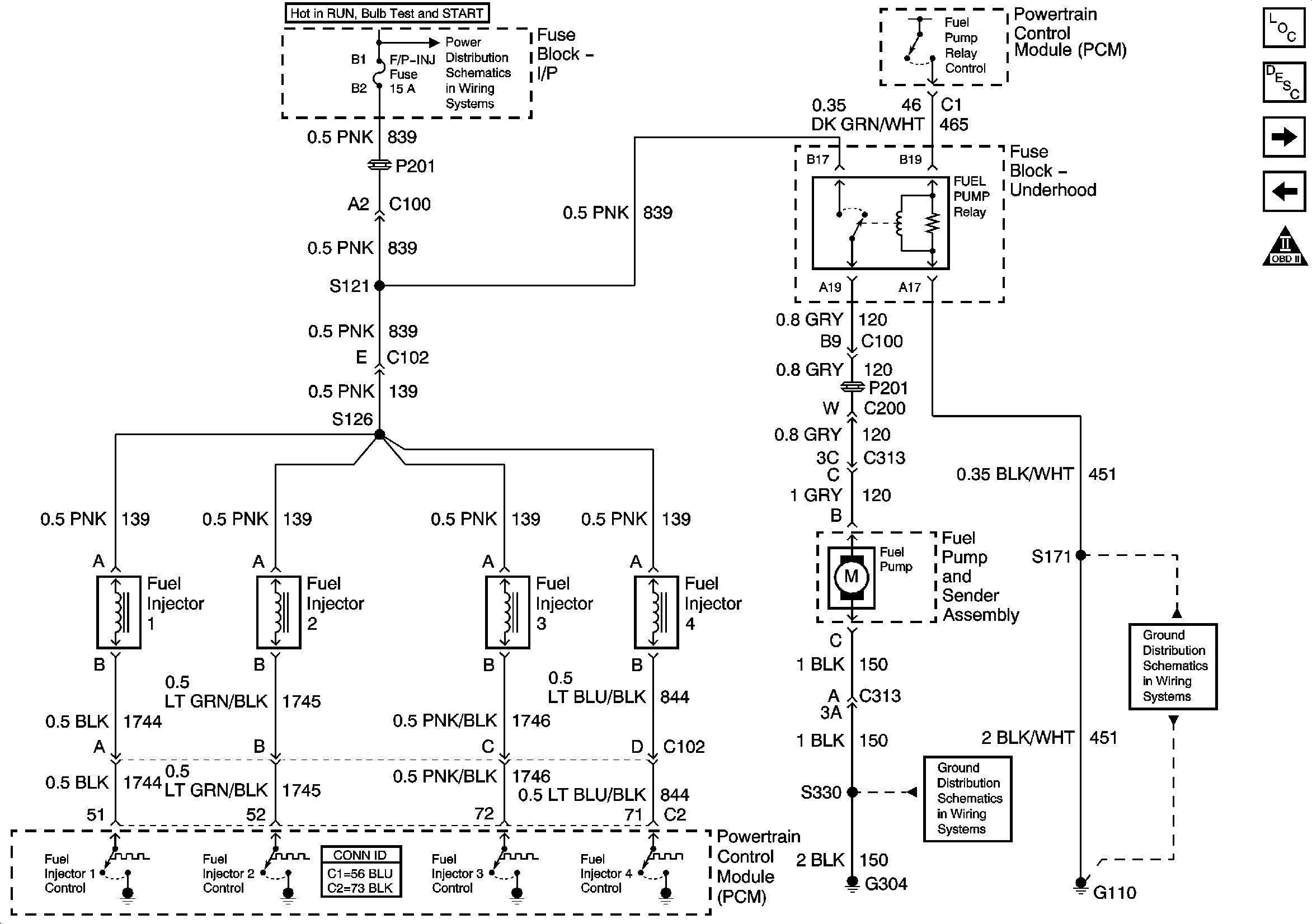

Fuel Delivery
Object Number: 783409 Size: FS
Figure 7:

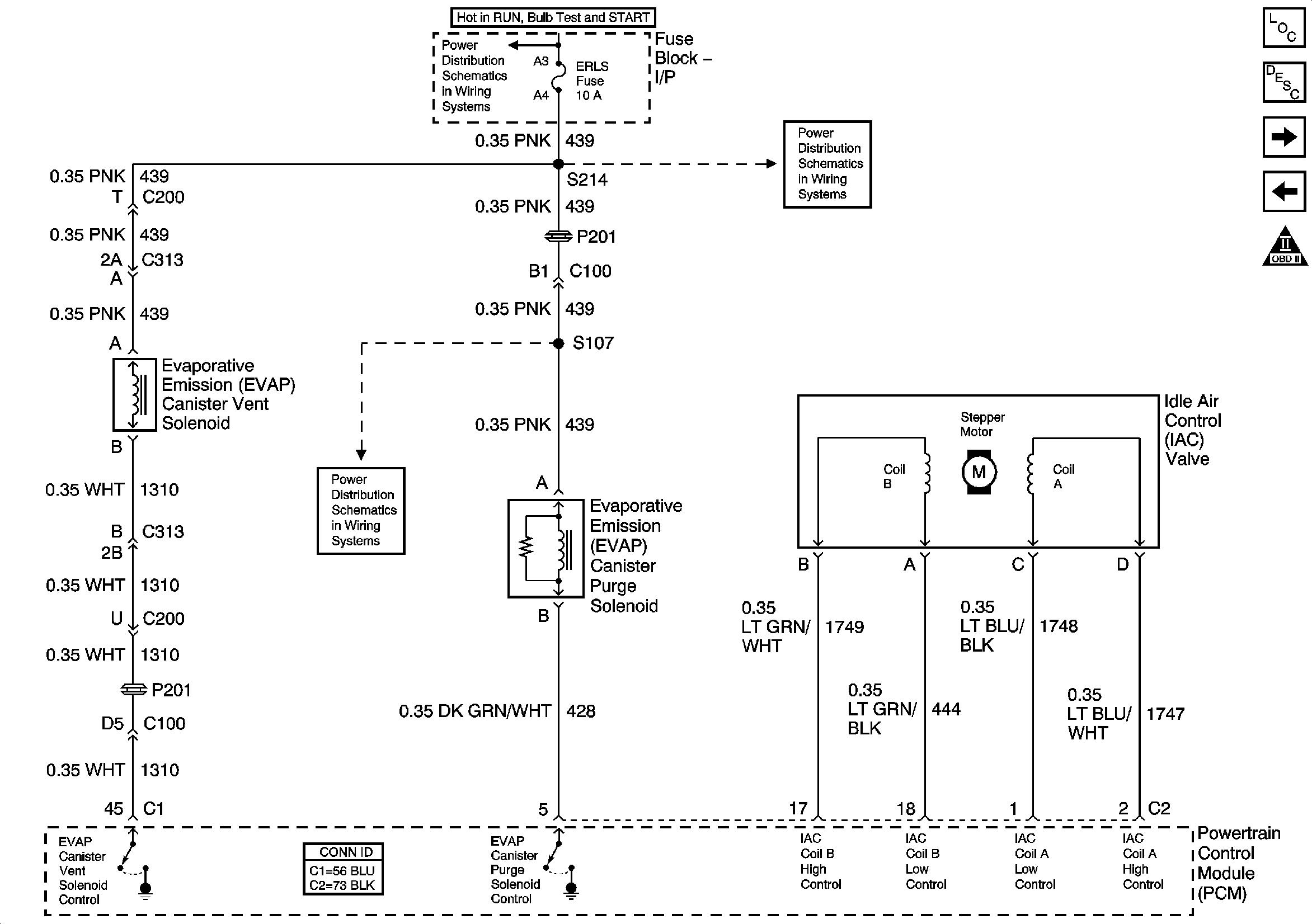

EVAP Controls and IAC
Object Number: 783411 Size: FS
Figure 8:

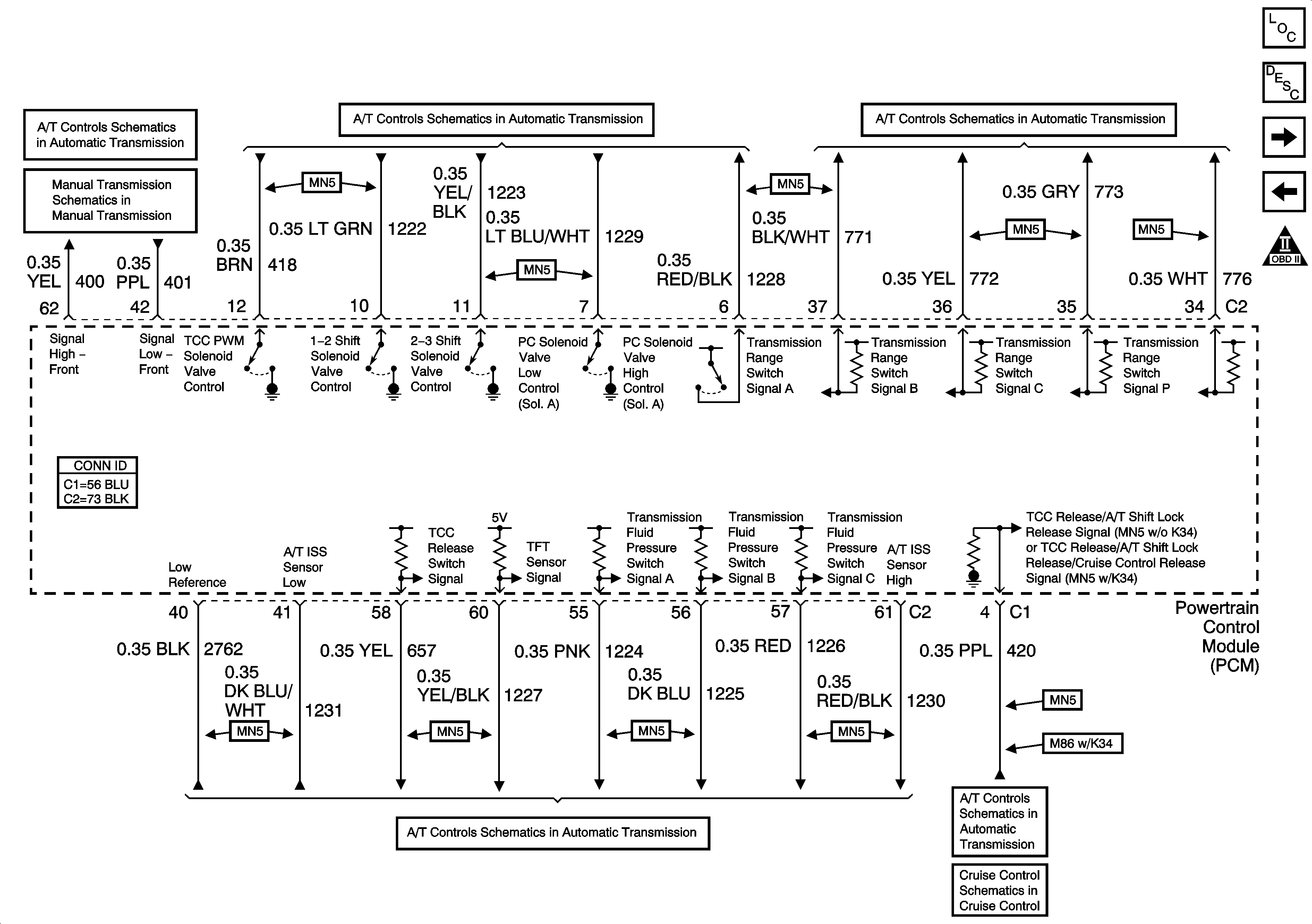

Transmission Controls - A/T
Object Number: 1400609 Size: FS
Figure 9:

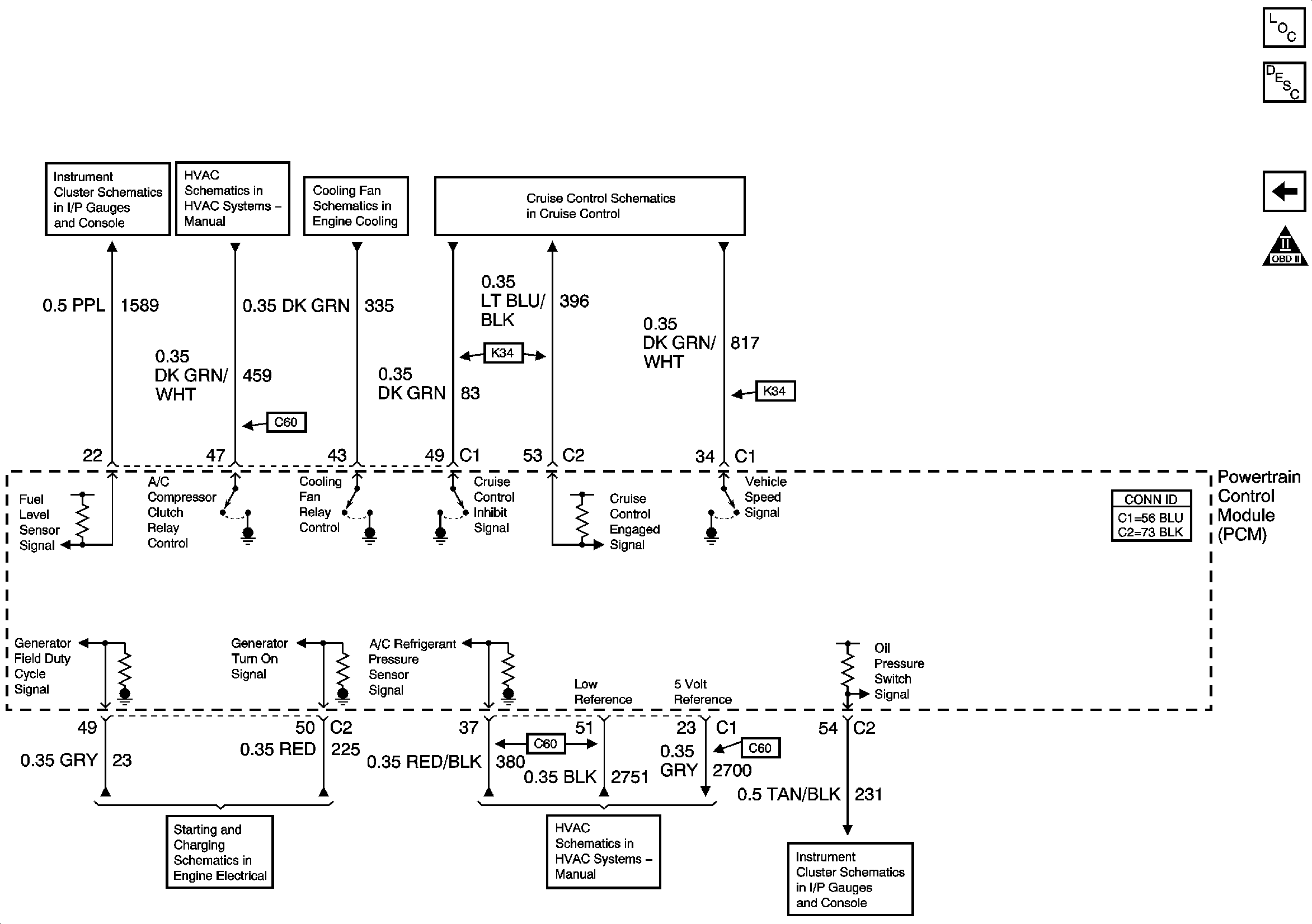

Controlled/Monitored Subsystem References
Object Number: 783418 Size: FS
