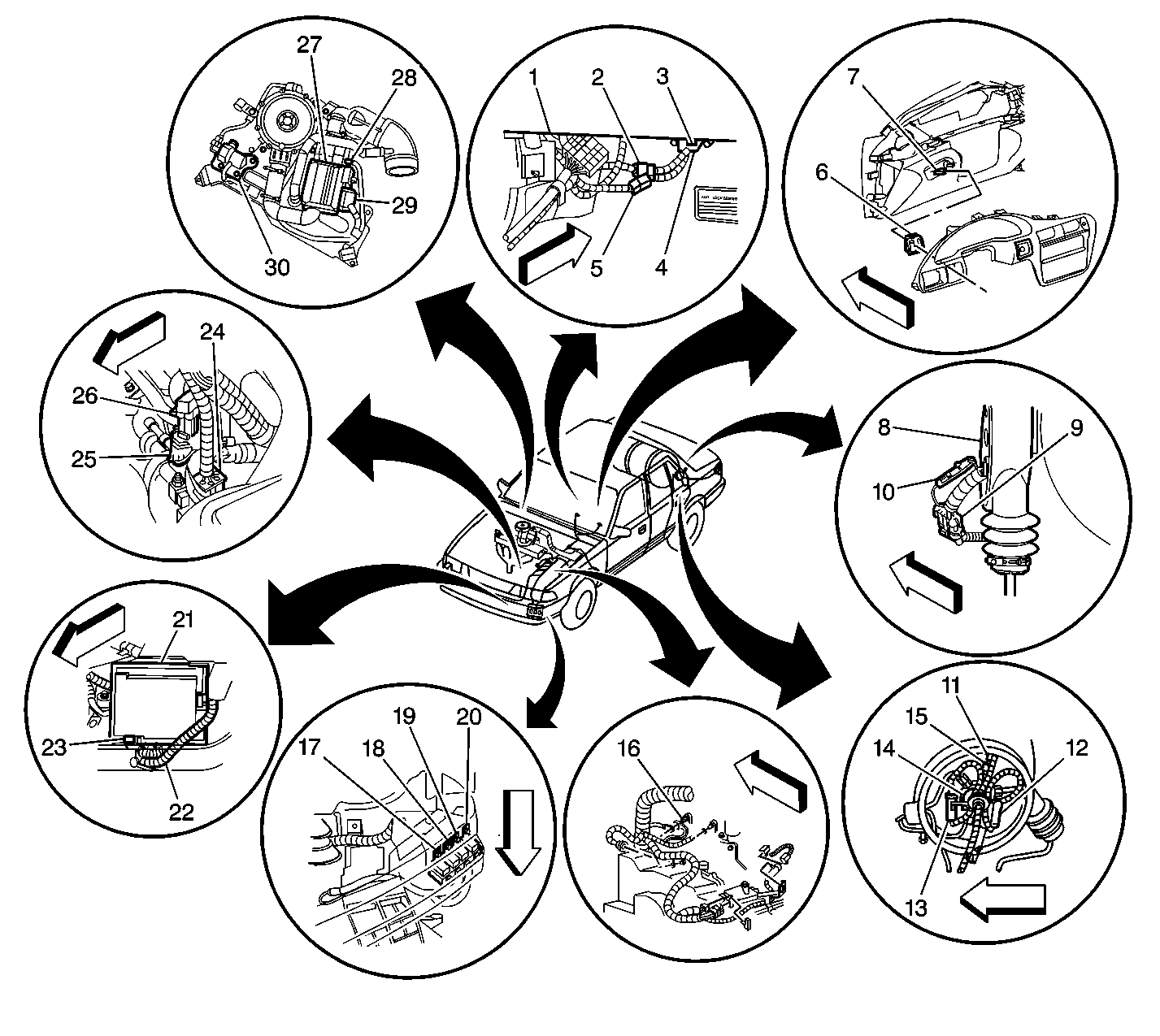

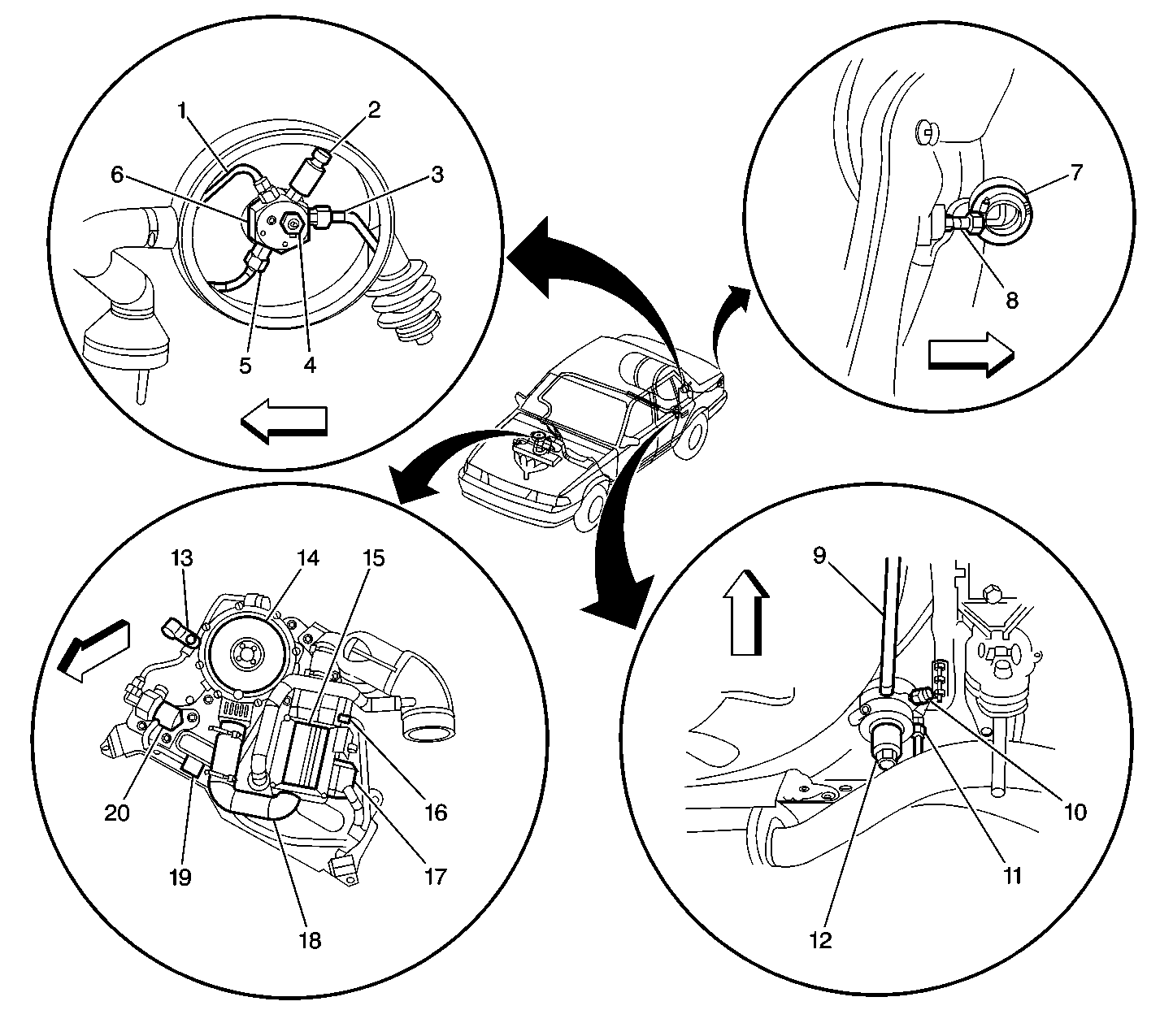

| (1) | 23-Way In-line Connector C200 Black |
| (2) | 10-Way In-line Connector C251 Natural |
| (3) | Passthrough P001 (not shown) |
| (4) | Data
Link Connector (DLC) |
| (5) | 10-Way In-line Connector C250 Natural |
| (6) | Fuel Gauge
Selector Switch/Fuel Indicator Lamp and Panel Dimmer Switch Assembly |
| (7) | Fuel
Gauge Select Switch Connector C254 |
| (8) | Passthrough P401 |
| (9) | 6-Way In-line
Connector C450 Black |
| (10) | 1-Way In-line Connector C454 |
| (11) | Fuel Pressure Sensor Connector
C452 Black |
| (12) | High Pressure Lock-off Connector C453 Black |
| (13) | Fuel Temperature Sensor Connector C451 Gray |
| (14) | High Pressure Lock-off (HPL) with
Internal Fuel Temperature Sensor (FTS) |

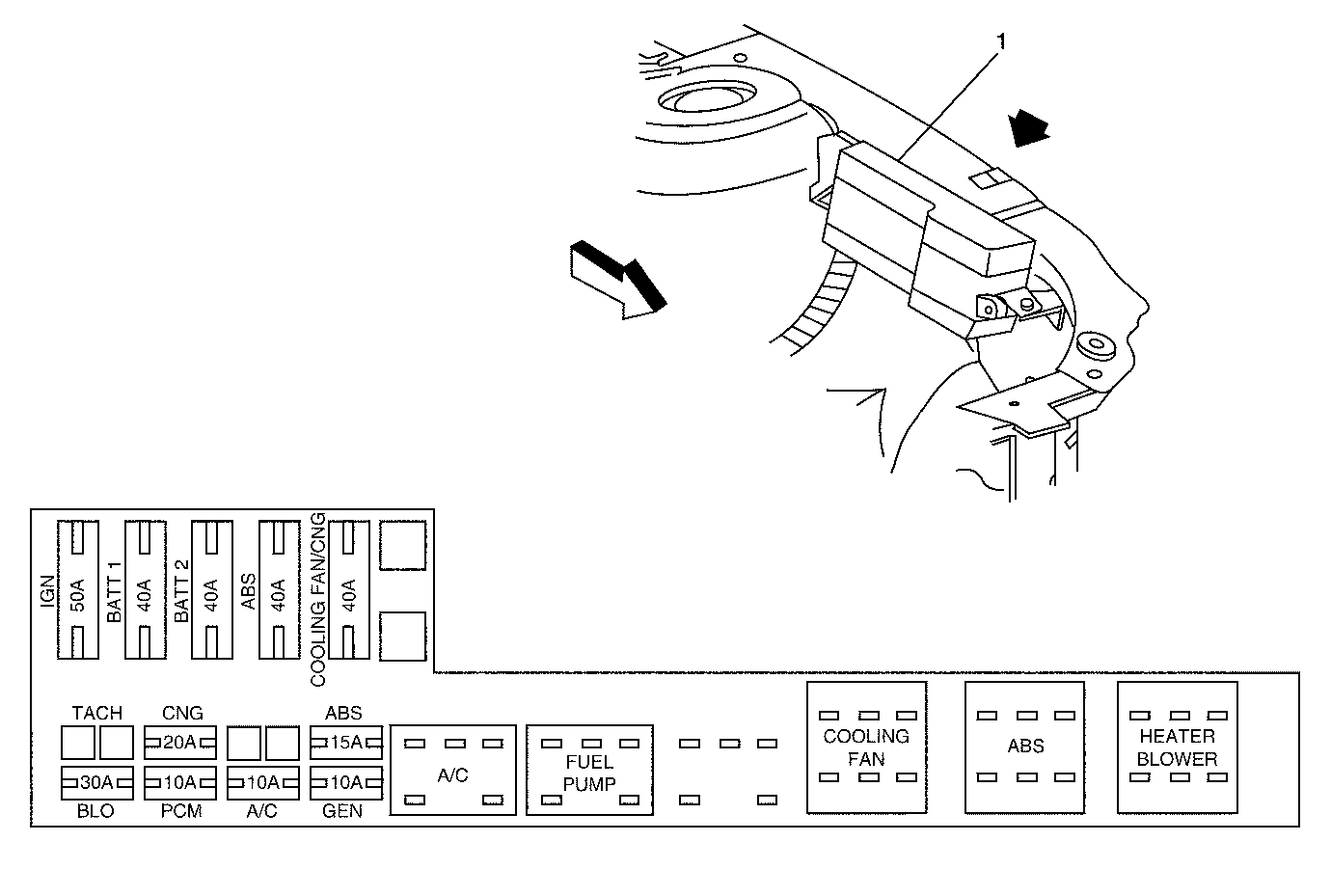

| (15) | Fuel Pressure Sensor (FPS) |
| (16) | G112 |
| (17) | Fuel Gauge Relay Connector C012 |
| (18) | Lock-off Relay Connector C011 |
| (19) | AF Fuel Pump Relay Connector C007 |
| (20) | Ignition Relay Connector C004 |
| (21) | AF Engine Control Unit |
| (22) | AF Engine Control Unit Connector C001 Blue |
| (23) | AF Engine Control Unit Connector C002 White/Clear |
| (24) | 10-Way In-line Connector C018 Black |
| (25) | 10-Way In-line Connector C017 Gray |
| (26) | 6-Way In-line Connector C019 Black |
| (27) | GMS/MCV Assembly |
| (28) | Mixture Control Valve Connector C021 |
| (29) | Gas Mass Sensor
Connector C010 |
| (30) | Low Pressure Lock-off Connector C014 |
