Engine Controls Schematics. Chevrolet Cavalier (CNG) 2002

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2002 🢒 Cavalier (CNG) 🢒 Engine 🢒 Engine Controls - 2.2L (LN2) 🢒 Engine Controls Schematics

Figure 1:	Power, Ground, MIL, AFO and DLC Engine Controls Components Alternative Fuels Engine Control Module Description Ignition System PCM 2 of 2 OBD II Symbol Description Notice

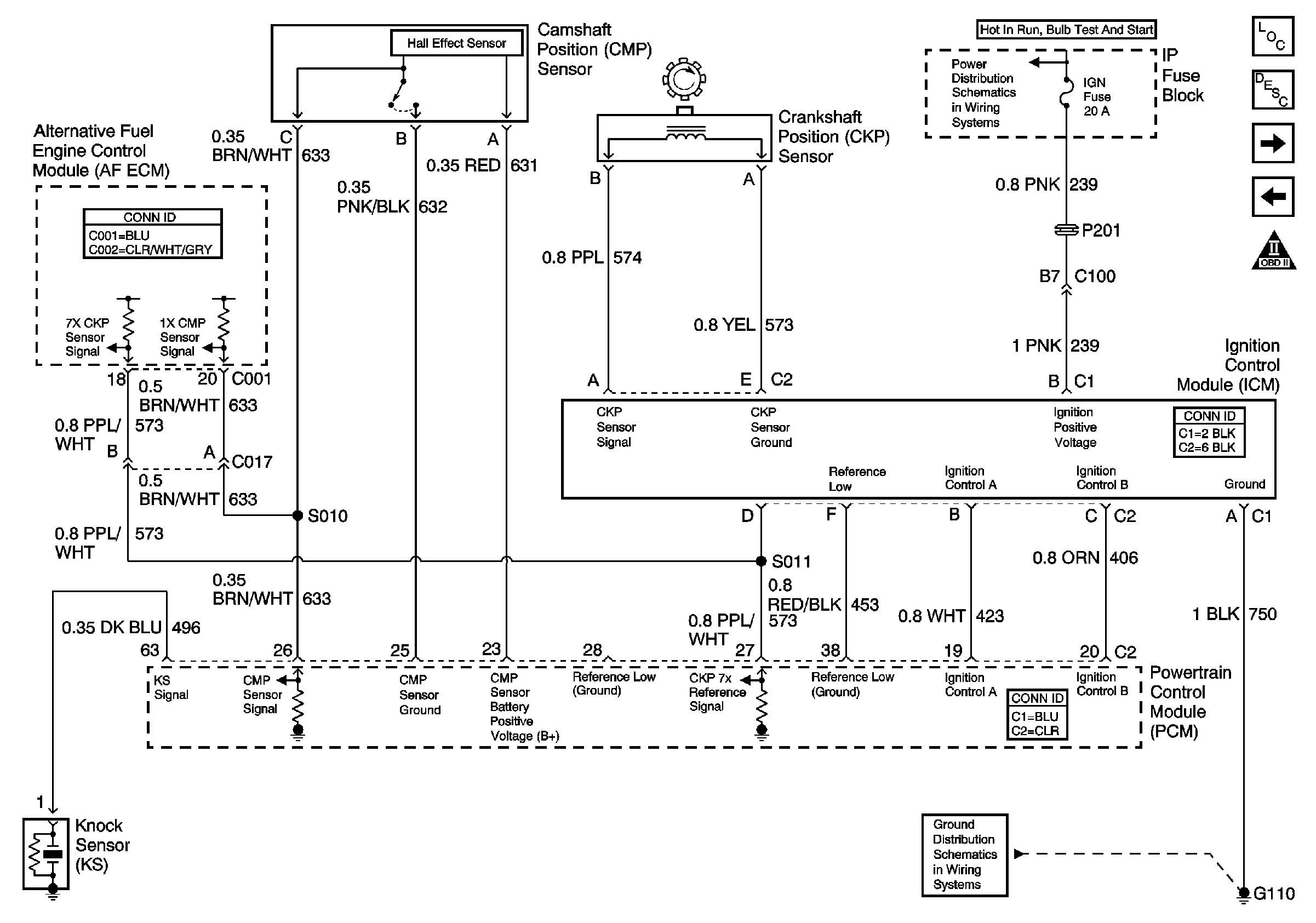

Figure 2:	Ignition System Engine Controls Components Alternative Fuels Engine Control Module Description Fuel Pump Power, Ground, MIL and DLC OBD II Symbol Description Notice
Figure 3:	Fuel Controls, Fuel Pump Engine Controls Components Alternative Fuels Engine Control Module Description Lock-Off Solenoids Ignition System OBD II Symbol Description Notice

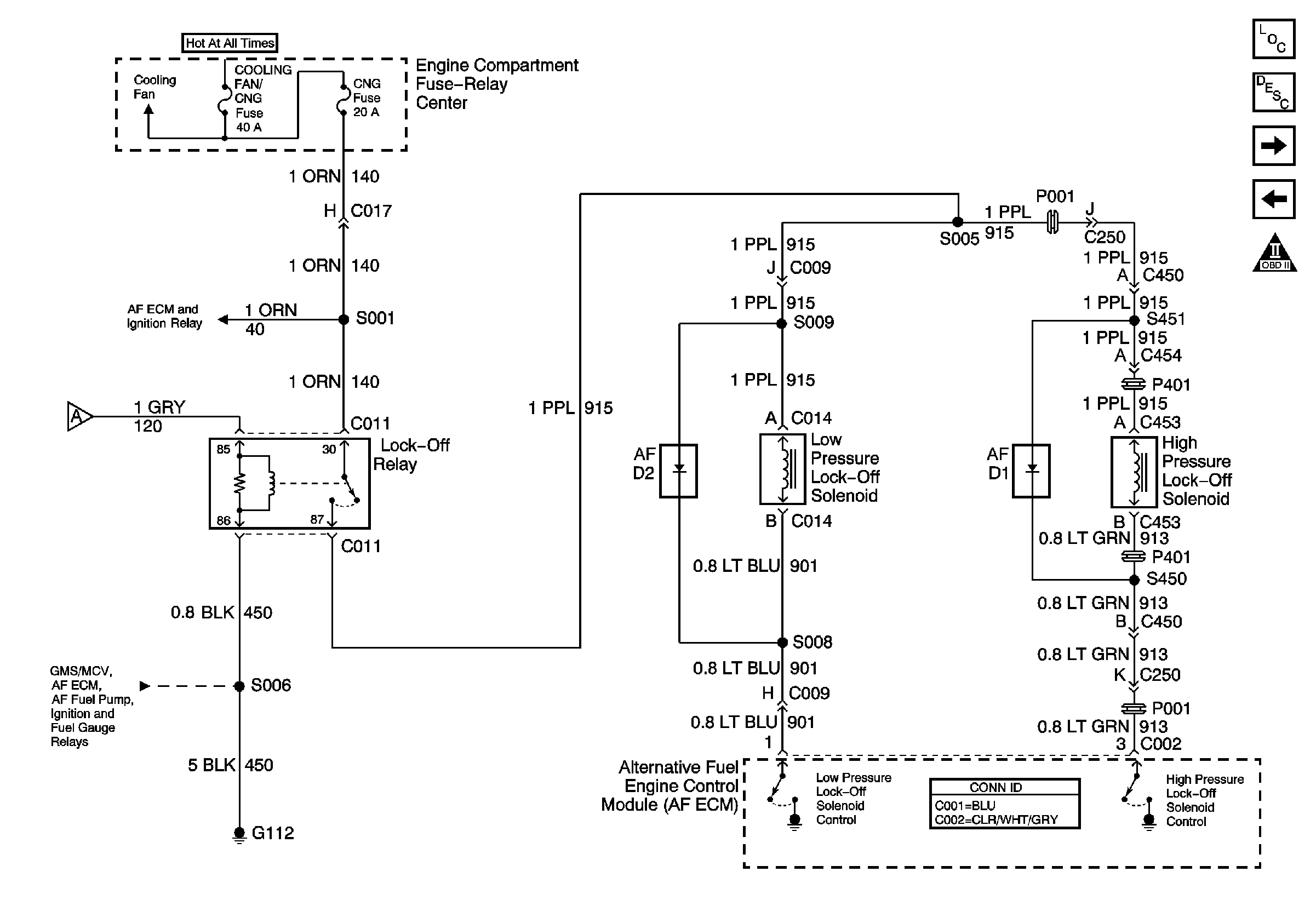

Figure 4:	Fuel Controls, Lock-Off Solenoids Engine Controls Components Alternative Fuels Engine Control Module Description Fuel Gauge Fuel Pump OBD II Symbol Description Notice

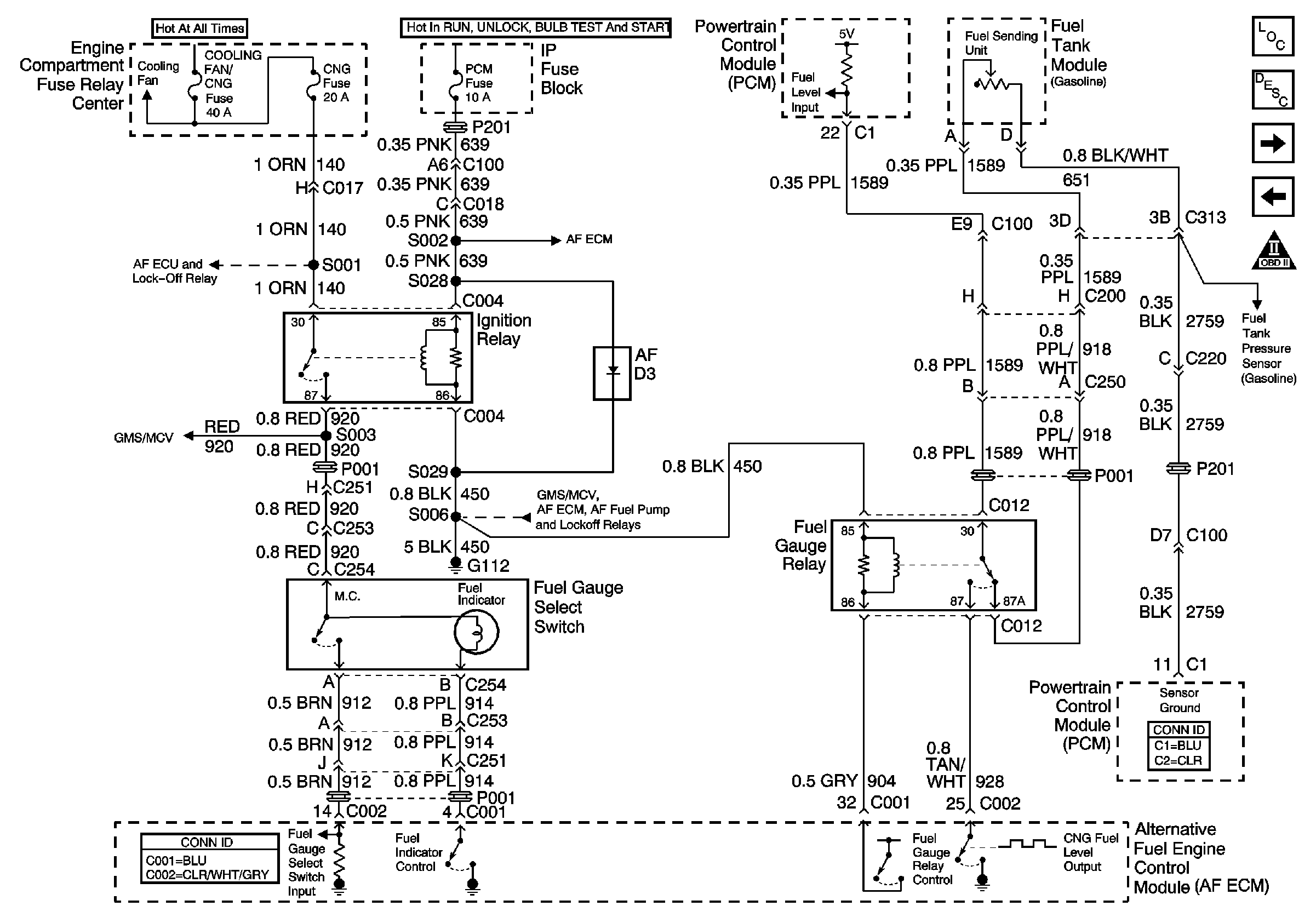

Figure 5:	Fuel Controls, Fuel Gage Engine Controls Components Alternative Fuels Engine Control Module Description ECT, MAP, TP and IAT Lock-Off Solenoids OBD II Symbol Description Notice

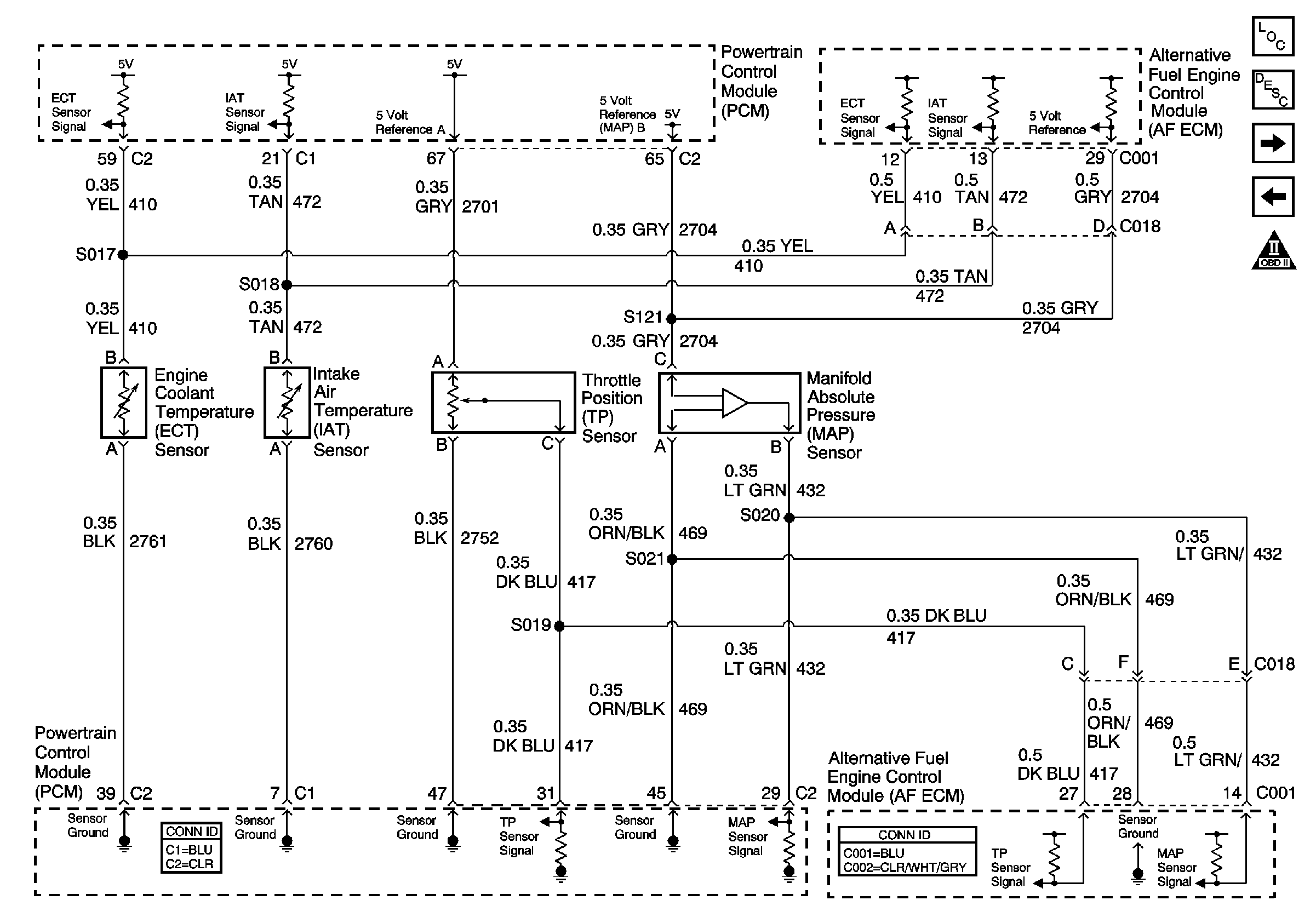

Figure 6:	Sensors, ECT, MAP, TP and IAT Engine Controls Components Alternative Fuels Engine Control Module Description IAC, FTP and FTT Fuel Gauge OBD II Symbol Description Notice

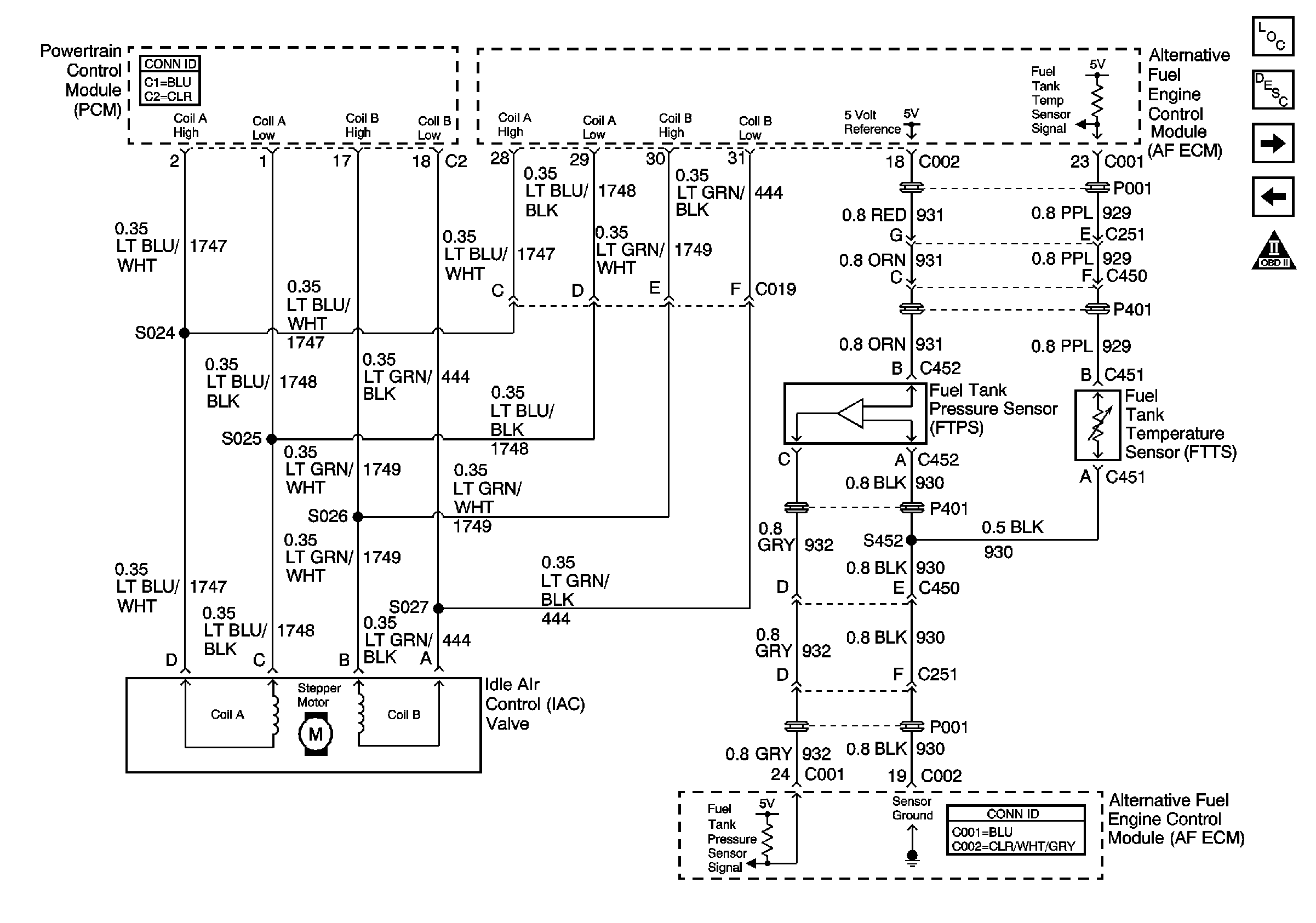

Figure 7:	Sensors, IAC, FTP and FTT Engine Controls Components Alternative Fuels Engine Control Module Description GMS/MCV Engine Controls, PCM 2 of 2 (C2) OBD II Symbol Description Notice

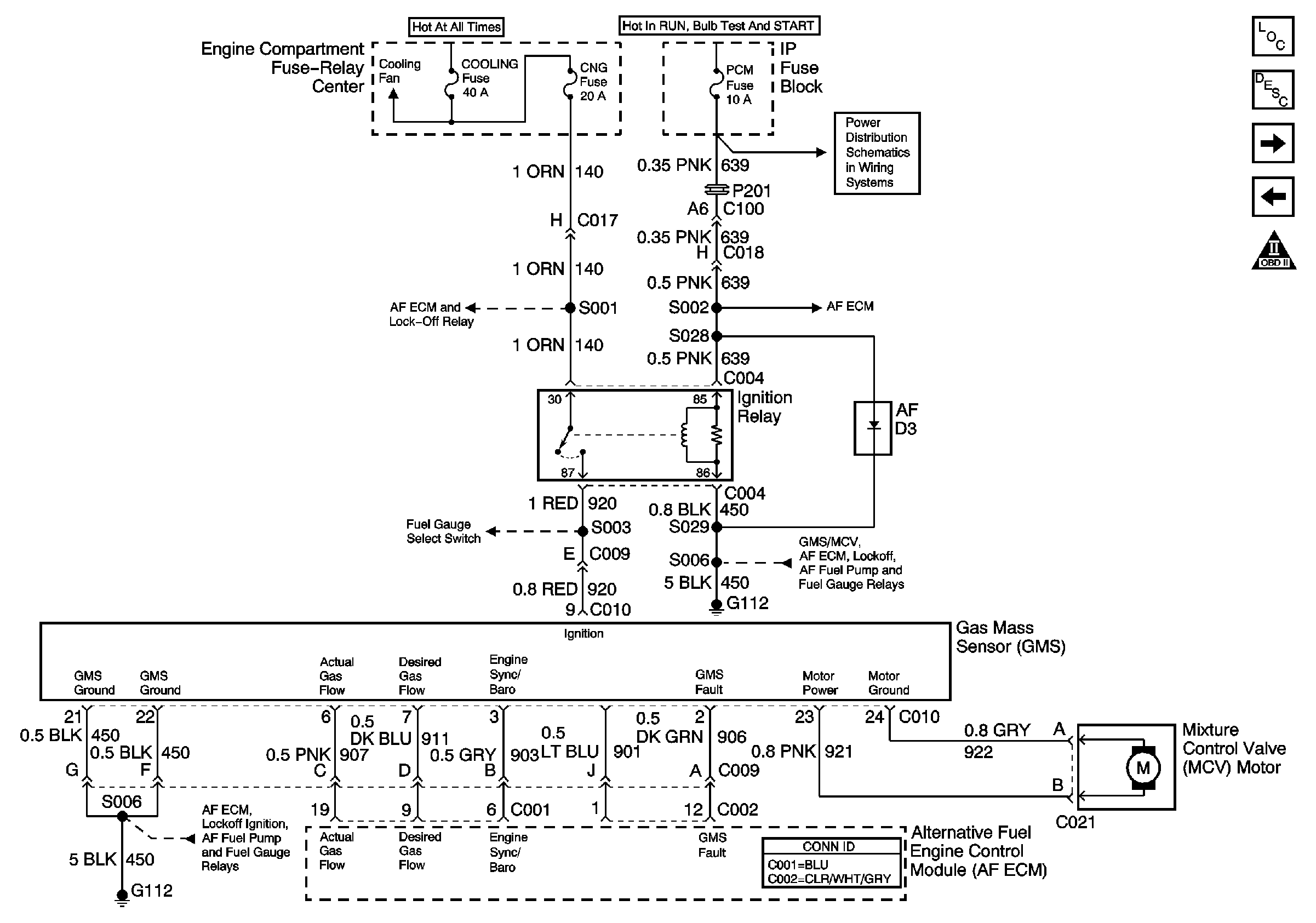

Figure 8:	Sensors, GMS/MCV Engine Controls Components Alternative Fuels Engine Control Module Description VSS IAC, FTP and FTT OBD II Symbol Description Notice

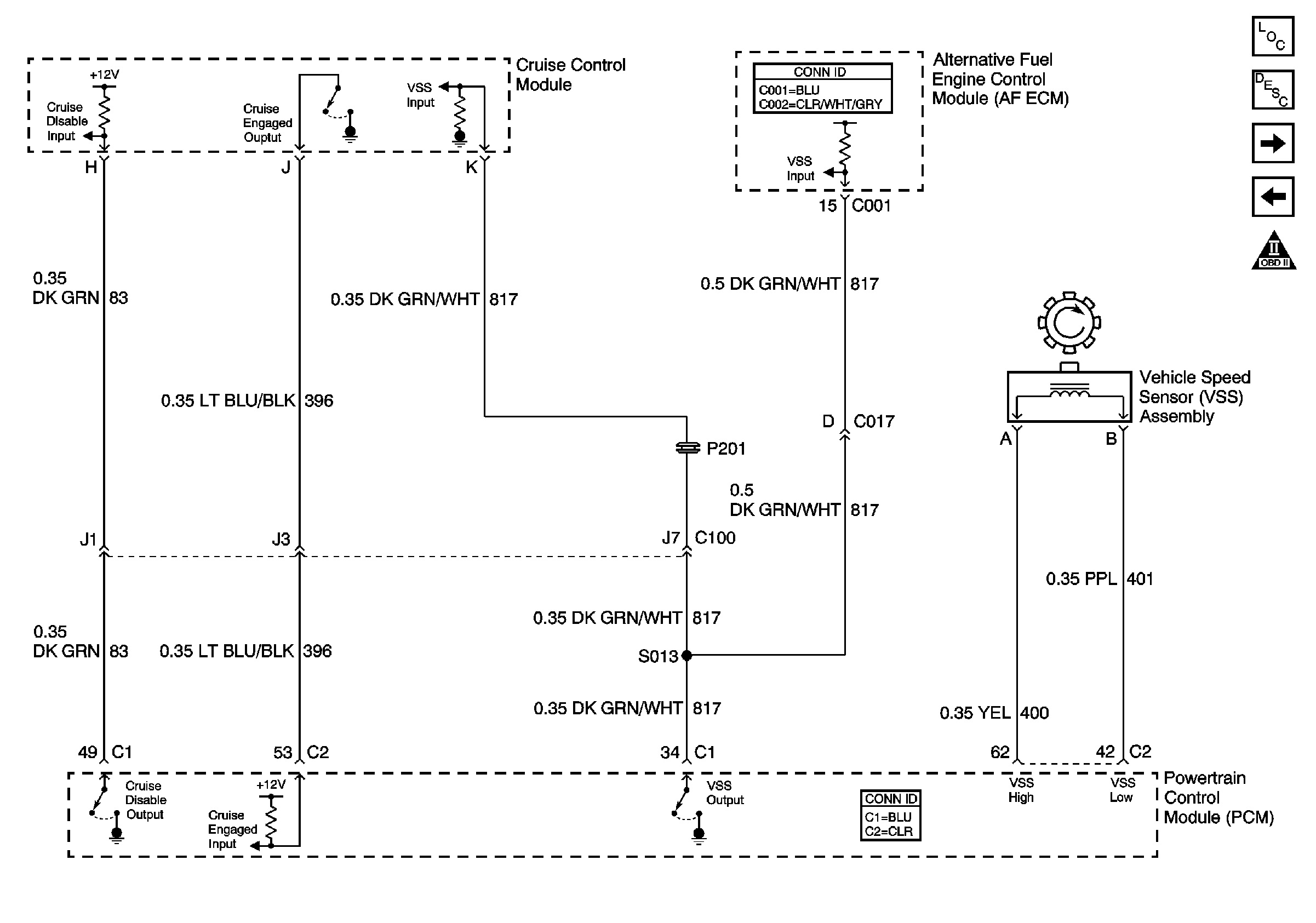

Figure 9:	Vehicle Speed Output Engine Controls Components Alternative Fuels Engine Control Module Description HO2S and EVAP GMS/MCV OBD II Symbol Description Notice

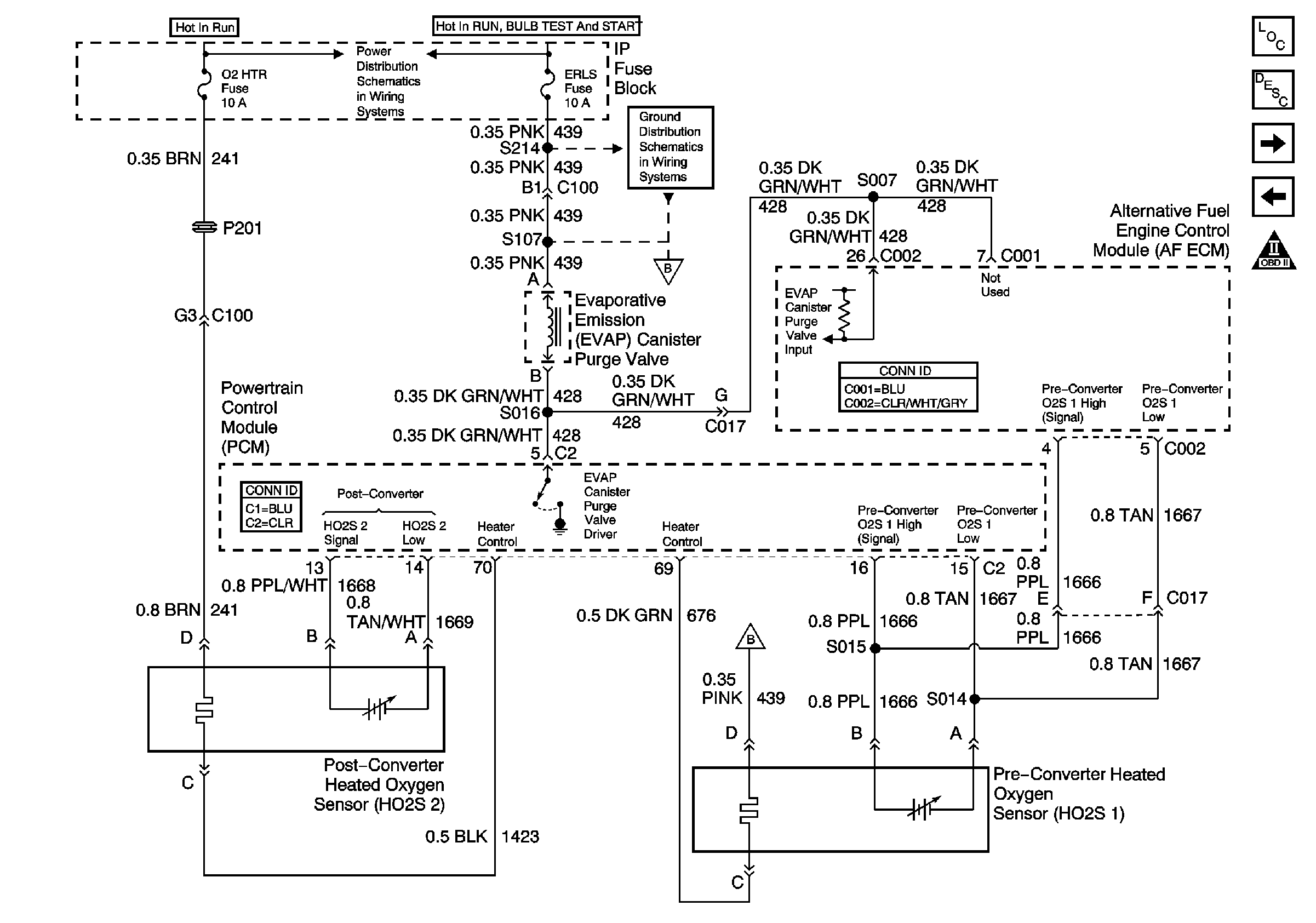

Figure 10:	Sensors, HO2S and EVAP Engine Controls Components Alternative Fuels Engine Control Module Description PCM 1 of 2 VSS OBD II Symbol Description Notice

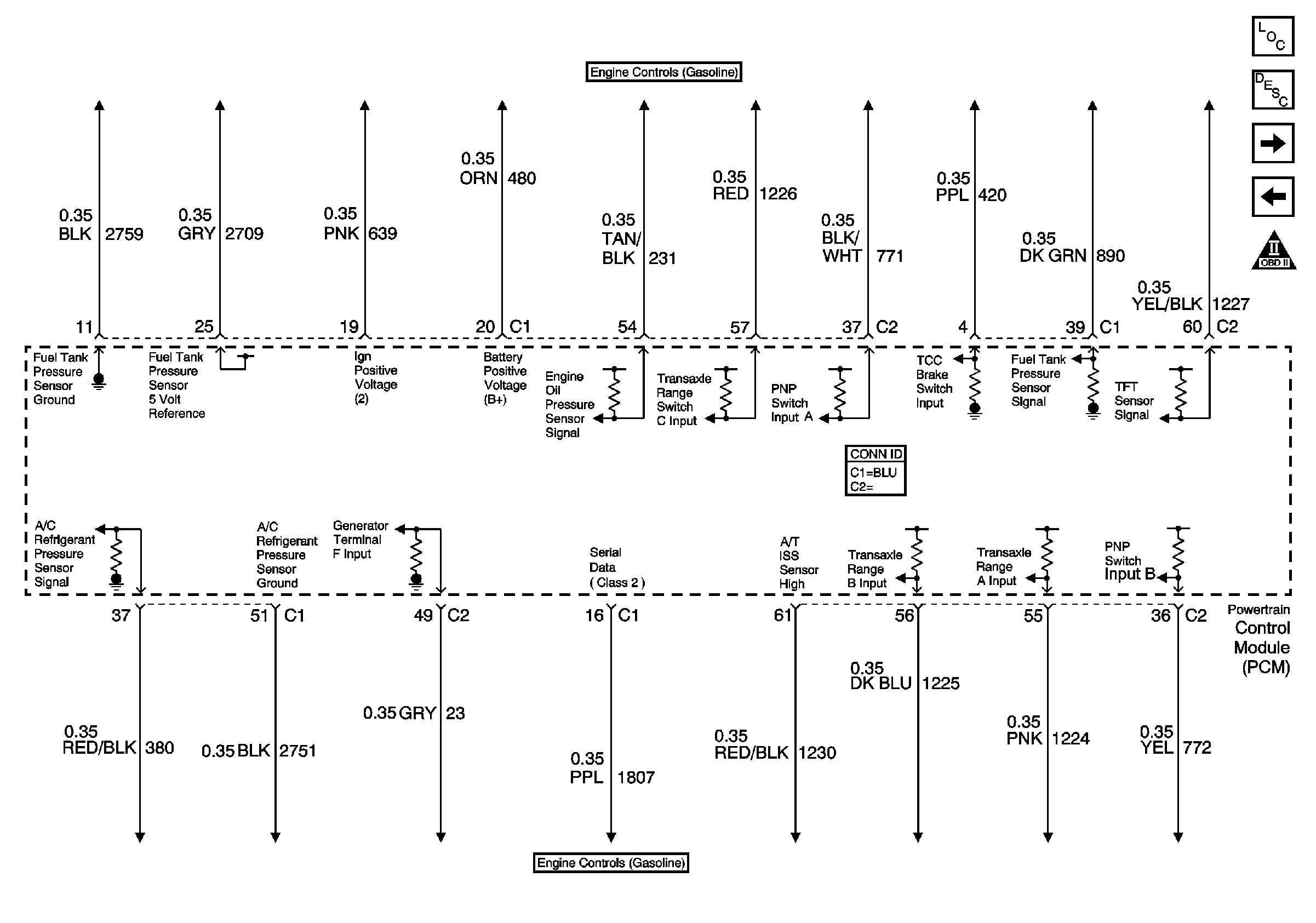

Figure 11:	PCM 1 of 2 Engine Controls Components Alternative Fuels Engine Control Module Description PCM 2 of 2 HO2S and EVAP OBD II Symbol Description Notice

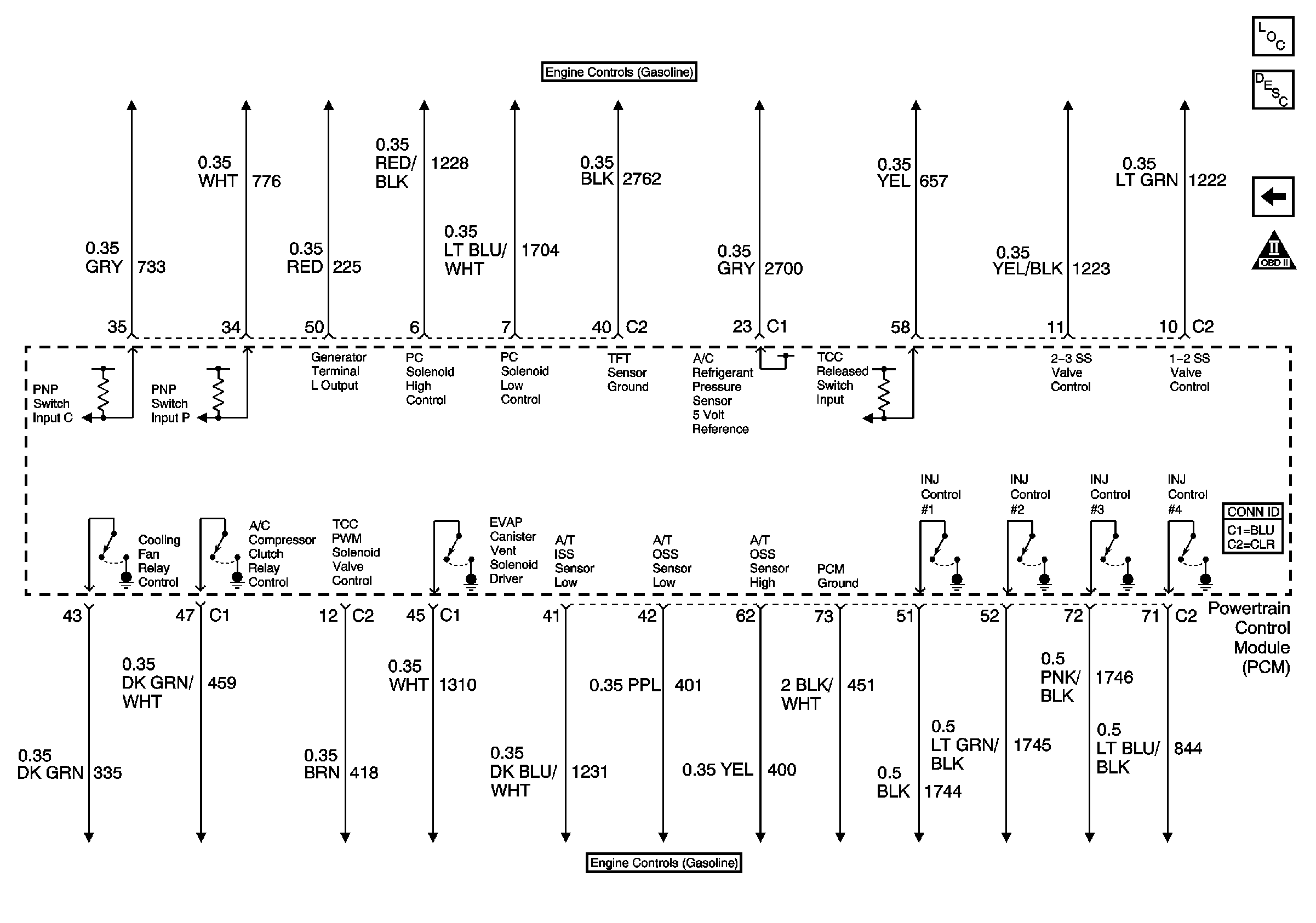

Figure 12:	PCM 2 of 2 Engine Controls Components Alternative Fuels Engine Control Module Description Power, Ground, MIL and DLC PCM 1 of 2 OBD II Symbol Description Notice
