Figure 1:


(1)	Hourmeter
(2)	Air Brake Pressure Gauge Lamp
(3)	Air Brake Pressure Gage
(4)	Ammeter
(5)	Multifunction Alarm Module (MFAM) C2 (4 cavities)
(6)	Hazard Warning Switch Indicator Lamp (part of the hazard warning lamps name plate)
(7)	Right IP Trim Bezel
(8)	Hazard Warning Switch
(9)	Center IP Trim Bezel
(10)	Automatic Transmission (A/T) Selector Control
(11)	Left IP Trim Bezel
(12)	Low Air Pressure Switch

Figure 2:

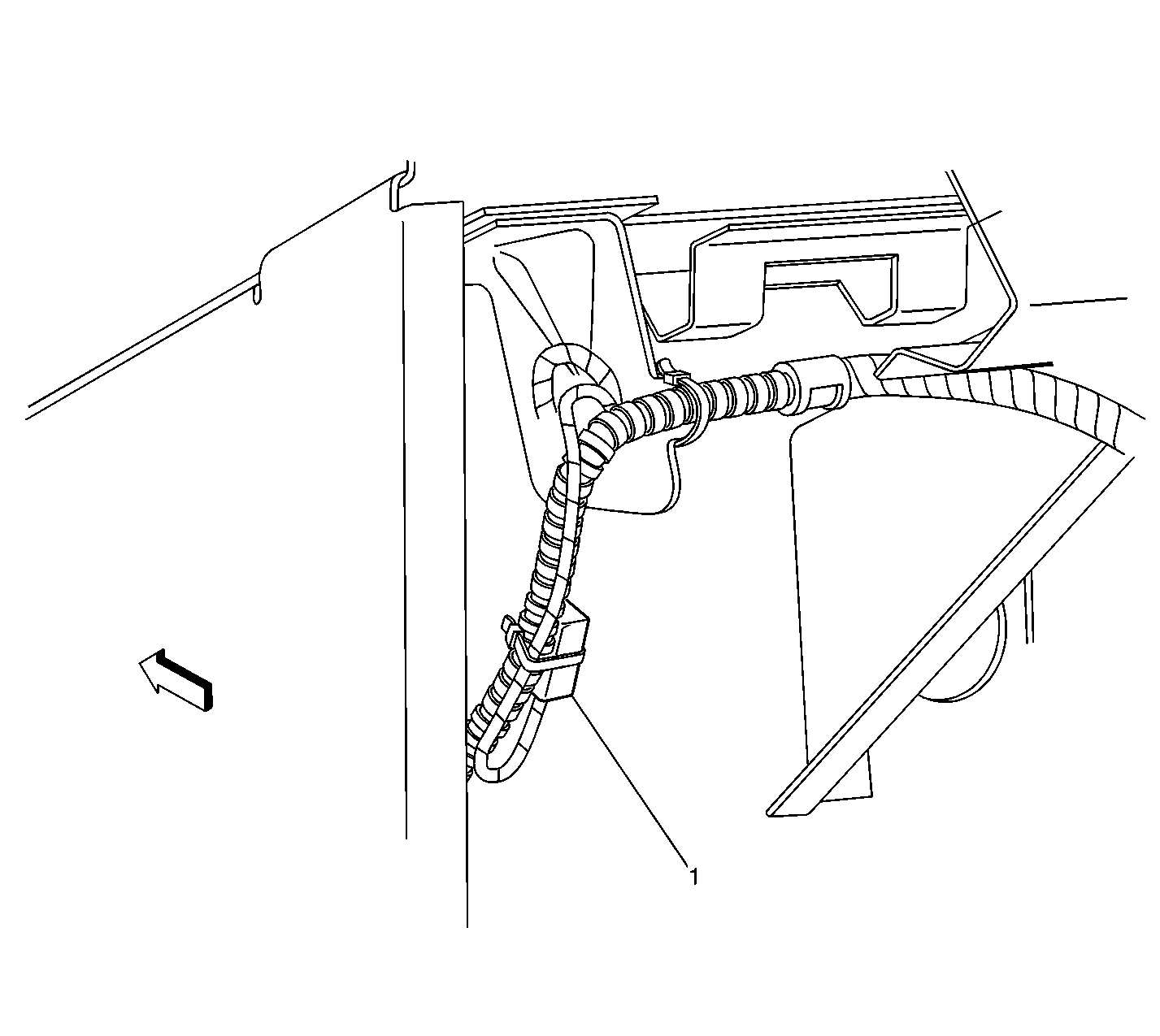

Figure 3:


(1)	Daytime Running Lamp (DRL) Control Module

Figure 4:


(1)	Relay Center
(2)	Vehicle Speed Sensor (VSS) Buffer
(3)	Fuse Block 2
(4)	Fuse Block 1
(5)	IP Fuse Block/Mini-Relay Center
(6)	Flasher/Relay Center, Position 3
(7)	Flasher/Relay Center, Position 2, Exhaust Brake Relay
(8)	Flasher/Relay Center
(9)	Flasher/Relay Center, Position 1

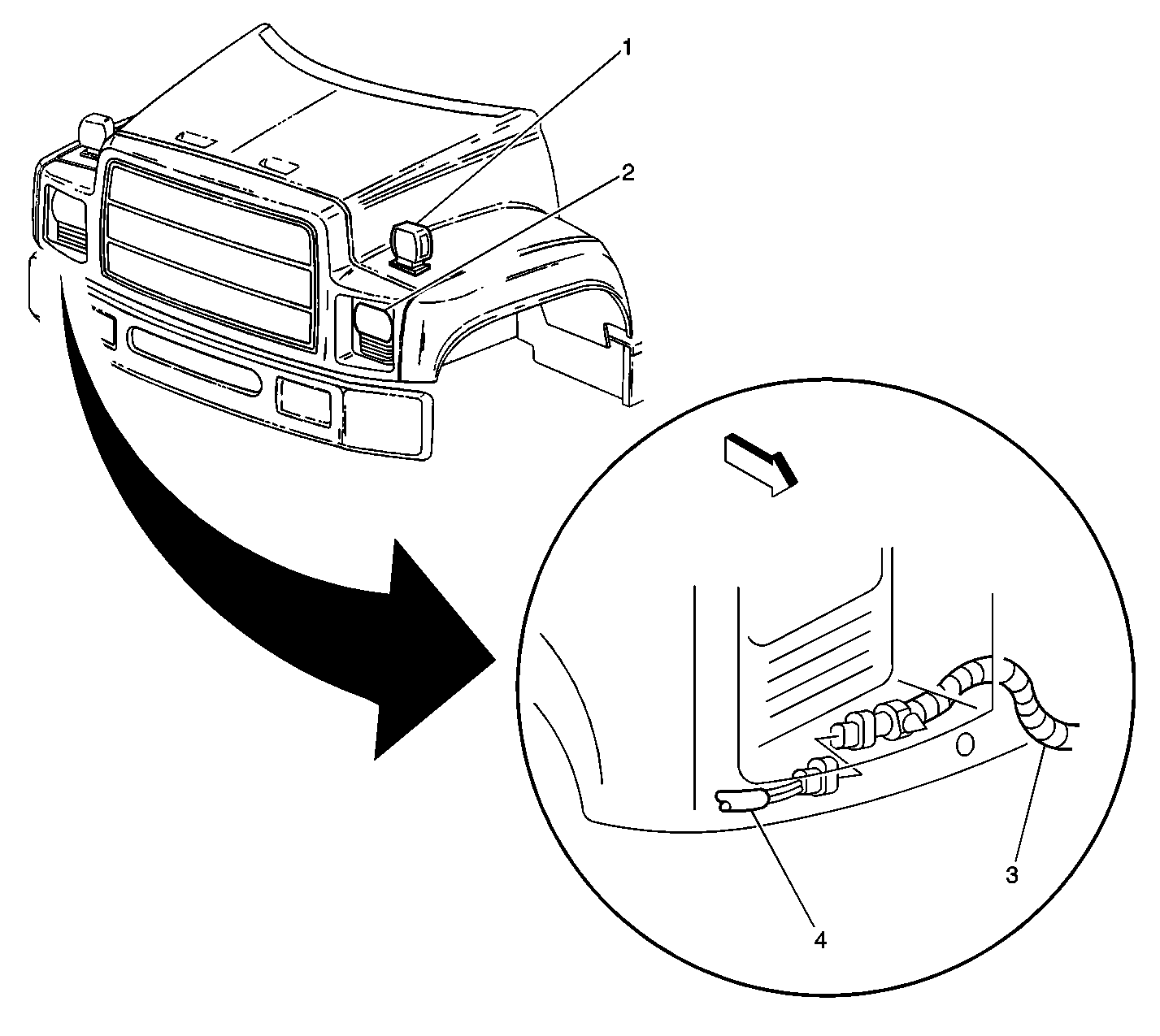

Figure 5:


(1)	Front Left Park and Turn Signal Lamp (Right Side Similar)
(2)	Left High/Low Beam Headlamp (Right Side Similar)
(3)	Engine Harness
(4)	Forward Lamp Harness

Figure 6:

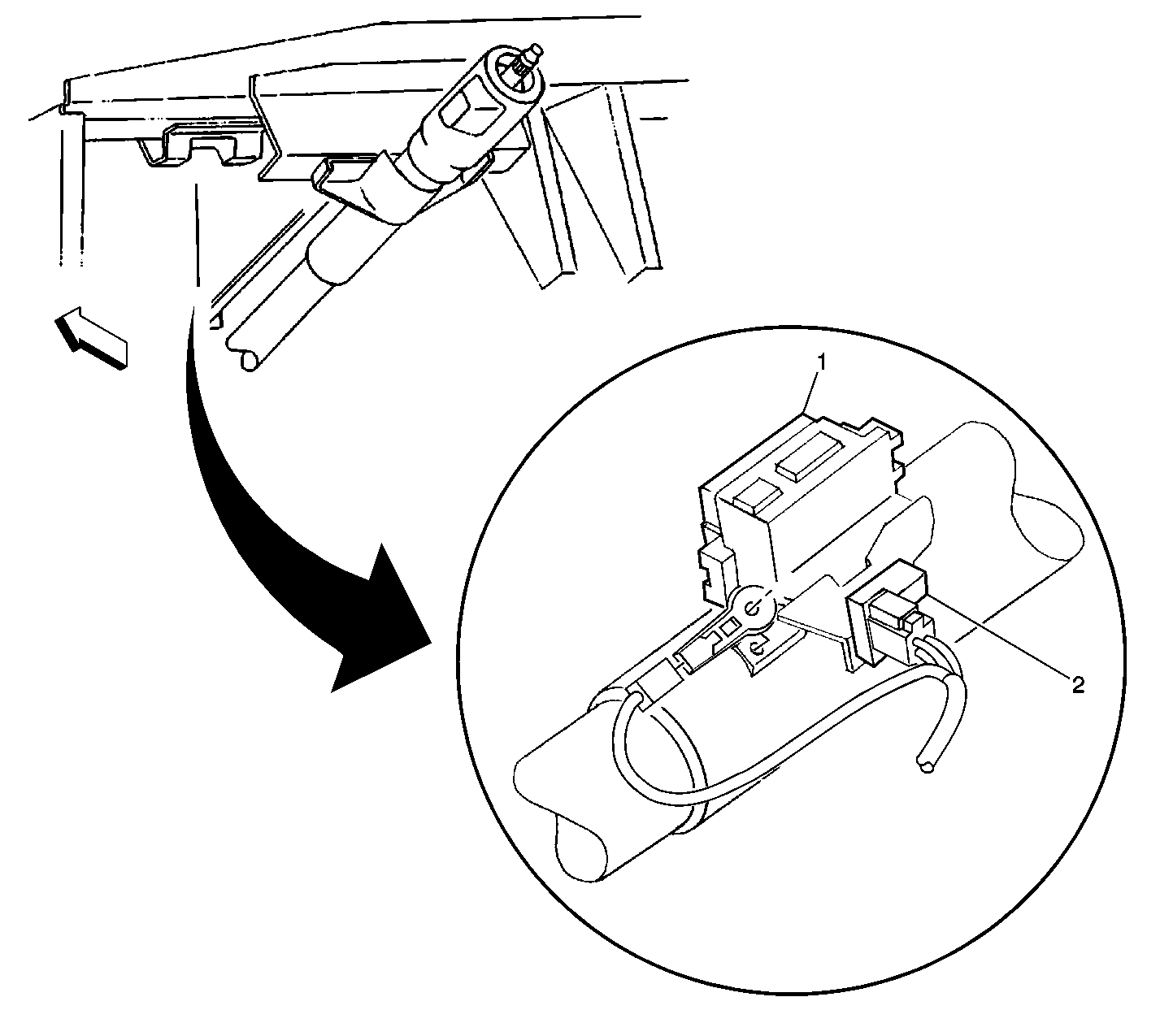

(1)	Ignition Switch
(2)	Headlamps Dimmer Switch

Figure 7:


(1)	IP Lamps Dimmer Switch
(2)	Instrument Cluster
(3)	Exhaust Brake Clutch Switch Jumper Plug
(4)	Exhaust Brake Clutch Switch
(5)	Upfitter Connector (23 cavities)
(6)	Upfitter Connector Jumper (23 cavities)
(7)	Upfitter IP (+) Junction Block
(8)	Daytime Running Lamp (DRL) Control Module
(9)	Driver Information Center
(10)	Headlamps Switch

Figure 8:

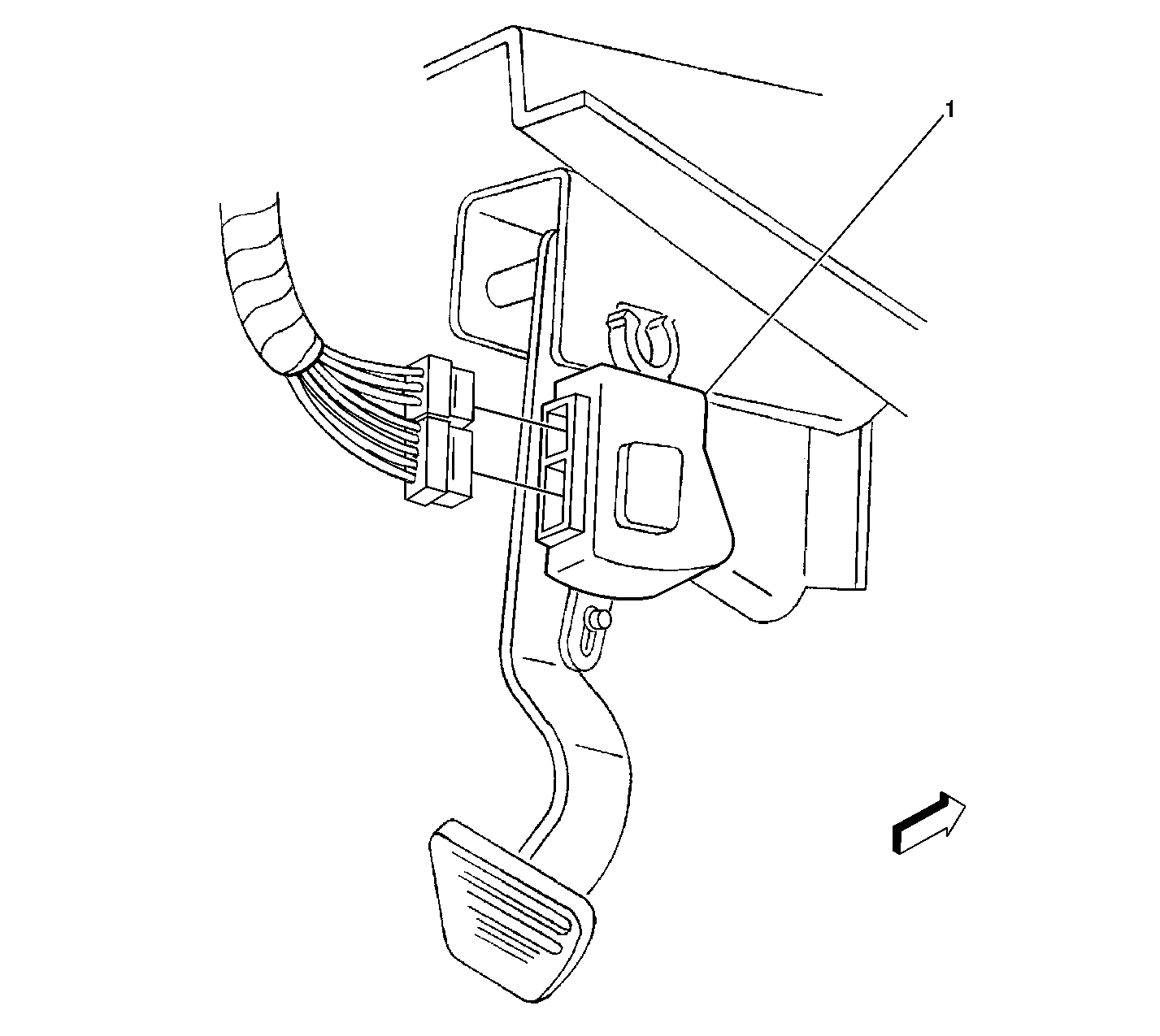

(1)	Stoplamps Switch (ABS-Hydraulic)

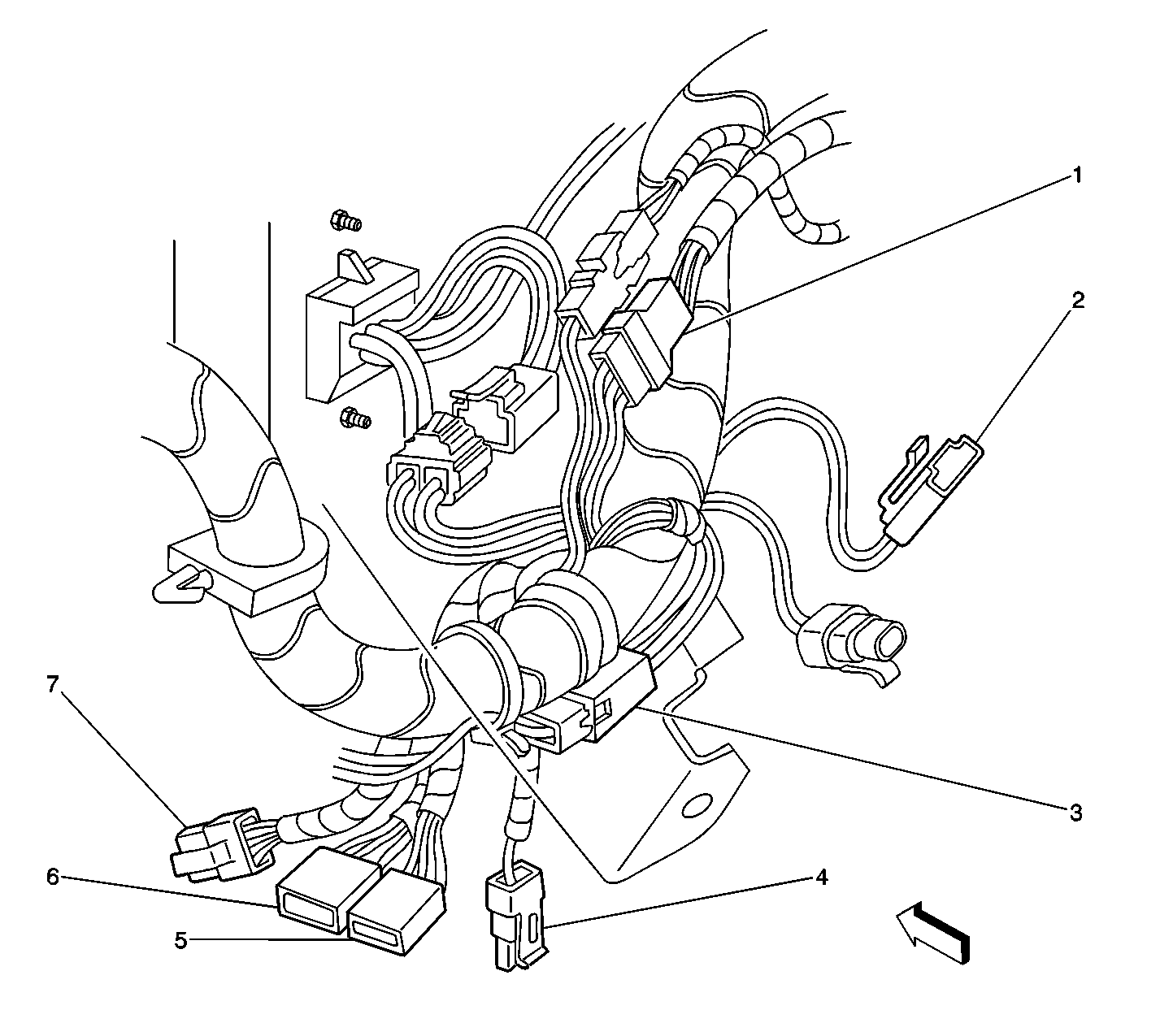

Figure 9:


(1)	Hourmeter
(2)	Automatic Transmission (A/T) Selector Connector (I/P Mounted)
(3)	Turn Signal Switch
(4)	Low Air Pressure Switch
(5)	Ignition Switch C1 (5 cavities)
(6)	Ignitions Switch C2 (4 cavities)
(7)	Stoplamps Switch C1 (4 cavities)
