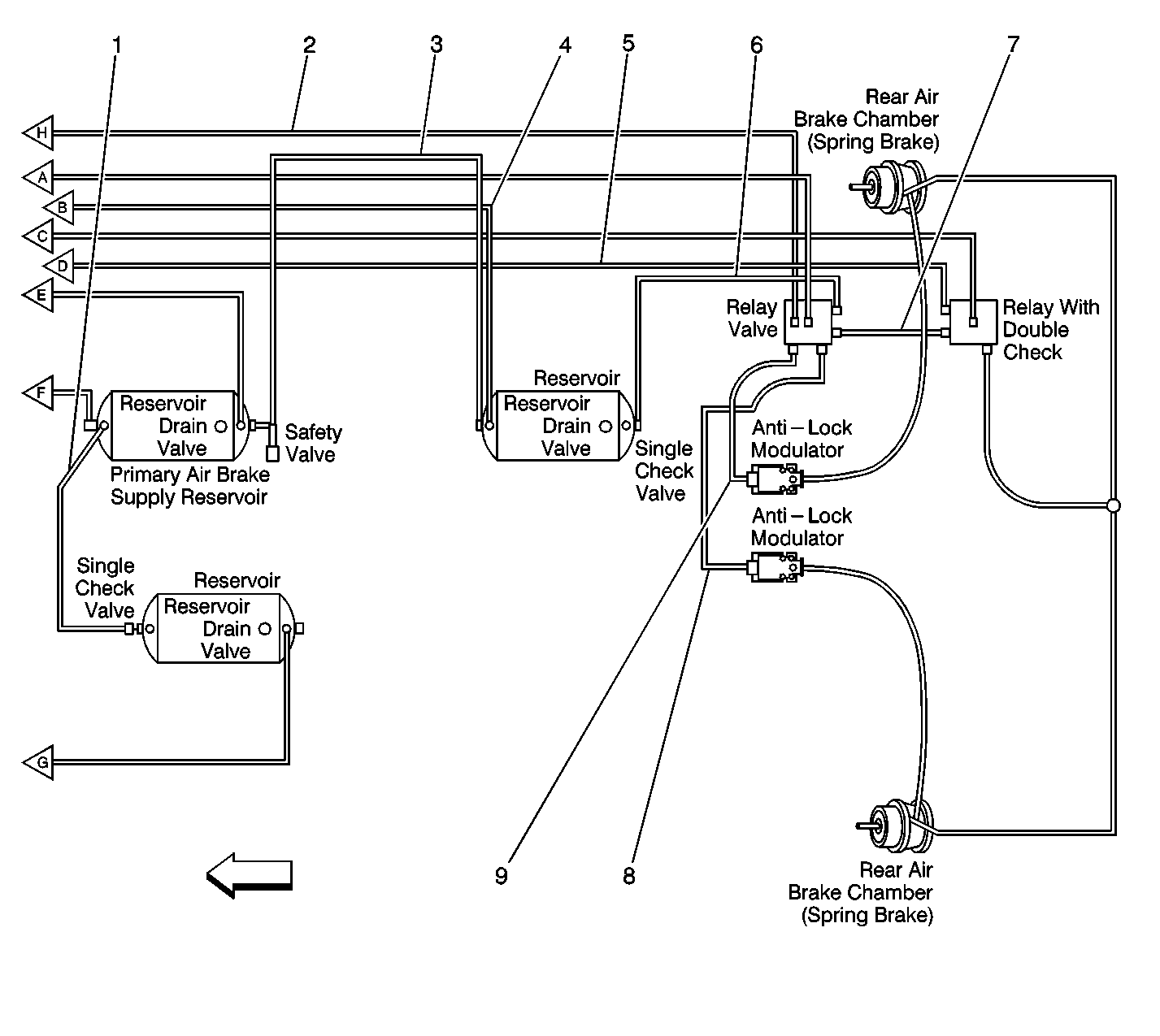

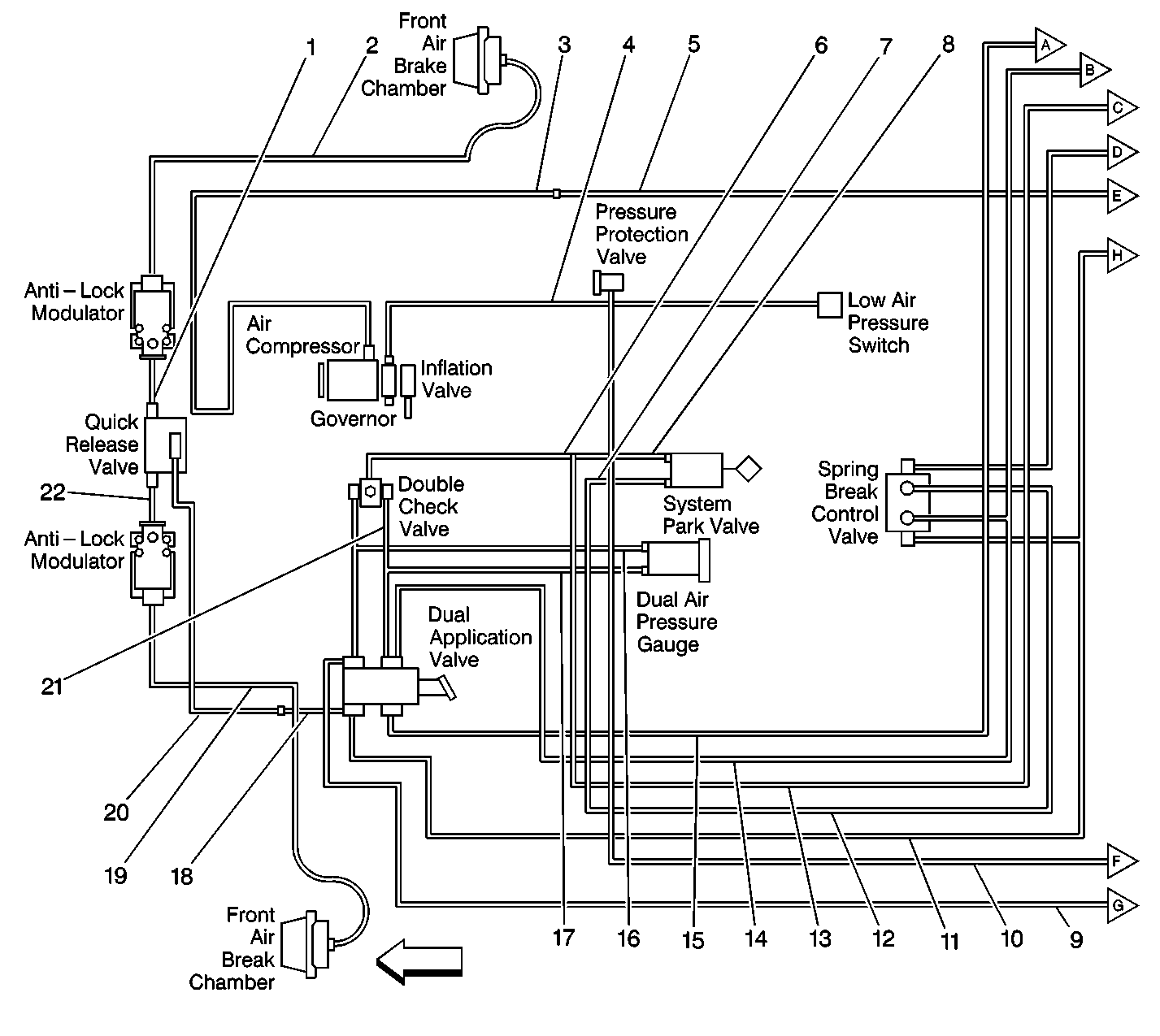

| (1) | Right Front Anti-Lock Modulator to
Frame (FC-350) O.D. 13 mm, 0.50 in |
| (2) | Air compressor to Frame Connector (Copper)
O.D. 16 mm, 0.625 in |
| (3) | Low Air Pressure Warning Switch to
Governor Valve (Black) O.D. 10 mm, 0.375 in |
| (4) | Frame Connector
to Supply Reservoir (Copper) O.D. 16 mm, 0.625 in |
| (5) | Double
Check Valve to Bulkhead Connector (Brown) O.D. 10 mm, 0.375 in |
| (6) | System Park Valve to Bulkhead Connector (Red) O.D. 6 mm, 0.250 in |
| (7) | Bulkhead Connector to System Park Valve (Brown) O.D. 6 mm, 0.250 in |
| (8) | Dual Application Valve to Front Reservoir (Blue) O.D. 13 mm,
0.50 in |
| (9) | Supply Reservoir to Low Air Pressure Warning Switch
(Black) O.D. 10 mm, 0.375 in |
| (10) | Dual Application Valve to Spring
Brake Control Valve (Blue) O.D. 10 mm, 0.375 in |
| (11) | Bulkhead
Connector to Spring Brake Control Valve (Red) O.D. 10 mm, 0.375 in |
| (12) | Double Check Valve to Relay Valve with Double Check (Red) O.D.
13 mm, 0.50 in |
| (13) | Spring Brake Control Valve to Dual Application
Valve (Green) O.D. 13 mm, 0.50 in |
| (14) | Dual Application Valve to Relay
Valve (Green) O.D. 10 mm, 0.375 in |
| (15) | Dual Application Valve to Dual
Air Pressure Gauge (Blue) O.D. 5 mm, 0.187 in |
| (16) | Dual Application
Valve to Dual Air Pressure Gauge (Green) O.D. 5 mm, 0.187 in |
| (17) | Dual Application valve to Frame Connector (Blue) O.D. 13 mm, 0.50 in |
| (18) | Left Front Anti-Lock Modulator to Frame (FC-350 O.D. 13 mm, 0.50 in |
| (19) | Frame Connector to Quick Release Valve (Copper) O.D. 13 mm, 0.625 in |
| (20) | Dual Application Valve to Double Check Valve (Blue) O.D. 13 mm, 0.50 in |
| (21) | Double Check Valve to Dual Application Valve |
| (22) | Quick Release Valve to Anti-Lock
Modulator |
