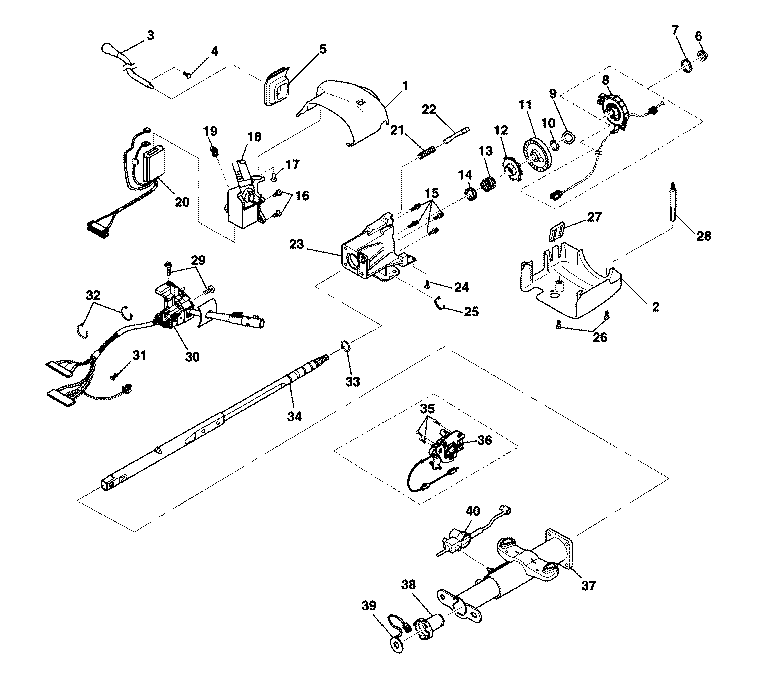

| (1) | Upper Trim Cover |
| (2) | Lower Trim Cover |
| (3) | Shift Lever Assembly |
| (4) | Shift Lever Screw |
| (5) | Shift Lever Seal |
| (6) | Hexagon Locking Nut |
| (7) | Retaining Ring |
| (8) | Inflatable Restraint Steering Wheel Module Coil (optional) |
| (9) | Wave Washer |
| (10) | Bearing Retainer |
| (11) | Shaft Lock Shield Assembly |
| (12) | Turn Signal
Cancel Cam Assembly |
| (13) | Lock Bolt Spring |
| (14) | Thrust Washer |
| (15) | TORX® Head Screw |
| (16) | Pan Head Tapping
Screw |
| (17) | TORX® Head Screw |
| (18) | Electronic Lock Module Assembly |
| (19) | Pan Head Tapping
Screw |
| (20) | Ignition and Key Alarm Switch Assembly |
| (21) | Lock Bolt Spring |
| (22) | Lock Bolt Assembly |
| (23) | Steering Column Housing Assembly |
| (24) | TORX® Head Screw |
| (25) | Wire Harness
Strap |
| (26) | Pan Head Tapping Screw |
| (27) | Trim Cover Protector |
| (28) | Trim Cover
Mounting Stud |
| (29) | Pan Head Tapping Screw |
| (30) | Turn Signal and Multifunction Switch
Assembly |
| (31) | Axial Position Assurance Connector |
| (32) | Wire Harness Strap |
| (33) | Retaining Ring |
| (34) | Steering Shaft Assembly |
| (35) | Oval Head 6-Lobed Socket Tapping Screw |
| (36) | Linear
Shift Assembly |
| (37) | Steering Column Jacket Assembly |
| (38) | Adapter and Bearing Assembly |
| (39) | EVO Sensor Assembly |
| (40) | Automatic Transmission Shift Lock Control |
