Power Seat Component Views. Chevrolet Chevy C Cab/Chassis HD (GMT 400) 2002

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2002 🢒 Chevy C Cab/Chassis HD (GMT 400) 🢒 HVAC 🢒 HVAC Systems - Manual 🢒 Power Seat Component Views

Figure 1:


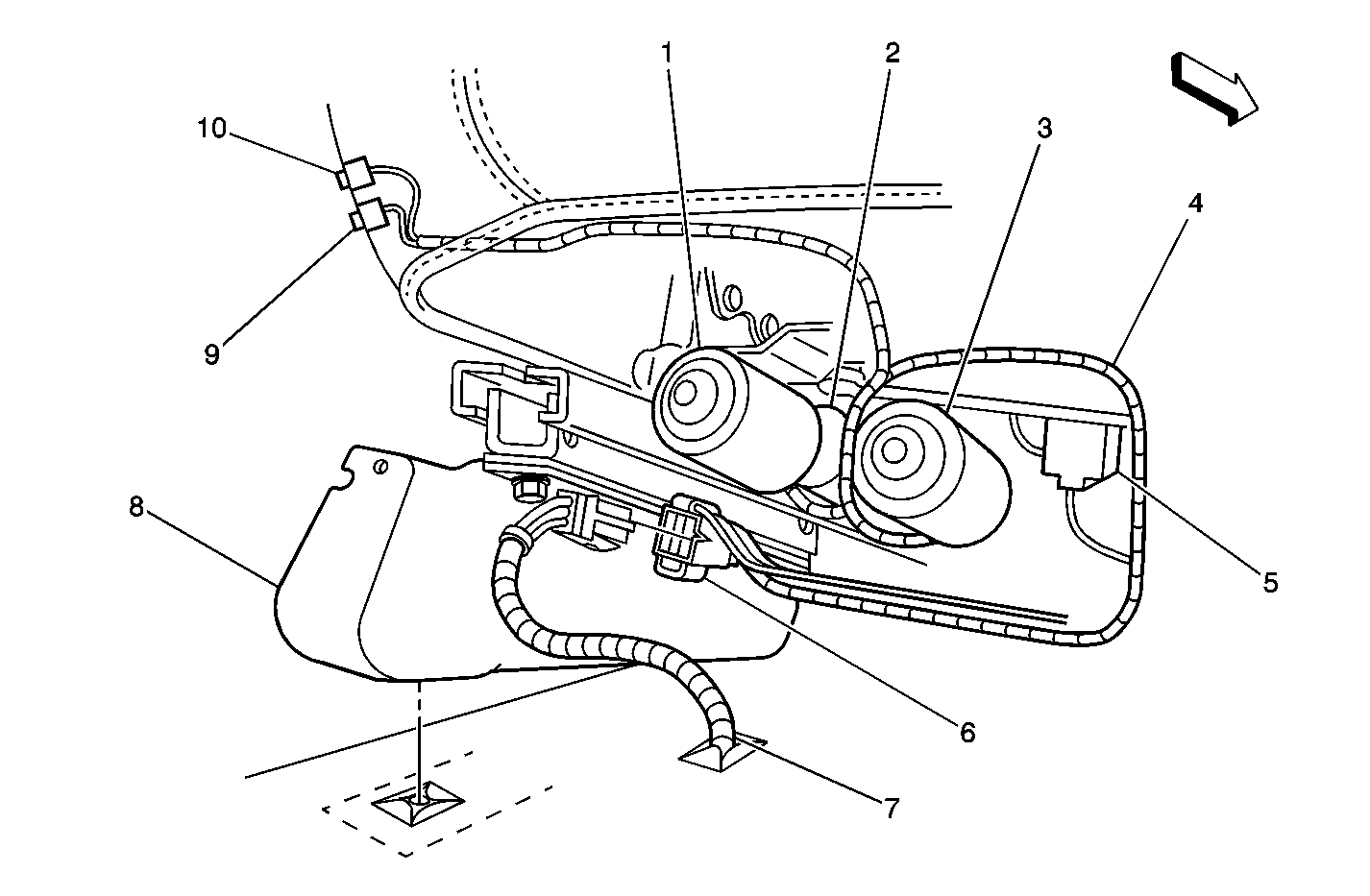

(1)	C212 to Lumbar Motor or Power Seat Harness
(2)	Crossbody Harness
(3)	C211 - Seat Belt Switch Harness

Figure 2:


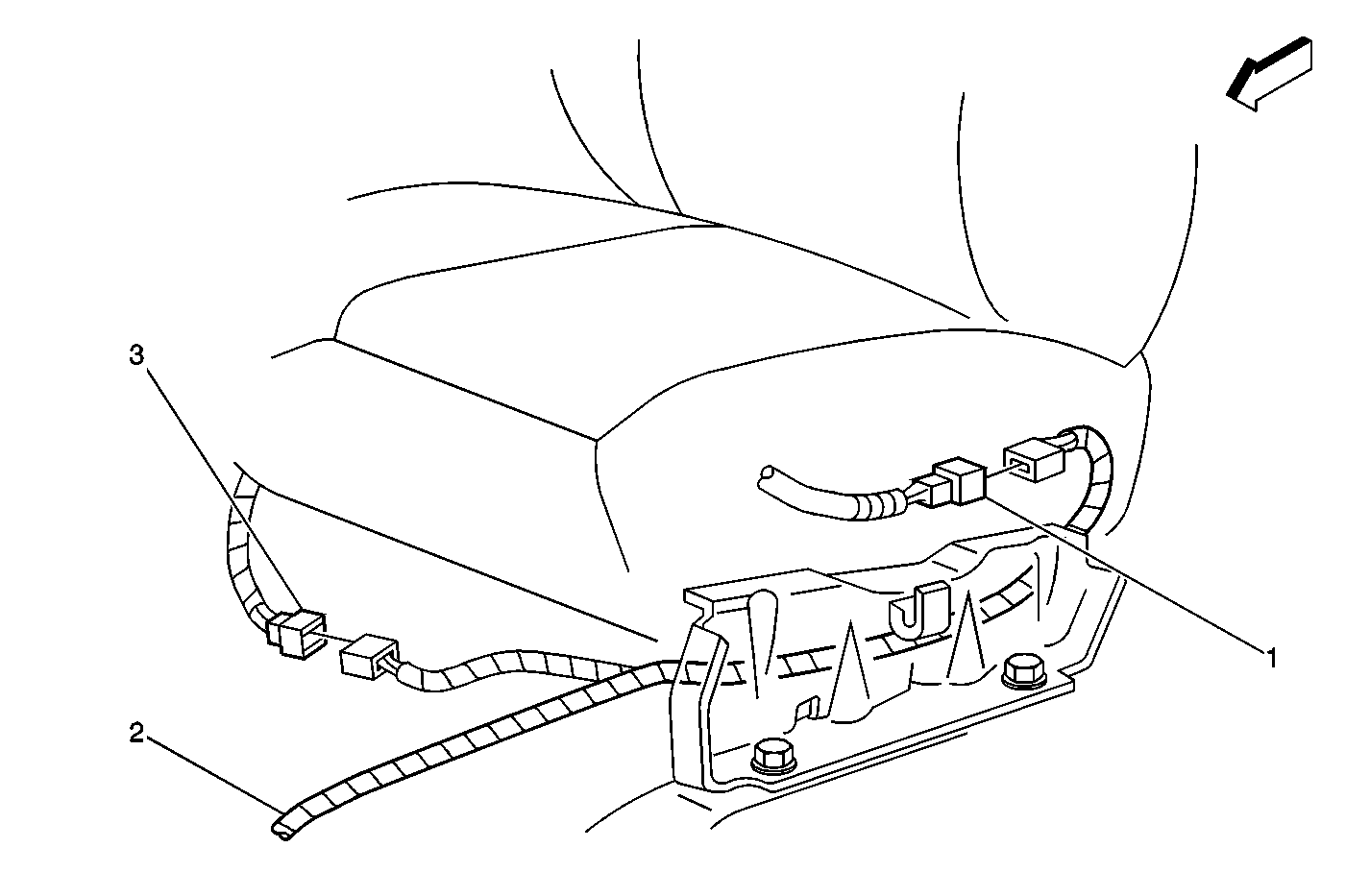

(1)	Seat Front Vertical Motor - Driver
(2)	Seat Horizontal Motor - Driver
(3)	Seat Rear Vertical Motor - Driver
(4)	Seat Wiring Harness
(5)	Seat Lumbar Motor - Driver
(6)	C212 - L, or C229 - R
(7)	Crossbody Harness
(8)	Seat Riser
(9)	Seat Lumbar Switch - Driver
(10)	Seat Adjuster Switch - Driver

Figure 3:

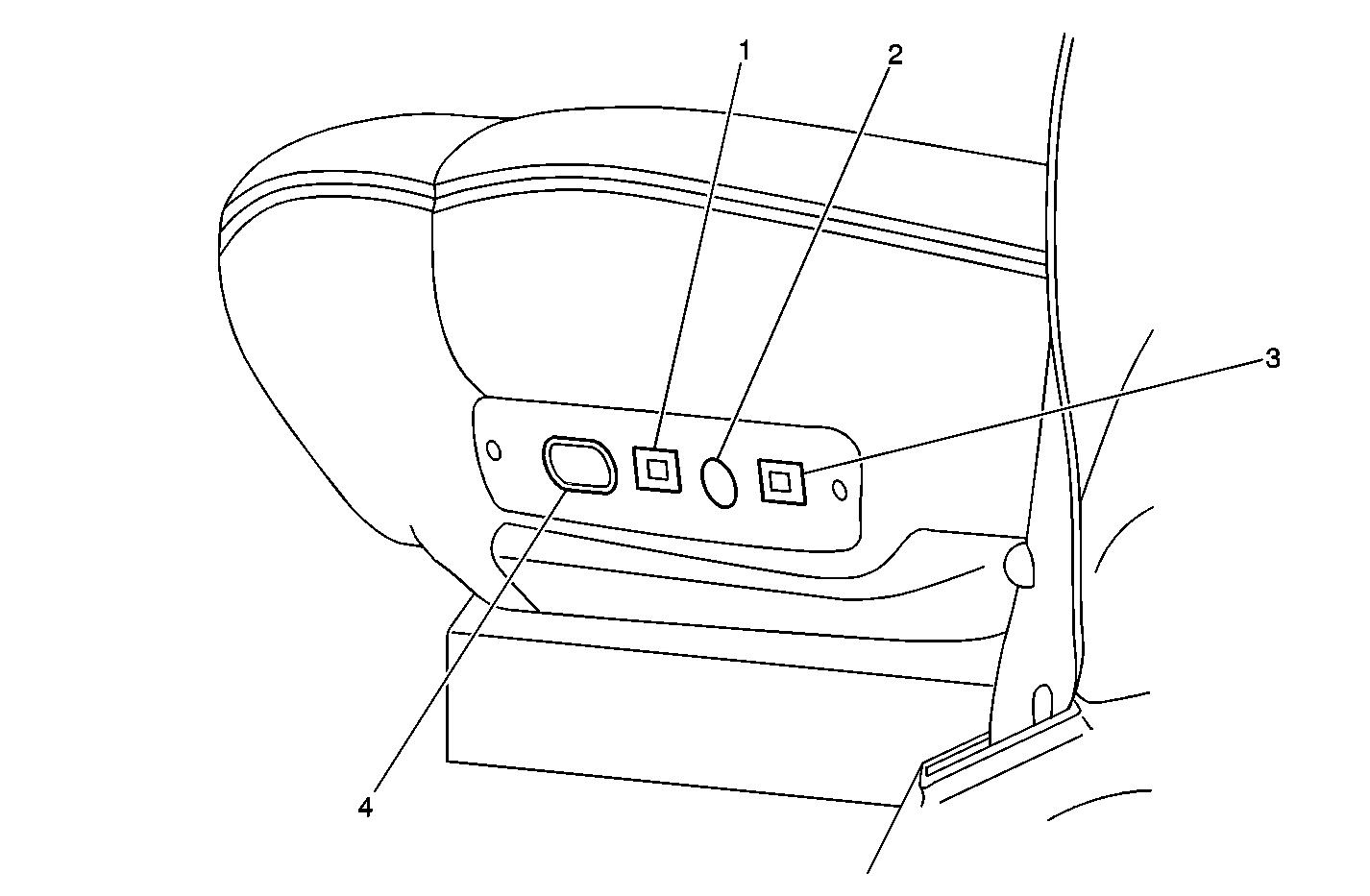

(1)	Front Tilt Switch
(2)	Entire Seat Switch
(3)	Rear Tilt Switch
(4)	Lumbar Switch - Only -- Switch on bench seat, passenger seat, or driver bucket without power
