Ground Distribution Schematics. Chevrolet Chevy C Cab/Chassis HD (GMT 400) 2002

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2002 🢒 Chevy C Cab/Chassis HD (GMT 400) 🢒 Body and Accessories 🢒 Wiring Systems 🢒 Ground Distribution Schematics

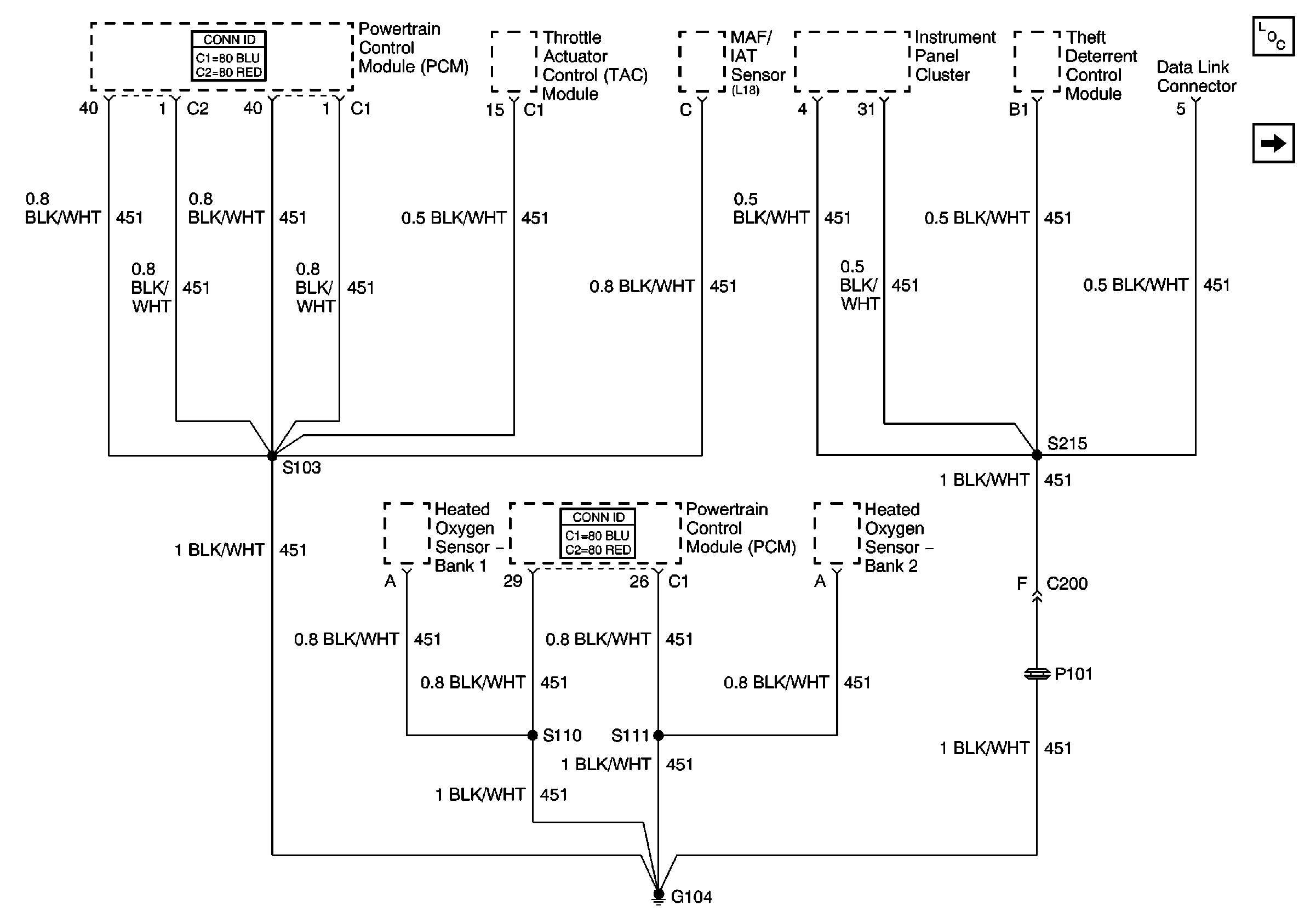

Figure 1:	G104, L18, 1 of 2, All Except HO2S Circuit Master Electrical Component List G104 (L65)

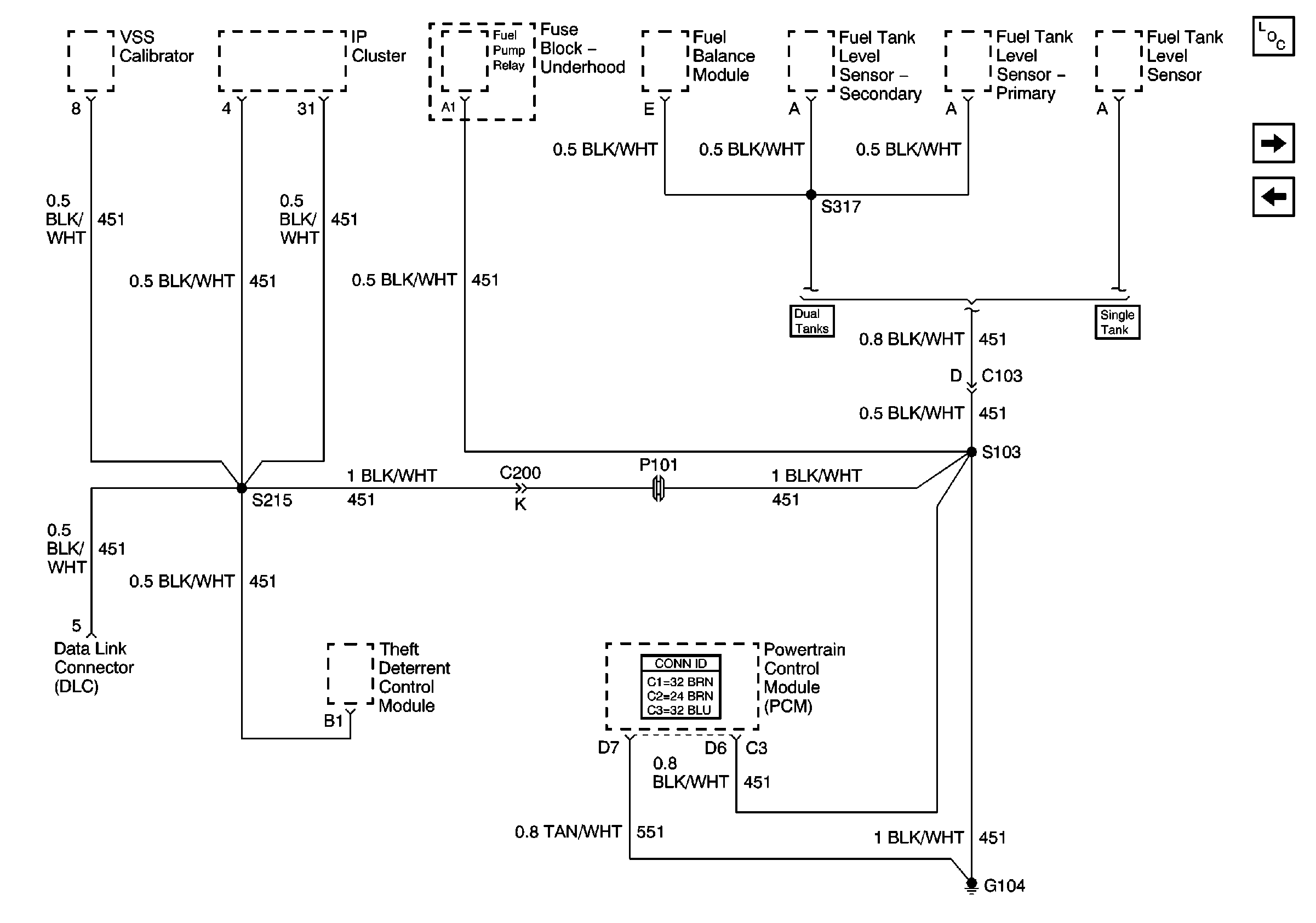

Figure 2:	G104, L65 Master Electrical Component List G105, L18, All except Ignition Coils G104 (L18)

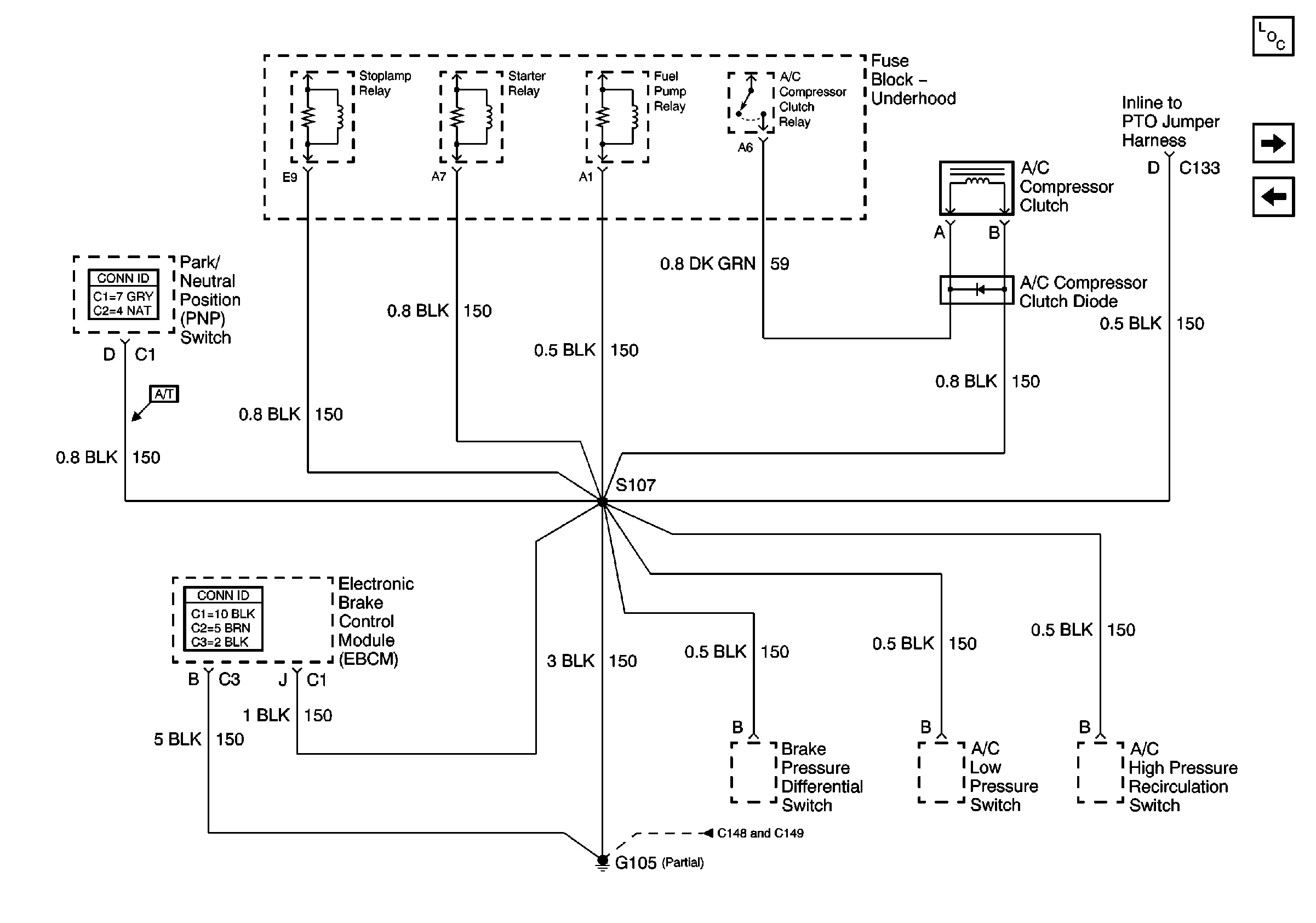

Figure 3:	G105, L18, 1 of 2, All Except Ignition Coils Master Electrical Component List G105, 2 of 2, Ignition Coils G104 (L65) G105, 2 of 2, Ignition Coils

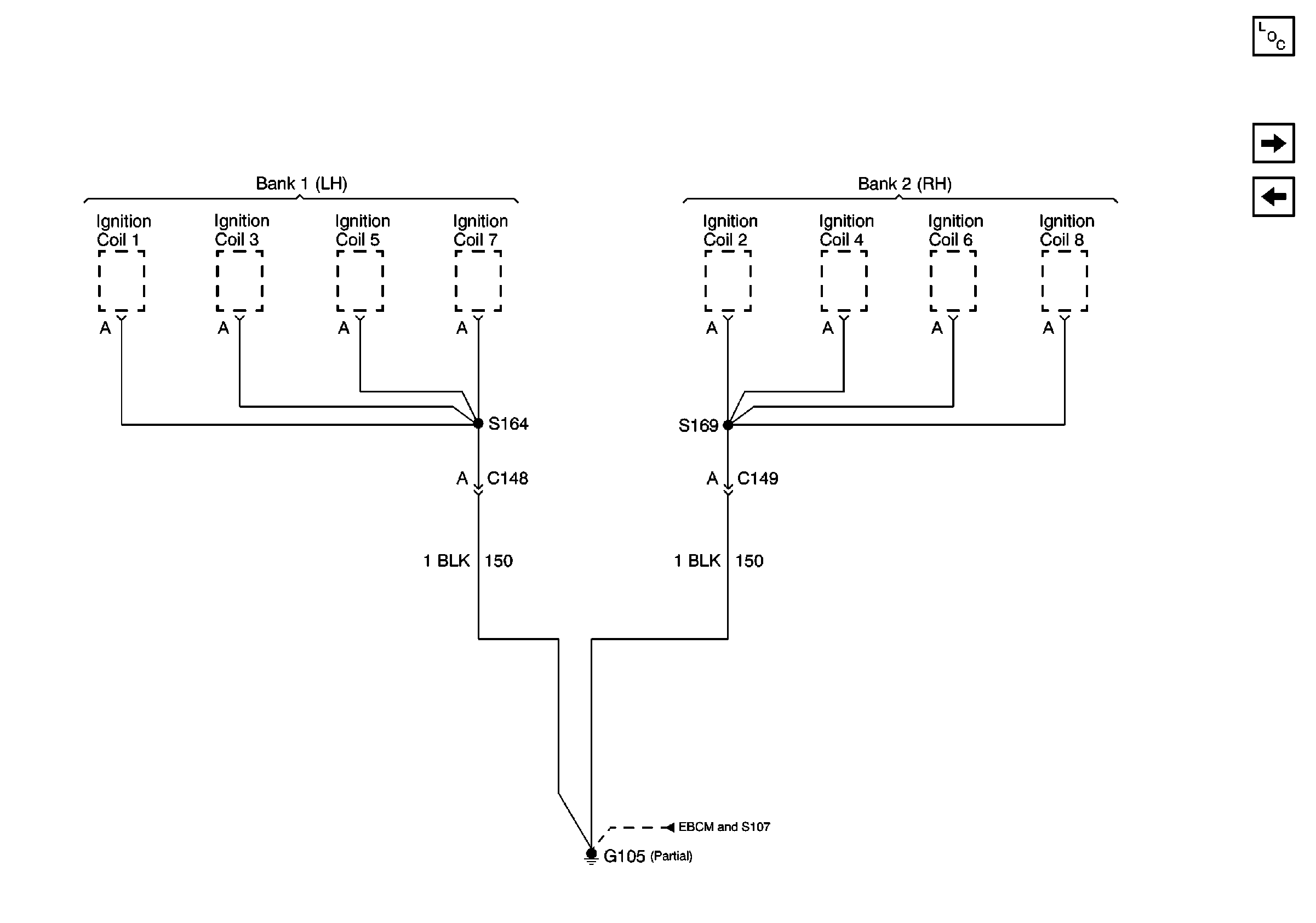

Figure 4:	G105, L18, 2 of 2, Ignition Coils Master Electrical Component List G105 and G106 (L65) G105, L18, All except Ignition Coils G105, L18, All except Ignition Coils

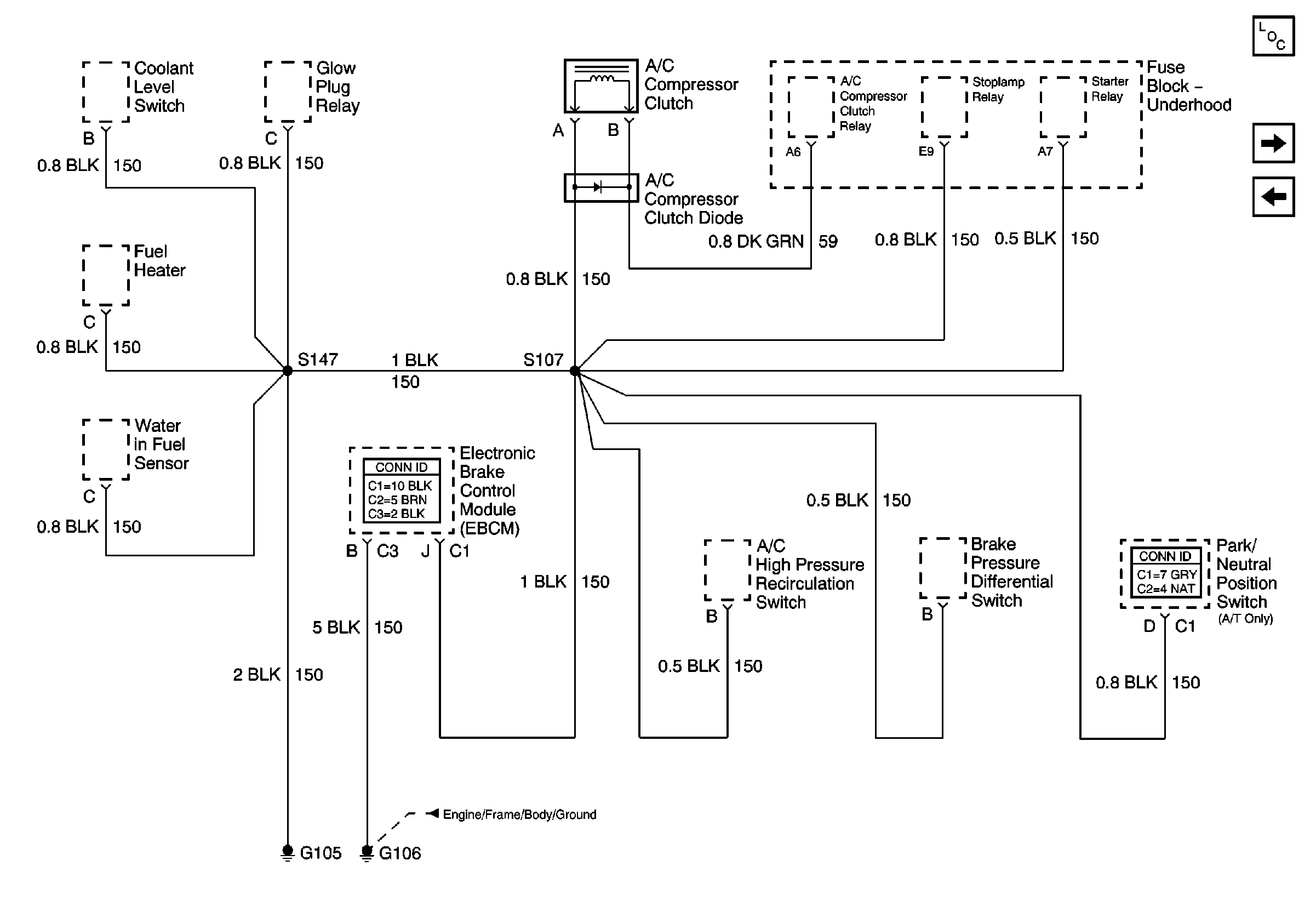

Figure 5:	G105 and G106 (L65 Except Frame Ground) Master Electrical Component List G102, G103, G106 (L65), G110, G111, G112 (Battery), and G115 G105, 2 of 2, Ignition Coils G102, G103, G106 (L65), G110, G111, G112 (Battery), and G115

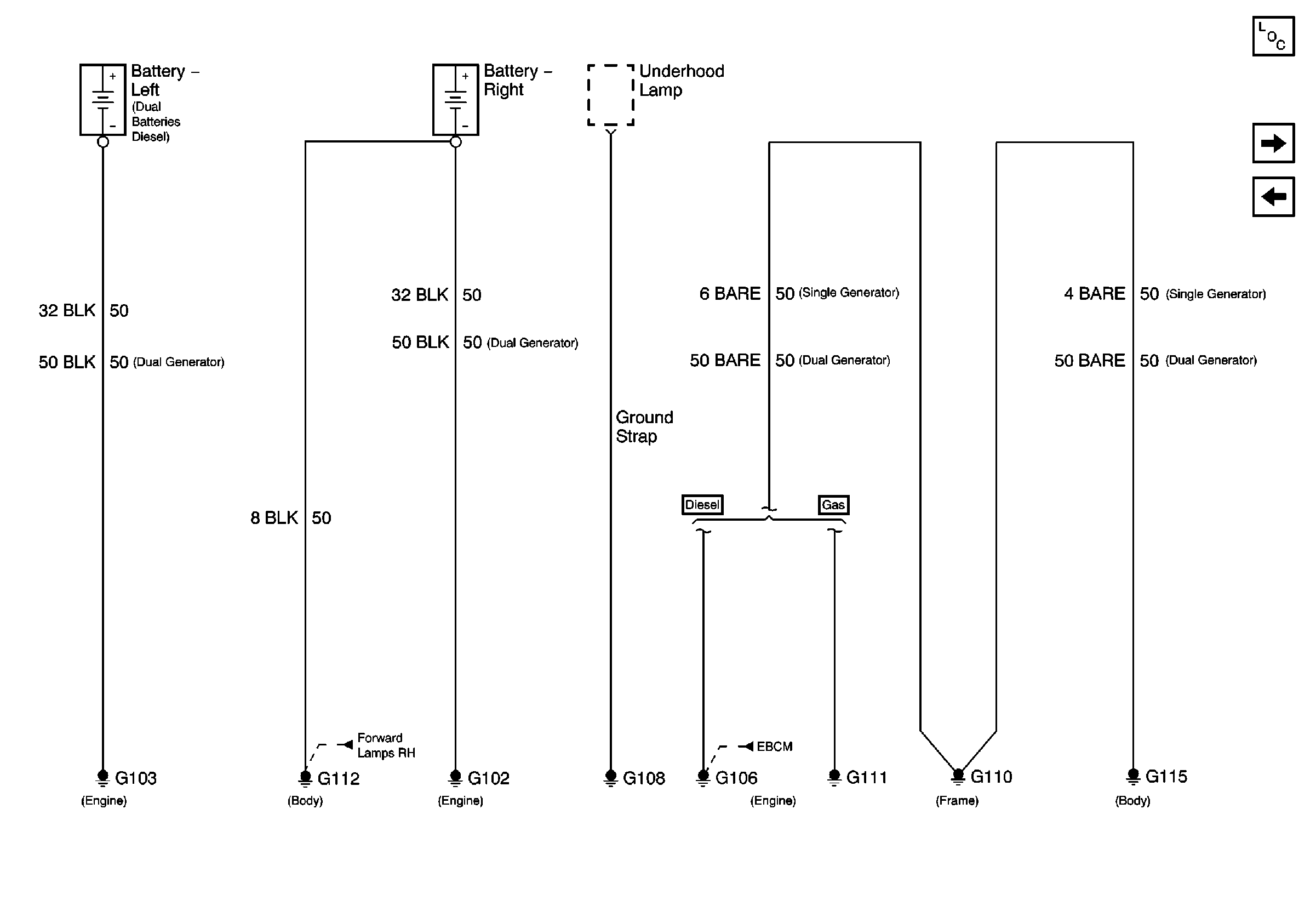

Figure 6:	G102, G103, G106 (L65, Frame), G110, G111, G112 (Battery), and G115 Master Electrical Component List G112 (Lights, Right Side) G105 and G106 (L65) G112 (Lights, Right Side) G105 and G106 (L65)

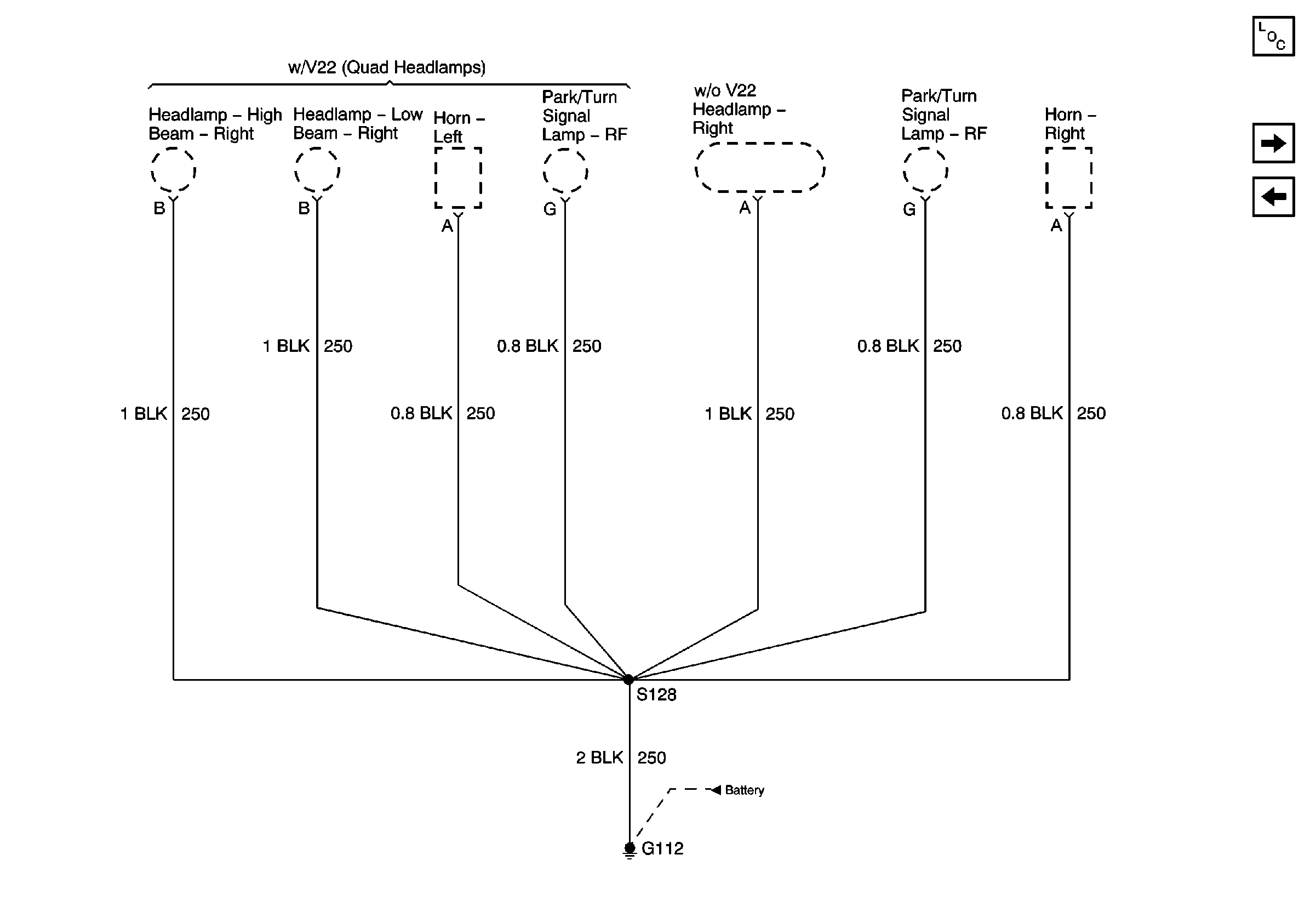

Figure 7:	G112, Lights, Right Side Master Electrical Component List G112 (Lights, Right Side) G102, G103, G106 (L65), G110, G111, G112 (Battery), and G115 G102, G103, G106 (L65), G110, G111, G112 (Battery), and G115

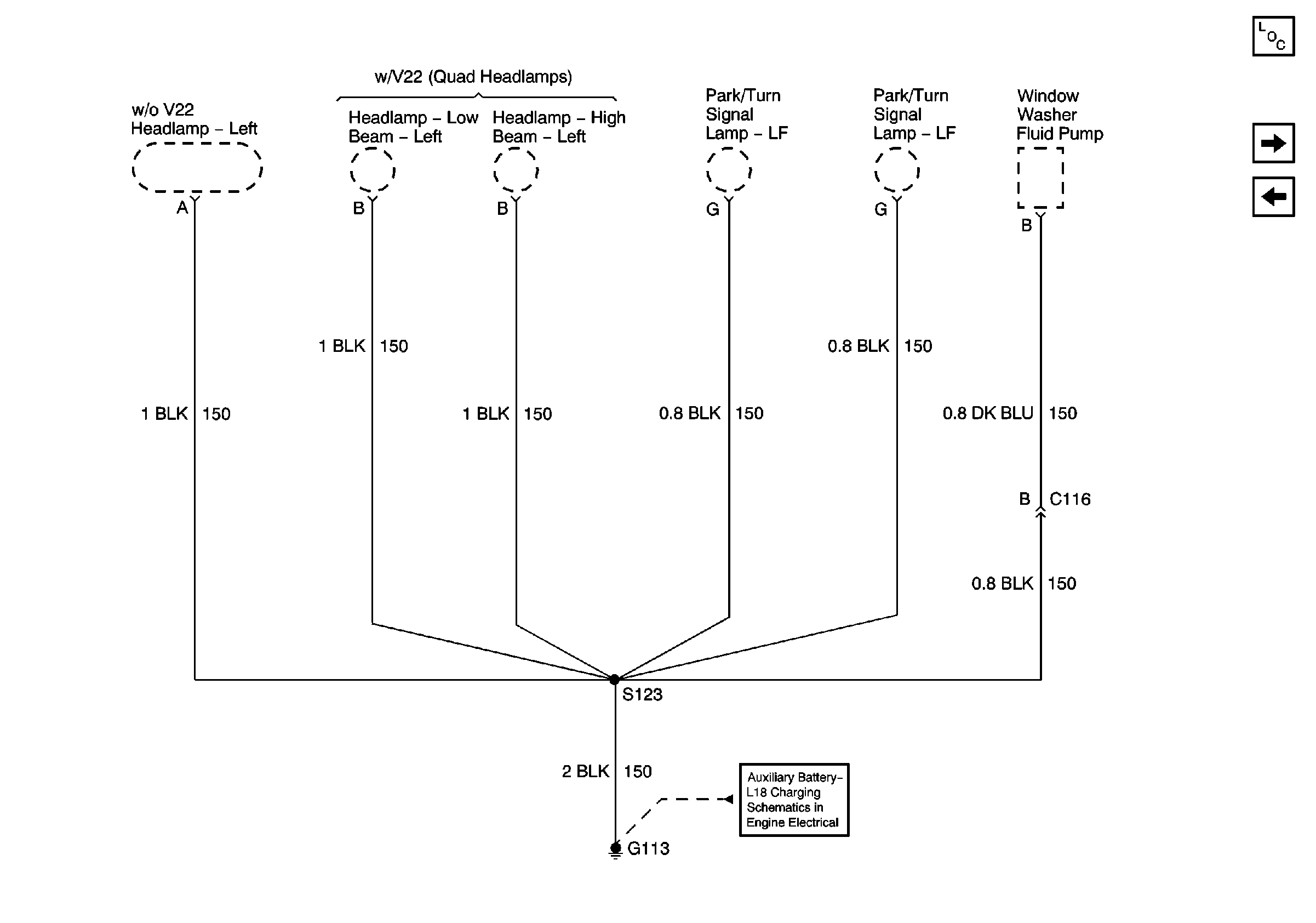

Figure 8:	G113, Lights, Left Side Master Electrical Component List G200 G112 (Lights, Right Side) L18 Charging

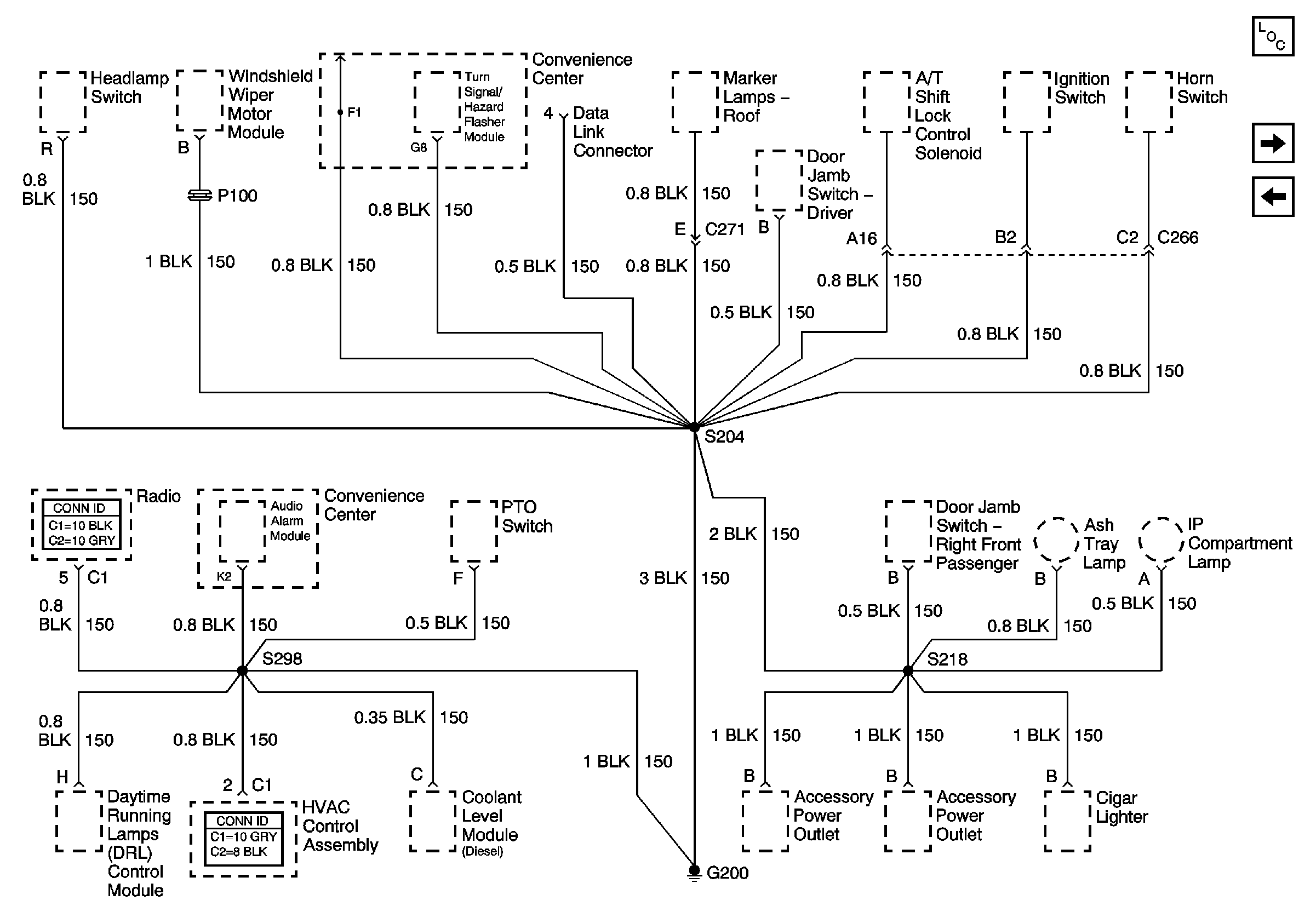

Figure 9:	G200 Master Electrical Component List G202 G112 (Lights, Right Side)

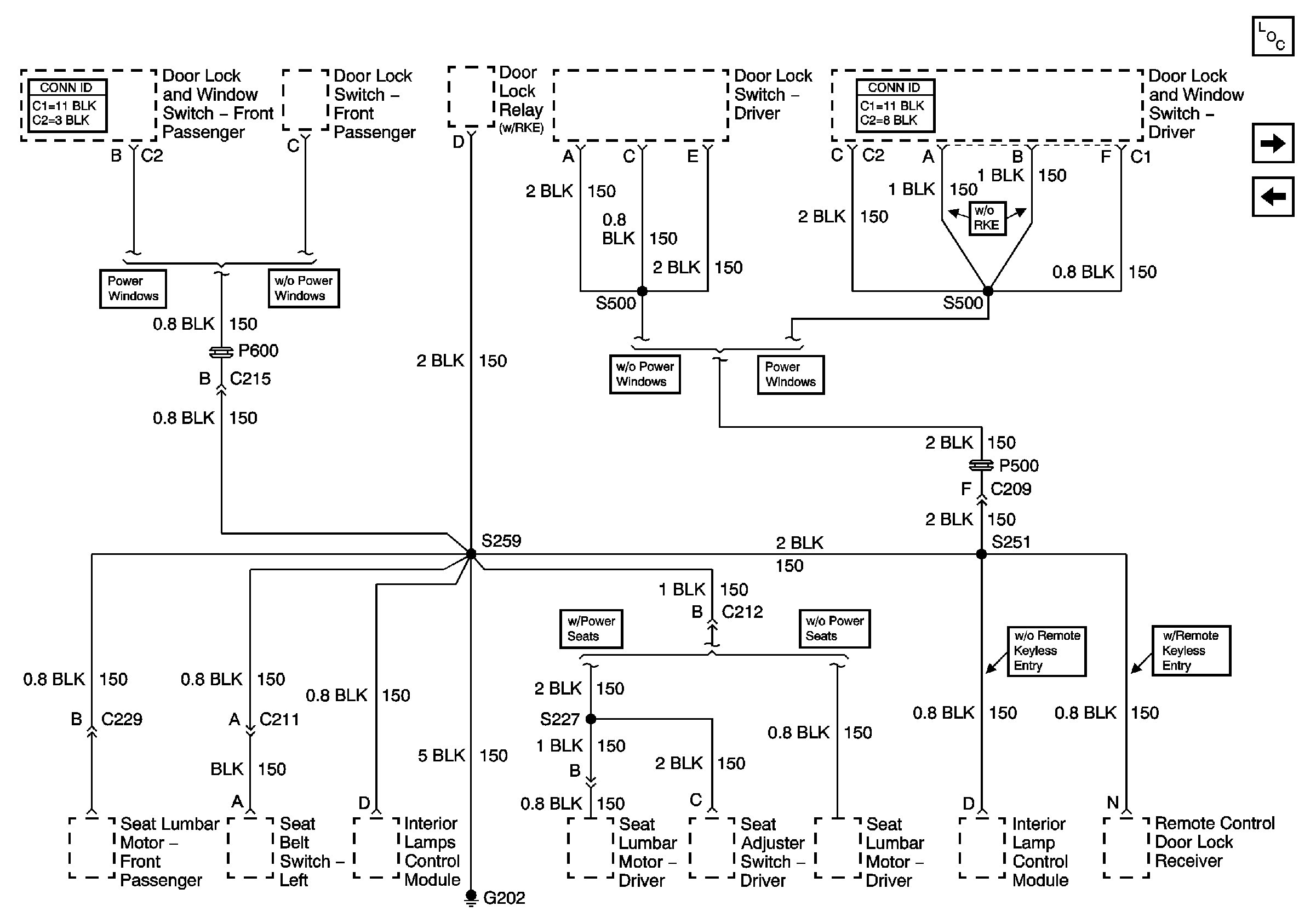

Figure 10:	G202 Master Electrical Component List G203 G200

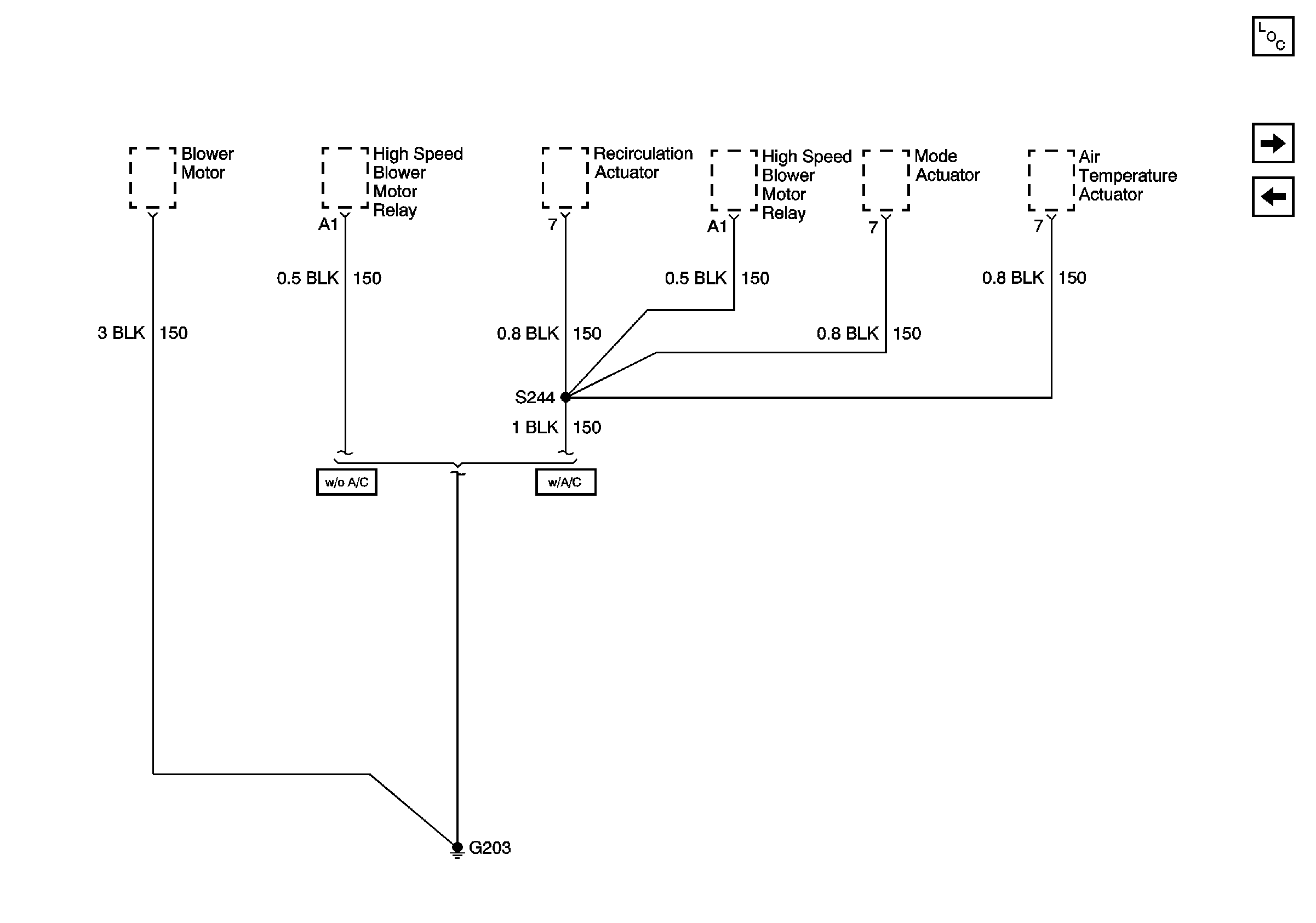

Figure 11:	G203 Master Electrical Component List G401 (all) and G404 (L65) G202
Figure 12:	G401 (all) and G404 (L65) Master Electrical Component List G404 (L18) G203
Figure 13:	G404 (L18) Master Electrical Component List G401 (all) and G404 (L65)
