Engine Controls Schematics. Chevrolet Chevy G Van 1996

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 1996 🢒 Chevy G Van 🢒 Engine 🢒 Engine Controls - 6.5L 🢒 Engine Controls Schematics

Figure 1:	Power, Ground, MIL, and DLC Engine Controls Components Powertrain Control Module (PCM) Control Module Communication Glow Plug Controls OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 2:	Glow Plug Controls Engine Controls Components Glow Plugs Fuel Pump Controls Power, Ground, MIL, and DLC OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 3:	Fuel Pump Controls Engine Controls Components Fuel Lift Pump Electrical Circuit Fuel Controls Glow Plug Controls OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice

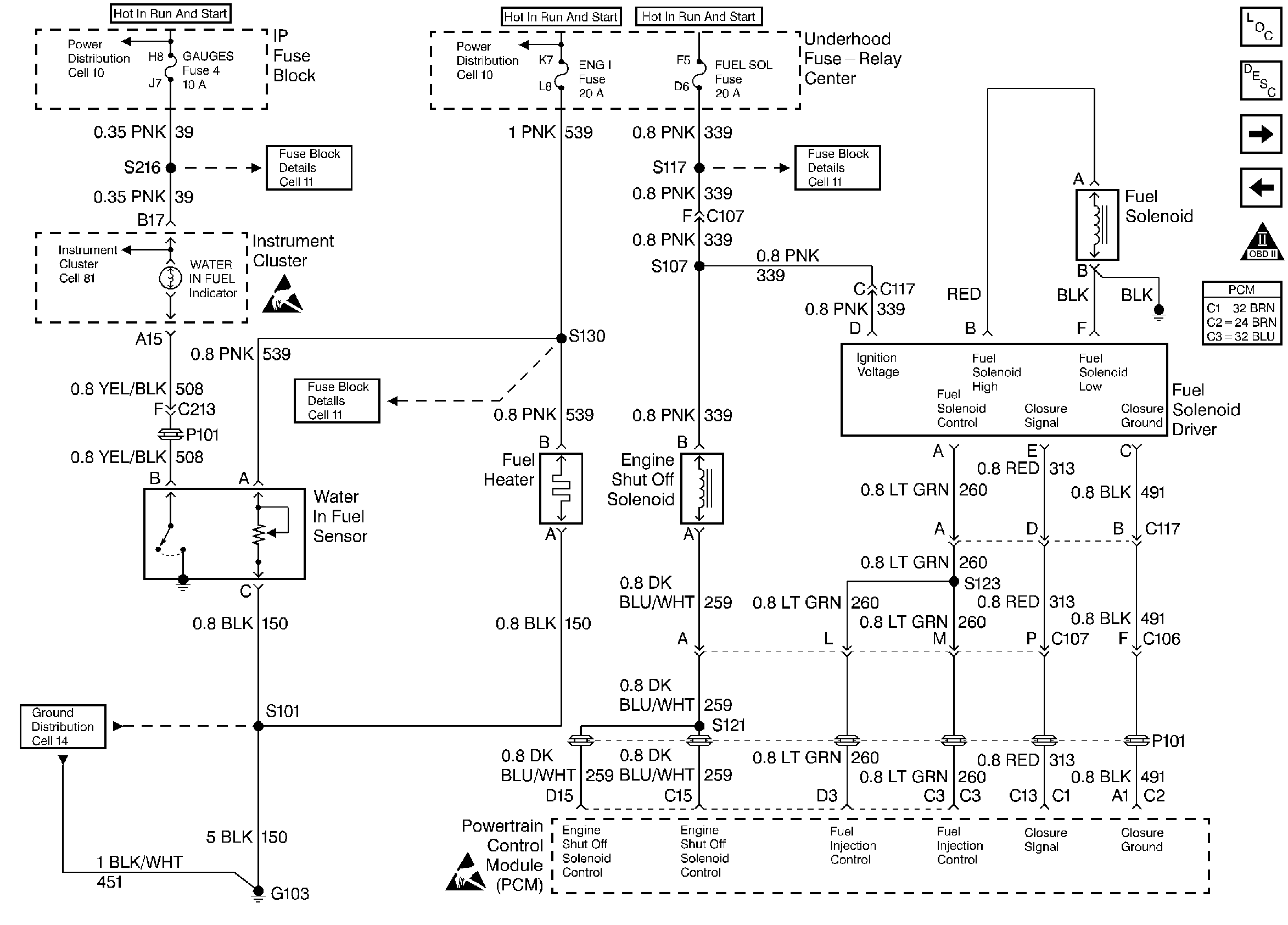

Figure 4:	Fuel Controls Engine Controls Components Information Sensors Fuel Temperature Sensor and Ignition Timing Stepper (ITS)Motor Fuel Pump Controls OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

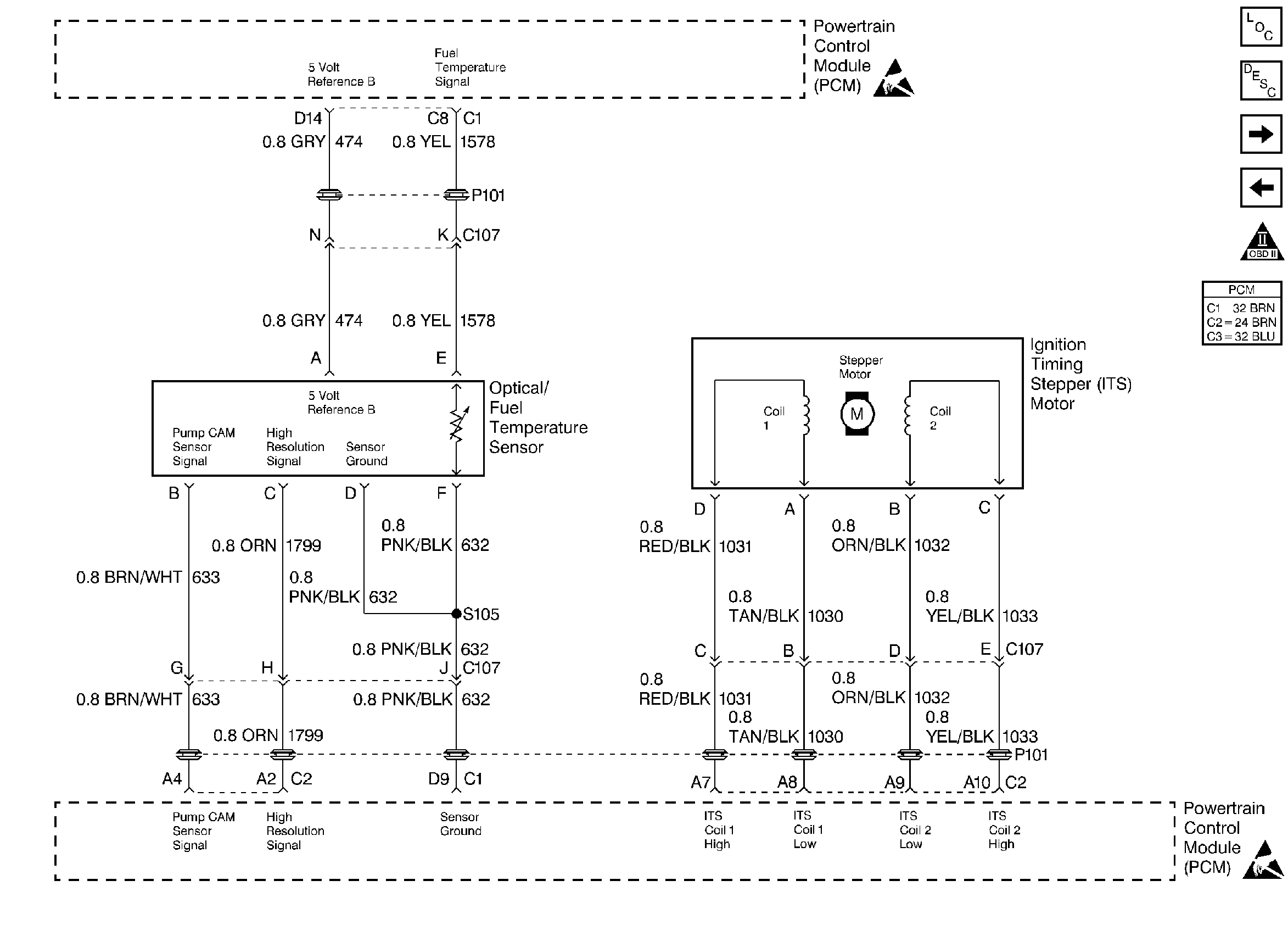

Figure 5:	Fuel Temperature Sensor and Ignition Timing Stepper (ITS) Motor Engine Controls Components Information Sensors Engine Data Sensors Fuel Controls OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

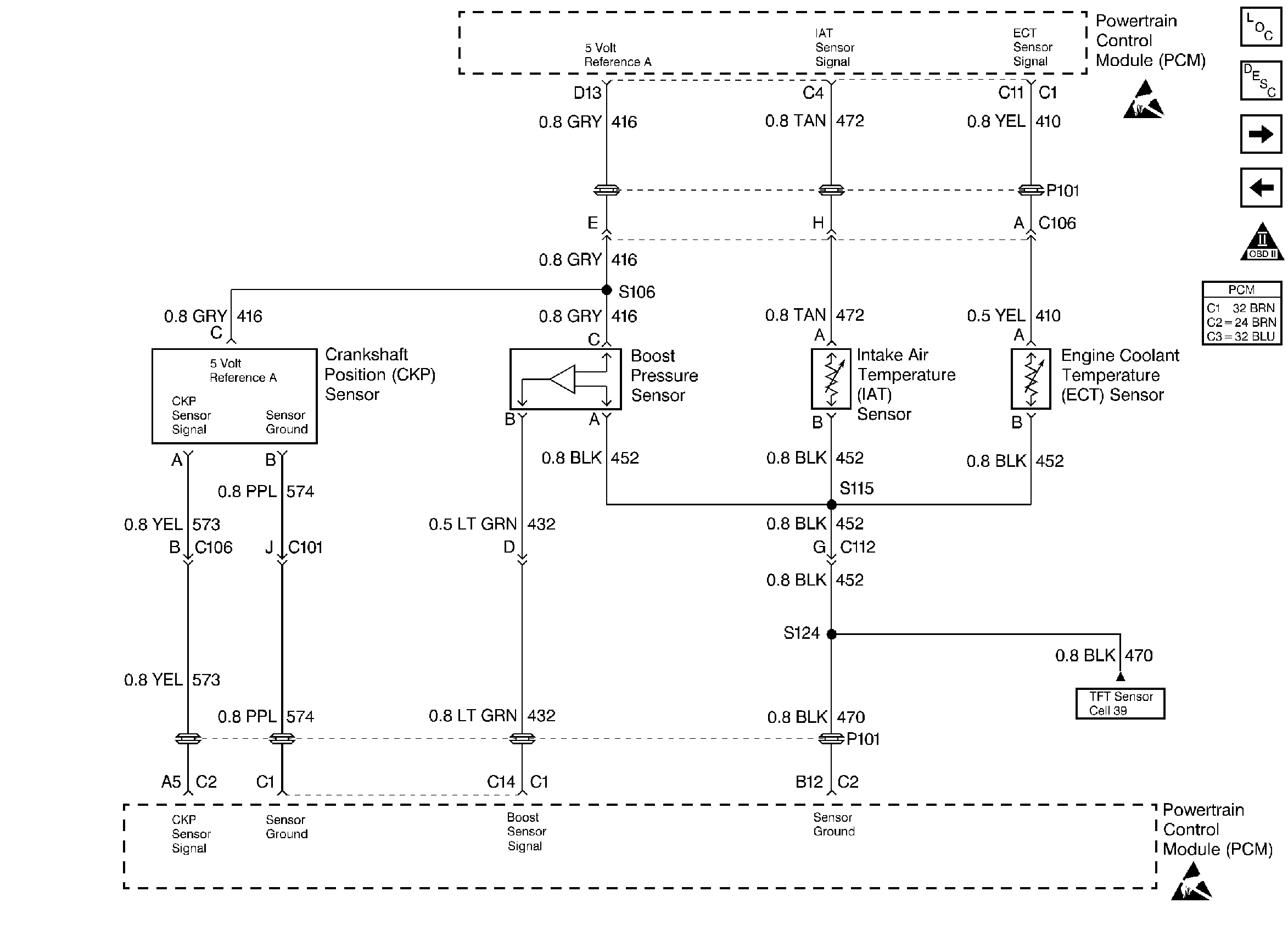

Figure 6:	Engine Data Sensors Engine Controls Components Information Sensors Cruise Control Switch, Wastegate Solenoid, and APP Module Fuel Temperature Sensor and Ignition Timing Stepper (ITS)Motor OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

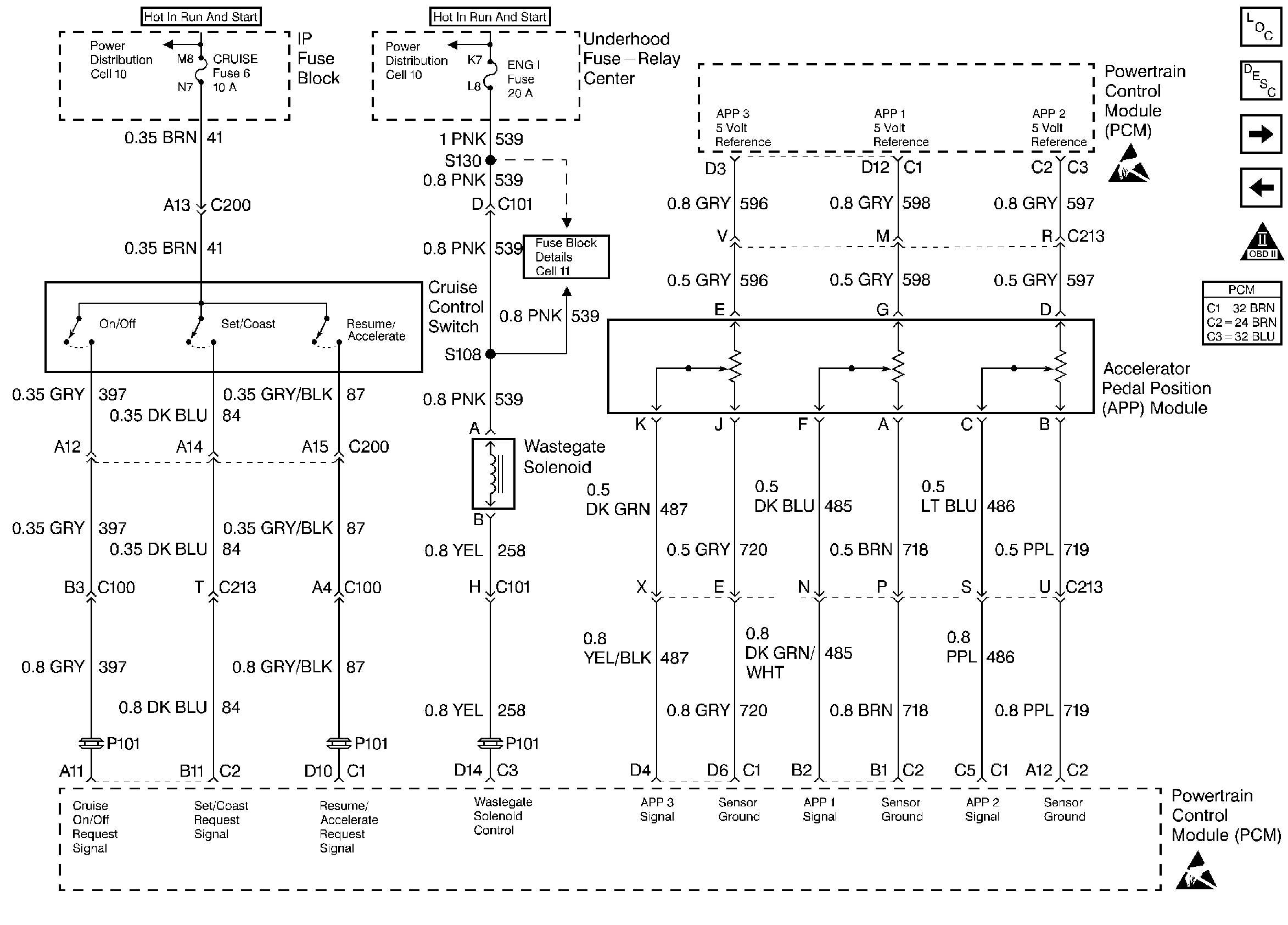

Figure 7:	Cruise Control Switch, Wastegate Solenoid, and APP Module Engine Controls Components Accelerator Pedal Position Module Replacement Vehicle Speed Sensor (VSS) Engine Data Sensors OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 8:	Vehicle Speed Sensor (VSS) Engine Controls Components Information Sensors 4L80-E Transmission Controls (Solenoids) Cruise Control Switch, Wastegate Solenoid, and APP Module OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 9:	4L80-E Transmission Controls (Solenoids) Engine Controls Components Information Sensors 4L80-E Transmission Controls (Switches and ISS Sensor) Vehicle Speed Sensor (VSS) OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice

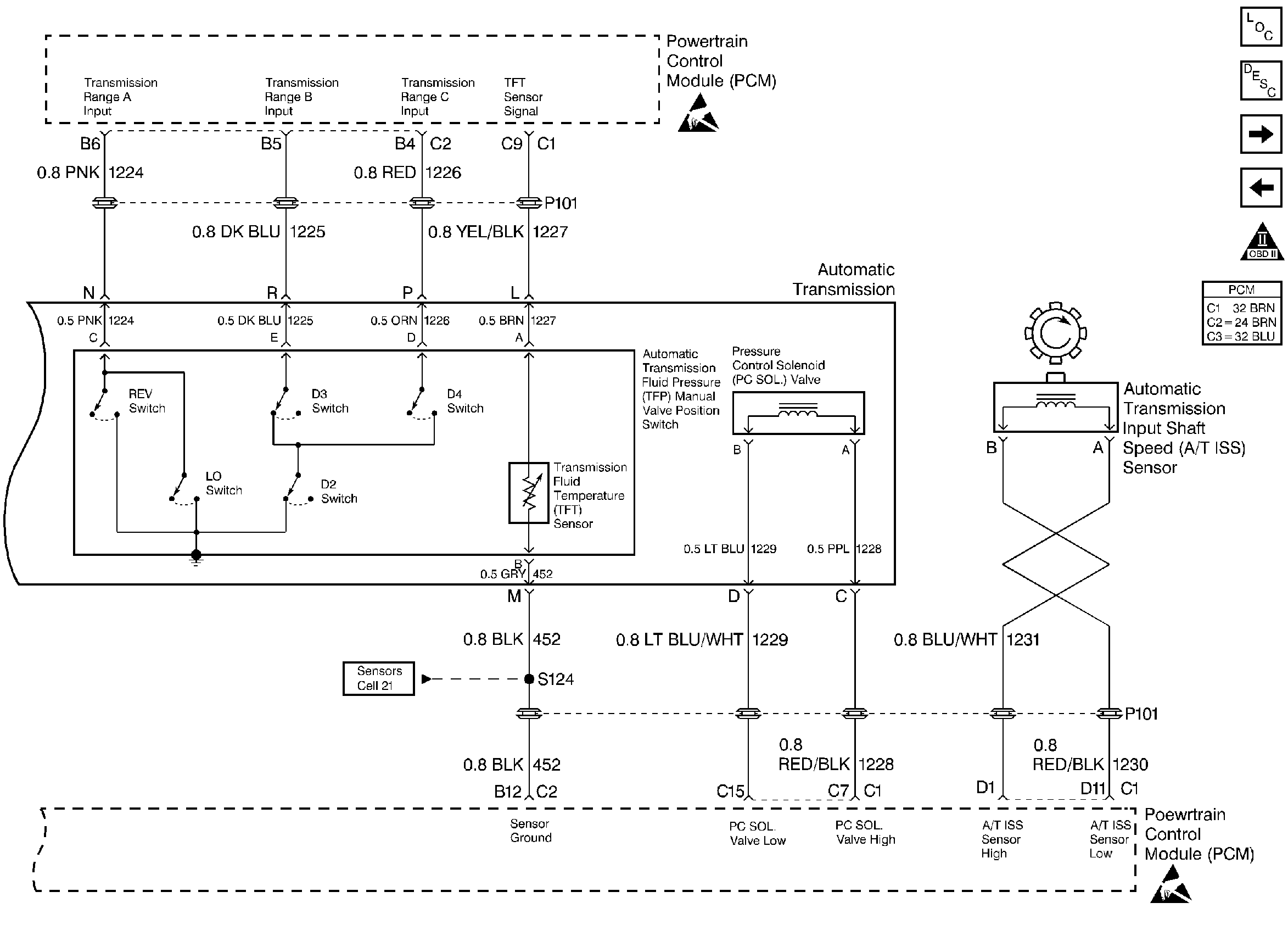

Figure 10:	4L80-E Transmission Controls (Switches and ISS Sensor) Engine Controls Components Information Sensors A/C Controls 4L80-E Transmission Controls (Solenoids) OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 11:	A/C Controls Engine Controls Components Information Sensors Power, Ground, MIL, and DLC 4L80-E Transmission Controls (Switches and ISS Sensor) OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice
