Exterior Lights Schematics. Chevrolet Chevy K Silverado

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 1999 🢒 Chevy K Silverado - 4WD 🢒 Body and Accessories 🢒 Lighting Systems 🢒 Exterior Lights Schematics

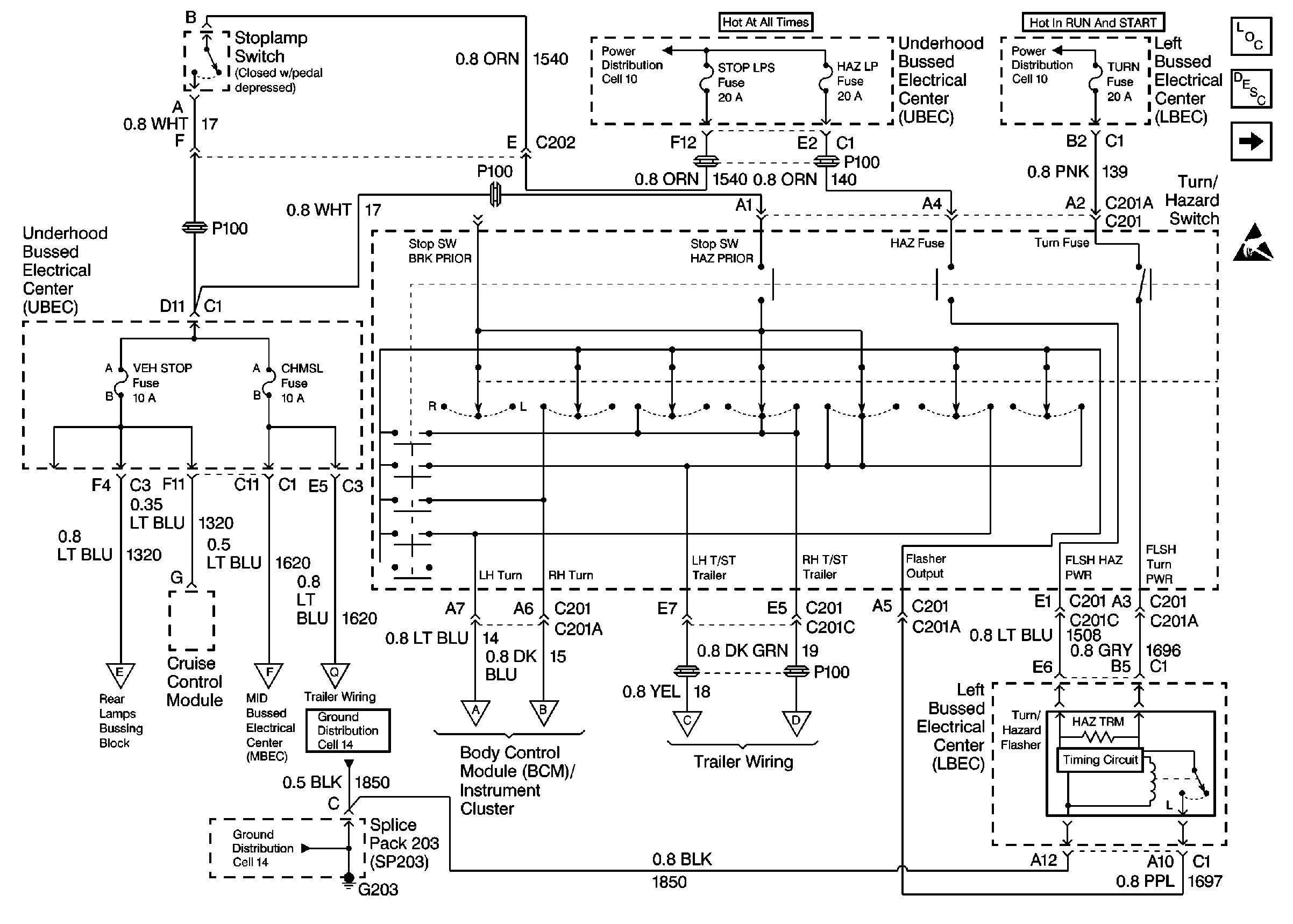

Figure 1:	Cell 110: Stop Lamp Switch and Turn/Hazard Switch/Flasher Lighting Systems Components Exterior Lights Circuit Description Cell 110: Turn Lamps Handling ESD Sensitive Parts Notice Cell 10: Underhood Bussed Electrical Center, Automatic Transfer Case Cell 10: Underhood Bussed Electrical Center, Electronic Brake Control ModuLe Cell 110: Rear Lamps and CHMSL/Cargo Lamps Cell 110: Rear Lamps and CHMSL/Cargo Lamps Cell 110: Trailer Wiring (Heavy Duty) Cell 14: Full Feature Seat Heated/Memory Seat Switch, Light Bar Switch Cell 14: Full Feature Seat Heated/Memory Seat Switch, Light Bar Switch Cell 110: Turn Lamps Cell 110: Turn Lamps Cell 110: Trailer Wiring (Light Duty) Cell 110: Trailer Wiring (Light Duty)

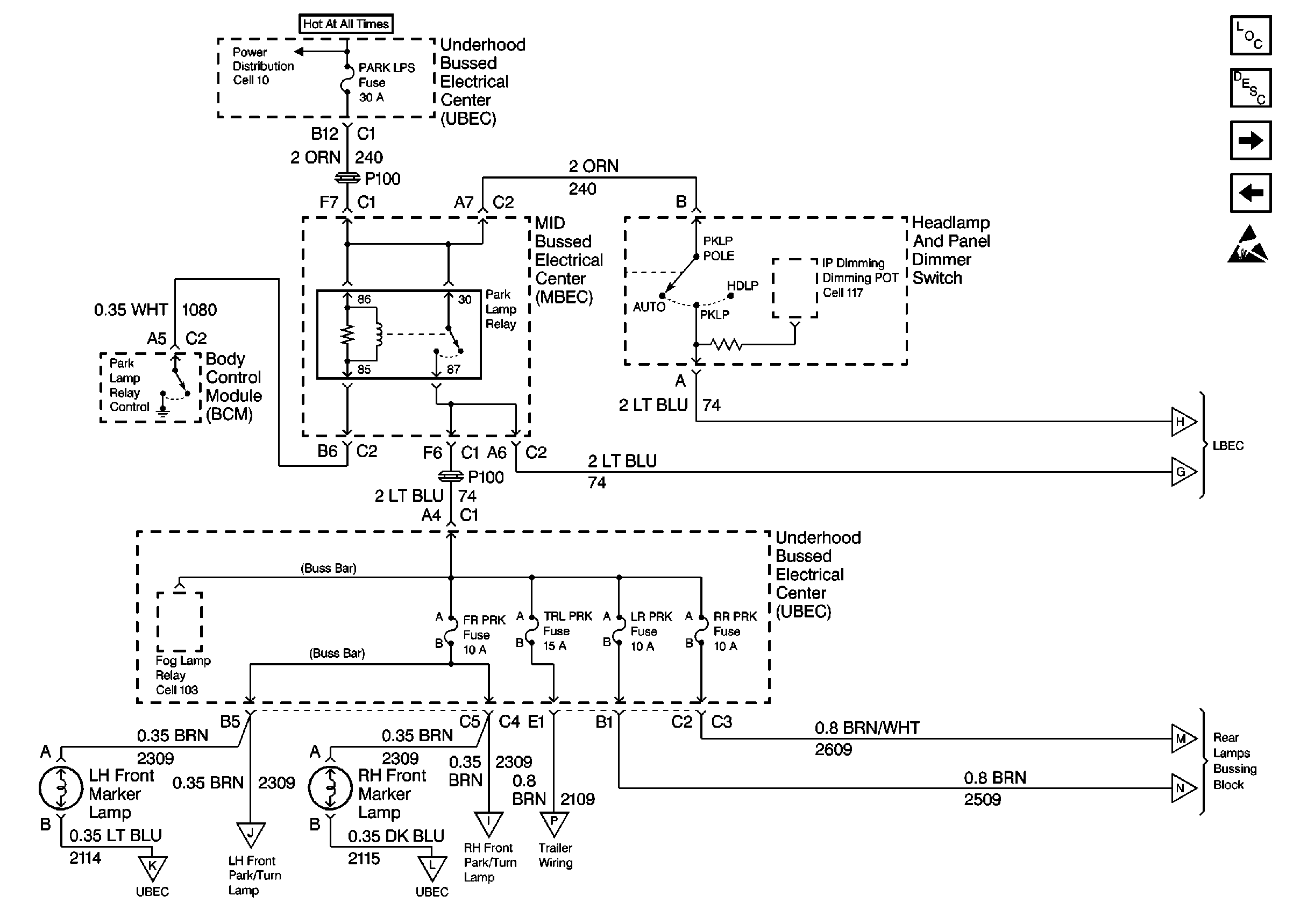

Figure 2:	Cell 110: Park Lamp Control and Front Marker Lamps Lighting Systems Components Exterior Lights Circuit Description Cell 110: Roof Marker and Clearance Lamps Cell 110: Turn Lamps Handling ESD Sensitive Parts Notice Cell 10: Underhood Bussed Electrical Center, HVAC Blower Switch Interior Lights Dimming Schematics Cell 103 Cell 110: Roof Marker and Clearance Lamps Cell 110: Roof Marker and Clearance Lamps Cell 110: Rear Lamps and CHMSL/Cargo Lamps Cell 110: Rear Lamps and CHMSL/Cargo Lamps Cell 110: Turn Lamps Cell 110: Turn Lamps Cell 110: Turn Lamps Cell 110: Turn Lamps Cell 110: Trailer Wiring (Heavy Duty)

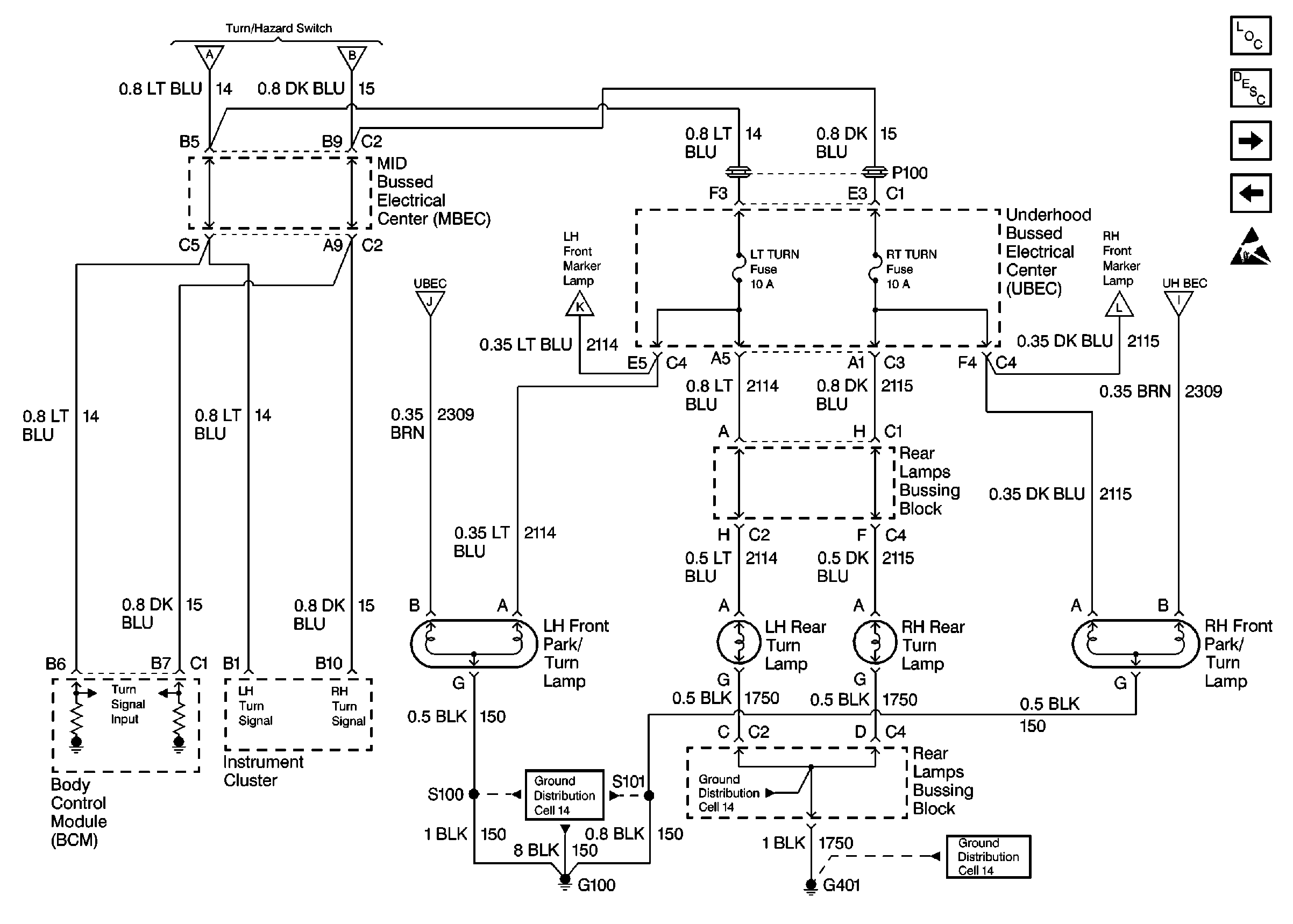

Figure 3:	Cell 110: Turn Lamps Lighting Systems Components Exterior Lights Circuit Description Cell 110: Park Lamp Control and Front Marker Lamps Cell 110: Stop Lamp Switch and Turn/Hazard Switch/Flasher Handling ESD Sensitive Parts Notice Cell 110: Stop Lamp Switch and Turn/Hazard Switch/Flasher Cell 110: Stop Lamp Switch and Turn/Hazard Switch/Flasher Cell 110: Park Lamp Control and Front Marker Lamps Cell 110: Park Lamp Control and Front Marker Lamps Cell 14: RH Fog Lamp, RH Park/Turn Lamp Cell 14: Brake Fluid Level Switch, RH Turn Lamp Cell 110: Park Lamp Control and Front Marker Lamps Cell 110: Park Lamp Control and Front Marker Lamps

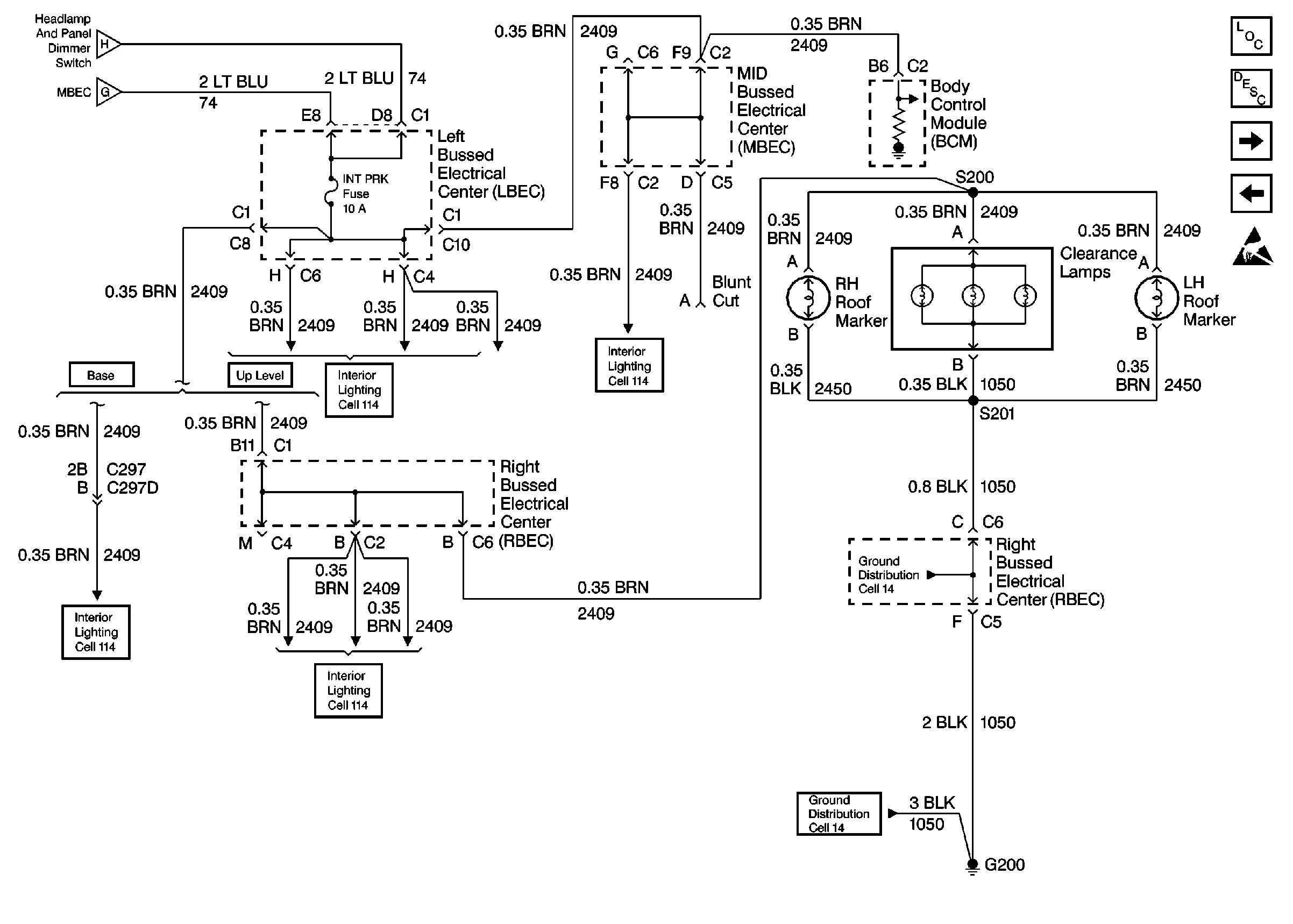

Figure 4:	Cell 110: Roof Marker and Clearance Lamps Lighting Systems Components Exterior Lights Circuit Description Cell 110: Rear Lamps and CHMSL/Cargo Lamps Cell 110: Park Lamp Control and Front Marker Lamps Handling ESD Sensitive Parts Notice Cell 110: Park Lamp Control and Front Marker Lamps Cell 110: Park Lamp Control and Front Marker Lamps Interior Lights Schematics Interior Lights Schematics Interior Lights Schematics Interior Lights Schematics Cell 14: Temperature Door Motor, Passenger Heated Seat Switch, Roof Marker Lamps Cell 14: Temperature Door Motor, Passenger Heated Seat Switch, Roof Marker Lamps

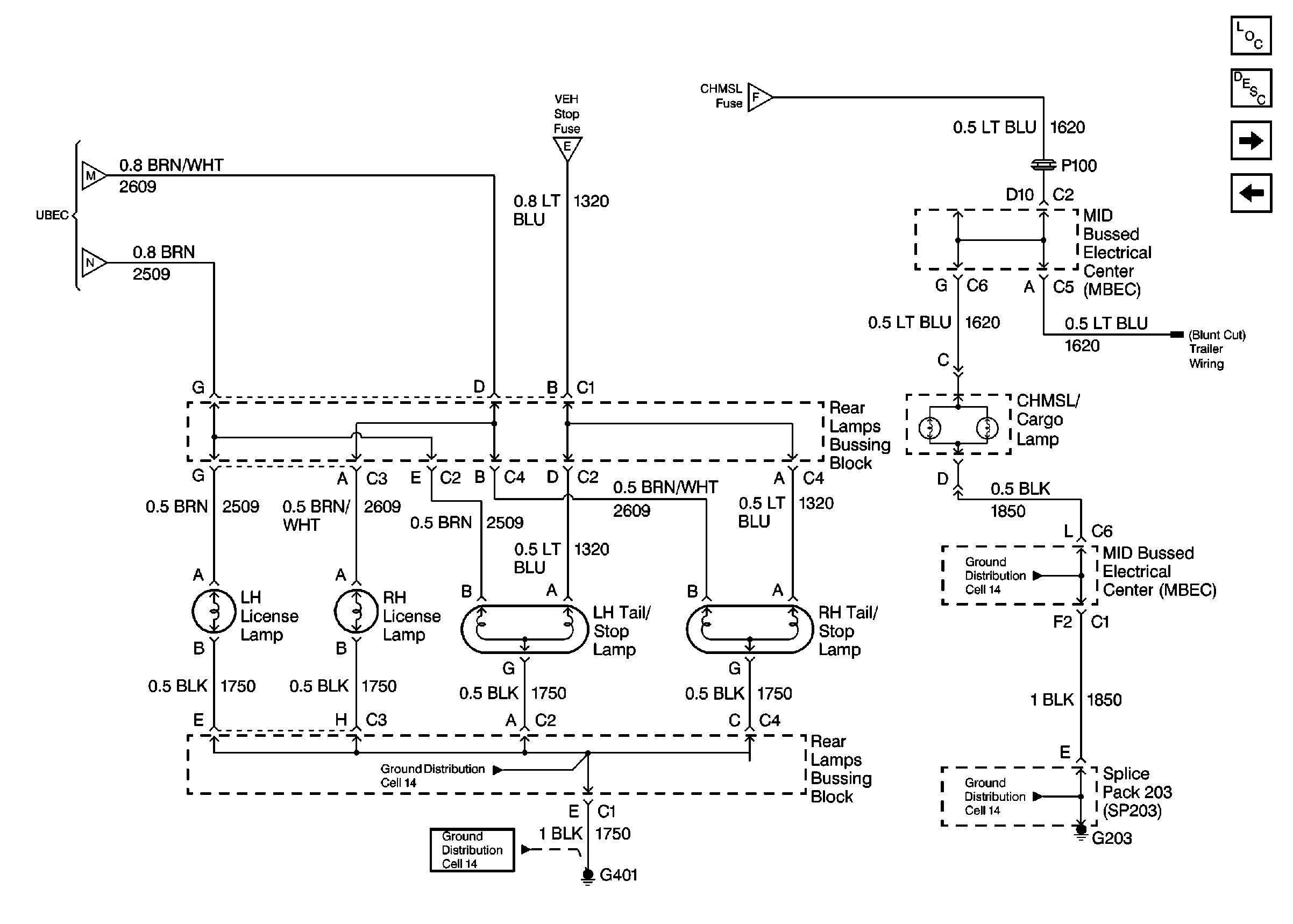

Figure 5:	Cell 110: Rear Lamps and CHMSL/Cargo Lamps Lighting Systems Components Exterior Lights Circuit Description Cell 110: Roof Beacon Switch Cell 110: Roof Marker and Clearance Lamps Cell 110: Park Lamp Control and Front Marker Lamps Cell 110: Park Lamp Control and Front Marker Lamps Cell 110: Stop Lamp Switch and Turn/Hazard Switch/Flasher Cell 110: Stop Lamp Switch and Turn/Hazard Switch/Flasher Cell 14: Full Feature Seat Heated/Memory Seat Switch, Light Bar Switch Cell 14: Brake Fluid Level Switch, RH Turn Lamp Cell 14: Full Feature Seat Heated/Memory Seat Switch, Light Bar Switch

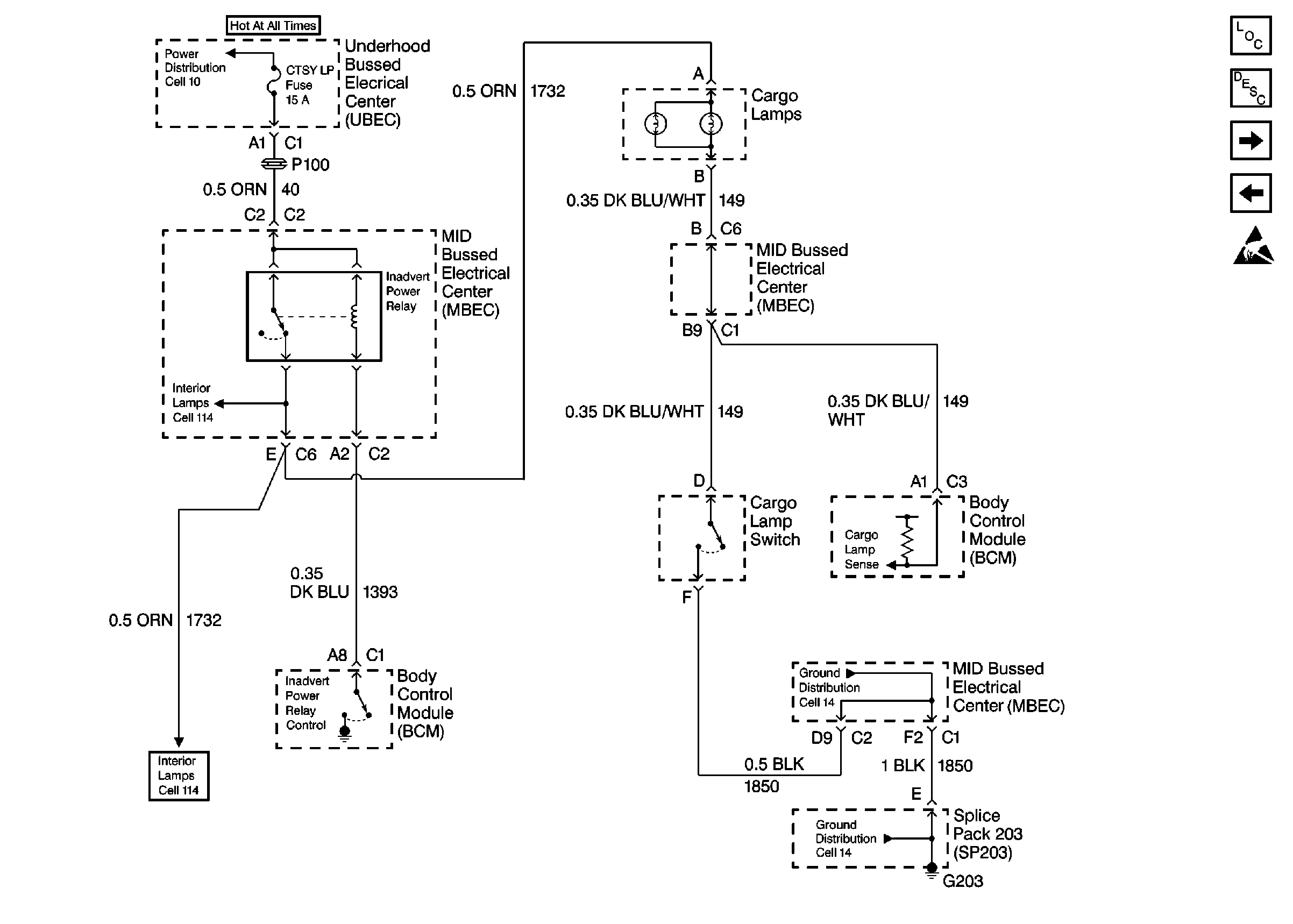

Figure 6:	Cell 110: Cargo Lamps Lighting Systems Components Exterior Lights Circuit Description Cell 110: Roof Beacon Switch Cell 110: Camper Wiring Handling ESD Sensitive Parts Notice Cell 10: Underhood Bussed Electrical Center, HVAC Blower Switch Interior Lights Schematics Interior Lights Schematics Cell 14: Full Feature Seat Heated/Memory Seat Switch, Light Bar Switch Cell 14: Full Feature Seat Heated/Memory Seat Switch, Light Bar Switch

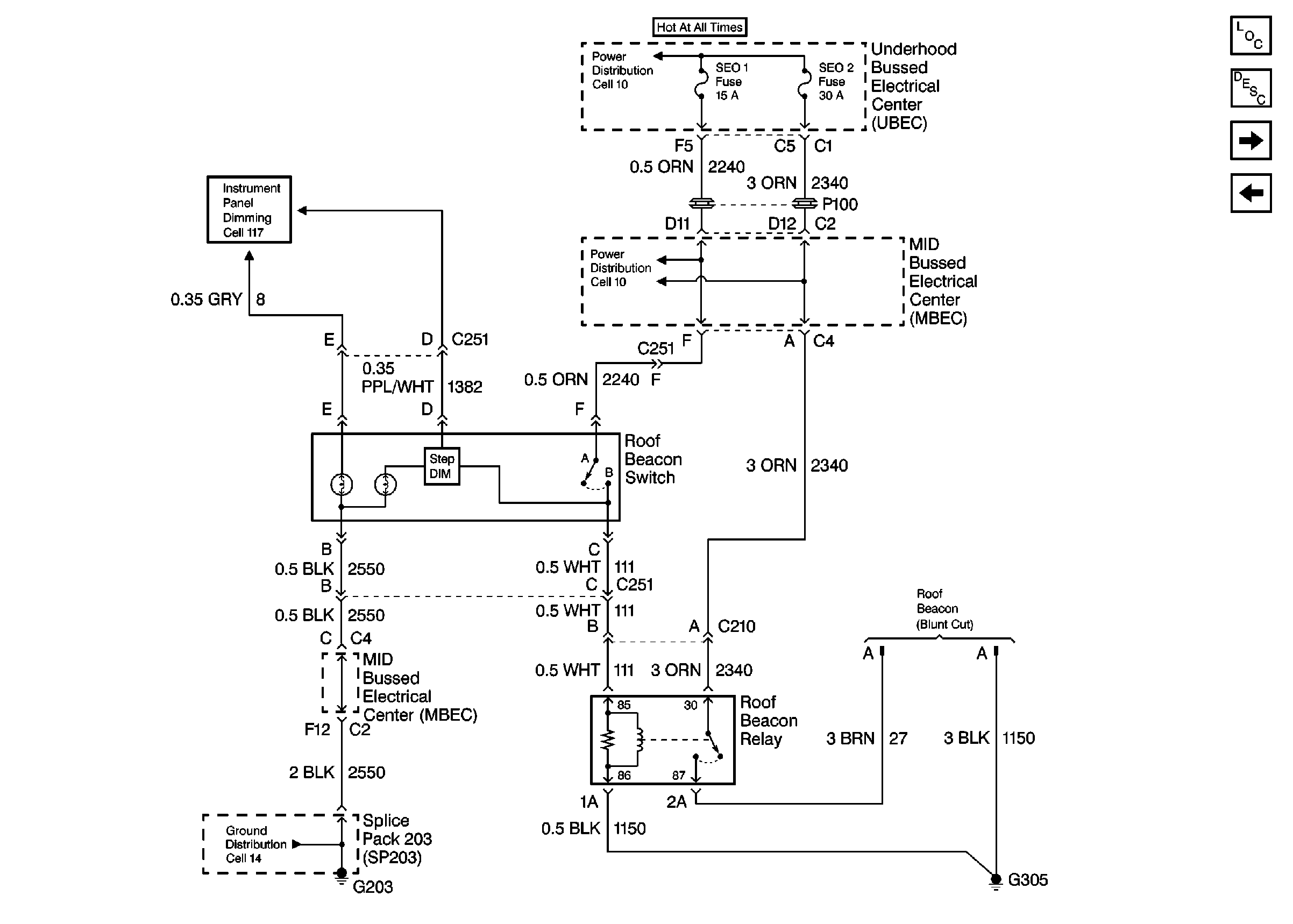

Figure 7:	Cell 110: Roof Beacon Switch Lighting Systems Components Exterior Lights Circuit Description Cell 110: Trailer Wiring (Light Duty) Cell 110: Rear Lamps and CHMSL/Cargo Lamps Cell 10: Underhood Bussed Electrical Center, Automatic Transfer Case Interior Lights Dimming Schematics Cell 10: Underhood Bussed Electrical Center, Automatic Transfer Case Cell 14: Full Feature Seat Heated/Memory Seat Switch, Light Bar Switch

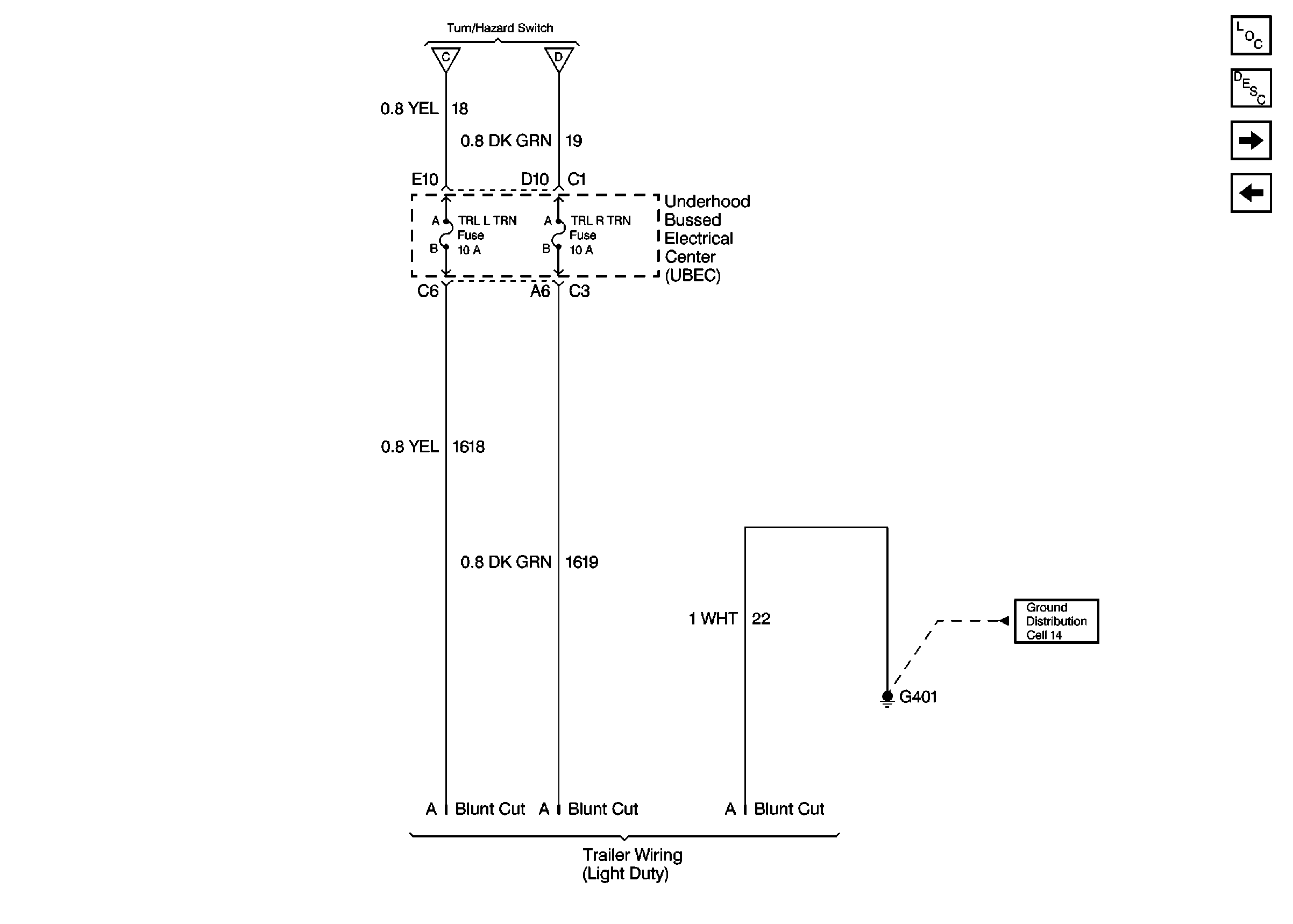

Figure 8:	Cell 110: Trailer Wiring (Light Duty) Lighting Systems Components Exterior Lights Circuit Description Cell 110: Trailer Wiring (Heavy Duty) Cell 110: Roof Beacon Switch Cell 110: Stop Lamp Switch and Turn/Hazard Switch/Flasher Cell 110: Stop Lamp Switch and Turn/Hazard Switch/Flasher Cell 14: Brake Fluid Level Switch, RH Turn Lamp

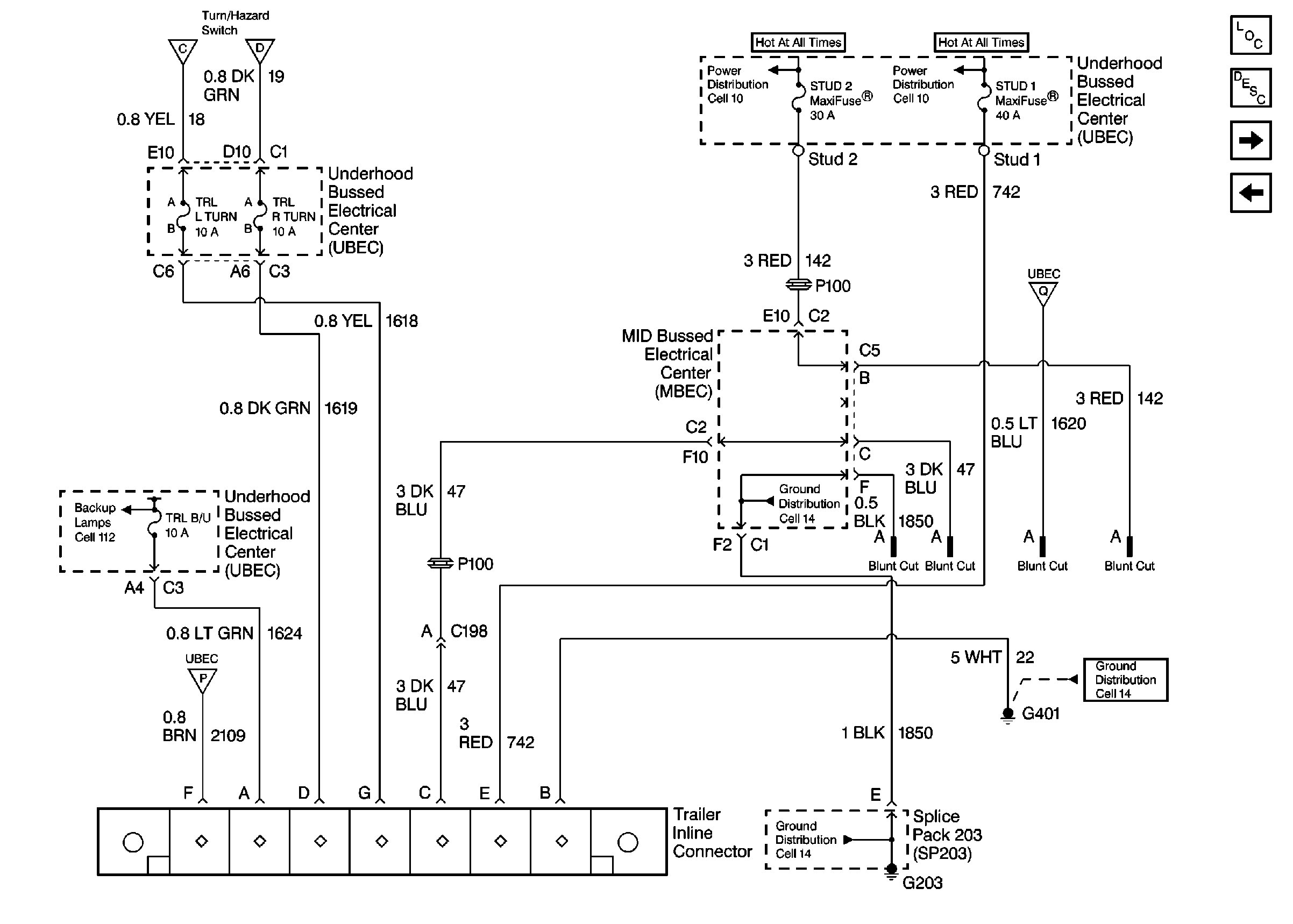

Figure 9:	Cell 110: Trailer Wiring (Heavy Duty) Lighting Systems Components Exterior Lights Circuit Description Cell 110: Camper Wiring Cell 110: Trailer Wiring (Light Duty) Cell 110: Trailer Wiring (Light Duty) Cell 110: Trailer Wiring (Light Duty) Cell 10: Underhood Bussed Electrical Center, HVAC Blower Switch Cell 10: Underhood Bussed Electrical Center, HVAC Blower Switch Cell 112 Cell 110: Park Lamp Control and Front Marker Lamps Cell 14: Full Feature Seat Heated/Memory Seat Switch, Light Bar Switch Cell 14: Brake Fluid Level Switch, RH Turn Lamp Cell 110: Stop Lamp Switch and Turn/Hazard Switch/Flasher Cell 14: Full Feature Seat Heated/Memory Seat Switch, Light Bar Switch

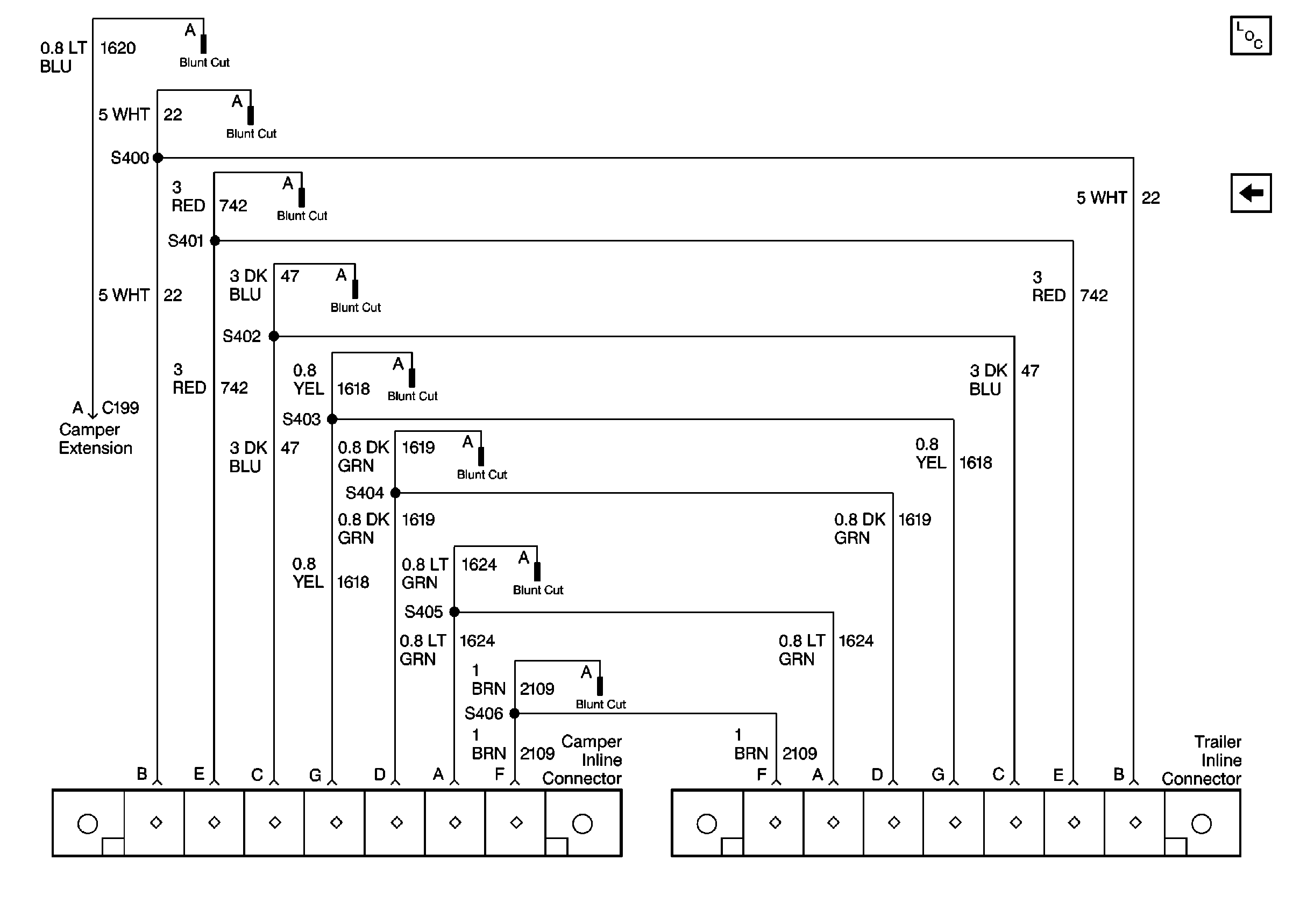

Figure 10:	Cell 110: Camper Wiring Lighting Systems Components Cell 110: Trailer Wiring (Heavy Duty)
