Removal Procedure

    Important: Do not disconnect the electrical connectors.

  1. Remove and move the console end panel rearwards. Refer to Center Console End Panel Replacement .

    2. Object Number: 752601 Size: SH

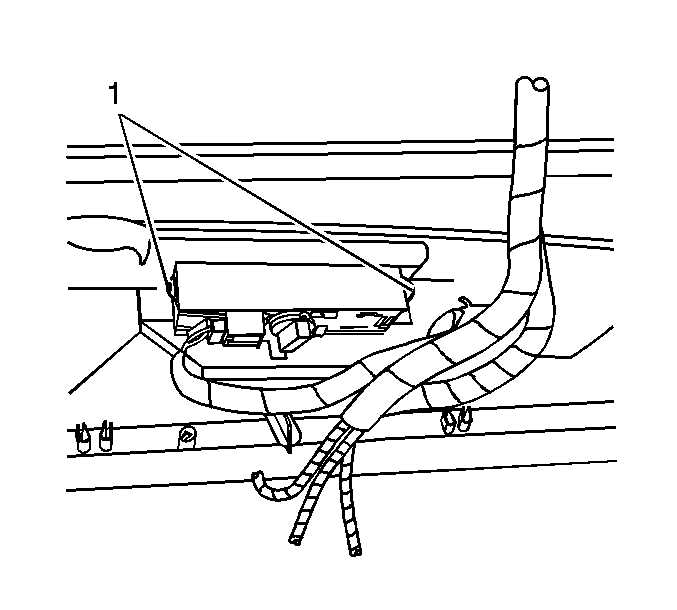

  2. Press on the tabs (1) in order to remove the lamp assembly from the end panel.
  3. Disconnect the electrical connector.
  4. To replace the bulb turn counter clockwise to remove.

Installation Procedure

    Object Number: 752601 Size: SH
  1. Install the bulb by turning clockwise.
  2. Connect the electrical connector to the lamp.
  3. Push in the lamp assembly until the tabs (1) are fully seated.
  4. Install the console end panel. Refer to Center Console End Panel Replacement .
