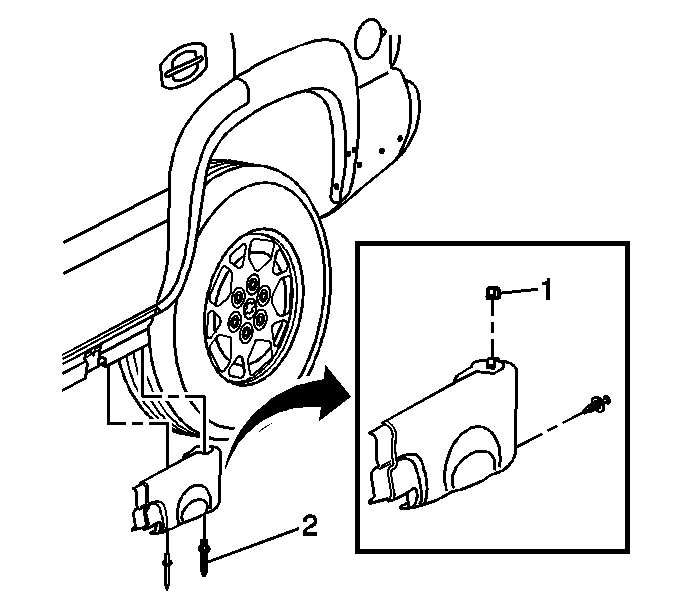

Rear Side Door Lower Molding Replacement Tahoe

1. Remove the U-clip (1).
2. Remove the pushpin.
3. Drill out the rivets (2).
4. Pull up on the molding in order to release the molding.

1. Position the inner lip of the molding to the retainer.
2. Install the rivets (2).
3. Install the pushpin.
4. Install the U-clip (1).

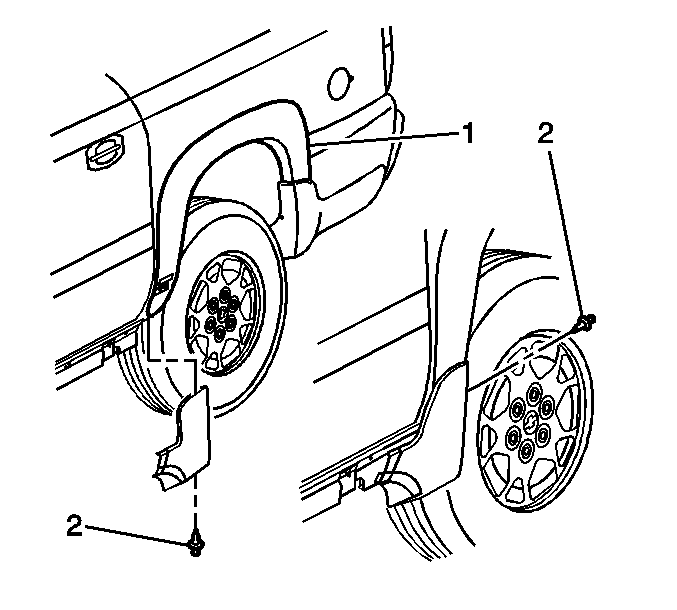

Rear Side Door Lower Molding Replacement Suburban

1. Remove the pushpins (2).
2. Pull up on the molding in order to release the molding.

1. Position the inner lip of the molding to the retainer (1).
2. Install the pushpins (2).
