Removal Procedure
  1. Remove all of the related panels and components.
  2. Remove any excess sealer surrounding the existing hinge and scribe the location of the hinge on the hinge pillar.

    3. Object Number: 671101 Size: SH
  3. Lightly hand-sand the existing hinge with 100 grit or finer sandpaper in order to locate the 4 welds that attach the hinge to the door.

    4. Important: Punch the center of the weld so that as much of the weld as possible is removed during the drilling.

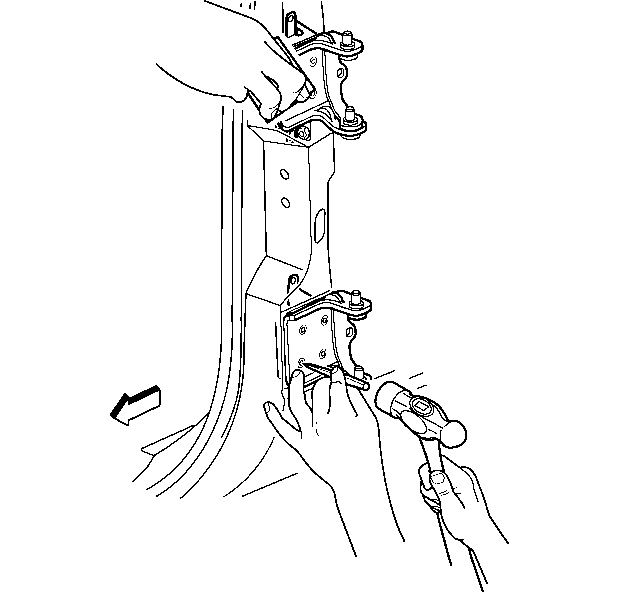

  4. Center punch each of the 4 weld marks on the original hinge.

    5. Object Number: 671119 Size: SH

    Important: Do not drill into the hinge pillar.

  5. Drill through the hinge only at each punch location. Use a 13 mm (1/2 in) rotabroach hole saw or the equivalent.
  6. Remove the hinge. If necessary, use a chisel in order to separate the hinge from the pillar.
  7. Remove all of the remaining weld from the pillar surface in order to ensure a flush fit of the service hinge.

Installation Procedure

    Object Number: 671084 Size: SH
  1. Repair any damage done to the pillar during the drilling or the removal.
  2. Position the service hinge within the scribe marks on the pillar.

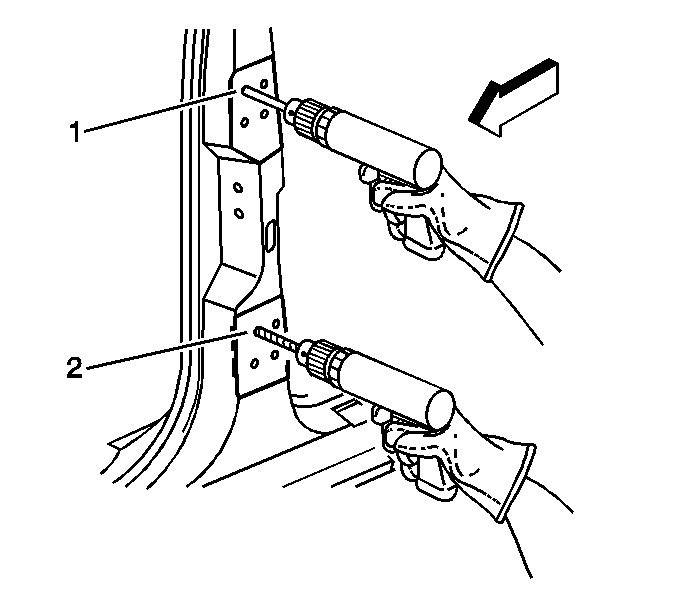

  3. Center punch each stud location on the hinge pillar according to the service hinge  (1).
  4. Drill a 3 mm (1/8 in) pilot hole (2) at each center punch location.

    5. Important: The drill bit must be the exact size.

  5. Drill an 11.5 mm (29/64 in) hole at the pilot locations for the studs.
  6. Clean and prepare all of the bare metal surfaces.

    7. Object Number: 671075 Size: SH

    Important: Prior to refinishing, refer to the publication GM 4901M-D-2000 GM Approved Refinish Materials for recommended products. Do not combine paint systems. Refer to manufacturer's recommendations.

  7. Apply an approved anti-corrosion primer.

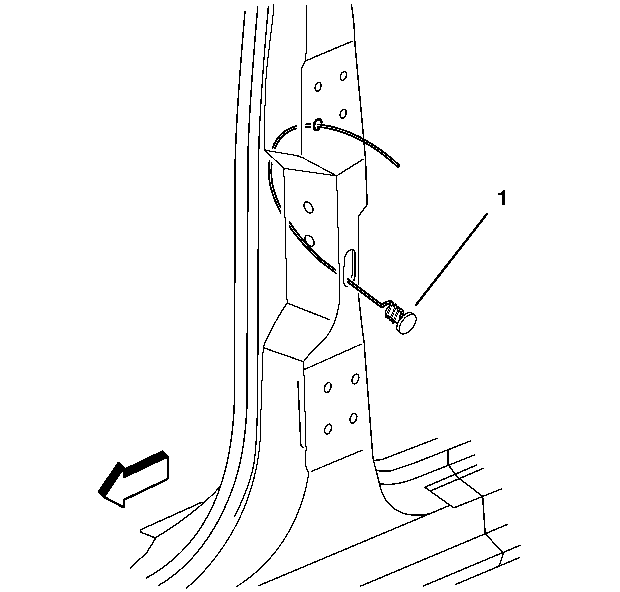

  8. Feed fish wire, GM P/N 15017229 of the equivalent, through the hinge (1), the hinge stud hole and out of the conduit hole in the pillar.

    9. Object Number: 671055 Size: SH
  9. Install the stud, GM P/N 15017230, supplied with the service hinge, into the wire end. Pull the stud into position.
  10. Hold the stud in position with the hinge and remove the fish wire.
  11. Draw the stud (4) tight through the pillar. Use the nuts GM P/N 11516746, supplied.
  12. Repeat steps 7 through 10 on the remaining stud locations.
  13. Remove each service nut.
  14. Apply a full-bodied caulk to the entire hinge mounting surface in order to ensure a proper seal.

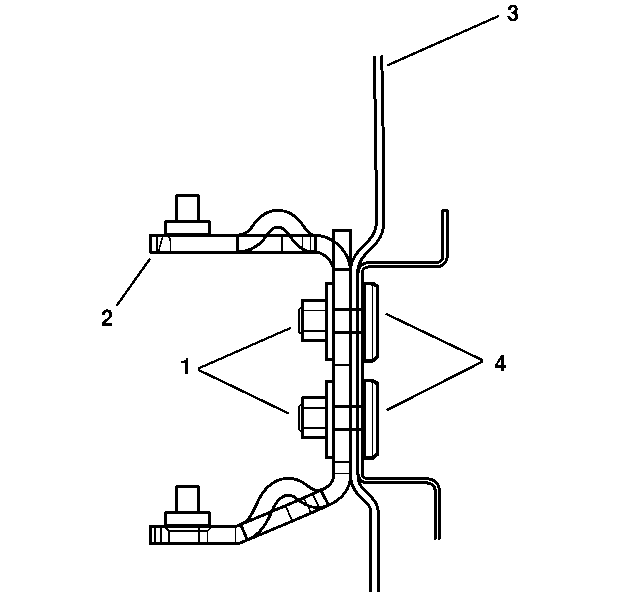

  15. Install the hinge (2) to the pillar (3). Use the supplied nuts (1).

    16. Notice: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

  16. Install the hinge (2) to the pillar (3). Use the supplied nuts  (1).

    17. Tighten
    Tighten the hinge nuts (4) to 25 N·m (18 lb ft).

  17. Clean and prepare all of the surfaces as necessary for refinishing.
  18. Apply the sealers. Refinish the surfaces as necessary.
  19. Install and align all of the related panels and the components.
