Tools Required
| • | J 25022 End
Play Fixture Adapter (245 mm and 258 mm) |
| • | J 34725 End
Play Fixture Adapter (298 mm) |
| • | J 43205 End
Play Fixture Adapter (300 mm) |
| • | J 24773-A Oil
Pump Remover and End Play Checking Fixture |

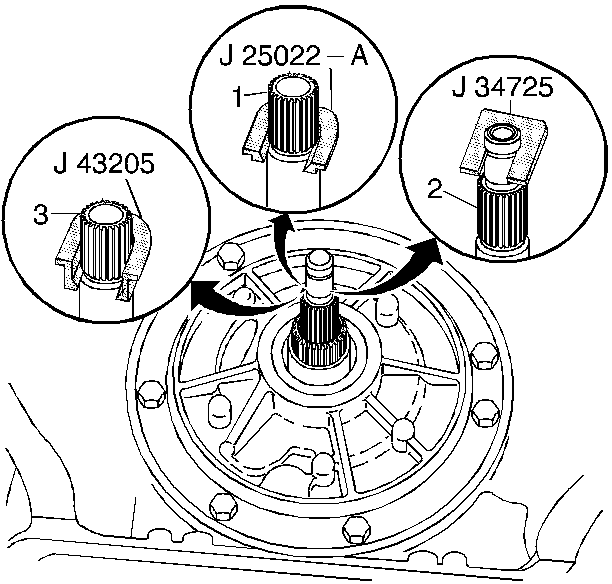

- Install an end play fixture adapter.
| • | Use J 25022
for a 245 mm and 258 mm turbine shaft (1). |
| • | Use J 34725
for a 298 mm turbine shaft (2). |
| • | Use J 43205
for a 300 mm turbine shaft (3). |

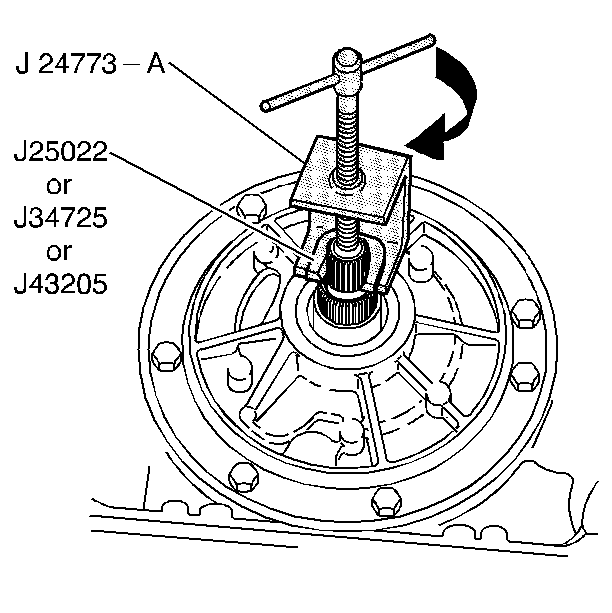

- Install the J 24773-A
.
- Remove an oil pump bolt.

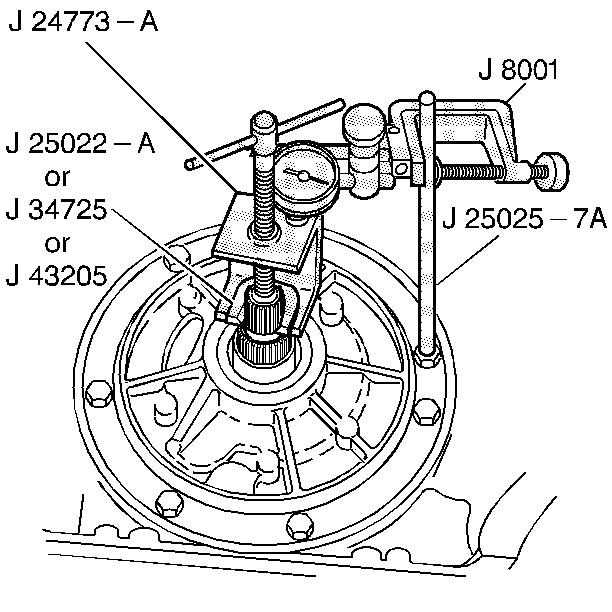

- Install J 25025-7A
(or a 278 mm or 11 in bolt) and lock nut.
- Install J 8001
.
- Set the J 8001
to zero.

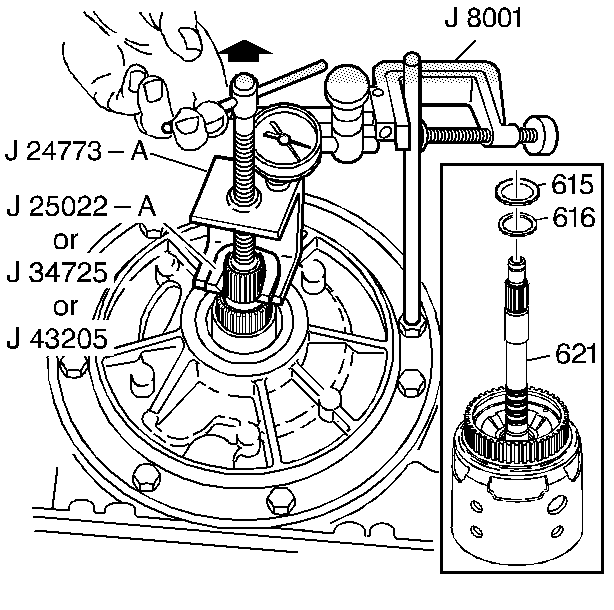

- Pull up on J 24773-A
.
Proper end play should be 0.13-0.92 mm (0.005-0.036 in).
- The selective washer (616), which controls the end play, is located
between the input housing (621) and the thrust bearing (615) on the oil pump
hub.
If the end play measurement is incorrect, refer to the
Transmission End Play Check
table. Choose a new selective
washer (616) based on the original selective washer and the information contained
in the table.
If the dial indicator shows no end play, the selective washer (616)
and thrust bearing (615) may have been misassembled.
- Correct the end play by changing the selective washer (616).
