Makes 🢒 Chevrolet 🢒 2005 🢒 Chevy K Silverado - 4WD 🢒 Body 🢒 Lighting Systems 🢒 Blackout Lamp Switch Replacement

Removal Procedure

    Caution: Refer to Battery Disconnect Caution in the Preface section.


    Object Number: 1693358 Size: SH
  1. Disconnect the battery cables. Refer to Battery Cable Disconnect and Connection in Engine Electrical.
  2. Remove the accessory panel. Refer to Accessory Instrument Panel (I/P) Replacement in Instrument Panel, Gages and Console.

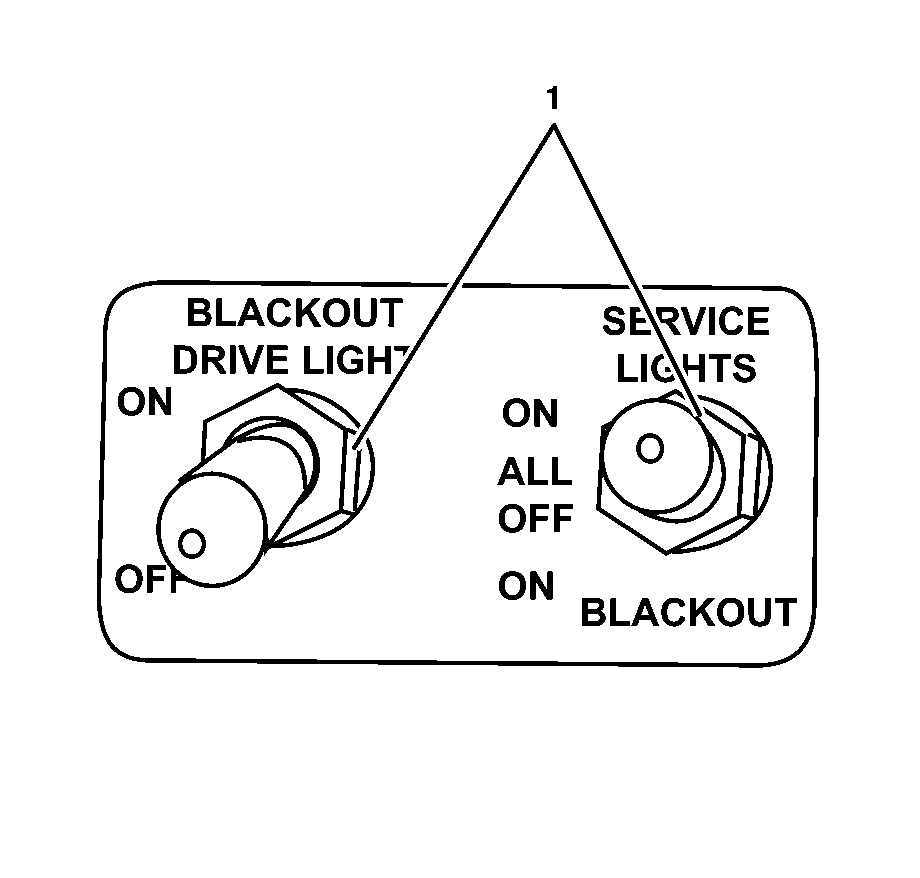

  3. Remove the nuts (1) and washers holding the blackout (B/O) switches.
  4. Remove the keyed washers from the accessory panel and pull the switches out.

Installation Procedure

    Object Number: 1693358 Size: SH
  1. Install the switches through the accessory panel.
  2. Install the keyed washers on the switches.

    3. Notice: Refer to Fastener Notice in the Preface section.

  3. Install the 2 washers and nuts (1) on the panel.

    4. Tighten
    Tighten the 2 nuts to 2.8 N·m (24 lb in).

  4. Install the accessory panel. Refer to Accessory Instrument Panel (I/P) Replacement in Instrument Panel, Gages and Console.
  5. Connect the battery cables. Refer to Battery Cable Disconnect and Connection.
