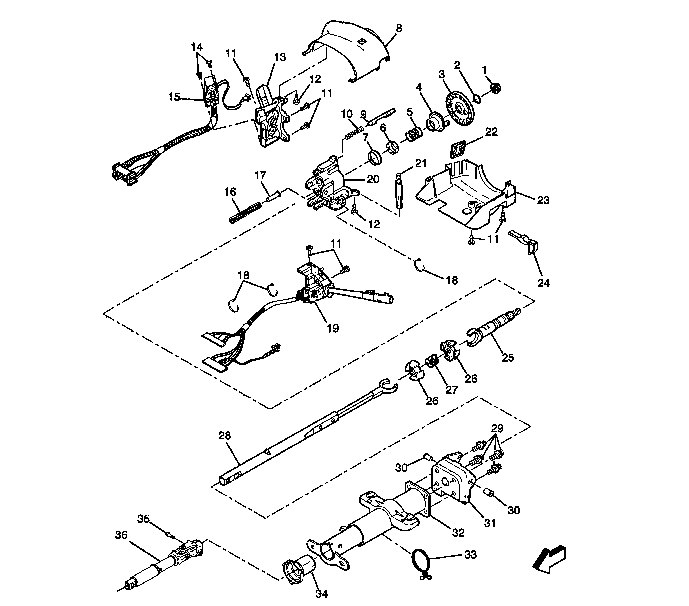

| (1) | Nut, Flanged Prevail Torque |
| (2) | Retainer, Bearing |
| (3) | Shield Asm,
Shaft Lock |
| (4) | Cam Asm, Turn Signal Cancel |
| (5) | Spring, Upper Bearing |
| (6) | Seat, Upper Bearing Inner Race |
| (7) | Race, Inner |
| (8) | Shroud, Upper |
| (9) | Bolt Asm, Lock |
| (10) | Spring, Lock
Bolt |
| (11) | Screw, Pan Head Tapping |
| (12) | Screw, Torx Head |
| (13) | Module Asm,
Lock |
| (14) | Screw, Tapping |
| (15) | Switch Asm, Ign & Key Alarm |
| (16) | Spring, Tilt |
| (17) | Guide, Spring |
| (18) | Strap, Wire Harness |
| (19) | Switch Asm, Turn Signal & Multifunction |
| (20) | Tilt Head Asm, Steering Column |
| (21) | Stud, Shroud Mounting |
| (22) | Protector, Shroud |
| (23) | Shroud, Lower |
| (24) | Lever Asm, Tilt |
| (25) | Shaft Asm, Race & Upper |
| (26) | Sphere, Centering |
| (27) | Spring, Joint Preload |
| (28) | Shaft Asm, Lower Steering |
| (29) | Screw,
Torx Head |
| (30) | Pin, Pivot |
| (31) | Support Asm, Steering Column |
| (32) | Jacket Asm,
Steering Column |
| (33) | Strap, Wire Harness |
| (34) | Bearing Asm, Adapter & |
| (35) | Bolt, Pinch |
| (36) | Shaft Asm, Intermediate |
