Turn Signal Cancel Cam and Upper Bearing Inner Race - Disassemble - Off Vehicle Column Shift

Tools Required

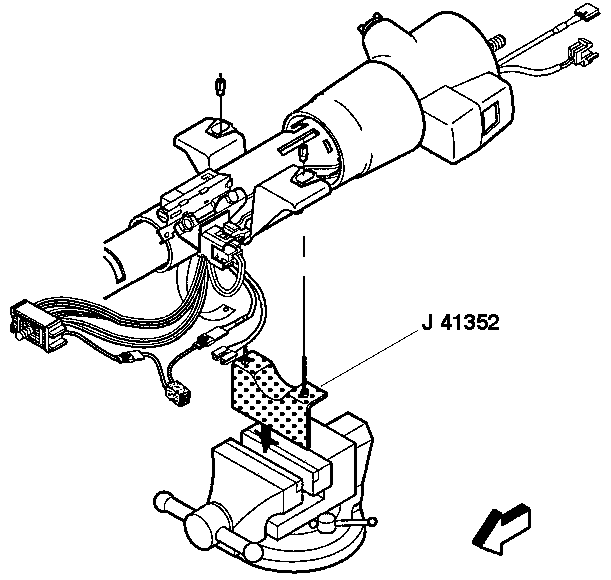

1. Set the steering column and J 41352 into a vise.

Important: The column must be in the center position.

2. Remove only those components necessary to do the repairs.
3. Check the steering column jacket assembly for accident damage. Refer to Steering Column Accident Damage Inspection - Off Vehicle .



4. Remove the lock bolt guard (1) from the steering column (2).



5. Compress the shaft lock cam using J 23653-91 and J 23653-SIR .
6. Remove the bearing retainer (1) from the steering shaft assembly.
7. Dispose of the bearing retainer (1).
8. Remove J 23653-91 and J 23653-SIR .



9. Remove the shaft lock cam (1) from the steering shaft assembly.
10. Remove the turn signal cancel cam assembly (2) from the steering shaft assembly.
11. Remove the upper bearing spring (3) from the steering shaft assembly.

Turn Signal Cancel Cam and Upper Bearing Inner Race - Disassemble - Off Vehicle Floor Shift

Tools Required

1. Set the steering column and J 41352 into a vise.

Important: The column must be in the center position.

2. Remove only those components necessary to do the repairs.
3. Check the steering column jacket assembly for accident damage. Refer to Steering Column Accident Damage Inspection - Off Vehicle .



4. Remove the lock bolt guard (1) from the steering column (2).



5. Compress the shaft lock cam using J 23653-91 and J 23653-SIR .
6. Remove the bearing retainer (1) from the steering shaft assembly.
7. Dispose of the bearing retainer (1).
8. Remove J 23653-91 and J 23653-SIR .



9. Remove the shaft lock cam (1) from the steering shaft assembly.
10. Remove the turn signal cancel cam assembly (2) from the steering shaft assembly.
11. Remove the upper bearing spring (3) from the steering shaft assembly.
