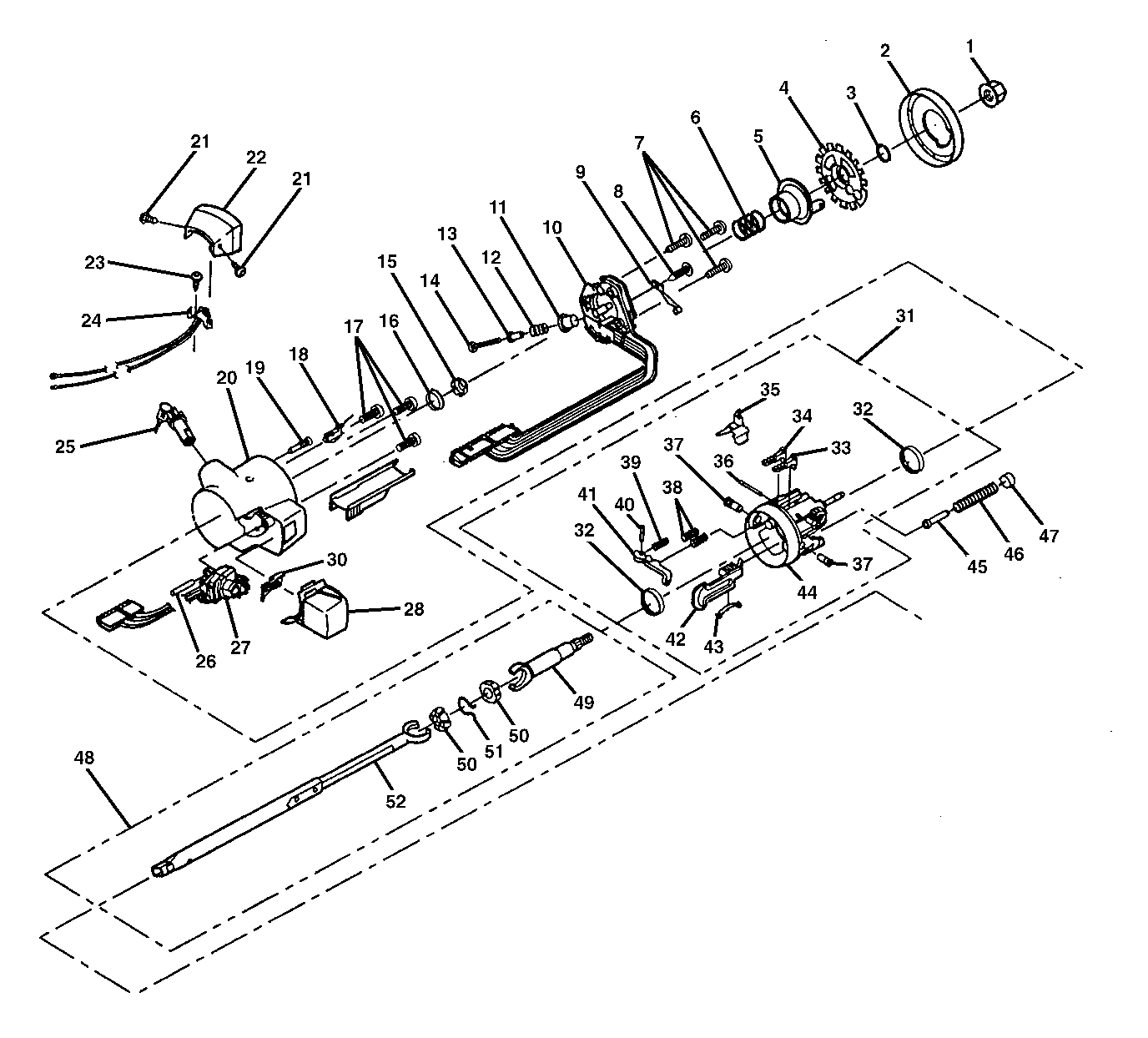

| (1) | Support Screw |
| (2) | Steering Column Housing Support Assembly |
| (3) | Steering Column Housing Support |
| (4) | Screw |
| (5) | Shift Lever Gate |
| (6) | Shift Tube Retaining Ring |
| (7) | Thrust Washer |
| (8) | Lock Plate |
| (9) | Wave Washer |
| (10) | Shift Lever Spring |
| (11) | Transmission Control
Indicator Pointer |
| (12) | Pointer Retaining Clip |
| (13) | Pointer Retaining Bracket |
| (14) | Gearshift Lever Bowl Assembly |
| (15) | Gearshift Bowl Shroud |
| (16) | Shift Tube Assembly |
| (17) | Screw |
| (18) | Deflector Plate |
| (19) | Steering Column Jacket
Assembly |
| (20) | Cam Retainer |
| (21) | Cable Shift Cam Assembly |
| (22) | Ignition Switch Assembly |
| (23) | Connector Body Bracket |
| (24) | Screw |
| (25) | Dimmer Rod Switch |
| (26) | Nut |
| (27) | Screw |
| (28) | Dimmer Switch Assembly |
| (29) | Dimmer Switch Mounting Stud |
| (30) | Stud and Bracket Assembly |
| (31) | Interlock Solenoid Assembly |
| (32) | Screw |
| (33) | Cable and Actuator
Assembly |
| (34) | Solenoid Bracket |
| (35) | Steering Shaft Collapse Clip |
| (36) | Inner Race Seat |
| (37) | Adapter and Bearing Assembly |
| (38) | Screw |
| (39) | Lower Bearing Seat |
| (40) | Lower Bearing Spring |
| (41) | Lower Spring Retainer |
| (42) | Bearing and Seal Retainer |
