Ground Distribution Schematics. Chevrolet Chevy Suburban 4WD

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 1998 🢒 Chevy Suburban 4WD - RHD 🢒 Body and Accessories 🢒 Wiring Systems 🢒 Ground Distribution Schematics

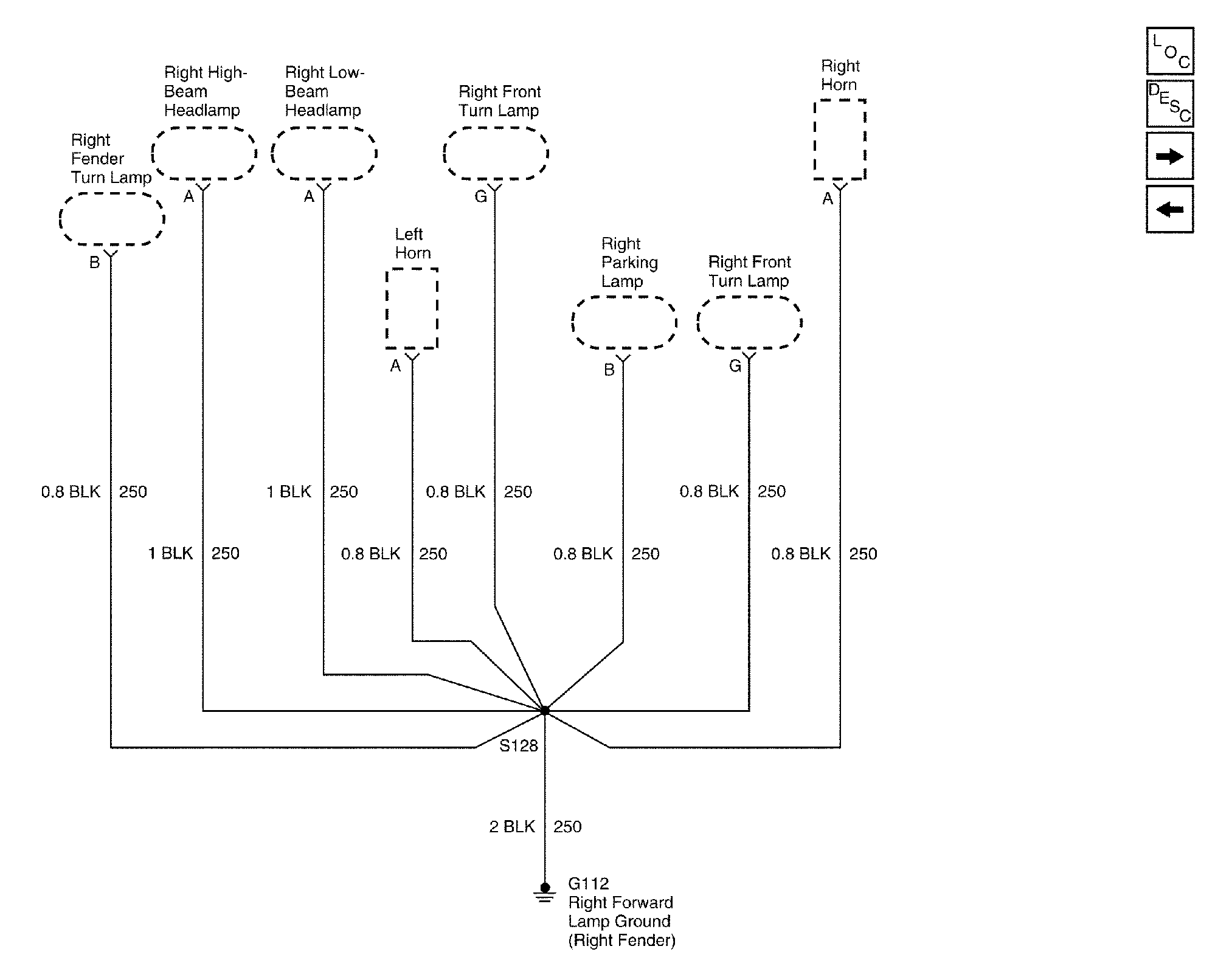

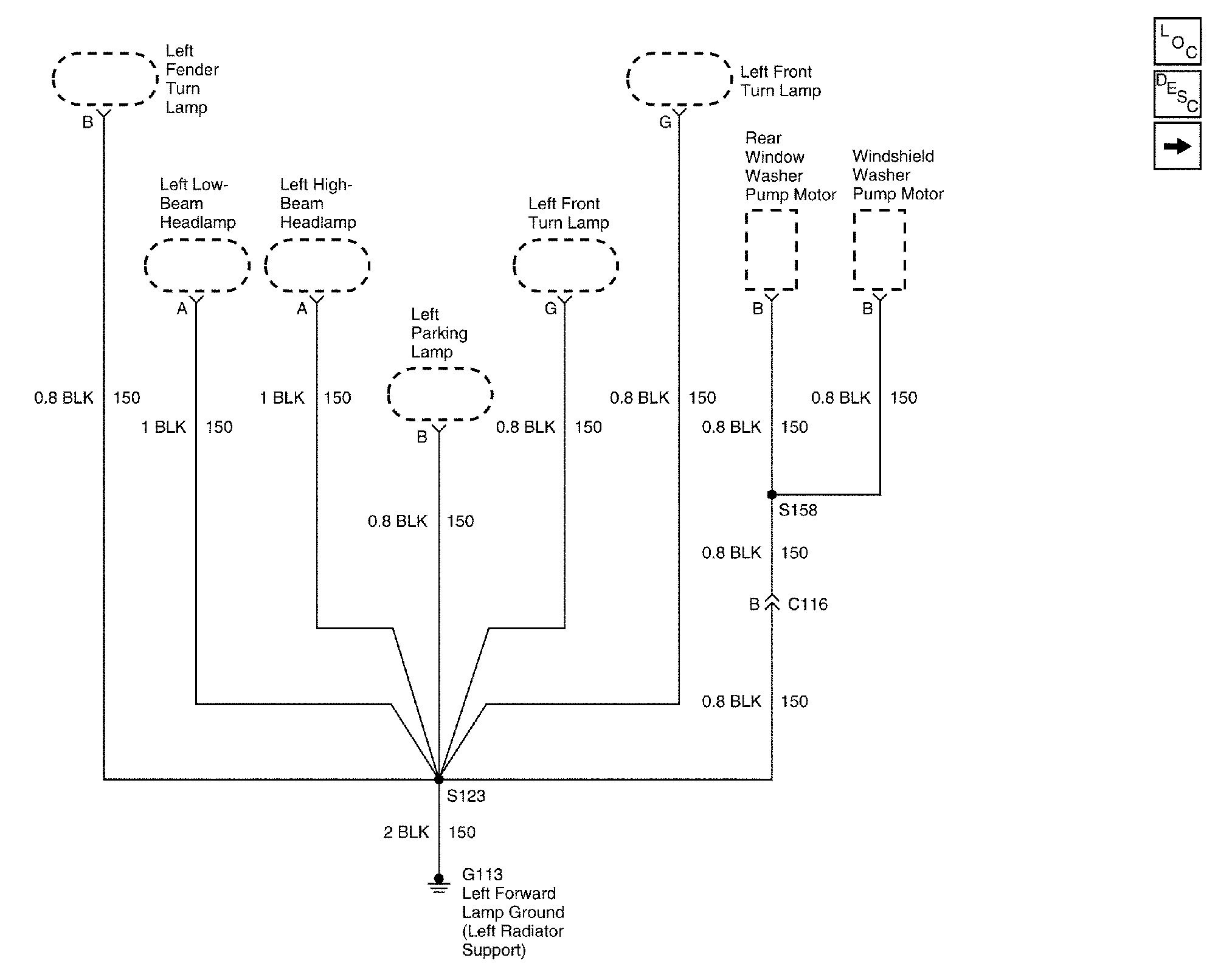

Figure 1:	Cell 14: G113 Power and Grounding Components Cell 14: G112

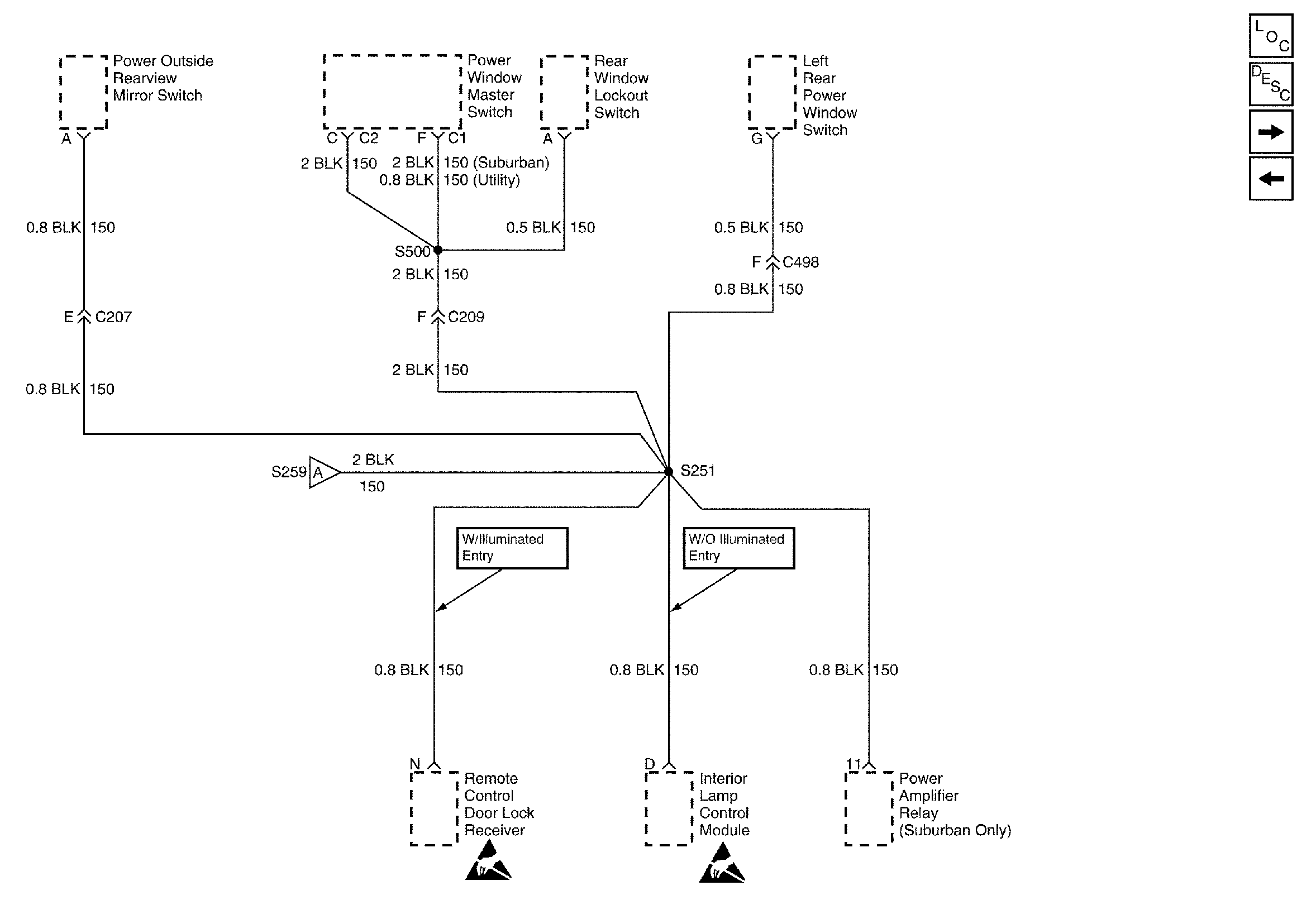

Figure 2:	Cell 14: G112 Power and Grounding Components Cell 14: G102, G101, G110, G111 and G200 Cell 14: G113

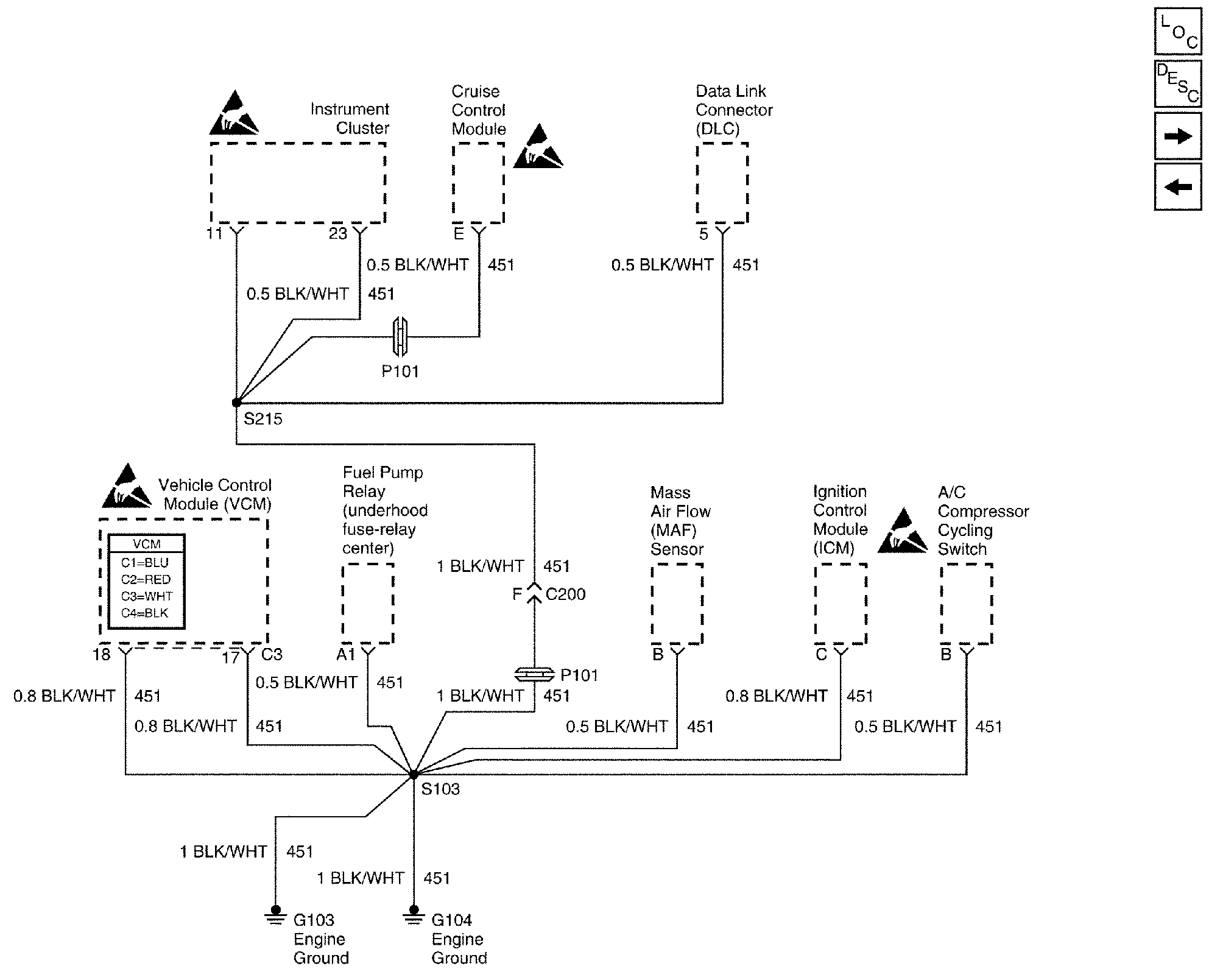

Figure 3:	Cell 14: G102, G101, G110, G111 and G200 Power and Grounding Components Cell 14: G105 Cell 14: G112

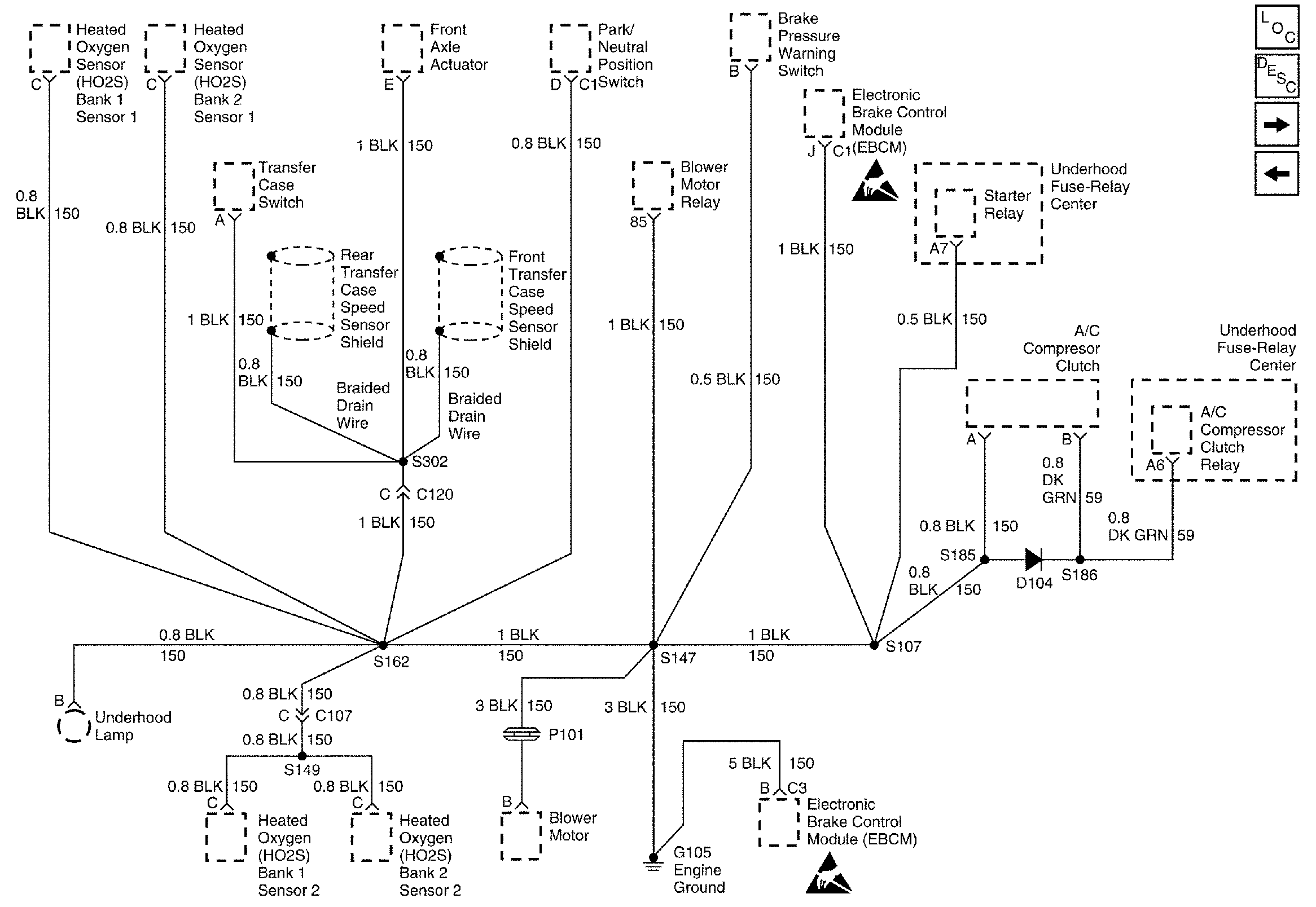

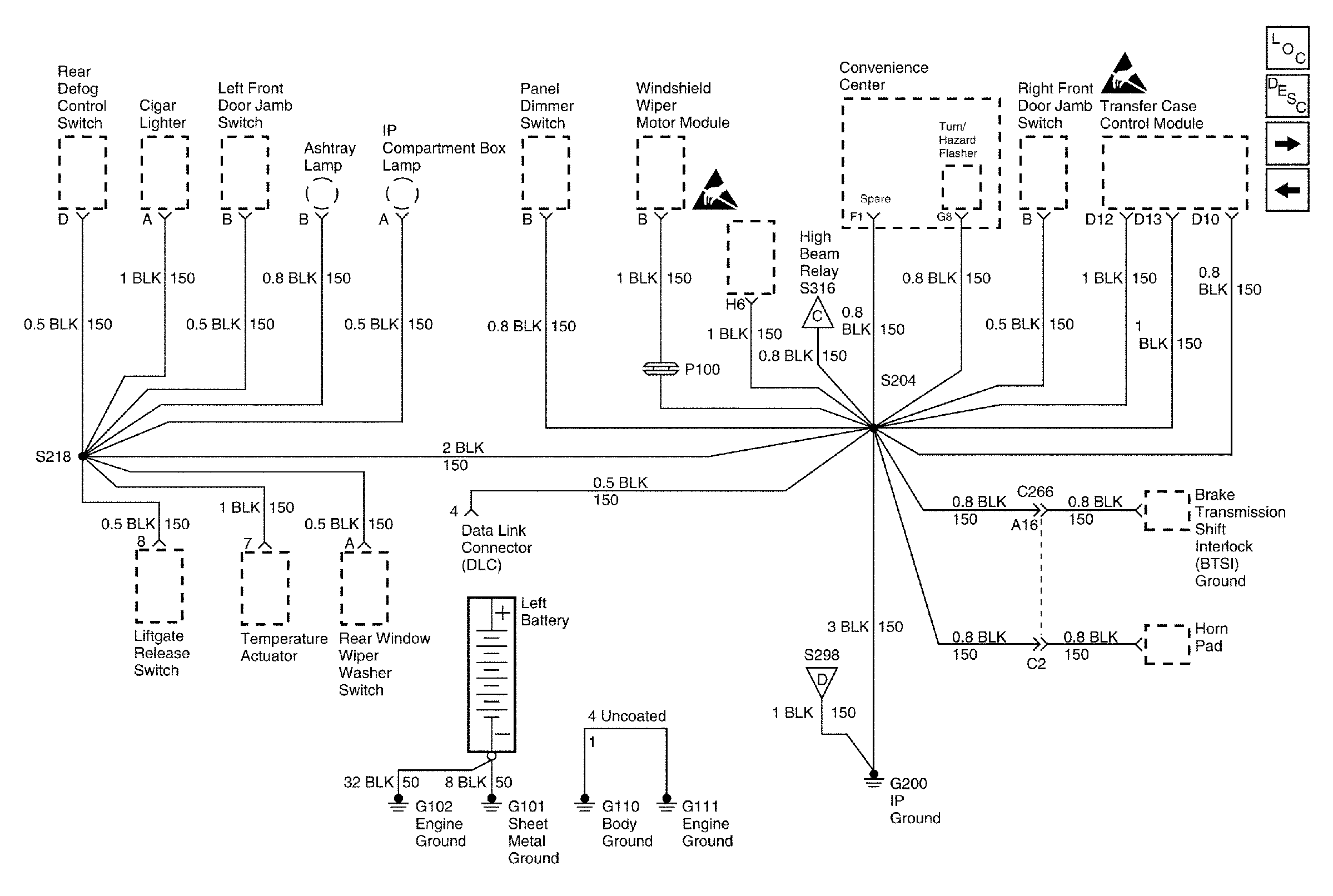

Figure 4:	Cell 14: G105 Power and Grounding Components Cell 14: G105 Cell 14: G102, G101, G110, G111 and G200

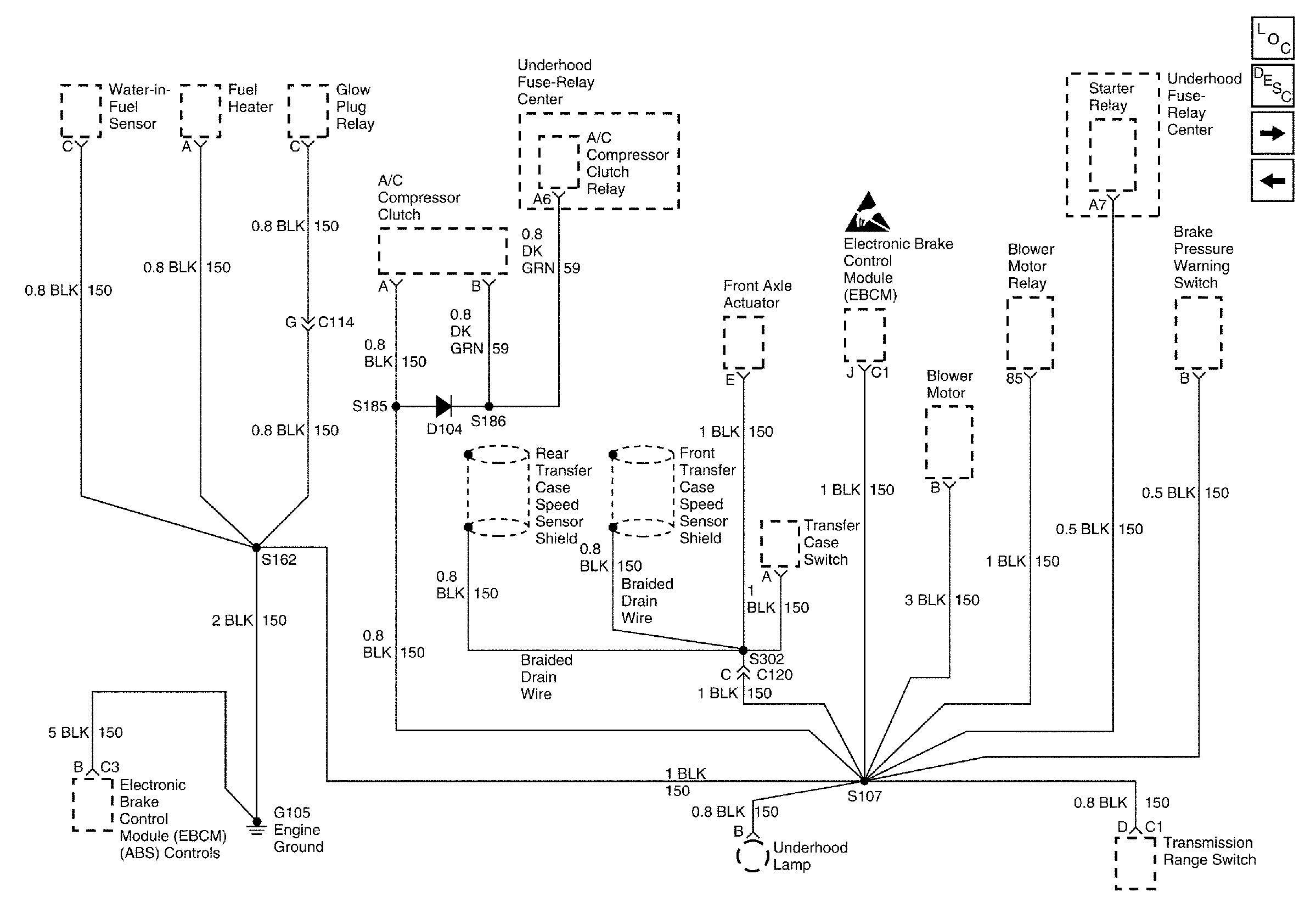

Figure 5:	Cell 14: G105 Power and Grounding Components Cell 14: G103 and G104 Cell 14: G105

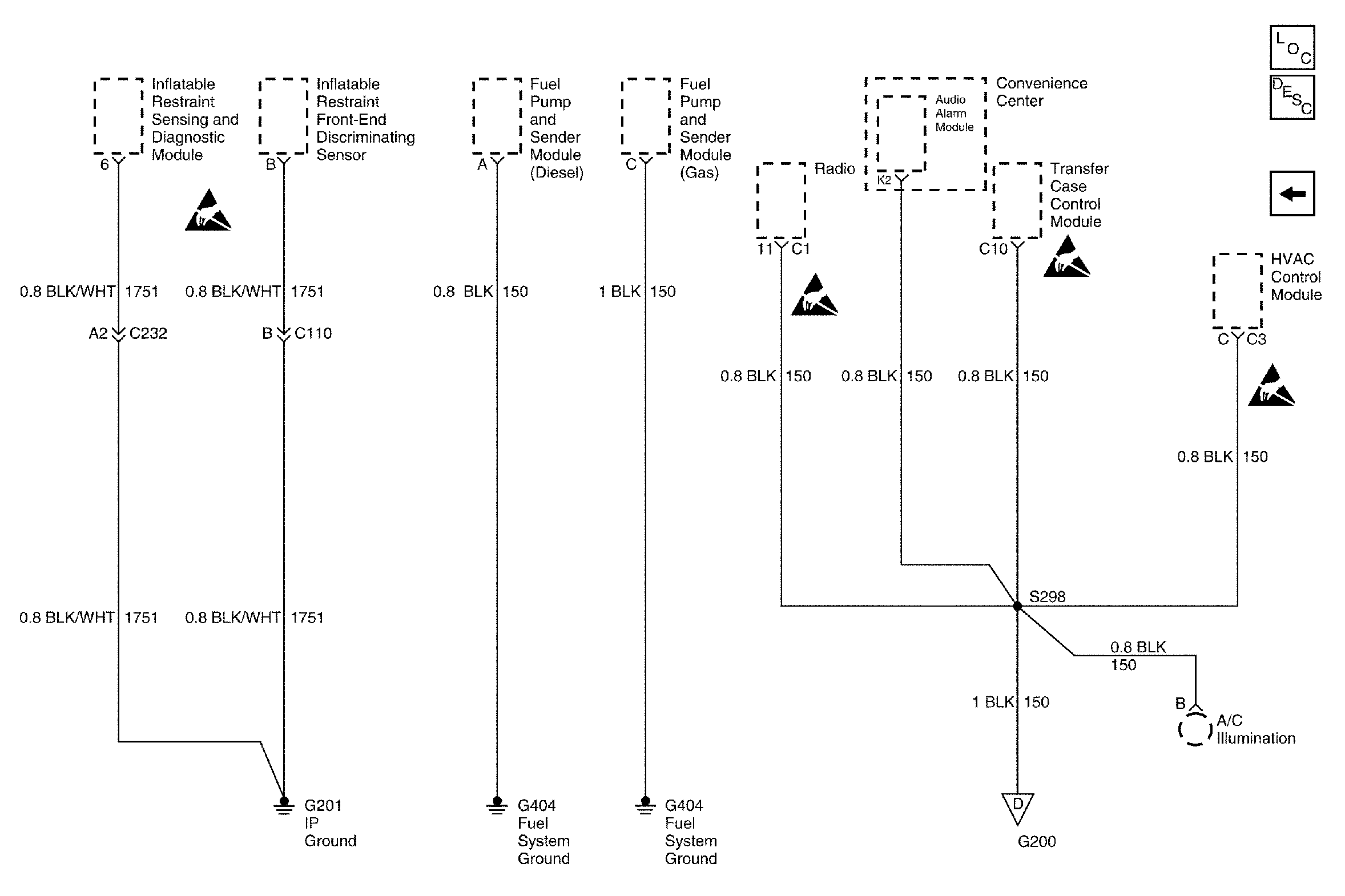

Figure 6:	Cell 14: G103 and G104 Power and Grounding Components Cell 14: G104 Cell 14: G105

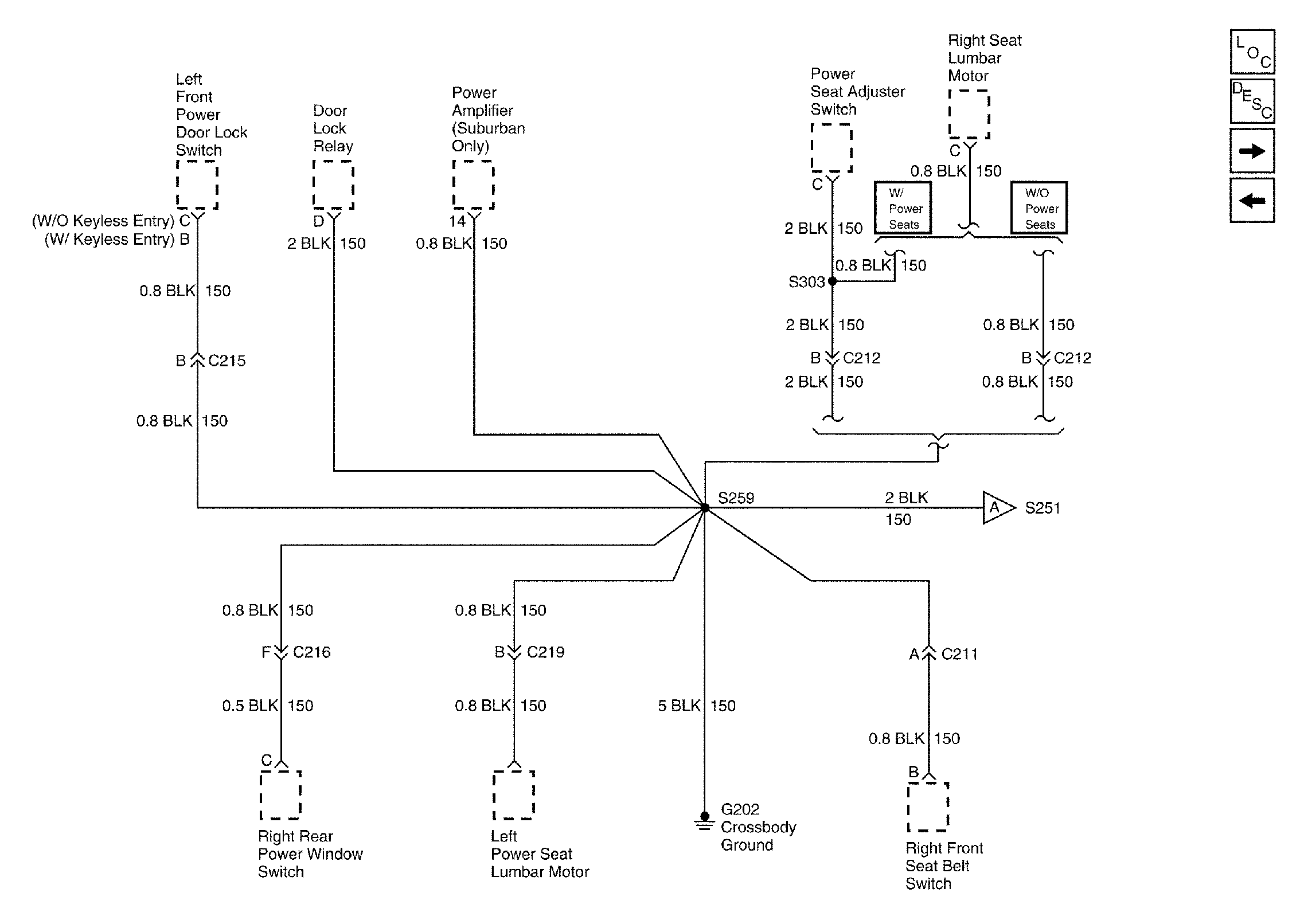

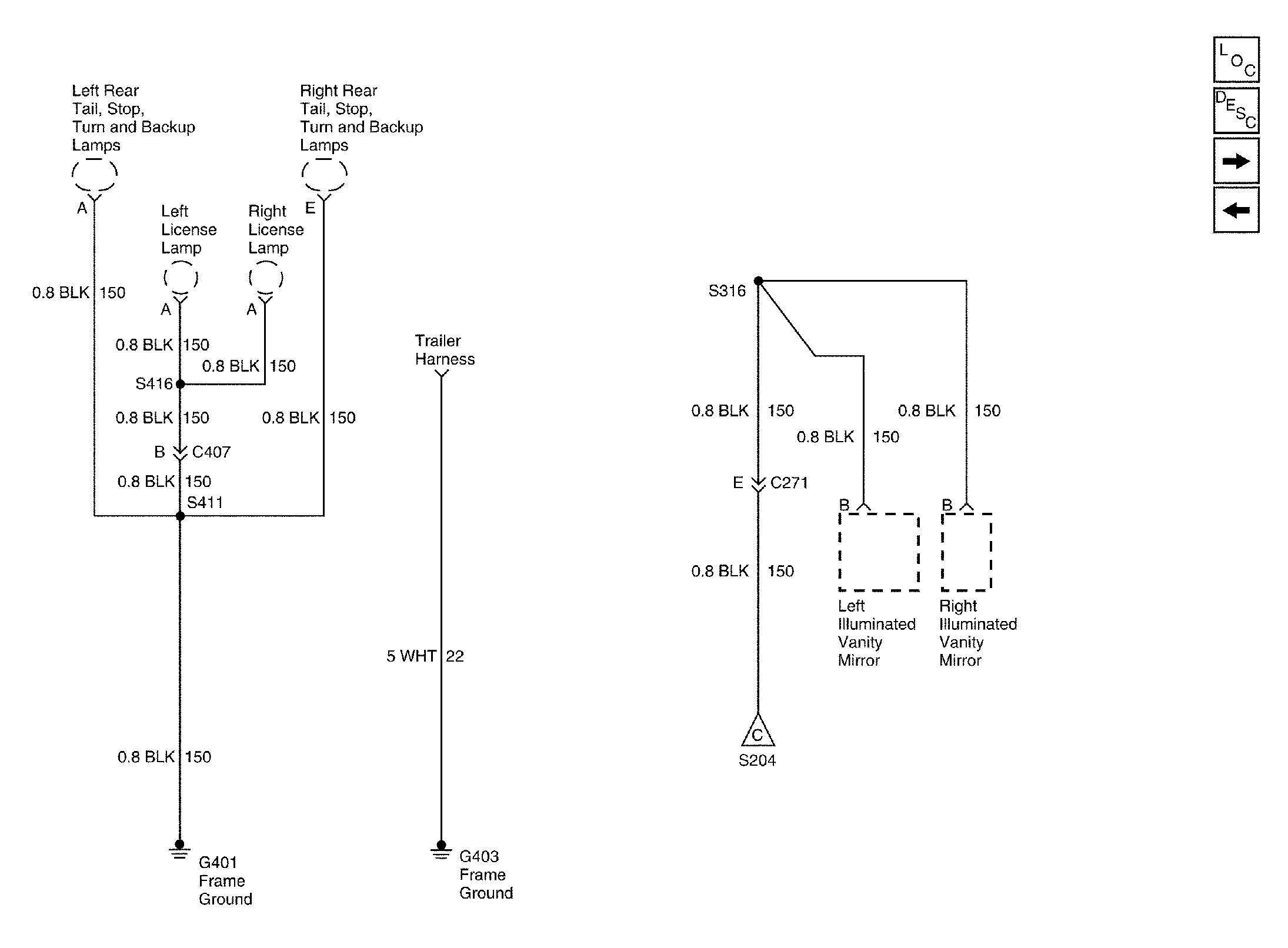

Figure 7:	Cell 14: G104 Power and Grounding Components Cell 14: G401 and G403 Cell 14: G103 and G104

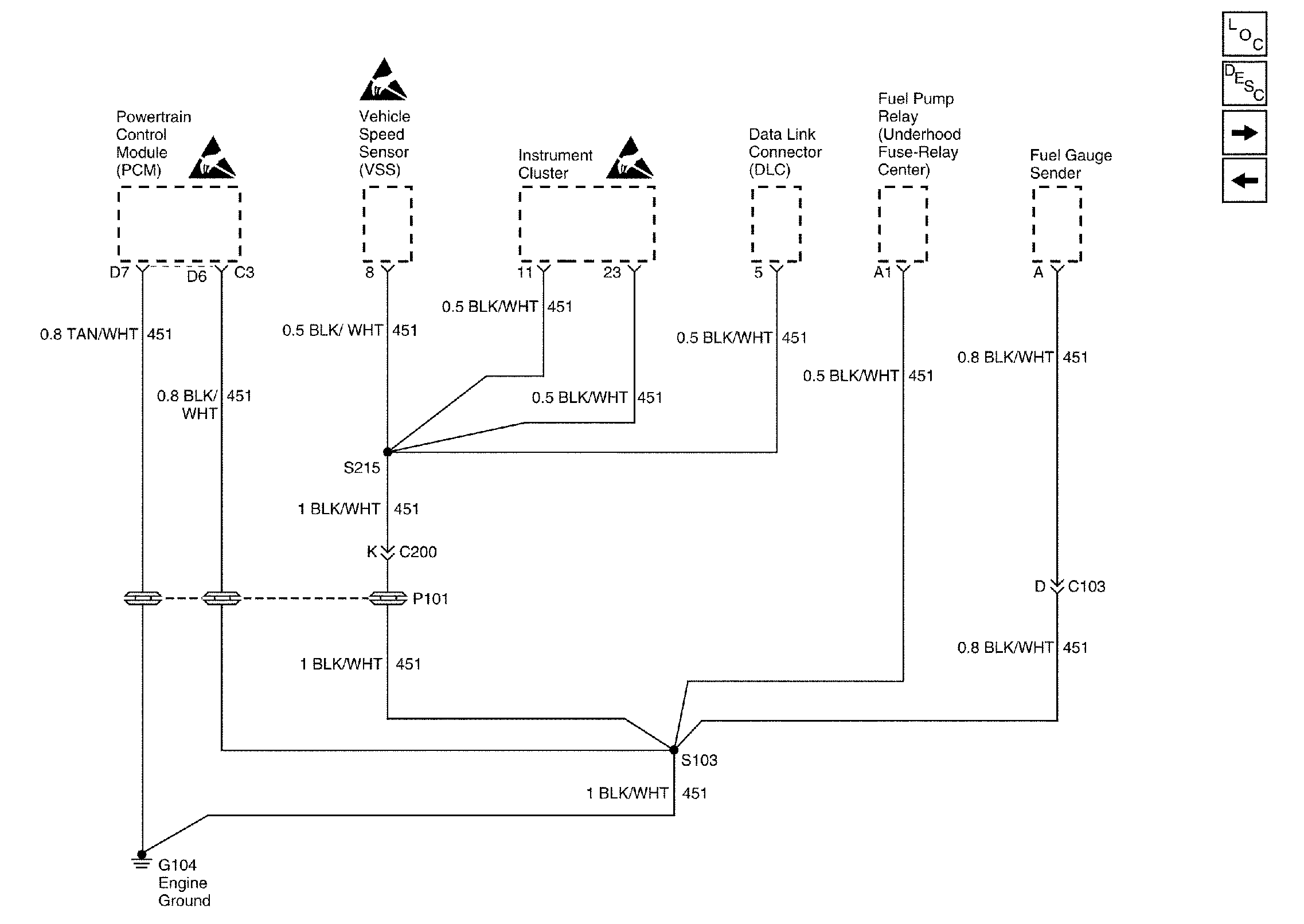

Figure 8:	Cell 14: G401 and G403 Power and Grounding Components Cell 14: G400 Cell 14: G104

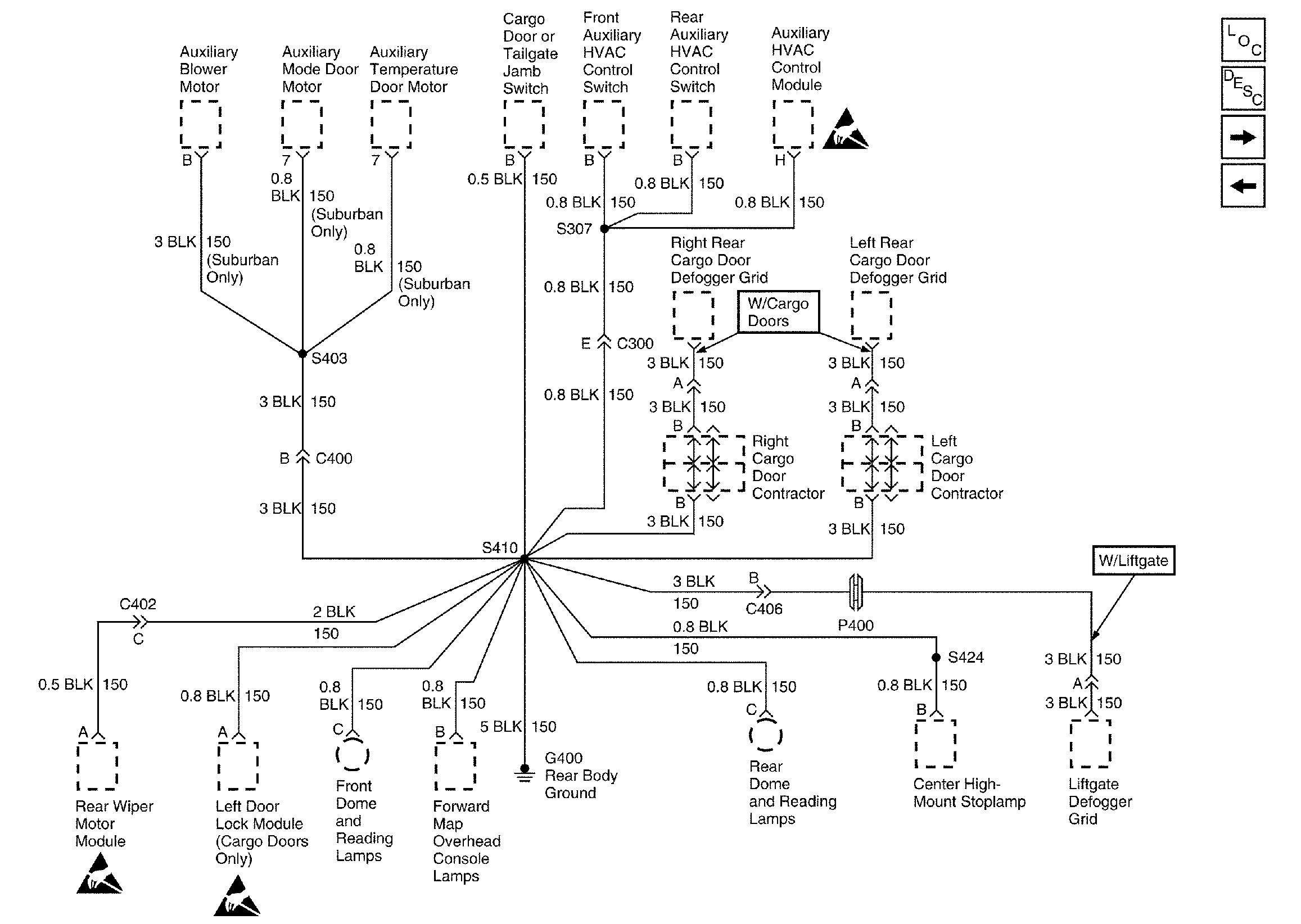

Figure 9:	Cell 14: G400 Power and Grounding Components Cell 14: G202 Cell 14: G401 and G403
Figure 10:	Cell 14: G202 Power and Grounding Components Cell 14: G202 Continued Cell 14: G400
Figure 11:	Cell 14: G202 Continued Power and Grounding Components Cell 14: G201 Cell 14: G202
Figure 12:	Cell 14: G201 Power and Grounding Components Cell 14: G202 Continued
