Instrument Cluster: Analog Schematics. Chevrolet Chevy Suburban 4WD

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 1998 🢒 Chevy Suburban 4WD - RHD 🢒 Body and Accessories 🢒 Instrument Panel, Gauges, and Console 🢒 Instrument Cluster: Analog Schematics

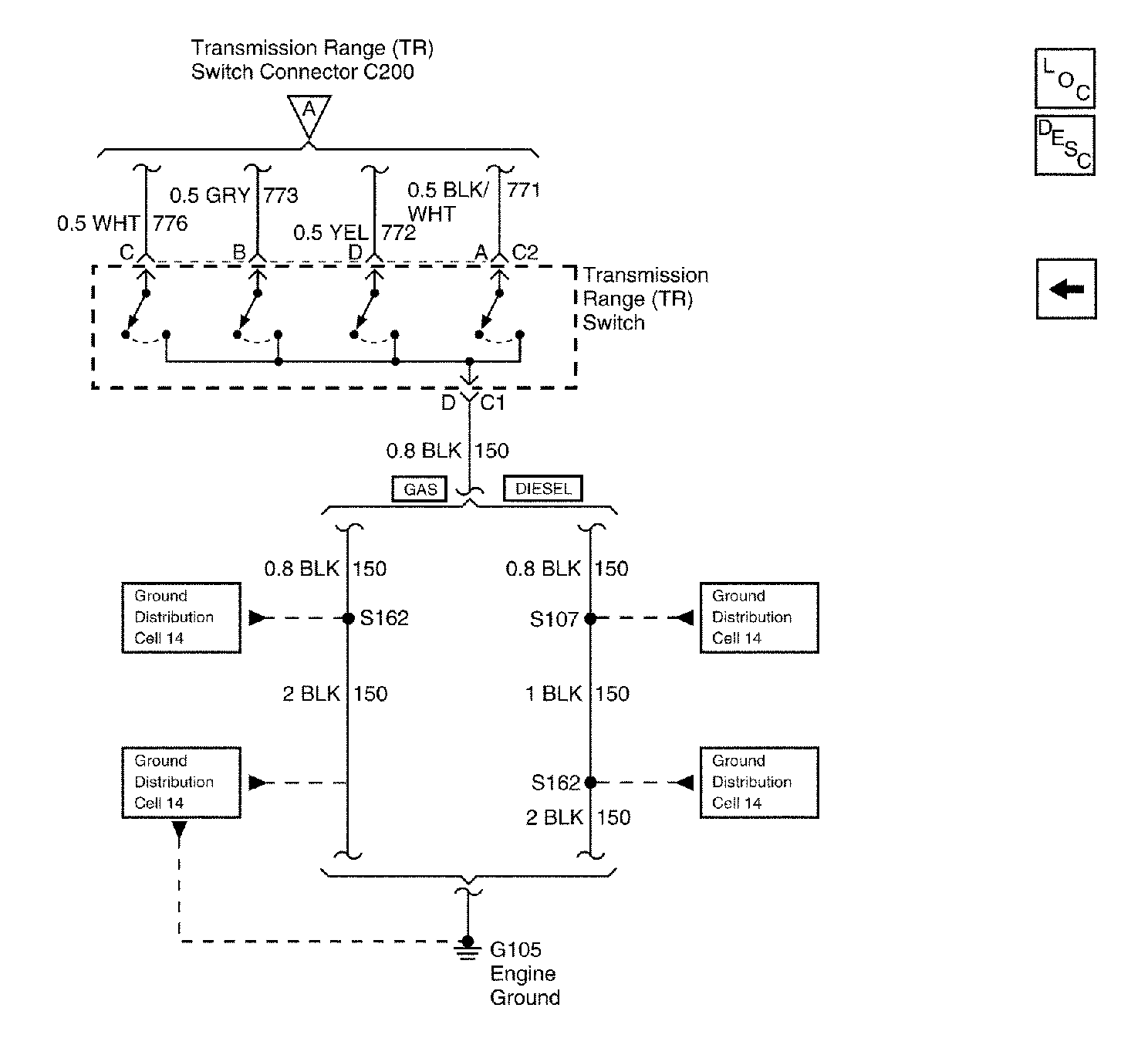

Figure 1:	Cell 81: Electronic PRNDL Schematics Continued Instrument Cluster Components Instrument Panel Description Cell 81: Electronic PRNDL Schematics Handling ESD Sensitive Parts Notice

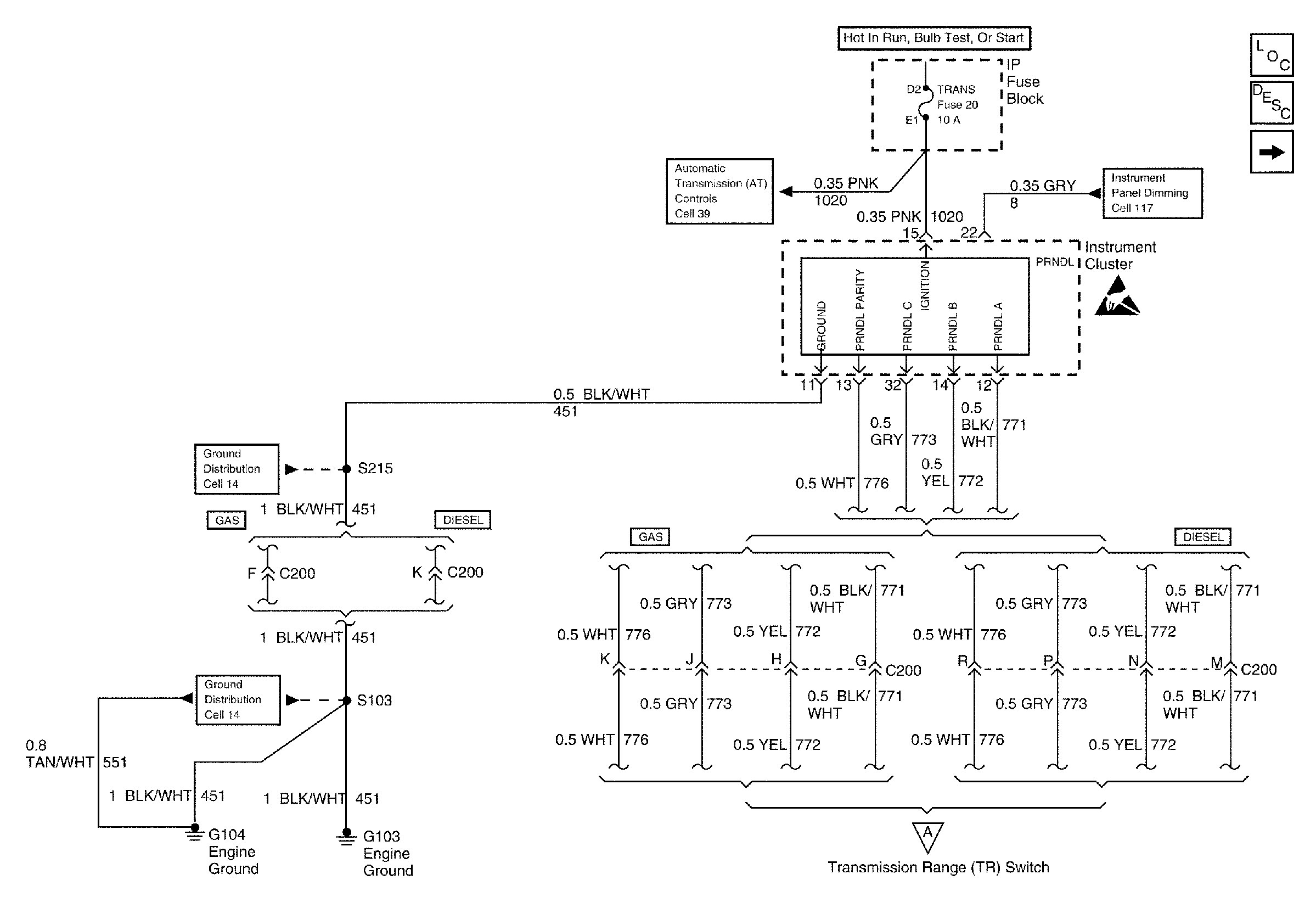

Figure 2:	Cell 81: Electronic PRNDL Schematics Instrument Cluster Components Instrument Panel Description Cell 81: Electronic PRNDL Schematics Continued

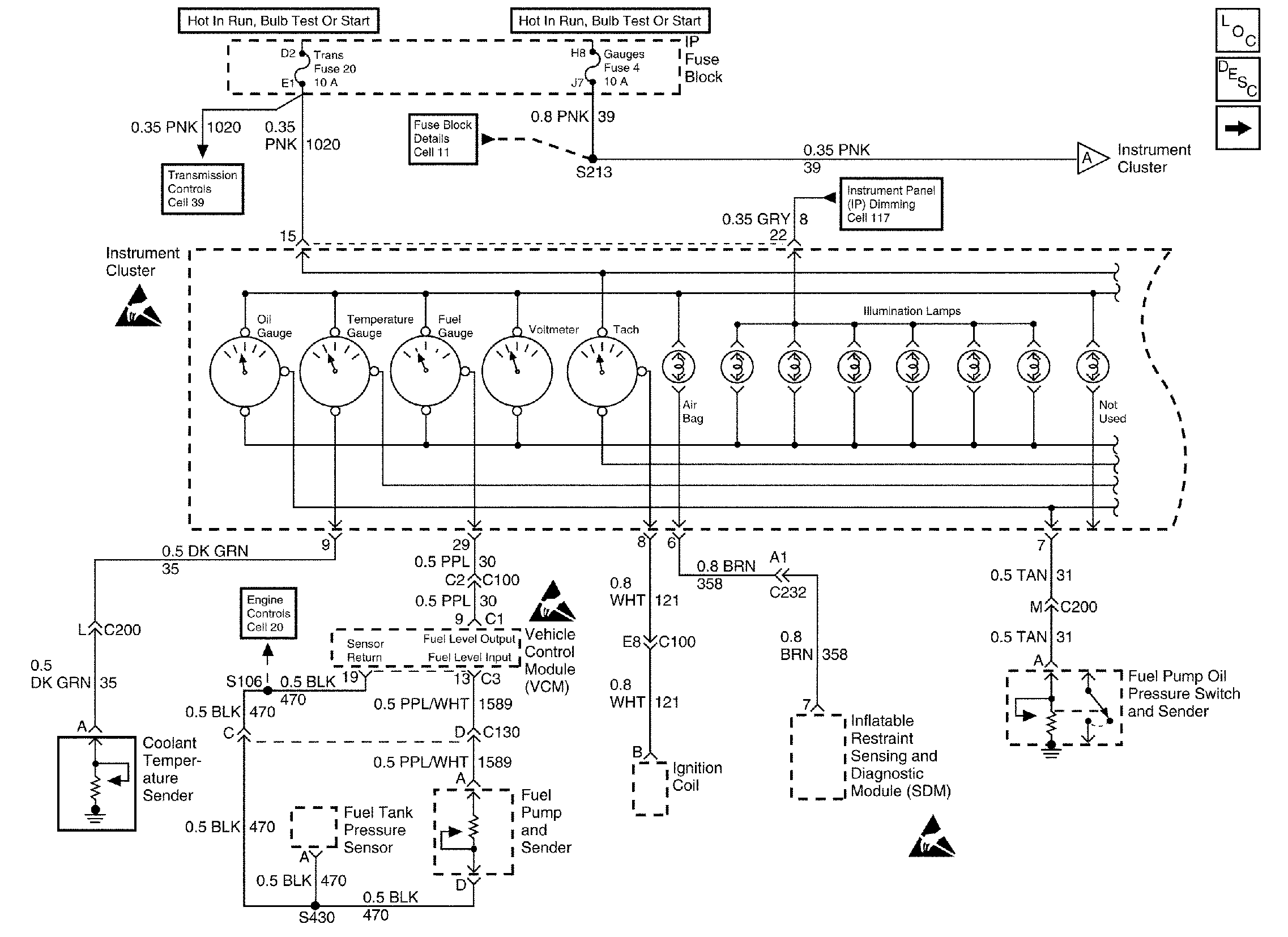

Figure 3:	Cell 82: Diesel Engine Instrument Cluster Components Instrument Panel Description Cell 81: Diesel Engine Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

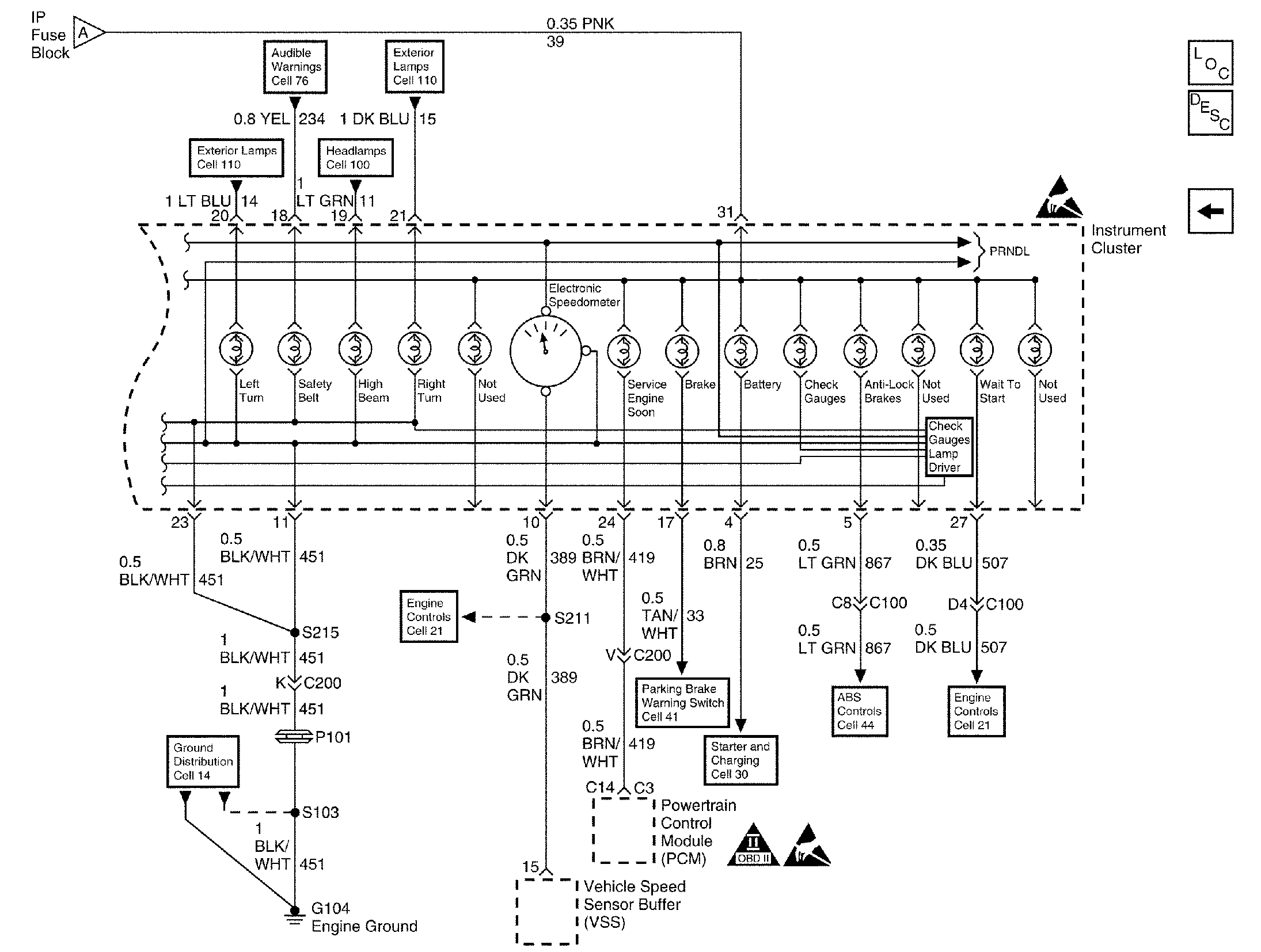

Figure 4:	Cell 81: Diesel Engine Instrument Cluster Components Instrument Panel Description Cell 82: Diesel Engine Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice OBD II Symbol Description Notice

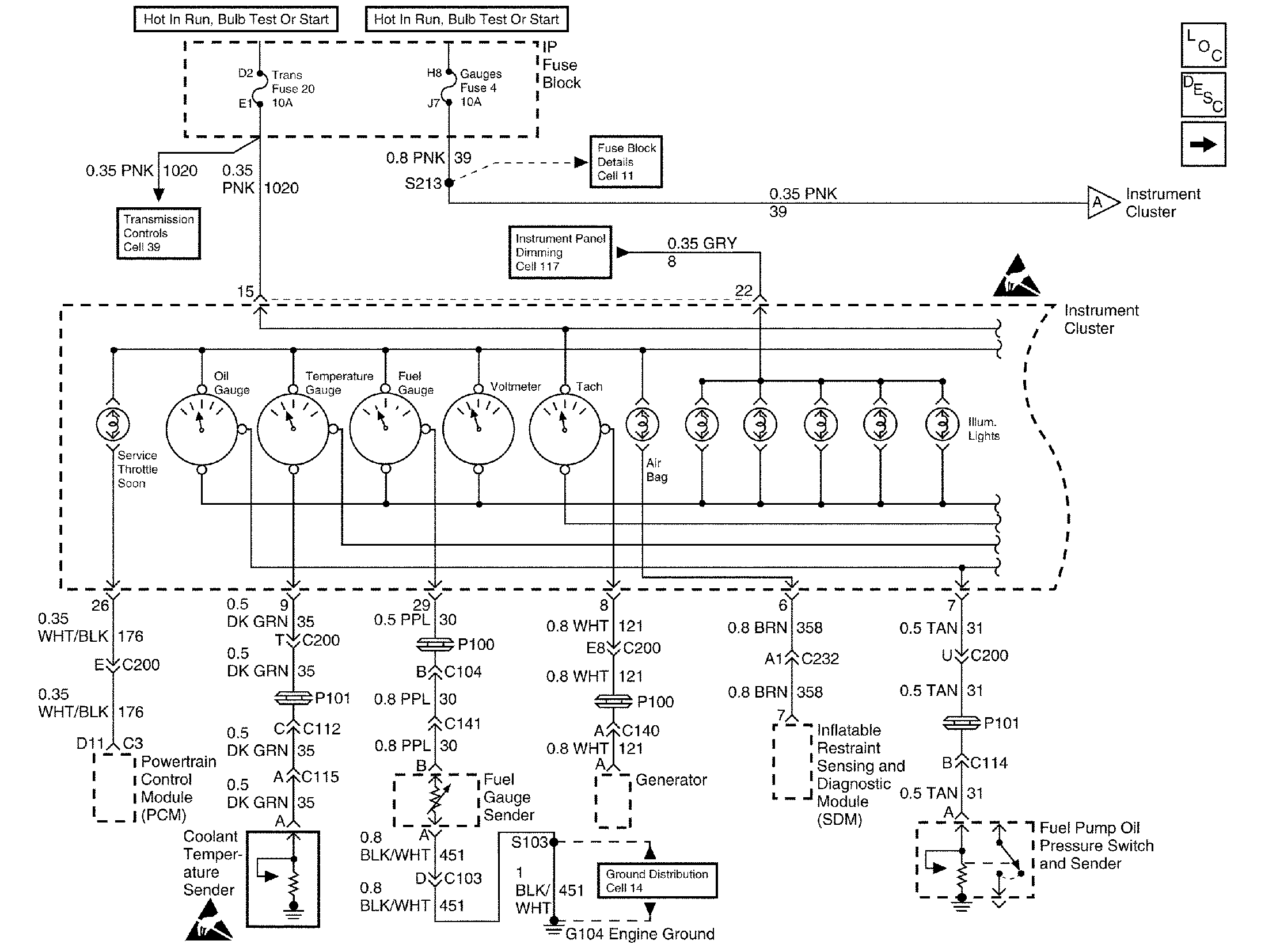

Figure 5:	Cell 82: Gasoline Engines Instrument Cluster Components Instrument Panel Description Cell 81: Gasoline Engine Handling ESD Sensitive Parts Notice SIR Handling Caution Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

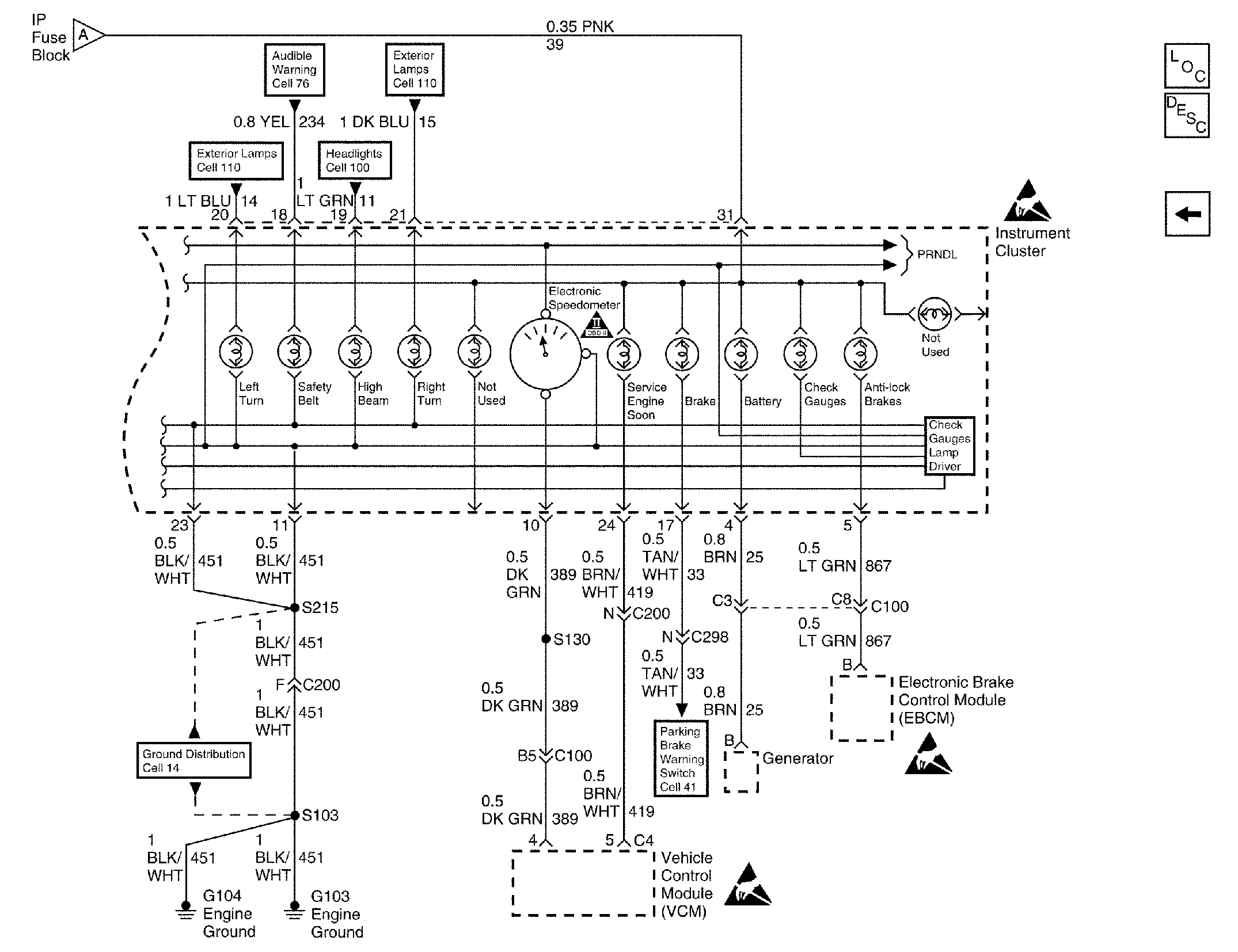

Figure 6:	Cell 81: Gasoline Engine Instrument Cluster Components Instrument Panel Description Cell 82: Gasoline Engines Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
