HVAC Schematics. Chevrolet Chevy Suburban - 2WD 2007

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2007 🢒 Chevy Suburban - 2WD 🢒 Diagnostic Navigation 🢒 Vehicle Diagnostic Information 🢒 HVAC Schematics

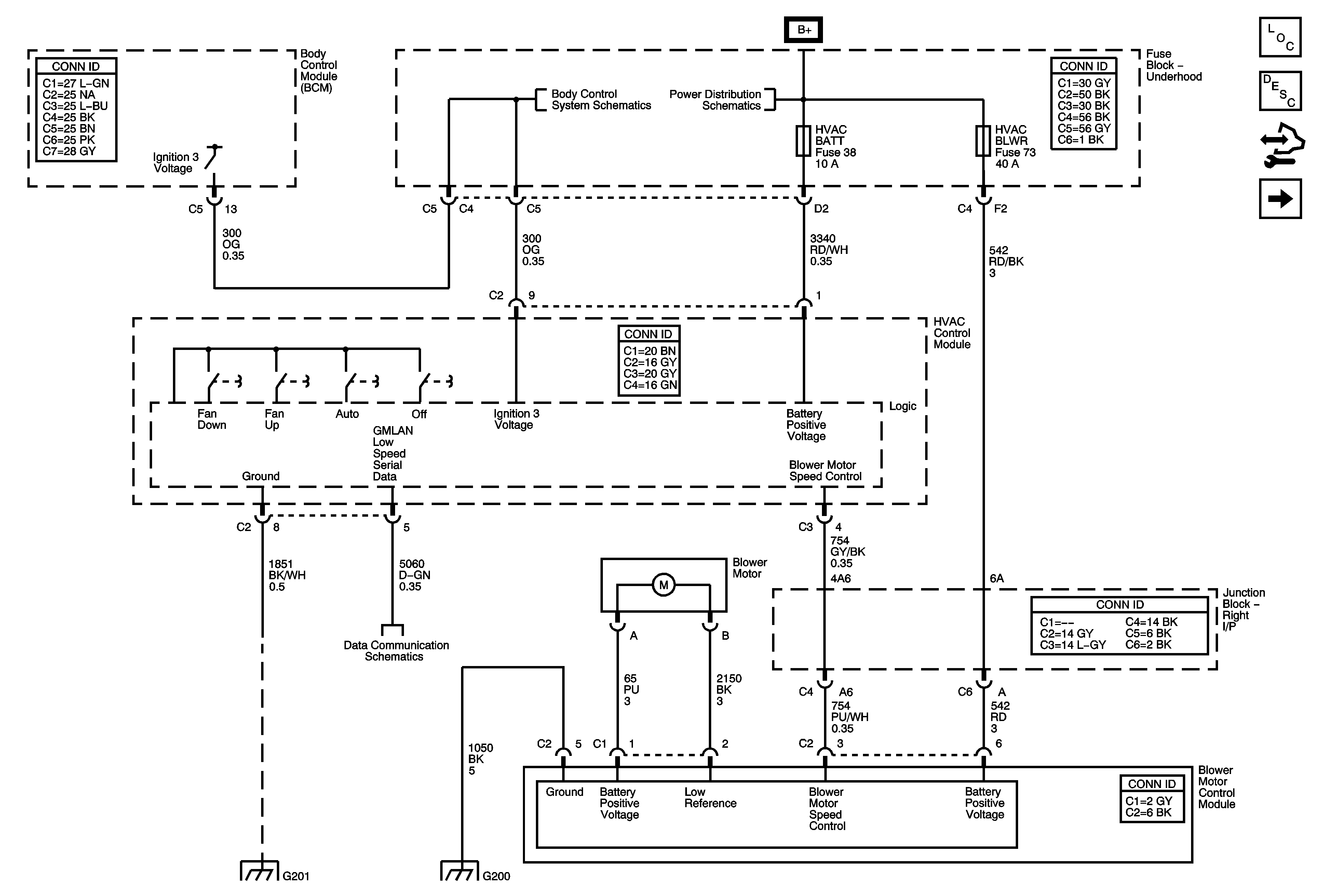

Figure 1:	Module Power, Ground, Serial Data, and Front Blower Controls Master Electrical Component List Air Delivery Description and Operation Control Module References Front Mode Controls Ignition 3 and Accessory Voltage B+ Bus - 1 of 3 Low Speed Bus - SP200 - 1 of 3 G201 G200 - 1 of 2

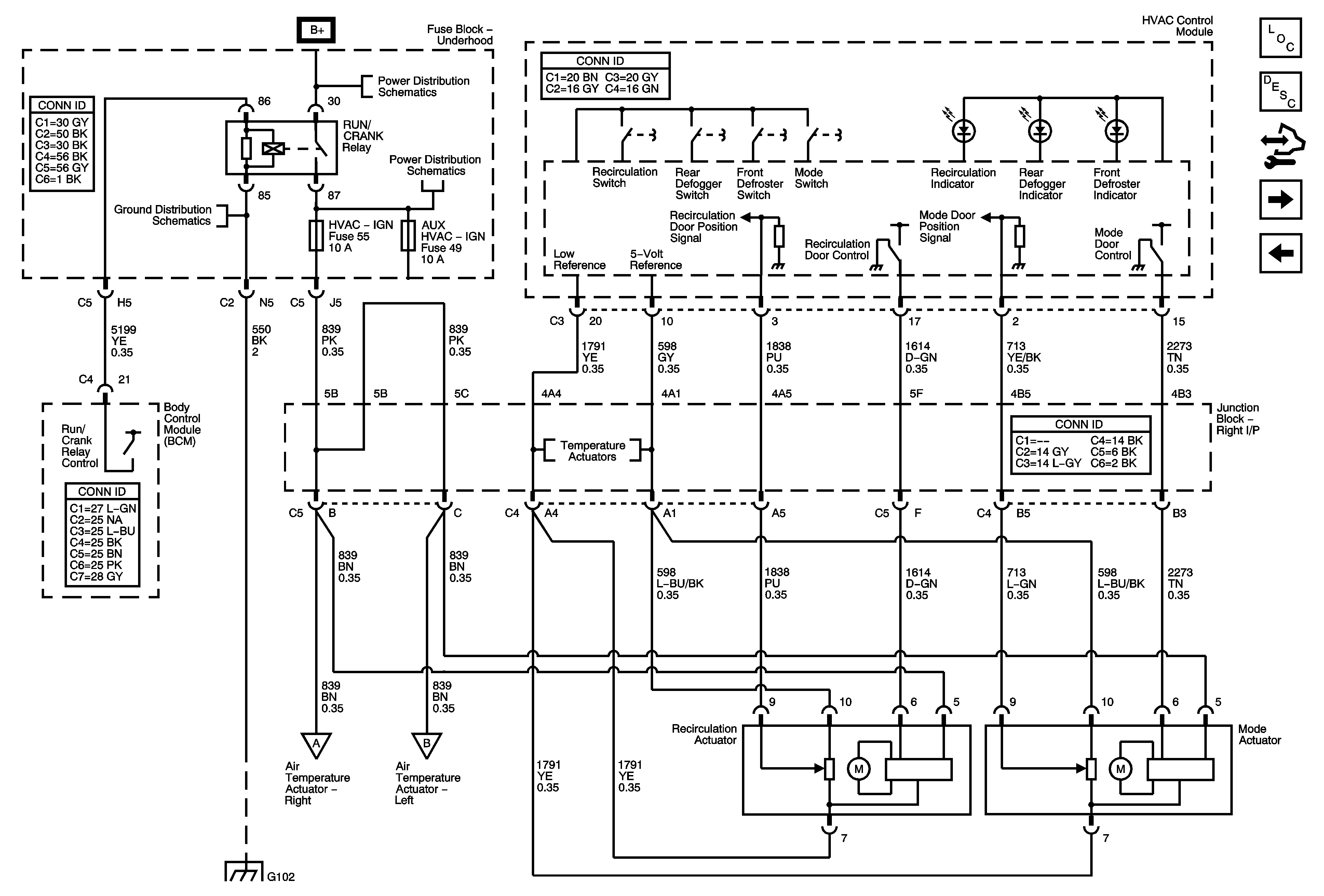

Figure 2:	Front Mode Controls Master Electrical Component List Air Delivery Description and Operation Control Module References Front Temperature Controls Module Power, Ground, Serial Data, and Front Blower Controls B+ Bus - 1 of 3 G102 and G108 B+ Bus - 3 of 3 Front Temperature Controls G102 and G108 Front Temperature Controls Front Temperature Controls
Figure 3:	Front Temperature Controls Master Electrical Component List Air Delivery Description and Operation Control Module References Front Temperature Sensors Front Mode Controls Front Mode Controls Front Mode Controls Low Speed Bus - SP200 - 1 of 3 Headlamp and Daytime Running Lamp Controls High Speed Bus - 1 of 2 G201

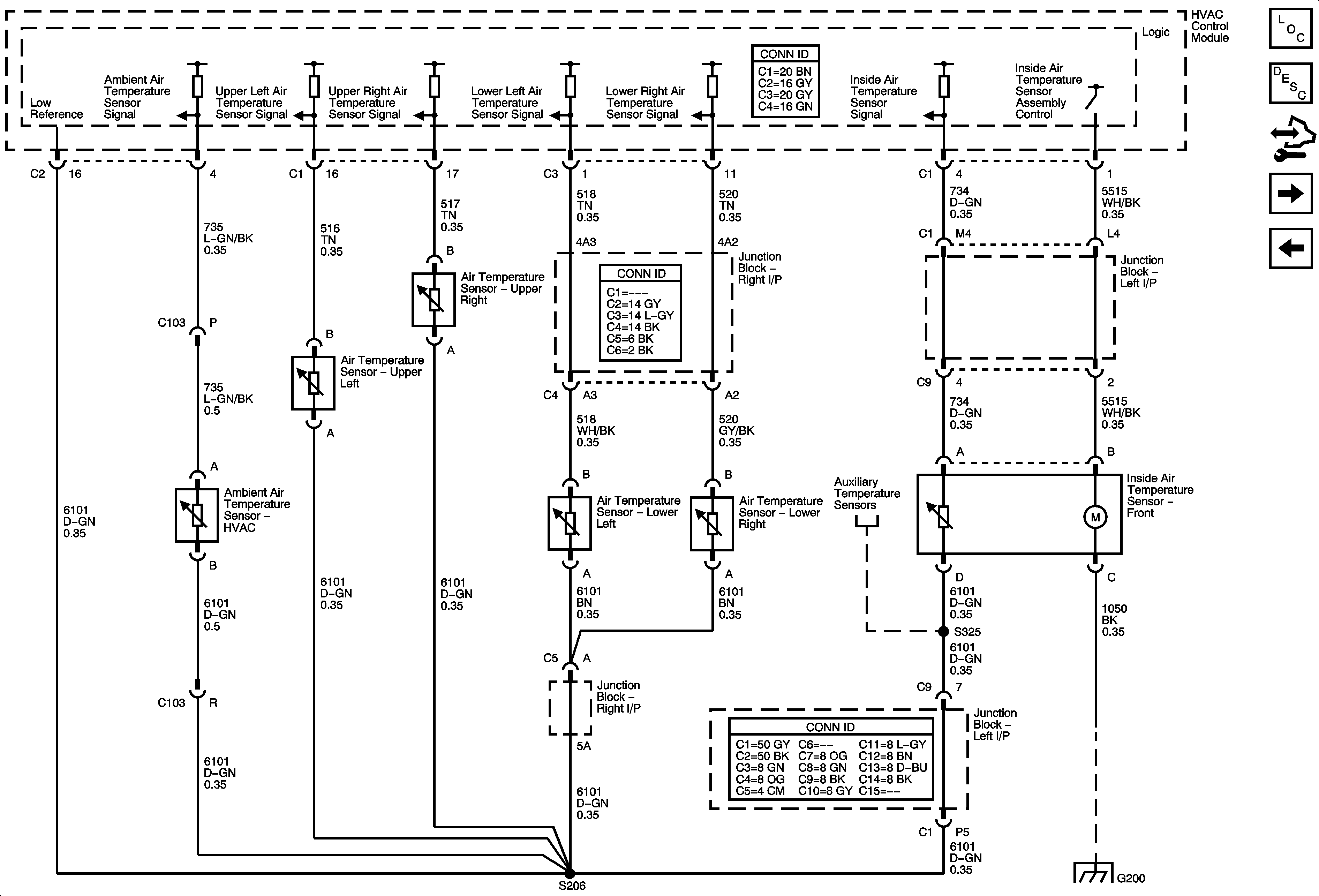

Figure 4:	Front Temperature Sensors Master Electrical Component List Air Delivery Description and Operation Control Module References Auxiliary Blower Controls Front Temperature Controls Auxiliary Temperature Sensors G200 - 1 of 2

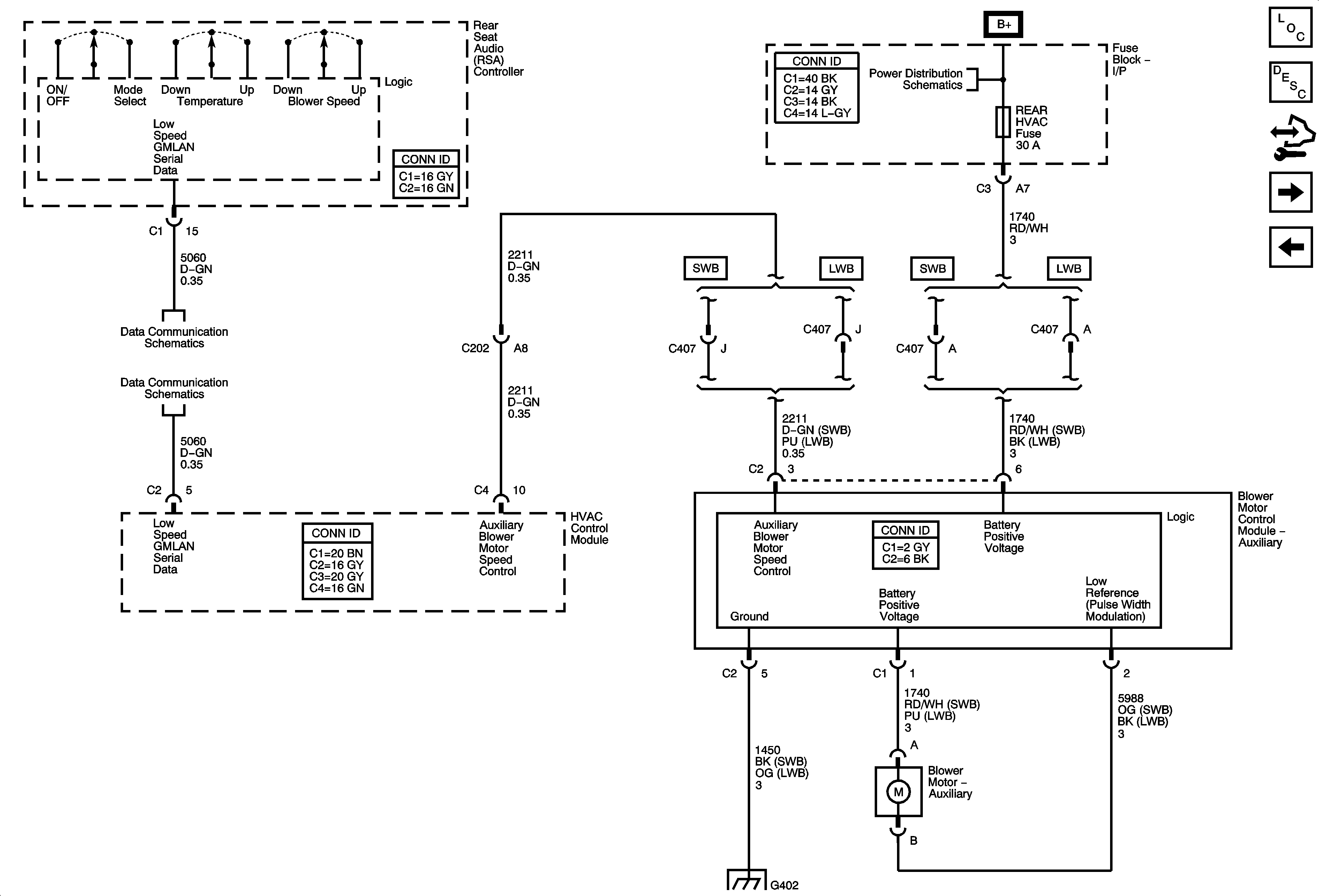

Figure 5:	Rear Blower Controls Master Electrical Component List Air Delivery Description and Operation Control Module References Auxiliary Mode and Temperature Controls Front Temperature Sensors B+ Bus - 1 of 3 Low Speed Bus - SP 200 - 2 of 3 Low Speed Bus - SP200 - 1 of 3 G402 - E52

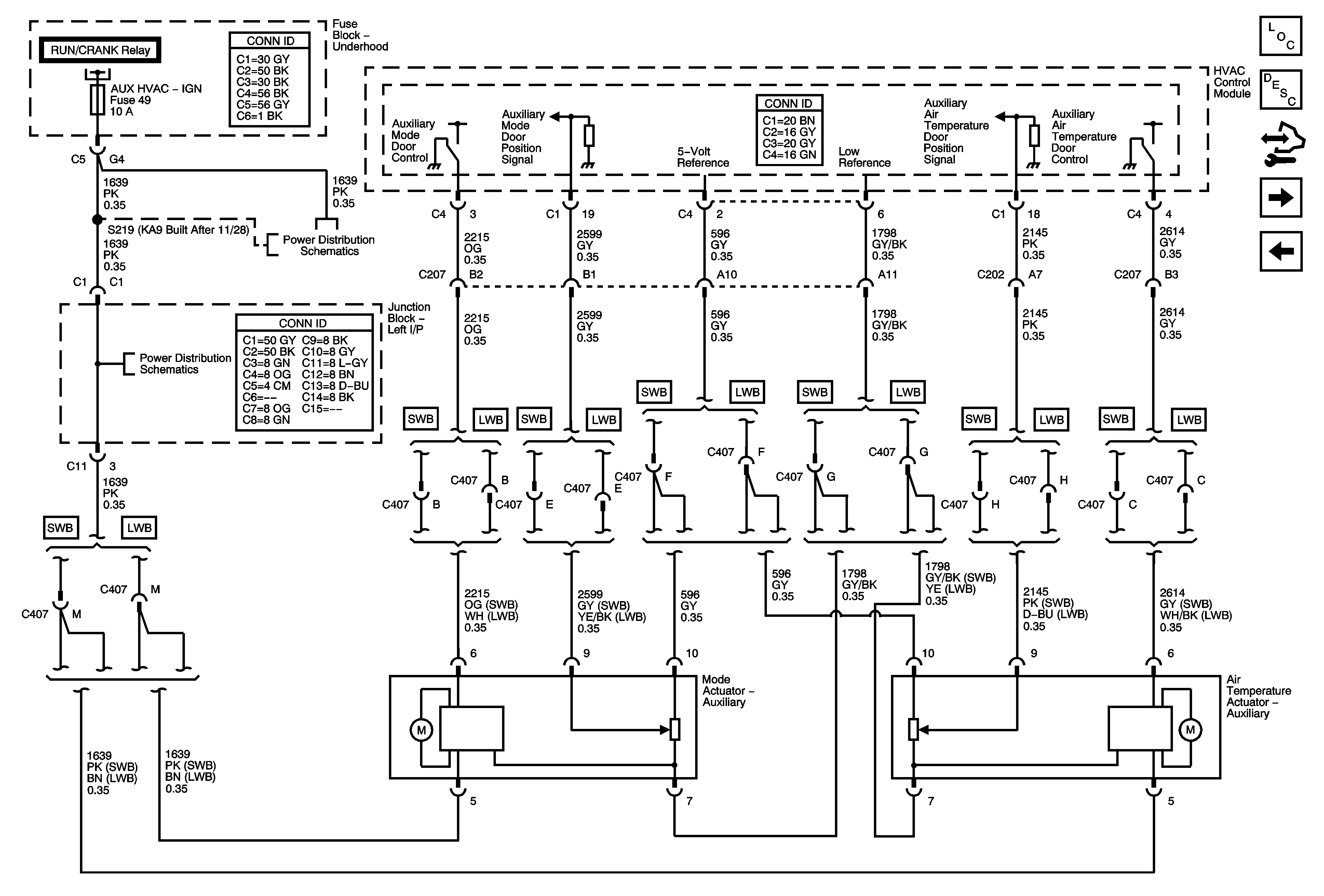

Figure 6:	Rear Mode and Temperature Controls Master Electrical Component List Air Delivery Description and Operation Control Module References Auxiliary Temperature Sensors Auxiliary Blower Controls Front Mode Controls RUN/CRANK Bus - AUX HVAC - IGN and HVAC - IGN Fuses RUN/CRANK Bus - AUX HVAC - IGN and HVAC - IGN Fuses

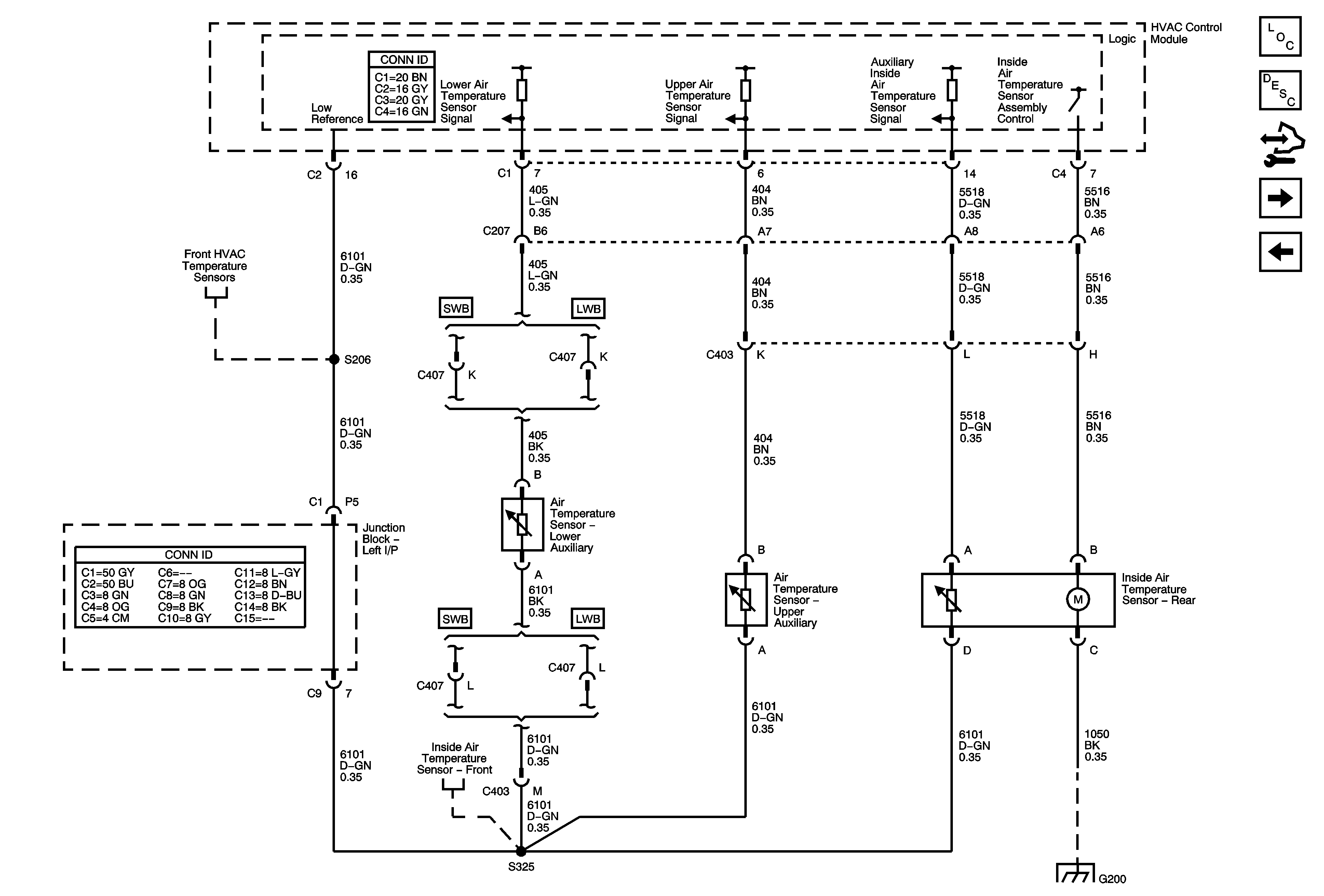

Figure 7:	Auxiliary Temperature Sensors Master Electrical Component List Air Delivery Description and Operation Control Module References A/C Compressor Controls Auxiliary Mode and Temperature Controls Front Temperature Sensors Front Temperature Sensors G200 - 1 of 2
Figure 8:	A/C Compressor Controls Master Electrical Component List Air Delivery Description and Operation Control Module References Auxiliary Temperature Sensors B+ Bus - 1 of 3 Low Speed Bus - SP200 - 1 of 3 High Speed Bus - 1 of 2 G103, G110, and G111 G102 and G108
